emergency towing AUDI S6 2012 Owners Manual

4 Table of contents
Fuses and bulbs ....... .. .. ... .
Fuses . ..... ... . ...... ... .. .. ... .
Bulbs . ... .. ... ... .... ... .. .. ... .
Emergency situations ... .. ... .
General .... ... .. ..... ... .. .. ... .
Starting by push ing or tow ing . .. .. . .
Starting with jumper cables .. .. .. . .
Use of jumper cab les .. .. .. .. .. .. . .
Eme rgency towing with commercial
tow truck .. ................ ... . .
Lift ing vehicle . ........... .... ... .
Technical data ............. .. . .
General information .. .. .. .. . .
Explana tion of te chnical data . .. ... .
Vehicle iden tifica tion .... ...... .. . .
Weights ... ... .. ..... ... .. .. ... .
Dimensions .... .. ..... ... .. .. ... .
Data .. .. .. .. .. .. .... ... .. .. .. . .
2 11 hp, 2 .0 l iter 4-cylinder engine .. .
3 10 hp, 3 .0 lite r 6-cylinder engine .. .
Consumer Information ..... . .
Warranty coverages .... ... .. .. ... .
Operating your vehicle o utside the
U.S.A. or Canada ......... .... ... .
Audi Service Repair Man uals and 264
264
267
268 268
268
268
269
270 27 2
274
274 274
274
274 275
276
27 6
277
278
278
278
Literature . . . . . . . . . . . . . . . . . . . . . . . 278
M aintenance .. .. ...... .... ... .. .. 278
Addit ional accesso ries, modifications
a nd pa rts replacement . . . . . . . . . . . . 280
D ecl aration of Compliance,
Te lecommunication and Electronic
Systems . . . . . . . . . . . . . . . . . . . . . . . . 281
Index . . . . . . . . . . . . . . . . . . . . . . . . . . 283

42 Clear vision
visibility conditions. For example, fog cannot be detected by the light sensors.
So always switch on the headlights
io
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other motorists . Always turn on
the headlights so that you can see ahead and so that others can see your car from
the back.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
@ Tips
-In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display~
page 22.
- You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- Please observe legal regulations when
using the lighting systems described .
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation.
Fig. 33 Center console : emerge ncy flasher switch
• Press the switch~~ fig. 33 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn signal
indicato r lights ¢ Q in the instrument
cluster, as well as the light in the emergency
fl asher switch ~ blink likewise. The emergen­
cy flashers also work when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed .
(D Tips
You should turn on the emergency flashers
when:
- you are the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
- your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
· Adjusting the exterior lighting
The settings ore adjusted in the MMI.
• Select: I CAR I function button > Car systems
control button > Vehicle settings> Exterior
lighting.
Automatic headlights
You can adjust the following settings in the
Automatic headlights menu :
Headlights activation time -You can adjust if
the headlights switch on
Early , Med. or Late
according to the sensitivity of the light sensor .
Audi adaptive light* -You can switch adaptive
light
On and Off .
Daytime running lights
USA models:
You can switch the daytime run­
ning lights
on and off.
Canada models:
The function cannot be
turned off.
It is activated automatically each
time the ignition is switched on. This menu
item is shown "greyed out".

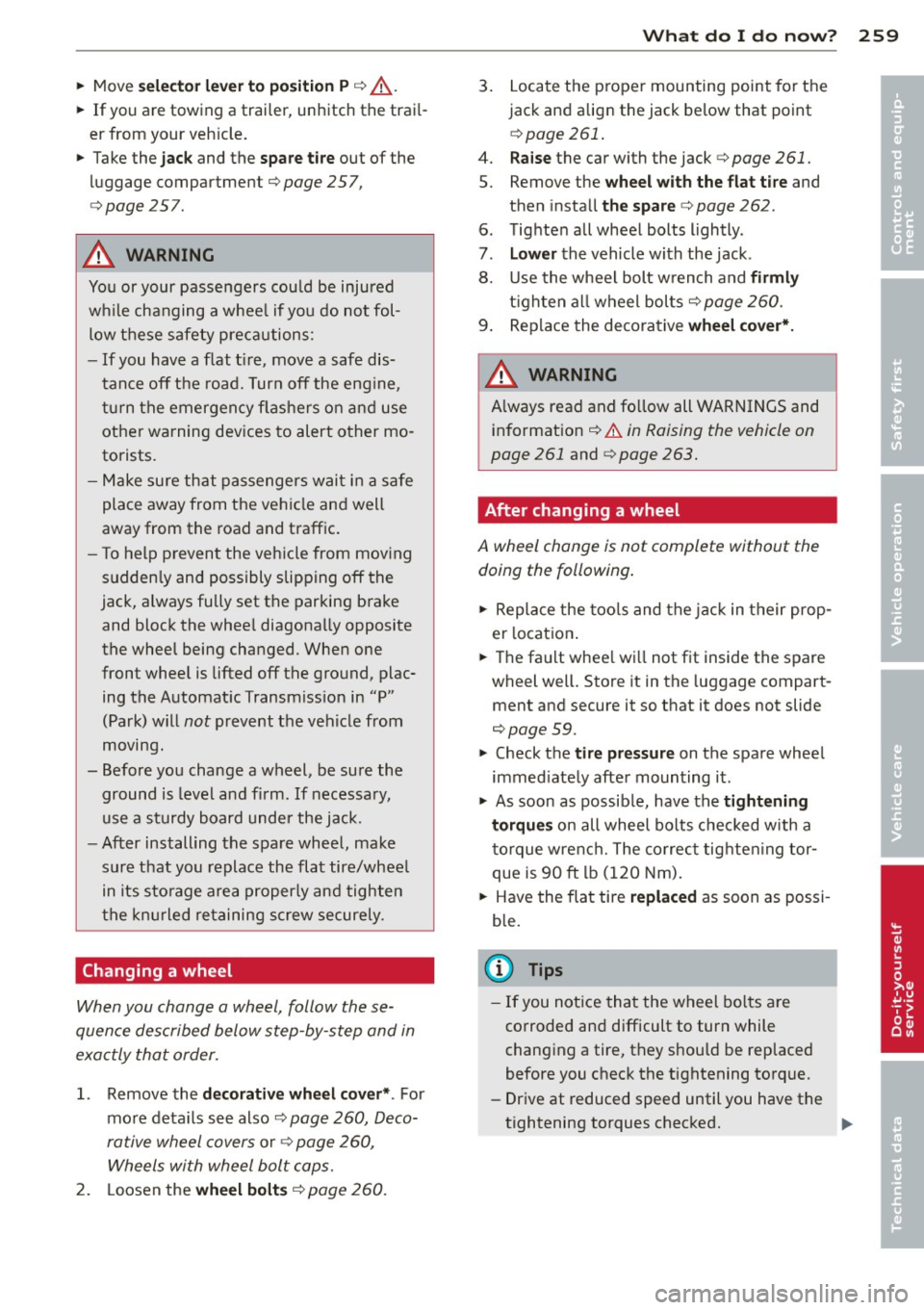

• Move select or lever to p osition P q ,& .
• If you are towing a trailer, unhitch the trail­
er from your veh icle.
• Take the
jack and the spare t ir e out of the
luggage compartment
q page 257,
q page 257.
A WARNING
You or your passengers cou ld be injured
while changing a whee l if you do not fol­
low these safety precautions:
- If you have a f lat t ire, move a safe dis­
tance off the road. Turn off the eng ine,
turn the emergency f lashers on and use
other warning devices to alert o ther mo­
torists.
- Make su re that passengers wait in a safe
pla ce away from the ve hicle and well
away from the road and traffic.
- T o help preven t the veh icle from mov ing
sudden ly and possibly slipping off the
jack, always fully set the parking brake
and block the whee l diagonally opposite
the wheel being changed . When one
front wheel is lifted off the ground, plac­
ing the Automat ic Transm iss ion in "P"
(Park) will
not prevent the vehicle from
moving.
- Before you change a wheel, be sure the ground is level and fi rm. If necessa ry,
use a sturdy board under the jack.
- After installing the spa re wheel, make
sure that you replace the flat tire/whee l
in its sto rage area properly and tighten
the kn u rled re taining screw securely.
Changing a wheel
When you change a wheel, follow the se­
quence described below step-by-step and in
exa ctly that order .
-
1. Remove the decorati ve wheel cov er* . For
mo re deta ils see also
Q page 260, Deco­
rative wheel covers
o r q page 260,
Wheels with wheel bolt caps.
2 . Loosen the wheel b olts q page 260.
What do I do now? 259
3. Locate the proper mounting point for the
4.
5.
6.
7.
8.
9 .
jack and align the jack below that point
q page 261.
Raise the car with the jack q page 261.
Remove the wheel with the flat tire and
then insta ll
th e spare c> page 262.
Tighte n all wheel bolts lightly.
Lower the vehicle wi th the jack.
U se the wheel bolt w rench and
firmly
t ighten a ll wheel bolts q page 260 .
Replace the decora tive wheel co ver*.
A WARNING
A lways read and fo llow all WARNINGS and
informat ion¢
& in Raising the vehicle on
page 261
and r::> page 263.
After changing a wheel
A wheel change is not complete without the
doing the following .
• Replace the too ls and the jac k in their prop­
er locat ion .
• The fault whee l wi ll not fit inside the spare
wheel well. Store it in the luggage compart­
ment and secure it so that it does not slide
r::>page 59.
• Check the tire pressure on the spare wheel
immed iate ly after mounting it.
• As soon as possib le, have the
tightening
torqu es
on all wheel bolts c hec ked with a
t o rque wrenc h. The co rrec t tighte ning tor­
que is
90 ft lb (120 Nm).
• Have the flat tire
replaced as soon as possi ­
b le.
(D Tips
- I f you not ice that the wheel bo lts a re
corroded and difficult to turn while
changing a tire, they should be rep laced
before you check the tightening torque.
- Drive at reduced speed until you have the
tightening torques checked. ..,_
•
•

268 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who
have the necessary tools and equipment to
perform these ope rations.
Starting by pushing or
towing
Q;) Note
Vehicles w ith an automatic transmission
cannot be started by pus hing o r tow ing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumpe r cables to start the en­
g ine .
Jumper cables
Use only jumper cables of sufficiently large
cross section to carry the starter current safe­
ly. Refer to the manufacturer's specif ications.
Use only jumper cables with
insulated termi­
na l clamps which are distinctly marked:
plus(+) cable in most cases colored red
minu s(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
inju ry. Follow the instructions below for
safe handling of your veh icle's battery.
- Always shield you r eyes and avoid lean­
ing over the battery whenever possible.
- A discharged battery can freeze at tem­
peratures just be low 32 °F (0 °C). Before connecting a
jumper cable, you must
thaw the frozen battery complete ly, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin. Flush any contacted area with
water immediately.
- Improper use of a booster battery to start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es. Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with a low acid level in the battery.
- The vo ltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery . Use of batteries of d ifferent voltage
or substantially different "Ah" rating
may cause an exp losion and personal in­
jury.
- Never charge a frozen batte ry. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batter ies of different voltage or
substantially different capacity (Ah) rat­
ing may cause an exp losion and injury.
The capacity (Ah) of the booster battery
should not be lower than that of the dis ­
charged battery.
- Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS¢
page 214, Engine com­
partment.
«I) Note
-Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
contro l units, relays, rad io, etc.
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,_

2 70 Emergency situations
-When connecting jumper cables, make
sure that they cannot get caught in any
moving parts in the engine compart­
ment.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS c:>
page 214, Engine com­
partment.
(D Note
Improper hook-up of jumper cables can ru­
in the generator.
-Always connect POSITIVE(+) to POSI­ TIVE(+), and NEGATIVE( -) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that all screw plugs on the battery
cells are screwed in firmly . If not, tighten
plugs prior to connecting clamp on nega­
tive battery terminal.
- Please note that the procedure for con­
necting a jumper cable as described
above applies specifically to the case of
you r vehicle being jump started. When
you are giving a jump start to another ve­
hicle, do
not connect the negative(-) ca­
ble to the negative(-) terminal on the
discharged battery@c:>
fig. 201. In­
stead, securely connect the negative(-)
cable to either a solid metal component
that is firmly bolted to the engine block
or to the engine block itself. If the bat­
te ry that is being charged does not vent
to the outside, escaping battery gas
could ignite and explode!
Emergency towing
with commercial tow
truck
General hints
Your Audi requires special handling for tow­
tng.
The follow ing information is to be used by
commercia l tow truck operators who know
how to operate their equipment safely.
-Never tow your Audi. Towing will cause
damage to the engine and transmission .
- Never wrap the safety chains or winch ca­
bles around the brake lines.
- To prevent unne cessary damage , your Audi
must be transported with a flat bed truck.
- To load the vehicle on to the flat bed, use
the towing loop found in the vehicle tools
and attach to the front or rear anchorage
c:>page 270 and c:>page 271.
.&_ WARNING
=
A vehicle being towed is not safe for pas-
-
sengers. Never allow anyone to ride in a
vehicle be ing towed, for any reason.
Front towing loop
Only install the front towing loop when it is
needed.
Fig. 202 Front bumpe r: cove r
Fig. 203 Front bumper: installing the towing loop
There are threads located behind the right
s ide of the front bumper where a towing loop
can be installed. The threads are located be­
hind a cover.
.,. Remove the tow ing loop from the vehicle
tool kit.

286 Index
Homelink ® un iversal remote control .. 281
Remote control key ......... .. .... . 281
DEF
What does this mean when it appea rs in
the trip odometer display? ... .. .... ..
26
Defective light bulb warning ...... ..... 21
Defrosting (windows)
autom atic cl imate control .. .. .. .... ..
6 7
climate control . . . . . . . . . . . . . . . . . . . . . 65
Determining correct load limit ....... . 244
Dimensions .. ... ... ... .... .. .. .. .. .
275
Dimming the rearview mirror . ... .. .. .. 48
Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Door/re ar lid warning . . . . . . . . . . . . . . . . .
23
Doors
Pow er child safety lock ..... ... .. ... . 37
Driver information system
CD/radio display . . . . . . . . . . . . . . . . . . . .
23
Door/rear lid warning . . . . . . . . . . . . . . . 23
Efficiency program . . . . . . . . . . . . . . . . . . 25
Exterior temperature display ..... .. .. 23
On-board computer ... .... .. .. .... .. 24
Driver seating position .... .. .. .. .. .. .
124
drive select .. .......... ...... ... .. .. 95
Adaptive dampers . . . . . . . . . . . . . . . . . . 95
Cornering light ............... .. ... . 95
Safety belt tensione r ...... .. .. .. .. . . 95
Driving safely . . . . . . . . . . . . . . . . . . . . . . 123
Driving through water ........ .. .... . 198
D .
. t· 24
riving 1me .... ... .... ..... .. .. .. . .
Duplicate key . . . . . . . . . . . . . . . . . . . . . . . 30
Dust filter
refer to Pollutant filter . . . . . . . . . . . . . . 63
E
Easy entry featu re .......... .. .. .. .. .. 70
Efficiency program . . . . . . . . . . . . . . . . . . . 25
Fuel economy messages . . . . . . . . . . . . . 25
Other equipment . . . . . . . . . . . . . . . . . . . 25
Electrical accessories (sockets) . . . . . . . . . 55
Electro-mechanical power assist .. .. ... 193
Elec tromechanical parking brake
Emergency braking ........... .. .. ..
75
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 73
Parking .. .. .... ......... .. .. .. .. ..
74
Releasing and closing ..... .... .... .. 73 Starting
assist . . . . . . . . . . . . . . . . . . . . . 7 4
Starting from rest ..................
74
Starting off w ith a trailer . . . . . . . . . . . . . 7 4
Warning/ind icator lights ........ .... . 16
Electronic differential lock (EDL) ....... 189
Warning/ind icator lights ............. 19
Electronic immob ilizer . . . . . . . . . . . . 26, 31
Electronic power control ( EPC)
warning/indicator ligh t ......... .. .. .
20
Electronic speed limiter .......... ..... 29
Electronic stabilizat ion program (ESP) .. 189
Warning/indicator lights ........... .. 19
Emergency actuation
Doors .... .. .. . .................. .
36
Power sunroof ... .......... ...... .. 40
Emergency braking ................... 75
Emergency flashe r .... ... ... .... .. .. . 42
Warning/indicator lights .......... .. .
22
Emergency release
Selector lever . . . . . . . . . . . . . . . .
106, 112
Emergency starting .......... ..... .. 268
Emergency towing .............. .... 270
Emergency unlock ing
Rear lid .... ... .. .. ... ........... .. 37
Emergency warn ing triangle ..........
256
Energy management . .. ...... ... .. .. 194
Engine
Compar tment .. .. ............. ....
222
Coolant ...... ... .. .............. . 227
Data .... ... .. .. .. ...... ..... .. .. 276
starting . .. .. .. .. .... ... . .. ... .. .. . 70
Starting with jumper cables ....... .. 268
Stopping .... .. .. .. ... .. .. .... .... . 72
Engine compartment ............... . 222
Closing the hood .... ... .... ..... .. 221
Opening the hood ................ . 220
Safety instructions ................. 220
Working in the engine compartment .. 220
Engine coolant .. .. ..... ........... . 22 7
Adding coolant ... ..... ........... .
228
Checking the engine coo lant level ..... 227
Expansion tank ... ... .......... .. .. 227
Malfunction symbol ............ .. .. . 16
Radiator fan ..... .. ........... .. .. 229
Temperature gauge ............. ... . 11

Location . . . . . . . . . . . . . . . . . . . . . . . . . 183
Mounting and releasing the anchorage
hook .. .. .. .. .. ........ ... .. .. .. . 184
L eather . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 1
Leather (clea ning) .......... ......... 212
L eaving home . .. .. ..... ... .. .. .. .... 43
Lifting jack ..... ........... ...... .. 26 1
Lifting vehicle ............. .... .. ... 272
Light Ambience lighting ..... ... .. .. .. .. .. 4 4
Coming/ Leaving home .. ... .. .. .. .. .. 43
Daytime running lights .... .. .. .. .. .. 41
Emergency flashers . . . . . . . . . . . . . . . . . 42
Exterior lighting .......... .... .. .... 41
H eadlight range control ............. 41
H igh beam .... .. .. ... ... .. .. .. .. .. 43
L ow beam ......................... 41
Rear fog lights ..................... 41
Side marker ligh ts ........ .. .. .. .. .. 4 1
Turn signa ls .... ...... ... .. .. .. .. .. 4 3
Light/ra in sensor
H eadlig hts ........................ 41
I ntermittent (windshield wipe rs) .. .. .. 46
Sensor defective . . . . . . . . . . . . . . . . . . . . 22
Loading the roof rack . . . . . . . . . . . . . . . . . 58
L ocking
Power locking switch ... ... .. .. .. .. .. 35
Remote control . . . . . . . . . . . . . . . . . . . . 34
Using the key . ........... .. .. .. .... 35
L ow beams . ... ... ..... ... .. .. .. .... 41
L ower universa l anchorages (Canada) 182
Luggage compartment
Cargo net .. ............. .... .. .. .. 61
Enlarg ing .. .. ........... .. .. .. .... 60
Loading .. ..... ........... ...... ... 59
Ski sack .. ..... ........... ...... ... 61
Stowing luggage .................. 129
T ie-downs .. ............. .... .. .. .. 6 1
M
Maintenance ............... ...... .. 278
Malfunct ion Indicator Lamp (MIL) . . 20, 28
M echanical key . . . . . . . . . . . . . . . . . . . . . . 31
Inde x 289
Mirro rs
Adjusting th e exterior mirrors .... .. .. . 48
dimming . ... .. .. .. . .. ... .... ... .. . 48
Vanity mirrors . .. ................. . 45
Moni toring the Advanced Ai rbag System 15 4
Mult ifunct ion steer ing whee l ..... .... .. 24
multitron ic ... .. .... . ... ...... ... .. 101
Automat ic Shift Lock (ASL) .......... 103
Driving ... .. .. .. .. ............... 101
Dynam ic shift program ............. 104
Emergency mode .................. 106
K ick-down .............. .......... 104
Manua l shift program . ......... .. .. 105
Se lector lever .. .. .. .. ......... .. .. 102
N
Natura l leather ........... .......... 211
New tires and wheels
N HT SA 246
Contacting . ..... .. . .. .. ..... ... .. 131
N ight vision assistant .. .. .... ...... .. . 97
Cleaning came ra lens .............. . 206
Number of seats ... ............... .. 133
0
Occ upant seating positions 124
O ctane rat ing . .. .. .... ........... .. 215
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 26
OFF (automatic climate con trol) . . . . . . . . 66
OFF (climate co ntrol) . . . . . . . . . . . . . . . . . 64
Oil
refer to Engine oil ............. .. .. 222
On-board compu ter . . . . . . . . . . . . . . . . . . 24
On-Board D iagnost ic System (OBD)
Data Link Connector ( DLC) .......... .. 28
El ectronic speed limiter .............. 29
Malfunction Ind ic a tor Lamp (M IL) .. .. . 28
Open door/hood/rear lid warning .. ... .. 23
Opening Hood ... .. .. .... .. . .. .. ..... ... .. 220
Power w indows .. .. ............... . 38
Slid ing/ti lting sunroof ............ .. . 39
Operate yo ur vehicle economically and
minimize poll ution ... . .. .. ..... ... .. 198
Other equ ipment (efficiency program) .. . 25
•
•
