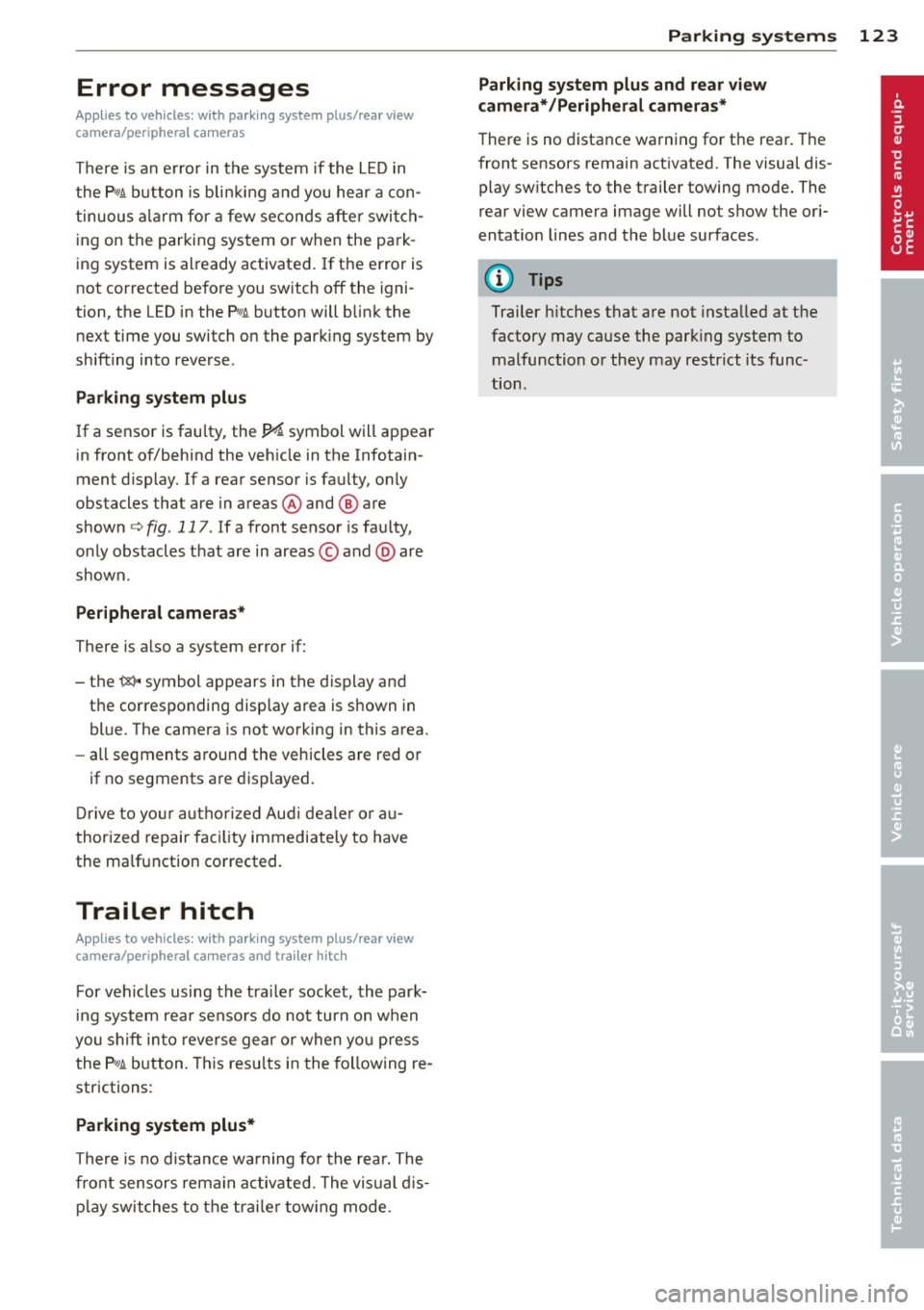

Error messages
Applies to vehicles: with parking system plus/rear view
camera/per ipheral cameras
There is an e rror in the system if the LED in
the
p, qA button is blinking and you hear a con­
tinuous alarm for a few seconds afte r switch­
ing on the parking system or when the park ­
ing system is already activated. If the error is
not corrected before you switch off the igni­
tion, the LED in the
Pw.6. button will blink the
next time you switch on the parking system by
shifting into reverse.
Parking system plus
If a sensor is faulty, the~ symbol will appear
in front of/behind the vehicle in the Infotain­
ment display. If a rear sensor is fau lty, only
obstacles that are in areas @ and @ are
shown
c:> fig. 117 . If a front sensor is fau lty,
only obstacles that are in areas © and @are
shown .
Peripheral cameras*
There is also a system error if:
- the
'(:8:)• • symbol appears in the display and
the corresponding display area is shown in
blue. The camera is not working in this area.
- all segments around the vehicles are red or
if no segments are displayed.
Drive to your authorized Aud i dea ler o r au­
thorized repair fac ility immediately to have
the ma lfunction corrected.
Trailer hitch
Appl ies to vehicles: with parking system plus/rear view
camera/per ipheral cameras and trailer hitch
For vehicles using the tra iler socket, the park­
ing system rear senso rs do not turn on when
you shift into reverse gear or when yo u press
the P
01A button. This resu lts in the following re­
strictions:
Parking system plus*
There is no distance wa rning for the rear. The
front sensors rema in activated. The visual dis­
play switches to the trailer towing mode.
Parking systems 123
Parking system plus and rear view
camera* /Peripheral cameras*
There is no distance warning for the rear. The
front sensors remain activated. The visual dis­
play sw itches to the trailer towing mode. The
rear view camera image will not show the ori­
entation lines and the blue surfaces .
{D Tips
Trailer hitches that are not installed at the
factory may cause the park ing system to
malfunction or they may restr ict its func­
tion.

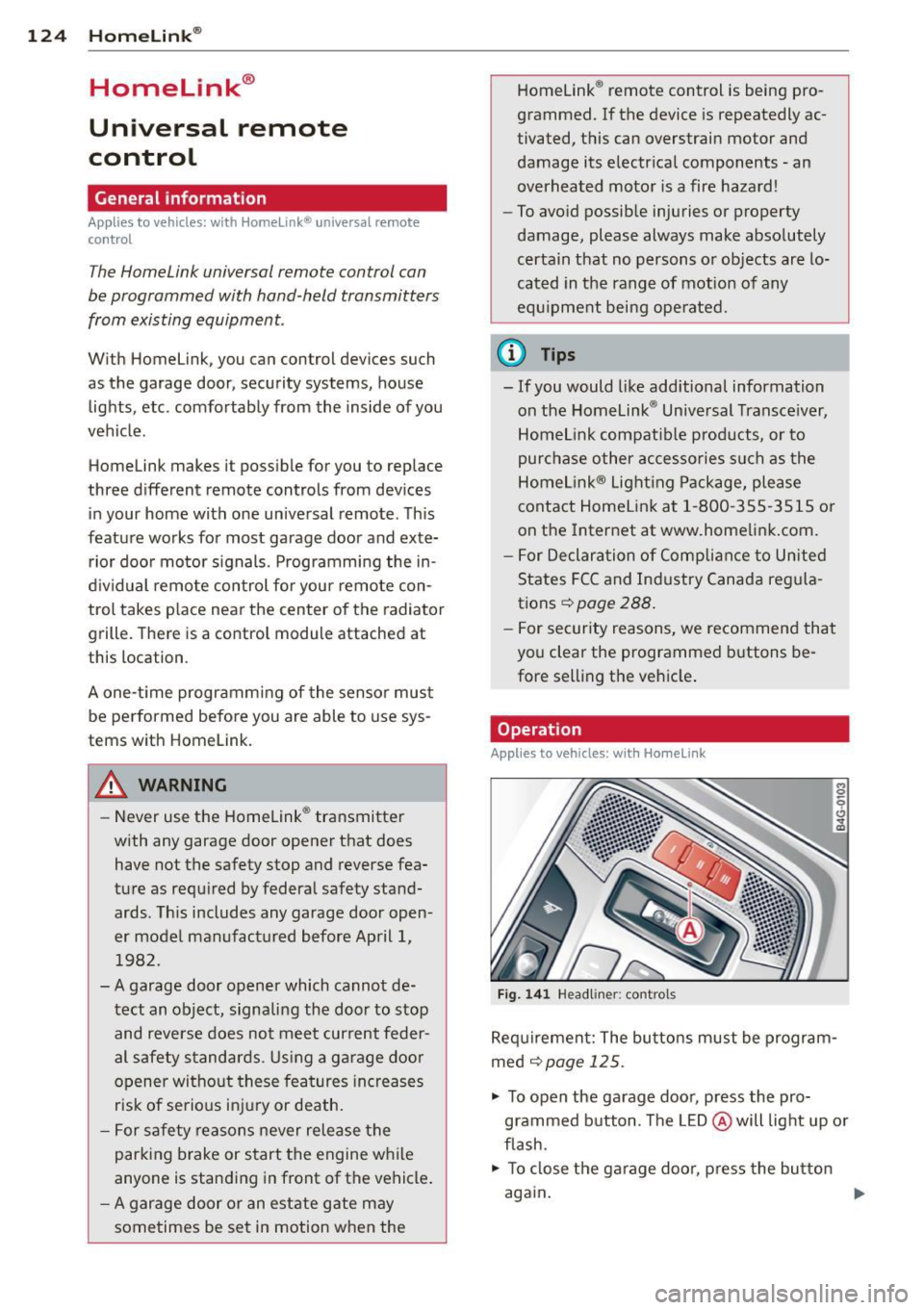

124 Homelin k®
Homelink ®
Universal remote
control
General information
Applies to vehicles: with Homelink® unive rsal remote
co ntrol
The Homelink universal remote control can
be programmed with hand-held transmitters
from existing equipment.
With Homelink, you can control devices such
as the garage door, security systems, house lights, etc. comfortably from the inside of you
vehicle.
Homelink makes it possible for you to replace
three different remote controls from devices in your home with one universal remote . Th is
feature works for most garage door and exte­ rior door moto r signals. Programming the in­
d iv idual remote control fo r you r remote con ­
trol takes p lace near the center of the radiator
grille. There is a control module attached at
this location .
A one-t ime programm ing of the sensor mus t
be performed before you are able to use sys­
tems w ith Homelink.
A WARNING
- Never use the Homelink ® transmitter
with any garage door opener that does have not the safety stop and reverse fea­
ture as required by federal safety stand­
ards. This includes any garage door open­
er mode l manufact ured before April 1,
1982.
- A garage door opener which cannot de­
tect an object, signaling the door to stop
and reverse does not meet current feder­
al safety s tandards. Us ing a garage doo r
o pener witho ut these fea tures increases
risk of serious inj ury or death.
- F or safety reasons never release t he
parking brake or s tart the engine while
anyone is standing in front of the vehicle .
- A garage door or an est ate gate may
sometimes be set in motion when the Homelink
® remote control is being pro­
grammed. If the device is repeatedly ac ­
tivated, this can overstrain motor and
damage its electrica l components - an
overheated motor is a fire hazard!
- To avo id possible injuries or property
damage, please always make absolutely
certa in that no persons or objects are lo­
cated in the rang e of motion of any
equ ipme nt being ope rated.
(0 Tips
- If you would like add itional information
on the Home Link® Unive rsal Transce iver,
Homelink compatib le products, or to
purc hase other accessories s uch as the
HomeL ink® Light ing Package, please
contact Homelink at 1-800 -355 -3515 or
on the Internet at www.homelink .com.
- For Declaration of Comp liance to United
States FCC and Ind ustry Canada reg ula ­
tions
¢page 288.
-For security reasons, we recommend that
you clear the programmed b uttons be­
fore selling the vehicle .
Operation
Applies to vehicles: wit h Ho meli nk
Fig . 14 1 Headliner: controls
M 0
9 (!)
~
Req uirement: The bu tto ns must be program­
med ¢
page 125 .
"' To open the garage doo r, press the pro­
grammed b utton. The LED @ will light up o r
flash.
"' To close the ga rage doo r, press the button
again .
Ill>

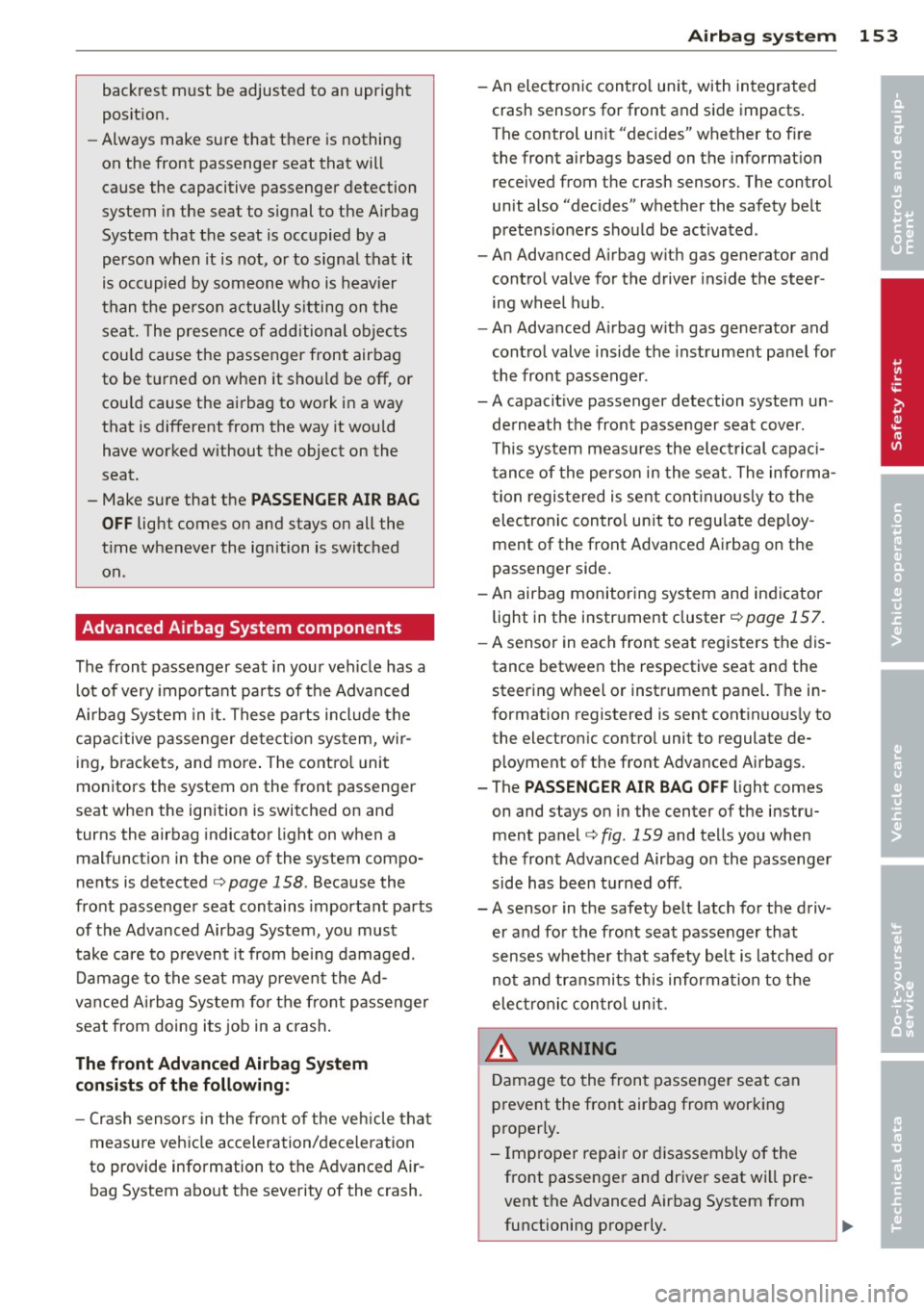

backrest must be adjusted to an upright
posit ion.
- Always make sure that there is nothing
on the front passenger seat that will
cause the capacitive passenger detection
system in the seat to s ignal to the A irbag
System that the seat is occupied by a person when it is not, or to signa l that it
is occupied by som eone who is heavier
than t he pe rson actually s itting on t he
sea t. T he presence of addition al obje cts
cou ld cause the passenger front airbag
to be t urned on when it sho uld be off, or
cou ld cause t he airbag to work in a way
that is different from the way it wou ld
have worked without the object on the
seat.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime w henever the ignition is switc hed
on.
Advanced Airbag System components
The front passenger seat in your vehicle has a
l ot of very important parts of the Advanced
A irbag System in it. These parts incl ude t he
c a pac itive passenger de te ct ion sys tem, wir­
ing, b racke ts, and more . The cont ro l uni t
monitors the system o n the front passenger
seat when the ign ition is switched on and
turns the airbag indicator light on w hen a
malfunct ion in the one of the system compo­
nents is detected¢
page 158. Beca use the
fro nt passenge r seat contains important parts
of the Advanced Airbag System, you must
take care to p revent it from bei ng damaged.
D amage to the seat may preven t the Ad ­
vanced A irbag System for the front passenger
seat from doing its job in a crash .
The front Advanced Airbag System
consists of the following:
-Crash sensors in the front of the veh icle tha t
measure ve hicle acceleration/dece le ration
to provide information to the Advanced Air­ bag System about the severity of the crash.
A irbag system 153
- An elect ron ic contro l unit, with integrated
crash sensors fo r front and side impacts .
The control un it "decides" whether to f ire
the front a irbags based on the informat ion
received from the crash sensors. The control
unit also "decides" whether the safety belt
prete nsione rs should be act iva ted.
- An Advanced A irbag w it h gas generator and
cont ro l valve for the driver ins ide the steer ­
ing wheel h ub.
- An Advanced A irbag w ith gas generator and
cont ro l valve inside the instrument pa nel for
the front passenger .
- A capacit ive passenger detection system un­
de rneath the front passenger seat cover.
This system measu res the ele ct rical capac i­
t ance of the perso n in the seat. The informa ­
t ion regis tered is se nt cont inuo usly to the
elec tronic con trol un it to regu late dep loy­
ment of the front Advanced A irbag on the
passenger side.
-An airbag monitoring system an d ind icator
light in the instr ument cluster ¢
page 157.
-A senso r in each front seat registers the dis ­
tance between the respective seat a nd the
steering whee l or instrument panel. The in­
formation registered is sent cont inuo usly to
the electron ic contro l unit to regulate de­
ployment of the front Adva need A irbags .
- The
PASSENGER AIR BAG OFF li ght comes
on and stays on in the center of the instr u­
ment panel¢
fig. 159 and te lls you when
the front Advanced Airbag o n the passenger
side has been turned off.
- A senso r in t he safety belt latch fo r the d riv­
er and fo r the front seat passenger that
senses whethe r th at safety belt is latched or
no t and tra nsmi ts this informa tion to the
elec tro nic con trol un it.
A WARNING
D amage to the fron t passenger se at can
p revent the front air bag from work ing
p roperly.
- Imp roper repai r or disassembly of the
front passenge r and dr iver seat will pre­
vent the Advanced Airbag System from
functioning properly.
-
•
•

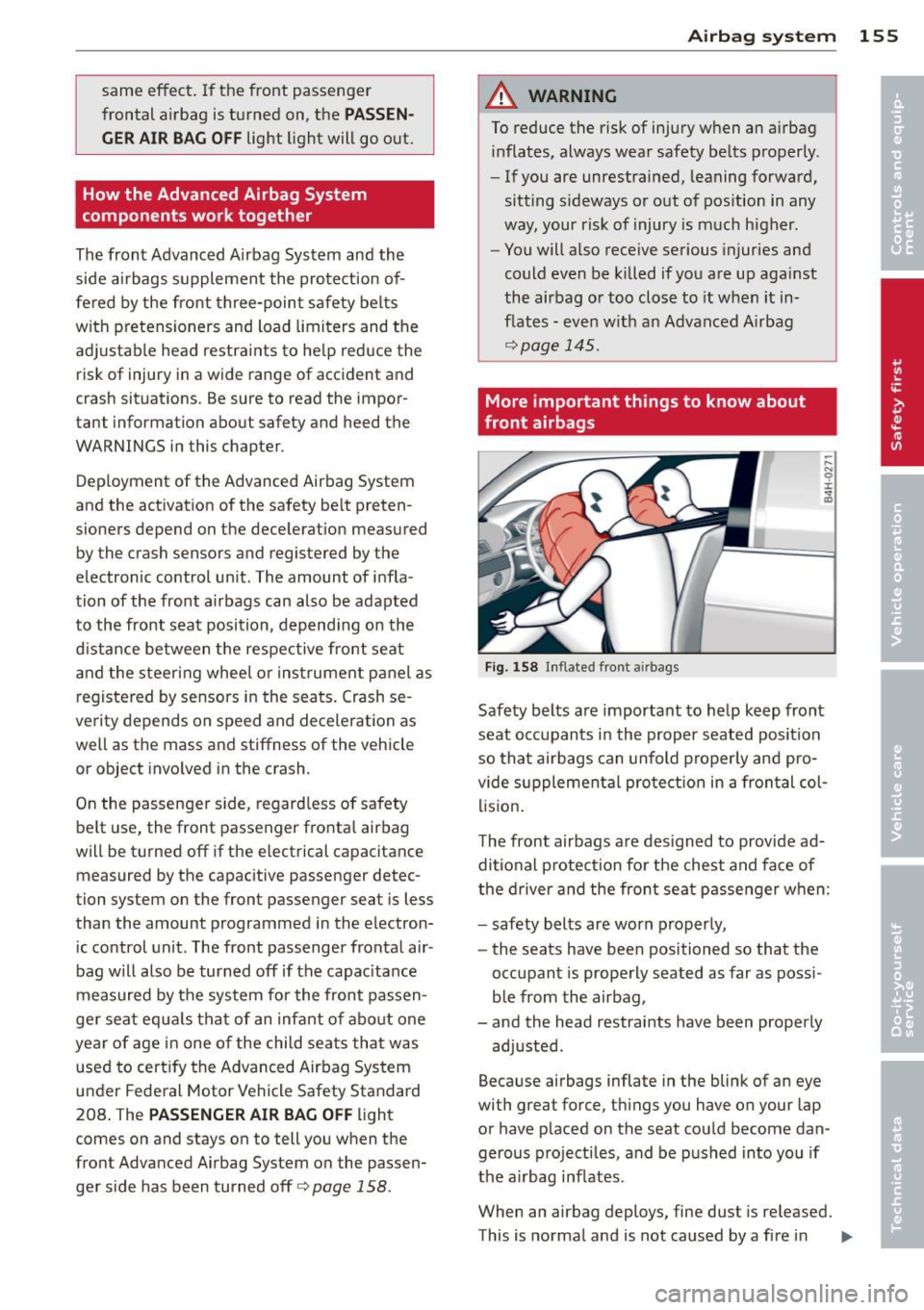

same effect. If the front passenger
frontal a irbag is turned on, the
PASSEN ­
GER AIR BAG OFF
light light will go out.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
side ai rbags supplement the pro tection of­
fe red by the fro nt three -point safety be lts
with pretensioners and load limiters and the
adj ustab le head restra ints to he lp reduce the
risk of injury in a wide range of accident and
crash situations. Be sure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Advanced Airbag System
and the act ivation of the safety be lt preten­
sioners depend on the decelerat ion measured
by the crash sensors and registered by the
electronic control un it. The amount of infla­
tion of the front airbags can also be adapted
to the front seat position, depending on the d istance between the respe ctive front seat
and the steering whee l or inst rument panel as
registered by sensors in the seats. Crash se­
verity depends on speed and deceleration as
well as the mass and stiffness of the vehicle
or object invo lved in the crash .
On the passenger s ide, regard less of safety
be lt use, the front passenger fronta l airbag
will be t urned off if the electrical capacitance
measured by the capacitive passenger detec­
tion system on the front passenger seat is less
than the amount programmed in the electron­
ic control unit . The front passenger fronta l air­
bag will a lso be turned off if the capac itance
measured by the system for the front passen­
ger seat eq ua ls tha t of an infant o f abo ut one
year of age in one o f the child seats that was
used to cert ify the Advanced Airbag System
under Fede ral Motor Vehicle Safety Standard
208 . The
PASSENGER AIR BAG OF F light
comes on and stays on to tell you when the
front Advanced Airbag System on the passen­ ger s ide has been turned off
c:> page 158 .
Airba g sy stem 155
A WARNING
To reduce the risk of injury w hen an airbag
in flates, always wear safety be lts p roperly.
- If you are unrestra ined, leaning forward,
sitt ing s ideways or out of pos ition in any
way, your risk of injury is much higher.
- You will a lso receive serious injuries and
could even be killed if you are up aga inst
the airbag o r too close to it when it in­
flates -even w it h an Advanced A irbag
¢ page 145 .
More important things to know about
front airbags
F ig. 158 In flated front a irbags
Safety belts are important to help keep front
seat occupants in the proper seated position
so that ai rbags can unfold p roper ly and pro­
vide s upplementa l pro tect ion in a fron tal col­
lis ion .
T he front airbags are des igned to provide ad­
di tional protection fo r the chest and face of
the d river a nd the front seat passenger when :
- safety belts are worn properly,
- the seats have been positioned so that the
occupant is properly seated as far as poss i­
b le from the airbag,
- and the head restraints have been properly adjusted .
Because airbags inflate in the blink of an eye
with great force, things you have on your lap
or have placed on the seat could become dan­
gerous p rojecti les, and be pushed into you if
the a irbag inf lates.
When an airbag deploys, fine dust is re leased.
This is norma l and is not caused by a fire in .,,.

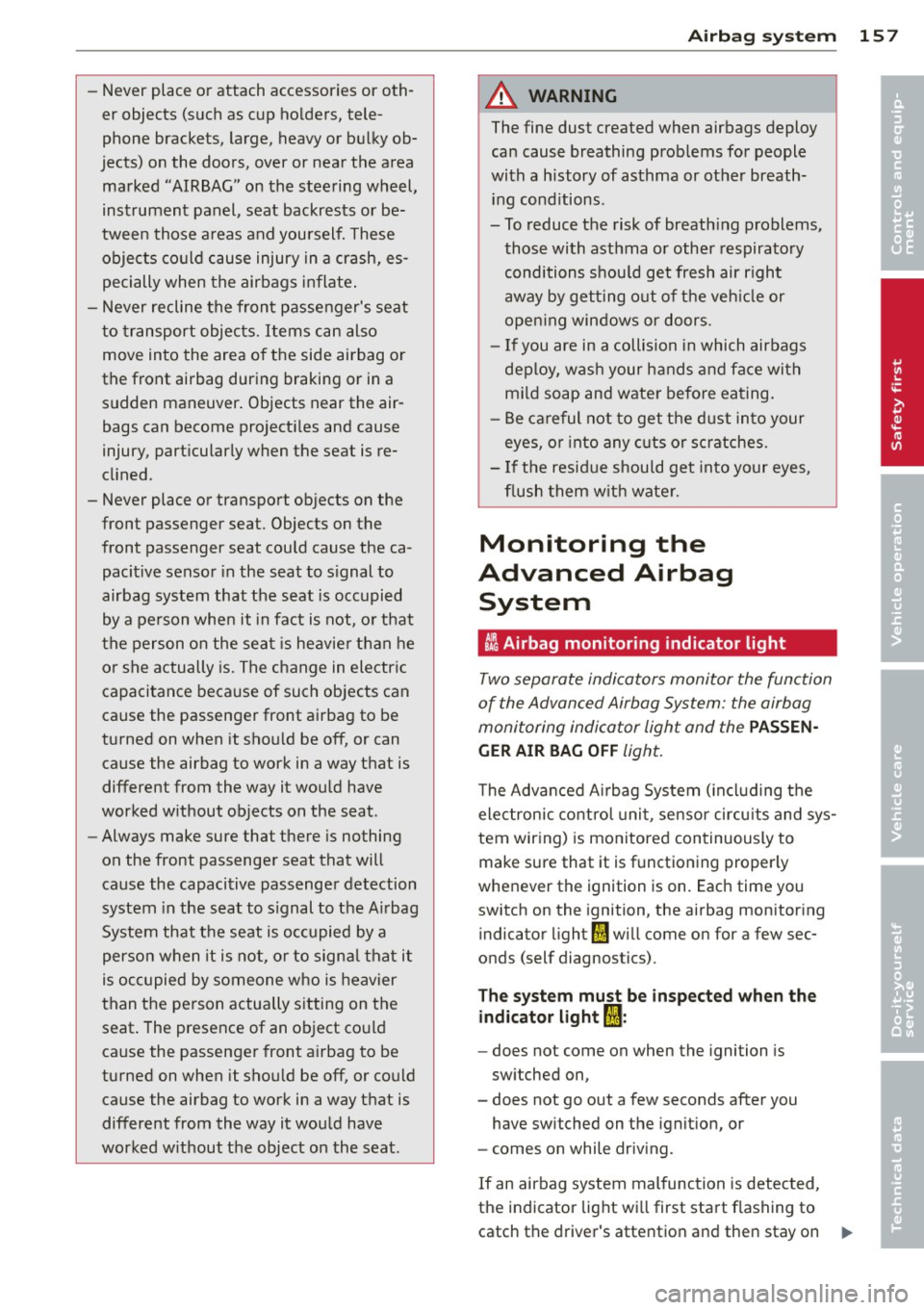

-Never place or attach accessories or o th ­
er objects (such as cup hol ders, tele­
phone brackets, large, heavy or bulky ob­
jects) on the doors, over or near the area
marked ''AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those a reas and yourself. These
objects co uld cause injury in a crash, es­
pecially when the airbags inflate .
- Never recline the front passe nger's seat
to transport objec ts. Items can also
move into the area o f the side airbag or
the front airbag during braking or in a
sudden maneuver . Objects near the air­
bags can become project iles and cause
injury, part icularly when the seat is re­
cl ined .
- Never place or transport ob jects on the
front passenger seat. Objects on the
front passenger seat could cause the ca­ pacitive senso r in the seat to s ignal to
airbag system that the seat is occupied
by a person when it in fa ct is not, o r that
the person on the se at is he avier than he
or she actually is. The change in electric
capacitance beca use of such objects can
cause the passenger front airbag to be
turned on when it sho uld be
off, or can
cause the airbag to work in a way that is
different from the way it wou ld have
worked w ithout objects on the seat.
- Always make sure that there is nothing
on the front passenger seat that will
cause the capacitive passenge r detection
system in the s eat to s ignal to the A irbag
System that the seat is oc cupied by a
pers on when it is not, or to sign al th at it
is occupied by someone who is heavier
than the pe rson actually s itting on the
seat . The presence of an object co uld
cause the passenger front a irbag to be
turned on when it sho uld be
off, or co uld
cause the airbag to work in a way that is
different from the way it wou ld have
worked w ithout the object on the seat. A
irbag
sys tem 157
A WARNING
The fine dust created when airbags deploy
can cause breathing prob lems fo r people
with a history of as thma or other breath­
ing cond itions.
- To reduce the risk of breath ing problems,
those wi th asthma o r other respiratory
conditions s hou ld get fresh air r ight
away by get ting o ut o f the veh icle or
open ing win dows or do ors.
- If you are in a collision in which airbags
deploy, was h your ha nds and fa ce with
mild soap and wate r be fore eating.
- Be ca reful not to get the dust in to your
eyes, o r into any c uts or sc ratches.
- If the resid ue should get into your eyes,
f lus h t hem w ith wa te r.
Monitoring the
Advanced Airbag System
fl~ Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advan ced Airbag System: the airbag
monitoring indi cator light and the
PASSEN­
GER AIR BAG O FF
light.
The Advanced A irbag System ( includ ing the
electron ic co ntro l unit, sensor circu its and sys­
tem wir ing) is monitored con tinuously to
make sure that it is functio ning properly
whenever the ignition is on. Each time you
switch on the ignition, the airbag monitor ing
indicator light
fl will come on for a few sec­
onds (self diagnost ics).
The sy stem must be in spected when the
indicator light
I :
- does not come on when the ignition is
sw itched on,
- does not go out a few seconds after you
have switched on the ignit ion, or
- comes on while driv ing.
If an airbag system malfunc tion is detec ted,
the indicator light wi ll first start f lashing to
catch the driver's attention and then stay on
llo-
•
•

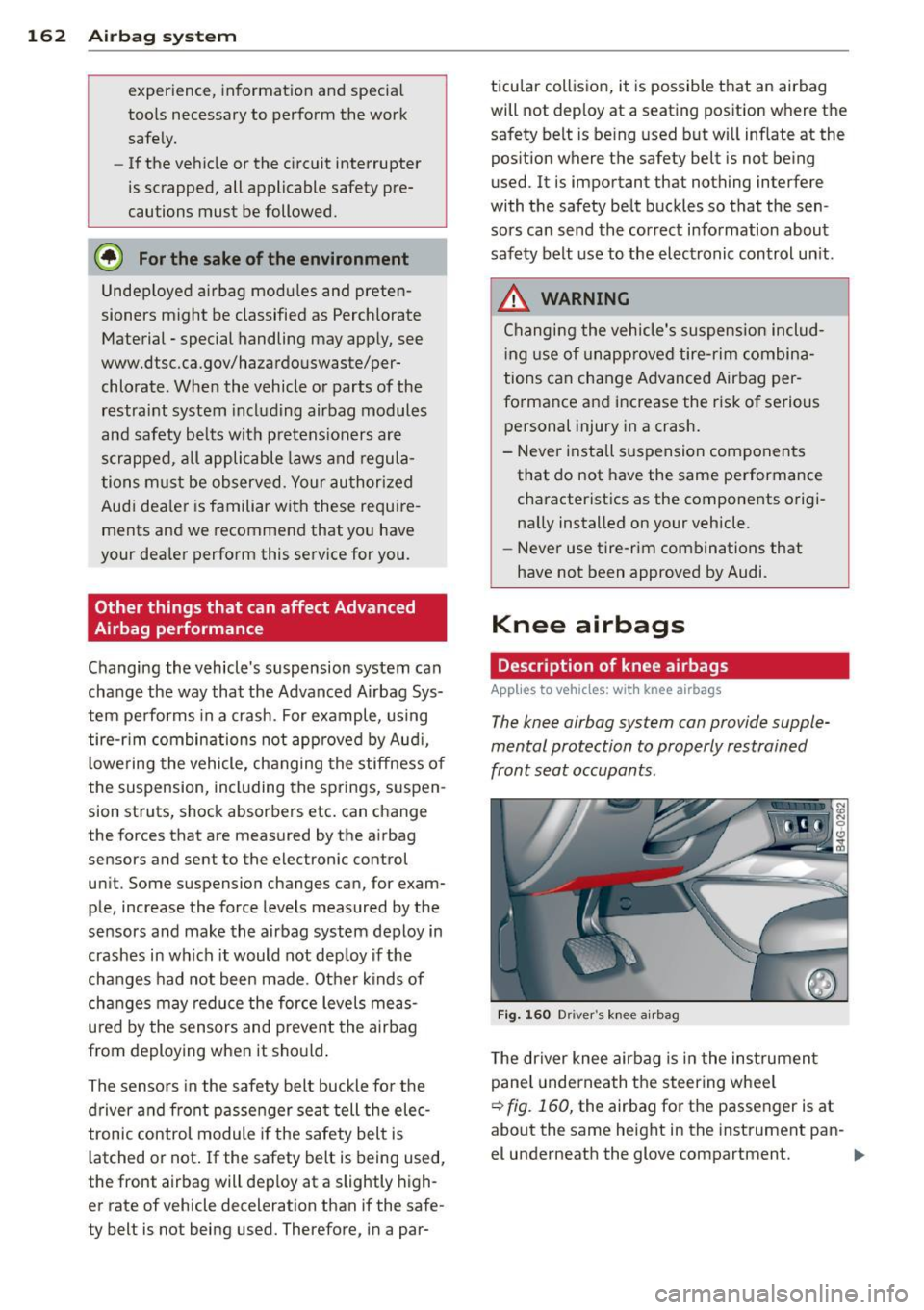

162 Airbag system
experience, informat ion and specia l
too ls necessary to perform the work
safely.
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre­
cautions must be followed.
@ For the sake of the environment
Undeployed airbag modu les and preten­
sioners might be classified as Perchlorate Material - special handling may apply, see
www.dtsc.ca.gov/haza rdouswaste/per­
chlorate. When the vehicle or parts of the
restraint system including airbag modules
and safety belts w it h pretens ioners are
s crapped, a ll applicable laws and regula­
tions mus t be observed. Your au thori zed
Audi dea le r is familiar with these requi re­
ments and we recommend that you have
your dea ler perfo rm this serv ice for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced A irbag Sys­
tem pe rforms in a crash. For example, us ing
tire-r im combinations not app roved by Aud i,
lowering the vehicle, ch anging the stiffness o f
the suspension, including the springs, suspen ­
sion struts, shock absorbers etc. can change
the forces that are measured by the a irbag
sensors and sent to the electronic control
un it. Some suspension changes can, for exam­
p le, increase the force levels measured by the
sensors a nd make the airbag system deploy in
crashes in w hich it would not dep loy if the
changes had not been made . Other kinds of
ch an ges may reduce the force levels meas­
u red by the sensors and prevent the airbag
from deploying when it sho uld .
The senso rs in the safety belt buckle fo r th e
d river a nd front passe nger sea t tell the elec ­
tronic control module if the safety belt is
l atched or not .
If the safety belt is being used,
the front airbag will dep loy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par- t
icu lar collision, it is possible that an airbag
will not dep loy at a seat ing position where the
safety belt is be ing used b ut w ill inflate at the
pos ition where the safety belt is not be ing
used. It is important that nothing interfere
with t he safety be lt buckles so that the sen ­
sors can send the correct info rmation about
safety belt use to the electronic control un it .
_&. WARNING
Changi ng the vehicle's suspension includ ­
i ng use of unapp roved tire-rim combina­
tions can change Advanced Airbag per­
formance and increase the risk of serious pe rsonal injury in a crash .
- Never install suspension components that do not have the same pe rformance
characteristics as the components o rigi­
na lly installed on your vehicle.
- Never use tire-rim combinations that
have not been approved by Audi.
Knee airbags
Description of knee airbags
App lies to vehicles : wi th knee airbags
The knee airbag system can provide supple­
mental protection to properly restrained
front seat occupants .
Fig . 1 60 Driver 's knee a irbag
T he dr iver knee airbag is in the ins trument
pane l underneath the steering wheel
~ fig. 160, the airbag for the passenger is at
about the same height in the instrument pan-
el underneat h the glove compartment. .,.

of the passenger seat. If the airbag de­
p loys, this can resu lt in serious or fata l
injuries.
- Never carry objects of any kind in the
footwell area in front of the driver's or passenger's seat. Bulky objects (shop­
p ing bags, for e xample) ca n interfere
with or prevent proper dep loyment of
the airbag . Small objects can be
thrown throug h the vehicle if the ai r­
b ag deploys and injure you o r yo ur pas­
sengers.
- Make su re there are no crac ks, deep
scratches or other damage in the area of
the instrument pane l where the knee air­
bags are located.
- If children are incorrect ly sea ted, their
risk of i njury increases in a collision
¢ page 171, Child Safety .

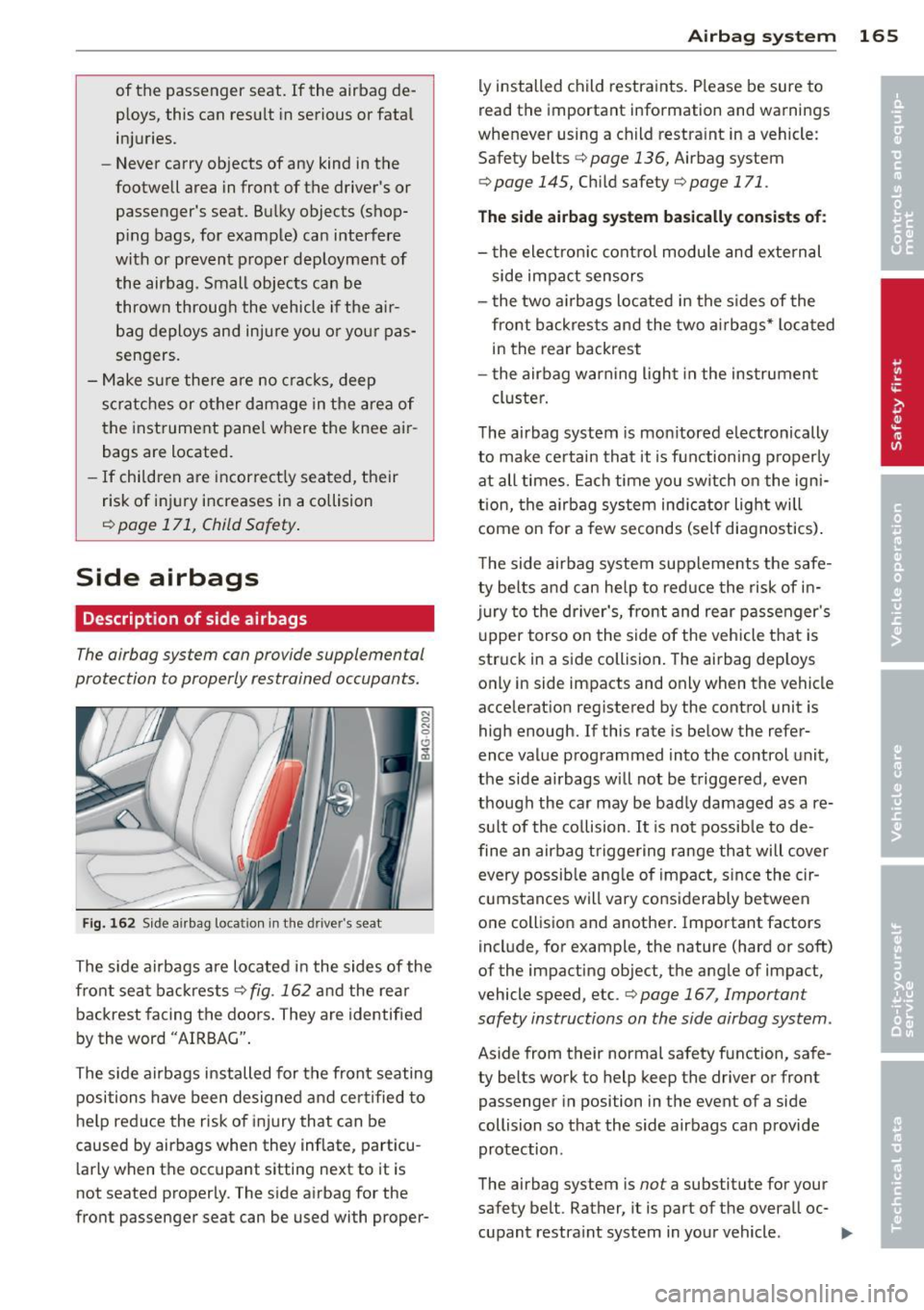

Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants .
Fig . 162 Side a irbag loca tion in t he d river 's s eat
The side a irbags a re located i n the sides of the
front seat ba ckrests
¢fig . 162 a nd the rear
backrest facing the doors . They are identified
bytheword "AIRBAG" .
The s ide a irbags installed for the front seating
positions have been designed and cer tified to
he lp red uce the risk of i nju ry that can be
caused by airbags when they inflate, particu ­
l arly when the occupant sitting next to it is
not seated proper ly . The side airbag for the
front passenger seat can be used with proper-
A irba g sy stem 165
ly installed child restra ints . Please be sure to
read the important informat ion and warnings
whenever using a child restra int in a vehicle:
Safety belts ¢
page 136, Airbag system
c>page 145, Chi ld safety c> page 171.
The side airbag sy stem basically consi st s of:
- t he electro nic cont ro l modu le and external
side impact sensors
- t he two a irbags located in the s ides of the
front backrests and the two a irbags* loc ated
in the rear backrest
- t he airbag warning light in the ins trumen t
cl uste r.
T he airbag system is mon itored e lec tronically
to make ce rtain that it is f unction ing p roperly
at all times. Each time you sw itch o n the igni­
tion, the airbag system ind icator light will
come on for a few seconds (self diagnostics) .
T he side airbag system supplements the safe ­
t y bel ts a nd can help to red uce the risk of in­
j u ry to the dr iver's, fron t and re ar passenger's
u pper torso on the side of the veh icle t hat is
str uck in a side collision . The airbag dep loys
only in side impacts and only when the vehicle
acce lerat ion reg istered by the control unit is
high enough. If this rate is below the refer­
ence value programmed into the co ntrol unit,
the side airbags w ill not be triggered, even
though the car may be bad ly damaged as a re­
su lt of the co llision .
It is not possib le to de ­
fine an airbag triggering range that will cover every possib le ang le of impact, s ince the cir­
cumstances will vary considerably be tween
one collisio n and another . Important factors
include, for example , the nature (hard or soft)
of the impacting objec t, the angle of impact,
vehicle speed, etc .
¢ page 167, Impor tan t
safety instructions on the side airbag system .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front passenger in position in the event of a side
collision so that the side airbags can provide protection .
The airbag system is
no t a substitute for your
safety belt. Ra ther, it is part of the overall oc-
cupant restra int system in your vehicle .
IIJJ,

166 Airbag system

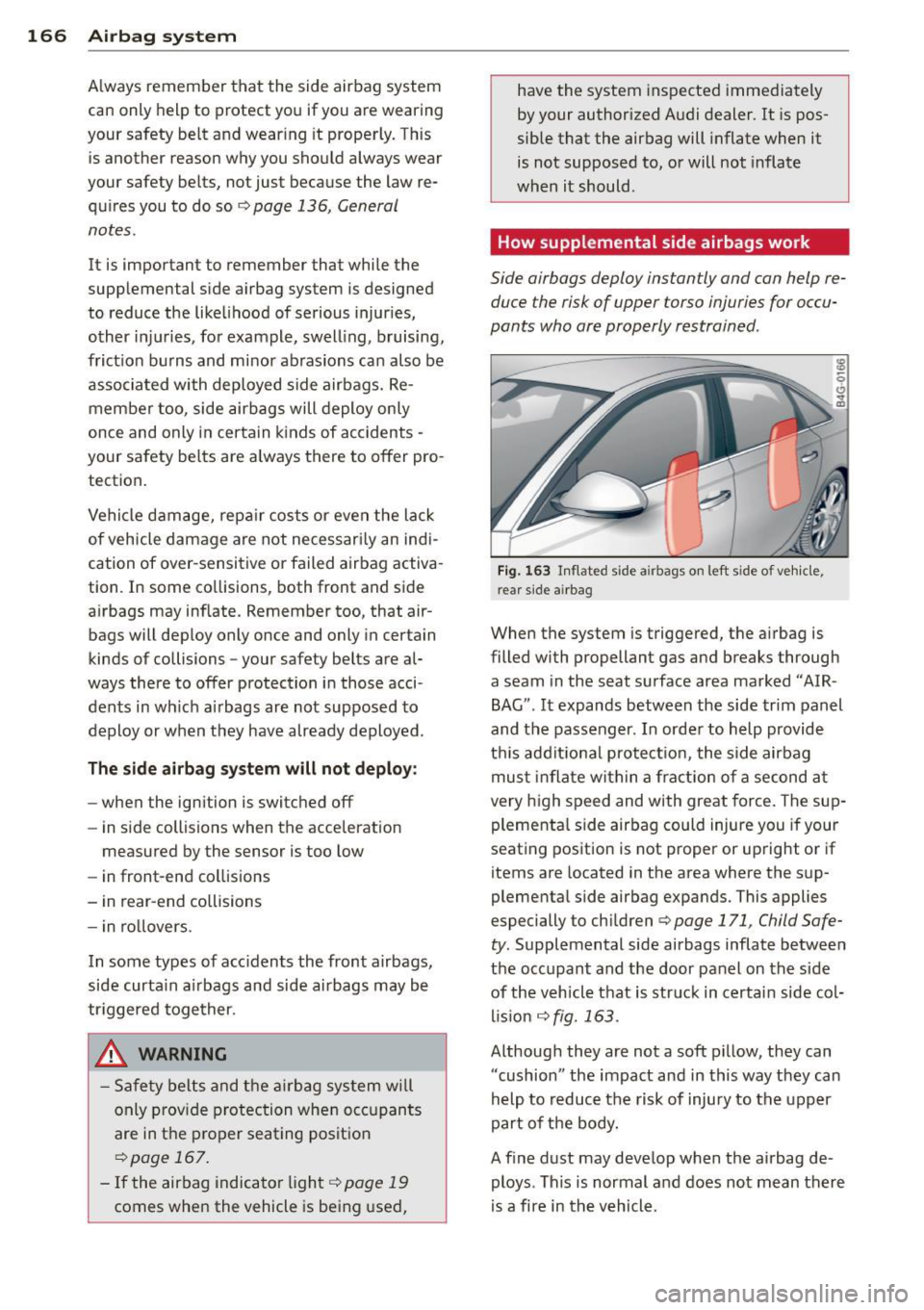

Always remember that the side airbag system
can only help to protect you if you are wearing
your safety belt and wear ing it properly. This
is another reason why you should always wear
your safety belts, not just because the law re­
qu ires you to do so
Q page 136, General
notes.
It is important to remember that while the
supplemental side a irbag system is designed
to reduce the likelihood of serious injuries,
other inju ries, for example, swell ing, b ruising,
friction burns and minor abrasions can also be
associa ted with deployed side airbags. Re ­
member too, side airbags will deploy only
once and only in certain k inds of accidents -
your safety belts are always there to offer pro­
tection .
Vehicle damage, repa ir costs or even the lack
of vehicle damage are not necessar ily an indi­
cation of over-sensitive or failed airbag activa­
tion. In some co llisions, both front and side
a irbags may inflate. Remember too, that air­
bags will dep loy only once and only in certain
kinds of collisions -your safety belts are al­
ways there to offer protection in those acci ­
dents in wh ic h airbags are not supposed to
deploy or when they have already deployed.
The side airbag s yst em will not deploy:
- when the ign ition is switched off
- in s ide collisions when the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear-end collisions
- in ro llovers.
In some types of acc idents the front airbags,
side curta in a irbags and side airbags may be
tr iggered together.
.&_ WARNING
- Sa fety belts and t he ai rbag sys tem w ill
only prov ide p rotec tion when occ upants
are in t he proper seating posit ion
Qpoge 167.
-If the airbag indicator light Q page 19
comes when the vehicle is being used,
-
have the system inspected immediately
by your authorized A udi dealer. It is pos­
sible that the airbag will inflate when it
is not supposed to, or will not inflate
when it should.
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained .
Fig. 163 In flated side airbags o n left s ide of vehicle,
r ear side a irbag
When the system is triggered, the airbag is
filled with propellant gas and breaks through
a seam in the seat su rface area marked "AIR­
BAG".
It expands between the side trim panel
and the passenger. In order to help provide
t hi s addit ional protect ion, the side airbag
mus t inflate with in a fra ction of a second a t
very h igh speed and with great force. The sup­
plementa l side airbag could injure you if your
seat ing position is not proper or up right or if
items are located in the area where the sup­
plementa l side airbag expands. This applies
especially to children
Q page 171, Child Safe­
ty .
Supplemental side airbags inflate between
the occupant and the door panel on the side
of the veh icle that is str uck in certa in side col­
li sion
9 fig. 163 .
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduc e the risk of inju ry to the upp er
part of the body.
A fine dust may deve lop when the airbag de­
ploys . This is normal and does not mean there
is a fi re in th e vehicle.

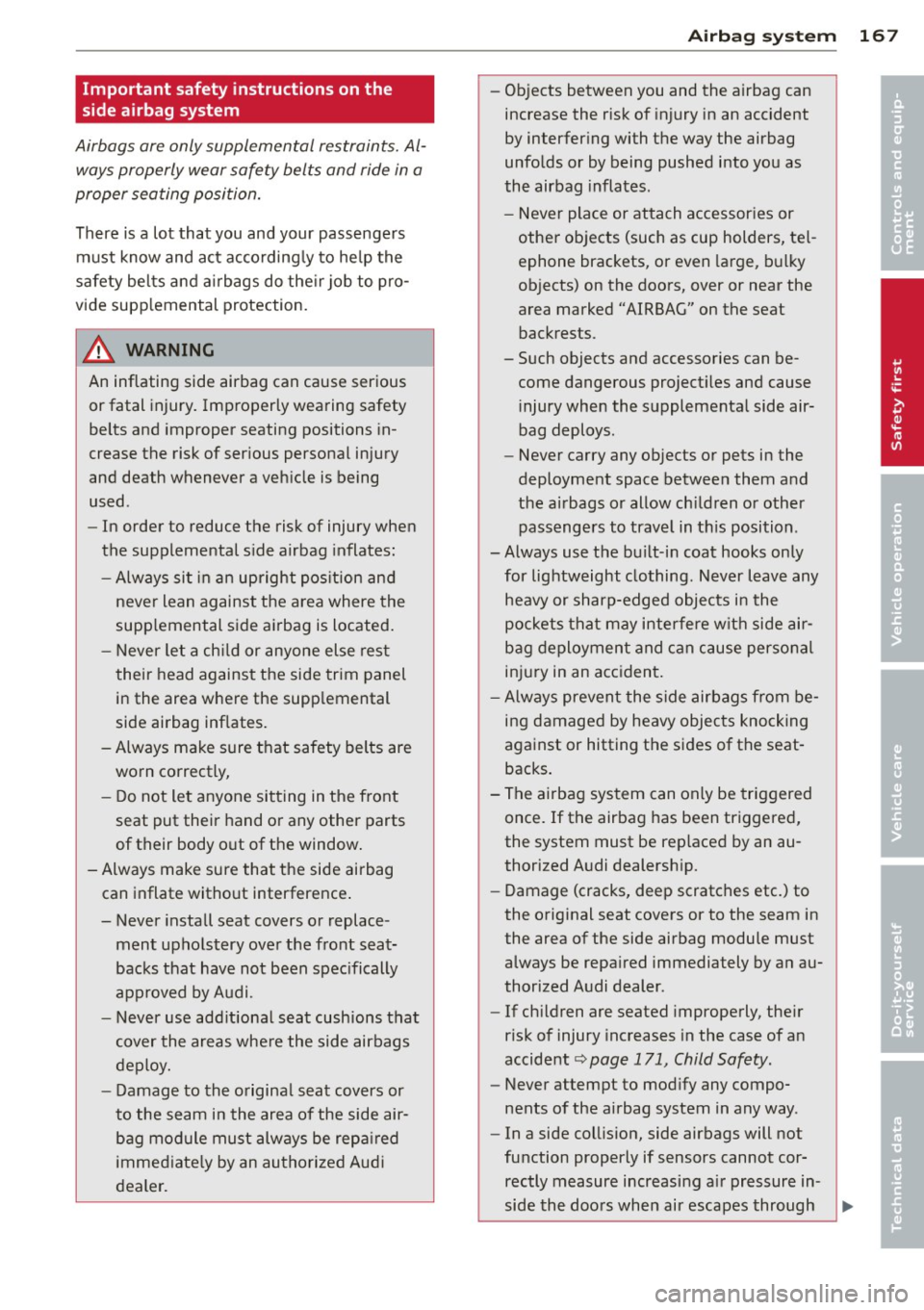

Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection .
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used .
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
-Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
- Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace ­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­ bag module must always be repaired
immediately by an authorized Audi
dealer.
Airbag system 167
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests .
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position .
- Always use the built -in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident
~ page 171, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through .,.. •
•

168 Airbag system

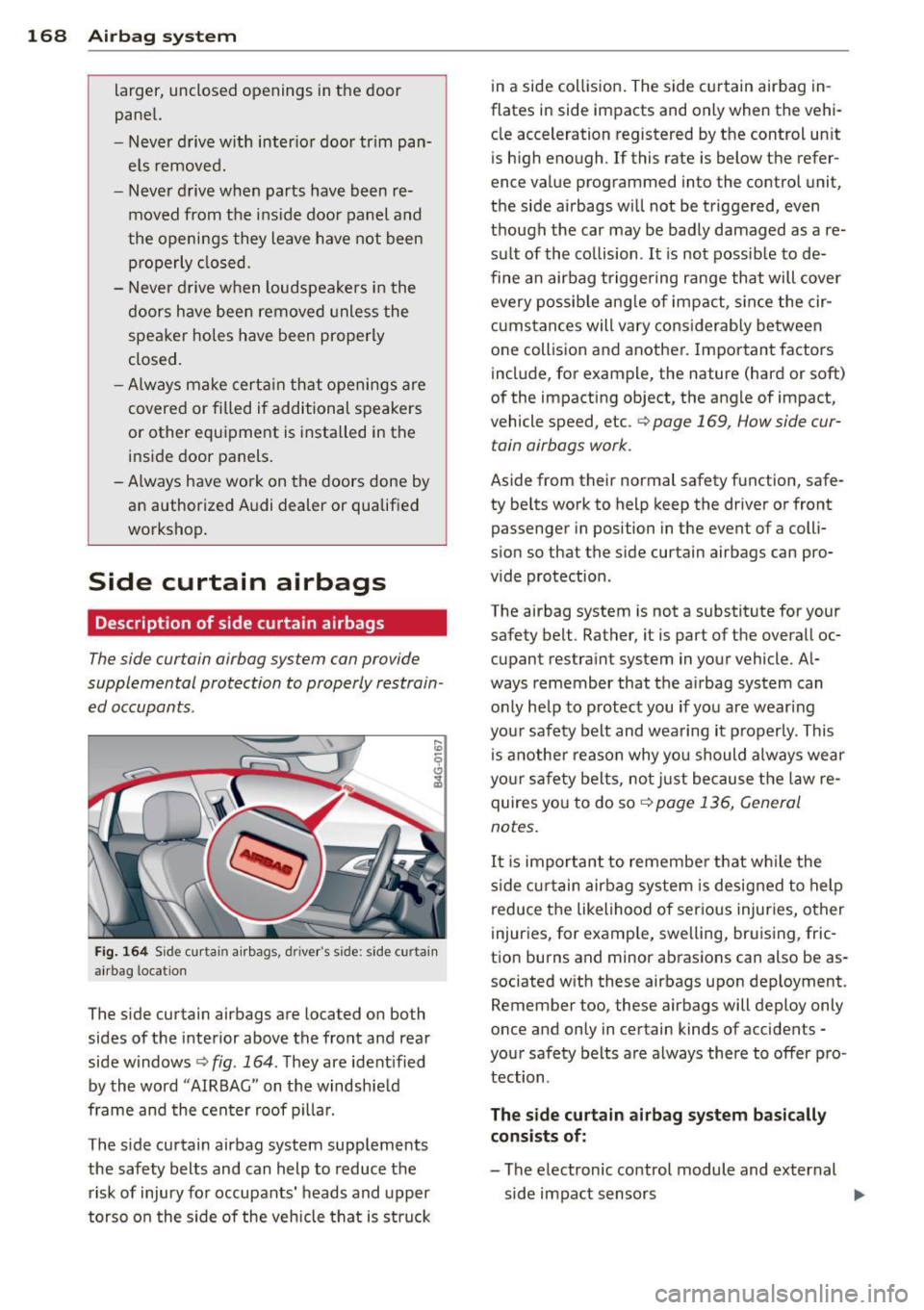

larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
-Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by an authorized Audi dealer or qualified
workshop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide
supplemental protection to properly restrain ­
ed occupants.
Fig . 164 Side c urtain airbags, dri ver 's side: s ide curta in
a irb ag location
The side curtain airbags are located on both
sides of the interior above the front and rear
side windows
c:.> fig. 164. They are identified
by the word "AIRBAG" on the windshield
frame and the center roof pi llar.
The s ide curtain airbag system supplements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck in
a side collision. The side curtain airbag in­
flates in side impacts and only when the vehi­
cle acceleration registered by the control unit
is high enough . If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­ su lt of the collision .
It is not possib le to de­
fine an airbag triggering range that will cover every possible angle of impact, since the cir­
cumstances will vary considerably between
one collision and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc.
c:,, page 169, How side cur­
tain airbags work .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front passenger in position in the event of a colli­
s ion so that the side curtain airbags can pro­
vide protection .
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the airbag system can
only help to protect you if you are wear ing
your safety belt and wearing it properly . This
is another reason why you should always wear
your safety belts, not just because the law re­
quires you to do soc:.>
page 136, General
notes .
It is important to remember that wh ile the
s ide curtain airbag system is designed to help
reduce the likelihood of serious injuries, other
injuries, for example, swelling, bruising, fric­
tion burns and minor abrasions can also be as­
sociated with these airbags upon dep loyment.
Remember too, these airbags will deploy only
once and only in certain kinds of accidents -
your safety belts are always there to offer pro ­
tection.
The side curtain airbag system basically
consists of:
- The electronic control module and external
side impact sensors ..,..
