-The side curtain airbags above the front and
rear side windows
- The airbag ind icator light in the instrument
pane l
The a irbag system is monitored elect ro nic ally
to make certain it is f unct io ni ng proper ly a t all
times. Eac h time you switch on the ignition,
the airbag system indicator light wi ll come on
for a few seconds (se lf diagnost ics) .
The side curtain airbag is not activated:
-if the ign ition is swit ched off,
- i n s ide coll isions when the accelerat ion
measured by the sensor is too low,
- in rear-end collisions .
_& WARNING
-Sa fety belts and t he a irbag system w ill
only p rov ide p rotection whe n occu pan ts
are in the proper sea ting posit ion
¢ page SO, General recommendations.
- If the airbag indicator light ¢ page 19
comes when the vehicle is be ing used,
have the system inspected immediate ly
by you r aut ho rized Audi dea ler . It is pos ­
sible that the airbag will inflate when it
is not s upposed to, or w ill not inflate
when it sho uld.

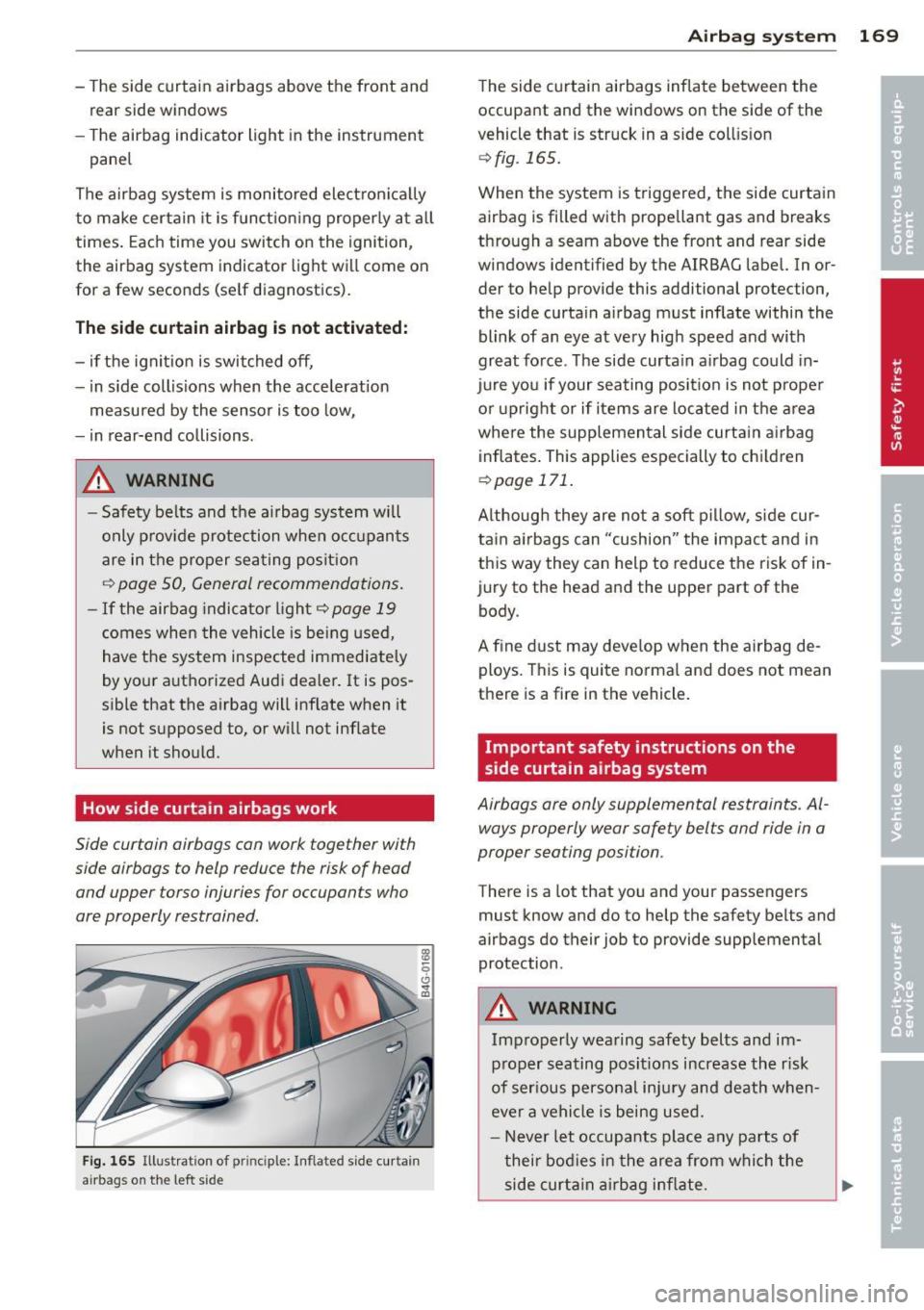

How side curtain airbags work
Side curtain airbags can work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained .
Fig . 1 65 Ill ustra tion of princip le: In flated side cur ta in
airbags on t he left s ide
.
A irba g sy stem 169
The side c urtain airbags infla te between the
occupant and the windows on the side of the
vehicle that is struck in a side coll is ion
¢ fig . 165.
When the system is trigge red, t he side curta in
airbag is filled with propellant gas and breaks
th ro ugh a seam above the front and rear side
windows identified by the AIRBAG labe l. In or­
der to he lp provide this additional protection,
the side curta in a irbag must inflate withi n the
blink of an eye at ve ry hig h speed and with
great fo rce . T he side curta in a irbag could in­
j u re yo u if your sea ting posit io n is not proper
o r u pright or if items are loca ted in t he a rea
where the supplemental side curta in a irbag
in flates . This applies especially to chi ld ren
~ page 171 .
Although they are no t a soft pillow, side cur­
ta in a irbags can "cushion" the impact and in
this way they can help to reduce the risk of in­
j u ry to the head and the uppe r part of the
body .
A fine dust may deve lop when the airbag de­
ploys . This is qui te no rma l and does not mean
there is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints . Al­
ways properly wear safe ty belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and do to help the safety belts and
airbags do t heir job to provide supplemental
protection .
_& WARNING ...__
Improperly wea ring safety belts and im­
p roper seating posit ions increase the risk
of ser ious perso nal inj ury and death when­
ever a vehicle is being used.
- Never let occupa nts pla ce any pa rts of
thei r bo dies in t he area fro m whi ch the
side curt ain air bag inf late.
-

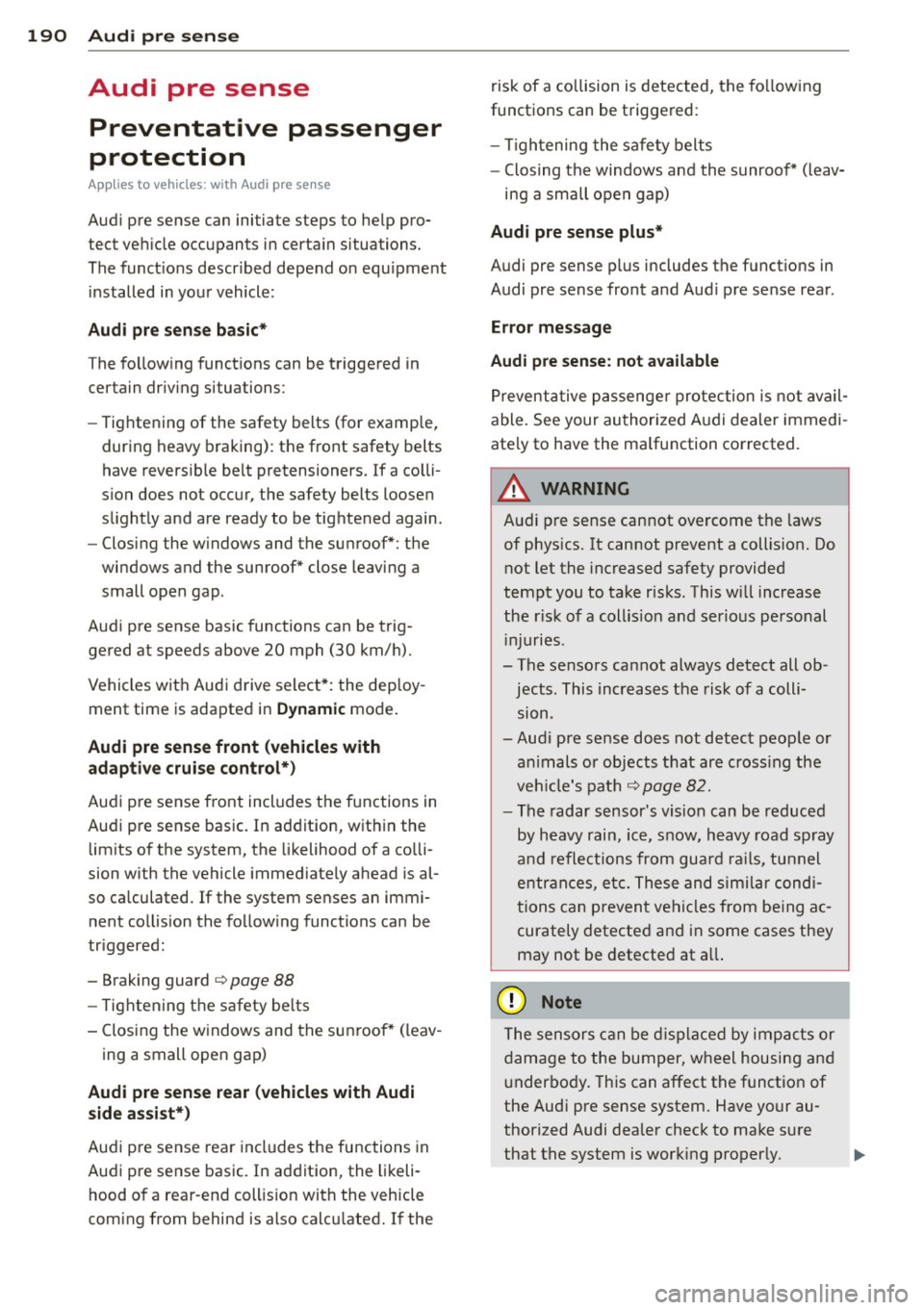

190 Audi pre sense
Audi pre sense
Preventative passenger
protection
A pp lies to veh icles: with Audi pre se nse
Audi pre sense can initiate steps to help pro­
tect vehicle occupants in certain situations.
The functions described depend on equ ipment
installed in your vehicle:
Audi pre sense basic*
The following functions can be triggered in
certain driving situations:
- Tightening of the safety belts (for example,
during heavy braking) : the front safety belts
have reversible belt pretensioners. If a colli­
sion does not occur, the safety belts loosen
slightly and are ready to be tightened again.
- Closing the windows and the sunroof*: the
windows and the sunroof* close leaving a
small open gap.
Audi pre sense basic functions can be trig­
gered at speeds above 20 mph (30 km/h).
Vehicles with Aud i drive select*: the deploy­
ment time is adapted in
Dynamic mode.
Audi pre sense front (vehicles with
adaptive cruise control*)
Audi pre sense front includes the functions in
Audi pre sense basic. In addition, within the
limits of the system, the likelihood of a colli ­
sion with the vehicle immediately ahead is al­
so calculated . If the system senses an immi­
nent collision the following functions can be
tr iggered :
- Braking guard c::>poge
88
-Tightening the safety be lts
- Closing the windows and the sunroof* (leav -
ing a small open gap)
Audi pre sense rear (vehicles with Audi
side assist*)
Audi pre sense rear includes the functions in
Audi pre sense basic. In addition, the likeli­
hood of a rear-end collision with the vehicle
coming from behind is also calcu lated.
If the risk
of a co llision is detected, the following
functions can be triggered:
- Tig htening the safety belts
- Closing the windows and the sunroof* (leav-
ing a small open gap)
Audi pre sense plus*
Audi pre sense plus includes the functions in
Audi pre sense front and Audi pre sense rear.
Error message
Audi pre sense: not available
Preventative passenger protection is not avail­
able. See your authorized Audi dealer immedi­
ately to have the malfunction corrected.
_& WARNING
-=
Audi pre sense cannot overcome the laws
of physics. It cannot prevent a collision. Do
not let the increased safety provided
tempt you to take risks. This will increase
the r isk of a collis ion and serious personal
in juries .
- The sensors cannot always detect all ob­
jects. This increases the risk of a colli­
s10n.
-Aud i pre sense does not detect people or
an im als or objects that are crossing the
veh icle's path c::> page
82.
-The radar sensor's vis ion can be reduced
by heavy rain, ice, snow, heavy road sp ray
and reflections from guard rails, tunnel
entrances, etc. These and similar condi­
tions can prevent vehicles from being ac ­
curately detected and in some cases they
may not be detected at all.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the function of
the Audi pre sense system. Have your au­
thorized Audi dealer check to make sure
that the system is working properly.

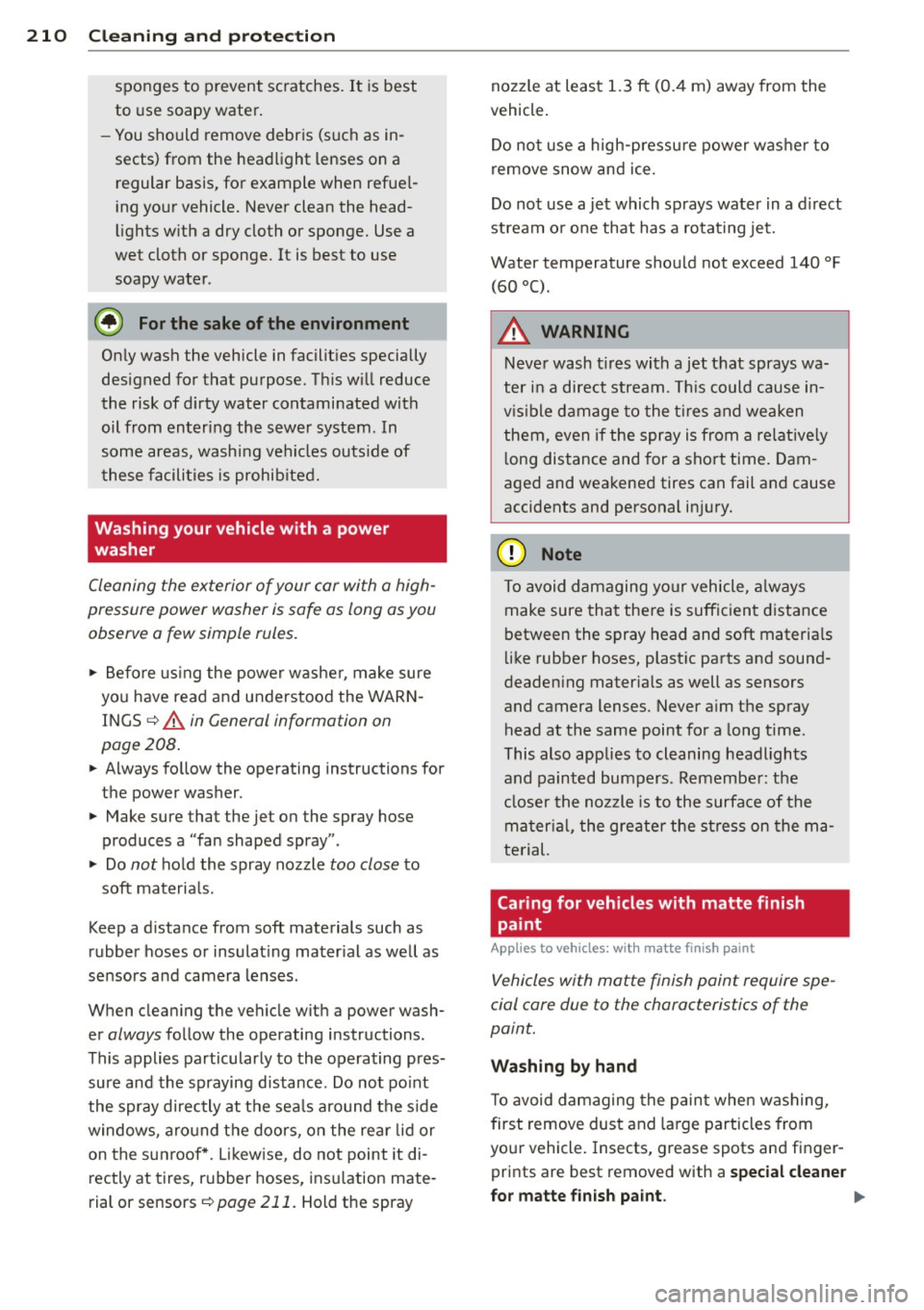

210 Cleaning and protec tio n
sponges to prevent scratches. It is best
to use soapy water .
- You should remove debris (such as in­
sects) from the headlight lenses on a
regular basis, for example when refuel­
ing your vehicle. Never clean the head­
lights w ith a dry cloth or sponge. Use a
wet cloth or sponge. It is best to use
soapy water .
@) For the sake of the environment
Only wash the vehicle in facilit ies specially
designed for that purpose. Th is w ill reduce
the risk of d irty water contaminated w ith
oil from entering the sewer system . In
some areas, wash ing vehicles outs ide of
these facilities is prohib ited.
Washing your vehicle with a power
washer
Cleaning the exterior of your car with a high­
pressure power washer is safe as long as you
observe a few simple rules.
• Before using the power w asher , make sure
yo u have read and understood the WARN­
INGS
q A in General information on
page 208.
• Always fo llow the operating instructions for
the power washer.
• Make sure that the jet o n the spray hose
produces a "fan shaped spray" .
• Do
not hold the spray nozzle too close to
soft materia ls .
Keep a d istance from soft materials such as
rubber hoses or insulat ing mater ial as we ll as
sensors and camera lenses.
When cleaning t he vehicle wit h a power wash­
er
always fo llow the operating instructions .
This applies particularly to the operating pres­
sure and the spraying distance . Do not po int
the spray direc tly at the sea ls around the s ide
windows, aro und t he doors, on the re ar lid or
on the sunroof* . Likew ise, do not point it di­
rectly at tires, r ubber hoses, ins ulation mate­
rial or sensors
q page 211. Hold the spray nozzle at least 1.3 ft (0.4 m) away from the
vehicle.
Do no t use a high-pressu re power was her to
remove snow and ice .
Do not use a jet which sprays water in a d irect
st ream o r one that has a rotating je t.
Water temperature should not exceed 140 °F
(60 °() .
A WARNING ,..__
Neve r wash t ires with a jet that sprays wa­
ter in a direct stream. This could cause in­
v is ible d amage to the t ires and weaken
them, even if the spray is from a relative ly
l ong distance and for a short time . Dam ­
aged and wea kened tires can fail a nd cause
accidents and personal in jury.
(D Note
To avoid damaging yo ur vehicle, a lw ays
make sure tha t the re is sufficien t distance
between the spray head and soft materia ls
li ke rubber hoses, plast ic parts and sound ­
deaden ing mater ia ls as well as sensors
and camera lenses. Never a im the spray
head at the same point fo r a long time.
This also app lies to cleaning headlights
and paint ed bumpers . Remembe r: t he
closer the no zzle is to the surfa ce of the
m at erial , the gre ater t he s tress on the ma ­
terial.
Caring for vehicles with matte finish
paint
Applies to vehicles: wit h matte finish paint
Vehicles with matte finish paint require spe ­
cial care due to the characteristics of the
paint.
Washing by hand
T o avoid damaging the pain t when was hing,
fi rst remove dust and la rge particles from
yo ur vehicle . Insects, grease spots and finger­
prints are best removed with a
special cleaner
for matte finish pa int .
1111>

Apply the product using a microfiber cloth . To
avoid damaging the paint surface, do not use
too much pressure .
Rinse the vehicle tho roughly with water . Clean
the vehicle starting at the top and working to ­
ward the bottom using a
neutra l sh ampoo
and a soft mi crofiber cloth . Stop frequently to
rinse the cloth thorough ly.
Clean the wheels and sill panels last. Use a
clean
s pon ge on these areas .
R inse the vehicle tho roughly aga in and let i t
a ir dry. If there are any wa ter spots, they can
be removed using a
le ather cloth.
Clea n again with the sp ecial cl eaner for matt e
finish paint
i f ne cessary.
Removing stubborn dirt
B ird dropping s or tree sap a re best removed
with plenty of water and a m icrofiber cloth .
You shou ld r inse off
gasoline residue immedi­
ately with plenty o f water.
A WARNING
- Wash your veh icle only when the ignition
is switched off to reduce the risk of a
c rash .
- Always read and heed all WARNINGS and
other information ¢
page 208.
0 Note
-Do not treat vehicle parts painted w ith
matte f inish paint usi ng polish ing mate­
r ials or hard wax . These products could
cause damage to the appearance or sur­
face that cannot be repaired.
- Never use p rotective wax.
It can destroy
the matte fin ish effect .
- Do not p lace any st ickers or magne tic
s igns on vehicle parts painted with
matte finish paint. The pa int co uld be
damaged when the stickers or magnets
are removed.
- To prevent pa int damage, do not wash
the veh icle in direct sun ligh t.

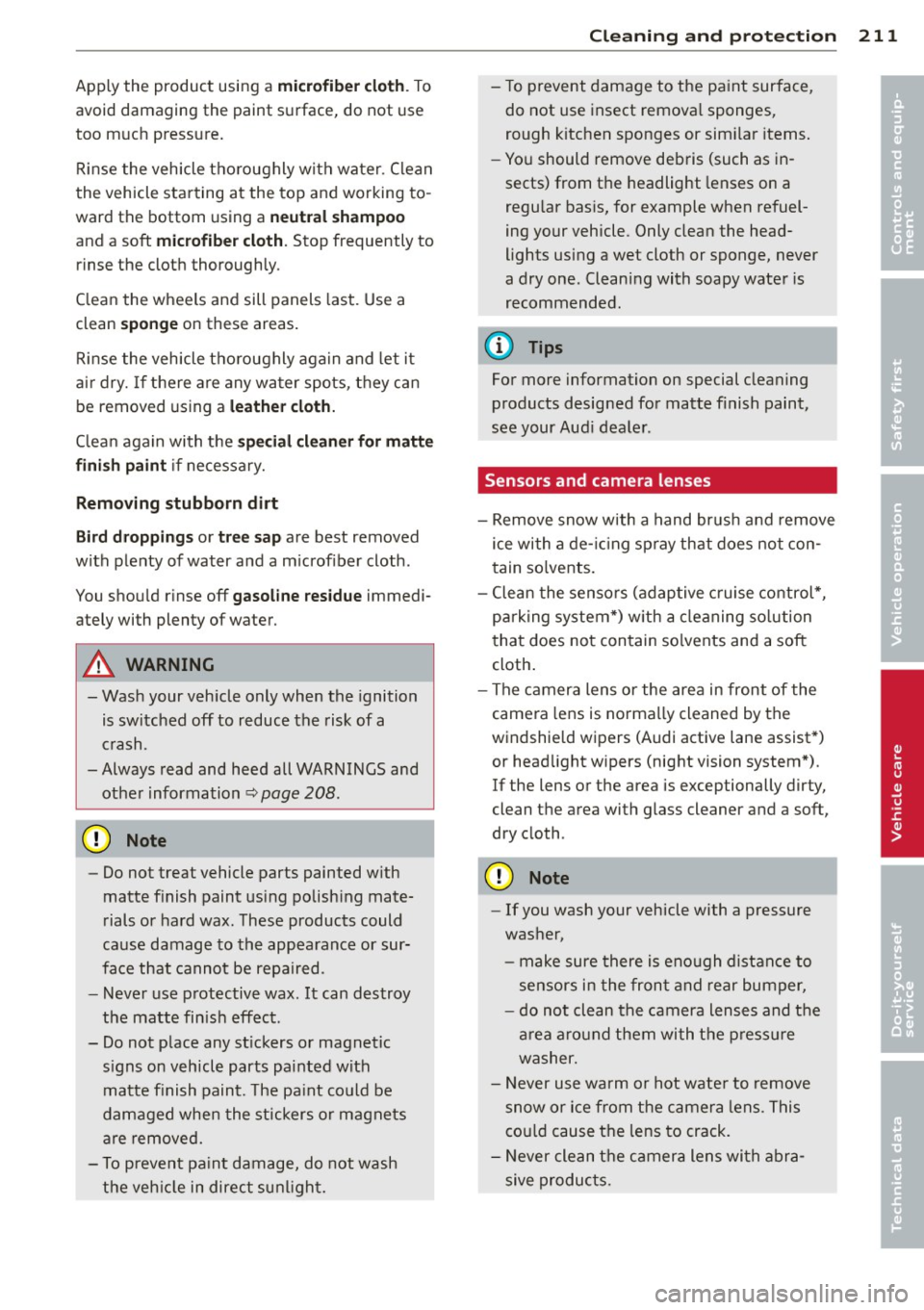

Cleaning and protec tion 21 1
-To prevent damage to the pa int sur face,
do not use insect remova l sponges ,
rough kitchen sponges or sim ila r items .
- Yo u should remove deb ris (such as in­
sects) from the headlight lenses on a
regu lar bas is, for example when refuel­
ing your vehicle . Only clean the head­
lights using a wet cloth or sponge, never
a dry one. Cleaning with soapy water is
recommended.
(D Tips
For more information on special cleaning
products designed for matte finish paint,
see your Aud i deale r.
, Sensors and camera lenses
- Remove snow with a hand brus h and remove
ice with a de- ic ing sp ray that does not con­
t ain so lvents.
- Clean the senso rs (adaptive cruise co ntrol*,
pa rking system*) w ith a cleaning so lution
tha t does not contain so lvents and a soft
cloth .
- The camera lens or the area in front of the
camera lens is norma lly cleaned by the
windshie ld wipers (Audi active lane assist*)
or head light wipers (night vision system *).
If the lens or the area is exceptionally dirty,
clean the area with glass cleaner and a soft,
dry cloth .
@ Note
-If you wash your vehicle with a pressure
was her,
- make sure there is eno ugh distance to
sensors in the fron t and rear bumper,
- do not clean the camera lenses and the
area a ro und them with t he press ure
washer.
- Never use warm or hot wate r to remove
snow or ice from the camera lens. This
cou ld cause the lens to crack.
- Never clean the camera lens with abra­
sive products.
•
•

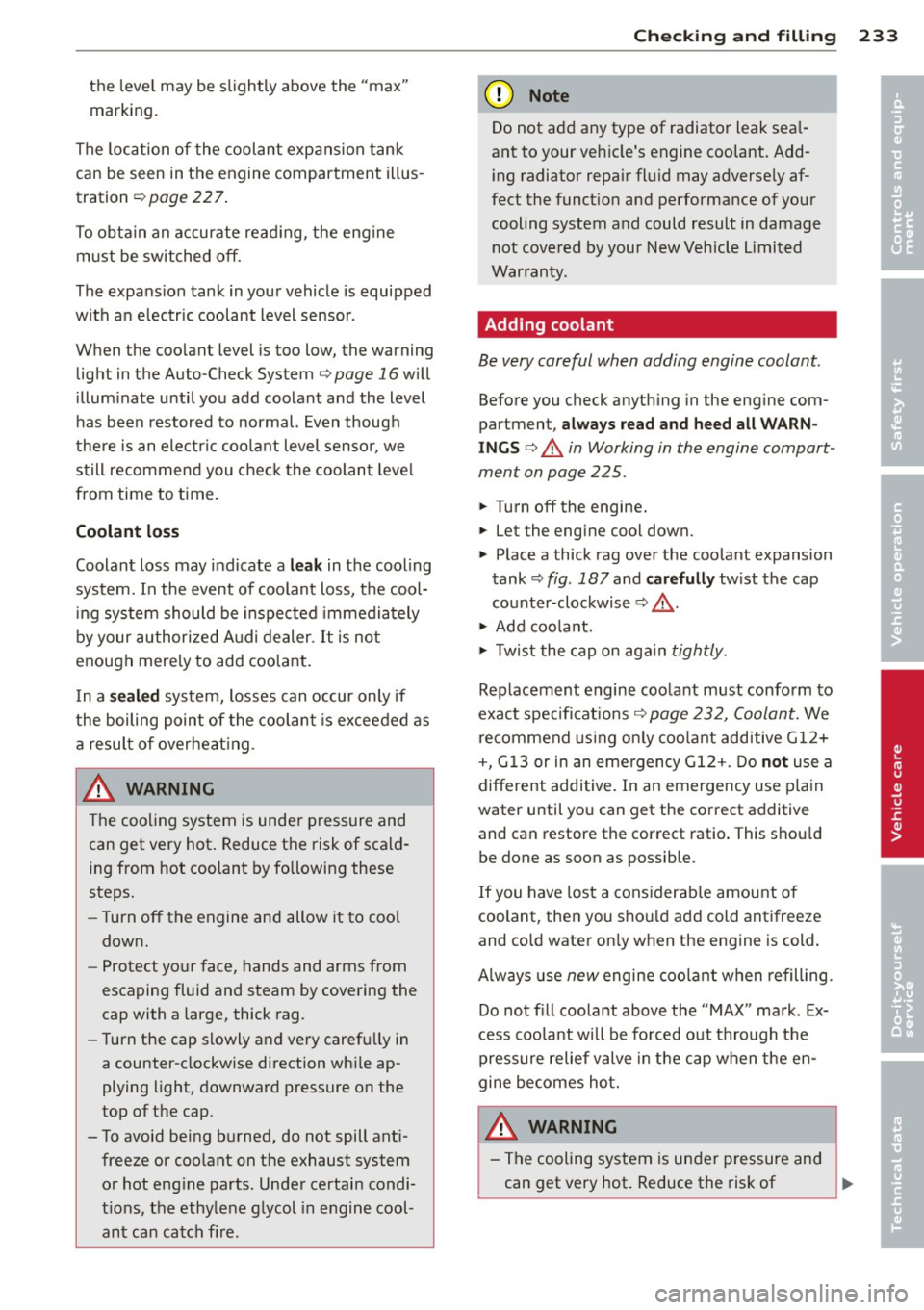

the level may be slightly above the "max"
marking .
The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration ¢ page 22 7.
To obtain an accurate reading, the engine must be switched
off.
The expansion tank in your vehicle is equipped
with an electric coolant level sensor.
When the coolant level is too low, the warning
light in the Auto-Check System ¢page 16will
illuminate until you add coolant and the level
has been restored to normal. Even though
there is an electric coolant level sensor , we
still recommend you check the coolant level
from time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolant loss, the cool­
ing system should be inspected immediately
by your authorized Audi dealer.
It is not
enough merely to add coolant.
In a
sealed system, losses can occur only if
the boiling point of the coolant is exceeded as
a result of overheating.
& WARNING
The cooling system is under pressure and
can get very hot. Reduce the risk of scald­
ing from hot coolant by following these
steps.
- Turn
off the engine and allow it to cool
down.
- Protect your face, hands and arms from
escaping fluid and steam by covering the
cap with a large, thick rag.
- Turn the cap slowly and very carefully in
a counter-clockwise direction while ap­
plying light, downward pressure on the
top of the cap.
- To avoid being burned, do not spill anti­ freeze or coolant on the exhaust system or hot engine parts . Under certain condi­
tions, the ethylene glycol in engine cool ­
ant can catch fire .
Checking and filling 233
@ Note
Do not add any type of radiator leak seal­
ant to your vehicle's engine coolant. Add­
ing radiator repair fluid may adversely af­
fect the function and performance of your
cooling system and could result in damage not covered by your New Vehicle limited
Warranty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anything in the engine com ­
partment,
always read and heed all WARN­
INGS ¢ & in Working in the engine compart ­
ment on page 225 .
.,. Turn
off the engine .
.,. let the engine cool down.
.,. Place a thick rag over the coolant expansion
tank ¢ fig .
187 and carefully twist the cap
counter-clockwise ¢&_ .
.,. Add coolant.
.,. Twist the cap on again tightly.
Replacement engine coolant must conform to
exact specifications ¢ page
2 32, Coolant. We
recommend using only coolant additive G12+
+, G13 or in an emergency G12+. Do
not use a
different additive. In an emergency use plain
water until you can get the correct additive
and can restore the correct ratio. This should
be done as soon as possible.
If you have lost a considerable amount of
coolant, then you should add cold antifreeze
and cold water only when the engine is cold.
Always use new engine coolant when refilling.
Do not fill coolant above the "MAX" mark. Ex­
cess coolant will be forced out through the pressure relief valve in the cap when the en­
gine becomes hot.
A WARNING
- The cooling system is under pressure and
can get very hot. Reduce the risk of
II-
•
•

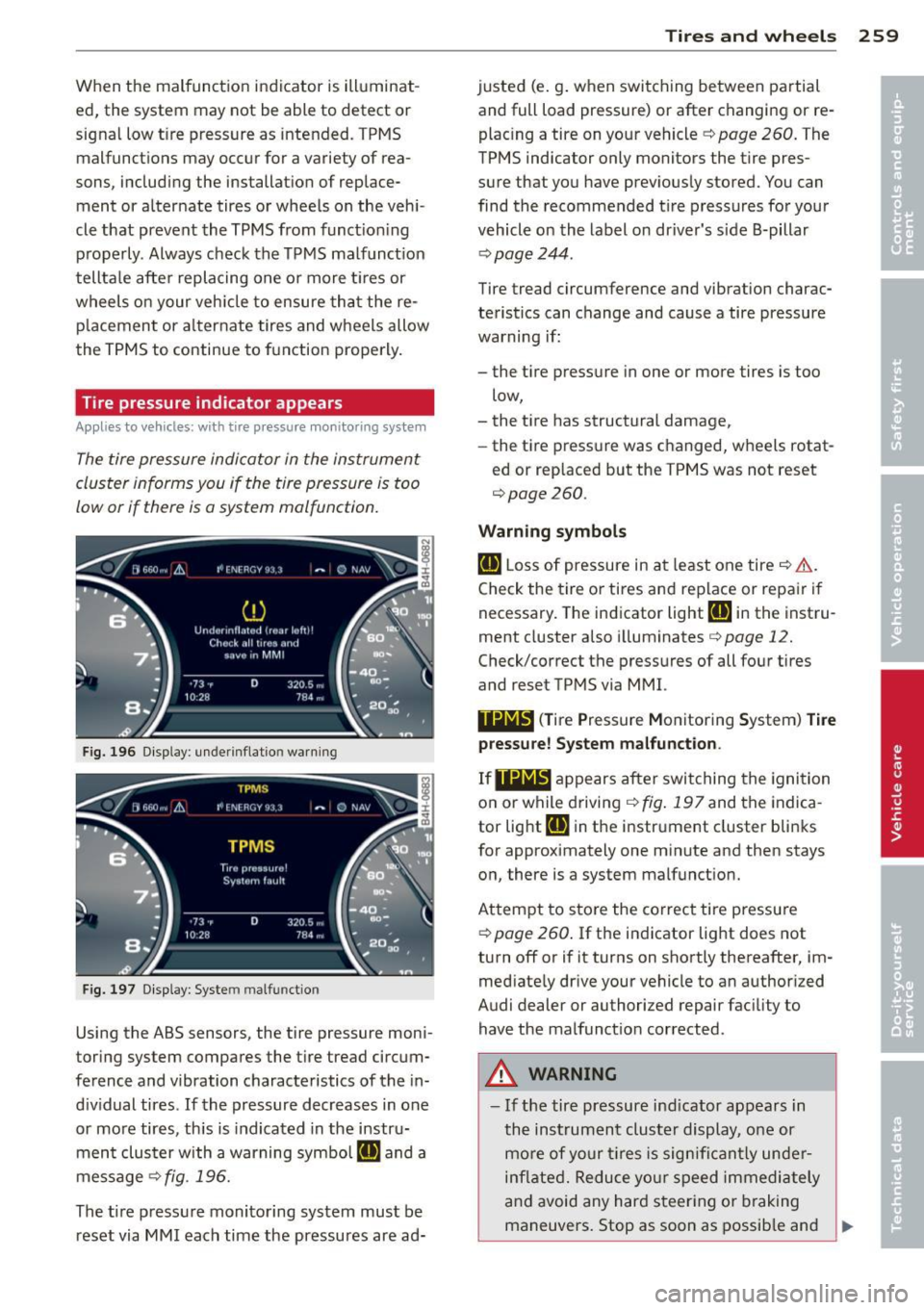

When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea ­
sons, including the installation of replace­ ment or alternate tires or wheels on the vehi ­
cle that prevent the TPMS from function ing
properly . Always check the TPMS malfunction
tellta le after replacing one or more tires or
wheels on your vehicle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Applies to vehicles: with tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 196 Display : underinflatio n warning
Fig. 197 Display : Syste m malfun ctio n
Using the ABS sensors, the tire pressure moni ­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires . If the pressure decreases in one
or more tires , th is is indicated in the instru­
ment cluster with a warning symbol
RE and a
message
¢fig . 196.
The tire pressure monitoring system must be
reset via MMI each time the pressures are ad-
Tires and wheels 259
justed (e.g. when switching between partial
and full load pressure) or after changing or re­
plac ing a tire on your vehicle¢
page 260. The
TPMS indicator only monitors the tire pres­
sure that you have previously stored. You can
find the recommended tire pressures for your
vehicle on the label on dr iver's side B-pillar
~page 244.
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if :
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tire pressure was changed, wheels rotat-
ed or replaced but the TPMS was not reset
¢page 260.
Warning symbols
RE Loss of pressure in at least one tire¢.&. .
Check the tire or tires and replace or repair if
necessary. The indicator light
RE in the instru­
ment cluster also illuminates
¢ page 12.
Check/correct the pressures of all four tires
and reset TPMS via MMI.
11;;~, ( T ire Pressure Monitoring System) Tire
pressure! System malfunction.
If11NIS, appears after switching the ignition
on or while driving¢
fig. 197 and the indica­
tor light
RE in the instrument cluster blinks
for approximately one minute and then stays
on, there is a system malfunction.
Attempt to store the correct tire pressure
¢
page 260 . If the indicator light does not
turn off or if it turns on shortly thereafter, im­
mediately drive your vehicle to an authorized
Audi dealer or authorized repair facility to have the malfunction corrected .
A WARNING
-If the tire pressure ind icator appears in
the instrument cluster display, one or
more of your tires is significantly under­
inflated. Reduce your speed immediately
and avoid any hard steering or braking
maneuvers. Stop as soon as possib le and .,.

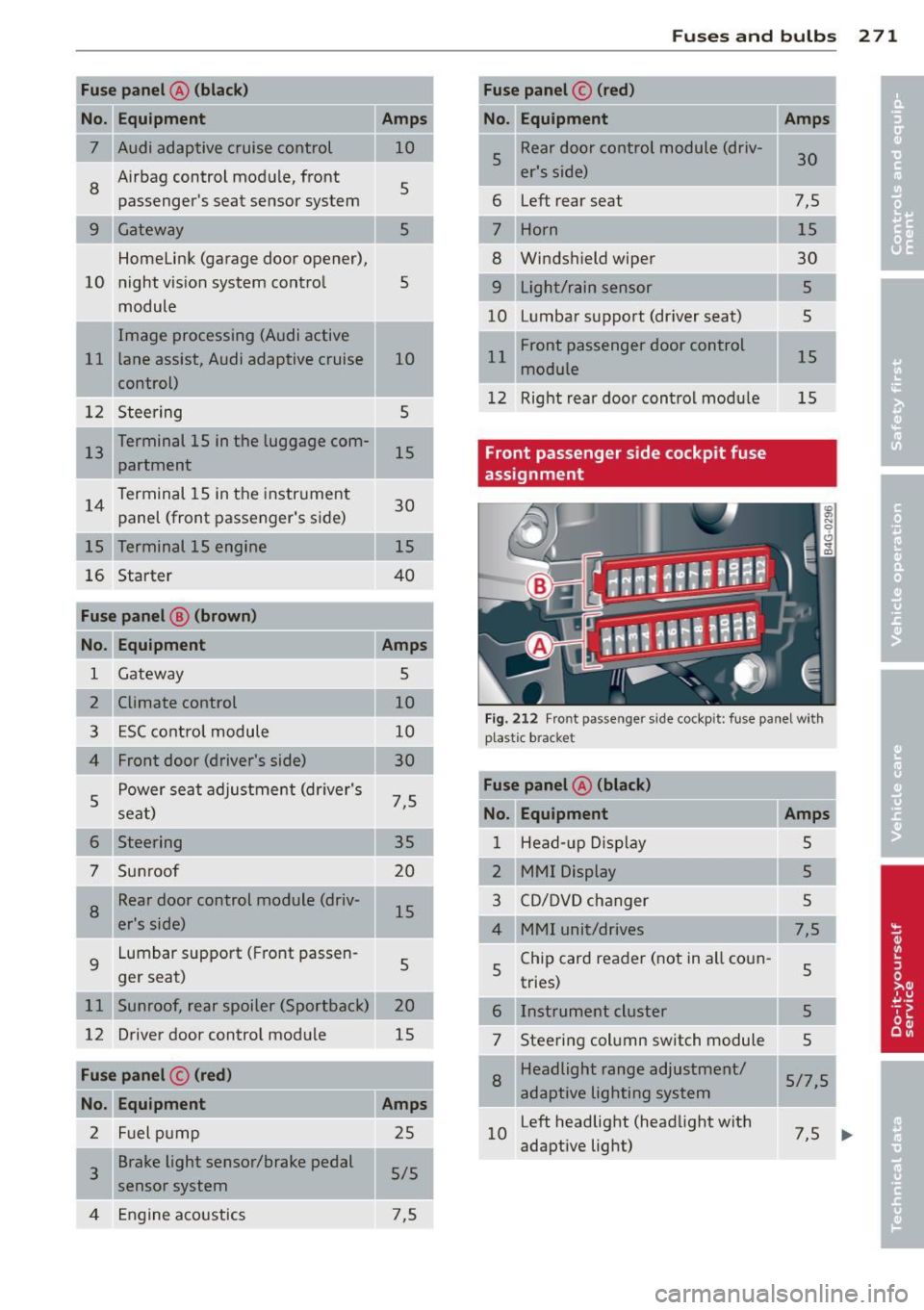

Fuse panel@ (black )
No. Equipment Amps
= = 7 Audi adaptive cruise control 10
8
Airbag control module, front
5
passenger's seat sensor system
Gateway 5
Homelink (garage door opener),
10 night vision system control
5
module
Image processing (Audi active
11 lane assist, Audi adaptive cruise
10
control)
12 Steering 5
1 13 Terminal 15 in the luggage com-
15
partment
14 Terminal 15 in the
instrument
30
panel (front passenger's side)
15 Terminal 15 engine 15
16 Starter 40
Fuse panel
B (brown)
No. Equipment Amps
1 Gateway 5
2 Climate control 10
3 ESC control module 10
Front door (driver's side) 30
s
Power seat adjustment (driver's
7,5
seat)
6 Steering 35
7 Sunroof 20
8
Rear door control module (driv-
15
er's side)
9 Lumbar support (Front passen
-
5
ger seat)
11 Sunroof, rear spoiler (Sportback) 20
12 Driver door control module
15
Fuse panel
c (red)
No. Equipment Amps
2 Fuel pump 25
3 Brake light sensor/brake pedal
sensor system 5/5
4 Engine acoustics 7,5
Fuses and bulbs
-Fuse panel © (red)
No.
u Equipment
5 Rear door
control module (driv-
er's side)
6 Left
rear seat
Horn
Windshield wiper
9 Light/rain sensor
10 L
umbar support (driver seat)
11 Front passenger door control
module
12 Right rear door control modu le
Front passenger side cockpit fuse
assignment Amps
30
7,5 15
30 5
5
15
15
Fig. 212 Front passenger side cockpit: fuse panel wit h
p last ic bracket
Fuse panel A (black)
No. Equipment
Amps
1 Head-up Display 5
2 MMI Display 5
3 CD/DVD changer 5
4 MMI unit/drives
7,5
5 Chip card reader (not in all coun
-
5
tries)
6 Instrument cluster
5
7 Steering column switch module
5
8
Headlight range adjustment/
5/7,5
adaptive lighting system
10 Left
headlight (headlight with
7,5
adaptive light)
I
271
...

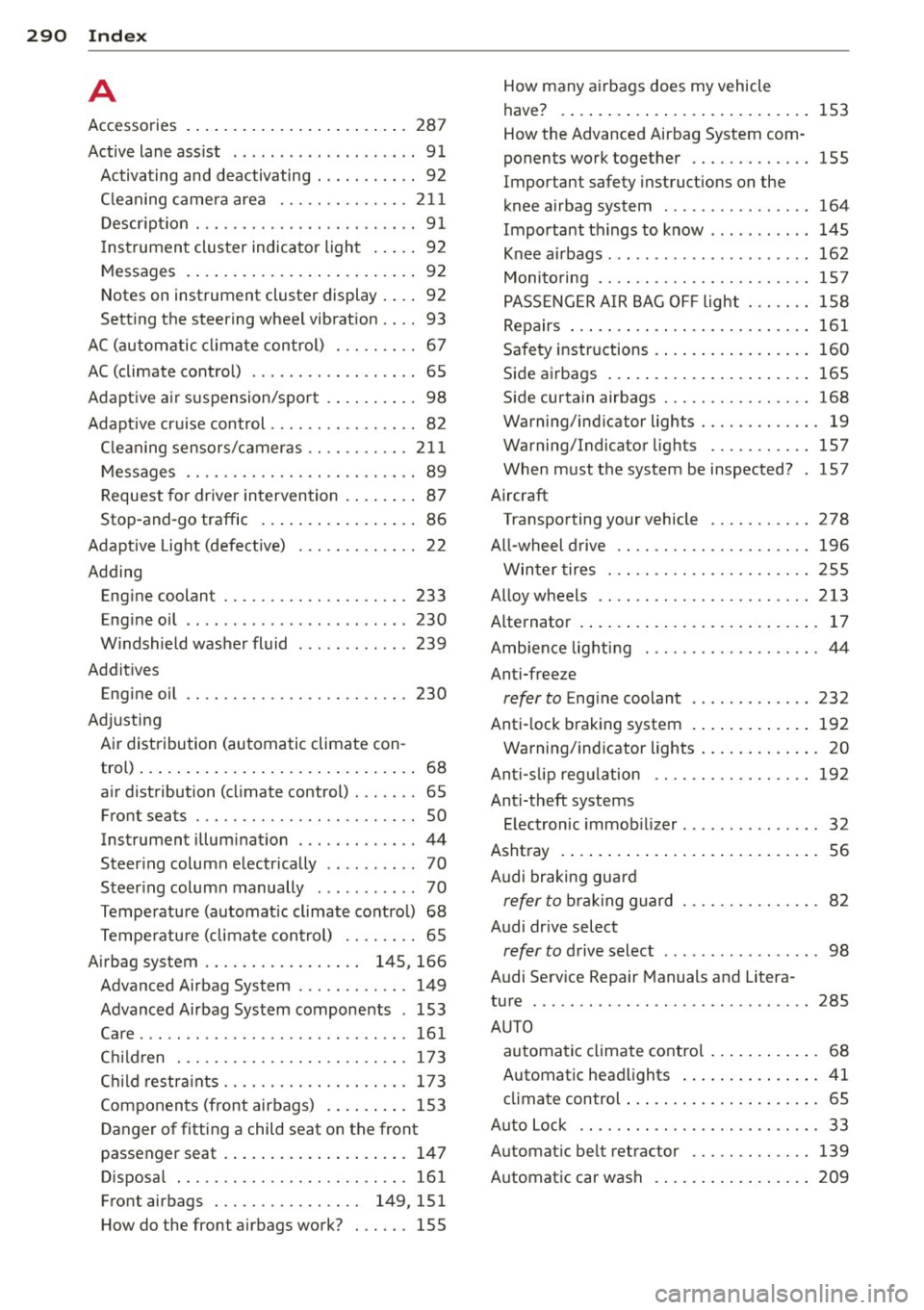

29 0 Index
A
Accessories . ...... ..... ... .. .. .... . 28 7
Active lane ass ist . . . . . . . . . . . . . . . . . . . . 91
Activating and deactivating . . . . . . . . . . . 92
C leaning came ra area ... .. .. .. .. .. . 211
Descr ipt ion ... ........... .. .. .... .. 9 1
I nstrument cluster indicator light . . . . . 92
Messages . . . . . . . . . . . . . . . . . . . . . . . . . 92
Notes on instrument cluster display . . . . 92
Setting the steering wheel vibrat ion . . . . 93
AC (automatic cl imate control) . .. .. .. .. 67
AC (climate control) . . . . . . . . . . . . . . . . . . 65
Adaptive air suspension/sport . ... .. .. . . 98
Adapt ive cruise control . . . . . . . . . . . . . . . . 82
C leaning sensors/cameras .. .. .. .... . 211
Messages ............... .. .. .. .. .. 89
Request for driver intervention . . . . . . . . 8 7
Stop-and-go traffic . . . . . . . . . . . . . . . . . 86
Adapt ive Lig ht (defective) ... .. .. .... .. 22
Adding Eng ine coolant ............. .. .... . 233
Eng ine oil .. ..... ........... ... .. . 230
W indshield washer fluid .. ... .. .. .. . 239
Additives Eng ine oil ............... .. .. .. .. . 230
Ad justing
Air distribution (automatic climate con-
trol) ..... .. ... .. ..... ... .. .. .... .. 68
air distribution (climate control) . .... .. 65
Front seats . . . . . . . . . . . . . . . . . . . . . . . . 50
Instrument illum inat ion ... .. .. .. .. . .
44
Steer ing column electrically .. .. .. .. . . 70
Steer ing column manually ..... .. .... 70
Tempe ratu re (automat ic climate control) 68
Tempe ratu re (climate control) .. .. .. . . 65
A irbag system . . . . . . . . . . . . . . . . . 145, 166
Advanced Airbag System . . . . . . . . . . . . 149
Advanced Airbag System components . 153
Care ....... .......... ...... ... .. . 161
C hi ldren . ............... .. .. .... . 173
C hi ld restra ints ........... .. .. .. .. . 173
Components (front airbags) . .... ... . 153
Danger of fitting a child seat on the front
passenger seat . . . . . . . . . . . . . . . . . . . . 147
Disposa l ..... ........... .. .. .... . 161
Front airbags . . . . . . . . . . . . . . . . 149, 151
H ow do the front airbags work? . .... . 155 How many a
irbags does my vehicle
have? . ... .... .. .. ... .. ..... ... .. 153
How the Advanced Airbag System com -
ponents work together ......... .... 155
Important safety instructions on the
knee airbag system ................ 164
Important things to know . .. .. .. .. .. 145
Knee airbags . .. .. .......... ...... . 162
Monito ring .. .. . .. ............ .. .. 15 7
PASS ENG ER A IR BAG OFF light ... .. .. 158
Repairs ... .... .. .. ... .. . .... ... .. 161
Safety instr uctions . .. .. ..... .... . .. 160
Side airbags ..... .. ... ..... ... .. .. 165
S ide curtain airbags ............ .... 168
Warning/ind icator lights ........ .... . 19
Warning/Indicator lights ....... .... 157
When must the system be inspected? 157
Aircraft Transporting your vehicle ..... .. .. .. 278
All-wheel drive .. .. ............. .... 196
Win ter tires . .. . .. ............ .. .. 255
Alloy wheels .. .. .. .......... ...... . 213
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Amb ience lighting ................ ... 44
Anti-freeze
refer to Eng ine coolant ............ . 232
Anti- lock braking system . ..... ... .. .. 192
Warning/ind icator lights ........ .... . 20
An ti-s lip reg ulation ............. .. .. 192
Anti-theft systems Electronic immob ilizer ............. .. 32
Ashtray . ... .... .. .. ... .. ..... ... .. . 56
Audi braking guard
refer to b rak ing guard .......... .... . 82
Audi drive select
refer to drive select ............... .. 98
Audi Serv ice Repair Manuals and Litera-
ture ... .... .... .. ............. .... 285
A UTO
a ut omatic climate contro l . . . . . . . . . . . . 68
Automatic headlights ... .... ... .. .. . 41
climate control ... .. ... ..... ... .. .. . 65
A uto Lock .. .... ... ................ . 33
Automat ic be lt retractor ........... .. 139
A utomatic car wash . .... ..... ... .. .. 209

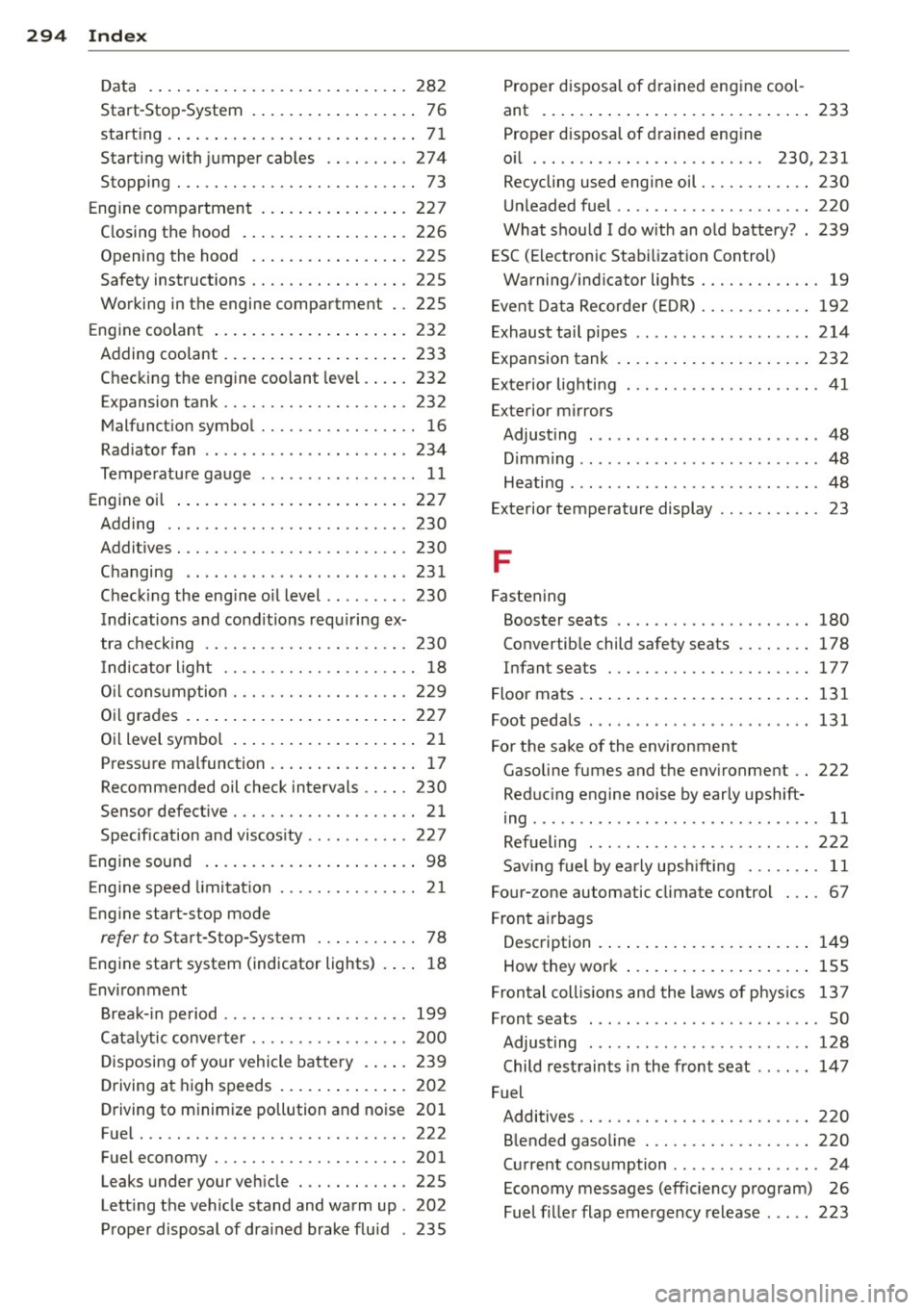

294 Index
------------------------------------
Data .... ....... ......... ... .... . 282
Start-Stop-System . . . . . . . . . . . . . . . . . . 76
start ing .. .. ................ ..... .. 71
Startingwithjumpercables .. .. ..... 274
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Engine compartment ........ .... ... . 227
C losing the hood .......... ... .... . 226
Opening the hood ................. 225
Safety instructions ........ .. .. .... . 225
Working in the engine compartment .. 225
Engine coolant .................... . 232
Adding coolant ............ ... .... . 233
Checking the engine coolant level .... . 232
Expansion tank ........... .. .. .. .. . 232
Malfunction symbol ....... .. .. .... .. 16
Radiator fan .............. ... .. .. . 234
Temperature gauge ........ ..... .. .. 11
Engine oil ... ................ ..... . 227
Adding .. .... ........... .... .... . 230
Additives . .. ............. .. .. .. ... 230
Changing .... ... .... .... .. .. .. .. . 231
Check ing the engine oil level .. .. .. .. . 230
I ndications and cond it ions requ iring ex-
tra checking .. ........... .. .. .... . 230
I ndicator light ........... .. .. .. .. .. 18
O il consumption .......... .... .... . 229
Oil grades . ................. ..... . 227
Oil level symbol .................... 21
Pressure malfunction ....... ... .. .. .. 17
Recommended oil check intervals ..... 230
Sensor defective . . . . . . . . . . . . . . . . . . . . 21
Specification and viscosity .. .. .. .. .. . 227
Engine sound .............. ... .... .. 98
E ng ine speed limitation ....... .. .. .. . . 21
Engine start-stop mode
refer to Star t-Stop-System ... .. .. .. .. 78
Engine start system (indicator lights) . ... 18
Environment Break-in period ......... .. .. .. .. .. . 199
Cata lytic converter ........ .. .. .. .. . 200
Disposing of your vehicle battery . ... . 239
Driving at high speeds .............. 202
Driving to minimize pollution and noise 201
Fuel . .. .. ............... .. .. .... . 222
Fuel economy ............ .... .... . 201
Leaks under your vehicle ... .. .. .. .. . 225
Lett ing the vehicle stand and warm up . 202
Proper disposal of drained brake fluid . 235 Proper disposal of d
rained engine cool-
ant ..... ..... .. .. .............. . 233
Proper disposal of drained eng ine
oil . . . . . . . . . . . . . . . . . . . . . . . . . 230,231
Recycling used engine oil ........ .... 230
Unleaded fuel .. .. ................ . 220
What should I do with an old battery? . 239
ESC (Electronic Stabilization Control) Warning/indicator lights ........ .. .. . 19
Event Data Recorder (EDR) ........ .. .. 192
Exhaust tail pipes .. .......... ...... . 214
Expansion tank .... ................ . 232
Exterior lighting . ... ............ .. .. . 41
Exterior mirrors Adjusting ..... .. .. ........ ...... .. 48
Dimming .. .. .. .. .. ..... ...... .. .. . 48
Heating ...... ... .. .............. .. 48
Exterior temperature display ...... .. .. . 23
F
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . 180
Convertible child safety seats . . . . . . . . 178
Infant seats ... .. ............. .... 177
Floor mats . ..... .. ................ . 131
Foot pedals ..... .. ..... ........... . 131
For the sake of the environment Gasoline fumes and the environment .. 222
Reducing engine noise by early upshift-
ing ...... .... ... .. ................ 11
Refueling ... .. .. ....... ...... .. .. 222
Sav ing fuel by early upsh ifting . .. .. .. . 11
Four- zone automatic climate control . .. . 67
Front airbags
Description .... .. ................ . 149
How they work ... ................ . 155
Frontal coll is ions and the laws of phys ics 137
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adjusting ... .. .. ....... ...... .. .. 128
Child restraints in the front seat ...... 147
Fuel Additives .. .... .. ............. .... 220
Blended gasoline .............. .... 220
Current consumption .............. .. 24
Economy messages (efficiency program) 26
Fuel filler flap emergency release ... .. 223

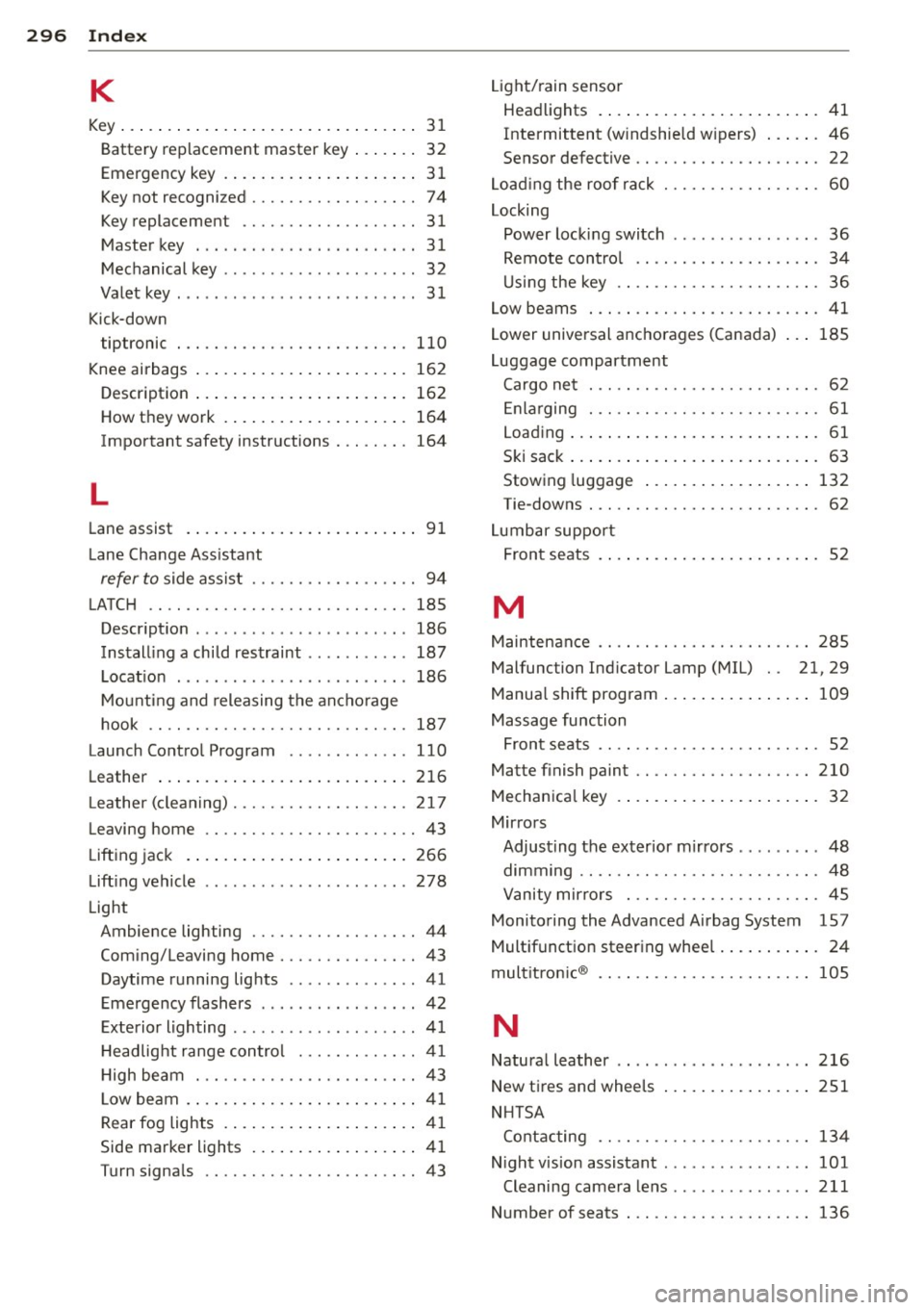

296 Index
K
Key ... . ... ... .. .. ..... ... .. .. .... .. 3 1
Battery rep lacement master key ... .. . . 32
Emergency key . . . . . . . . . . . . . . . . . . . . .
3 1
Key not recognized ............ .. .. .. 74
Key replacement . . . . . . . . . . . . . . . . . . . 31
Master key . . . . . . . . . . . . . . . . . . . . . . . . 31
M echanical key .............. ... ... . 32
Valet key . . . . . . . . . . . . . . . . . . . . . . . . . .
31
K ick-down
tiptronic
110
K nee airbags .... .. ..... ... .. .. .... . 162
Descr ipt ion .... . ...... ... .. .. .... . 162
How they work . .. ..... ... .. .. .... . 164
Important safety instructions . . . . . . . . 164
L
Lane assist . . . . . . . . . . . . . . . . . . . . . . . . . 9 1
Lane Change Ass istant
refer to side ass is t ...... .. .. .. .. .. . .
LATC H
.. .. .. ............. .... .. ...
D . t· escnp ion .... .... .... .. .. .. .. .. .
Install ing a child restraint ...... .. .. .
L ocat ion .. .... ............. ... ' . .
M ount ing and releasing the an cho rage
hook
. . .. .. ............. .... .. .. .
94
185 186
187
186
187
Launch Contro l Program . ... .. .. .. .. . 110
Leather ...... .. .. ..... ... .. .. .... . 216
Leather (clea ning) .......... .. .. .. .. . 2 17
Leaving home ............. .. .. .. .. .. 43
Lift ing jack . .. .. .. ..... ... .. .. .... .
266
Lift ing vehicle
Light 278
Ambience lighting .......... .. .... .. 44
Com ing/Leaving home ..... .. .. ...... 43
Daytime running lights .. ... ... .. .. ..
41
Emergency flashers . . . . . . . . . . . . . . . . . 42
E t . l' h . x enor 1g ting .. .. .. .. .. .. .. .. .. .. 41
H ead lig ht range con trol ... .. .. .. .. . . 41
H igh beam .............. ........ .. 43
L ow beam . ... . .. ..... ... .. .. .... ..
4 1
Rear fog lights . .. ..... ... .. .. .... .. 41
Side ma rker lights ... ... .. .. .. .... .. 4 1
Turn signa ls ............. .. .. .. .. .. 43 Li
ght/ rain sensor
Hea dlights . ..... .. ... ..... ... .. .. .
41
Intermittent (w indshie ld w ipers) ... .. . 46
Sensor defective . . . . . . . . . . . . . . . . . . . . 22
Loa ding the roof ra ck ................ . 60
Locking
Power loc king switch .............. ..
36
Remote cont ro l . . . . . . . . . . . . . . . . . . . . 34
U si ng the key ................. .....
36
Low beams . .... .. ... .......... .... . 41
Lower universal anchorages (Cana da) 185
Luggage compartment
Cargo ne t . . . . . . . . . . . . . . . . . . . . . . . . .
62
En larging . .... .. ... .......... .... . 61
Load ing ... .... .. ... .. ..... ... .. .. . 61
Ski sack ... .... .. ... .. ..... .... . .. . 63
Stowing luggage ... ... ..... ... .. .. 132
Tie -downs . . . . . . . . . . . . . . . . . . . . . . . . . 62
Lumbar suppo rt
F ron t seats . . . . . . . . . . . . . . . . . . . . . . . .
52
M
Maintenance .... .. ............. .... 2 85
Malfunction Ind icator Lamp (MIL) . . 21, 29
Manual shift program .... ..... ... .. .. 109
Massage function
Front seats . . . . . . . . . . . . . . . . . . . . . . . .
52
Matte finish paint .. ............. .... 210
Mechan ica l key .... ... .. ..... ... .. .. . 32
Mir ro rs
Adjusting the exter ior m irrors ....... ..
48
d' . 1mming .... .. .. ... .......... .... . 48
Vanity mir rors . .. ............. .. ... 45
Monito ring the Advanced Airbag System 157
Multif unction steering whee l .. .. .. .. .. . 24
mult itro nic® 105
N
Natura l leather .. .. ................ . 216
New tires and whee ls
N HT SA
Co nta cting 251
13 4
Night vis ion assistant .... .. ... ..... .. 101
Cleaning came ra le n s ........ ...... . 211
Number of seats . .. ... .......... .. .. 136
