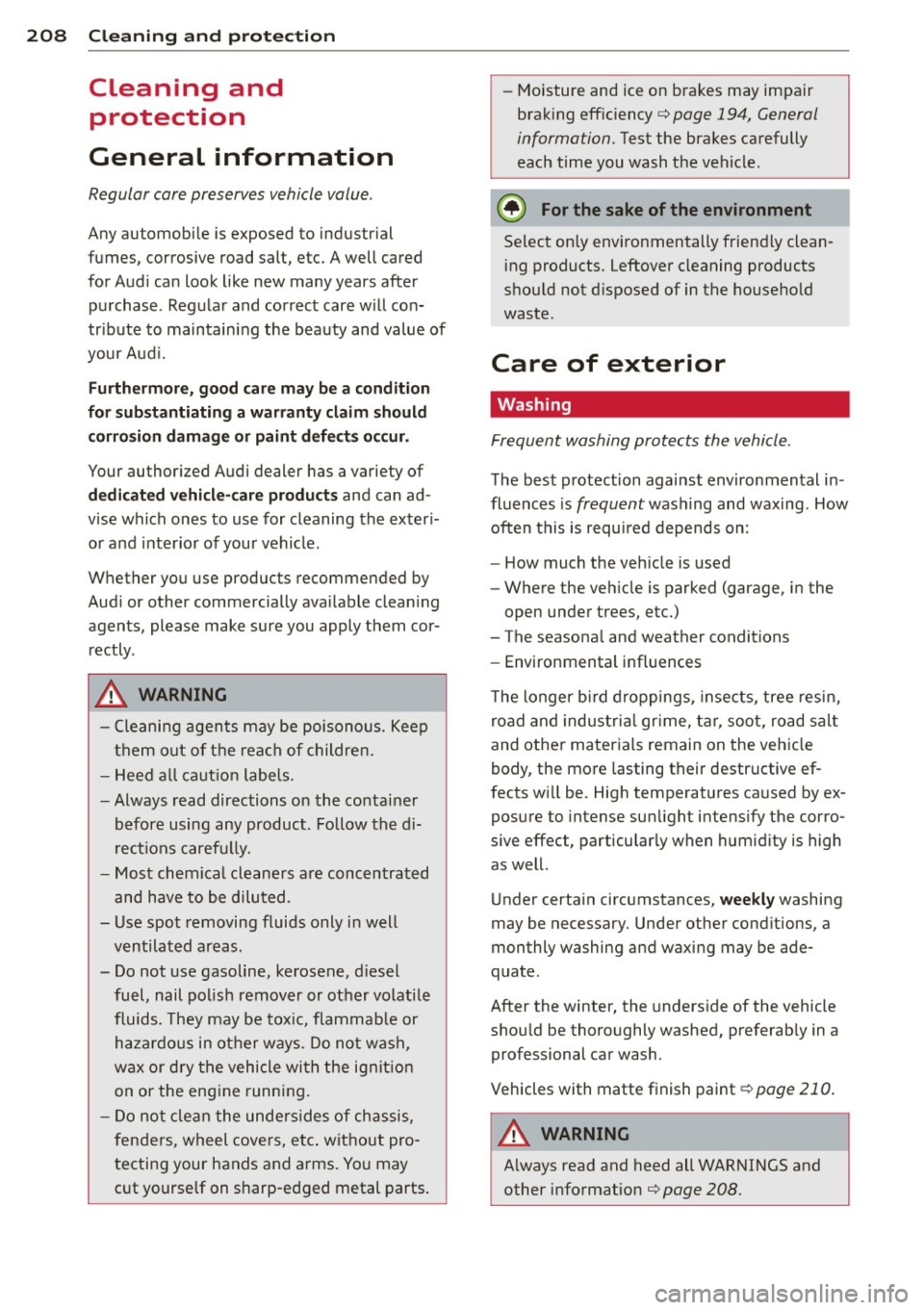

208 Cleaning and protection
Cleaning and protect ion
General information
Regular core preserves vehicle value .
Any automobile is exposed to industrial
fumes, corrosive road salt, etc. A well cared
for Audi can look like new many years after
purchase . Regular and correct care w ill con­
tr ibute to maintaining the beauty and value of
your Aud i.
Furthermore, good care may be a condition
for substantiating a warranty claim should
corrosion damage or paint defects occur.
Your author ized Audi dealer has a variety of
dedicated vehicle-care products and can ad­
vise which ones to use for cleaning the exter i­
or and interior of your vehicle .
Whether you use products recommended by
Audi or other commercially available clean ing
agents, please make sure you apply them cor­
rectly .
A WARNING
-Cleaning agents may be poisonous. Keep
them out of the reach of children.
- Heed all caut ion labels.
- Always read directions on the container
before using any product . Follow the di­
rect ions carefu lly.
- Most chemical cleaners are concentrated
and have to be diluted.
- Use spot removing fluids only in well
ventilated areas.
- Do not use gasoline, kerosene, d iesel
fuel, nail pol ish remover or other volatile
fluids. They may be toxic, flammable or
hazardous in other ways. Do not wash,
wax or dry the vehicle with the ignit ion
on or the engine running.
- Do not clean the undersides of chassis,
fenders, wheel covers, etc. without pro­
tecting your hands and arms. You may cut yourself on sharp-edged metal parts. -
Moisture and ice on brakes may impair
brak ing eff ic iency
c::> page 194 , General
information.
Test the brakes carefully
each time you wash the vehicle .
@ For the sake of the environment
Select only environ mentally friendly clean­
ing products. Leftover cleaning products
should not disposed of in the household
waste .
Care of exterior
Washing
Frequent washing protects the vehicle .
The best p rotection against environmental in ­
fluences is
frequent washing and waxing . How
often this is required depends on:
- How much the veh icle is used
- Where the vehicle is parked (garage, in the
open under trees, etc.)
- The seasona l and weather conditions
- Environmental influences
T he longer b ird droppings, insects, tree resin,
road and industria l gr ime, tar, soot, road salt
and other materials remain on the vehicle body, the more lasting their destructive ef­
fects will be . High temperatures caused by ex­
posure to intense sunlight intensify the corro­
sive effect, particularly when humidity is high as well.
Under certain circumstances,
weekly washing
may be necessary. Under other conditions, a
monthly washing and waxing may be ade­
quate .
After the winter, the underside of the vehicle
should be thoroughly washed, preferably in a
professional car wash.
Vehicles with matte finish paint
c::> page 210.
A WARNING
-A lways read and heed all WARNINGS and
other information
c::> page 208.

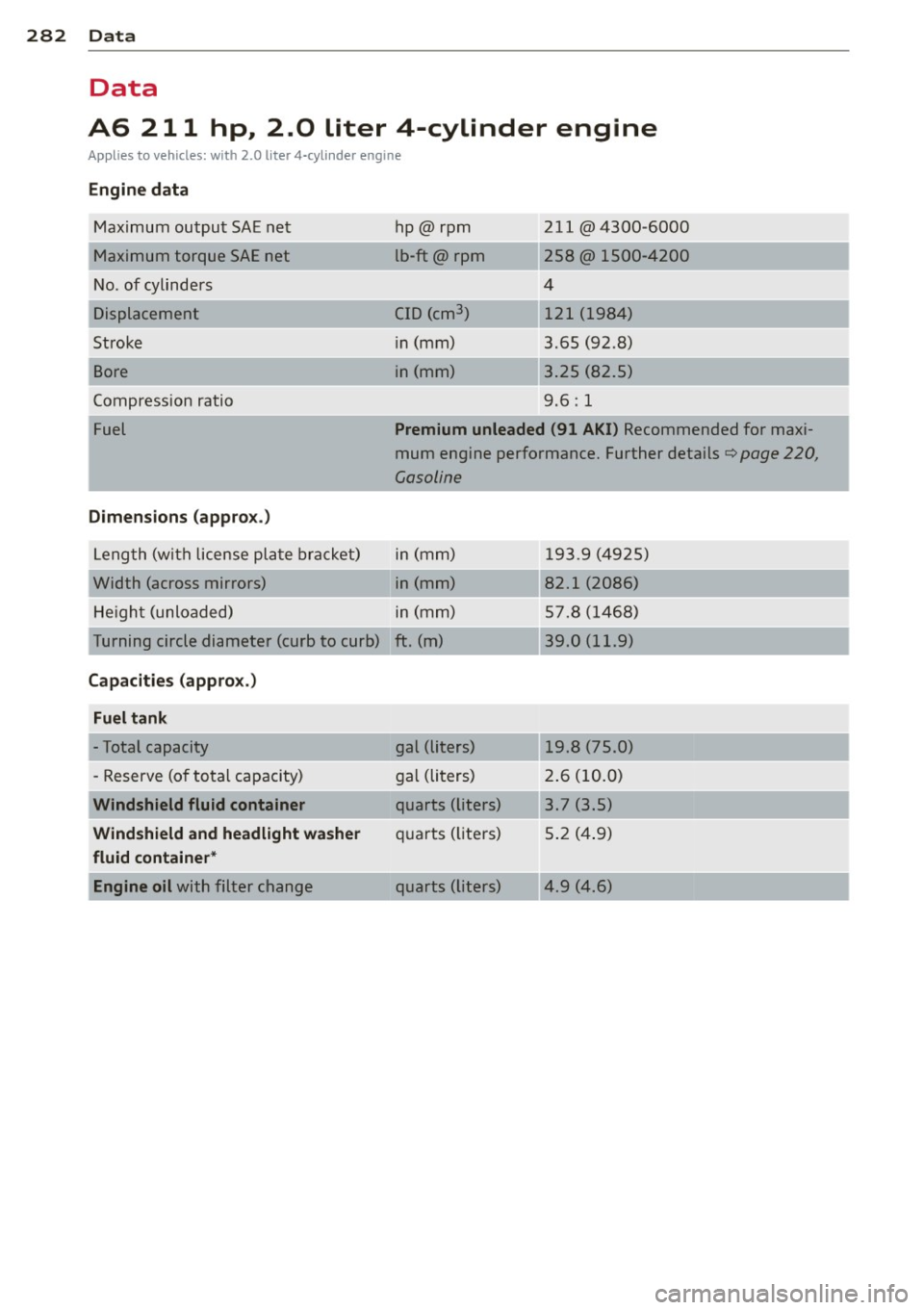

282 Data
Data
A6 211 hp, 2.0 Liter 4-cylinder engine
Applies to vehicles: with 2.0 liter 4-cylinder engine
Engine data Ma ximum output SAE ne t
M aximum torque SAE net
No. of cylinders
Displacement
Stroke
Bo re
C ompress ion ratio
Fuel
Dimensions (approx .)
Leng th (w it h li cense pl ate bracket)
Width (across mirrors) He igh t (unloaded) hp@r
pm
lb-ft@ rpm
CID (cm
3 )
in (mm)
in (mm)
211 @4300-6000
4
121 (1984)
3.65 (92. 8)
3 .25 (82 .5)
9.6: 1
Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance. Further details<=>
page 220,
Gasoline
in (mm) 1 9 3.9 (4 925)
in (mm) 82.1 (2086)
in (mm) 57 .8 (1 468)
Turning circle diameter (curb to curb) ft. (m) 39.0 (11.9)
Capacities (appro x.)
Fuel tank
- Total capacity
- Reserve (o f to tal capacity)
Windshield fluid container
Windshield and headlight wa sher
fluid container *
Engine oil with filter c hange gal (li
ters)
19.8 (75.0)
ga l (li ters) 2.6 (1 0 .0 )
quarts (liters) 3.7 (3.5)
qu arts ( li1ters) 5 .2 (4 .9)
quarts (li ters) 4.9 (4.6)

Data
A6 310 hp, 3.0 liter 6-cylinder engine
Applies to vehicles: with 3.0 liter 6-cylinder engine and all-wheel drive
Engine data
Maximum output SAE ne t
Maximum torque SAE net
No. of cylinders
Displacement
Stroke
Bore
C ompression ratio
Fuel
Dimensions (approx .)
L eng th (wit h license pl ate brac ket)
Width (across mirrors) He igh t (unloaded)
310@ 5500-6500 hp@ rpm
lb-ft@ rpm
-.. .--
C ID (cm3
)
in (mm)
in (mm)
__ ,
-~-- ,
325 @ 290 0-4500
6
182 (2995)
3.50 (89.0)
3 .33 (84.5)
10.3: 1
Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance. Further details¢
page 220,
Gasoline
in (mm) 193.9 ( 4925)
in (mm) 82.1 (2086)
in (mm) 57 .8 ( 1468)
Turning circle diameter (curb to curb) ft. (m) 39.0 (11.9)
Capacities (appro x.)
Fuel tank
- Total capac ity
- Reserve (o f to tal capacity)
Windshield fluid container
Windshield and headlight washer
fluid container *
Engine oil with filter change gal (liters)
19.8 (75.0)
gal (li
ters) 2. 6 (10.0)
quarts (liters) 3.7 (3.5)
qu arts ( liters) 5 .2 ( 4.9)
quarts (lite rs) 7.2 (6.8)
283
•
•

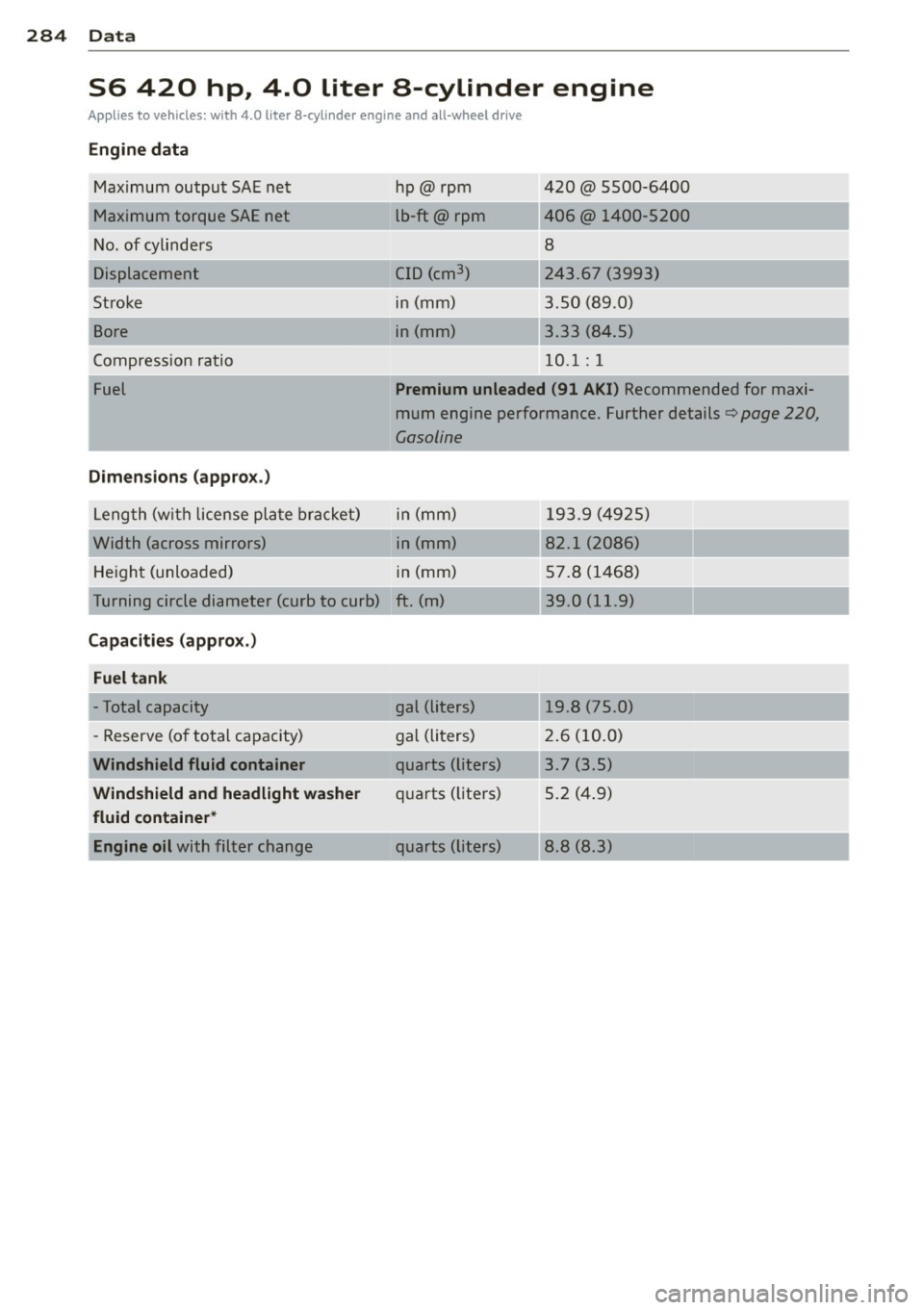

284 Data
S6 420 hp, 4.0 Liter a-cylinder engine
Applies to vehicles: with 4.0 liter 8-cylinder engine and all-wheel d rive
Engine data
Maximum outpu t SAE ne t
Maximum torque SAE net
No. of cylinders
Stroke
Bore
Compressio n ratio
Fuel
Dimensions ( approx .)
Leng th (with lice nse pl ate bra cket)
Width (across mirrors) He igh t (unloaded) hp@ rpm
lb-ft@ rpm
CID (cm
3 )
in (mm)
in (mm)
__ ,
-~ .. ,
420 @ 5500-6400
406@ 140 0-5200
8
24 3 .67 (3993)
3 .50 (89 .0)
3 .33 (84.5)
10 .1: 1
Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance . Further details¢
page 220,
Gasoline
in (mm) 193 .9 (4 925)
in (mm) 82.1 (2086)
in (mm) 57 .8 ( 1468)
Turning circle diamet er (curb to curb) ft. (m) 39 .0 (11.9)
Capacities (appro x.)
Fuel tank
- Total capacity
-Reserve (o f to tal capacity)
Windshield fluid container
Windshield and headlight wa sher
fluid container *
Engine oil
with filter c hange gal (li
ters)
19 .8 (75 .0)
gal (li ters) 2. 6 (10. 0)
q uarts (lit ers) 3 .7 (3 .5)
qu arts ( li1ters) 5 .2 ( 4.9)
quarts (li te rs) 8 .8 (8.3)

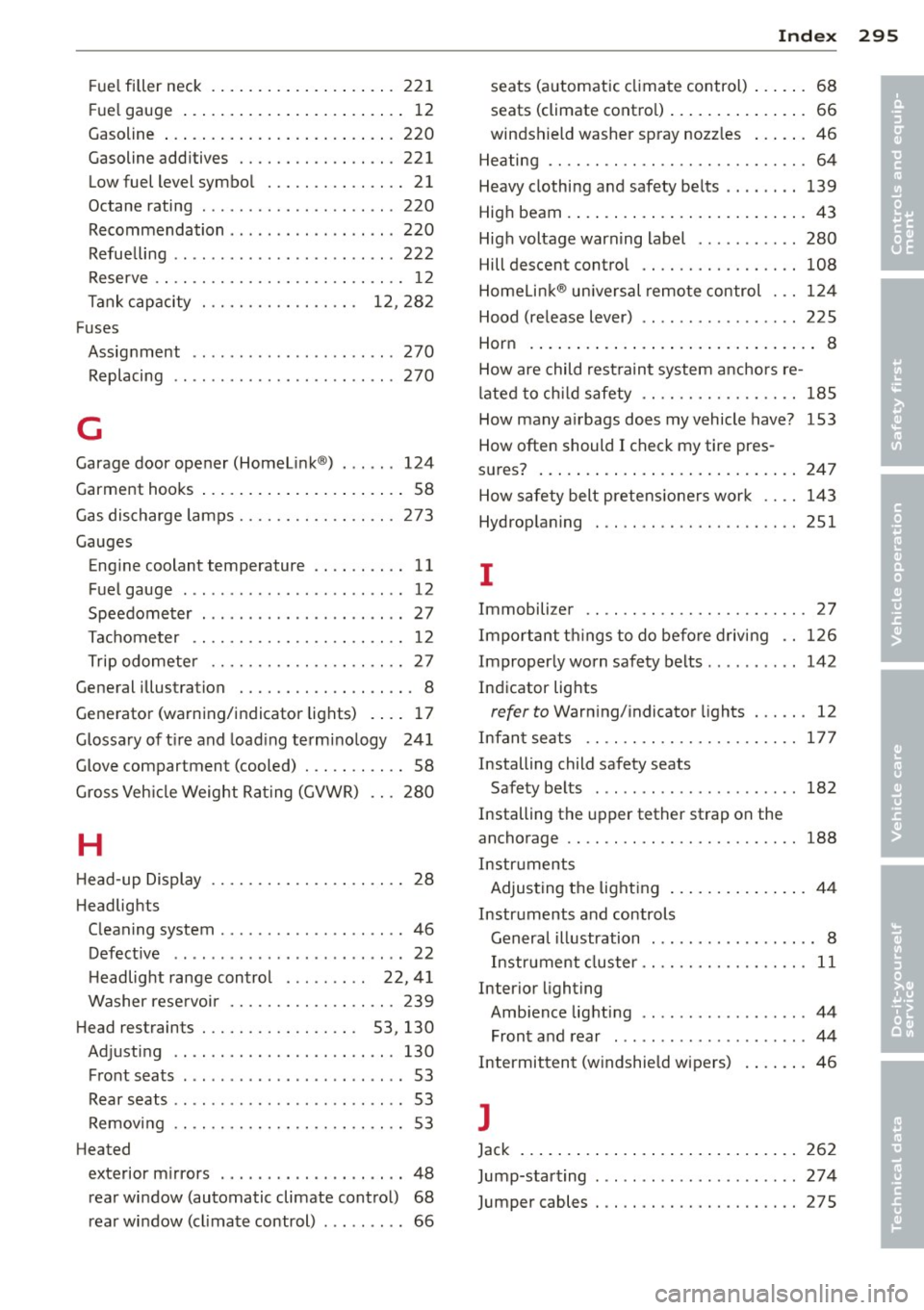

Fuel filler neck ................ .... 221
Fuel gauge ................. ... .... 12
Gasoline ... ................ ... .. . 220
Gasoline additives ........ .. .. .. .. . 221
Low fuel level symbol . . . . . . . . . . . . . . . 21
Octane rating ............... ... ... 220
Recommendation .... ..... .. .. .. .. . 220
Refuelling ............ ...... .... .. 222
Reserve .. .. ............. .. .. .. .. .. 12
Tank capacity . . . . . . . . . . . . . . . . . 12, 282
Fuses Assignment ..... .. ...... .. .. .. .. . 270
Replacing .. ................ ... ... 270
G
Garage door opener (Homelink ®) . ... .. 124
Garment hooks . . . . . . . . . . . . . . . . . . . . . . 58
Gas discharge lamps ........ .. .. .. .. . 273
Gauges Engine coolant temperature .. .. .. ... . 11
Fuel gauge . .. .............. ... ... . 12
Speedometer . ........ .... ... ... ... 27
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 12
Trip odometer ........... .. .. .. .. .. 27
General illustration . ....... .. .. .. .. ... 8
Generator (warning/indicator lights) . ... 17
Glossary of tire and loading terminology 241
Glove compartment (cooled) . .. .. .. .. .. 58
Gross Vehicle Weight Rating (GVWR) .. . 280
H
Head -up Display . . . . . . . . . . . . . . . . . . . . . 28
Headlights Cleaning system . .......... ... ... ... 46
Defective . . . . . . . . . . . . . . . . . . . . . . . . . 22
Headlight range control . . . . . . . . . 22, 41
Washer reservoir ......... .. .. .. .. . 239
Head restraints . . . . . . . . . . . . . . . . . 53, 130
Adjusting .. .. ... .. ... ... .. .. .. .. . 130
Front seats . . . . . . . . . . . . . . . . . . . . . . . . 53
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . 53
Removing .. .... ......... .... .. .. .. 53
Heated exterior mirrors . ...... ... .. .. .. .. .. 48
rear window (automatic climate control) 68
rear window (climate control) . .. ... ... 66
Index 295
seats (automatic climate control) ...... 68
seats (climate control) . . . . . . . . . . . . . . . 66
windshield washer spray nozzles ..... . 46
Heating .. .. .. .. .. .... ........... .. . 64
Heavy clothing and safety belts .. .. .. .. 139
High beam ... ..... .. ................ 43
High voltage warning label .......... . 280
Hill descent control ................. 108
Homelink ® universal remote control . .. 124
Hood (release lever) .. .. .. ...... .... . 225
Horn ....... ... .... .. .............. . 8
How are child restraint system anchors re-
lated to child safety .... ......... .. .. 185
How many airbags does my vehicle have? 153
How often should I check my tire pres-
sures? ............................ 247
How safety belt pretensioners work .. .. 143
Hydroplaning . .. .. .. .. ........... .. 251
I
Immobilizer .. .. ...... ............. . 27
Important things to do before driving .. 126
Improperly worn safety belts .......... 142
Indicator lights
refer to Warning/indicator lights ... .. . 12
Infant seats .. .. ...... ........... .. 177
Installing child safety seats Safety belts . . . . . . . . . . . . . . . . . . . . . . 182
Installing the upper tether strap on the
anchorage .. .... .. .. . .............. 188
Instruments Adjusting the lighting ............... 44
Instruments and controls General illustration . . . . . . . . . . . . . . . . . . 8
Instrument cluster . . . . . . . . . . . . . . . . . . 11
Interior lighting Ambience lighting .. .. .. ...... .... .. 44
Front and rear ... .. .. .. ...... .... .. 44
Intermittent (windshield wipers) .... .. . 46
J
Jack ........ ... .... ............... 262
Jump-starting . .. .... .. .. ...... .... . 274
Jumper cables . .. .. ................. 275
•
•
