AUDI S6 2016 Owners Manual

.... N
0 CJ ' "' U"I
M
"' ......
Audi ada pti ve c ruise contr ol and br akin g gu ard
The highe r the speed, the greater the distance in
yards (meters) ¢&. .The
Distance 3 setting is
recommended .
The distan ces p rovided are specified values. De­
pending on the driving situation and the how the
vehicle ahead is driving, the actual distance may
be more or less than these target d istances.
The various symbols fo r the time increments ap­
pear br ie fly in the information line @ ¢
page 86,
fig. 93 when you change the settings.
c:::, _c:::, ___ Dis tan ce 1: This setting corresponds
to a distance of 92 fee t/28 meters when travel­
ing at 62 mph (100 km/h), o r a time interval of 1
second.
c:::, __ c:::, __ Distan ce 2 : This setting corresponds
to a distance of 118 feet/36 meters whe n travel­
ing at 62 mph (100 km/h), or a time interval of
1.3 seconds.
c:::, ___ c:::,_ Distanc e 3: This setti ng corresponds
to a distance of 164 feet/SO meters when travel­ ing at 62 mph (100 km/h), o r a time interval of
1.8 seconds.
c:::, __ __ c:::, Di stance 4 : This setti ng corresponds
to a distance of 210 feet/64 meters when travel­ ing at 62 mph (100 km/h), or a time interval of
2 .3 seconds.
A WARNING
Following other vehicles too closely increases
the risk of collisions and ser ious personal in­
jury.
- Setting short distances to the traffic ahead reduces the t ime and distance available to
br ing your vehicle to a safe stop a nd makes
it even more necessary to pay close atten­
t ion to traffic .
- Always obey applicable traff ic laws, use
good judgment, and select a safe following distance for the traffic, road and weathe r
condit io ns.
(D Tips
- Di stance 3 is set automatically each time
you switch the ignition on . -
Your standard settings are automatically
stored and assigned to the remote control
key being used.
Selecting the driving mode
Applies to vehicles: with Aud i adapt ive cru ise control
.,. Select the desired driving mode in drive select
¢page 100.
{!) Tips
Your settings are automatically stored and as­
s igned to the remote control key being used.
Prompt for driver intervention
Applies to vehicles: with Aud i adapt ive cru ise control
F ig . 97 Inst rume nt cluster: request for d river in tervention
In certain situations, the system will prompt you
to take action . This could happen, for example, if
braking by the adaptive cru ise control system is
not enough to maintain enough distance to the
vehicle ahead .
The ind icator light . and the symbol in the dis­
play will warn you about the situation ¢
fig. 97 .
You w ill also hear an acoustic signal.
- Press the brake pedal to slow yo ur vehicle
down.
89

Audi adaptive cruise control and braking guard
Audi braking guard
Description
Applies to vehicles: w ith Audi adaptive cruise co ntro l
Fig. 98 Instrument cluster: approach warning
Braking guard uses radar sensors and a video
camera . It also functions within the limits of the
system when adaptive cruise control is switched
off .
What can braking guard do?
When detected in time, the system can assess
situations when a vehicle ahead brakes suddenly
or if your own vehicle is traveling at a high speed
and approaching a vehicle up ahead that is mov­
ing more slowly . Braking guard does not react if
it cannot detect the situat ion.
The system advises you of various situations:
- The
distance warning is given if you are too
close to the vehicle ahead for a long time.
If the
vehicle ahead brakes sharply, you will not be
able to avo id a coll is ion. The indicator light.
in the display comes on .
- The
approach warning is given when a detected
vehicle up ahead in your lane is moving much
more slowly than you are or if it brakes sharply .
When this warning is g iven, it may only be pos­
sible to avo id a collision by swerving or braking
sharp ly. Th e indicator light. and indicator in
the display will warn you about the danger
qfig. 98. You will also hear an acoustic signal.
If you do not react fast enough or do not react at
all to t he situation, braking guard will intervene
by braking.
l ) Thi s is not ava ilab le in some co un tri es .
90
-If a collision is imminent, the system will first
provide an
acute warning by briefly and sharply
app lying the brakes.
- If you do not react to the acute warning, brak­
ing guard can brake with increasing force with­
in the limits of the system. This reduces the ve­
hicle speed in the event of a collision.
- The system can initiate maximum braking
shortly before a co llision
1
) . Full deceleration at
high speeds occurs only in vehicles with adap­
tive cruise control and side assist (pre sense
plus) .
- If the braking guard senses that you are not
braking hard enough when a collision is immi­
nent, it can increase the braking force .
- The pre sense functions also engage when a
collision is imminent
qpage 184.
Which functions can be controlled?
You can switch braking guard and the distance/
approach warning on or off in the MMI
q page 91, Settings in the Infotainment sys­
tem .
A WARNING
Lack of attent ion can cause collisions, other
accidents and serious personal injuries . The
b ra king guard is an assist system and cannot
prevent a collision by itself. The driver must
always intervene . The driver is always respon­
sib le for braking at the correct time .
- Always pay close atten tion to traffic, even
when the braking guard is switched on. Be
ready to intervene and be ready to take
comp lete contro l whenever necessary. Al­
ways keep the safe and legal distance be­
tween your vehicle and vehicles up ahead.
- Braking guard works with in limits and will
not respond outside the system limits, for
example when approaching a stopped vehi­
cle or stationary obstacle (end of a traffic
jam or vehicle that has broken down in traf­
fic) .
- Always remember that the radar sensor for
-
the brak ing guard works only within def ined Ill>

Audi adapt ive cruis e control and braking gua rd
de tect ion and range limits t hat may prevent
the proper detection of other veh icles.
- The radar sensor's function and range can
be reduced by rain, snow and heavy spray.
Moving veh icles up ahead may not be
promptly detected or may not be detected
at all .
- Reflective surfaces including crash barriers
or tunnel entrances may impair the funct ion
of the radar sensor.
(D Tips
- You can cancel the brak ing with increasing
force that is init iated by the system by b rak­
i ng yourself, by accelerat ing noticeab ly or
by swerving .
- Braking guard error messages ¢
page 91.
-Keep in mind that braking guard can brake
unexpected ly. Always secure any cargo or
objects that you are transport ing to reduce
the risk of damage or injury .
Settings in the Infotainment system
Appl ies to vehicles: w ith Audi a daptive cruise co ntro l
~ Select: t he ICARI function button > (Car )* Sys ­
tems
con trol b utton > Driver assi stan ce > Audi
braking guard .
S ys tem -
Switch the braking guard On/ Off. When
you swit ch the ig nitio n on, the message
Brak ing
guard: Off
appears if the system is swi tched off .
Prewarning -The d istance and app roach warn ­
in gs i n the display can be switched
On/ Off.
(!) Tips
-Your settings are automatically stored and
ass igned to the remote cont rol key being
used.
- If you rest rict or sw itch off the ESC, the
braking gua rd also sw itches i tself off
¢ page 188 .
- Switch braking guard off when yo u are load ­
i ng t he ve hicle on to a vehicle ca rr ier, t rain,
s hi p or other type of transportation . This
c a n prevent undesired warnings from the
br aking gua rd system.
Messages
App lies to vehicles: wi th Audi ada ptive c ruise con trol
Braking guard : off
T his dr iver message appears if the system is
tu rned off via t he i nfot ainment. O therwise, if the
system is t urne d off, the information appears ev­
ery time shortly after t he start o f the trip .
T he driver message a lso appea rs if the system is
not avai lab le due to a m alfu nction o r if the ES C i s
not switched on¢
page 188 . If th is is the case,
the sys tem wi ll not provide warnings abou t a
poss ib le collision .
Braking guard : a ctivated
This dr iver message appears if sharp brake pres­
su re was applied due to an acu te warning .
ACC: Unava ilable!
ACC and Audi braking guard: not available
T he system cannot detec t moving vehicles up
ahe ad co rrectly and is swi tc h e d off. The senso rs
have been displaced or are not working proper ly.
T he Audi pre sense funct ions may also be affect ­
e d. D rive to yo ur authorized A udi deal er or au­
thori zed Audi serv ice facility immediately to have
the malfunction corrected .
ACC: currently unavailable. No senso r vi sion
ACC and braking guide : current ly unavailable .
No s ensor vi sion
Th is message appears if the senso r view is ob­
structed, for examp le by leaves, snow, heavy
sp ray or dirt. Clean the sensors ¢
page 84 ,
fig. 88.
ACC : Currently unavailable. Grad ient too steep
The road exceeds the maximum poss ible angle
for proper adaptive cruise co ntro l operat ion .
Adaptive cruise contro l is swi tched off .
ACC: Only available in D, Sor M
Select the D/S or M selector leve r position.
ACC : currently unavailable . Parking brake ap ­
plied
91

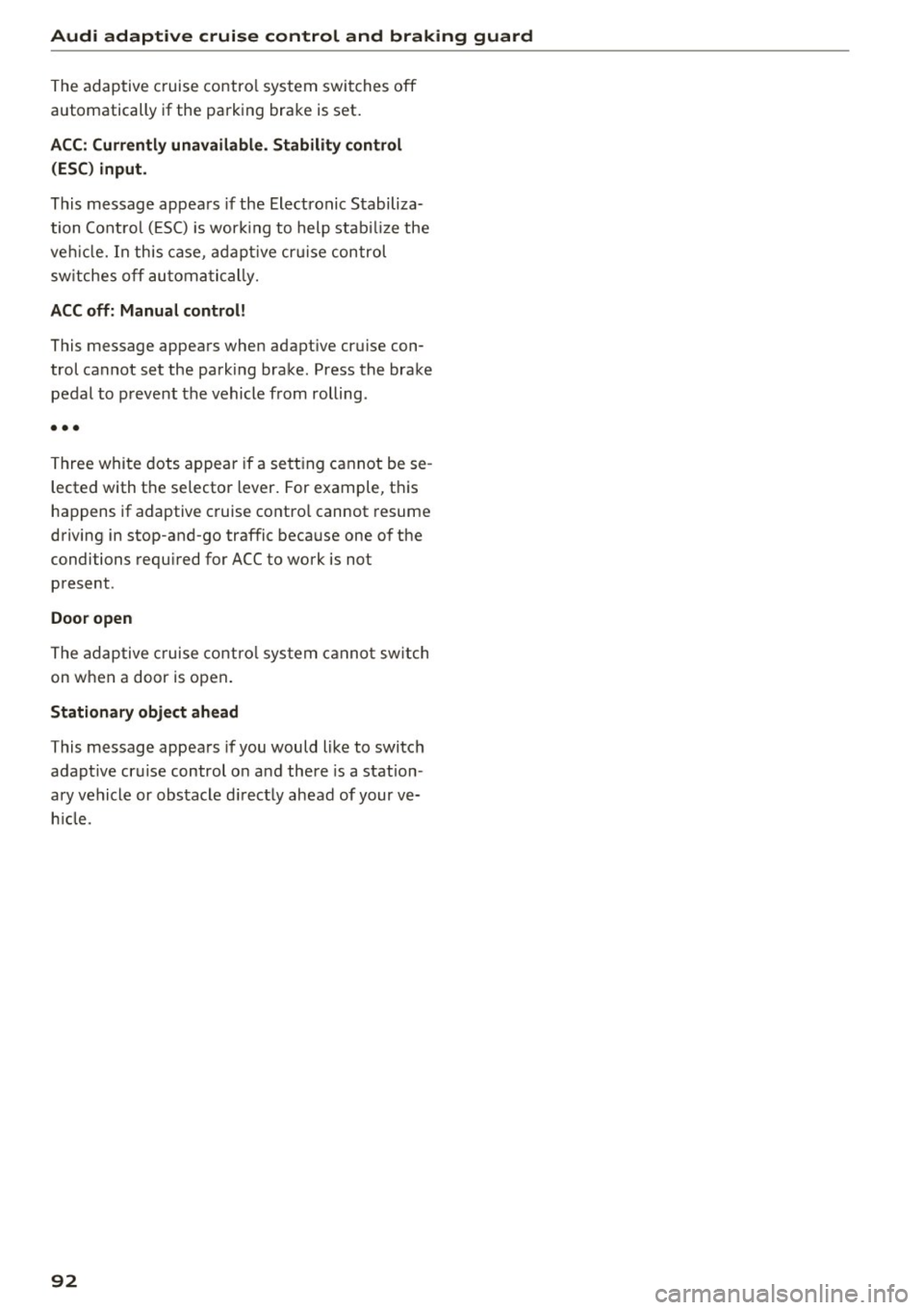

Audi adaptive cruise control and braking guard
The adaptive c ruise contro l sys tem swi tches off
automatically if the park ing brake is set .
ACC: Currently unavailable. Stability control
(ESC) input .
This message appea rs if the Electronic S tabiliza­
tion Contro l (ESC) is wor king to help st ab iliz e the
ve hicl e. In thi s case, ada pti ve cr uise co nt rol
sw itches
off au tom atic ally.
ACC off: Manual control!
This message appea rs when adapt ive cr uise con­
trol cannot set the pa rking brake . Press the brake
pedal to p revent the vehicle from rolling .
•••
Three whi te dots a ppea r if a se tt ing cannot be se ­
lected with the se lector lever. For example, t his
ha ppens if adaptive c ruise contro l cannot resume
driving in stop -and-go traffic beca use one o f the
conditi ons requ ired for ACC to work is not
p resent .
Door open
The ada ptive cruise cont ro l sy stem cannot sw itch
on whe n a door is open .
Stationary object ahead
This message appea rs if you would like to switc h
adapt ive cr uise control o n and there is a stat io n­
ary vehicle or obs tacle d irectly ahead of your ve ­
h icle .
92

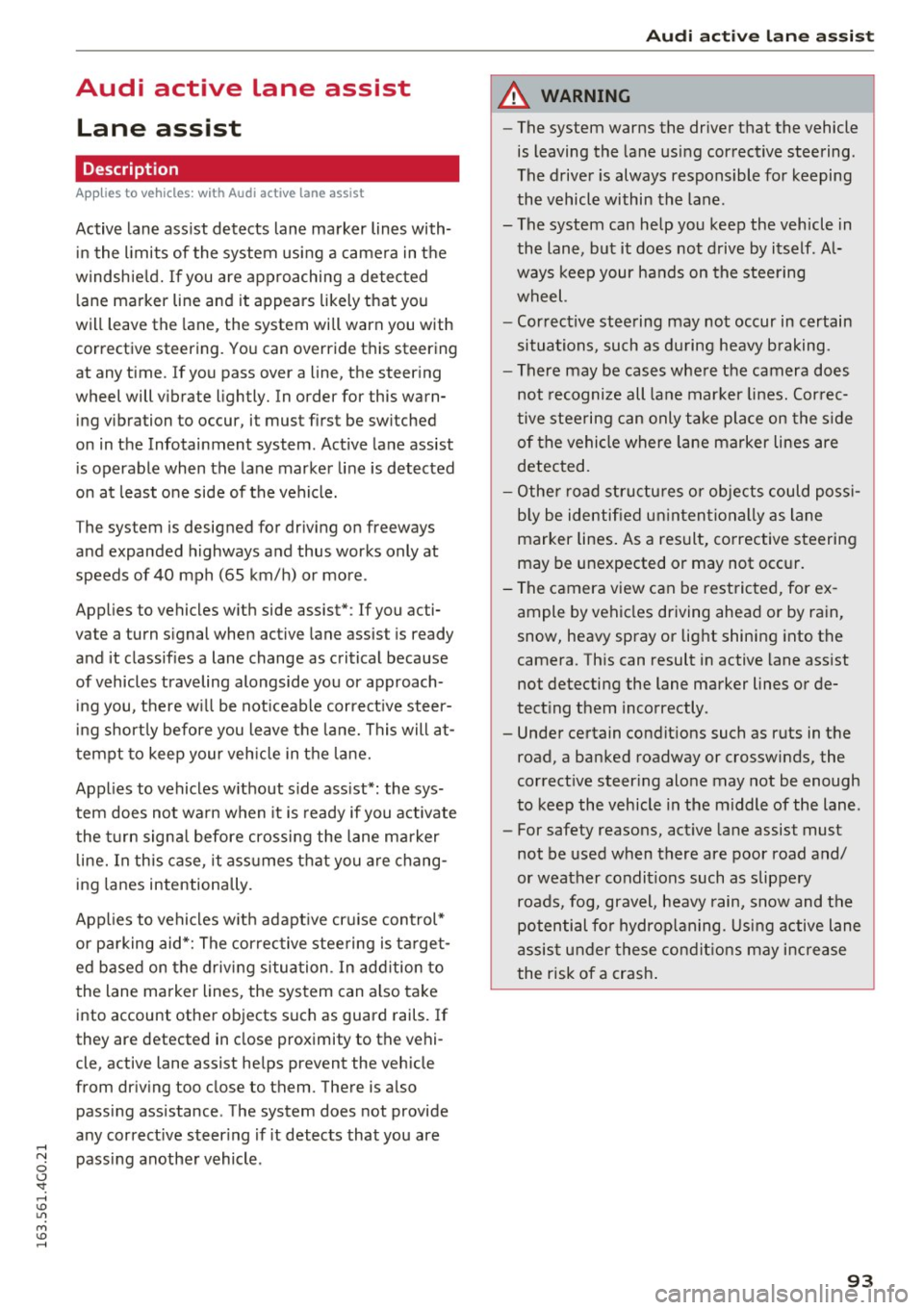

Audi active lane assist Lane assist
Description
Applies to vehicles: with Audi active lane assist
Active lane ass ist detects lane marker lines with­
i n the l imits of the system using a camera in the
windshie ld. If you are approaching a detected
lane marker line and it appears likely that you
will leave the lane, the system will warn you with
corrective steering. You can override this steering
at any time . If you pass over a line, the steering
wheel will vibrate lightly. In order for this warn­ ing vibration to occur, it must first be switched
on in the Infotainment system. Act ive lane assist
is operable when the lane marker line is detected
on at least one side of the vehicle.
The system is designed for driving on freeways
and expanded highways and thus works only at
speeds of 40 mph (65 km/h) or more .
Applies to vehicles with side assist* : If you acti­
vate a turn signal when active lane assist is ready
and it classifies a lane change as critical because
of vehicles traveling alongside you or approach­ing you, there w ill be not iceable correct ive steer­
i ng short ly before you leave the lane. This will at­
tempt to keep your veh icle in the lane.
Appl ies to vehicles w ithout s ide ass ist*: the sys­
tem does not warn when it is ready if you activate
the turn signa l before crossing the lane marker
line. In this case, it ass umes that you are chang ­
ing lanes intentionally.
Applies to vehicles w ith adapt ive cruise control*
or pa rking aid*: The corrective steering is ta rget­
ed based on the driving situation . In add ition to
the lane marker lines, the system can also take
into account other objects such as guard rails. If
they are detected in close proximity to the vehi­
cle, active lane assist helps prevent the vehicle
from driving too close to them. There is also passing assistance . The system does not provide
any correct ive steer ing if it detects that you are
passing another vehicle .
Audi act ive lane ass ist
A WARNING
- The system warns the driver that the vehicle
is leaving the lane using corrective steering.
The driver is always responsible for keeping
the vehicle within the lane.
- The system can help you keep the vehicle in the lane, but it does not drive by itself . Al­
ways keep your hands on the stee ring
wheel.
- Corrective steering may not occur in certain
situations, such as du ring heavy b raking.
- There may be cases whe re the camera does
not recognize all la n e mar ker lines. Cor rec­
tive steering can only take place on the s ide
of the vehicle where lane marker lines are
detected.
- Othe r road structures or objects could poss i­
b ly be identified un inten tionally as lane
marker lines . As a result, corrective steering
may be unexpected or may not occur.
- The camera view can be rest ricted, for ex­
ample by vehicles driving ahead or by rain,
snow, heavy spray or light shining into the
camera. Th is can result in active lane ass ist
not detecting the lane marker lines or de­
tect ing them incorrectly.
- Under certain condit ions such as ruts in the
road, a banked roadway or crosswinds, the
correct ive steer ing alone may not be enough
to keep the vehicle in the middle of the lane .
- For safety reasons, act ive lane assist must
not be used when there are poor road and/
or weather conditions such as slippery
roads, fog, gravel, heavy rain, snow and the potential fo r hydrop laning. Using active lane
assis t under these condit ions may i ncrease
the risk of a crash .
93

Audi active lane assist
Switching on and off
Applies to vehicles: w ith Audi active lane assist
Fig. 99 Turn sig nal lever : act ive lane assist b utton
Fig. 100 Windsh ield: camera window fo r ac tive lane assist
• Press the c::> fig. 99 button to switch the system
on and off . The . or
ra, indicator light in the
instrument cluster turns on or off .
Indicator lights
• Ready:
The indicator light turns on when the
system is ready for use . The system can now be
operated .
• Not ready: The indicator light turns on if the
system is switched on but is inoperab le. This may
be due to the following reasons:
- The re is no lane marker line.
- The relevant lane marker lines are not detected
(for example, markings in a construction zone
or because they are obstructed by snow, dirt,
water or backlighting).
- The vehicle's speed is below the speed needed
to activate it, which is about 40 mph (65 km/
h).
-The lane is narrower than about 8 ft. (2.5 m) or
wider than 15 ft (4.5 m).
- The curve is too sharp.
94
- The driver's hands are not on the steering
wheel.
(1) Tips
Make sure the camera's field of view
¢ fig.
100 is not obstructed by stickers or any­
thing e lse . For information on cleaning, refer
to
¢ page 203 .
Lane assist display in the instrument
cluster
Applies to vehicles: wit h Audi active la ne ass ist
Fig. 101 Instrument cl uster: act ive la ne ass ist is sw itched
on a nd p rovid ing warn ings
Fig. 102 Instrument cl uste r: active lane assist is sw itched
on but not ready to provide warnings
You can call up the active lane ass ist display us­
ing the buttons in the multifunction steering
wheel
c::> page 23.
An additional indicator appears in the Head-up display *.

White line(s) Active lane assist is activated and re a dy to p rovide wa rnings.
Red line(s) Active lane assist wa rns you
(left or right) before leaving a lane
c:> fig . 101. In addit io n, the
steering wheel vib rates light ly.
Gray line(s) Active lane a ssist is activated,
but not ready to give warning
c:> fig. 102.
Messages in the instrument clu ster di splay
If the active lane ass ist switches off a utomat ica l­
l y, the indicator lig ht in the display turns off an d
one o f th e following messages appears:
Audi active lane assist: Currently unavailable .
No camera view
This message appea rs if the c amera is u nable to
detec t th e lines. This co uld ha ppen i f:
- T he came ra field of v iew
c:> page 94, fig. 100 i s
dirty o r cove red in i ce. C lea n this are a on t he
wi nd shi eld.
- T he came ra field of v iew is fogged ove r. Wai t
u nt il the fog has clea red before sw itch ing the
a ctive la ne assis t on ag ain .
- Th e system has been unab le to detec t the lanes
f o r an extende d period o f ti m e du e to road con­
di tions. Sw itch t he active lane ass is t back on
when the lines are more v is ib le .
Audi active lane assist: currently unavailable
There is a temporary active lane assist malfunc­
tion . Try sw itching the act ive la n e assist on aga in
l ater.
Audi active lane assist: system fault!
D rive to an autho rize d Aud i dea ler o r a uth orized
Au di Service Facility immediately to have t he
malfunct ion corrected.
Audi active lane as sist: Please take over steering
This message appea rs if you are no t st eer ing by
yourse lf . I f thi s is the c ase, a ctive l ane assi st does
not swi tc h off, but it is "no t ready" t o pr ovid e a
war ning. The system can he lp you keep t he ve hi­
cle in the lane . However, you a re responsi ble for
d riving the vehicle and must steer it yo urself.
Audi active lane assist
Adjusting the vibration warning
Applies to veh icles: w ith Audi active lane assist
., Sele ct: the I CAR ! fu ncti on bu tton > (Car) * Sy s­
tem s
control butto n > Driver as sistance > Audi
active lane assist .
You c an switch t he a ddi tio nal vib rat ing wa rning
i n t he s teer ing whee l on o r off.
(D Tips
Your settings are automatically store d and as ­
s igned to the remo te control key b eing used.
95

Audi side assist
Audi side assist
Side assist
Description
Applies to vehicles: with Audi side assist
F ig. 103 Sensor detection ra nge
F ig . 104 Display o n the exte rio r m irror
Side assist helps you monitor your blind spot and
traffic behind your vehicle. Within the limits of
the system , it warns you about vehicles that are
comi ng closer o r that are traveling with your
within senso r range @
c:> fig. 103: If a lane
cha nge is class ified as crit ica l, the display @in
the exte rior mirror turns on
c:> fig. 104.
The display in the left exter ior mir ror provides as­
sis tance whe n making a la ne change to the left,
while the disp lay in the rig ht exte rio r mi rror pro­
vides assis tance when mak ing a lane change to
the right .
Informat ion stage
As lo ng as you do no t activate the turn signal,
side assis t
informs you about ve hicles that a re
detected and class if ied as crit ic al. T he disp lay in
the mirror turns on, but is dim .
96
The display remains dim in the information stage
so that your view toward the front is not distur­
bed.
Warning stage
If the display in a mirro r blinks brightly when you
activate a tu rn s ignal, side assist is
warning you
about detected vehicles that it has classified as critical. If this happens, check traffic by glancing
in the rearview mirror and over your shoulder
c:> & in General information on page 97.
Applies to vehicles with active lane assist* : The
display in the mirror can also b link if you have not
activated a turn signal:
If you are approach ing a
detected lane marker line and it appears you will
be leaving the lane, side assist will warn you
about detected vehicles that it has class ified as
critical.
@ Tips
You can adjust the brightness on of the d is­
play on the rearview m irror
c:> page 98.

.... N
0 CJ ' "' U"I
M
"' ......
General information
Applies to vehicles: with side assist
®
®
©
Fig. 105 Driving s it u atio ns
~ AUD !
• •
F ig. 106 Rear of the vehicle: position of the senso rs
S ide a ssist fu nctions a t speeds above ap proxi­
ma te ly 19 mph (30 km/h).
@ Vehicles that are approaching
In ce rtain cases, a vehicle will be classified as
cr itica l for a lane change even if it is still some­
what far aw ay. The faste r a ve hicle app roaches,
t he soo ner the d isplay in the exterio r mirror w ill
t urn on.
@ Vehicles traveling with you
Ve hicles traveli ng w ith you are ind icated i n the
ex te rior m irro r if they are classifie d as critical for
a lane change. All vehi cles detec ted by s ide assist
Aud i side assist
are ind icate d by the time they ente r your "blin d
spot", at the latest.
© Vehicles left behind
If you s low ly pas s a vehi cle that s ide ass ist has
de te cted ( the diffe re nce in speed between t he
vehicle and you r vehicle is less than 9 mph or 15
km/h), the display in the exterior mirror turns on
as soon as the vehicle enters your blind spot.
T he disp lay w ill not tu rn on if you quickly pass a
vehicle th at side a ssist h as dete cte d (t he differ­
ence in speed between the vehicle and yo ur vehi ­
cl e is greater tha n 9 mp h or 15 km/h).
Functional limitations
The radar se nsors are des igned to detect the le ft
and right adj ace nt lane s whe n the ro ad la nes are
the normal width . In certa in situations, the dis­
play in the exte rior mirror may turn on eve n
though there is no vehicle located in the area
that is critical for a lane change. For e xample:
- if the lanes a re narrow or i f yo ur are dr iv ing on
the edge o f you r lane. If t his is the case, the
system may have detected t he vehicle in anoth ­
er lane that is
not adjacent to you r cu rrent lane.
- if you are dr iv ing through a curve. Si de assist
may react to a vehicle that is one lane over
from the ad jacent lane .
- if side assist reacts to ot her objects (such as
high or disp laced guard ra ils).
- In poor weather conditions. The side assist
fu nctions a re limited .
D o no t cover the r adar senso rs
c> fig. 106 wit h
stickers, deposits, b icycle wheels or other o b­
jects, because th is wi ll affect the f unction . Do not
u se side assist when towing a t railer . For info r­
mation o n cleaning, refer to
c> page 203.
A WARNING
- Always pay attention t o traffic and to the
area a round your veh icle . S ide assist cannot
replace a driver' s attention. The driver alone
is always respo nsibl e for la ne cha nges and
s im ila r dr iv in g ma neuve rs.
97

Audi side assist
-Improper reliance on the side assist system
can cause collisions and serious personal in­
jury:
- Never rely only on side assist when chang­
ing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles under
all conditions- danger of accident!
- Please note that side assist indicates there
are approaching vehicles, or vehicles in your blind spot, only after your vehicle has
reached a driving speed of at least 19 mph
(30 km/h).
- In certain situations, the system may not
function or its function may be limited. For
example:
- if vehicles are approaching or being left
behind very quickly . The display may not
turn on in time .
- in poor weather conditions such as heavy
rain, snow or heavy mist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface . Vehicles
in the adjacent lane may not be detected
because they are outside of the sensor
range.
(D Note
The sensors can be displaced by impacts or damage to the bumper, wheel housing and
underbody . This can affect the system . Have
your authorized Audi dealer or authorized
Audi Service Facility check their function.
(D Tips
-If the window glass in the driver's door or
front passenger's door has been tinted, the
display in the exterior mirror may be misin­
terpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢page 276.
98
Switching on and off
Applies to vehicles: with A udi side assist
Fig. 107 D river 's doo r: side assi st but ton
.,.. Press the ¢&. in General information on
page
97 button to switch the system on and
off . The LED in the button turns on when side
assist is switched on .
Adjusting the display brightness
Applies to vehicles: with A udi side assist
The display brightness can be adjusted in the In­
fotainment system .
.,.. Select: the I CARI function button > (Car)* Sys­
tems control button > Driver assistance> Audi
side assist .
The display brightness adjusts automatically to
the brightness of the surroundings, both in the
information and in the warning stage . In very
dark or very bright surroundings, the display is
already set to the minimum or maximum level by
the automatic adjustment. In such cases, you
may notice no change when adjusting the bright­
ness, or the change may only be noticeable once
the surroundings change.
Adjust the brightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the
display in the exterior mirror will briefly show the
brightness level in the information stage. The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment . ..,.
