__________________________________________________ A_ i_ r _b _a-' g=- s_ y=- s_t _e _m __ fflll
& WARNING (continued )
airbags can become projectiles and cause injury , part icularly when
the seat is reclined .
& WARNING
The fine dust created when airbags deploy can cause breathing
problems for people with a history of asthma or other breathing
conditions.
• To reduce the risk of breathing problems, those with asthma or
other respiratory conditions should get fresh air right away by
getting out of the vehicle or opening windows or doors.
• If you are in a collision in which airbags deploy, wash your
hands and face with mild soap and water before eating.
• Be careful not to get the dust into your eyes , or into any cuts or
scratches .
• If the residue should get into your eyes , flush them with
water. •

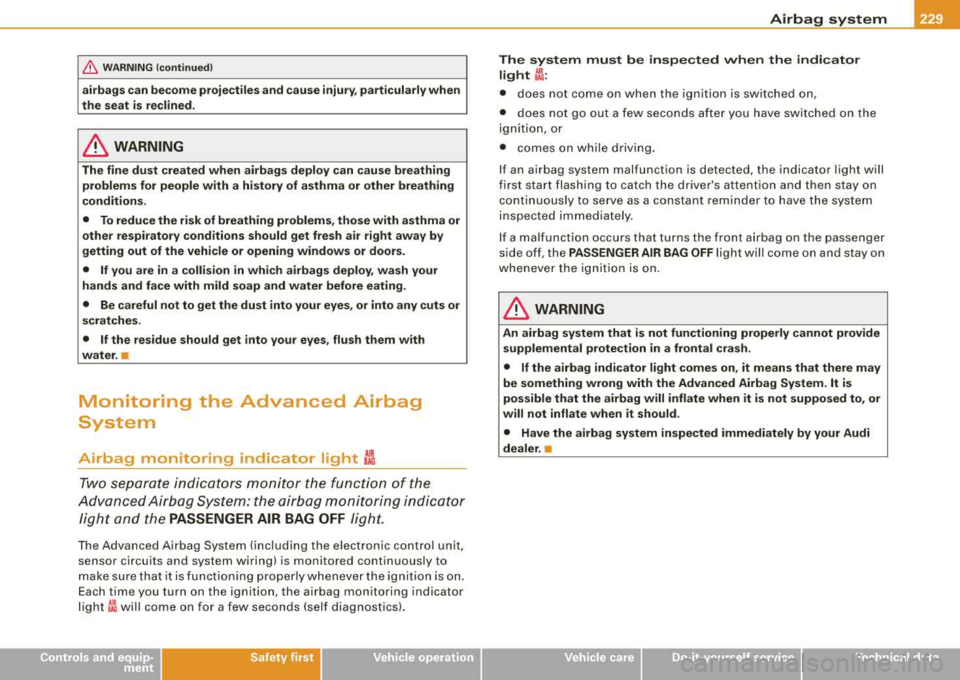

Monitoring the Advanced Airbag
System
Airbag monitoring indicator light :~
Two s epa rate i ndic a tors mon itor the fu nction of the
Adv anc ed A irbag S ystem: the airbag monitor ing indi cator
light and the
PASSENGER AIR BAG OFF l igh t.
The Adva nce d A irbag S yst em ( includ ing t he e lec tronic co ntrol un it,
se nsor circuits and system wiring) is monitored continuously to
ma ke sure t hat it is fu nctio nin g properl y whene ver th e ig niti on i s on.
E ach time you t urn on the ignition, the airbag monitoring in dicator
lig ht ~ will co me on f or a few s econ ds (se lf diagnos tics).
Controls and equip­ ment Safety first
Vehicle operation
The system must be inspected when the indicator
light
:l t
• does not come on when the i gnition is switched on,
• do es no t go out a few se conds after you have sw itch ed o n the
ign it ion, or
• comes on while d riv in g.
I f an airbag syst em malfunction is d etected, the indicator light will
fi rs t sta rt fl ash ing to catch the d rive r's a tten tion an d th en s tay on
cont in uousl y to serve as a constant rem inder to have the system
i nspec ted i mm ed ia tely.
If a ma lfunction o ccurs that turns t he fro nt a irbag o n th e passe nger
side off, the PASSENGER AIR BAG OFF light will come on and stay on
w heneve r the ig nit io n is on.
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental protection in a frontal crash .
• If the airbag indicator light comes on , it means that there may
be something wrong with the Advanced Airbag System . It is
possible that the airbag will inflate when it is not supposed to , or
will not inflate when it should .
• Have the airbag system inspected immediately by your Audi
dealer. •
Vehicle care Do-it-yourself service Technical data

__ .....;.A..;.;.;. ir.;;b ;..; a;;;;. g=... s;;;.!. y.;;s ..;;t ..;;e ;.;.m.;..;... ________________________________________________ _
PASSENGER AIR BAG OFF light
I~
I
( f8 : !'°""BA I ~ )
Fig. 233 Sec tio n f rom
th e in strum ent p an el:
PAS SEN GER A IR BAG
O FF lig ht
Th e PA SSEN GER AIR BAG OFF light is locat ed in the center of th e
instrument pane l
=> fig. 233 .
The PASSE NGER AIR BA G OFF light will come on and stay on to tel l
you wh en the front Advanced Airbag on the passenger side has
bee n turned of f by the electron ic contro l unit . Each time you turn o n
the ign ition, th e
PASS ENGER AIR BAG OFF light wi ll flash for a few
seconds and :
• will stay on if the front passenger seat is not occupied,
• will stay on if there is a sma ll chi ld or chi ld restra int on the front
pass enger s eat ,
• will go out if the front passenger seat is occupied by an adult as
reg ist ered by the weight -s e nsing mat .
The
PASSENGER AIR BAG OFF li ght must come on and sta y on if the
ignition is on and
• a car bed has been instal led on the front seat, or
• a rearward -facing child restraint has been installed on the front
passenger seat, or
• a forward -facing child res traint has been installed on the front
passenger seat, or
• the weight registered on the front passenger seat is equal to or
less than the combined weight of a typica l 1 year-old res trained in one of the rear
-facing or forward-facing infant restraints lis ted in
Federa l Motor Vehic le Safety S tandard 208 with which the Advanced
Airbag System in your vehicle was certified .
I f the front passenger seat is not occup ied, the front a irbag wil l not
deploy, and the
PA SS ENGER AIR BA G OFF light wi ll stay on. Never
install a rearward -facing ch ild restraint on the front passenger s eat,
the safest p lace for a c hild in any kind of c hild restra int is at one o f
the seating posi tions on the rear
sea t=> page 220, "Child restraints
on t he front seat -so me important th ings to know"
and => page 243,
"Chi ld Safety".
If the PASSENGER AIR BAG OFF light come s on when one of the
cond it ions l isted above is m et, be sure to check the lig ht regularly
to make certain that the
PASSENGER AIR BAG OFF l ight stays on
cont inuously whenever the ignition is on. If the
PASSENGER AIR
BAG OFF
light do es not appear and not stay on all the time , stop as
soon as it is safe to do so and
• reactivate the system by turning the ignition off and then turning
it on aga in;
• remove and reinstal l the child restraint. Make sure that the child
r estra in t is prope rly instal led and that the safety belt for the front
passenger seat has been correctly routed around the child restraint
as described in the ch ild res traint manufactu rer's inst ructions;
• make sure that the convertible locking feature on the safety belt
f or the front passenger seat has been activated and t hat the safety
belt has been pulled tight . The bel t must not be loose or have loops
of slack so that the sensor below the safe ty belt latch on the sea t can
do its job
=> page 253.
• make sure that things that may inc rease the we ight of the child
and child seat are no t being transported on the front passenger
seat;
• make sure that the safety belt tension sensor is not blocked .
Shake the safety belt latch on the front passenger seat back and
forth;
• I f a s trap or tether is be ing used to tie the child seat to the front
passenger seat , make sure that it is not so tight that it causes the
.,,_

weight-sensing mat to measure more weight than is actually on the
seat .

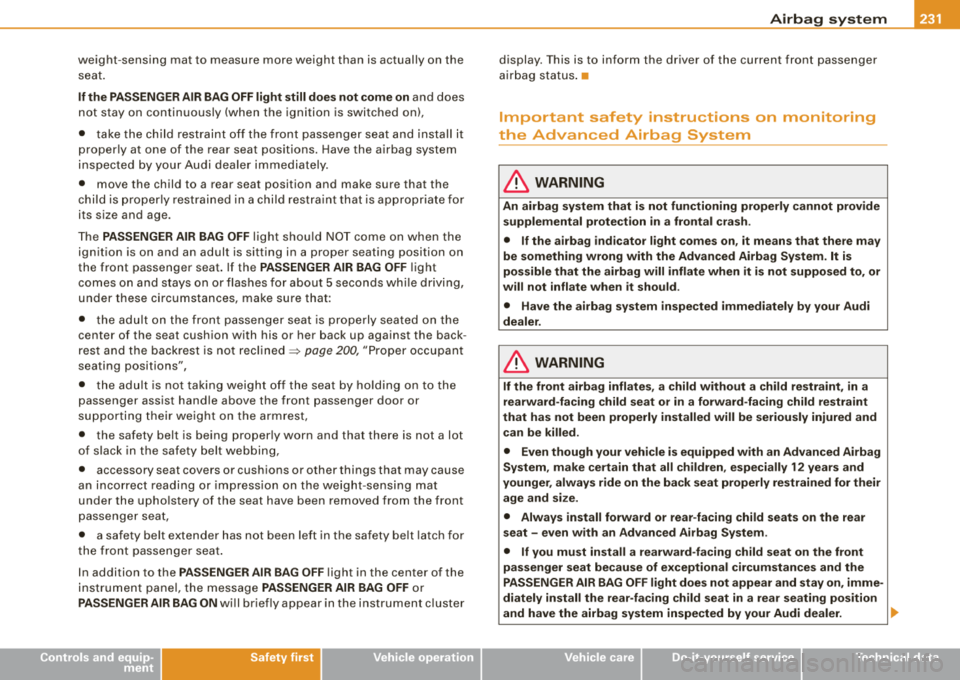

If the PASSENGER AIR BAG OFF light still does not come on and does
not stay on continuously (when the ign ition is switched on) ,
• t ake the chil d re stra int off th e front passeng er seat and i nstall it
proper ly at one of the rear seat pos it ions . Have the a irbag system
i nspec ted by y our Audi d ealer im mediately.
• move the child to a rear seat position and make sure that the
c h ild is pro perl y restrai ned i n a c hild rest ra in t t ha t is ap prop ria te fo r
its s ize and age .
T he
PASSENGER AIR BAG OFF light s hou ld NOT come on when the
ignition is on and an adult is sittin g in a proper seating position on
the fro nt passenger seat . If the
PASSENGER AIR BAG OFF light
co me s on a nd stays o n or flas hes fo r abou t 5 s econds whi le d rivin g,
under these ci rcumstances , ma ke su re that :
• th e adult on the front passeng er sea t is pro pe rly s eate d on the
cent er of the seat cushion with his or her back up again st th e back ­
res t and the bac kres t is no t recl ined => page 20 0, "Pr oper o ccupa nt
seating positions",
• the adult i s not ta king w eight off the se at b y ho ld in g on to the
passenger assist handle above the front passenger door or
su ppo rtin g th eir we ig ht on t he ar mrest,
• the safety belt is being p roper ly worn and that there is not a lot
o f slac k in th e safety bel t webb ing,
• accessory seat covers or c ushions or other things that may cause
an incorrect r ead ing o r impre ss io n on th e w eight-s en sin g m at
unde r the upho lste ry of the seat have been removed from the front
p ass enger sea t,
• a safety belt extender has not been left in t he safety be lt latc h for
the fr ont pass enge r se at.
I n addition to the
PASSENGER AIR BAG OFF light in the center of th e
in stru men t p ane l, the message
PASSENGER AIR BAG OFF o r
PASSENGER AIR BAG ON wi ll briefly appe ar in the instrum ent c luster
Controls and equip­
ment Safety first Vehicle operation
Airbag system
d
isplay . This is to inform the driver of the current front passenger
a irb ag stat us.•
Important safety instructions on monitoring
the Advanced Airbag System
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental protection in a frontal crash.
• If the airbag indicator light comes on , it means that there may
be something wrong with the Advanced Airbag System . It is
possible that the airbag will inflate when it is not supposed to , or
will not inflate when it should.
• Have the airbag system inspected immediately by your Audi
dealer.
& WARNING
If the front airbag inflates , a child without a child restraint , in a
rearward-facing child seat or in a forward-facing child restraint
that has not been properly installed will be seriously injured and can be killed.
• Even though your vehicle is equipped with an Advanced Airbag
System , make certain that all children , especially 12 years and
younger, always ride on the back seat properly restrained for their
age and size .
• Always install forward or rear -facing child seats on the rear
seat -even with an Advanced Airbag System .
• If you must install a rearward-facing child seat on the front
passenger seat because of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not appear and stay on , imme ­
diately install the rear-facing child seat in a rear seating position
and have the airbag system inspected by your Audi dealer .
~
Vehicle care Do-it-yourself service Technical data

__ .....;.A..;.;.;. ir.;;b ;..; a;;;;. g=... s;;;.!. y.;;s ..;;t ..;;e ;.;.m.;..;... ________________________________________________ _

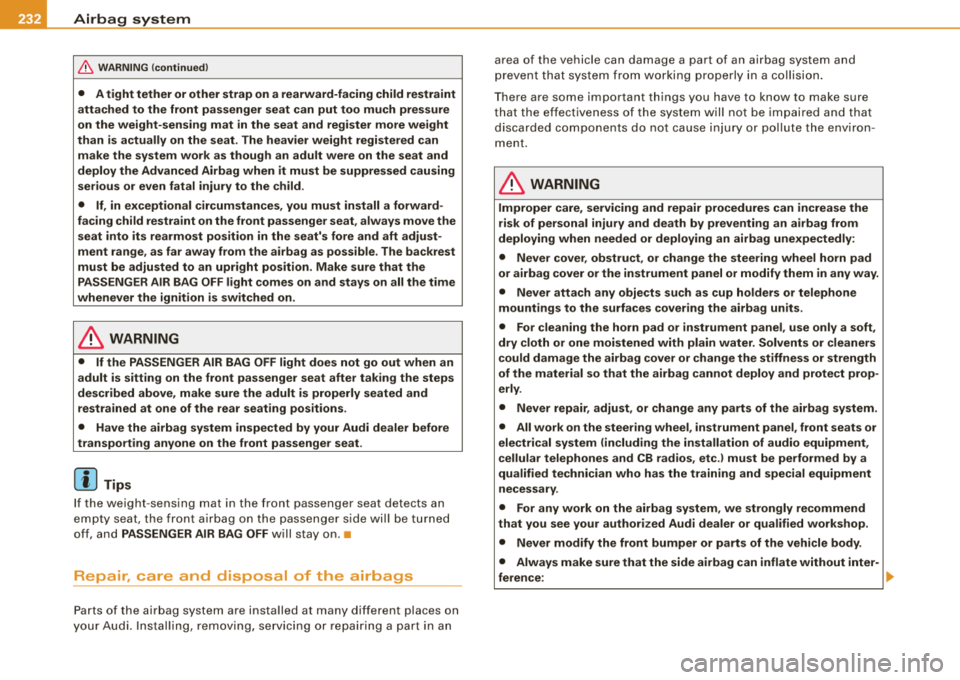

&, W ARNING (continued )
• A tight tether or other strap on a rearward-facing child restraint
attached to the front passenger seat can put too much pres sure
on the weight-sensing mat in the seat and reg ister more weight
than is actually on the seat. The heavier weight registered can
make the system work as though an adult were on the seat and
deploy the Advanced Airbag when it must be suppressed causing
serious or even fatal injury to the child .
• If, in exceptional circumstances, you must install a forward ­
facing child restraint on the front passenger seat , always move the
seat into its rearmost position in the seat's fore and aft adjust­
ment range , as far away from the a irbag as possible. The backrest
must be adjusted to an upright position. Make sure that the
PASSENGER AIR BAG OFF light comes on and stays on all the time
whenever the ignition is switched on .
& WARNING
• If the PASSENGER AIR BAG OFF light does not go out when an
adult is sitting on the front passenger seat after tak ing the steps
described above, make sure the adult i s properly seated and
restrained at one of the rear seating positions .
• Have the airbag system inspected by your Audi dealer before
transporting anyone on the front passenger seat .
[ i] Tips
If the we ight -sens ing mat in the front passenger seat detects an
e mp ty s eat, th e front air bag o n the pass enge r sid e wil l be tur ned
off, and PASSENGER AIR BAG OFF will stay on.•
Repair, care and disposal of the airbags
Parts of the airbag system are insta lled at many different places o n
yo ur Au di. In stal li n g, r emo vin g, s ervic ing or rep airi ng a part i n an area of the vehicle can damage a part of an airbag system and
p re vent that sys tem from wor king pr operly in a c ollis ion.
Th ere are some important th ings you hav e to know to ma ke sure
that t he effectivenes s of the system will not be impai red and that
discar ded co mponents do not ca use injury o r po llut e the enviro n­
ment .
& WARNING
Improper care , servicing and repair procedures can increase the
risk of personal injury and death by preventing an airbag from
deploying when needed or deploying an airbag unexpectedly:
• Never cover , obstruct , or change the steering wheel horn pad
or airbag cover or the instrument panel or modify them in any way .
• Never atta ch any objects su ch as cup holders or telephone
mountings to the surfaces covering the airbag units .
• For cleaning the horn pad or instrument panel, use only a soft,
dry cloth or one moistened with plain water. Solvents or cleaners
could damage the airbag cover or change the stiffness or strength
of the material so that the airbag cannot deploy and protect prop­
erly .
• Never repair , adjust, or change any parts of the airbag system .
• All work on the steering wheel, instrument panel , front seats or
electrical system (including the installation of audio equipment ,
cellular telephones and CB radios , etc .I must be performed by a
qualified technician who has the training and special equipment
necessary .
• For any work on the airbag system, we strongly recommend
that you see your authorized Audi dealer or qualified workshop .
• Never modify the front bumper or parts of the vehicle body .
• Always make sure that the side airbag can inflate without inter-
ference :
~

Airbag system -
--------------=---=--
& WARNING (continued )
-Never install seat covers or replacement upholstery over the
front seatbacks that have not been specifically approved by
Audi .
- Never use additional seat cushions that cover the areas
where the side airbags inflate.
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi ­
ately by an authorized Audi dealer .
• The airbag system can be activated only once. After an airbag
has inflated , it must be replaced by an authorized Audi dealer or
qualified technician who has the technical information , training
and special equipment necessary .
• The airbag system can be deployed only once . After an airbag
has been deployed , it must be replaced with new replacement
parts designed and approved especially for your Audi model
version . Replacement of complete airbag systems or airbag
components must be performed by qualified workshops only .
Make sure that any airbag service action is entered in your Audi
Warranty
& Maintenance booklet under AIRBAG REPLACEMENT
RECORD .
• For safety reasons in severe accidents , the alternator and
starter are separated from the vehicle battery with a pyrotechnic
circuit interrupter .
- Work on the pyrotechnic circuit interrupter must only be
performed by a qualified dealer
-risk of an accident!
- If the vehi cle or the circuit interrupter is scrapped, all appli ­
cable safety precautions must be followed .
For the sake of the environment
Undeployed ai rbag mod ule s and pr etensione rs mi ght b e cla ssi fied
as Perchlorate Material -sp ecial handling may ap ply, s ee
www .dtsc.ca.gov/hazardouswaste/perchlorate. When the vehicle or
Controls and equip­
ment Safety first Vehicle operation
parts of th
e restraint syst em incl uding airbag modules saf ety be lts
w ith preten sio ne rs a re sc rapped, a ll a pp lic ab le laws a nd re g ul a­
tions must be observ ed. Your authorized Audi deale r is fam iliar with
t hese req uir e m ents a nd we rec ommend tha t yo u have yo ur dea ler
perfor m this service for you .•
Other things that can affect Advanced Airbag
performance
C han ging the vehic le 's suspens ion system can change the way that
t h e Ad va n ce d Ai rbag Sys tem perfo rm s in a crash. F or e xam ple,
using ti re -r im comb inations not app rov ed by Audi, lower ing the
ve hic le , ch angi ng th e st iff ne ss of the su sp en sion , in cludin g the
springs, suspension struts, shock absorbers etc . can cha nge the
forc es that are measu re d b y th e a irbag sens ors a nd sen t to the e lec ­
t ronic con trol un it. Some suspens ion chan ges can, for exa mple,
i nc rea se the force le v e ls mea sured by the sen so rs and make the
a irb ag sys tem de plo y i n cras hes in whi ch it wo uld not de plo y if the
changes had not been made . Other kinds of changes may reduce
t h e force leve ls m easured by t he se nso rs a nd p reve nt t he a irba g
from deploy ing when it should .
T he se nsor s in th e safe ty bel t buc kle for th e dr ive r a nd fr ont
passen ger seat te ll th e electron ic control module if t he safety belt is
l a tc h e d or n ot. If t he safety belt is b ein g use d, th e fr ont ai rbag will
dep loy at a s lig htly h igher rate of veh ic le dece lerat ion t han if t he
safety belt is not being use d. Therefore, in a partic ular collision, it is
poss ible t hat an airba g w ill not deplo y at a s eat ing pos itio n where
the safety be lt is being used but wi ll inflate at the position where t he
sa fe ty be lt is no t bein g used. It i s im por ta nt th at n othi ng i nterfe re
with t he safety belt buc kles so that the sensors can send the correct
info rm ati on abou t sa fet y bel t use to th e ele ctr on ic co ntrol unit.
~
Vehicle care Do-it-yourself service Technical data
