Messages
The text messages and symbols shown in this area of the
display are not displayed perm anently .
Time interval s
Fig . 16 1 Informa tion
lin e
The different symbols for the time intervals appear if you change the
settings. In addition, there is a display if the gong (audible warning
signa l) is turned off.
The text message ... (three white dots) appears if a setting cannot be
implemented with the operat ing lever. The fol lowing are possible
reasons
• If you pu ll the control lever forward to resume speed but no
requested speed was set.
• I f you push the lever up to increase (or down to reduce) speed
when no speed has been set previously.
• I f you push the lever up (down) to increase (reduce) speed and
this speed is outside the range from 20 to 95 mph !Canada models:
30 to 150 km/h) .
Controls a nd eq uip­
ment
A CC not a vailab le
The text message ACC not av ailabl e appears, for example, if the
temperature of the brakes is excessive . Adaptive Cruise Control is
t emporarily not availab le . A warning tone sounds as a rem inder.
A CC not available !
The text message ACC not av ailabl e! appears in the event of a
malfunction. Adaptive Cruise Control is turned off . A warning tone
sounds as a reminder. Have the system inspected by a qua lified
dea lersh ip.
ACC senso r blocked
The text message AC C s en so r blo cked appears when the ACC
System does not detect any objects over an extended time period .
For the time being, the distance to vehicles up ahead is not being
cont rolled . The ACC system is not switched off, so increased alert ­
ness is required. The following may be reasons for the text message
ACC sensor blocked:
• The ACC sensor is dirty. The ACC system is not react ing, or is not
reacting correctly, to vehic les traveling ahead.
• It is possible that you are driving on a road with very light traffic
without any thing at the side of the road (e.g. guard rai ls, traffic
s igns, trees). As soon as a vehicle is detected by the system again,
it returns to its control range and the text message d isappears .
The ACC sensor is located in the area under the front license plate .
I f there is a loss of operation due to heavy contamination, this area
should cleaned to restore proper operation.
AC C senso r bl ock ed!
The text message ACC sensor blocked! appears when the ACC
System can no longer guarantee safe detection of objects . Adaptive
cruise control is turned off . A chime sounds as a reminder.
To decide whether it is necessary to switch off t he ACC (ACC sensor
blocked!) or if it is only a temporary condition (ACC sensor blocked),
the system wi ll a lso takes into cons ideration the outside tempera -
ture and/or the windshield wiper operation .
.,_
Vehicle care I I irechnical data

___ A_ d_a_ p_ ti_v _ e_ C_ ru_ is_ e_ C_ o_n_ t_ r_ o _ l ___________________________________________ _
The ACC sensor is dirty or blocked (e.g. leaves, snow).
The ACC sensor is located in the area under the front license plate.
If there is a loss of operation due to heavy contamination, this area
should cleaned to restore proper operation.
EPB activation
The text message EPB activation appears if emergency braking was
initiated with the Electromechanical Parking Brake (EPBl. Adaptive
Cruise Control is turned off. A gong sounds as a reminder.
ESP activation
The text message ESP activation appears if the Electronic Stabiliza ­
tion Program (ESP) has intervened to take control in a critical driving
situation. In this case Adaptive Cruise Control is automatically
turned off . A gong sounds as a reminder .
Speed range
The text message Speed range appears if the current speed is too
low to set or to hold the requested speed.
When setting a desired speed, it must be at least 20 mph (30 km/h).
At speeds below 17 mph (25 km/h), the cruise control is turned off.
Shift lever position!
The text message Shift lever position! appears when the shift select
lever is moved to position
N. In this position, Adaptive Cruise
Control is not available. •
Applies to veh ic les: with Ad apt ive Crui se Contro l
Settings in MMI
The time interval can be set in MM/.
-Press the [CAR] function button.
-Select Systems in the CAR menu.

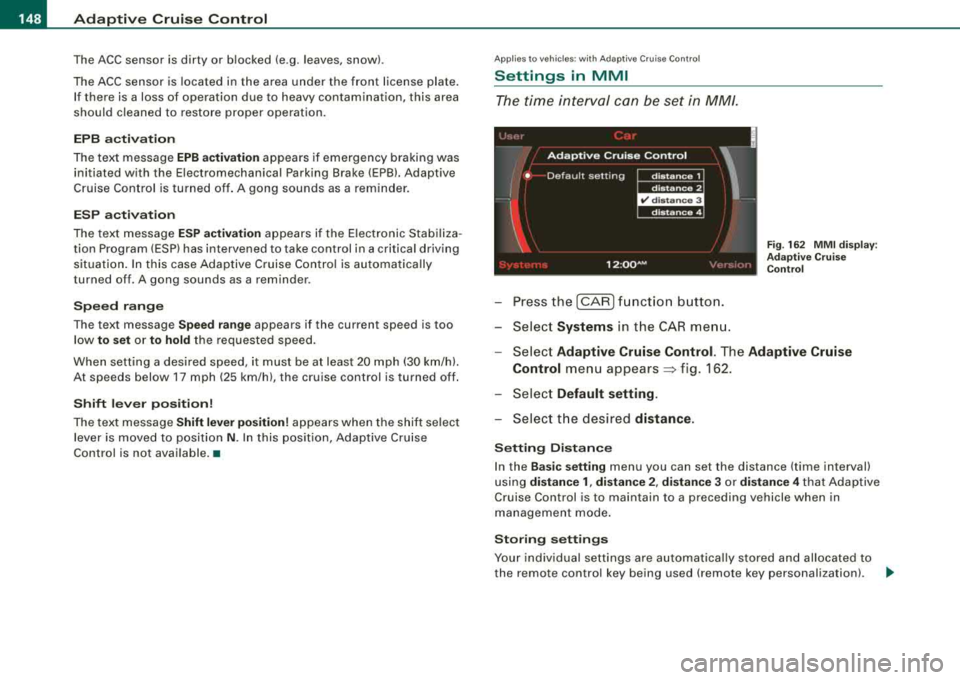

Fig. 162 MMI display :
Adaptive Cruise Control
-Select Adaptive Cruise Control. The Adaptive Cruise
Control
menu appears~ f ig . 162.
-Select Default setting .
-Select the desired distance.
Setting Distance
In the Basic setting menu you can set the distance (time interval)
using
distance 1, distance 2, distance 3 or distance 4 that Adaptive
Cruise Control is to maintain to a preceding vehicle when in
management mode.
Storing settings
Your individual settings are automatically stored and allocated to
the remote control key being used (remote key personalization) .
~

_____________________________________________ A_ d_a ....: p_ t_ i_ v _e_ C_ ru_ is_ e_ C_ o_n_ t_ r_o _ l _ __.9'
[ i J Tip s
Settings in the Adapt ive Crui se C ontrol menu are possib le only with
the engine running and the vehicle stationary .•
Special driving situations
Applies to vehic les: with Adaptive Cru ise Control
General
Some driving situations which affect the function of the
radar sensor are described below.
There are l imits to what Adap tive Cruise Control can do as the
vehicle is driven. So be especially attentive :
• when driving around curves => page
149.
• when driving in staggered lanes of traffic~ page 150.
• when other vehicles are changing lanes::> page 150.
• when other vehicles are difficu lt to detect ~ page 150.
& WARNING
The radar s en sor 's visi on can b e re du ced by rain , snow and h eav y
sp ray. Thi s can re sult in ve h ic les driving ahe ad be ing inade quately
detect ed or , in some cir cum stan ce s, not det ected a t all . •
Contro ls a nd eq uip­
ment
Ap plie s to vehicles: with Adapt ive Cru ise Co nt rol
When driving around curves
~============, J
;g
j
Entering a curve
Fig . 16 3 Ve hicle
e nt erin g a c urv e
F ig . 164 Vehicle
l eav ing a cu rve
When entering a curve, the radar sensor may react to a vehic le in the
next lane and apply the brakes in your
vehicle ~ fig. 163. The
braking action can be stopped by depressing the accelerator pedal.
Lea ving a curve
At the exit from very long curves the pred ictive lane reading can
cause the radar sensor to react to another vehicle in the next lane
and apply the brakes in your
vehic le => fig. 164 . The braking act ion
can be stopped by depressing the accelerator pedal. •
Vehicle care I I irechnical data

___ A_ d_a_ p
:.,_ t_iv _ e_ C_r_ u _ i_ s _e _ C_ o
_ n_ t_ r_ o _ l _____________________________________________ _
Applies to veh ic les: with Ad apt ive Cruise Co ntro l
Vehicles offset to one side
Fig . 165 Motor cycle
traveling ahead
outside the detection
range of the radar
sensor
Vehicles traveling ahead and to one side cannot be detected by the
radar sensor until they are within the detection range of the sensor .
This applies in particular to narrow vehicles, such as motorcycles .
Narrow vehicles which are not in the radar sensor's detection range
cannot be identified . •
App lies to ve hicles: w ith Ad apt ive Cruise Contro l
Lane changes by other vehicles
D
Fig. 166 A vehicle
changes lanes
Vehicles which move into your lane a short distance ahead cannot
be identified by the radar sensor until they are in the sensor's detec ­
tion range. •
Applies to veh ic les: with Adaptive Cru ise Contro l
Vehicles that are difficult to detect
Fig. 167 Two-wheeled
vehicle driving ahead
Vehicles that are difficult to detect, e.g. two -wheeled vehicles
ahead, vehicles with high ground clearance, protruding load, are
frequently detected late or not at all, under some circumstances. •

___ A_ u_d_ i _s _id _ e_ a_ s_ s_ is_t __________________________________________________ _
Audi side assist
Lane Change Assistant
Applies to vehicles: with side assist
Description
The side assist helps you when changing lanes.
I Audi AS J
Fig. 171 Rear bumper:
Position of radar
sensors (not visible on
outside)
Fig . 172 Signal light
on the outside mirror·
driver's side
Side assist uses radar sensors (not visible on outside) => fig. 171 to
help the driver check blind spots, and see what is happening in
traffic behind the
vehicle => page 155, fig. 174.
Signal lights are built into both outside
mirrors=> fig. 172. The
signal light on the left outside mi rror assists when moving over into the left lane and the signal light on the right outside mirror assists
when moving over into the right lane.
The signal light comes on to tell you that side assist has detected a
vehicle on that side and that the position of this other vehicle
should be taken into account if you were to change lanes. This is
called the
informational stage signal=> page 156. The informational
stage signal is designed so that you notice it only when you are
looking in the outside mirror.
When you activate the turn signal and side assist detects a vehicle
in a notable location, the corresponding signal on the outside
mirror flashes briefly and brightly several times. This is the
alert
stage signal
=> page 156. •
Applies to veh icles : with side assist
Activating and deactivating
-
Activating
Fig . 173 Cockpit : Side
assist button
- Press the~ fig. 173 button. The red indica tor on the
button lights up.

Audi side assist -
----------------
Dea ctivating
Press the button again . The indicator l ight on the butto n
goes out .
The system can assist when driving on highways and secondary
roads . The system works only at speeds faster than 37 mph (60
km/h).
& WARNING
• Improper reliance o n the side assist s ystem can cause colli ­
s ions and seriou s pers onal injury:
- Ne ver rel y only on side a ssis t w hen ch anging l anes .
- Always che ck re ar view mirror s to make sur e that it i s safe to
c hange lane s.
• Side assi st cannot dete ct all vehicle s under all condition s­
danger of accident!
• Side a ssist cannot detect vehicles in time to alert you when
they app roach from behind at very high speed , or fall drop b ack
very quickly.
• The radar sen sor's
vi sion ca n be redu ced or entirel y blo cked b y
rain , snow , and heavy spray . Thi s can result in side a ssis t not
a dequately dete cting veh icles or , in some cases , not detect ing
them at all . Always keep an eye on the direction you are traveling
and the relevant ar ea around th e vehi cle .
• Please note that side a ssis t indicate s th ere are approaching
vehi cle s, or vehi cle s in your bl ind spot , onl y after your vehicle has
reached a driving speed of at lea st 37 mph (60 km /h).
• Side as sist sign al doe s not work around t ight corner s (turning
radiu s less than 218 yard s, or 200
ml.
• Side a ssist is no repla cement for the driver's full attention . The
driver alone i s re spon sible for lane ch anges and similar driving
maneuver s. Always k eep an eye on the d ire ction you are tr aveling
and the relevant area around the vehi cle .
Controls and equip­ ment
0 Note
• To ensure that you do not adverse ly affect s ide assist, do not
b lock the area on the rear bumper where the radar sensors are
located with foreign objects (suc h as stickers or bicycle racks).

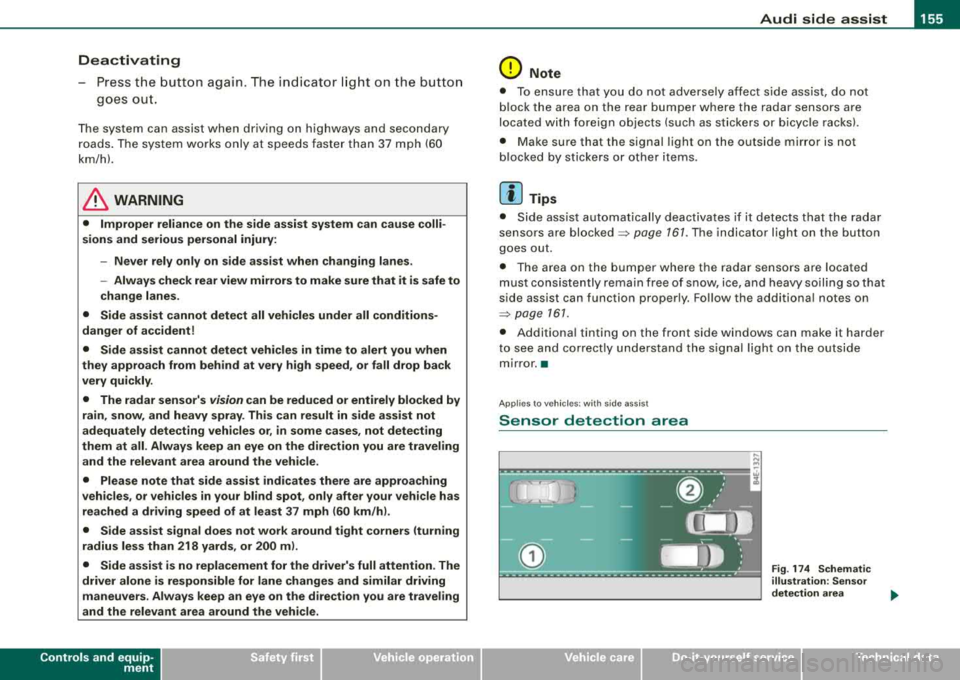

• Make su re that the signal light on the outside mirror is not
b locked by stickers or other items.
[ i ] Tip s
• Side ass ist automatically deactivates if it detects that the radar
sensors are
blocked => page 167. The indicator light on the button
goes out.
• The area on the bumper where the radar sensors are located
must consistently re main free of snow, ice, and heavy so iling so that
side assist can function properly. Follow the additiona l notes on
=> page 761.
• Additiona l tinting on the front side windows can make it harder
to see and correct ly understand the s ignal light on the outside
mirror. •
Applies to veh ic les: with side ass ist
Sensor detection area
Fig . 17 4 Schem atic
illu stratio n: Senso r
det ection ar ea
.,.

___ A_ u_ d_ i_s _i_d _e_ a_ s_ s
_ is_ t __________________________________________________ _

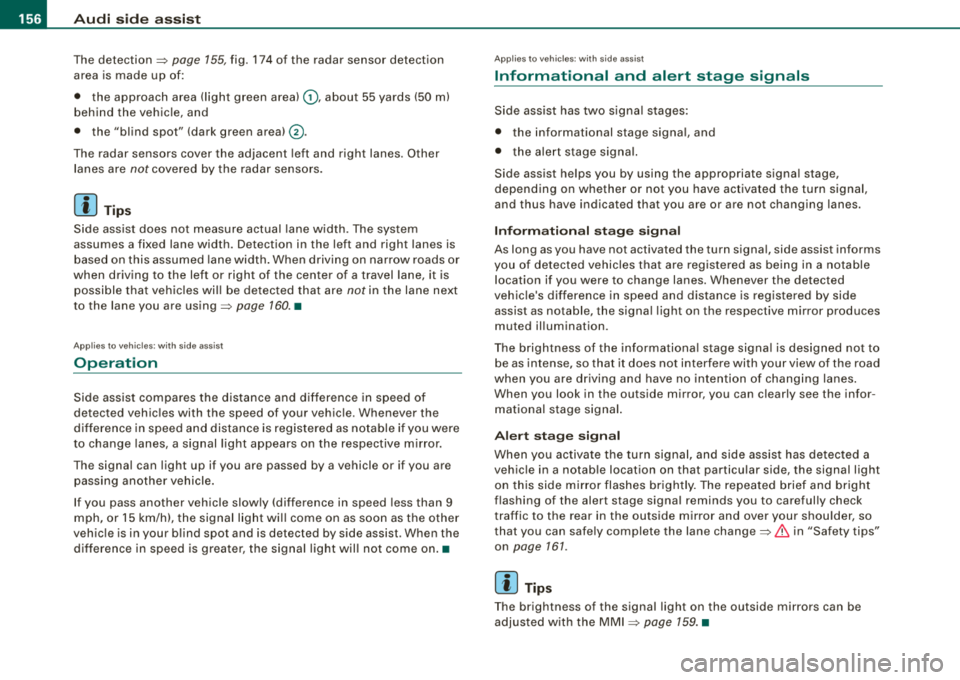

The detection ~ page 155, fig. 174 of the radar sensor detection
area is made up of:
• the approach area (light green area)
G), about 55 yards (50 m)
behind the vehic le, and
• the "blind spot" (dark green
areal@.
The radar sensors cover the adjacent left and right lanes. Other
lanes are
not covered by the radar sensors.
[ i] Tips
S ide ass ist does not measure actual lane width. The system
assumes a fixed lane width. Detection in the left and right lanes is
based on this assumed lane width . When driving on narrow roads or
when driving to the left or right of the center of a travel lane, it is
possible that vehicles wi ll be detected that are
not in the lane next
to the lane you are
using~ page 160 . •
Applies to vehicles: with side assist
Operation
Side assist compares the distance and difference in speed of
detected vehicles with the speed of your vehicle . Whenever the
difference in speed and distance is registered as notable if you were
to change lanes, a signal light appears on the respective m irror.
The signal can light up if you are passed by a vehicle or if you are
passing another vehicle.
If you pass another vehicle slowly (difference in speed less than 9
mph, or
15 km/h), the signal light will come on as soon as the other
vehic le is in your b lind spot and is detected by side assist . When the
difference in speed is greater, the signal light wil l not come on.•
Applies to vehi cles: with side assist
Informational and alert stage signals
Side assist has two signa l stages:
• the informational stage signal, and
• th e alert stage signal.
Side assist helps you by using the appropriate signa l stage,
depending on whether or not you have activated the turn signal,
and thus have indicated that you are or are not changing lanes.
Informational stage signal
As long as you have not activated the turn signa l, side assist informs
you of detected vehicles that are registered as being in a notable
location if you were to change lanes. Whenever the detected
vehic le 's difference in speed and distance is registered by side
assist as notable, the signa l light on the respective mirror produces
muted il lumination .
The brightness of the informationa l stage signa l is designed not to
be as intense, so that it does not interfere with your view of the road
when you are driving and have no intention of changing lanes.
When you look in the outside mirror, you can clearly see the infor­
mational stage signal.
Alert stage signal
When you ac tiva te the turn signal, and side assis t has detected a
vehic le in a notable location on that particular side, the signal light
on this side mirror flashes brightly. The repeated brief and bright
flashing of the alert stage signal reminds you to careful ly check
traffic to the rear in the outside mirror and over your shou lder, so
that you can safe ly complete the lane
change~ & in "Safety tips"
on page
161.
[ i] Tips
The brightness of the signal light on the outside mirrors can be
adjusted with the MMI
~ page 159. •

_________________________________________________ A_ u_ d_ i _s _i_
d _e _ a_s_ s_ i_ s _t _ __._
Ap plies to vehicle s: with side assist

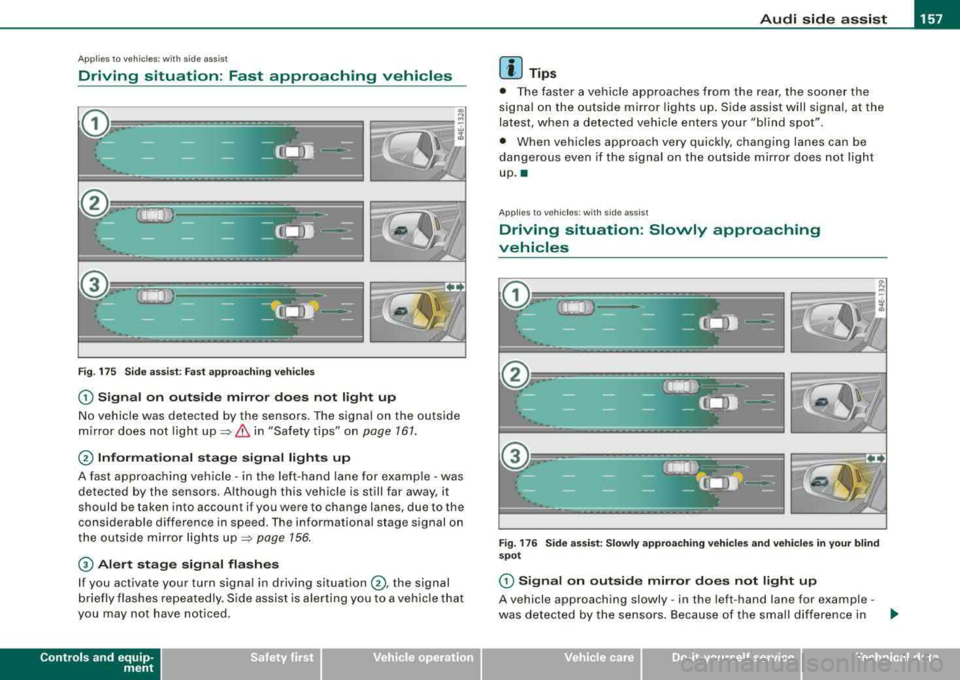

Driving situation: Fast approaching vehicles
Fig. 175 S ide ass ist: Fast a ppro achi ng ve hicles
G) S ig nal on outside mirror do es not l ight up
No vehicle was detected by the sensors. The signal on the outside
m irror does not ligh t
up ~ & in "Safety tips" on page 161.
@ Informational stag e s ignal lights up
A fast approaching vehicle -in the left-hand lane for example -was
detected by the sensors. Although this vehic le is still far away, it
should be taken into account if you were to change lanes, due to the
considerable difference in speed. The informational stage signal on
the outside mirror lights
up ~ page 156 .
© Alert stage signal flashe s
If you activate your turn signal in driving situation @, the signal
b riefly flashes repeatedly. S ide assist is alerting you to a vehicle that
you may not have not iced .
Contro ls a nd eq uip­
ment
[ i ] Tips
• The faster a vehicle approaches from the rear, the soone r the
signal on the outside mirror lights up. Side assist will signal, at the
latest, when a detected vehicle enters your "bl ind spot".
• When vehicles approach very quickly, changing lanes can be
dangerous even if the signa l on the outside mirror does not light
up .•
Ap plies to veh ic les: with side ass ist
Driving situation : Slowly approaching
vehicles
F ig . 1 76 Side a ssist: Slowly a pproa ching v ehi cle s and v ehi cle s in y our b li nd
spot
G) Signa l on out side mirror doe s not light up
A vehicle approaching s lowly -in the left-hand lane for example -
was detected by the sensors . Because of the small differe nce in .._
Vehicle care I I irechnical data

_________________________________________________ A
_ u_ d_ i _s _ i_d _e _ a_s_ s_ i_ s _t __ lJIII

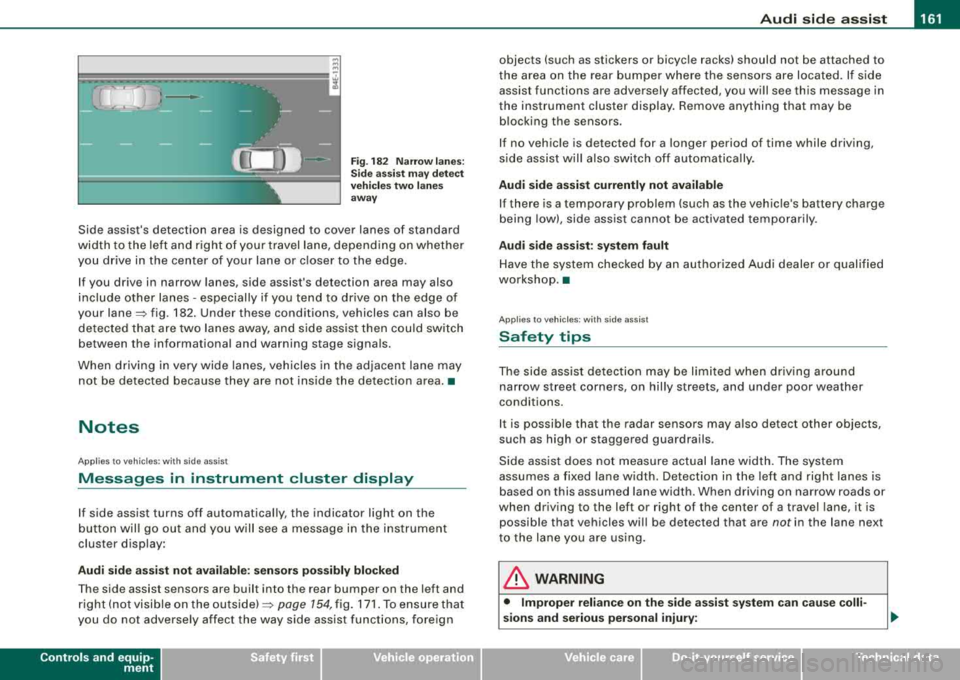

Fig . 182 Narr ow lane s:
Si de ass is t m ay detec t
vehi cle s two la ne s
a w ay
Side assist's detection area is designed to cover lanes of standard
width to the left and r ight of your travel lane, depend ing on whethe r
you drive in the center of your lane or c loser to the edge .
I f you drive in narrow lanes, side assist's detection area may also
include other lanes - especially if you tend to dr ive on the edge of
your
lane~ fig . 182. Under these conditions, vehicles can also be
de tec ted tha t are two lanes away, and side ass ist then c ould switch
between the informational and warning stage signa ls.
When d riving in very wide lanes, vehicles in t he adjacent lane may
not be detected because they are not ins ide the detection area. •
Notes
Applies to vehicles: with side ass is t
Messages in instrument cluster display
If side assist turns off automatically, the indicator light on the
b utton wil l go out a nd you w ill see a message in the i nstrument
cluster disp lay :
Audi side a ssist not available : sen sor s pos sibly blocked
T he side assist sensors are bui lt into the rear bumper on the left and
r ight ( not visi ble on the
ou ts id e) ~ page 154, fig. 171 . To ensure t hat
you do not adverse ly affect the way side assist functions, foreign
Controls and equip­
ment
objects (such as stickers or bicyc le racks) should not be attached to
t he area on the rear bumper where the sens ors are loca ted. If s ide
assist functions are adversely affected, you will see this message in
the instrument cluster display. Remove anything that may be b locking the sensors .
I f no vehic le is detected for a longer period of time while driving,
s ide assist wil l also switch o ff automatica lly.
Audi side a ssist currently not available
If there is a temporary prob lem (such as the vehic le's battery charge
being low), side assist cannot be activated temporarily .
Audi side assis t : sy stem fault
Have t he system chec ked by an autho rized Audi dealer o r qualified
workshop. •
Applies to vehic les: with side assist
Safety tips
The side ass ist detec tion may be li mit ed when dr iv ing a round
narrow street corners, on hilly streets, and under poor weather
conditions.
I t is possible that the radar sensors may a ls o detec t other objects,
such as high or staggered guardrails.
Side ass ist does not measu re actual la ne w idth. The system
assumes a fixed lane width. Detection in the left and right lanes is
based on this assumed lane width. When driving on narrow roads or
when driv ing to the left or right of the center of a travel lane, it is
possible that vehicles wi ll be detected that are
not in the lane next
to the lane you are using.
& WARNING
• Improper relian ce on the side assi st system c an cau se colli ­
sions and serious personal injury:

___ A_ u_ d_ i_s _i_d _e_ a_ s_ s
_ is_ t __________________________________________________ _

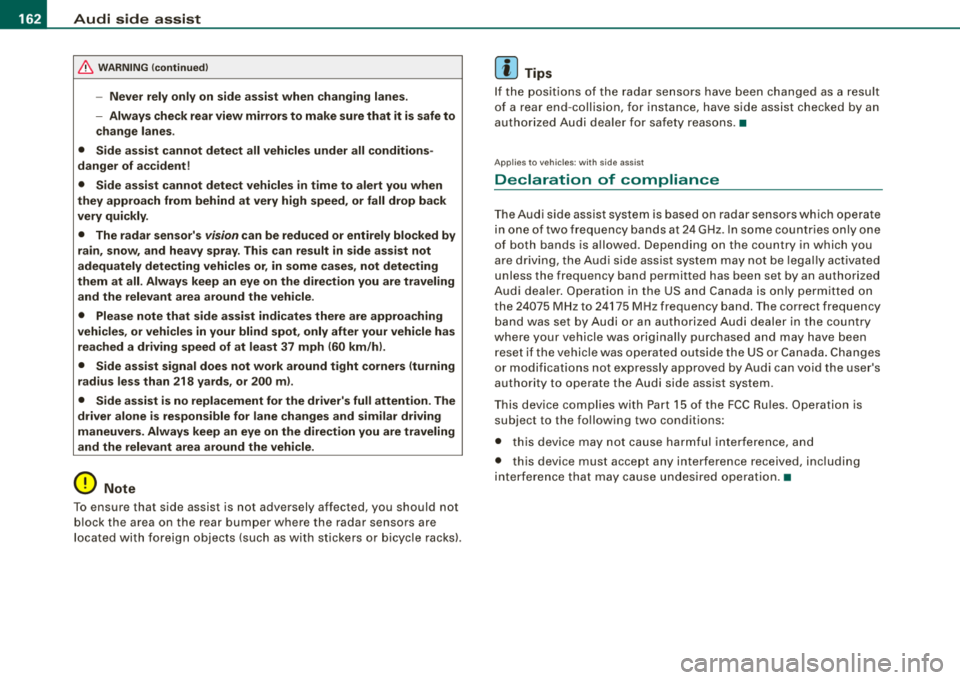

&, WARNING (continued )
-Never rely only on side assist when changing lanes .
- Always check rear view mirrors to make sure that it is safe to
change lanes .
• Side a ssist cannot detect all vehicle s under all conditions ­
danger of a cc ident!
• Side assist cannot detect vehicles in time to alert you when
they approach from behind at very high speed, or fall drop back
very quickly.
• The radar sensor 's
vi sion can be reduced or entirely blocked by
rain , snow , and heavy spray . This can result in side as sist not
adequately detecting vehicles or , in some cases , not dete cting
them at all . Always keep an eye on the direction you are traveling
and the relevant area around the vehicle .
• Please note that side assist indicates there are approaching
vehicles , or vehicles in your blind spot , only after your vehicle has
reached a driving speed of at lea st 37 mph (60 km /h).
• Side assist signal does not work around tight corners (turning
radius less than 218 yards , or 200
ml.
• Side a ssist is no replacement for the driver's full attention . The
driver alone is responsible for lane changes and similar driving
maneuvers. Always keep an eye on the direction you are traveling
and the relevant area around the vehicle .
0 Note
To ensure that s ide assist is not adv ers ely affected, you should not
b lock the area on the rea r bumper where the radar sensors are
located with for eign objects (such as wit h stickers or b icycle rac ks).
[ i ] Tips
If th e pos it ions of the rada r se nsors have bee n changed as a resu lt
of a rear end -collision, for instance, have side as sist checked by an
autho rized Aud i dea ler fo r sa fety reaso ns.•
A pplies to veh icles : w ith side ass is t
Declaration of compliance
Th e Audi side assist system is based o n radar sensors which operate
i n o ne of t wo fr eque ncy ban ds a t 24 GH z. In so me countr ies only one
of both bands is a llowed . D epending on the country in which you
are dr iving, the A ud i s ide ass is t syste m may not be legal ly act ivated
unless the frequency band permitted has been set by an authorized
A ud i dea ler . O pera tion in th e US a nd Cana da is o nly perm itte d on
the 240 75 MHz to 24 175 M Hz frequenc y band. The correct frequency
b and was se t by A udi or an a utho rized Aud i deale r in the coun try
where your ve hicle was originally purchased and may have been
rese t if the ve hicle was ope ra ted outside the US o r Canada . Cha nge s
or modi fications not expressl y approved b y Aud i can void the us er's
authority to operate the Audi side assist system .
T his dev ice co m plies wi th Pa rt 15 of th e FCC Rules. Operat ion is
subject to the fo llowing two condit ions :
• this device may not cause ha rm ful in te rfe re nc e, a nd
• this device must accept any interference received, inc luding
i nter fere nce t hat m ay ca use un des ired ope ration .•
