is pressed. If the check light does not flash, the battery is dead and
has to be replaced .
In addition, when the battery is dead the
!i, symbol appears in the
instrument cluster display as well as the message:
!i, Pl ease chang e key batte ry
We recommend having the battery changed by an Audi Dealer .•
Electronic immobilizer
The immobilizer helps to prevent unauth orized use of
y o ur vehicle.
A computer chip inside your key automatica lly deactivates the e lec ­
t ronic immobilizer when you insert the key in the ignition lock, or on
vehic les with Advanced Key*, when the key is inside the vehicle .
When you remove the key from the ignition lock, or on vehicles with
Advanced Key, when you remove the key from the vehicle, the elec­
t ronic immobilizer is automatically activated once again.
If an unauthorized key was used,
S AFE is disp layed continuous ly in
the odometer disp lay field.
& WARNING
Alw ays tak e the k ey with you wh en you le ave th e vehicl e. The k ey
ca n di sarm th e ele ctr onic engin e immobili zer and permit an un au­
thorized p ers on to start th e eng in e and enable opera tion of the
v ehicle system s such as power window or power sunroof l eading
to ser iou s per son al in jur y.
[ i ] Tip s
• Your engine can on ly be started using the factory -equipped key.
• You may not be able to start your vehic le if an ignition key of a
different vehicle make is also located on your set of keys .•
Controls and equip­
ment
Openin g and clo sing
Certification
The remote control device comp lies with
• USA models: Part 15 of the FCC Rules .
• Can ad a m odels: RSS -210 of Industry Canada .
Operation is subject to the f ollowing conditi ons :
• this device may not cause harmful interference, and
• t his device must accept any interfere nce rece ived, i ncluding
interference that may cause undes ired operation.
0 Note
The manufacturer is not responsib le for ANY RA DIO OR TV interfer­
ence caused by unauthorized modifications to this equipment .
Changes or modifications to this unit not express ly approved by the
party responsible for compliance could void the user's authority to
operate the equipment. •
Power locking system
General description
The power locking system locks or unlocks all doors and
the rear lid simultaneously.
The power locki ng system in your veh ic le incorporates the following
functions:
• Central lock ing function
• Selective unlock
feature=> page 52
• Remote contro l feature=> page 48
• Advanced Key *=> page 59
• Anti -theft alarm system=> page 67

Opening and closing
[ i J Tips
• In order to make sure the locking function is working, you should
always keep your eye on the vehicle to make sure it is properly
locked .
• Do not use the remote control if you are inside the car, otherwise
you may unintentionally lock the vehicle, and then you would set off
the anti -theft alarm when you try to start the engine or open a door.
In case this happens anyhow, push the unlock button
0 .
• Use the panic function only if you are in an emergency
situation. •
Operating locks with the key
To lock and unlock the vehicle from the outside, turn the
key in the lock of the driver's door.

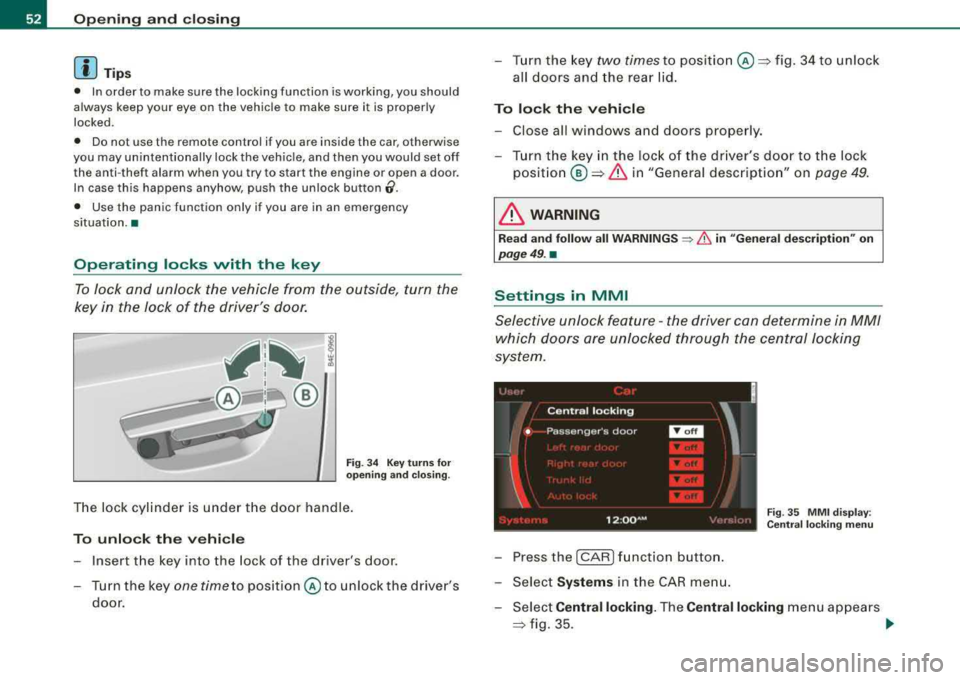

Fig. 34 Key turns for
opening and closing .
The lock cylinder is under the door handle.
To unlock the vehicle
Insert the key into the lock of the dr iver's door.
Turn the key
one time to position © to unlock the driver's
door.
-Turn the key two times to position@=> fig. 34 to unlock
all doors and the rear lid.
To lock the vehicle
-Close all windows and doors properly.
-Turn the key in the lock of the driver's door to the lock
position®=> & in "General description" on page 49.
& WARNING
Read and follow all WARNINGS ~ & in "General description" on
page 49. •
Settings in MMI
Selective unlock feature -the driver can determine in MM/
which doors are unlocked through the central locking
system.
Fig . 35 MMI display :
Central locking menu
-Pressthe(CAR )function button.
-Select Systems in the CAR menu.
-Select Central locking. The Central locking menu appears
=> fig. 35. _,.

Clear vision
Lights
Switching the headlights on and off -'t/-·
In the "AUTO" position, a light sensor automatically
s w itches t he head- and taillights on and off in respo nse to
l igh t con ditions.
Fig . 56 In stru ment
pan el: lig ht sw itch
Switching on automatic headlight control
- T urn th e light switch to AUTO => fig. 56 .
Switching on the side marker lights
- Turn the light switch to ~oo~.
Switching on th e headlights and high beam
- T urn t he light swi tch to io.
- Push the high beam leve r forw ard towards t he instru -
me nt panel
=> page 73 .
Switching off the lights
- T urn t he light switch to 0 .
Contro ls a nd eq uip­
ment
Clear vision
The head lights only work when the ignition is switched on . While
starting the engine or when switching off the ignition, the head ­
lights will go off and only the side marker lights will be on.
After starting the engine, the xenon headlights are automatically
adjus ted to the load and angle of the vehic le (for example, during
acceleration, braking) . This prevents oncoming traffic from experi ­
encing unnecessary headlig ht g lare from your xenon head ligh ts .
If the system is not operating properly, a warning symbol in the
Auto -Check Control is displayed
=> page 36.
With the side marker lights or head ligh ts switched on, the sym bol
next to the light switch illuminates
:oo: .
Daytime running lights
• USA models : The daytime running lights wi ll come on automati­
ca lly when the ig nition is turned on and the ligh t
switch=> fig. 56 is
in the
O position or the AUTO position (only in day light conditions).
The
Daytime running lights function can be turned on and off in the
MMI menu
Exterior lighti ng => page 70 => & .
• Canada models: The dayti me ru nn ing lights wi ll come on auto ­
matically when the ignition is turned on and the light switch
::::> fig. 56 is in the O position or the AUTO p o siti on (only in daylight
conditions)
=> & .
Automati c headligh t control
In the switch position AUTO the a utomatic headligh t cont rol is
turned on . The low beams are turned on automa tica lly through a
light sensor as soon as ambient brightness (e.g . when driving into a
tunnel) fa lls below a value preset at the factory . When ambient
brightness increases again, the low beams are turned off again
automatically =>& .
In the AUTO pos it ion the low beams are switched off automatically
when the ignition is turned off. If the high beams were switched on,
they w ill come o n again the next time the automatic head ligh t
~
Vehicle care I I irechnical data

Clear vision
control is activated. The high beam function must first be switched
on in the MMI
=> page 70 .
Light Sensor Malfunction
In the event of a light sensor mal fu n ct ion, the driver is notified i n the
instrument cluster display :
@ Automatic headlights/automatic wipers defe ctive
For safety reasons the low beams are turned on permanently with
the switch in
AUTO . However, you can continue to turn the lights on
and off us ing the light switch . Have the light sensor checked as soon
as possib le at a dealership .
& WARNING
• Never use dayt ime running lights to see where you are going .
The y are not bright enough and will not let you see f ar enough
ahead for s afet y, espe cially at du sk or when it is d ark. Alwa ys
switch on the low beams at dusk or when it is dark .
• Autom atic he adlight s are onl y intended to a ssist the dr iver.
The y do n ot relie ve the dri ver of his re spon sibility to che ck the
headlights and to turn them on manuall y according to the current
light and vi sibility condi tion s. For example , fog and rain cannot be
dete cted b y the l ight sen sors . S o alway s switch on the he adlights
under these wea the r condition s and when driving in the dark
gD .
• Cra shes can h appen when you c annot see the road ahead and
when you cannot be seen b y other motori sts .
- Alway s turn on the headlight s so that you can see ahead and
s o that others c an see your c ar from the ba ck.
[ i ] Tips
• With the switch in AUTO front fog lights and rear fog lights
cannot be turned on in addition. • I
f you remove the ignition from the ignition lock while the head ­
li ghts are s til l on, a bu zzer w ill sound as long as the driver's door is
open to remind you to turn off the lights .
• Always observe t he specific local regulations for your area as to
when to use your lights .•
Adjusting exterior lighting
The functions are set in the MM/.
F ig . 57 MM I di spla y:
E xt eri or ligh ting
- Pressthe [CAR ]function button.
- Select
Systems in the CAR me nu.
- Selec t
Exterior lighting. The menu Exterior lighting
appears => fig. 57.
C oming home
The Coming home function ensures that after turning off the igni ­
tion and op ening the driv er's door
the vehicle periphery is il lum i­
nated in the dark . In addition, the front fog lights, the tail lights and
t he license plate lig ht are turned on . O n-t ime can be set fo r a period
from
O (off) to 60 seconds. ~

Clear vision
Reading lights
~
Press one of the switches to turn the right or left reading
light on or
off~ page 75, fig. 66.
With the door contact circuit, 00 the interior lights turn on as soon
as you unlock the vehicle or open the doors. The interior lights are
also turned on when the ignition key is removed . The light goes out
about 2 minutes after the doors are closed. When the vehicle is
locked or when the ignition is turned on, the interior lights are
turned off.
When a door is open, the interior lights are turned off after about 10 minutes to prevent draining the battery .
[ i) Tips
• By pressing the safety switch @~ page 62, fig. 48, the function
of some switches in the rear can be turned off. If the symbol in
the safety switch illuminates, the window regulators in the rear
doors, the switches for the interior lights and the switch for the elec ­
tric sun shade* are inoperative.
• The interior lights can be dimmed by holding the
(I] switch
pressed down. •
Applies to vehic les: w ith backg round lightin g
Background lighting
Four different lighting profiles for the interior lighting can

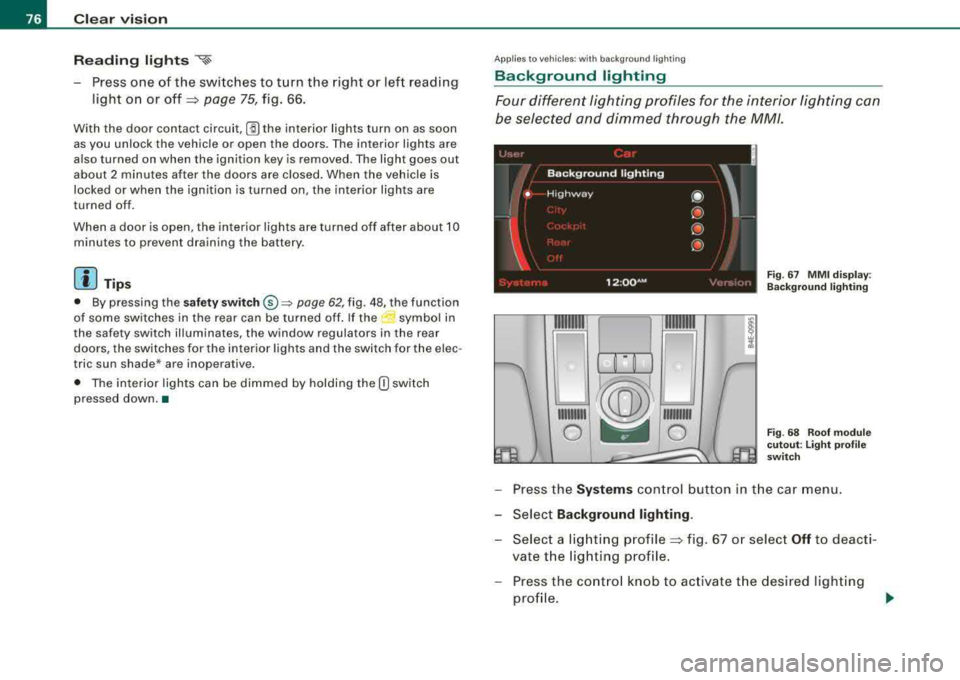

be selected and dimmed through the MM/.
~/®~~
111111111 ~ 111111111
0 ~ 0
Fig . 67 MMI display :
Background lighting
Fig. 68 Roof module
cutout: Light profile
switch
- Press the Systems control button in the car menu.
- Select
Background lighting .
- Select a lighting profile~ fig. 67 or select Off to deacti-
vate the lighting profile.
- Press the control knob to activate the desired lighting
profile .

Clear vision
To ensure the system works properly in winter, keep the washer jets
free of snow and remove any ice using a de -icing spray. •
Service position
The wiper blades can only be changed in the service posi­
tion.
Windshield wipers
'
• Serv ice posit ion
~ I I

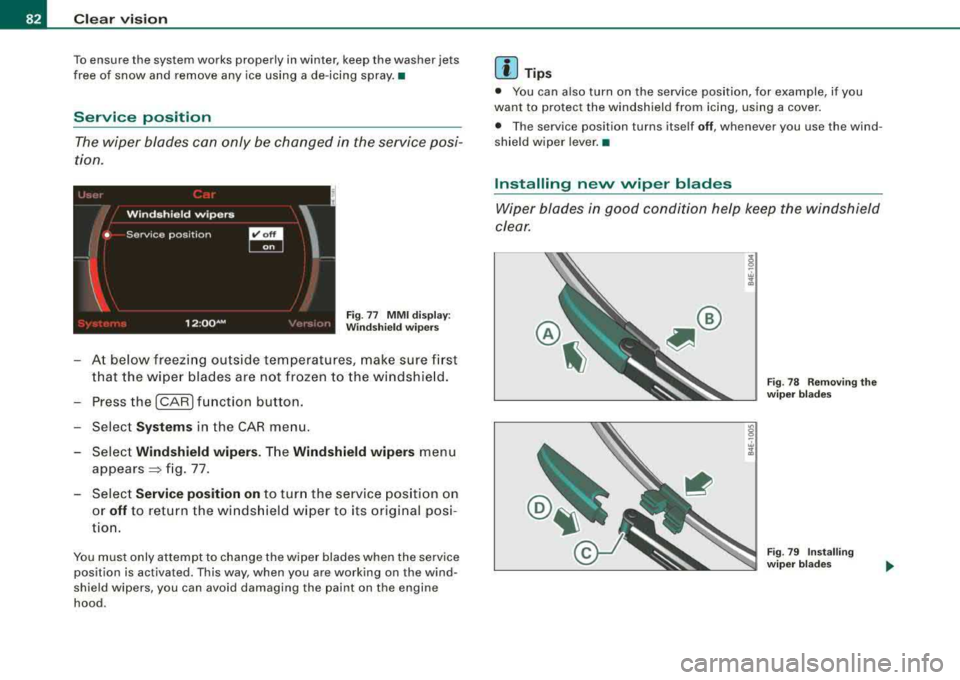

12 :00 AM • ·I , I; J:: Fig . 77 MMI display :
Windshield wipers
-At below freezing outside temperatures, make sure first
that the wiper blades are not frozen to the windshield.
- Press the
I CAR I function button.
Select
Systems in the CAR menu.
Select
Windshield wipers . The Windshield wipers menu
appears~ fig. 77.
- Select
Service position on to turn the service position on
or
off to retu rn the windshield wiper to its original posi­
tion.
You must only attempt to change the wiper blades when the service position is activated. This way, when you are working on the wind­
shield wipers, you can avoid damaging the paint on the engine
hood.
[ i ] Tips
• You can also turn on the service position, for example, if you
want to protect the windshield from icing, using a cover.
• The service position turns itself
off, whenever you use the wind­
shield wiper lever.•
Installing new wiper blades
Wiper blades in good condition help keep the windshield
clear.
g
. = .!i
Fig . 78 Removing the
wiper blades
Fig. 79 Installing
wiper blades

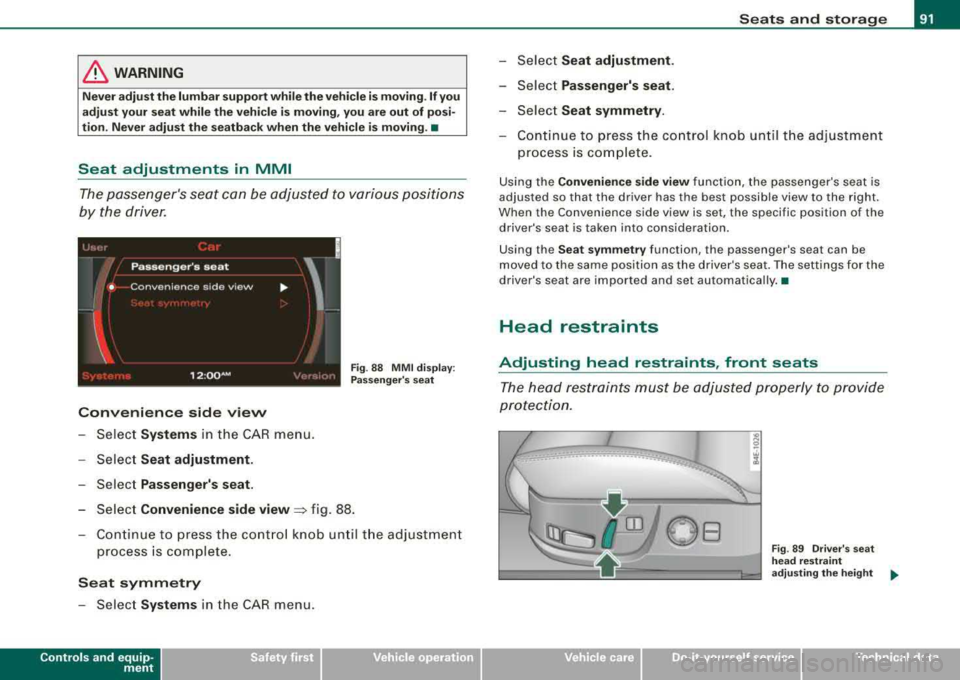

& WARNING
Never adjust the lumbar support while the vehicle is moving. If you
adjust your seat while the vehicle is moving, you are out of posi­
tion. Never adjust the seatback when the vehicle is moving. •
Seat adjustments in MMI
The passenger's seat can be adjusted to various positions
by the driver.
Convenience side view
- Select Systems in the CAR menu.
Select Seat adjustment.
-Select Passenger's seat.
Fig. 88 MMI display :
Passenger's seat
-Select Convenience side view~ fig. 88.
- Continue to press the control knob until the adjustment
process is complete.
Seat symmetry
-Select Systems in the CAR menu.
Controls a nd eq uip­
ment
Seats and storage
-Select Seat adjustment.
-Select Passenger's seat.
-Select Seat symmetry.
-Continue to press the control knob until the adjustment
process is complete.
Using the Convenience side view function, the passenger 's seat is
adjusted so that the d river has the best possible view to the r ight .
When the Convenience side view is set, the specific position of the
drive r's seat is taken into considera tion.
Using the
Seat symmetry function, the passenger's seat can be
moved to the same position as the driver's seat. The settings for the
driver's seat are imported and set automatically. •
Head restraints
Adjusting head restraints, front seats
The head restraints must be adjusted properly to provide
protection.
Vehicle care I I
Fig . 89 Driver's seat
head restraint
adjusting the height
..,
Technical data

___ S_ e
_ a_t_s _ a_n_ d
__ s _t _o _r _a ...::g:::.... e ________________________________________________ _
Applies to ve hicles : wi th indi vid ual r ear se ats

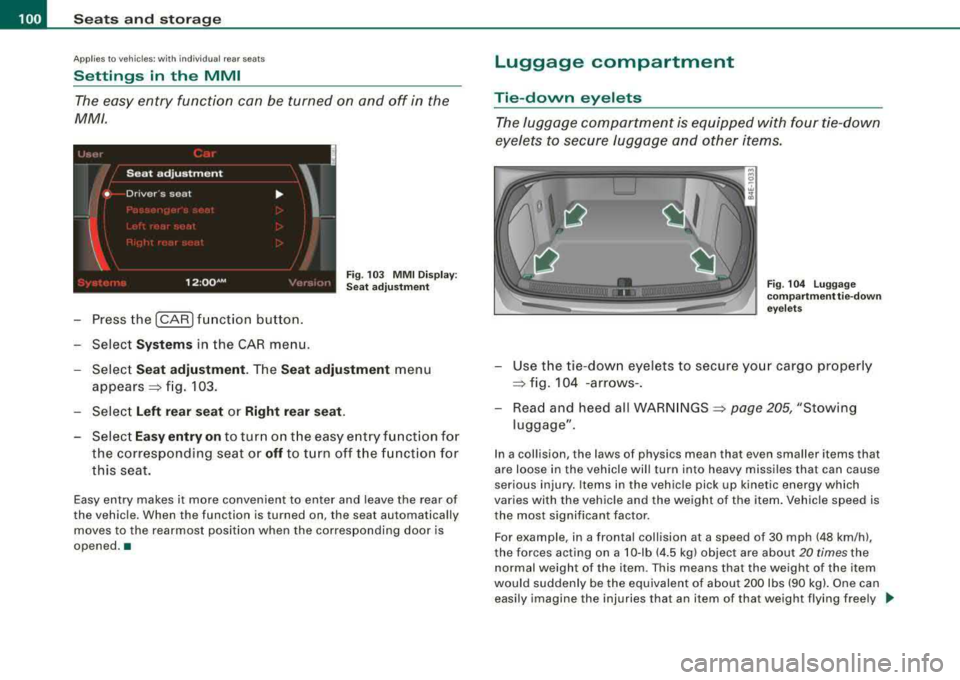

Settings in the MMI
The easy entry function can be turned on and off in the
MM/ .
) ' '' ' ' I
Seat adjustment
'
• Drive r·s seat ...
I I

12 :QQ AM F ig . 103 MMI Display:
Sea t ad justment
-Press the I CAR I fun ction button .
-Select Systems in the CAR menu.
Select
Seat adjustment . Th e Seat adju stment menu
appears =:> fig. 103.
Select
Left rear seat or Right r ear seat .
-Select Eas y entry on to turn on t he easy e ntry function for
the corresponding seat or
off to turn off t he f unction for
this seat.
Easy entry makes it more convenient to enter and leave the rear of
the vehicle. When th e function is turned on, the seat automatically
moves to the rearmost position when the corresponding door is
opened. •
Luggage compartment
Tie-down eyelets
The luggage c ompartment is equipped with four tie -down
eyelets to secure luggage and other items.
F ig . 104 Lu ggage
co mp artm ent tie- dow n
eye le ts
-Use the tie-dow n eyelets to secure yo ur cargo properly
=:> fig . 104 -arrows- .
-Read and heed all WARNINGS =:> page 205, "Stowing
luggage" .
In a collision , the laws of physics mean that even smaller items that
are loose in the vehicle will turn into heavy missiles that can cause
serious injury. Items in the vehicle pick up kinetic energy which
varies with the vehic le and the weight of the item . Vehicle speed is
the most significant factor.
For example , in a frontal collision at a speed of 30 mph (48 km /h) ,
the forces acting on a 10-lb (4 .5 kg) object are about
20 times the
normal weight of the i tem . This means that the weight of the item
would suddenly be the equivalent of about 200 lbs (90 kg). One can
easily imagine the injuries that an i tem of tha t weight flying free ly _,,,

___ w_ a_ rm __ a_ n_ d_ c_ o_ ld __________________________________________________ _

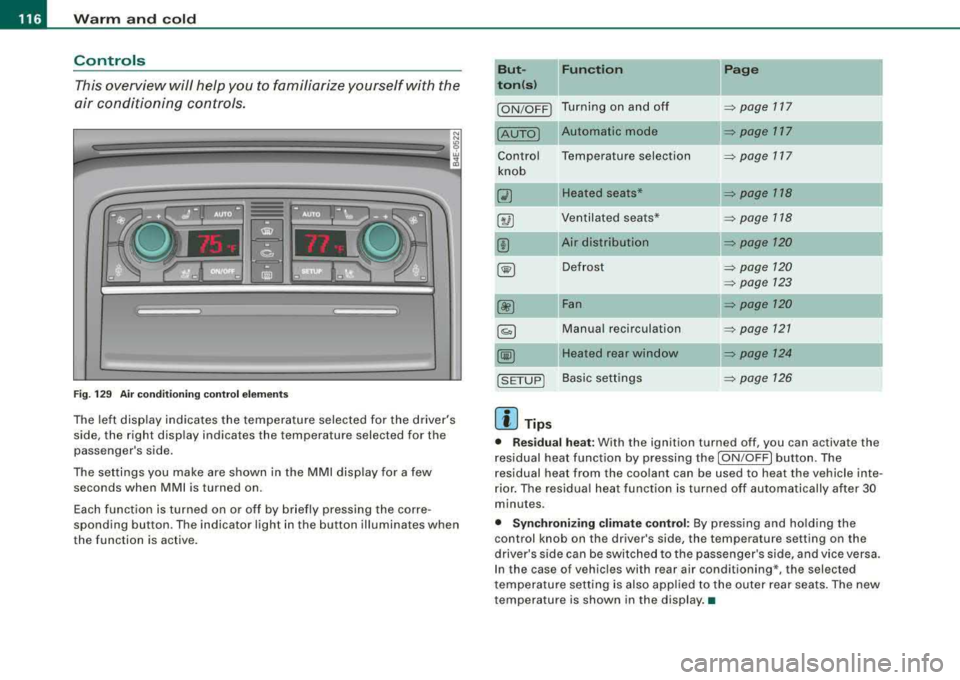

Controls
This overview will help you to familiarize yourself with the
air conditioning controls.
Fi g. 1 29 Air cond it io ning co ntrol e lements
The left display indicates the temperature selected for the driver's
side, the right display indicates the temperature selected for the
passenger 's side.
The settings you make are shown in the MMI disp lay for a few
seconds when
MMI is turned on.
Each function is turned on or off by briefly pressing the corre ­
sponding button . The indicator light in the button illuminates when
the function is active. But- Fun
ction
II Page
ton (s )
ION/OFF) Turning on and off ~ page 117
Automatic mode ~ page 117
Contro l Temperature selection ~ page 717
knob
Q) Heated seats* ~ page 118
8 @ Ventilated sea ts* => page 118
00 Air distribution => page 120
~ Defrost ~ page 120
=> page 723
00 Fan => page 120
~ Manual recirculation ~ page 721
@@ Heated rear window ~ page 124
!SETUP) Basic settings => page 126
[ i ] Tip s
• Residual h eat : With the ignition turned off, you can activate the
residual heat function by pressing the
I ON/OFF ) button. The
residual heat from the coo lant can be used to heat the vehicle inte ­
rior. The residua l heat function is turned off automatically after 30
minutes.
• Synchroniz ing clim ate control: By press ing and ho lding the
control knob on the driver's side, the temperature setting on the
driver's side can be switched to the passenger's side , and vice versa.
In the case of vehicles with rear air conditioning*, the selected
t emperature setting is also app lied to the o uter rear seats. The new
temperature is shown in the display. •

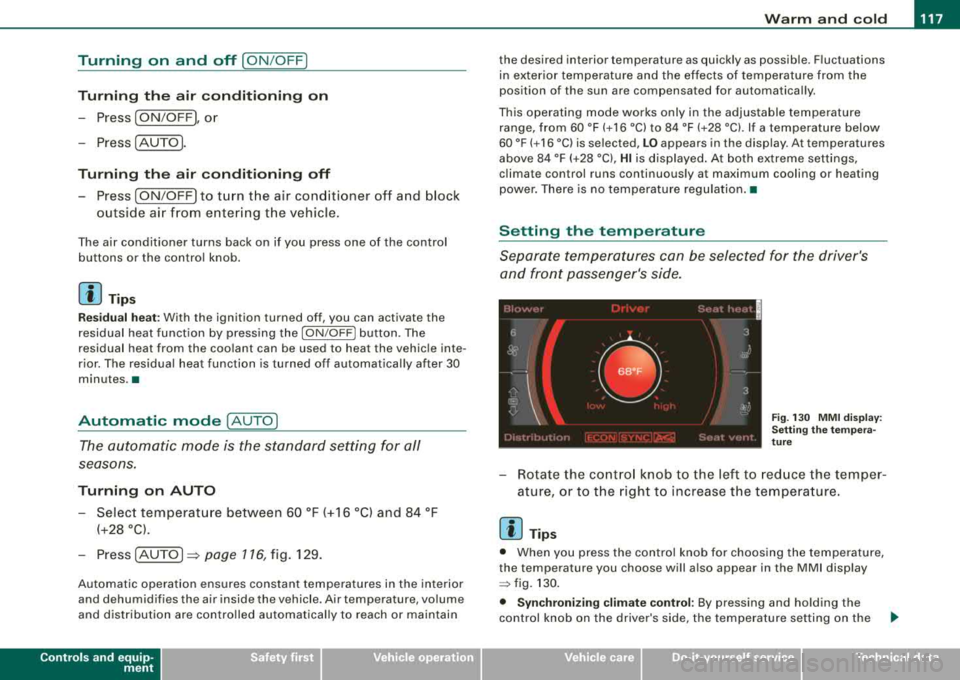

Warm and cold -
----------------
Turning on and off [ ON/OFF]
Turning th e air conditioning on
- Press [ON/OF F], or
- Press [AUTO].
Turning th e air conditioning off
- Press [ ON/OF F] to tu rn the air conditioner off and block
outside air f rom entering the vehicle .
The air conditioner turns back on if you press one of the control
buttons or the contro l knob .
[ i] Tip s
Resi du al h eat: With the ignition turned off, you can activate the
residual heat funct ion by press ing the [ ON/OFF] button. The
residual heat from the coo lant can be used to heat the vehic le inte ­
rior . The residua l heat function is turned off automat ical ly after 30
minutes. •
Automatic mode [AU TO]
The aut omatic mode is the standar d setting for all
seasons.
Turning on AUTO
- Select temperature between 60 °F
(+ 16 °C) and 84 °F
(+28 °C).
- Press
[AUTO]~ page 116, fig. 129.
Automatic operation ensures constant temperatures in the interior
and dehumidifies the air inside the vehicle . Air temperature, vo lume
and distr ibut ion are contro lled automat ical ly to reach or main tain
Controls and equip­
ment
the desired interior temperature as quickly as possib le. F luctuations
in exterior temperature and the effects of temperature from the
position of the sun are compensated for automatica lly.
This operating mode works only in the adjustable temperature range, from 60 °F
!+ 16 °Cl to 84 °F ( +28 °Cl. If a temperature below
60 ° F (+ 16 °C) is selected,
LO appears in the disp lay. At temperatures
above 84 °F (+28 °C),
HI is displayed . At both extreme settings,
climate control runs continuous ly at maximum cooling or heating
power . There is no temperature regulation .•
Setting the temperature
Separate temperatures can be selected for the driver's
and fr ont passenger's side.
6
fl
I . 6S rF.
,,

-\,.,/
'I
.· I
3
iii
3
:'*.
I
Fig . 13 0 MMI di spl ay:
Sett ing t he temp era­
t ur e
- Rot ate the cont ro l knob to the left to reduce the temper­
ature, or to the right t o increase t he tempera ture .
[ i ] Tips
• When you press the control knob for choos ing the temperature,
the temperature you choose wi ll a lso appear in the MMI display
~ fig. 130 .
• Synchronizi ng clim ate con trol: By pressing and ho lding the
control knob on the driver's side, t he temperature setting on the
