buttons AUDI S8 2010 User Guide

llffl..__w __ a _r _m __ a_n _ d_ c_ o_ ld ________________________________________________ _
Rear climate controls
Applies to vehicle s: with rear a ir conditioning
Controls
This overview is to assist you in familiarizing yourself with
the air conditioning controls.
F ig . 127 Air condi ­
t io nin g cont rols
The left side of the display shows the temperature selected for the
rear passenger on the left, the right side shows the temperature
selected for the rear passenger on the right .
If the air conditioning
sett ings are changed, th is appea rs briefly in the cor respond ing a rea
of the display.
Functions a re t urned on and off by touching the buttons. The LED in
the switch illuminates when the function is turned on .
By pressing the
safety s wit ch ® in the driver's door~ page 54 the
climate contro ls in the rear are deactivated. The message
PASSIVE
appears in the display. In this mode the rear climate control can only
be operated by the driver th rough the controls in the front compa rt­
ment.
ION/OFF I Tu rning on and off
The air conditioning can be turned on and off by pressing the
I ON/OFF I button. W it h the ignition Off, the residua l heat funct ion
can be activated by pressing the button. The residual heat from the coolant can
be used to heat the vehicle interior. The residual heat
function is turned off a utomatically after 30 minu tes.
Set ting the temperature
Temperat ure c an be adjusted over a range from 64 ° F (+18 °C) to 80
Of (+ 26 °()
® Air distribution
You can adjust the air circulation so that air flows from specific vents.
• In the
I !setting, all the air flows from the vents in the center
conso le and the out lets in the door pillars.
• In the
-0 setti ng, a ir f lows from the ou tlets u nder the front seats.
• In the~ setting, air flows from outlets in the center console and
t he door pilla rs as we ll as from the outlets under the front seats.
To regulate air distribution automatically, switc h to
[AUTO] .
~ Heated se a ts *
In position O the heating for the seats is turned off. The range of
adjustment is from 1 to 6.
The seats can be pre-heated for about 10 minutes using the heat ing .
However, the heating is turned off if the seat sensors do not detect
the weight of an occupant during th is period .
l'tJ] Ventilated sea ts*
The seat cushion and the seat back surfaces of the front seats can be
ventila ted. In pos it ion O the sea t ventilation is t urned off . The range
of adjustment is from 1 to 6.
!AU TO I Automatic operation
Air temperature, volume of air and air distribution are automatically
reg ulated to ach ieve or ma inta in t he desired temperatures as qu ickly
as possible . •

______________________________________________ A_ u_ t_ o_ m_ a_ t_ ic_ t_r _a _n_ s_m _ i_s _s_ i_o _n _ ___._
Appli es to ve hic les : wi th tip tro nic -st ee rin g w he el
Steering wheel with tiptronic ®
The shift buttons on the steering wheel allow the driver to
shift gears manually.
Fig. 173 Steering
wheel: S hift buttons
-To downshift, touch the button on the left 0-
- To upshift, touch the button on the right G).
The shift b uttons are activated when the selector lever is in D, Sor in
the manual shi ft program (tiptronic) .
Of course, you can continue to use the manual shift program with the
selector lever on the center console .•
Fail-safe mode
If tiptronic® suffers a malfunction, the foil-safe mode
maintains minimum driveobility .
In the event of particular system malfunctions, the automatic trans­
mission switches to the fail-safe mode. This is signalled by all the
segments in the display illuminating or going out.
You can continue to move the selector lever to all positions . The
man ual shift prog ram (tiptronic) is switched off in the fail-safe mode.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
In selector lever positions D and Sand in the manual shift program,
the t ransm ission remains in 3rd gea r if 1st, 2nd or 3rd gear was
engaged previously. The transm ission remains in 5th gear, if 4th, 5th
or 6th gear was engaged previously.
T he next time you dr ive off or start the engine, 3rd gear is engaged.
You can cont inue to use reverse gear . But the electronic lockout for
reve rse gear is turned off.
0 Note
If the transmission switches to fail -safe mode, you should take the
vehicle to an authorized Audi dealership as soon as possible to have
the cond ition corrected .•
Emergency release for selecto r Lever
If the vehicle's power supply foils, the selector lever con
be released in on emergency .
Fig. 174 Remo ve the
as htray inse rt
~
Vehicle care Do-it-yourselt service iTechnical data

.,..__H_ o_m_ e_ L_ i _n_ k_ ® _______________________________________________ _
Applies to veh icles : w ith Homelin k® un iversa l remote control
Programming the Homel ink ® transmitter
The transmitter is programmed in two phases . For rolling
code transmitters, a third phase is also necessary .
i--------------~
I----~---------.---- "' :;
N
"' M ~ w
~
Fig. 195 Overhead
conso le: Homelink ®
keypad
F ig . 196 F ront
bumpe r, driver side:
location of transmitter
u n it
Phas e 1: programming the o verhead k eyp ad
1. Make sure your vehicle is within operating range of the
remote controlled garage door opener.
2 . Set the parking brake=>
& in "General information " on
page 181.
3. Turn the ignition on. Do not start the engine! 4
. Press and hold the two outside Homelink ® buttons
G) and
@ for approximately 20 seconds until indicator light@
=> fig.
195 begins to flash . Then release both buttons . Do
not hold the buttons for longer than 30 seconds .
- This procedure only needs to be performed
once. It erases
the factory-set default codes and does not have to be repeated to program additional remote controls .
5. Press and hold the Homelink ® button
G) , @ or@ until
the indicator light@ starts flashing
slowly . Release the
button .
-The system will remain in programming mode for 5
minutes. Co to the front of the vehicle and proceed with
phase
2 .
Phase 2:
programming the bumper mounted tr ansmit
ter
6 . Hold the original r emote control at a distance between 0-
6 in. (0 -15 cm) from the bumper below the appropriate
headlight for your vehicle=> fig .
196 (use the shortest
distance possible) .
7 . Aim the remote control just below the
driver side head ­
light .
8. Press and hold the activation button on the remote control.
- May be different in Canada . If so, press and re-press
(cycle) the activation button on your remote control every
two seconds. .-,,

1111....__H_ o_ m __ e_L_ i_n _k_ ®_ • _________________________________________________ _
-Press th e ap pro priate programmed button G) , @ or@
to activate the desired remote control function ::::>
& in
"Genera l informat io n" on
page 181. •
Applies to ve hicles : w ith Hom eli nk® univer sa l rem ote c ont rol
Reprogramming a single button
A Homelink ® button can be reprogrammed individually
without affecting the other button allocations.
Programming the ov erh ead keypad
- Press the appropriate Homelink ® button until the indi-
cator light begins flashing slowly .
Programming the bumper mounted transmit
ter
1. Hold the original remote control at a distance between 0 -
5 in . (0-13 cm) from the bumper below the appropriate
headlight for your vehicle (use the shortest distance
possible).
2. Aim the remote control just below the
driver side head ­
light .
3 . Press and hold the ac tivation button on the remote
control.
4 . The emergency flashers will flash
three times (after about
15 -60 seconds) when the programm ing is successful.
N ow release the b utton on the remote control.
- If the device utilizes a rolling code , please follow phase 3
of =>
page 182 , "Programming the Homelink ® trans­
mitter" for rolling code programming.
This pro cedur e will caus e th e ex is ting pr ogramming on th e
Homelink ® button to be era sed !•
Ap plies to veh icles: w ith Ho meli nk® un ive rsa l rem ote c ont rol
Erasing the programming of the
Homelink ® tr ansmitter
When you erase the programming, the programming on
all three of the transmitter channels with be lost!
- Perform steps 1 to 4 as described on ::::> page 182, "Phase
1 : programming the overhead keypad".
When completed , the Homel ink ® system will be in the programm ing
mode and is then ready to learn the codes for remote controlled
devices .
[I) Tips
• Programmed buttons cannot be erased individually.
• For security reasons you are advised to erase the programming of
the Homelink ® system before you sell your veh icle .•

& WARNING (co ntinued )
• Always follow the instructions provided by the manufa ctu rer
of the child restraint you intend to install in your vehicle.
• Never install a child re straint without a prope rly a ttached top
tether strap if the child r estraint manufacturer's in structions
require the top tether strap to be used.
• Improper use of child restraint LATCH lower anchorage points
can lead to injury in a collision . The LATCH lower anchorage points
are designed to withstand only those loads imposed by correctly
fitted child restraints .
• Never mount two child rest raint s ystems on one LATCH lower
an chorage point.
• Never secure or attach any luggage or other item to the LATCH
lower anchorages.
[ i ) Tips
• In Canada, the terms "top tether " with " lowe r universa l anchor­
ages" (or "lower universal anchorage bars") are used to describe the
system.
• In other countries, the term "ISO FIX" is used to describe the lower
anchorages . •
Safety first Vehicle OP-eration
Location Child Safety
Fi
g. 22 6 Sc hematic
o ve rvi ew : LATCH
anc hora ge poin t lo ca ­
ti ons
T he illustrat io n shows the seat ing locations in your vehicle whic h are
equipped wi th the lower anc horages system .•
Description
T h e lower anchorag e positions ar e marked for quick
loc ating.
Vehicle care
Fig. 22 7 Rear se at­
b ack s: loc ato r buttons
for low er anchorag es ..
Do-it-yourselt service iTechnical data

___ C_h _i_ld _ S_ a_ f_ e_ t_,, y'-----------------------------------------------

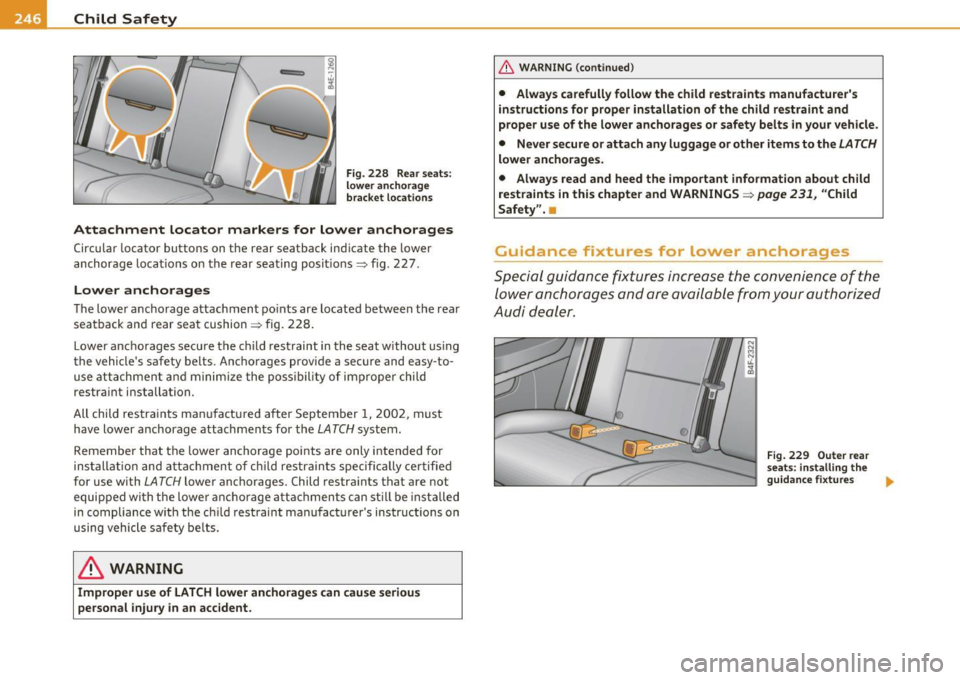

Fig. 228 Rear seats :
lower anchorage
bracket lo cation s
Attachment locator markers for lower anchorages
Circular locator buttons on the rear seatback indicate the lowe r
anchorage loca tions on th e r ear seating positions~ fig. 227.
Lower anchorages
T he lower ancho rage a ttachm ent po ints are located between t he rea r
sea tback and rear sea t cushi on
~ fig. 228.
Lower a nch o rage s se cu re the chi ld rest raint in the seat withou t us ing
the vehicle 's safety be lts. Anc ho rages prov ide a secure and easy-to­
u se at ta ch men t and mini miz e the pos sibil ity of im proper child
restra int i nstallation.
All child restra in ts ma nufact ured after Septem ber 1, 2 002, must
have low er anchorage attachmen ts for the
L ATCH system .
Remember that the lower anchorage points a re only intended for
ins tallati on and attachm ent of chil d restrain ts s peci ficall y ce rti fie d
for use with
L A TCH lowe r ancho rages. Child restra ints that are not
equi pped wi th the lowe r anchor age a tta ch me nt s ca n s till be ins tal led
in compliance w it h th e c hild restraint manu fac turer 's instructions on
using vehi cle s afety be lts.
& WARNING
Improper use of LATCH lower anchorages can cause seriou s
personal injury in an accident .
& WARNING (co ntinued )
• Always carefully follow the child restraints manufacturer's
instructions for proper installation of the child restraint and
proper use of the lower anchorages or safety belts in your vehicle .
• Never secure or atta ch any luggage or other items to the
LATCH
lower anchorages .
• Always read and heed the important information about child
restraints in this chapter and WARNINGS~
page 231, "Child
Safety ".•
Guidance fixtures far lower anchorages
Sp ecial guid ance fixt ures incr ea se the c on ve ni ence of the
lo we r an cho rages a nd a re avai la b le fro m you r a utho rized
Au di deal er.
Fig. 229 Outer rear
seats : in stalling the
guidance fixture s ..

____________________________________________ C_l_e _a_ n_ in--= g=-- a_n_ d_ p ,__r_o _t_ e_ c_ t _ io_ n __ ,n
Your authorized Audi dealer can provide cleaning products that have
bee n tested and approved for your veh icle. •
Care of interior
MMI display
- Clean the MMI display with a soft clean cloth and an LCD
cleaner .
The MMI display can be cleaned with a professionally available "LCD
cleaner". The cloth should be slightly dampened with the cleaning
fluid to clean the d isp lay .
0 Not e
To avoid scratching the MMI display, you should never clean it dry. •
MMI terminal
- First clean the MMI terminal with a brush to remove dust
from the housing.
- Then wipe the MMI terminal with a clean, soft, slightly
damp c loth .
The MMI te rmi nal shou ld be cleaned with a b rush first so that no di rt
is trapped between the buttons and the housing. We recommend
giving the MM I termina l a final wipe w ith a cloth moistened with
water and dish wash ing detergent .
0 Note
To prevent damage, make sure that no fluid ever gets into the MMI
terminal. •
Safety first
Aluminum trim
Use only neutral-pH products to remove spots and deposits from
al uminum surfaces. Ch rome care prod ucts and al kaline cleaners w ill
attack aluminum surfaces and can damage them over t ime .
& WARNING
Alw ay s re ad and heed all WARNING S and other information
~ page 2 70. •
Fabrics and fabric coverings
Fabrics and fabr ic coverings (e .g . seats, door trim panels, etc.) should
be clean ed at regular interva ls with a vacuum cl eaner . T his removes
surfa ce di rt pa rt icl es which co uld become embedded in the fabr ic
through use . Steam cleaners should not be used, because the steam
tends to push the d irt deeper into the f abric and lock it there.
Norm al clean ing
Genera lly, we recommend using a soft sponge or a li nt-free
microfiber cloth to the clean fabric. Brushes should on ly be used for
ca rpets and floor mats , since other fab ric surfaces could be ha rmed
by brushes.
No rma l sur face sta ins can be cleaned us ing a commercially avai lab le
foam cleaner. Spread the foam on the surface of the fabr ic with a soft
sponge and work it in gently . Do not saturate the fabric. Then pat the
foam dry using absorbent , dry cloths (e .g. microfiber cloth) and
vacuum it after it has dried comp letely.
Clean ing stains
Sta ins caused by beverages (e .g. coffee, fruit juice, etc.) can be
treated with a mild detergent solut ion. Apply the detergent solut ion
with a sponge . In the case of stubborn stains, a detergent paste can
be applied directly to the stai n and worked into the fabric . After­
wards, use copious amounts of clean water to remove the remaining .,.
Vehicle care Technical data

________________________________________________ F_ u_s _e_ s_ a_ n_ d_ b_u_ lb_ s _ __.lftll
No. Equipment
9
10
11
13
14
15
16
17
Climate control front/rear, dash panel buttons
Suspension level control system
(Adaptive Air Suspension)
Light and rain sensor
Display-/control unit
Roof electronics control unit
CD/DVD drive Energy management
Vacant
Radiator fan electronics
Airbag front passenger recognition (weight sensor)
19 Vacant
20 Heated/ventilated seats
21 Engine control module
22 Vacant
23 Parking brake (switch)
24 Vehicle electrical system
25
26 Automat
ic transm ission
Air conditioning water valves water pump, rear climate control
27 Sunroof
28 Engine control module
29 Fuel injectors
30 Ignition coils
31 Fuel pump, r ight/fuel pump e lectron ics
Amps
5
10
5
5
10
5
5
5
5
5
5
5
10
15
10
20
5
15
30
20/40
-
Vehicle OP-eration
No ... Equipment
32
33
34
35
36
39
40
41
Automatic transmission
Right rear foo twell heater
Heated/ventilated seats, rear
Heated/venti lated seats, front
Cigarette lighter, front
Cigarette lighter, rear/socket, rear
Auxiliary cooler fan Door cont rol un it, front r ight
Brake booster
Door control un it, rear right
42 Vacant
43 Headlight washer system
Air conditioning heater fan
Amps
5
25
20
20
20
20/25
20
7.5
15
7.5
30
30
•
Fuse Location , Luggage Compartment left
0
Fig . 28 0 Fuse pan el
l a yo ut ..
Vehicle care Do-it-yourself service iTechnical data

___________________________________________ A_ l::.. p _h _a_ b_ e_t _ic _a_ l_ in_ d _ e_x __ nn
We ight-sensing mat .... .. .. .. . ... 232
When must the system be inspected? 217
Aircraft Transporting your vehicle .......... 353
All Wheel Drive ............ .. ...... . 257
Alloy wheels . .... .. .. .. .. .. .. ... ... 275
All-wheel drive
Winter tires ....... .. ............ 323
Alternator See Generator .................... 16
Anti-freeze See Engine coolant ...... .. .. .. ... 296
Anti -lock brake system
How the ABS system works ......... 256
Warning/indicator lights ... .. ..... . 19
Anti-Sl ip Regulation System (ASR)
How the system works . .. .. .. .. .. . 254
Anti-theft systems Anti-theft alarm system ....... ... .. 52
Electronic immobilizer ............. 41
Ashtray Front .............. ...... ........ 96
Rear ........ .. .... .. ... . .. .... .. 96
ASR How the Anti-Slip Regulation System
works ..... .. ... .. ... ... ....... 254
Audi Service Repair Manuals and Literature
361
AUTO mode AC climate control ....... .... .. .. . 106
Auto Safety Hotline ... ... ... . .. ..... 195
Auto-Check Contro l .............. .... . 26 Automatic car wash
See Washing ............... ... .. 271
Automatic Shift Lock (ASL) ... .. .. .. ... 156
Automatic transmission 6-speed automatic transm iss ion .. .. 154
Automatic Sh ift Lock (ASL) ....... .. 156
Dr iv ing ................. ...... .. 154
Dynamic shift program ......... ... 157
Emergency release for selector lever . 159
Fail-safe mode ................ ... 159
lg nition key safety lock .... ..... ... 119
Kick-down . ............ .. ....... 157
Manual shift program .. .. .. .. .. .. . 158
Selector lever ............ ........ 155
Shift buttons ... ...... .. .. .. ..... 159
Steering wheel with tiptronic ...... . 159
Average speed ........... .. .......... 36
Avoid damaging the vehicle .. ....... .. 263
B
Background lighting ... . .. .. .......... 67
Battery . .. .. .. .. .... ............... 300
Battery location inside the luggage
compartment .................. 301
Charging ........................ 303
Important warnings when working on the battery ..... ........... ...... .. 301
low . .. .. .. .. .. ...... .. ......... 258
Rep lacing the battery . ... ......... 304
State of charge ..... .. ........... 258
Winter operation . .... ... ..... .... 300
Working on the battery .... ... .. .. . 301 Before driving
.. .. ... ... ... .... ... .. 187
Blended gasoline ................. .. 283
Body cavity sealing .............. . ... 276
Booster seats ......... ............ . 239
Brake fluid
Changing the brake fluid .......... . 300
Checking the brake fluid level ....... 299
What is the correct brake fluid level?. 299
What should I do if the brake fluid warning
light comes on? . .. .. .. .......... 299
Brake system Anti-lock brake system .. ........... 19
Brake assistant .. .. .. .. .. ...... .. 256
Brake booster ........... ... ..... 256
Brake fluid .. .. .. ................ 299
Brake fluid specificat ions for refill and
repla cemen t .................. . 300
Brake light defective . .... .. .. .. .. .. 24
Brake pads ..................... . 262
Electromechanical parking brake .... 123
Fluid reservoir . .......... ... .. ... 299
How does moisture or road salt affect the
brakes? ... .. ................ .. 254
Malfunction ...................... 28
Warning/indicator lights ... .... .. .. 20
Worn brake pads symbol ........... 32
Break-in period .... . .. .............. 261
Brake pads . ... ................ .. 262
Tires ..... .................... .. 261
Bulbs ............ .... .. .... .... .. . 346
Bumper cover Caution when parking near a parking barri-er or curb . ... ................ .. 124
Automatic belt retractor .......... .. . 201 Battery voltage .. ........... ........ . 34
Controls and equip­
ment Safety first Vehicle operation
Vehicle care Do-it-yourself service Technical data

___ A_ l_. p_ h _ a_b_ e_ t_ic _a_ l_ in_ d_e _ x ____________________________________________ _
Driver's seat memory .. ... ..... ... . 84 Side airbags
Front passenger's seat . .. ... ... .... 77 Description . .................... 225
Front seats .................. .... 76 How they work .................. 226
Head restraints . .. .. .. .. .. .... 81, 191 Side assist
Lumba r support .. .. .............. 80 Activating and deactivating . .. ..... 145
Power seat . .. .. .. .. .. .. .......... 77 Description . .. .... ......... .... . 145
Safety guidelines . ...... .......... 76 Informational and alert stage signals 147
Seat belts Messages in instrument cluster display . .
Why YOU MUST wear them ........ 197 152
Seat memory . . . . . . . . . . . . . . . . . . . . . . . 84
Seat position Inco rrect seat position . .. ......... 191
Seating capacity . .. .. .. .. .. ...... .. . 197
Seating position Driver ............. ...... .... ... 188
Front passenger ................. 189
How to adjust the front seats .. ..... 189
Occupants . ................... .. 188
Rear passengers
Seats Number of seats 190
197
Selective unlock feature ...............
44
Selector lever ... ................... 155
Service and disposal Safety belt pretensioner ........... 205
Service interval display .. .. .... ........ 25
Service position Windshield wipers ............. ... 72
Servotronic MMI
settings ............. .. .. .. . 150
Operation .. ............. .... .. . 147
Safety tips .... ........... .. ..... 152
Sensor detection area ...... .. .... . 146
Side curtain airbags ... .............. 228
Description ... ................. . 228
How they work ...... ...... ..... . 229
Safety instructions ... ..... .. .. ... 229
Side marker l ights ........... .. .. .. .. 60
Ski sack . .. .... ............. ...... .. 91
Snow chains ....................... 324
Sockets ......................... 97, 98
So lar blower fan/solar roof .... .. .... . 112
Sound system disp lay
Dr iver information display ...... .. .. 23
Sources of in formation about child restraints
and their use ................... 251
Spare wheel . ............. .. ... ... . 334
Speed control system
See Adaptive Cruise Control . .. .. .. . 128
Power steering .................. 257 Speed rating letter code ........ .. .. . 320
Shift buttons . .. ..... ... ........ ... 159 Speed warning system .............. .. 35
Ship Speedometer ....
................ ... 12
Transporting you r vehicle ........ .. 353 Sport Suspension
See Adaptive A
ir Suspension ....... 176
Starting off with a trai ler .......... ... 125
Starting the engine ............. 118, 119
What should I do if the engine does not start? .... .... .. .. .. .. .. .. .. .. 119
Steering . .. .. .. ................. .. 117
Adjusting steering column .. ..... .. 117
Easy entry feature ......... ... .. .. 118
Locking the steering .............. 118
Malfunction . ... .. .. .............. 31
Steering wheel heating ...... .. .. .. .. 108
Steps for determining correc t load limit 315
Stopping the engine .... ............. 120
Storage .. .. .. .. ...... ............. . 98
Compartments in the door trim panels ...
100
Compartments in the rear doors .. .. 100
(upholder . .. ...... .............. 94
(upholder rear center armrest ....... 95
Glove compartment .......... ... .. 99
Luggage compartment . .. ... .... .. 102
Ski sack ....... ... .... .. .. .. .. .. . 91
Small objects ....... ...... .... .. 100
Sun shade ................ .... ... ... 68
Sun visors .................. ... .. .. . 68
Switches Emergency flashers . . . . . . . . . . . . . . . 63
Power sunroof ............. .. .. .. . 57
Rear window defogger ...... .... .. 113
Symbols Red ..... ............. .......... 28
Yellow .................. ... ... .. 32
