26 Instruments and warning/indicator lights
Odometer
Fig . 10 In str ument cl uster Odo mete r an d reset b utto n
The odometer shows yo u how many mi les
(kilometers) you have driven . Y o u can sw itch
the display from mi les to kilometers and vice
ve rsa v ia the M MI.
Upper odometer
The trip odometer shows the distance driven
since it was last reset. It can be used to meas­
ure short distances. The last d igit ind icates
1/10 ofa m ile (100 mete rs) .
You can reset the trip odometer to zero by press ing the Reset button ~-
Lower odometer
The lower odometer shows the total n umber
of mi les (k ilometers) d rive n.
Malfunction message
If th ere is a ma lfunction in the instrume nt
clu ster,
DEF will appear in the t rip o dome te r
di sp lay are a. Con ta ct yo ur au tho riz e d Audi
dealer to have the prob lem correc ted.
Time and date display
F ig . 11 Cente r console: analog clock
T he date and time are shown in the inst ru­
ment cluster display ~
page 23, fig . 4 . The re
is a lso an analog cloc k in t he center console
¢ fig . 11.
W hen yo u open the driver's door, the da te and
time appear in the instrument cluster disp lay
f or 30 seconds . When t he ignition is sw itched
on, the t ime is a lways d isp layed i n the status
line © regardless of the current display .
You can set the time o n both clocks and the
date d isplay in the MMI. Refer to the MMI
owner 's manua l for i nstructions.
Service interval display
The service interval display reminds you when
your next service is due.
Fi g. 12 Instrument cl uste r: Se rvice inte rva l d is pl ay
The schedule for the next o il change or inspec­
t io n is ca lculat ed au toma tica lly an d disp layed
a cc ord ingly. The d isp lay wor ks in two stages:
Service reminder
30 days before the next serv ice is due, a serv­
ice reminde r appea rs in the display whe n you
switch the ig nition on
¢ fig . 12.
After about 5 seconds the display switches
back to normal. The distance and time re­
main ing a re updated each t ime the ignit ion is
swi tched on u ntil the date due for service is
r e ach ed.
Service due
When the due date for service is reached, t he
message
Service due! appears in the instru­
ment cluster immed iate ly afte r yo u sw itch the
ignition on . Add it io na lly, a warning to ne .,.

Instrument s and warning /indicator lights 2 7
sounds. After about S seconds the display
switches back to normal.
Calling up th e service schedules
If or when an oil change or inspe ct io n is due,
can be shown in the MM I disp lay by select ing
the servi ce inte rva l disp lay in the car menu .
Select the
I CA R I function button > Car s ys­
tems
contro l button > Servicing & chec ks >
Service interval d isplays.
Resetting the service interval display
Your au thori zed A udi dealer w ill reset the cor­
responding service sched ule after per forming
the approp riate service on yo ur vehicle. You
also have the possib ility to reset the o il
change sched ule after having performed an
oil change accord ing to Audi specifications.
Select the
I CAR I function button > Car sys­
tems
control bu tton > Servicing & checks >
Service interval display s > Reset oil change
interval.
CJ) Note
If you disconnect the battery termina ls , no
calc ulations can be made for the service
interval display d uring this tim e and no
service remi nder w ill appea r. Remembe r
t h at observ ing the prope r serv ice intervals
is v ita lly impo rtant to ex tend ing the life o f
your veh icle , particu larly the engine, a nd
maintaining its va lue . Even if t he mileage
driven is low, the maximum period of one
year from one service to the next must not
be exceeded.
{!) Tips
- Do not reset the display between o il
changes, otherw ise the display will be i n­
cor rect.
- The information in the Service Reminder
r ema ins stored even when the vehicle
battery is discon nected .
Open door /hood /rear lid warning
Fi g. 13 Display : doo rs a nd re ar lid open
With the ign ition switched on, the warn ing il­
luminates when at least
one door or the hood
or the rear lid is not closed . The symbo l also
shows you
which door(s) or lid is not closed .
In the illustrati on
i:> fig . 13 it is the driver's
door and the left rear door.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL )
The Ma lfunction Indicator Lamp (MIL) fllllij in
the instrument cluster is part of t he On-Board
Diagnost ic (OBD II) system.
The warning/indicator light ill uminates when
the ignitio n is switched on and goes out after
the engine starts and the id le has stabilized.
This indicates that the MIL is working proper­
ly .
If the light does not go out after the engine
is started, or illuminates while you are driv­
i ng, a malfunction may exis t in the engi ne sys­
tem . If the light illumi nates, the catalyt ic con­
verter could be damaged .
Contin ue d riving
with reduced power (avoid­
i ng s ustai ned h igh speeds and/or rapid accel ­
erations) and have the cond ition co rrected .
Contact your aut horized Aud i dea le r.
If the light illum inates, the electronic speed
li miter may also be malfunct io ni ng . For more
i nformation
~ pag e 28, Electronic speed
limiter. ...,

28 Instrum ents a nd w arning /indic ato r ligh ts
An imp rop erl y cl ose d fu el filler cap m ay also
c a u se t he MIL l igh t to illumin ate
c:> page220.
On-Board Diagnostics
Fig. 14 Locat io n of Data Link Co nnec tor (DLC)
On-Board Diagnostics monitors the compo­
nents o f your emission control system. Each
monitored component in your engine system
has been assigned a code. In case of a mal­
function, the component will be identified
and the fault stored as a code in the control module memory.
The MIL light may a lso illuminate if there is a
leak in the on-board fue l vapor recovery sys­
tem. If the light illuminates after a refuelling,
stop the veh icle and make sure the fuel filler
cap is properly closed
c:> page 220.
In order to make an accurate diagnosis, the
stored data can only be displayed using spe­
cial diagnostic equipment (generic scan tool
for OBD) .
In order to connect the special diagnostic
equipment, push the plug into the Data Link
Connector (DLC). The DLC is located to the right of the hood release
c:> fig . 14.
Your authorized Audi dealer or a qualified
service station can interpret the code and per­
form the necessary repair .
Electronic speed limiter
Your vehicle may be factory equipped with
tires that are rated for a maximum speed of 130 mph (210 km/h). This is less than the
maximum speed of your vehicle. To reduce the
risk of s udden tire failure and loss of control if the vehicle is operated at excessive speeds,
your vehicle a lso has an e lectronic speed limit­
er . The e lectronic speed limiter prevents your
vehicle from going faster than the tire speed
rating. For more information
c:> page 249.
If the engine control unit receives faulty vehi­
cle road speed signals, the Ma lfunction Indi­
cator Lamp (MIL)
(lllli$ will illuminate . If this
occurs, contact the nearest authorized Audi
dealer for assistance .
_&. WARNING
-Always observe the posted speed lim its
and adjust your speed to suit prevailing r oad, traffic and weather cond itions. Never
drive your vehicle faster than the maxi­ mum speed rating of the tires installed.
-

40 Opening and closing
Valet parking
The valet parking feature protects the lug­
gage comportment from unauthorized ac­
cess .
Fig. 31 Valet park ing button
With "valet pa rking" activated, the rear lid
cannot be opened.
.. Remove the mechanical key
c:> page 30 .
.,. Open the glove compartment and activate
¢
fig. 31 the "valet parking" feature by
pressing the
I VALET I button. The ind icator
light in the switch illuminates.
.,. Close the glove compartment and lock it
with the mechanical key .
.. Leave the master key with the service per­
sonnel
for parking and keep the mechanical
key with you .
When the "valet parking" feature is activated :
- the u nlocking button for the rear lid
c:5 in
the driver's door is inactive
- the butt on
c:5 on the master key is inac tive
- the opening hand le in the rear lid is inactive.
The vehicle can be driven and locked and un­ locked w ith the master key. Access to the lug­
gage compartment is blocked.
When the valet parking function is switched
on, the message
Valet parking activated ap­
pears in the instrument cluster display when
you switch the ign it ion on .
Sliding/tilting sunroof
Operation
Fig. 32 Section of the headl iner: Sliding/t iltin g sunroof
button
@ Tilting and sliding
.,. To t ilt the sunroof completely, press the
sw itch br iefly to the second level¢
fig. 32
briefly .
.. To close the sunroof completely, pull the
sw itch briefly to the second level¢,&. .
.. To select an intermediate position, press/
pull the switch to the first level until the de ­
sired position is reached .
@ Opening and closing
.,. To open the sunroof completely, slide the
button back briefly to the second level.
.. To close the sunroof completely, slide the
button forward briefly to the second level
q ,&..
.. To select a partially open pos ition, slide the
button forward/back to the first level until
the roof reaches the desired position.
A wind deflector integrated into the sliding/
t il ting sunroof adapts automatically to the
speed and sunroof pos ition . This reduces wind
noise to a m inimum in all sunroof positions .
You can still close or open the sunroof for up
to ten minutes after you have switched the ig­
nition off . The switch is deact ivated once the
driver's or front passenger's door is opened.
Solar protection
The solar protection opens automatically
when the sunroof opens.

44 Clear vision
Highway light function*
(vehicles with LED
headlights) -this function adapts the lighting
for highway driving based on vehicle speed.
.&_ WARNING
- Automatic headlights are only intended
to assist the driver . They do not relieve
the driver of his responsibility to check the headlights and to turn them on man­
ually according to the current light and
visibility conditions . For example, fog
cannot be detected by the light sensors.
So always switch on the headlights §,0
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see the road ahead and when you cannot be seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see your car from
the back .
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
(D Tips
- In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display
q page 21 .
-You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- Please observe legal regulations when
using the lighting systems described .
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle ore in on emer­
gency situation .
Fig. 36 Ce nte r co nso le: em erg en cy flash er sw itch
.,. Press the switch~ c:> fig. 36 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
signal indicator lights¢¢ in the instrument
cluster, as well as the light in the emergency
flasher switch
~ blink likewise.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed.
@ Tips
You should turn on the emergency flashers
when:
- you are the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
-your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
Adjusting the exterior lighting
The settings ore adjusted in the MMI.
"'Select: !CARI function button> Car systems
control button > Vehicle settings > Exterior
lighting. ""

Selecting a color profile
You can select from the Ivory , Polar and Ru­
b y/ Pol ar
color profiles .
(D Tips
The settings are automa tically sto red and
assigned to the remote con tro l key that is
in use.
Instrument illumination
You con adjust the brightness of the instru ­
ment and display illumination .
Fig . 40 In strument ill um ination
• Press the knob to release it.
• Turn the knob toward"-" or"+" to reduce or
increase the brightness .
• Press the knob again to return it to it s or ig i­
nal position .
Q Tips
The instrument illumination (for dials and
needles) lights on when the ig nitio n is
sw itched on and the vehicle lights are
turned off. As the daylight fades, the illu­
m ina tion of the dials likewise dims auto­
mat ically and wi ll go out com plete ly when
t he o utside light is very low . This fea ture is
meant to remind you to switch on the
headlights when o utside light conditions
become poor. Clear vi
sion 4 7
Vision
Sun visors
E J
Fig . 4 1 S un viso r
The sun visors for the driver and passenger
can be re leased from their bracke ts and
turned toward the doors
c:> fig. 41 (D . They
can a lso be moved back and forth lengthwise
in th is position .
The m irror light switches on when the cover
ove r the vanity m irror @opens.
T here is a shade between the dr iver 's and pas­
senger's s un visors that can be used to cover
the gap above the rearview mirror.
. Sun Shade
Fi g. 42 Cock pit: Sun shade swit ch
F ig. 4 3 Rear doo r: S un s had e butto n

Clear vision 5 3
Adjusting the magnetic zone
Applies to vehicles: with digital compass
The magnetic zone must be adjusted correctly for the compass to read accurately.
Fig. SO Magnet ic zone map
~ Press and ho ld the button @ ¢page 52,
fig . 49
until the number of the magnetic
zone appears in the rearview mirror .
~ Press the button@repeated ly to select the
correct magnetic zone. The select ion mode
turns off after a few seconds .
Calibrating the compass
Applies to vehicles: with digital compass
You must recalibrate the compass if it does
not display the correct direction .
~ Press and hold the button @unti l a C ap­
pears in the rearview mirror.
~ Drive in a c ircle at about 6 mph (10 km/h)
until a direction is disp layed in the rearview
mirror .
A WARNING
-
To avoid endangering yourself and other
drivers, calibrate the compass in an area
where there is no traffic.
0 co
co
0 ' I ~ co
-

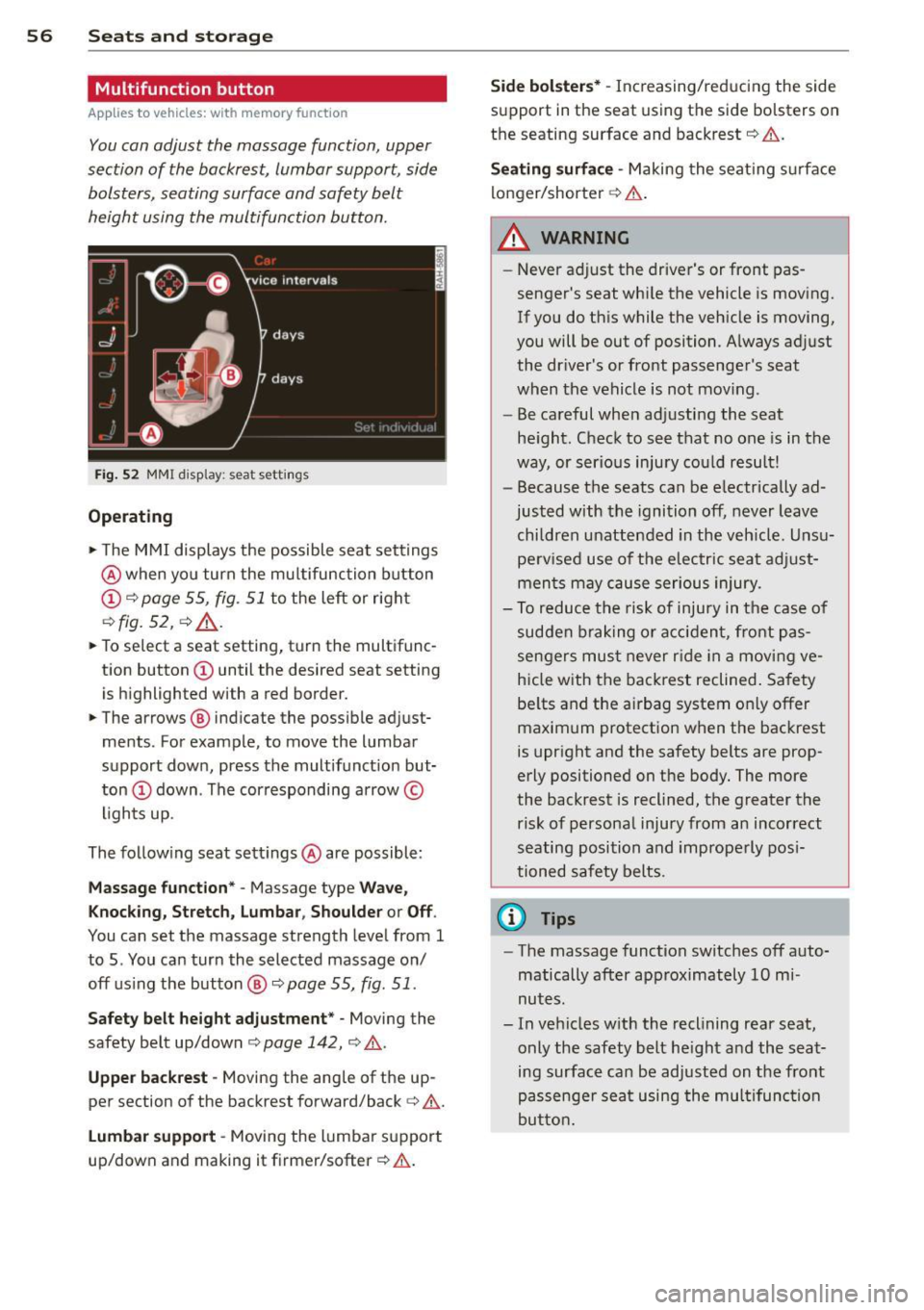

56 Seats and st o ra ge
Multifunction button
App lies to vehicles: wit h memory fu nctio n
You can adjust the massage function, upper
section of the backrest, lumbar support, side bolsters, seating surface and safety belt
height using the multifunction button.
F ig. 52 MMI display : seat settings
Operating
• The M MI displays the possible seat sett ings
@ when yo u turn the mu ltifunction button
(D c:> page 55, fig. 51 to the left or right
c:> fig. 52, c:> .&_ .
• To select a seat setting, turn the multifunc­
tion button
(D until the desired seat setting
is h ighlighted with a red border.
• The arrows ® indicate the possible adjust­
ments . For example, to move the lumbar
support down, press the multifunct ion but­
ton
(D down . The cor responding arrow ©
l ights up .
The following seat settings @are possible:
Mas sage funct ion* -Massage type Wave,
Knock ing, Stretch, Lumbar , Shoulder or Off.
You can set the massage strength level from 1
to 5 . You can turn the selected massage on/
off us ing the button ®
c:> page 55, fig. 51 .
Safety belt height adju stment * -Moving the
safety belt up/down
c:> page 142, c:> .&..
Upper backre st -Moving the ang le of the up­
per section of the backrest forward/back
c:> .&,.
Lu mb ar support -Moving the lumbar support
up/down and making it firme r/softer
c:> .&. .
Side bol ster s* -Increasing/reducing the side
support in the seat using the side bolsters on
the seating surface and backrest
c:> .&,.
Seat ing surfa ce -Making the seat ing s urface
longer/shorter
c:> .&. .
A WARNING
-
-Never ad just the driver's or front pas­
senger's seat whi le the vehicle is moving.
If you do this while the vehicle is moving,
you will be out of position. A lways adjust
the dr iver's or front passenge r's seat
when the vehicle is not mov ing.
- Be careful when adjusting the seat
he ight . Check to see that no one is in the
way, or serious injury cou ld result!
- Because the seats can be electrically ad­
justed with the ignition off, never leave
chi ldren unattended in the veh icle. Unsu­
perv ised use of the e lectr ic sea t adj ust­
men ts may cause serious injury.
- To reduce the risk of injury in the case of
sudden b raking or acc iden t, front pas­
sengers mus t never r ide in a movi ng ve­
hicle with the backrest reclined . Safety
be lts and the airbag system only offer
maximum protection when the backrest
is upright and the safety belts are prop­
erly positioned on the body . The more
the backrest is reclined, the greater the risk of personal injury from an incorrect
seating position and improperly pos i­
tioned safety belts .
@ Tips
-The massage function switches off auto­
matically after approximately 10 mi­
nutes.
- In vehicles w ith the reclining rear seat,
only the safety belt he igh t and the seat­
ing surface can be adjusted on the front
passenge r sea t using the mul tifunc tion
butto n.

58 Seats and st o ra ge
© -Switching front passenger seat adjust ­
ment on/off: this function must be activated
in the MMI ¢
page 60, ¢& .To switch front
passenger seat adjustment on, press the but­
ton. You can now adjust the front passenger
seats us ing the buttons @ and @.
If you do
not press the buttons @ or@ , front passen­
ger seat adjustment switches
off automatica l­
ly after approximate ly ten seconds.
& WARNING
- T he power adjustment for the individ ual
seats also works with the ignit ion . For
this reason, children should never be left
unattended in the vehicle -th ey could be
injured!
- Exercise caution when adjusting the
seats. Uns upervised or ca reless seat ad­
justment can p inch fingers or hands
causing injur ies.
Reclining rear seat overview
App lies to vehicles: with reclining rear seat
'T' ®
--------- - ---------- ---------------- -------
F ig . 55 Rear door : ad jus ting t he recli ning position
@ -Adj usting the reclining posi tion
@ -Adjusting the standard position
®-Folding the leg s upport up/down
@ -Leg s upport steeper/f latter
© -Leg s upport forward/back
@ -Adjusting the display -
Vehicles w ith a pass th rough in the cen­
ter conso le have seating for four. The
long center console between the two
rear seats is
not a seating position .
Therefore, a safety belt is not provided.
(D Note
If a ch ild seat is attached to one of the rear
seats, this seat must not be adjusted using
the power co ntrols under a ny circumstan­
ces. The easy entry funct ion for this seat
must also be deactivated in the MM I
¢
page 60. T he child seat as we ll as the
r ear se at can be d amaged by the adju st­
ment pro cess.
(D Tips
The massage function switches off auto­
m atically after approxim ately 10 minutes.

Operating the reclining rear seat
App lies to v ehicles: with reclining rea r seat
Fig. 56 Rear cente r co nso le : seat adjustment bu tto ns
Reclining position on/off
@-Adjusting the reclining position: press
and hold the button@c:::>
page 58, fig. 55 un­
til your seat and the front passenger's seat
reach their end positions
c:::> page 58, fig. 55.
Depending on the last setting, the leg support
may fold out at the same time. The front pas­
senger seat's can no longer be used in the re­
clining position c:::>
&,.
@ -Adjusting the standard position: press
and hold the button @until the front pas­
senger's seat reaches its end position and its
head restraint is upright. The leg support
folds in at the same time c:::>
&,.
You can adjust the leg support or fold the dis­
play forward in the reclining position:
Adjusting the leg support
®-Folding the leg support out/in: press and
hold the left/right button ®
c:::>fig . 56 until
the leg support reaches the des ired posit ion .
@ -Leg support steeper/flatter: active front
passenger's seat adjustment with the button
(J) . To adjust the front passenger's seat back­
rest and the leg support, press the button ®
forward/back.
© -Leg support forward/back: active front
passenger 's seat adjustment with the button
(J) . To adjust the front passenger's seat and
l eg support forward/back, press the button@
forward/back.
Seats and storage 59
Adjusting the display
©-Tilt ing the display forward/back: press
and hold the left/right b utton @ until the dis­
play reaches the desired position.
You can fold the display forward so that you
have a clear view of the roadway. With the
seat in the reclining position, press and hold
the right button@ unti l the display is folded
forward. Make sure the driver has a clear view
of the exterior mirrors. If so, confirm the
question in the MMI with Yes. If you answer
No or do not respond to the question, the dis­
play will return to the upright pos ition .
A WARNING
Do not use the front passenger's seat for
seating when it is in the reclin ing position.
This increases the risk of serious injury or
death.
- Never adjust the reclining position when
the front passenger's seat is occupied.
This increases the risk of injury.
- Do not t ilt the display if the driver's view
of the right exterior mirror will be ob­
structed.
- Make sure the area between the leg sup­
port and the front passenger's seat back­
rest is clear before fo lding the leg sup­
port in so that you are not pinched.
(!) Tips
If yo u cannot move the seat into the re­
clining position, it may be because
- th e front passenger's seat memory func­
tion is switched off c:::>
page 62 or
- the child safety lock is switched on (the
~ button c:::> page 39 or the rig ht t but­
ton c:::>
page 39 lights up in the driver's
door).
