32 Openin g and clo sing
- The vehicle cann ot be starte d if an unau­
thorized key is used. The ve hicle may not
start if another radio device such as a key
for another vehicle or a transponder is located on the key ring .
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions ¢
page 299.
Power locking system
General description
The power locking system locks or unlocks all
doors and the luggage compartment lid si­
multaneously.
You can lock and u nlock the vehicle centrally.
You have the following choices:
- Remote master key~
page 34,
-Door handles with convenience key*
¢page 34,
- Lock cylinder at the dr iver 's door
¢ page 35, or
- Power locking switch inside¢
page 35.
Sele ct ive unloc king
When you lock the vehicle, the powe r locking
system wi ll lock t he doors and the l uggage
compartment lid. When unlocking, you can
set in the MMI whether only the driver's door
or the entire vehicle should be unlocked
¢ page 33.
Automatic locking
The automatic locking feat ure locks all the ve­
h icle doors and the luggage compartment lid
when you drive faster than 9 mph (15 km/h).
The ca r is un locked again, when the opening
function in the power locking system switch
or at one of the door levers is actuated. The
Auto Lock function can be turned on and off in
the MMI
¢ page 33.
Anti-theft alarm warning system
If the an ti- t h eft alarm warning sys tem de­
tects a b reak-in into the vehicle, acoustic and
vis ual warn ing s ignals a re triggered .
T he anti-theft w arning sys tem is activated au­
tomat ica lly when you lock the vehi cle. It is de­
activated when unlocking using the remote
key, w ith the mechanica l key, and when yo u
switch the ignition on.
T he alarm a lso t urns off when the a larm cy cle
has expired .
Turn signals
When you unlock the veh icle, the turn s ignals
flash twice. When you lock the vehicle once,
t h e turn signals flash once. If they do not
flash, one of the doors, the luggage compart­
ment lid or the hood is not locked .
Unintentionally locking yourself out
In the fo llow ing cases there safeg uards to
prevent yo u locking you r remo te master key i n
the vehi cle:
- The vehicle does not lock w it h the central
lock ing switch ¢
page 35 if the drive r's
door is open.
- On veh icles with convenience key*, if the
most recently used master key is in the lug­
gage compartment, the luggage compa rt­
ment lid is a utomat ic al ly unlocked again af­
t er i t is closed .
Do not lock your veh icle w ith the
r e mot e ma s­
ter k ey or convenience ke y*
unti l all doors
and the luggage compartmen t lid are closed.
In this way you avoid locking yourse lf out acci ­
dentally .
Power side door closer*
T he veh icle doo rs are equipped with a powe r
s ide doo r closer . When clos ing a door, you on­
ly have to le t it fall light ly into the latch. The
doo r will the n automatically close by itself
¢& . ~

34 Opening and closing
locking and unlocking the vehicle with
the remote control
F ig. 19 Remote control: function buttons
Either the dr iver's door only or the entire veh i­
cle will unlock when the unlock button
III is
p ressed once, depending on the settings in
the MMI
¢page 33.
.. Press button III to unlock the veh icle
¢ fig .19 .
.. Press button fij to lock the vehicle ¢.&. in
General description on page 33 .
.. Press button c:s briefly to unlock the lug­
gage compartment lid .
.. Push the red
!PANIC I button to activate the
panic function. The horn sounds and the
turn signals flash. Push the red
!PANIC I but­
ton aga in to deact ivate the panic function.
If the vehicle is unlocked and no door, the lug­
gage compartment lid or the hood is opened
within 60 seconds, the vehicle locks itself
again automatically. This feature prevents the
vehicle from being acc identally left unlocked
over a long per iod of time .
It depends on the sett ings in the MMI wheth­
er the entire vehicle is unlocked or only cer­
tain doors
¢ page 33.
A WARNING
Read and follow a ll WARNINGS q .&. in
General description on page 33.
@ Tips
-In order to make sure the locking func­
tion is working, you should always keep
your eye on the vehicle to make sure it is
properly locked. -
Do not use the remote control if you are
inside the car, otherwise you may unin­
tentionally lock the vehicle, and then you
would set off the anti-theft alarm when
you try to start the eng ine or open a
door. In case this happens anyhow, push
the unlock button
III-
-The vehicle can only be locked when the
selector lever is in the P position.
- Use the panic function only if you are in
an emergency s ituation.
locking and unlocking with convenience
key
A pp lies to vehicles : wi th convenience key
The doors and the luggage compartment lid
can be unlocked and locked without operat­
ing the master key.
Fig. 20 Convenience key: Locking the vehicle
Unlocking vehicle
.. Take hold of the door handle. The door is
un locked automatically.
.. Pull the handle to open the door.
locking vehicle
.. Select the P selector lever position. Other­
w ise the veh icle cannot be locked .
.. To lock the vehicle, close the door and touch
the sensor in the door handle
once q fig. 20.
Do not reach inside the door handle.
The vehicle can be locked and unlocked at any
doo r. The master key must be within a range
of about 1.5 m from the appropriate door or
the luggage compartment lid. It makes no dif­
ference whether the master key is in your jack-
et pocket or in your brief case . ..,

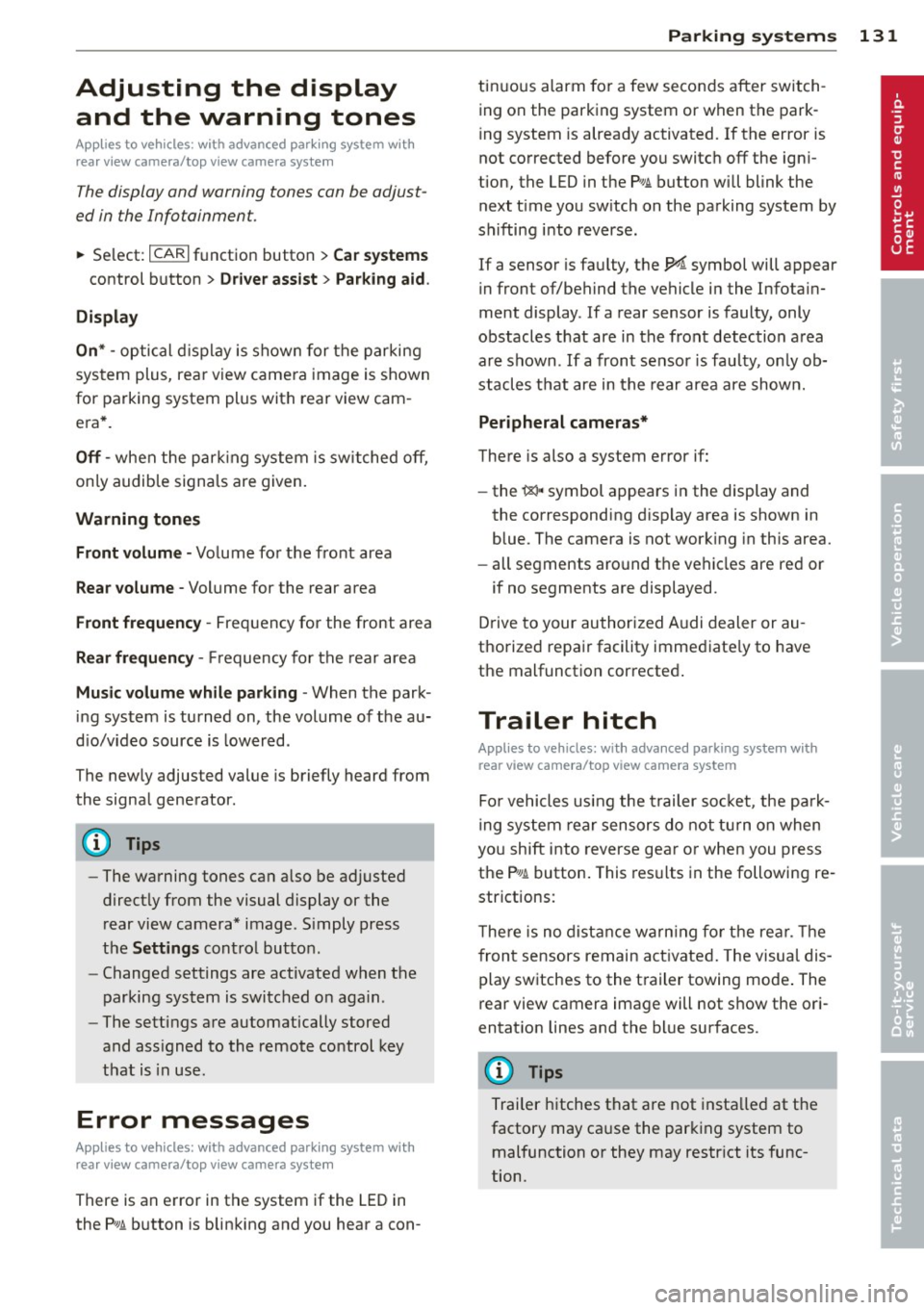

Adjusting the display and the warning tones
App lies to vehicles: with advanced park ing system wit h
rea r view camera/top v iew camera syste m
The display and warning tones can be adjust­
ed in the Infotainment.
~ Se lect: ICARI f u nct io n button > Car systems
control button > Driver assist > Parking aid .
Display
On * -
opti cal d isplay is shown for the parking
sys tem plus, rea r view came ra image is shown
for parking system plus with rear view cam ­
e ra *.
Off -when t he par king system is sw itched off,
on ly audib le sign als are given.
Warning tones
Front volume -
Volume for the fro nt area
Rear volume -Volume for the rear area
Front frequency -Frequency for the front area
Rear frequency -Frequency for the rear area
Music volume while parking -When the park­
in g system is turned on, the vol ume of t he au­
d io/v ideo source is lower ed.
The new ly adjusted value is briefly heard from
the signa l generator.
@ Tips
- The warning tones ca n also be adjusted
direct ly from the visual display or the
rear view camera* image. S imply press
the
Settings cont ro l but to n.
- Changed settings are activated when the
parking system is switched on aga in.
- The settings are automatically stored
and ass igned to the remote control key
that is in use .
Error messages
Applies to vehicles: with a dvanced park ing system wit h
r ea r view camera/top v iew camera syste m
There is an error in t he system if the LED in
the
?# A button is blinking and you hear a con-
Parking systems 131
tin uous alarm fo r a few seconds after switch ­
ing on the par king system or when the park­
ing system is already activated. If the error is
not corrected before you switc h off the ign i­
tion, the LED in the
P,1 1.A button will blink the
next t ime you sw itch on the parking system by
shifting i nto reverse .
If a sensor is fa ulty, the!¾ symbol will appear
in front of/behind the vehicle in the Infota in­
ment display . If a rear sensor is faulty, only
obstacles that are in the front detec tion a rea
a re shown . If a front sensor is fau lty, on ly ob­
s tacles t hat are in the rear area are shown.
Peripheral cameras*
There is also a system error if:
- the
'(gl ,, symbol appears i n the display and
the corresponding d isp lay area is shown in
blue. The camera is not work ing in this area.
- all segments aro und the vehicles are red or
if no segments are displayed.
D rive to your authorized A udi dealer or au ­
thorized repair facility immed iate ly to have
the malfunction correcte d.
Trailer hitch
Applies to vehicles: wi th adva nced parking syste m with
rear view ca mera/top view ca mera system
Fo r vehicles using the trailer so cket, the pa rk­
i ng sys tem rear sensors do not tu rn on when
you shift i nto reverse gea r or when you press
the
P,#~ button . This res ults in the following re ­
strictions:
T he re is no dist ance warn ing fo r th e rea r. T he
fron t sensors remain act ivated. The visua l dis­
play switches to the t railer towing mode . The
rear view camera image will not show the or i­
entat ion lines and the bl ue surfaces.
(D Tips
Trai ler h itches that are not insta lled at the
factory may ca use the park ing system to
malfunction or they may restr ict its func­
tion.

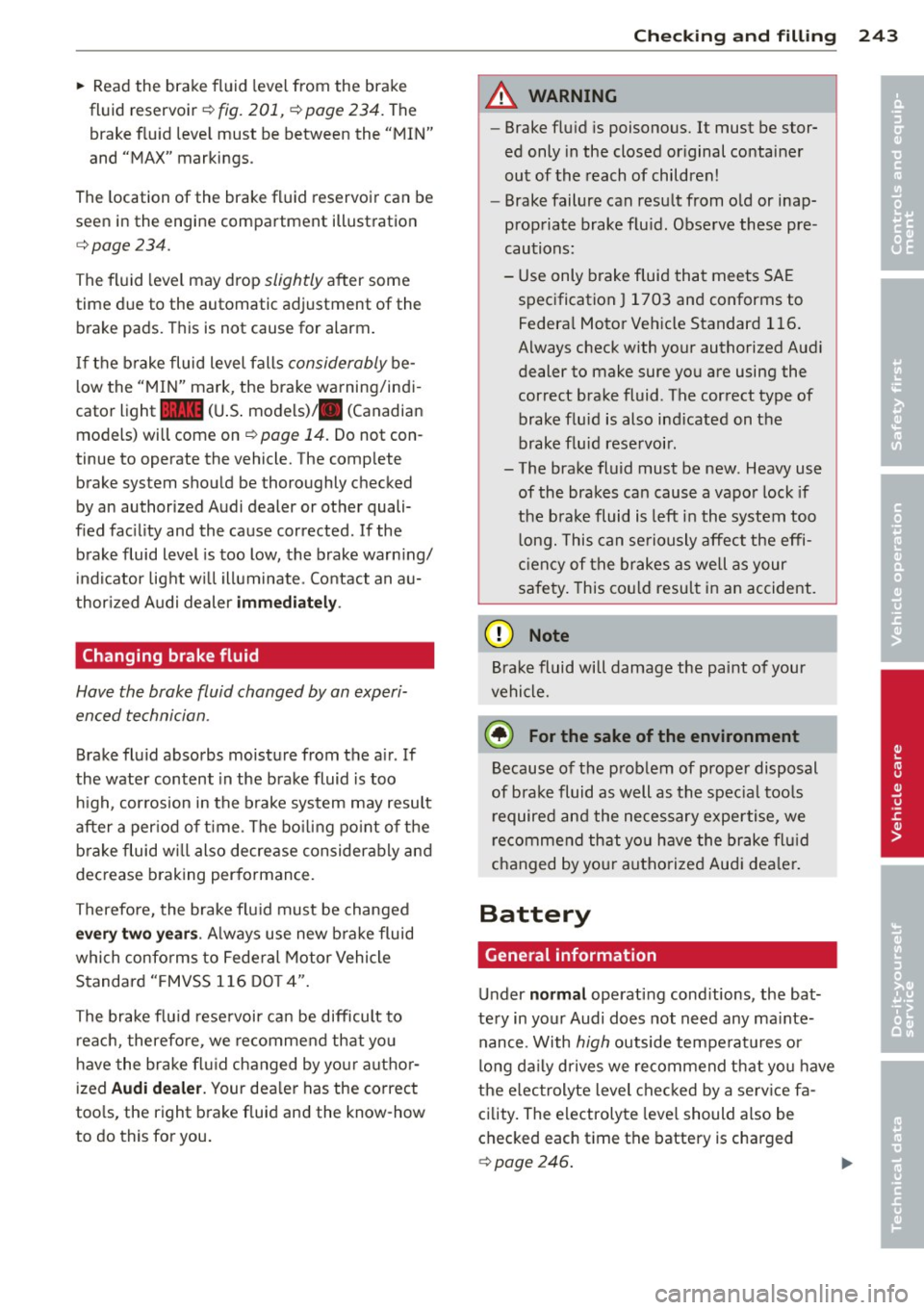

~ Read the brake fluid level from the brake
fluid reservoir ¢
fig. 201, ¢ page 234. The
brake f luid leve l must be between the "MIN"
and "MAX" markings.
The location of the brake fl uid reservoir can be
seen in the engine compartment illustration
¢page 234.
The fluid level may drop slightly after some
time due to the automatic adjustment of the brake pads . This is not cause for alarm .
If the brake fluid level falls considerably be­
l ow the " MIN" mark, the bra ke wa rning/indi ­
cator light
1111 (U .S . models)/ . (Canadian
models) will come on
¢ page 14. Do not con­
tinue to operate the vehicle. The comp lete
brake system shou ld be thoroughly checked
by an authorized Audi dealer or other quali­
f ied fac ility and the cause corrected. If the
b rake fluid level is too low, the brake warn ing/
i ndicator light w ill illuminate . Co ntact an au­
thor ized Audi dealer
immediately .
Changing brake fluid
Have the brake fluid changed by an experi­
enced technician .
Brake fluid abso rbs moistu re from the a ir . If
the water content in the brake fluid is too
h igh, cor ros ion in the b rake system may result
after a per iod of t ime . The bo iling po int of t he
b ra ke fluid w ill also decrease considerab ly and
decrease braking performance.
Therefore, the brake flu id must be changed
e very two year s. Always use new b rake fluid
which confo rms to Fede ral Motor Vehicle
Standard "FMVSS 1 16 DOT 4".
The brake flu id rese rvoi r ca n be difficult to
r eac h, therefo re , we re commend that yo u
h ave the brake fl uid changed by you r autho r­
i zed
Audi dealer . Your deale r has the correct
too ls, the right brake fluid and the know-how
to do this fo r you .
Checkin g and fillin g 243
A WARNING
-Brake flu id is poisonous. It must be stor­
ed only in the closed original co ntainer
out of the reach of children!
- Brake failure can resu lt from o ld or inap­
prop riate brake f lu id . Observe these pre ­
cau tions:
- Use only brake fluid tha t meets SA E
s p ecification
J 1703 an d conforms to
Federa l Moto r Ve hicle Standard 116.
Always check with your authorized Audi
dealer to make sure yo u are using the
correct brake fluid. The cor rect type of
brake f lu id is also ind icated on the
brake flu id rese rvoir .
- The brake fluid must be new . Heavy use
of the brakes ca n cause a vapo r lock if
the b ra ke fluid is left i n the system too
l ong. This can se riou sly affect the effi ­
c ien cy of the brakes as well as your
safe ty. This co uld resu lt in an accident.
(D Note
Bra ke fluid will damage the paint of you r
vehicle.
@ For the sake of the environment
Because of t he p rob lem of prope r disposal
of b ra ke fluid as well as the spec ial too ls
r equired and the necessary exper tise, we
r e comme nd th at yo u have the brake fl u id
changed by yo ur autho rized Aud i dea le r.
Battery
General information
U nder normal operating cond itions, the bat­
te ry in your Audi does not need any ma inte­
nance . With
high outside tempe rat ures o r
l ong da ily drives we re commend t hat yo u h ave
the e lec trolyte leve l chec ked by a serv ice f a­
ci lity. The electrolyte leve l should also be
c h ecked each t ime the battery is charged
¢ page 246. IJ,,
•
•

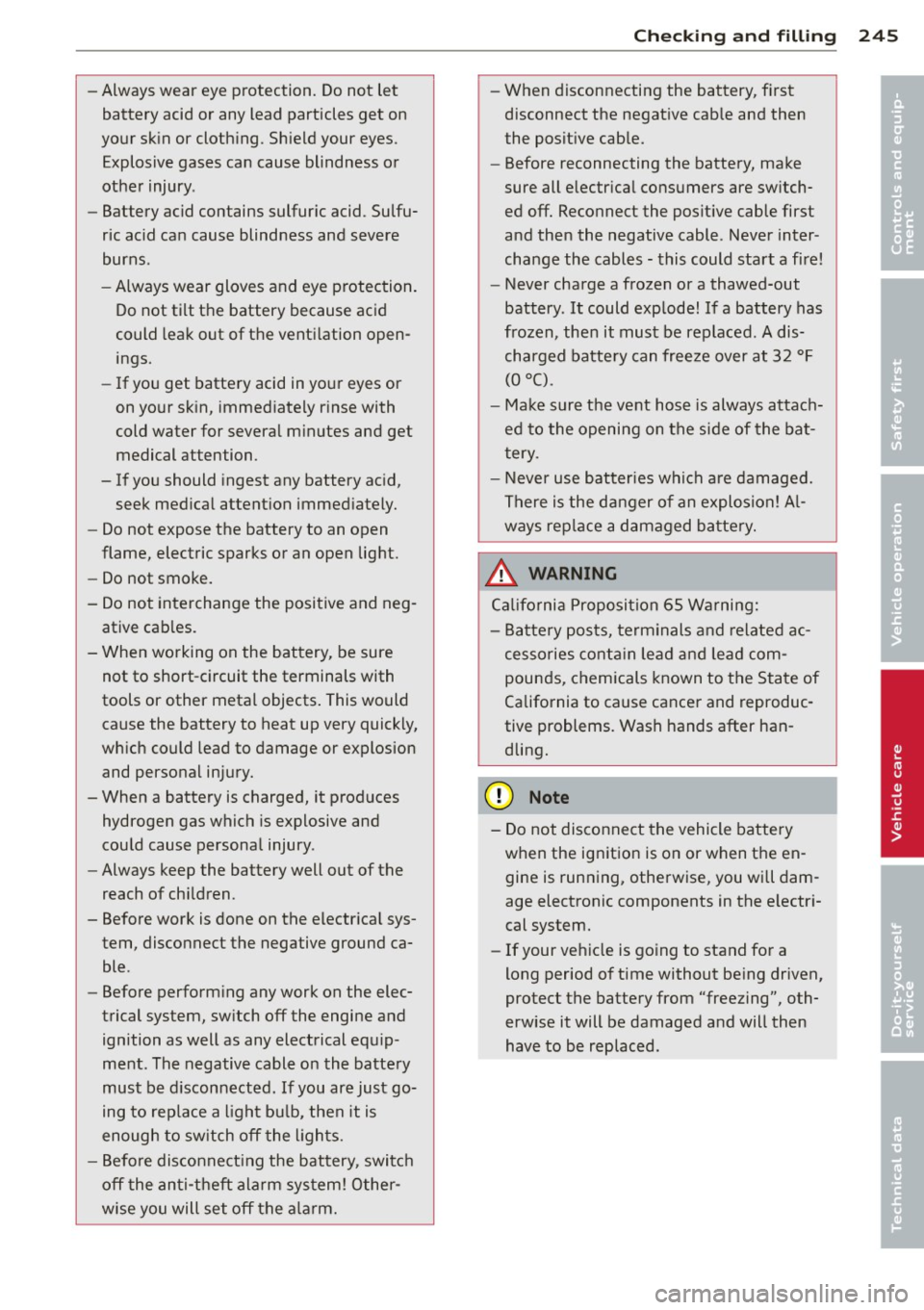

-Always wear eye protection. Do not let
battery acid or any lead particles get on
your skin or clothing. Shield your eyes .
Explosive gases can cause blindness or
other injury.
- Battery acid contains sulfuric acid . Sulfu­
ric acid can cause blindness and severe
burns.
- Always wear gloves and eye protection.
Do not tilt the battery because acid
could leak out of the ventilation open­
ings.
- If you get battery acid in your eyes or
on your skin, immediately rinse with
cold water for several minutes and get
medical attention .
- If you should ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, electric sparks or an open light.
- Do not smoke.
- Do not interchange the positive and neg-
ative cables .
= When working on the battery, be sure
not to short-circuit the terminals with
tools or other metal objects. This would cause the battery to heat up very quickly,
which could lead to damage or explosion and personal injury.
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury .
- Always keep the battery well out of the
reach of children.
- Before work is done on the electrical sys­
tem, disconnect the negative ground ca­ ble .
- Before performing any work on the elec­
trical system, switch off the engine and
ignition as well as any electrical equip ­
ment. The negative cable on the battery
must be disconnected . If you are just go­
ing to replace a light bulb, then it is
enough to switch off the lights.
- Before disconnecting the battery, switch
off the anti-theft alarm system! Other­
wise you will set off the alarm.
Checking and filling 245
-When disconnecting the battery, first
disconnect the negative cable and then
the positive cable.
- Before reconnecting the battery, make
sure all electrical consumers are switch­
ed off. Reconnect the positive cable first
and then the negative cable . Never inter ­
change the cables -this could start a fire!
- Never charge a frozen or a thawed-out
battery . It could explode! If a battery has
frozen , then it must be replaced . A dis­
charged battery can freeze over at 32 °F
(0 °C) .
-Make sure the vent hose is always attach­
ed to the opening on the side of the bat­
tery .
- Never use batteries which are damaged.
There is the danger of an explosion! Al­
ways replace a damaged battery.
&_ WARNING
California Proposition 65 Warning:
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive problems. Wash hands after han­ dling.
(D Note
- Do not disconnect the vehicle battery
when the ignition is on or when the en­ gine is running, otherwise, you will dam­
age electronic components in the electri­
cal system.
- If your vehicle is going to stand for a
long period of time without being driven,
protect the battery from "freezing", oth­
erwise it will be damaged and will then
have to be replaced.
•
•

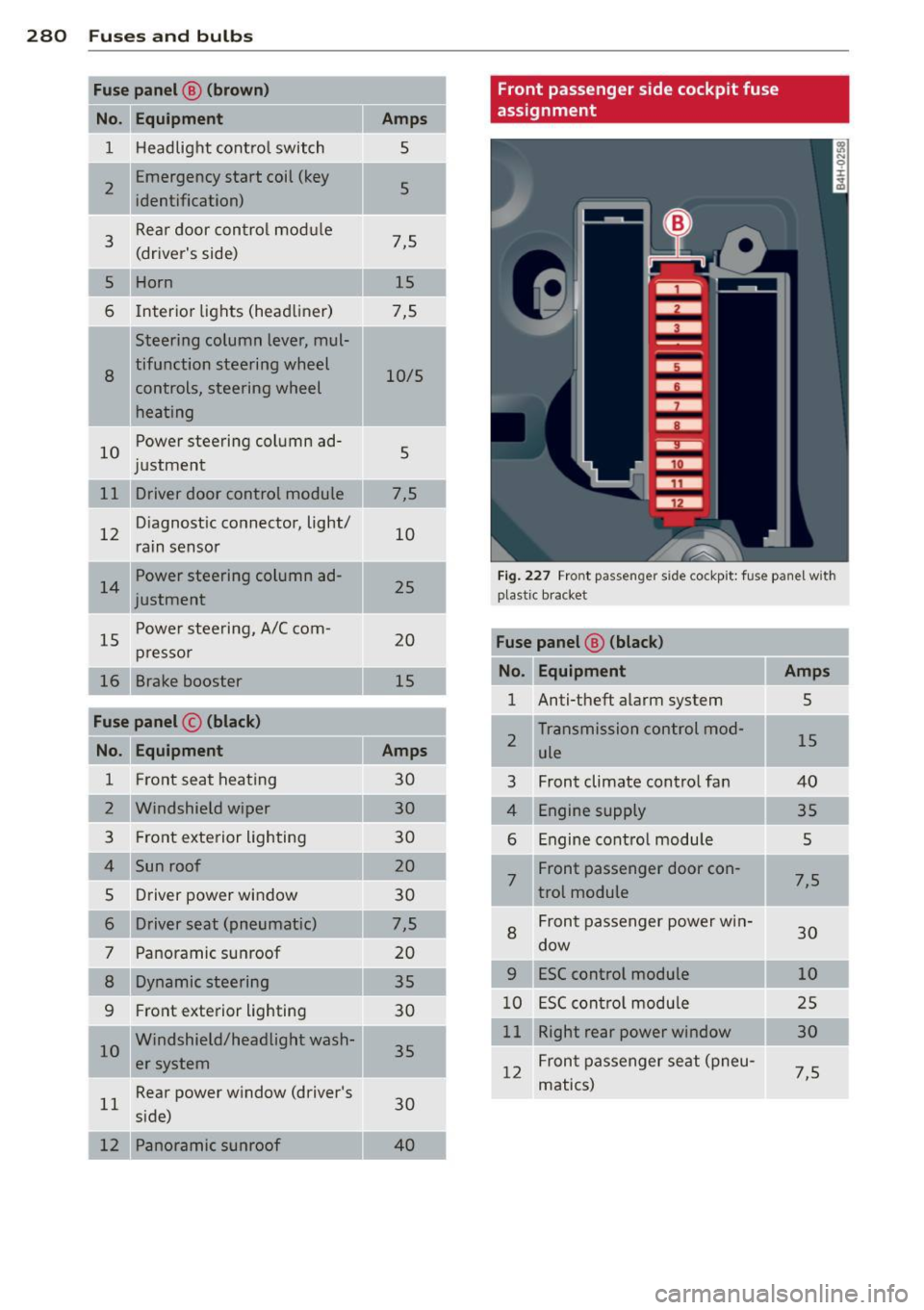

280 Fuses and bulbs
Fuse panel @ (brown)
No. Equipment
1 Headlight control switch
2 Emergency start coil (key
identification)
3 Rear door
control module
(driver's side)
5 Horn
6 Interior lights
(headliner)
Steering column lever, mul-
8
tifunction steering wheel
controls, steering wheel
I heating
10 Power steering column ad-
justment
11 Driver door control module
12 Diagnost
ic connector, light/
rain sensor
14 Power steering column ad-
justment
15 Power
steering, A/C com-
pressor
16 Brake booster
Fuse panel © (black)
No. Equipment
1 Front seat heating
2 Windshield wiper
3 Front exterior lighting
4 Sun roof
5 Driver power window
6 Driver seat (pneumatic)
7 Panoramic
sunroof
8 Dynamic steering
9 Front exterior lighting
10 Windshield/headlight
wash-
er system
11 Rear power window (driver's
side)
Panoramic sunroof
Amps
5
5
7,5 15
7,5
10/5
5
7,5 10
25
20 15
Amps
30
30
30 20
30
7,5
20
35
30
35
30
40
Front passenger side cockpit fuse
assignment
Fig. 227 Front passe nger side cockpit: fuse pane l with
plastic bracket
Fuse panel ® (black)
No. Equipment Amps
1 Anti-theft alarm system
5
2 T
ransmission control mod-
15
ule
3 Front climate control fan 40
4 Engine supply 35
6 Engine
control module
5
7 Front passenger door con-
7,5
trol module
8 Front passenger
power win-
30
dow
9 ESC control module 10
10 E5C control modu le 25
11 Right rear power window
30
12 Front passenger
seat (pneu-
7,5
matics)
