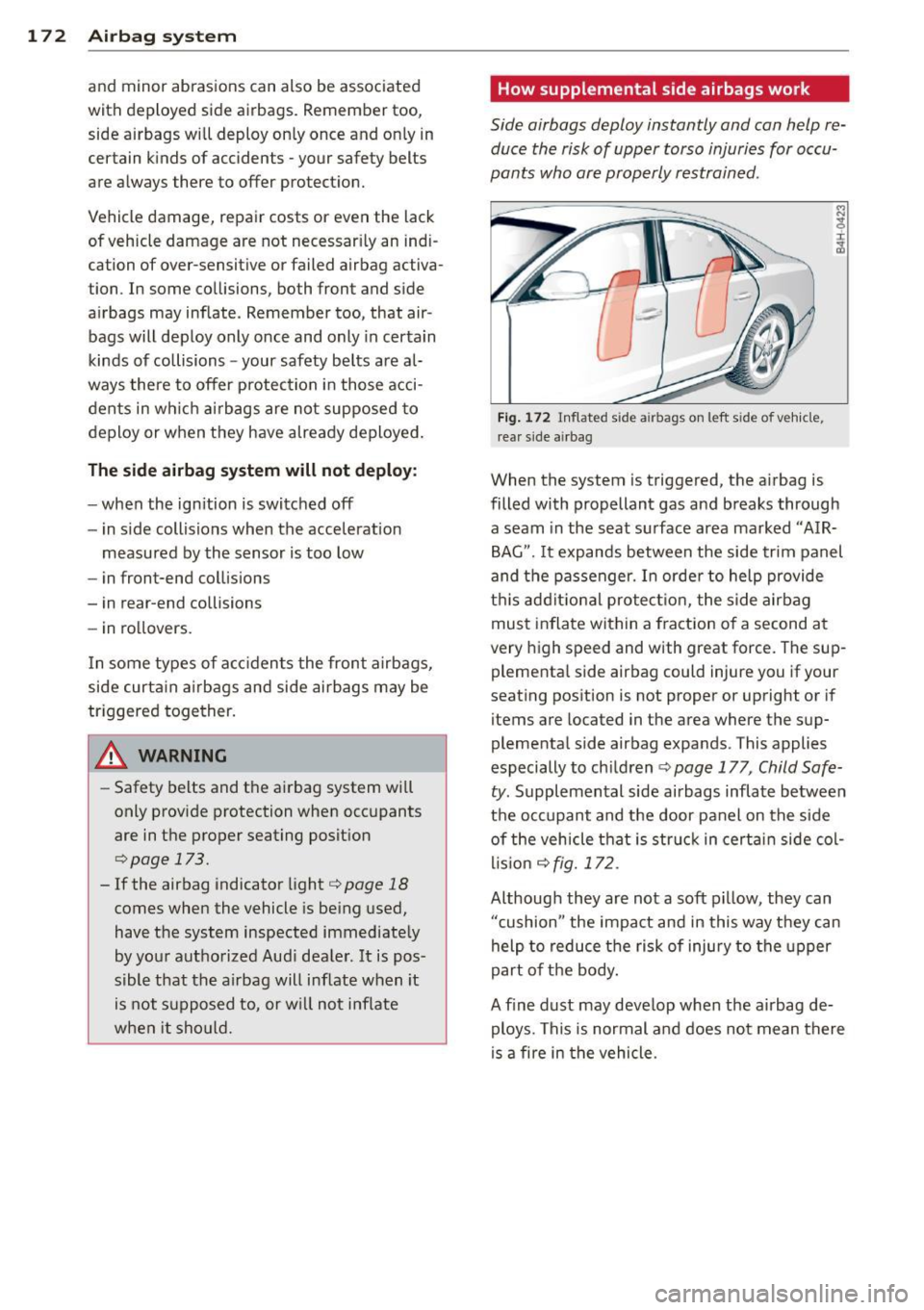

17 2 Airbag system
and minor abrasions can also be associated
with deployed side airbags . Remember too,
side airbags will deploy on ly once and on ly in
certain k inds of accidents -your safety belts
are always there to offer protect ion.
Vehicle damage, repair costs or even the lack
of vehicle damage are not necessar ily an indi­
cation of over-sensitive or failed airbag activa­
tion . In some co llisions, both front and side
a irbags may inflate . Remember too, that air ­
bags will deploy only once and only in certa in
kinds of co llisions -your safety belts are al­
ways there to offer protec tion in those acci­
dents in wh ich airbags are not supposed to
deploy or when they have already deployed.
The side airbag s yst em will not depl oy :
- when the ign ition is switched off
- in s ide collisions when the accelerat ion
measured by the sensor is too low
- in front-end collisions
- in rear-end collisions
- in ro llovers.
I n some types of acc idents the front airbags,
side curta in a irbags and side airbags may be
triggered together.
A WARNING
- Safety belts and t he airbag system will
only provide protection when occ upants
are in the proper seating posit ion
¢ page 173.
- If the airbag indicator light ¢ page 18
comes when the vehicle is being used,
have the system inspected immediate ly
by your aut ho rized Aud i dealer.
It is pos­
sible that the airbag will inflate when it
is not s upposed to, or w ill not inflate
when it sho uld. -How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
F ig . 1 72 Inflated s ide a irbags on left s ide of veh icle,
r ea r side a irbag
When the system is triggered, the a irbag is
filled with propellant gas and breaks through a seam in the seat surface area marked "AIR­
BAG".
It expands between the side tr im panel
and the passenger. In orde r to help provide
t hi s addit io nal pro tect ion, the s ide airbag
must inflate within a fraction of a second at
very h igh speed and with great force. The sup ­
plementa l side airbag could injure you if your
seat ing pos ition is not proper or upright or if
items are located in the area where the sup­
plemental side airbag expands. This applies
especially to ch ildren
q page 177, Child Safe­
ty .
Supplemental side airbags inflate betwee n
t h e occ upant and the door panel on the side
of the vehicle that is str uck in certa in side col ­
li sion ¢
fig. 172 .
Although they are not a soft pillow, they can
"cushion " the impact and in this way t hey can
help to reduce the risk of inju ry to the upper
part of the body.
A fine dust may deve lop when the airbag de­
ploys. This is normal a nd does not mean there
is a fire in the vehicle.

Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection .
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used .
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
-Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
- Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace ­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­ bag module must always be repaired
immediately by an authorized Audi
dealer.
Airbag system 173
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests .
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position .
- Always use the built -in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident ~
page 177, Child Safety.
-Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through .,.. •
•

17 4 Airbag syst em
larger, unclosed openings in the door
panel.
- Never drive w ith inter ior door trim pan­
e ls removed.
- Never drive when parts have been re­ moved from the ins ide doo r panel and
the openings they leave have not been p roperly closed.
- Never d rive when loudspeakers in the
doors have bee n removed unless the
spea ker holes have been properly
closed.
-Always ma ke certa in that openings are
covered or fi lled if additional speakers
or other equ ipment is installed in the
inside door panels.
- Always have work on the doors done by an authorized Audi dealer or qualified
workshop .
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide
supplemental protection to properly restrain ­
ed occupants.
Fi g. 1 73 Side curtain a irbags, d river 's side: s ide curta in
a ir bag location
The s ide curtain airbags are located o n both
sides of the interior above the front and rea r
side windows
c:.> fig. 173 . They are ident ified
by the word "AIRBAG" on the windshield
frame and the center roof p illar.
The s ide curtain airbag system supp lements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso o n the side of the vehicle tha t is struc k in a side collision
. The side curtain airbag in­
flates in side impacts and only when the vehi­ cle acceleration registered by the control un it
is h igh enough . If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
t h ough the car may be bad ly damaged as a re­
su lt of the co llision .
It is not possib le to de­
fine an airbag triggering range that will cover every possib le ang le of impact, s ince the cir­
cumstances will vary cons iderably between
one collision and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc .
c:,, page 175, How side cur­
tain airbags work .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a colli­
sion so that the side curtain airbags can pro­
vide protection .
The airbag system is not a substit ute for your
safety belt . Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the a irbag system can
only help to protect you if you are wear ing
you r saf ety belt and wearing it properly . This
is anothe r reason why yo u should always wear
yo ur safe ty belts, no t just because the law re ­
quires yo u to do soc:.>
page 145, General
notes .
It is important to remember that w hile the
s ide cur tain airbag system is designed to help
reduce the likelihood of ser ious injur ies, other
injuries, for example, swelling, bruising, and
minor ab rasions can also be associated with
these a irbags upon dep loyment. Remember
too, these airbags will deploy only once and
only in certain kinds of accidents -your safety
belts are always there to offe r protection .
The s ide curtain a irbag system basic ally
cons ists of:
- The e lectronic control module and external
side impact sensors
- The side curtain airbags above the front and
rear s ide windows

-The airbag indicator light in the instrument
pane l
The airbag system is moni to red ele ct ro ni ca lly
t o make certain it is fu nct ion ing properly a t all
times. Each time you switch on the ignition,
the airbag system indicator light wi ll come on
for a few seconds (se lf d iagnost ics) .
The side curtain airbag is not activated:
-if the ignition is switched off,
- i n s ide collisions wh en the acceleration
measu red by the sensor is too low,
- i n rear-end collisions,
- in rollovers.
A WARNING
-
- Safety belts and the a irbag system will
only p rov ide p rotection when occ upants
are in t he p roper seat ing posit io n
c::> page 58, General recommendations.
- If the airbag indicato r light c::> page 18
comes whe n the vehicle is be ing used,
have the system inspected immediately
by you r auth o rized Audi dea le r. I t is pos ­
sible that the airbag will inflate when it
is not supposed to, or w ill not inflate
when it sho uld.
How side curtain airbags work
Side curtain airbags con work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly res trained.
Fi g. 174 Ill ust rat ion of prin cipl e: In flat ed side cu rtain
airbags on the left side
The side curtain airbags inflate between the
occupant and the windows on the side of the
"' N ;g
±
"" ID
Airba g system 175
vehicle that is struck in a side collision
c::> fig. 174 .
When the system is t riggered, the side curta in
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
w indows identified by the AIRBAG labe l. In or­
der to he lp provide this additional protection,
the side curtain airbag must inflate within the
blink of an eye at very high speed and with
great force. The side curtain a irbag could in ­
jure you if your seating pos it io n is not prope r
or upright or if items are located in the area
whe re the supplemen tal side curta in a irbag
infl ates. This applies espe cially to ch ildren
c::> page 177 .
Although they are not a soft p illow, side cur­
ta in ai rbags can "cushion" the impact and in
th is way they can help to reduce the risk of in­
jury to the head a nd the upper part of the
body.
A fine dust may deve lop when the ai rbag de­
ploys . Th is is qui te no rma l and does not mean
t h ere is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position .
There is a lot that you and your passengers
must know and do to he lp the safety belts and
airbags do their job to provide supplemental
protection .
A WARNING
Improperly wearing safety belts and im­
p roper seating positions increase the risk
of ser ious personal injury and death when­
eve r a vehicle is being used .
- Never let occupants place any parts of thei r bod ies in the area from which the
side curta in a irbags inflate.
- Always make sure that the s ide curtain
airbags can inflate without interference.
-
Unsuitable accessor ies fitted inside the ..,

178 Child Safety
-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be
adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on th e
driver side. The low ris k deployment criteria
are intended to reduce the risk of injury
through interact ion with the airbag t hat can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system , all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush ­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the .,..

seat. The weight of a child restraint and its
"footprint" vary for different kinds of child re­
straints and for the different models of the
same kind of child restraint offered by child restra int manufacturers.
The weight ranges for the individual types, makes and mode ls of ch ild restra ints that the
NHTSA has specified in the Safety Standard
together with the we ight ranges of typical in­
fants and typical 1 year -old child have been
stored in the control unit of the Advanced A ir­
bag System . When a chi ld restraint is being
used on the front passenge r seat with a typi­
cal 1 year -old ch ild, the A dvanced Airbag Sys­
tem compares the we ight measured by the
weight sensing mat with the information stor­
ed in the electronic control unit.
The electron ic contro l unit al so registers the
tension on the front passenger safety be lt.
The tension on the safety be lt for the front
passenger seat will be different for an adult
who is properly using the safety belt as com­
pared to the tension on the be lt when it is
used to attach a child restraint to the seat.
T he sensor below the latch for the safety belt
for the front seat passenger measures the
tension on the belt . T he input from this sen­
sor is t hen used w ith the we ight to "decide",
whether there is a ch ild restraint with a typ ica l
1 year-o ld child on the front passenger seat
and whether or not the airbag must be turned
off .
Child restraints and Advanced Airbags
Regard less of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with an airbag . Always be sure
that the chi ld restraint is p roperly instal led at
one of the rear seat ing pos itions . If in excep­
tional ci rcumstances you must use it on the
front passenger seat, carefu lly read all of the
information on child safety and Advanced Air­
bags and heed a ll of the app licable WARN­
INGS. Make certain that the child restraint is
correctly recognized by the weight-sensing
Child Sa fet y 1 79
mat inside the front passenger seat, that the
front passenger airbag is turned off and that
the a irbag status is always correct ly signaled
by the
PAS SENGE R AIR BAG OFF light.
Many types and models of child restraints
have been available over t he years, new mod­
els are introduced regu larly incorporating new
and improved des igns and o lder models are
taken out of product ion. Ch ild restraints are
not standard ized . Child restraints of the same
type typ ically have d ifferent weights and sizes
and different 'footpr ints,' the size and shape
of the bottom of the ch ild restrai nt that sits
o n the seat, when they a re insta lled on a veh i­
cle seat. These diffe rences make it v irtually
impossible to certify compliance with the re­
quirements for advanced airbags with each
and every ch ild restraint that has ever been
sold in the past or will be sold over the course
of the useful life of your veh icle.
For this reason, the United States National
Highway Traffic Safety Adm inistrat ion has
published a list of spec ific type, makes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System in your veh icle with the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These chi ld restraints are :
Subpart A - Car bed child restraints
Model Manufactured on or
after
Angel Guard Angel September 25, 2007 R ide AA 2403FOF
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century Smart Fit December 1, 1999
4543
Cosco Arriva September 25, 2007 22-013PAW and base
22-999WHO
E venflo Discovery Ad- December 1, 1999
just Right 212
•
•

Audi pre sense Preventative passenger
protection
App lies to veh icles: with Audi p re se nse
Audi pre sen se can ini tiate steps to help pro­
t ect vehicle occupants in certain situations.
The funct ions descr ibed depend on equipment
installed in your vehicle:
Audi pre sense basic
The following functions can be triggered in
cert ain driving situations :
- Tightening of the safety belts (for example,
during heavy braking) : the front safety belts
have reversible belt pretensioners. If a colli ­
sion does not occur, the safety belts loosen
slightly and are ready to be tightened again .
- Closing the windows and the sunroof* : the
windows and the sunroof" close leaving a
small open gap .
Audi pre sense basic functions can be trig­
gered at speeds above 20 mph (30 km/h) .
Vehicles with Audi drive select*: the deploy­
ment time is adapted in dynamic mode.
Audi pre sense front (vehicles with
adaptive cruise control*)
Audi pre sense front includes the functions in
Audi pre sense basic. In addition, within the
limits of the system, the likelihood of a colli­
sion with the vehicle immediately ahead is al­
so calculated . If the system senses an immi­
nent collision the following functions can be
tr iggered:
- Braking guard
¢ page 100
-Tightening the safety belts
- Closing the windows and the sunroof* ( leav-
ing a small open gap)
Audi pre sense rear (vehicles with Audi
side assist*)
Audi pre sense rear includes the functions in
Audi pre sense basic. In addition, the likeli­
hood of a rear-end col lision with the vehicle
coming from behind is also calculated. If the
Audi pre sense 197
risk of a collision is detected, the following
functions can be triggered :
- Tightening the safety belts
- Closing the windows and the sunroof* (leav-
ing a small open gap)
- Adjusting the seats: the settings for the
power head restrains, the upper sections of
the backrests and the pneumatic side bol­
sters* are optim ized for the front seats and
the outboard rear seats*. If a collision does
not occur, the previous seat settings are re­
stored.
Audi pre sense plus
Audi pre sense plus includes the funct ions in
Audi pre sense front and Audi pre sense rear.
Error message
Audi pre sense: not available
Preventative passenger protection is not avail­
able. See your authorized Audi dealer immedi­
ately to have the malfunction corrected .
A WARNING
Audi pre sense cannot overcome the laws
of physics.
It cannot prevent a collision. Do
not let the increased safety provided
tempt you to take risks. This will increase
the risk of a collision and serious personal
injuries.
- The sensors cannot always detect all ob­
jects . This increases the risk of a colli­
sion.
-Audi pre sense does not detect people or
animals or objects that are crossing the
veh icle's path ¢
page 94.
- The radar sensor's vision can be reduced
by heavy rain, ice, snow, heavy road spray
and reflections from guard rails, tunnel
entrances, etc. These and similar condi­
tions can prevent vehicles from be ing ac­
curately detected and in some cases they
may not be detected at all.
Ill-
•
•

198 Audi pre sense
The sensors can be displaced by impacts or
damage to the bumper, whee l housing and
underbody. This can affect the function of
the Audi pre sense system. Have your au­
thorized Audi dealer check to make sure
that the system is working properly .
@ Tips
-Certain Audi pre sense functions are not
available when ASR is sw itched off (sport
mode) or w hen driv ing in reverse.
- The Audi pre sense functions may not be
available if there is a malfunction in the
ESC system or the airbag control mod­
ule.
- The Audi pre sense front/plus f unctions
are not available if the re is a ma lfunction
i n the adapt ive cru ise control* system
¢page 101.
- The Audi pre sense rear/plus functions
are not available if there is a ma lfunction
i n the Aud i side assis t* system
¢ page 101 .

204 Intelligent technology
The correct f luid leve l in the reservoi r is
important for proper functioning of the
power steer ing.
Driving with your
quattro
With All Wheel Drive, all four wheels are driv­
en.
General information
With All Wheel Drive, power is distributed to
all four wheels . This happens automatically
depending on your dr iving style and the road
conditions at the t ime . See a lso
c::;, page 199.
W ith the sport differential*, power distribu­
tion to the rear wheels is var iable and can be
ad justed with Aud i drive select*
c::;,page 110.
Always read and fo llow safety precautions
¢ &, .
Winter tires
When driv ing in the w inter, your vehicle w ith
A ll Wheel Drive has an advantage, even with
r egular tires. In winter road conditions it may
be advisable to mount winter tires (or all-sea­
son tires) for improved driveability and brak­ ing: these tires must be mounted on all four
wheels. See also c:;, page 263, Winter tires.
Snow chains
Where snow chains are mandatory on certain
roads, this normally a lso applies to vehicles
with A ll Wheel Drive
¢ page 264, Snow
chains.
Replacing wheels/tires
Vehicles with A ll Wheel Dr ive must always
have tires of the same size . Also avoid ti res
with different tread depths. For details see
page
c:;, page 2 59, New tires and replacing
tires and wheels.
Off-Road driving?
Your Aud i does not have enough ground clear­
ance to be used as an off -road vehicle. It is
therefore best to avoid rough tracks and un ­
even terrain as much as possible. Also refer to
c::;, page209.
A WARNING
Always adjust your driving to road and traf­
f ic conditions. Do not let the extra safety
afforded by All Wheel Drive tempt you into
taking extra risks.
- Although the All Wheel Drive is very ef­
fective, always remember that braking
capacity is lim ited by tire traction. You
should therefore not drive at excessive
speeds on icy or slippery road surfaces.
- On wet road surfaces, be careful not to
drive too fast because the front wheels
could begin to slide on top of the water
(aquaplaning) . If this should occur, you
will have no warning from a sudden in­
crease in eng ine speed as with a front­
wheel drive vehicle. Always drive at speeds which are suited to the road con­
ditions - risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting
the engine .
If
a vehicle with a conventiona l ene rgy system
is not driven for a long period of time, the bat­
tery is discharged by idling current consumers
(e .g . immobilizer). In certain circumstances it
can resu lt in there being insufficient energy
available to start the engine .
Intelligent energy management in your vehi­
cle handles the distribution of e lectrica l ener­
gy. Starting ability is markedly improved and
the life of the battery is extended.
Basically, energy management consists of
battery diagnosis , idling current manage­
ment
and dynamic energy management.
Battery diagnosis
Battery diagnosis continuously determines
the state of the battery. Sensors determine
battery voltage, battery current and battery ..,.

Vehicl e ca re a nd cl eanin g 217
Rinse the vehicle thoroughly again and let it
air dry. Remove any water residue using a
shammy .
Stubborn depos its s uch as bird dropp ings or
tree sap are best removed with plenty of wa­
ter and a microfiber cloth.
A WARNING
-Only wash the vehicle when the ignition
is off and follow the instructions from
the car wash operator to reduce the risk
of accidents .
- To reduce the risk of cuts, protect your­
self from sharp metal components when
wash ing the underbody or the inside of
the wheel housings .
- After washing the vehicle, the braking ef­
fect may be delayed due to mo isture on
the brake rotors or ice in the winter. The
brakes must be dried first with a few
careful brake applicat ions .
- If you wash the vehicle in an automatic
car wash, you must fold the exterior m ir­
rors in to reduce the r is k of damage to
the mirrors. Power folding exterior m ir- rors* must only be fo
lded in and out us­
ing the power folding fu nction .
- T o prevent paint damage, do not wash
the vehicle in direct sunlight.
- T o reduce the r is k of damage to the sur­
face, do not use insect removing spong ­
es, kitchen sponges or similar items.
- Matte finish painted vehicle compo­
nents:
- To reduce the risk of damage to the
surface, do not use polishing agents or hard wax.
- Never use car wash cycles that apply
protective wax. It can destroy the
matte fin ish effect .
- Do not place any stickers or magnet ic
signs on vehicle parts painted w ith
matte fin ish paint. The paint cou ld be
damaged when the stickers o r magnets
a re removed.
@ For the sake of the environment
Only wash the vehicle in facilities spec ially
designed for that p urpose . This will reduce
the r is k of dirty wate r contam inated with
oil from entering the sewer system.
Cleaning and care information
When clea ning and caring for individual vehi­
cle components, refer to the fo llow ing tab le.
The information contained there is simp ly rec ­
ommendations. For questions or for compo -nents that are not listed
, refer to a n author­
ized Audi dea ler or a qualified workshop. Also
follow the information found in ¢ .&. .
Cle an ing exte rior
Component Situation Solution
Wipe r blades
Dirty ~ page 54, Cleaning windshield wiper blades
Headlight s/ Dirty Soft sponge with a mild soap solutiona>
tail ligh ts
S en sor s/
Dirty Sensors: soft cloth with a so lvent-free cleaning product
camera le nses Camera lenses: soft cloth with an alcohol-free cleaning
so lution
Snow/ice Hand brush/so
lvent-free de-icing spray
Wheel s Road salt Water
Brake dust Acid-free special cleaning
solution
•
•
