50 Clear vis ion
& WARNING
H igh beam assist is only intended to assist
the driver. The driver is still responsible for controlling the headlights and sw itching
th e high beams on and off manually de­
pending on traffic, l ighting and visibility
condi tions. Failure to intervene manually
may lead to ris k of accident . It may be nec­
essary to operate the high beams man ua l­
ly in the following situat ions, e.g .:
- For adverse weather conditions such as
fog, heavy rain, blowing snow or spraying
water .
- On roads where oncoming traffic may be
partia lly obsc ured such as expressways .
-If there are individuals on the road with
no light ing or poor lighting, such as cy ­
cl ists .
- In tight c urves and on steep s lopes .
- In poorly lit areas.
- With strong reflectors su ch as signs.
- If the area of the windshie ld nea r th e
sensor is fogged over, dirty, icy or cov­
ered w ith a st icker.
(D Tips
- The high beam ass ist is active above a
speed of approx . 25 mph (40 km/h).
- If afte r activation, your speed falls below
approx . 15 mp h (24 km/h), the high
beams w ill automatically be switched
off.
Interior lights
Front and rear interior lighting
Fi g. 41 Headliner: Front interior lights
F ig. 42 Rear headli ner : Read ing light
Press the app ropriate button ~ fig . 41:
~ -Inter ior light ing on/off
l!l -Door contact switch. The interior lighting
turns on automatically when you u nlock the
vehicle, open a door or switch the ignition off.
The interior light ing turns off several seconds
after you close the doors, when you lock the
vehicle or when you switch the ignition on.
When a doo r is open, the light turns off after
a few min utes.
~ -Read ing lights on/off
~ - Switching the rear reading lights on/off
from the cockpit .
I REAR MODEi* -Switching the rear readi ng
li ghts on/off from the cockpit : press the
I REAR MODE ! button and then th e appropriate
button ~ in the cockpit.
Ambience lighting
Applies to veh icles: w it h amb ience l ig h ting
You can select a color profile and brightness
for the ambie nce lighting in various areas of
the ve hicle, called zones.
Turning ambience lighting on
.. Select in the MMI: ICAR ! function button >
Car systems control button > Vehicle set·
tings > Interior light ing > On .
Adjusting /turning off the brightness
• Sele ct in the MM I: ICARI fu nction button >
Car sy stems control b utton > V ehicle set­
ting s> Inte rior light ing > Brightness .

Wiper and washer system
Switching the windshield wipers on
Fig. 48 W indshield w iper leve r
Move the windshield wiper lever to the corre­
spond ing pos ition:
@ -Windshie ld w ipers
off
(D -Rain sensor mode. The w indshie ld w ipers
switch on once the vehicle speed exceeds ap­
proximately 2 mph (4 km/h) and it is raining.
The higher the rain sensor sensitivity is set
(switch @to the right), the earlier the w ind ­
shield wipers react to moisture on the wind­
shie ld. You can deact ivate rain sensor mode in
the MMI, which w ill then activate intermittent
mode. Select:
ICARI function button > Car sys­
t e m s
control button > Dri ver ass is t > Ra in
s en sor
> Off . In intermittent mode, you can
adjust the interval time using the switch @.
@ -Slow wiping
@-Fast wiping
©-Single wipe. If you hold the lever in this
position longer, the wipers switch from slow
wiping to fast wip ing .
® -Clean the windshield . The wipers wipe
one time after several seconds of driving to remove water drop lets. You can switch this
function
off by moving the lever to position ®
within 10 seconds after the afterw ipe . The af­
terw ipe f unction is react ivated the next time
you switch the ig nition on.
Cleaning the headlights . The headlight wash­
er system* only functions when the headlights
are on . If you move the lever to position ®,
Clear vi sion 5 3
the headlights and the night vision system
camera* are washed in intervals .
A WARNING
-The rain sensor is only designed to assist
and support the driver.
It remains entire­
ly the driver's responsibility to monitor
outs ide weather cond itions and to man­
ually activate the wipers as soon as rain
or drizzle reduces visibility through the
windshie ld.
- The windsh ield must not be treated w ith
wate r-repellent mate rials. They can in­
crease glare unde r poo r vis ibility condi­
tions such a s wetness, d arkness, or w hen
the sun is low on the hori zon. In addi ­
tion, they can cause the w indshield wip­
ers to chatter.
- Properly f unctioning windshield wiper
blades are req uired for a clear v iew and
safe driving
¢ page 54, Replacing
windshield wiper blades.
(D Note
- In the case of frost, check whether the
windshield wiper blades are frozen to
the windshield. Switching on the wind­
shield wipers can damage the wiper
blades!
- Prior to us ing a car wash, the w indshield
w iper system must be sw itched off ( lever
in posit ion @). T his he lps to prevent un­
intentional switching on and damage to
the windsh ield wiper system.
- Do not use the wipers to clear a frosted
w indow. Us ing the wipers as a conve n­
ient ice scrape r will destroy the wiper
blades.
(D Tips
- The windshield wipers are sw itched off
when the ign it ion is off . Activate the
w indshield wipe rs after the ignition is
switched back o n by movi ng the w ind­
shield wiper lever to any positi on.
- Worn or d irty wi ndshield wipe r blades
result in streaking. This ca n affec t the

94 Audi adapti ve cruise control and bra king gu ard
Audi adaptive cruise
control and braking
guard
Introduction
App lies to vehicles: with Audi adaptive cruise co ntrol
The adaptive cruise control system assists the
driver by regu lat ing vehicle speed and helping
to maintain a set distance to the vehicle
ahead, within the limits of the system.
If the
system detects a moving vehicle up ahead,
adaptive cruise control can brake and then ac­
celerate your vehicle. This helps to make driv­
ing more comfortable both on long highway
stretches and in stop-and-go traffic.
The braking guard system can warn you about
an impending collision and initiate braking
maneuvers¢
page 100.
Adaptive cruise control and braking guard
have technical limitations that you must
know, so please read this section carefully, un­
derstand how the system works and use them
properly at all times.
General information
General information
Applies to vehicles: with Audi adaptive cruise control
Fig. 93 Front of th e veh icle: senso rs and video camera
The areas that conta in the radar and ultrason­
ic sensors and the v ideo camera ¢
fig. 93
must never be covered by stic kers or other ob­
jects or obstructed w ith dirt, insects, snow or
i ce that will interfere with the adaptive cruise
control system and braking guard. For infor­
mation on cleaning, refer to¢
page 216. The same applies for any modifications made in
the front area.
T he function of the adaptive cru ise contro l
system and braking guard is limited under
some cond itions:
- Objects can only be de tected when they are
w ith in sensor range¢
page 96, fig. 96.
- The system has a limited ability to detect
objects that are a short d istance ahead, off
to the side of your vehi cle or mov ing into
your lane.
- Some kinds of ve hicles are hard to detect;
for examp le motorcycles, veh icles with high
ground clearance or overhanging loads may
be detected when it is too late or they may
not be detected at all.
-When driving through curves
¢page 95 .
-Stat ionary objec ts ¢page 95.
& WARNING
A lways pay attention to traffic when adap ­
tive cruise contro l is switched on and brak­
ing g uard is active. As the dr iver, you are
still respons ible for starting and for main­
taining speed and distance to other ob­
jects. Braking guard is used to assist you .
The dr iver must a lways take action to avo id
a collis ion . The driver is a lways respons ible
for braking a t the co rrec t time.
- Imp roper use of adaptive cru ise control
can cause collisions, other acc idents and
serious pe rsonal in jury.
- Never let the comfort and convenience
that adaptive cruise control and braking gua rd offer d istract you from the need to
be alert to traffic condit ions and the
need to rema in in fu ll control of your ve­
h icle at a ll times,
- Always remember that the adaptive
cruise control and braking guard have
limits -they will not s low the vehicle
down or maintain the set distance when
you drive towards an obstacle or some­
thing on or near the road that is not
mov ing, such as vehicles stopped in a
traffic jam, a stalled o r disabled vehicle.
I f registered by the radar sensors,

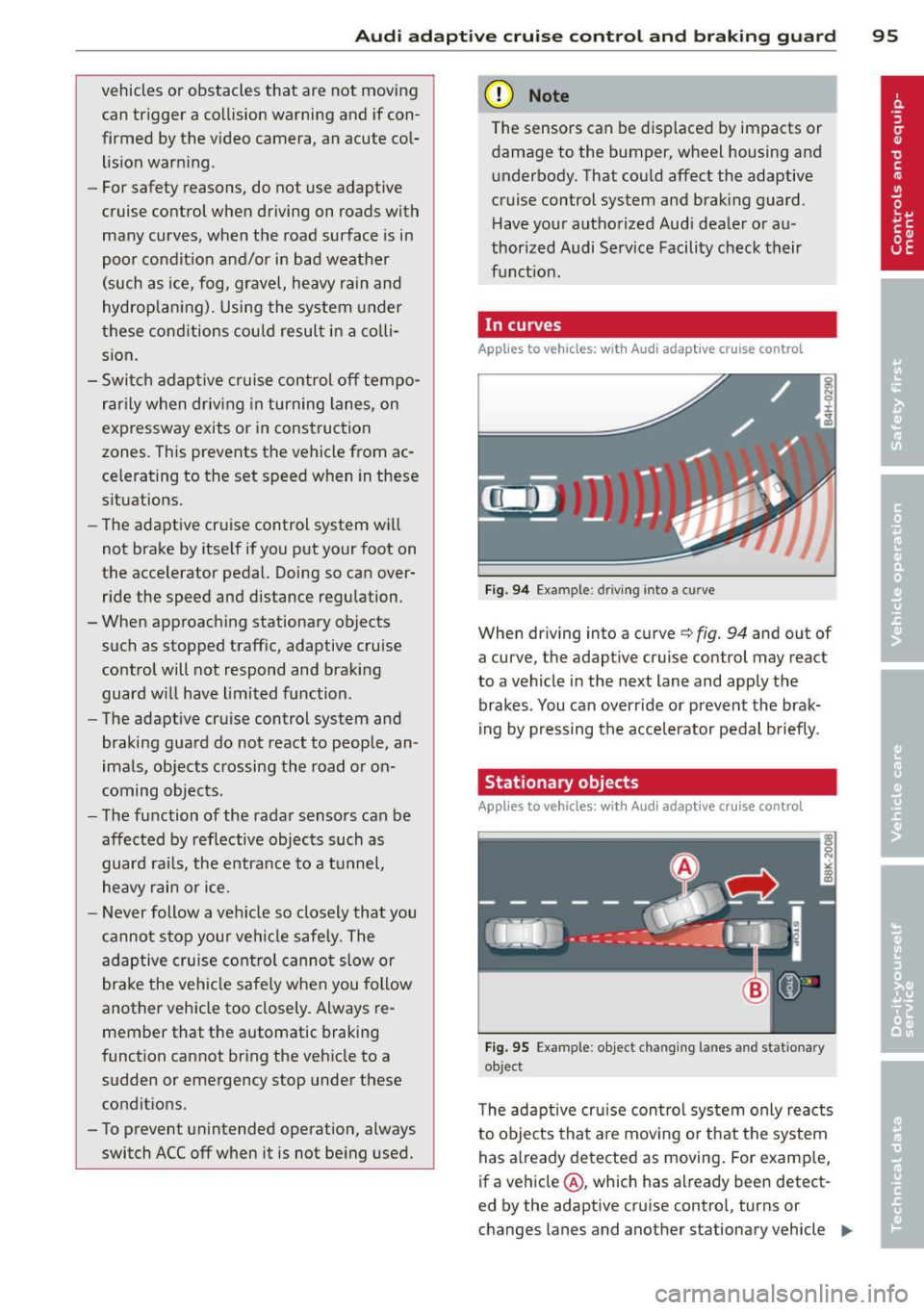

Audi adapt ive crui se c ontrol an d bra kin g guard 95
vehicles or obstacles that are not moving
can trigger a collision warning and if con­
firmed by the video camera, an acute col­ lis ion warn ing.
- For safety reasons, do not use adaptive
cruise control when driving on roads with
many curves, when the road surface is in
poor condit ion and/or in bad weather
(such as ice, fog, gravel, heavy rain and
hydroplan ing). Using the system under
these cond itions cou ld result in a co lli ­
sion .
- Switch adaptive c ruise control off tempo­
rar ily when driv ing in turning lanes, on
expressway exits or in construction
zones . This prevents the vehicle from ac­
celerating to the set speed when in these
situations .
- The adapt ive cru ise control system w ill
not brake by itse lf if you put your foot on
the accelerator pedal. Doing so can over­ ride the speed and distance regulation .
- When approaching stationary objects such as stopped traffic, adaptive cruise
control will not respond and braking
guard w ill have limited function.
- The adapt ive cruise control system and
braking guard do not react to people , an­
ima ls, objects crossing the road o r on­
coming objects .
- The function of the radar sensors can be
affected by reflective objects such as
guard ra ils, the entra nce to a tunnel,
heavy rain or i ce.
- Never follow a veh icle so closely that you
cannot stop your vehicle safe ly. The
adaptive cruise cont ro l c anno t slow or
brake the veh icle safely when you follow
another vehicle too closely. Always re­
member that the automatic braking
funct ion cannot bring the veh icle to a
sudden or emergency stop under these
conditions .
- To prevent unintended operation, always
switch ACC off when it is not be ing used. (D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. That cou ld affect the adaptive
cruise control system and brak ing guard .
Have your authorized Aud i dea le r or a u­
thorized Audi Serv ice Facility check their
funct ion.
In curves
Applies to vehicles: with Audi adaptive cruise control
I
F ig. 9 4 Exampl e: dri vin g in to a curve
When dr iving into a curve c:> fig. 94 and out of
a cu rve, the ad aptive cruise con trol m ay react
to a vehicle in the next lane and apply the
brakes . You can override or prevent the brak­
i ng by pressing the accelerator pedal b riefly.
Stationary objects
Applies to vehicles: with Audi adaptive cruise control
Fig. 95 Ex ampl e: object chang ing l anes and s ta tio nar y
objec t
The adaptive cru ise con tro l system only reacts
to objects that a re mov ing o r th at the system
has a lready detected as moving . For examp le,
if a veh icle @, which has a lready been detect-
ed by the adaptive c ruise contro l, tu rns o r
changes lane s and another stationary vehicle .,._

100 Audi adaptive cruise control and braking guard
Audi braking guard
Descript ion
Applies to vehicles: with Audi adaptive cruise control
Fig . 10 3 Instrumen t cl uste r: approach warn ing
Braking guard uses radar sensors and a video
camera . It also functions within the lim its of
the system when adapt ive cruise control is
switched off .
What can braking guard do?
When detected in time, the system can assess
situations when a vehicle ahead brakes sud­
denly or if your own veh icle is traveling at a
h igh speed and approachi ng a veh icle up
ahead that is moving more slowly . Bra king
g ua rd does not react if it can not detect th e
situa tio n.
The system advises you of various situations:
- The
distance warning is given if you are too
close to the vehicle ahead for a long time. If
the vehicle ahead brakes sharply, you will not be able to
avoid a coll is io n. The indicator
li ght
I in the display comes on .
- The
approach warning is g iven when a de ­
tected veh icle up ahead in your lane is
mov ­
ing much more slowly than you are o r if it
brakes sha rply . W he n this wa rning is giv en,
it may only be poss ible to avoid a collisio n
b y swervin g or br aki ng sh arply . Th e ind ic ator
li gh t
I and indica to r i n the disp lay wi ll warn
yo u about t he danger ~
fig. 103. Yo u will a l­
so hear an acoustic signa l.
If yo u do not re act fa st enoug h or do not re act
at all to the si tuatio n, br aking gu ard will inte r-
ll Thi s is not ava ilable in some co un tri es .
vene by braking and the message braking
guard intervention
wi ll appea r.
- If a coll is ion is imm inent, the sy stem wi ll
fi rs t provide an
acute warning by br iefly and
sharply a pplying the brakes.
- If you do no t re act to the acu te w arning,
bra king g uard can brake w it h increas ing
force w it h in the lim its of the system . This
red uces the vehicle speed in the event of a
co llision.
- The system can initiate maximum b ra ki ng
short ly before a co llision
ll. Full dece leration
at high speeds occurs only in vehicles with
ada ptive cr uise control a nd side assist (pre
sense plus) .
- If the brak ing guard senses that yo u are not
brak ing hard en ough w hen a co llis ion is im­
m inent, it can increase t he b rak ing fo rce .
- The pre sense f unctions also engage whe n a
col lision is imm inent
c> page 197.
Which function s can be controlled?
You can switch braking guard and the dis­
tance/approach warning on or off in the M MI
c> page 101, Settings in the MMI.
A WARNING
-
Lack of attentio n can cause collisions, oth-
er accidents and serio us pe rsonal i nju ries.
Th e braking gua rd is an assist system and
c an not preve nt a collision by it self. T he
d rive r m ust always in tervene. The dr ive r is
a lway s respon sib le f or br aki ng at the cor­
r e ct t ime.
- Always p ay clos e atte ntio n to traffic,
even when the braking guar d is swi tched
on. Be ready to in te rvene and be re ady to
take c omp lete contro l whenever necessa­
ry. Always keep the safe and legal dis­
tance between your ve hicle and veh icles
up ahead.
- Bra king guard works within limits and
w ill not respond outside the system lim­
its, for examp le w hen approachi ng a
stopped vehicle or stationary obstacle ..,.

Audi adaptive cru ise control and brakin g guar d 101
(end of a traffic jam or veh icle t hat has
br oken down in traffic).
- Always remember that the radar sensor
for the b raking guard works only within
defined detection and ra nge limits that
may prev ent the proper det ection of oth­
er ve hicles.
- The ra dar sensor's function and range
can be reduced by rain, snow and heavy
spray. Moving vehicles up ahead may not
be promptly detected or may not be de­
tected at al l.
- Reflective surfaces includ ing crash barr i­
ers or tunnel ent rances may impair the
function of the radar sensor.
(0 Tips
- You can cance l the braking w ith increas­
i ng fo rce that is initiated by the system
by braking you rself, by accelerating no­
ticeab ly or by swerving.
- Brak ing guard error messages
<=> page 101.
-Keep in mind that braking guard can
brake unexpectedly. Always secure any
ca rgo or objec ts that you are transport ­
i ng to reduce t he risk of d amage o r in­
Ju ry.
Settings in the MMI
Applies to vehicles: with Audi adaptive cruise control
~ Se lect : ICARI function button> Car system s
control button > Driver assist > Audi brak­
ing guard .
S ystem -
Switch braking g ua rd On and Off .
When you sw itch the ignition on, the message
Audi braking guard off appears if the system
is switched off.
Early warning -The distance and approac h
warn ings in the display can be switched
On /
Off .
@ Tips
- Your settings are automatica lly stored
and assigned to the remote control key being used at the time the settings
are
made .
-If you res trict the E SC, the braking gua rd
also sw itches itself
off <=> page 201 .
-Swi tch braking guard off when you a re
loading the vehicle onto a veh icle carrier,
t rain, ship o r other type of transporta­
t ion . This can prevent undesired warn­
ings from the braking guard system.
Messages
Applies to vehicles: with Aud i adapt ive c ruise con tro l
Braking guard : off
T his dr iver message appears if the system is
turned off via the info tainment . Othe rwise, if
the system is turned off, the information ap ­
pears every time shortly after the start of the
trip.
T he driver message a lso appears if the system
is not ava ilable d ue to a malfunct ion or if the
ESC is not switched on<=>
page 201 . If this is
the case, the system w ill not prov ide warnings
about a poss ible collision.
Braking guard : activated
T h is dr iver message appears if sharp b rake
pressure was applie d due to an acu te warning.
ACC: Unavailable!
ACC and Audi braking guard: not available
The system cannot detect mov ing vehicles up
ahead correctly and is switched off . The sen­
sors have been displaced or are not working proper ly. The Audi pre sense functions may a l­
so be affected . Drive to your authorized Aud i
dealer or author ized Audi serv ice facility im­
med iate ly to have the malfunction cor rected .
ACC: currently unavailable. No sensor v is ion
ACC and b raking guide: cu rrentl y unavaila­
ble . No sensor vis ion
T h is mess age appears if the senso r view is ob­
structe d, for examp le by leaves, snow, heavy
spray or dirt. Clean the sensors
,=;,page 94,
rg .93 . ~

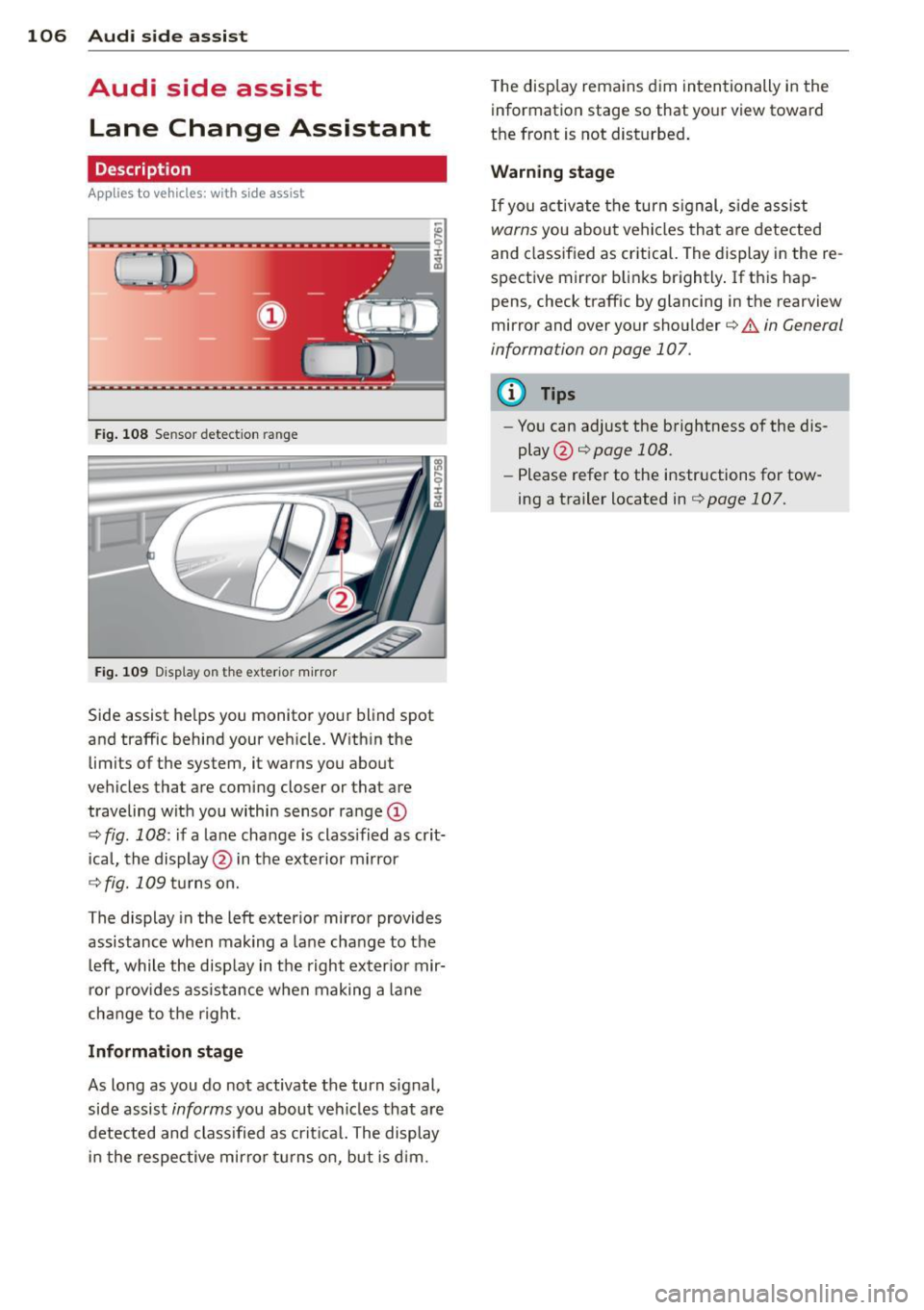

106 Audi side assist
Audi side assist
Lane Change Assistant
Description
App lies to vehicles: wit h side ass ist
Fig . 108 Sensor detection range
Fig. 109 Display on the exterio r mirror
Side assist he lps you monitor your blind spot
and traffic behind your veh icle. Within the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling wit h you within sensor range
(D
c:> fig . 108: if a lane change is class ified as crit­
ical, the display @ in the exterior mirror
¢ fig.109turnson.
The display in the left exterior mirror provides
assistance when mak ing a lane change to the
le ft, while the display in the right exter ior mir·
ror provides assistance when making a lane
cha nge to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as critical. The display
in the respective mirror turns on, but is d im. T
he display remains dim intentionally in the
information stage so that your view toward
the front is not disturbed .
Warning stage
If you activate the turn signal, s ide ass ist
warns you about vehicles that are detected
and classified as critical. The display in the re­
spective mirror blinks brightly . If this hap­
pens, check traffic by glancing in the rearview
mirror and over your shoulder c:>
.&. in General
information on page 107.
(D Tips
- You can adjust the brightness of the dis­
play @c:>
page 108.
-Please refer to the instructions for tow·
ing a trailer located in
¢ page 107.

General information
Applies to vehicles: with side assist
®
©
Fig . 110 Dr iving situations
AUDI
Fi g. 111 Rear of t he ve hicle: positio n of t he se nsors
Side assist functions at speeds above approx i­
mately 19 mph (30 km/h).
@ Vehicl es th at ar e approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change even if it is still
somewhat far away. The fas ter a vehicle ap­
p roaches, the sooner the display in the exteri­
or m irror will t urn on.
@ V ehicles traveling with you
Vehicles traveling w ith you are indicated in the
exterior m irror if they are classified as cr itical
for a lane change. All vehicles detec ted by
side assist are indicated by the time they en­
ter your "blind spot", at the latest.
Audi side assist 10 7
© Vehicle s left behind
If you s low ly pass a vehi cle that s ide assist has
detected (the difference in speed between the
vehicle and you r vehicle is less than 9 mph or
15 km/h), the display in the exterio r mir ror
turns on as soon as the vehicle enters your blind spot.
T he disp lay will not t urn on if you quickly pass
a vehicle that side assist has detected (the dif­
ference in speed between the veh icle and your
vehicle is greater than 9 mph or 15 km/h).
Functi onal limitations
The radar sensors are designed to detect the
left and right adjacent lanes when the road
lanes are the normal width. In certain situa­
tions, the d isp lay in the exterior mirror may
turn on even though there is no veh icle locat­
ed in the area that is cr itical for a lane change.
For example:
- if the lanes are narrow or if your are dr iving
on the edge of your lane.
If this is the case,
the system may have detected the vehicle in
another lane that is
not adjacent to your
current lane .
- if you a re driving through a curve. Side assist
may react to a vehicle that is one lane ove r
from the adjacent lane.
- if side assist reacts to other objects (such as
high or d isp laced guard rails) .
- In poor weather conditions. The side assist
functions are l imited .
Do not cover the radar sensors
c> fig. 111 with
stickers, depos its, bicycle wheels or other ob­
jects, because this will affect the funct ion. Do
not use s ide ass ist when towing a trailer. For
i nformation on cleaning, refer to
c> page 216 .
_&. WARNING
-Always pay attention to traffic and to t he
area a round your ve hicl e. S ide assist can­
not replace a driver's attention. T he driv­
er a lone is always responsible for lane
changes and similar driving mane uvers.

108 Audi side assist
-Improper reliance on the side assist sys­
tem can cause collisions and serious
personal injury:
- Never rely only on side assist when
changing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed of at least 19 mph (30 km/h).
- In certain situations, the system may not
function or its function may be limited.
For example:
- if veh icles are approaching or being left
behind very quickly . The display may
not turn on in time.
- in poor weather conditions such as
heavy rain, snow or heavy mist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody . This can affect the system.
Have your authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
@ Tips
- If the window glass in the driver's door
or front passenger's door has been tint­ ed, the display in the exterior mirror may
be misinterpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions¢
page 295.
Activating and deactivating
Applies to vehicles: with side assist
Fig. 112 Driver 's doo r: Side ass ist butto n
.. Press the button c> A in General informa­
tion on page
107to switch the system on/
off. The LED in the button turns on when
side assist is switched on.
Adjusting the display brightness
Applies to vehicles: wit h side assist
The brightness setting can be adjusted via the
MMI.
.. Select: !CAR I function button> Car systems
control button > Driver assist > Audi side
assist .
The display brightness adjusts automatically
to the brightness of the surroundings, both in
the information and in the warning stage. In
very dark or very bright surroundings, the dis­
play is already set to the minimum or maxi­
mum level by the automatic adjustment . In
such cases, you may notice no change when
adjusting the brightness, or the change may
only be noticeable once the surroundings
change.
Adjus t the brightness to a level where the dis­
play in the informa tion stage will not disrupt
yo ur view forward. If you change the bright­
ness, the display in the exterior mirror will
briefly show the brightness leve l in the infor­
mation stage. The brightness of the warning
stage is linked to the brightness in the infor­
mation stage and is adjusted along with the
information stage adjustment .

@ Tips
-Side assist is not active while you are
making the adjustment.
- Your settings are automatically stored
and assigned to the remote control key
being used.
Driver messages
Applies to vehicles: with side assist
If side assist switches off by itself, the LED in
the button turns off and a message will ap­
pear in the instrument cluster display:
Audi side assist: Currently unavailable. No
sensor vision
The radar sensors' vision is affected. Do not
cover the area in front of the sensors with bike
wheels, stickers, dirt or other objects. Clean
the area in front of the sensors, if necessary
c> page 107, fig. 111 .
Audi side assist: Currently unavailable
Side assist cannot be switched on temporarily
because there is a malfunction (for example,
the battery charge level may be too low).
Audi side assist: System fault!
The system cannot guarantee that it will de ­
tect vehicles correctly and it is switched off .
The sensors have been displaced or are faulty.
Have the system checked by an authorized
Audi dealer or authorized Audi Service Facility
soon.
Audi side assist: Unavailable when towing.
Side assist switches off automatically when a
factory-installed trailer hitch is connected to
the electrical connector on the trailer. There is
no guarantee the system will switch off when
using a retrofitted trailer hitch. Do not use
side assist when towing a trailer.
Audi side assist 109
