check engine AUDI TT 1998 8N / 1.G ATW Engine Motronic Fuel Injection Syst

24-51

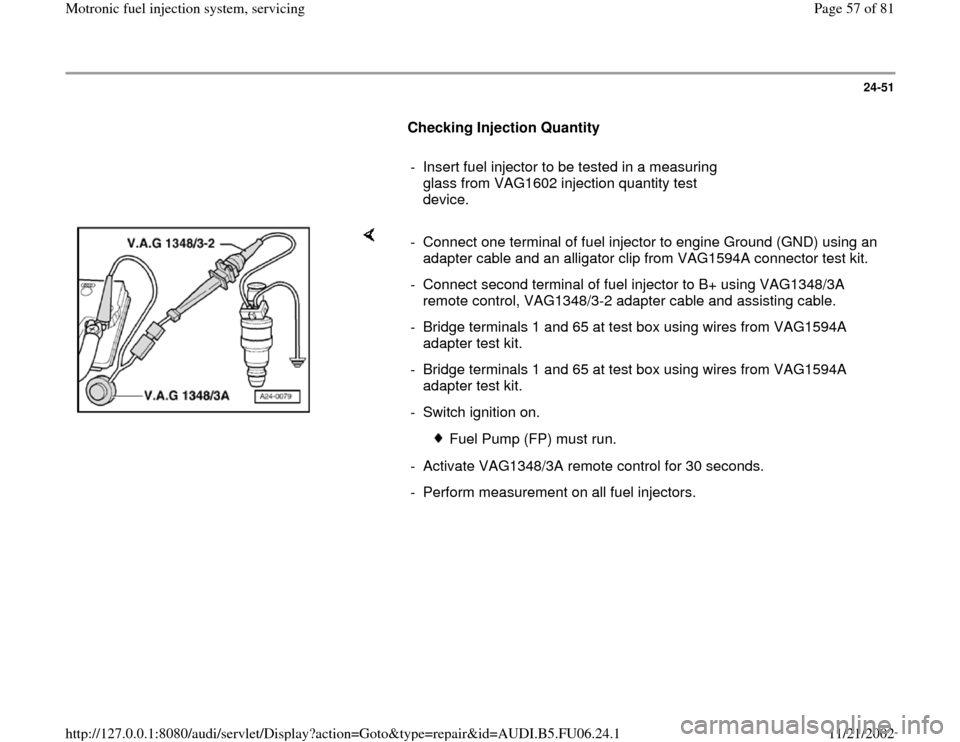

Checking Injection Quantity

- Insert fuel injector to be tested in a measuring
glass from VAG1602 injection quantity test
device.

- Connect one terminal of fuel injector to engine Ground (GND) using an
adapter cable and an alligator clip from VAG1594A connector test kit.
- Connect second terminal of fuel injector to B+ using VAG1348/3A
remote control, VAG1348/3-2 adapter cable and assisting cable.
- Bridge terminals 1 and 65 at test box using wires from VAG1594A
adapter test kit.
- Bridge terminals 1 and 65 at test box using wires from VAG1594A
adapter test kit.
- Switch ignition on.

Fuel Pump (FP) must run.
- Activate VAG1348/3A remote control for 30 seconds.
- Perform measurement on all fuel injectors.
Pa
ge 57 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-56
If specified value is not obtained:

- Replace central electrics.

Checking activation of Fuel Pump (FP) relay

- Switch ignition off.

- Connect VAG1598/31 test box at wiring harness
to Engine Control Module (ECM), do not connect
ECM Page 24
-19
.

- Switch ignition on.

- Bridge terminals 1 and 65 at test box using wires
from VAG1594A adapter test kit.

If relay triggers now, but didn't during output DTM:
If relay does not trigger:
Fuel Pump (FP) relay (at position 4 of central electrics in driver's
footwell, left) must trigger.
- Replace Engine Control Module (ECM) Page 24
-23
- Switch ignition off.
- Remove cable bridge.
Pa
ge 63 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-57


If specified value is not obtained:
Electrical Wiring Diagrams, Troubleshooting & Component Locations
If specified value is obtained: - Connect multimeter for voltage measurement as follows.Central electronics in driver-side footwell, left,
position 4
Terminal
Measure to
19 Engine Ground
(GND)
- Switch ignition on.

Specification: approx. battery voltage
- Check wire connections.
- Check following wire connection for open circuit and short circuit to
Ground (GND) and B+: Central electronics in driver-side footwell, left,
position 4
Terminal
VAG1598/31 test
box


Socket
Pa
ge 65 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-58

- Repair open circuit or short circuit if
necessary.
If no malfunctions are detected:

- Replace Fuel Pump (FP) relay -J17-.

- Re-connect Engine Control Module (ECM).

Check voltage supply for Fuel Pump (FP) and
components

- Remove fuses S228, S232, and S234 (positions 28, 32, and 34) from
fuse holder.
- Initiate output Diagnostic Test Mode (DTM) Page 01
-49
and activate
Evaporative Emission (EVAP) canister purge regulator valve -N80-.
- Connect multimeter for voltage measurement to Ground (GND) and to
one terminal of following fuses in fuse holder. Circlip
Specified value at one of the terminals
S228 approx. battery voltage
S232 approx. battery voltage
S234 approx. battery voltage
Pa
ge 67 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-61
Component location Overview of component
locations Page 24
-5

Test requirements:

Coolant Temperature at least 80 C.

Electrical consumers switched off (radiator
fan must NOT run during test).
A/C switched off.

Checking function

- Connect VAS5051 tester or VAG1551 scan tool
and select control module for engine electronics
using "address word" 01 Page 01
-10
. Engine
must run at idle.
Rapid data transfer
HELP
Select function XX

When indicated on display
- Press buttons -0- and -4- to select "Initiate basic setting" and press -Q-
button to confirm input.
Basic Setting
Q
Enter displa
y group number XXX

When indicated on display
- Press buttons -0-, -0- and -2- to select "display group number 002" and
press -Q- button to confirm input. When indicated on display
Pa
ge 70 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-63
Evaluation display group 002 Display field:
3
Possible cause
Corrective action
less than 1.0
ms
Smaller values are only possible when driving in
deceleration mode
larger than 4.0
ms Engine under load due to power accessories.- Reduce load (A/C system/power
steering/generator)

Poor idle (does not run on all cylinders)- Check spark plugs.
- Check fuel injectors Page 24
-38
.


Throttle valve control module - J338- faulty- Check throttle valve control module
Page 24
-120

Display field:
4
Possible cause
Corrective action
smaller than
2.0 g/s
large false air mass between intake manifold and Mass Air
Flow (MAF) sensor
Voltage supply of Mass Air Flow (MAF) sensor or wire
connections to Engine Control Module (ECM) - Check intake system for leaks (false
air) Page 24
-68
.
- Check voltage supply and wire
connections Page 24
-64

larger than 4.5
g/s
Engine under load due to power accessories.- Reduce load (A/C system/power
steering/generator)

Voltage supply of Mass Air Flow (MAF) sensor or wire
connections to Engine Control Module (ECM) - Check voltage supply and wire
connections Page 24
-64

Pa
ge 73 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-64

Voltage supply for Mass Air Flow (MAF)
sensor, checking

Test requirements:

Fuse for Mass Air Flow (MAF) sensor OK

Electrical Wiring Diagrams, Troubleshooting &
Component Locations

Fuel Pump (FP) relay OK; checking Page 24
-53
.

Note:
Voltage is supplied to Mass Air Flow (MAF)
sensor from Fuel Pump (FP) relay.

- Disconnect connector from Mass Air Flow (MAF)
sensor.

- Connect multimeter for voltage measurement as follows.Harness connector
Terminal
Measure to
2 Engine Ground (GND)
Pa
ge 74 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-65
If specified value is not obtained:

- Check wire connection from terminal 2 of
connector to Fuel Pump (FP) relay via fuse for
open circuit and short circuit to Ground (GND):

Electrical Wiring Diagrams, Troubleshooting &
Component Locations
- Repair open circuit or short circuit if
necessary.

Note:
Ground (GND) from the ECM is present at terminal 3 of connector.
If specified value is not obtained: - Connect multimeter to terminal 2 and terminal 3 of connector for
voltage measurement.
- Operate starter briefly (engine can also start).

Specification: approx. battery voltage
- Check wire connections Page 24
-67
.
Pa
ge 76 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-67

Check wire connections for Mass Air Flow
(MAF) sensor

Note:
Signal wire is also checked during wire test.

- Connect VAG1598/31 test box at wiring harness
to Engine Control Module (ECM), do not connect
ECM Page 24
-19
.

If wire connection is OK: - Check following wire connections for open circuit and short circuit to
Ground (GND) and B+: Harness connector
Terminal
VAG1598/31 test box
Socket
3 27
4 53
5 29
- Repair open circuit or short circuit if necessary.
- Also check all wires for short circuit to each other.
- Replace Mass Air Flow (MAF) sensor -G70-.
Pa
ge 78 of 81 Motronic fuel in
jection s
ystem, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU06.24.1

24-68

Intake system, checking for leaks
(unmetered air)


Special tools and equipment

Note:
VAS5051 with VAG5051/1
orVAG1551 with VAG1551/3AEngine leak detection spray G 001 800 A1The negative pressure in the intake system sucks in the leak detection
spray with the unmetered air. Leak detection spray decreases ignition
quality and performance of the fuel mixture. This causes a reduction in
engine speed and a sharp increase of CO content. It is absolutely necessary to follow the safety precautions listed on the
can.
