N Petrol
engines
TT Coupe 2.0, 4-cylinder (169 kW)
Power output 2
)
Maximum torque
Maximum speed1
)
Acceleration from O -100 km/h
Gross vehicle weight
Kerb weight (unladen weight)
Maximum front axle weight
Maximum rear axle weight
Footnotes ¢ page 258
TT Coupe 2.0 quattro, 4-cylinder (169 kW)
Power output 2
)
Maximum torque
Maximum speed1
)
Acceleration from O -100 km/h
Gross vehicle weight
Kerb weight (unladen weight)
Maximum front axle weight
Maximum rear axle weight
Footnotes ¢ page 258
Diesel engine
TT Coupe 2.0 TDI quattro, 4-cylinder
Power output 2
)
Maximum torque
Maximum speed
Acceleration from O -100 km/h
Gross vehicle weight
Kerb weight (unladen weight)
Maximum front axle weight
Maximum rear axle weight
co ....
� Footnotes
¢ page 258
N
ll'l
.... Technical
data
169 kW at 4500 -6200 rpm
370 Nm at 1600 -4300 rpm
MG
km/h 250
sec. 6.0 kg 1630
kg 1305
kg 940
kg 775
169 kW at 4500 -6200 rpm
370 Nm at 1600 -4300 rpm
AG
km/h 250
sec. 5.3
kg 1735
kg 1410
kg 990
kg 830
135 kW at 3500 -4000 rpm
380 Nm at 1750 -3250 rpm
MG
km/h 241
sec. 7.1
kg 1665
kg 1340
kg 985
kg 770
259

Downloaded from www.Manualslib.com manuals search engine Accessories
and modifications to the vehicle
Accessories and modifi­
cations to the vehicle
Accessories .,
replacement parts and
repairs
It is best to consult an authorised Audi dealer
before purchasing accessories and replacement
parts or having any repairs carried out.
Your car is designed to offer a high standard of
active and passive safety. For this reason, we rec­
om mend that you ask your Audi dealer for advice
before fitting accessories or replacement parts.
This is also very important if body repairs are re­
quired. Audi dealers have full information on the
manufacturer-approved repair methods and can
recommend suitable accessories and spare parts.
They can also give advice regarding official re­
quirements for the vehicle.
We recommend you to use only Audi accessories
and Audi Genuine Parts. Audi has tested these
products for suitability, reliability and safety.
Audi dealers have the necessary experience and
facilities to ensure that the parts are installed
properly.
Although the market is constantly scrutinised,
Audi cannot judge or assume responsibility for
the reliability, safety and suitability of non-genu­
ine products -even though in some instances,
these parts may have been approved by an offi­
cially recognised technical testing authority or
accompanied by an official approval certificate.
Any retro-fitted equipment which has a direct ef­
fect on the vehicle and/or the way it is driven
(e.g. cruise control system or electronically-con­
trolled suspension) must be approved for use in
your vehicle and bear thee mark (the European
Union's approval symbol).
If any additional electrical components are fit­
ted which do not serve to control the vehicle it­
self (for instance a refrigerator box, laptop or
ventilator fan, etc.), these must bear the CE mark
(manufacturer conformity declaration in the Eu­
ropean Union).
260 A
WARNING
Never attach accessories (such as cup holders
or telephone brackets) to the surfaces cover­
ing the airbag units or the areas around the
airbags: this could cause injury if the airbag is
triggered.
({D Note
- Since the Audi TT has an aluminium body,
all ser vicing, repairs or other work on the
car body must be carried out by an Audi
workshop or a qualified workshop working
to the specifications of the Audi factory.
This ensures that the necessary repairs or
servicing are performed properly and that
only Audi Genuine Parts are installed on
your vehicle. Use of non-genuine replace­
ment parts, equipment or accessories on
your Audi TI, or repair of the vehicle by un­
qualified persons, may result in serious
damage to your car (possibly including cor­
rosion).
- The manufacturer cannot be held liable for
damage which occurs as a result of failure
to comply with these stipulations, and such
damage is not covered under warranty.
Modifi cations
Modifications must always be carried out accord­
ing to our specifications.
Unauthorised modifications to the electronic
components or software in the vehicle may cause
malfunctioning. Due to the way the electronic
components are linked together in networks, oth­
er systems may be affected by the faults. This can
seriously impair safety, lead to excessive wear of
components, and also invalidate the type appro­
val for your vehicle.
You will appreciate that your Audi dealer cannot
be held liable for any damage caused by modifi­
cations and/or work performed incorrectly.
We recommend that all work should be per­
formed by an Audi workshop using Audi Genuine
��- �

Downloaded from www.Manualslib.com manuals search engine Accessories
and modifications to the vehicle
A WARNING
Incorrectly performed modifications or other
work on your vehicle can lead to malfunctions
and cause accidents.
{D Note
Modifications to the front of the vehicle and/
or to the engine compartment (resulting from
tuning measures, for instance) can impair the
vehicle's pedestrian protection and void the
vehicle's certification for use on public roads.
Radio transmitters and
business equipment
Radio transmitters (fixed installation)
Retrofit installations of radio transmitters in the
vehicle are subject to official approval. Audi gen­
erally authorises in-vehicle installations of ap­
proved types of radio transmitters provided that:
- The aerial is installed correctly.
- The aerial is not installed in the interior of the
vehicle (and screened cables are used together
with non-reflective aerial trimming).
- The effective transmitting power does not ex-
ceed 10 Watts at the aerial base.
Qualified workshops will be able to inform you
about options for installing and operating radio
transmitters with a higher transmitting power.
Mobile radio transmitters
When using commercial mobile telephones or ra­
dio equipment it is possible that they might in­
terfere with the electronics of your vehicle and
cause malfunctions. The reasons could be:
- no external aerial
- external aerial incorrectly installed
- transmitting power more than 10 W
Therefore you must not operate portable mobile
telephones or radio equipment inside the vehicle
without a correctly installed external aerial c:> ,&. .
"' Please note also that the maximum range of the
� equipment can only be achieved with an external
,-j
� aerial.
N
ll'l
,-j Business equipment
Retrofit installation of business or other equip­
ment in the vehicle is permitted, provided the
equipment cannot interfere with the driver's im­
mediate control of the vehicle. Any such equip­
ment must carry the ( (mark. Any retrofit equip­
ment that could influence the driver's control of
the vehicle must have a type approval for your ve­
hicle and must carry thee mark.
A WARNING
Mobile telephones or radio equipment which
are operated inside the vehicle without a cor­
rectly installed external aerial can create ex­
cessive magnetic fields that could cause a
health hazard.
@ Note
- Any retrofit installation of electrical or elec­
tronic equipment in the vehicle will affect
its type approval. In extreme cases this
could mean that you might lose the type ap­
proval for your vehicle.
- Please refer to the mobile telephone/radio
operating instructions.
Component protection
Some electronic control units and components,
such as the sound system or navigation system,
are equipped with component protection at the
factory.
The purpose of the component protection is as
follows:
- To prevent factory-fitted equipment from being
re-installed and used freely in other vehicles
(e.g. if they have been stolen)
- To prevent components from being used out­
side the vehicle
- To enable the legitimate installation and/or re­
placement of components and control units by
a qualified service workshop
Possible text message and remedy:
.,.
261

Downloaded from www.Manualslib.com manuals search engine Accessories
and modifications to the vehicle

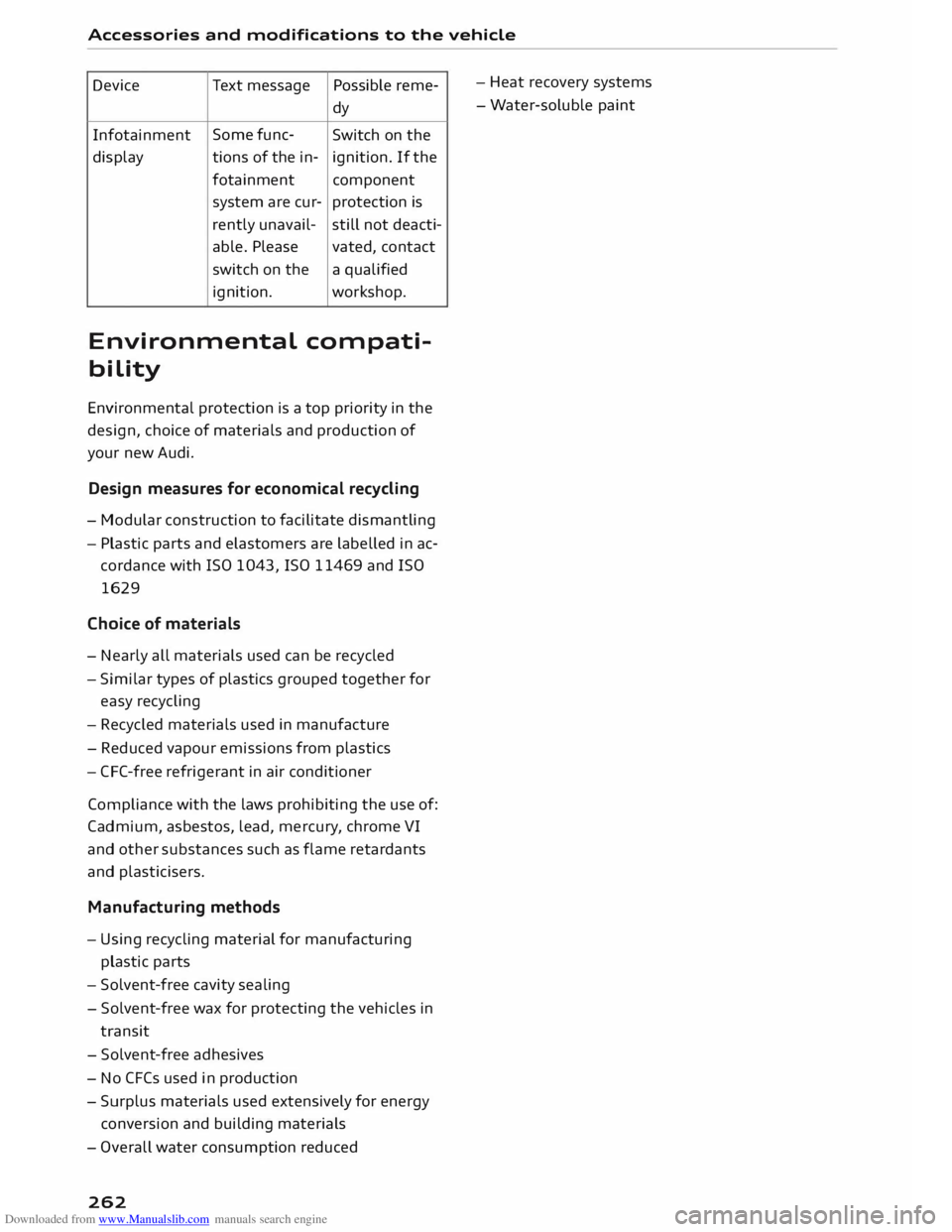

Device Text message
Possible reme-
dy
Infotainment Some
func-
Switch on the
display tions
of the in-
ignition. If the
fotainment component
system are cur- protection is
rently unavail- still not deacti-
able. Please vated, contact
switch on the a
qualified
ignition. workshop.
Environmental compati­
bility
Environmental protection is a top priority in the
design, choice of materials and production of
your new Audi.
Design measures for economical recycling
- Modular construction to facilitate dismantling
- Plastic parts and elastomers are labelled in ac-
cor dance with ISO 1043, ISO 11469 and ISO
1629
Choice of materials
- Nearly all materials used can be recycled
- Similar types of plastics grouped together for
easy recycling
- Recycled materials used in manufacture
- Reduced vapour emissions from plastics
- CFC-free refrigerant in air conditioner
Compliance with the laws prohibiting the use of:
Cadmium, asbestos, lead, mercury , chrome VI
and other substances such as flame retardants
and plasticisers.
Manufacturing methods
- Using recycling material for manufacturing
plastic parts
- Solvent-free cavity sealing
- Solvent-free wax for protecting the vehicles in
transit
- Solvent-free adhesives
- No CFCs used in production
- Surplus materials used extensively for energy
conversion and building materials
- Overall water consumption reduced
262 -
Heat recovery systems
- Water-soluble paint

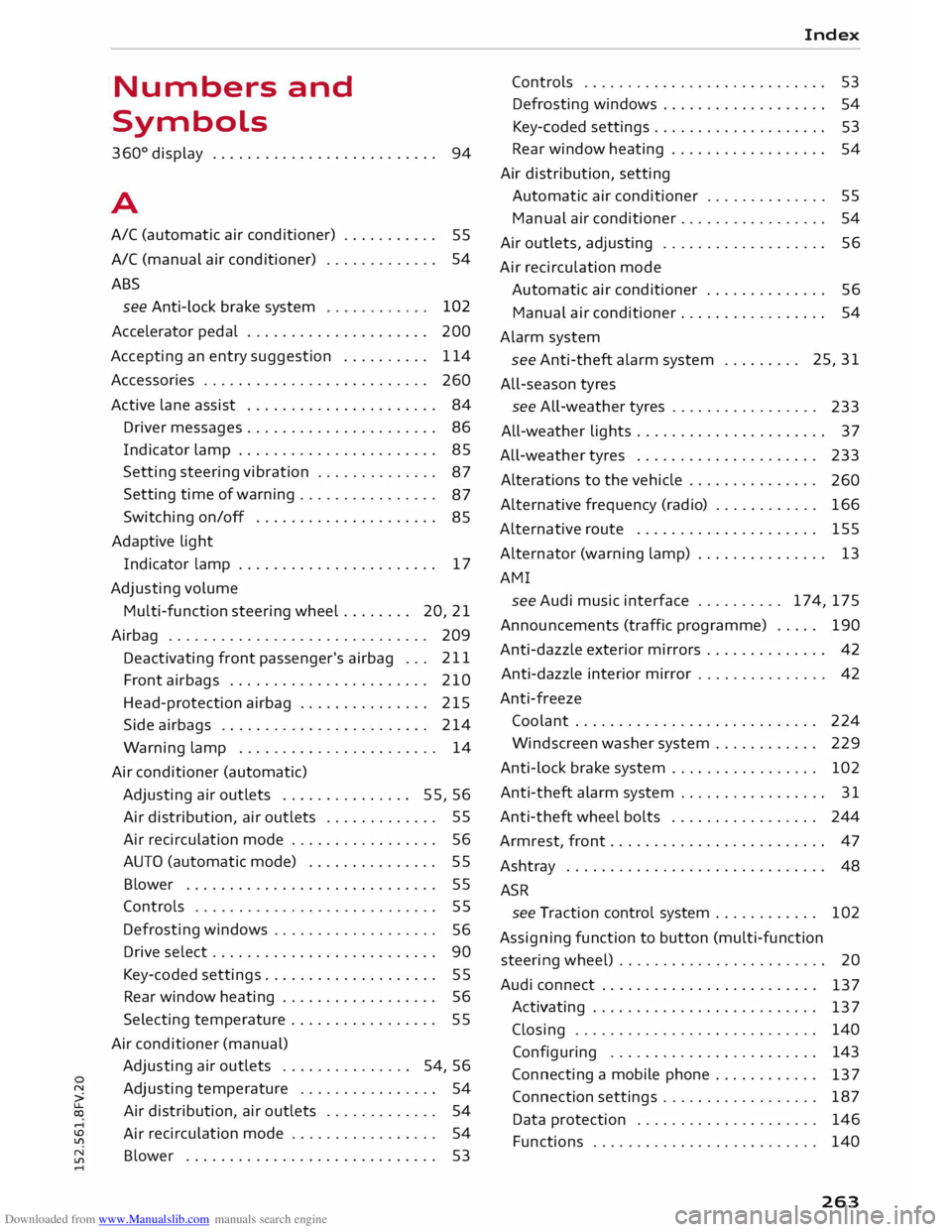

Downloaded from www.Manualslib.com manuals search engine Numbers
and
Symbols
360 °
display . . . . . . . . . . . . . . . . . . . . . . . . . .
94
A
A/C (automatic air conditioner) . . . . . . . . . . .
55
A/C (manual air conditioner) . . . . . . . . . . . . . 54
ABS see Anti-Lock brake system 102
Accelerator pedal . . . . . . . . . . . . . . . . . . . . . 200
Accepting an entry suggestion . . . . . . . . . . 114
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . .
260
Active Lane assist . . . . . . . . . . . . . . . . . . . . . .
84
Driver messages . . . . . . . . . . . . . . . . . . . . . .
86
Indicator Lamp . . . . . . . . . . . . . . . . . . . . . . .
85
Setting steering vibration . . . . . . . . . . . . . .
87
Setting time of warning................
87
Switching on/off . . . . . . . . . . . . . . . . . . . . .
85
Adaptive Light Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 17
Adjusting volume
Multi-function steering wheel.. . . . . . .
20, 21
Airbag .............................. 209
Deactivating front passenger's airbag . . . 211
Front airbags . . . . . . . . . . . . . . . . . . . . . . . 210
Head-protection airbag . . . . . . . . . . . . . . . 215
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . 214
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 14
Air conditioner (automatic)
Adjusting air outlets . . . . . . . . . . . . . . . 55, 56
Air distribution, air outlets . . . . . . . . . . . . . 55
Air recirculation mode . . . . . . . . . . . . . . . . . 56
AUTO (automatic mode) . . . . . . . . . . . . . . . 55
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
Defrosting windows . . . . . . . . . . . . . . . . . . .
56
Drive select . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Key-coded settings . . . . . . . . . . . . . . . . . . . .
55
Rear window heating . . . . . . . . . . . . . . . . . .
56
Selecting temperature . . . . . . . . . . . . . . . . . 55
Air conditioner (manual) Adjusting air outlets . . . . . . . . . . . . . . . 54, 56
� Adjusting
temperature . . . . . . . . . . . . . . . . 54
� Air
distribution, air outlets . . . . . . . . . . . . . 54
,-j
� Air
recirculation
mode . . . . . . . . . . . . . . . . . 54
� Blower
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
,-j Index
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Defrosting windows . . . . . . . . . . . . . . . . . . . 54
Key-coded settings. . . . . . . . . . . . . . . . . . . . 53
Rear window heating . . . . . . . . . . . . . . . . . . 54
Air distribution, setting
Automatic air conditioner . . . . . . . . . . . . . .
55
Manual air conditioner . . . . . . . . . . . . . . . . .
54
Air outlets, adjusting . . . . . . . . . . . . . . . . . . .
56
Air recirculation mode
Automatic air conditioner . . . . . . . . . . . . . .
56
Manual air conditioner . . . . . . . . . . . . . . . . .
54
Alarm system
see Anti-theft alarm system . . . . . . . . . 25,
31
All-season tyres
see ALL-weather tyres . . . . . . . . . . . . . . . . .
233
All-weather Lights . . . . . . . . . . . . . . . . . . . . . . 3 7
All-weather tyres . . . . . . . . . . . . . . . . . . . . . 233
Alterations to the vehicle . . . . . . . . . . . . . . .
260
Alternative frequency (radio) . . . . . . . . . . . . 166
Alternative route . . . . . . . . . . . . . . . . . . . . . 155
Alternator (warning lamp) . . . . . . . . . . . . . . . 13
AMI see Audi music interface .......... 174,
175
Annou ncements (traffic programme) . . . . . 190
Anti-dazzle exterior mirrors . . . . . . . . . . . . . .
42
Anti-dazzle interior mirror . . . . . . . . . . . . . . .
42
Anti-freeze Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Winds creen washer system . . . . . . . . . . . . 229
Anti-lock brake system . . . . . . . . . . . . . . . . .
102
Anti-theft alarm system . . . . . . . . . . . . . . . . . 31
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . 244
Armrest, front . . . . . . . . . . . . . . . . . . . . . . . . .
47
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
A5R
see Traction control system . . . . . . . . . . . . 102
Assigning function to button (multi-function
steering wheel) . . . . . . . . . . . . . . . . . . . . . . . . 20
Audi connect . . . . . . . . . . . . . . . . . . . . . . . . .
137
Activating . . . . . . . . . . . . . . . . . . . . . . . . . .
137
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
140
Configuring . . . . . . . . . . . . . . . . . . . . . . . .
143
Connecting a mobile phone . . . . . . . . . . . .
137
Connection settings . . . . . . . . . . . . . . . . . .
187
Data protection . . . . . . . . . . . . . . . . . . . . .
146
Functions . . . . . . . . . . . . . . . . . . . . . . . . . .
140
263

Downloaded from www.Manualslib.com manuals search engine Index
Google Earth
Google Street View
................. .
Import ing myAudi contacts .......... .
Logging into myAudi ................ . 159
159
133
140
myAudi destination . . . . . . . . . . . . . . . . . . 151
Navigation . . . . . . . . . . . . . . . . . . . . . 140, 151
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Online traffic information . . . . . . . . . . . . . 161
Options menu . . . . . . . . . . . . . . . . . . . . . . .
143
Personal hotspot . . . . . . . . . . . . . . . . . . . .
139
Preview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Requirements . . . . . . . . . . . . . . . . . . . . . . .
137
Search area . . . . . . . . . . . . . . . . . . . . . . . . .
140
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .
143
SIM card reader . . . . . . . . . . . . . . . . . . . . .
138
Troubleshooting . . . . . . . . . . . . . . . . . . . . .
146
Audi connect services
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 142
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .
143
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .
143
Audi connect services, using
MMI control console . . . . . . . . . . . . . . . . . 137
Speech dialogue system 118
Audi magnetic ride
see Suspension control . . . . . . . . . . . . . . . . 90
Audi music interface . . . . . . . . . . . . . . . . . . .
174
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
174
USB adapters . . . . . . . . . . . . . . . . . . . . . . .
174
Audi music stream
see Wi-Fi audio player . . . . . . . . . . . . . . . .
172
Audio files . . . . . . . . . . . . . . . . . . . . . . . . . . .
179
Audio input
see AUX input ................... 175,
176
Audio player
Bluetooth audio player . . . . . . . . . . . . . . . 171
Wi-Fi audio player . . . . . . . . . . . . . . . . . . . 172
Audio track . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Audi phone box . . . . . . . . . . . . . . . . . . . . . . . 125
Audi side assist
see Side assist . . . . . . . . . . . . . . . . . . . . . . .
87
AUTO Automatic air conditioner . . . . . . . . . . . . . . 55
Automatic headlights . . . . . . . . . . . . . . . . . 37
Auto Lock (central locking system) . . . . . . . .
25
Automatic air conditioner
see Air conditioner (automatic) . . . . . . . . . .
55
264 Automatic
gearbox . . . . . . . . . . . . . . . . . . . . . 70
Back-up programme . . . . . . . . . . . . . . . . . . 77
Downhill speed control . . . . . . . . . . . . . . . . 74
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Launch control programme . . . . . . . . . . . . . 76
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 71
Manual gear selection . . . . . . . . . . . . . . . . . 75
Manual release of selector lever (left-hand
drive) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
78
Manual release of selector lever (right-hand
drive) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
79
Selector lever lock . . . . . . . . . . . . . . . . . . . . 71
Selector lever positions . . . . . . . . . . . . . . . . 70
Steering wheel with paddle levers . . . . . . . 75
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . .
75
Automatic zoom . . . . . . . . . . . . . . . . . . . . . . 158
AUX input ....................... 175,176
Average fuel consumption . . . . . . . . . . . . . . . 22
Average speed . . . . . . . . . . . . . . . . . . . . . . . . . 22
B
Background lighting . . . . . . . . . . . . . . . . . . . . 40
Balance (sound) . . . . . . . . . . . . . . . . . . . . . . 190
Bandages see First-aid kit . . . . . . . . . . . . . . . . . . . . . . 241
Bass (sound) . . . . . . . . . . . . . . . . . . . . . . . . . 190
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Charge . . . . . . . . . . . . . . . . . . . . . . . . . 13, 106
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Connecting/disconnecting . . . . . . . . . . . . . 226
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 13
Long periods of non-use . . . . . . . . . . . . . .
226
Power management . . . . . . . . . . . . . . . . . .
106
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . .
228
Winter conditions . . . . . . . . . . . . . . . . . . .
226
Battery, charging . . . . . . . . . . . . . . . . . . . . .
125
Belts see Seat belts . . . . . . . . . . . . . . . . . . . . . . .
204
Better route . . . . . . . . . . . . . . . . . . . . . . . . .
160
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Bioethanol (fuel) . . . . . . . . . . . . . . . . . . . . . 217
Blower Automatic air conditioner . . . . . . . . . . . . . .
55
Manual air conditioner. . . . . . . . . . . . . . . . .
53

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... Bluetooth
Audio player ........................ 171
Connecting a mobile phone . . . . . . . . . . . .
124
Device search . . . . . . . . . . . . . . . . . . . . . . .
134
Handsfree Profile . . . . . . . . . . . . . . . . . . . .
123
Remote SIM Access Profile (rSAP) . . . . . . .
123
Secure simple pairing . . . . . . . . . . . . 124, 137
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Boot see Luggage compartment . . . . . . . . . . . . 201
Boot lid
Manual release . . . . . . . . . . . . . . . . . . . . . . .
33
Opening/closing . . . . . . . . . . . . . . . . . . . . . .
32
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
101
Brake assist system . . . . . . . . . . . . . . . . . .
102
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . .
226
Brake pads worn . . . . . . . . . . . . . . . . . . . . . . 14
Brake pedal . . . . . . . . . . . . . . . . . . . . . . . .
200
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . .
101
Driving away on a slope . . . . . . . . . . . . . . . . 69
Emergency braking aid . . . . . . . . . . . . . . . 102
Emergency braking function . . . . . . . . . . . .
68
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . .
14
New brake pads . . . . . . . . . . . . . . . . . . . . . 101
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . 66
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 11
Bulbs, changing . . . . . . . . . . . . . . . . . . . . . . 256
Buttons MMI control console . . . . . . . . . . . . . . . . . 109
Multi-function steering wheel.. . . . . . . 19, 21
C
Cables AUX adapter . . . . . . . . . . . . . . . . . . . . . . . .
174
USB adapter . . . . . . . . . . . . . . . . . . . . . . . .
174
Calling up a menu . . . . . . . . . . . . . . . . . . . . .
109
Calling up media . . . . . . . . . . . . . . . . . . . . . . 179
Call list
MMI control console . . . . . . . . . . . . . . . . .
128
Speech dialogue system . . . . . . . . . . . . . .
118
Call options . . . . . . . . . . . . . . . . . . . . . . . . . .
134
Calls Answering/ignoring . . . . . . . . . . . . . . . . . . 128
Hold/resume . . . . . . . . . . . . . . . . . . . . . . . 129
see also Telephone . . . . . . . . . . . . . . . . . .
123
Call waiting . . . . . . . . . . . . . . . . . . . . . . . . . .
134
Camera-based traffic sign recognition . . . . . 23 Index
Capacities Fuel tank .......................... .
258
Washer fluid reservoir . . . . . . . . . . . . . . . .
258
Caps for wheel bolts, removing . . . . . . . . . .
244
Car care
Washing/cleaning . . . . . . . . . . . . . . . . . . .
236
Car keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Car telephone kit
see Telephone . . . . . . . . . . . . . . . . . . . . . .
123
Catalytic converter . . . . . . . . . . . . . . . . . . . .
220
CD ............................. 169, 170
Central locking system . . . . . . . . . . . . . . . . . .
25
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Central locking switch . . . . . . . . . . . . . . . . .
29
Convenience key . . . . . . . . . . . . . . . . . . . . . .
28
Electric windows . . . . . . . . . . . . . . . . . . . . .
34
Locking doors manually . . . . . . . . . . . . . . . .
30
Remote control key . . . . . . . . . . . . . . . . . . .
28
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Centre console lighting, adjusting brightness
.41
Cetane number (diesel) . . . . . . . . . . . . . . . .
217
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . .
256
Charging battery... . . . . . . . . . . . . . . . 175, 176
Child lock (DVD) . . . . . . . . . . . . . . . . . . . . . .
183
Child seats 195
Categories . . . . . . . . . . . . . . . . . . . . . . . . .
197
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
ISOFIX and top tether . . . . . . . . . . . . . . . . 199
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . 196
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . 48
City events (Audi connect) . . . . . . . . . . . . . . 141
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .
236
Cleaning/de-icing windows . . . . . . . . . . . . .
238
Cleaning/ treating natural leather . . . . . . . .
239
Cleaning Alcantara
239
Cleaning Audi virtual cockpit . . . . . . . . . . . . 238
Cleaning carbon parts . . . . . . . . . . . . . 238, 239
Cleaning controls and displays . . . . . . . . . .
238
Cleaning displays . . . . . . . . . . . . . . . . . . . . .
238
Cleaning fabrics
239
Cleaning instrument cluster . . . . . . . . . . . .
238
Cleaning leatherette . . . . . . . . . . . . . . . . . . .
239
Cleaning plastic parts . . . . . . . . . . . . . . . . . .
238
Cleaning seat upholstery . . . . . . . . . . . . . . . 239
Closed roads
154
265

Downloaded from www.Manualslib.com manuals search engine Index
Closing Bonnet 222
Windows ........................... 33
Coasting mode . . . . . . . . . . . . . . . . . . . . . . . .
75
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . .
SO
Colour code . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Coming home . . . . . . . . . . . . . . . . . . . . . . . . . 40
Command (speech dialogue system) . . . . . .
116
Compact temporary spare wheel . . . . . . . . . 247
Compartments . . . . . . . . . . . . . . . . . . . . . . . . 49
Compass in mirror
Conference calling
Connecting a mobile phone 44
129
Requirements . . . . . . . . . . . . . . . . . . . 124, 137
Connection manager . . . . . . . . . . . . . . . . . .
187
Audi MMI connect app . . . . . . . . . . . . . . . .
187
Bluetooth settings . . . . . . . . . . . . . . . . . . .
188
Data connection . . . . . . . . . . . . . . . . . . . . . 187
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . .
188
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Network settings . . . . . . . . . . . . . . . . . . . .
188
Online settings . . . . . . . . . . . . . . . . . . . . . .
188
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .
188
SIM PIN settings . . . . . . . . . . . . . . . . . . . .
188
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .
187
Connections see Media drives. . . . . . . . . . . . . . . . . . . . .
168
Consumption (fuel) . . . . . . . . . . . . . . . . 22, 257
Contact Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Deleting . . . . . . . . . . . . . . . . . . . . . . . 133, 135
Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
133
Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Greying out . . . . . . . . . . . . . . . . . . . . . . . . .
135
Having read out . . . . . . . . . . . . . . . . . . . . .
133
Importing/exporting . . . . . . . . . . . . . . . . . 133
Navigating to . . . . . . . . . . . . . . . . . . . 133, 149
Searching for . . . . . . . . . . . . . . . . . . . . . . .
132
Sending as text message . . . . . . . . . . . . . .
133
Using from another mobile phone . . . . . .
132
Contacts Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Controls Multi-function steering wheel . . . . . . . . . . .
19
Controls and displays (overview) . . . . . . . . . . . 6
Controls (MMI control console) . . . . . . . . . .
109
Control units . . . . . . . . . . . . . . . . . . . . . . . . . 107
266 Convenience key
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 62
Locking and unlocking the vehicle . . . . . . .
28
Switching off engine (START ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Convenience open/close . . . . . . . . . . . . . . . . . 34
Cooling mode (automatic air conditioner) . . 55
Cooling mode (manual air conditioner) . . . . . 54
Cooling system
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . 224
Checking coolant level . . . . . . . . . . . . . . . .
225
Coolant temperature gauge . . . . . . . . . . . . . 8
Topping up coolant . . . . . . . . . . . . . . . . . . 225
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 12
Copyright Media drives . . . . . . . . . . . . . . . . . . . . . . . . 168
Cornering light . . . . . . . . . . . . . . . . . . . . . . . . 90
Country information . . . . . . . . . . . . . . . . . . . 157
Cruise control system
Adjusting stored speed . . . . . . . . . . . . . . . .
81
Pre-selecting a speed . . . . . . . . . . . . . . . . . .
81
Switching off . . . . . . . . . . . . . . . . . . . . . . . .
81
Switching on . . . . . . . . . . . . . . . . . . . . . . . . .
80
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
Current fuel consumption . . . . . . . . . . . . . . . 22
D
DAB (digital radio)
Data connection
Configuring ....................... .
Data connection .................... .
Data roaming ...................... .
Resetting configuration .............. .
Usage meter ....................... .
Data encryption
Data protection
Audi connect 166
144 144
144
144
188
186
146
Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 186
Daytime running Lights.. . . . . . . . . . . . . . . . . 37
Deactivatiing front passenger's airbag . . . . . 211
Defrosting (windows)
Automatic air conditioner . . . . . . . . . . . . . .
56
Manual air conditioner. . . . . . . . . . . . . . . . .
54
DEF (instrument cluster) . . . . . . . . . . . . . . . .
22

Downloaded from www.Manualslib.com manuals search engine Deleting
Bluetooth device . . . . . . . . . . . . . . . . . . . .
134
Call list . . . . . . . . . . . . . . . . . . . . . . . . . . . .
134
Contact . . . . . . . . . . . . . . . . . . . . . . . .
133, 135
Entry .......................... 111, 113
Favourites . . . . . . . . . . . . . . . . . . . . . .
129, 153
Home address . . . . . . . . . . . . . . . . . . . . . .
153
myAudi special destinations . . . . . . . . . . . 153
Text messages . . . . . . . . . . . . . . . . . . . . . . 130
Deluxe automatic air conditioner
see Air conditioner (automatic) . . . . . . . . . . 55
Demo mode
see Presentation mode . . . . . . . . . . . . . . . 153
Destination from map . . . . . . . . . . . . . . . . .
149
Destination, entering . . . . . . . . . . . . . . 147, 148
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Coordinates . . . . . . . . . . . . . . . . . . . . . . . . 151
Favourites . . . . . . . . . . . . . . . . . . . . . . . . . .
149
From directory . . . . . . . . . . . . . . . . . . . . . .
149
Home address . . . . . . . . . . . . . . . . . . . . . .
149
Last destination . . . . . . . . . . . . . . . . . . . . .
148
myAudi . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Online search . . . . . . . . . . . . . . . . . . . . . . . 151
Search function . . . . . . . . . . . . . . . . . . . . .
148
Special destination . . . . . . . . . . . . . . . . . . 150
Speech dialogue system . . . . . . . . . . . . . . 119
Stopover . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Diagnostic connection . . . . . . . . . . . . . . . . . 107
Diesel Diesel particulate filter . . . . . . . . . . . . . . . 220
Draining fuel filter . . . . . . . . . . . . . . . . . . . . 16
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Fuel ............................... 217
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 15
Preheating (glow plugs) . . . . . . . . . . . . . . .
60
Digital compass . . . . . . . . . . . . . . . . . . . . . . . 44
Dimensions Vehicle dimensions . . . . . . . . . . . . . . . . . .
257
Dipped headlights . . . . . . . . . . . . . . . . . . . . . 37
Directional tread
(tyres) . . . . . . . . . . . . . . . . 247
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Connection settings . . . . . . . . . . . . . . . . . . 188
Memor y capacity . . . . . . . . . . . . . . . . . . . . 135
MMitouch ......................... 111
� Navigation
destination . . . . . . . . . . . . . . . 149
co Postal address . . . . . . . . . . . . . . . . . . . . . . 149
� Search
function ................. 131, 132
N
ll'l
.... Index
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .
135
Sort order . . . . . . . . . . . . . . . . . . . . . . . . . .
135
Storage locations . . . . . . . . . . . . . . . . . . . .
131
Storing a destination . . . . . . . . . . . . . . . . .
153
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Directory entry
see Contact . . . . . . . . . . . . . . . . . . . . . . . . .
133
Display Brightness . . . . . . . . . . . . . . . . . . . . . . . . . 186
Multi-function steering wheel. . . . . . . . 19, 21
Navigation map . . . . . . . . . . . . . . . . . . . . .
156
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .
186
Traffic information . . . . . . . . . . . . . . . . . . .
160
see also Infotainment display . . . . . . . . . .
186
Distance covered . . . . . . . . . . . . . . . . . . . . . . .
22
Door catches, bonnet and boot lid warning .
18
Doors Locking doors manually . . . . . . . . . . . . . . . .
30
Door safelock . . . . . . . . . . . . . . . . . . . . . . . . .
31
Downhill speed control . . . . . . . . . . . . . . . . . 74
Draining fuel
filter (diesel) . . . . . . . . . . . . . . . 16
Driver information system . . . . . . . . . . . . . . . 21
CD/radio display . . . . . . . . . . . . . . . . . . . . . . 18
Door catches, bonnet and boot lid warning
18
Driver messages . . . . . . . . . . . . . . . . . . . . . . . 9
On-board computer . . . . . . . . . . . . . . . . . . .
22
Outside temperature display . . . . . . . . . . . . 18
Service interval display . . . . . . . . . . . . . . . 229
Switching between displays . . . . . . . . . 19, 21
Warning and
indicator lamps . . . . . . . . . . . . 9
Drives see Media drives . . . . . . . . . . . . . . . . . . . . .
168
Drive select . . . . . . . . . . . . . . . . . . . . . . . . . . .
90
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 17
Driving away from a standstill
Hill hold assist . . . . . . . . . . . . . . . . . . . . . . .
69
Hold assist . . . . . . . . . . . . . . . . . . . . . . . . . .
68
Parking brake auto release . . . . . . . . . . . . . 67
Driving on left . . . . . . . . . . . . . . . . . . . . . . . . .
40
Driving on right . . . . . . . . . . . . . . . . . . . . . . . .
40
Driving through water . . . . . . . . . . . . . . . . . .
58
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Dust filter
see Pollution filter . . . . . . . . . . . . . . . . . . . . 53
DVD ..... ........................... 169
Child lock . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
267

Downloaded from www.Manualslib.com manuals search engine Index
MMI touch . . . . . . . . . . . . . . . . . . . . . . . . .
111
Speech dialogue system . . . . . . . . . . . . . . 121
Dynamic volume control
see Entertainment volume
E
ElO 190
see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . .
217
ECO mode (automatic air conditioner) . . . . .
55
Economical driving . . . . . . . . . . . . . . . . . . . . .
58
Economical route . . . . . . . . . . . . . . . . . . . . . 155
EDL see Electronic differential lock . . . . . . . . .
102
Electrical socket . . . . . . . . . . . . . . . . . . . . . . .
48
Electric seat adjustment . . . . . . . . . . . . . . . . 46
Electric windows . . . . . . . . . . . . . . . . . . . . . . . 33
Convenience open/close . . . . . . . . . . . . . . .
34
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . .
34
Electro-mechanical parking brake
see Parking brake . . . . . . . . . . . . . . . . . . . . . 66
Electro-mechanical power steering . . . . . . . 101
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . 101
Electronic differential lock . . . . . . . . . . . . . . 103
Electronic immobiliser . . . . . . . . . . . . . . . . . . 25
Electronic stabilisation control (ES() . . . . . 102
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 14
Sport mode . . . . . . . . . . . . . . . . . . . . . . . .
104
Emergency calls . . . . . . . . . . . . . . . . . . . . . .
131
Emergency key . . . . . . . . . . . . . . . . . . . . . 25, 27
Emission control systems
Catalytic converter . . . . . . . . . . . . . . . . . . .
220
Diesel particulate filter . . . . . . . . . . . . . . .
220
Emission control system (indicator lamp) . . . 15
Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Engine Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .
224
Jump-starting . . . . . . . . . . . . . . . . . . . . . . .
248
Preheating (glow plugs) . . . . . . . . . . . . . . .
60
Start/stop system . . . . . . . . . . . . . . . . . . . .
63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
Starting (driver messages for convenience
key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 61
Switching off (driver messages for mechani-
cal ignition lock) . . . . . . . . . . . . . . . . . . . . . .
62
268 Engine
compartment
Closing bonnet . . . . . . . . . . . . . . . . . . . . . .
222
Layout.. ........................... 222
Opening bonnet . . . . . . . . . . . . . . . . . . . . .
221
Safety notes . . . . . . . . . . . . . . . . . . . . . . . .
220
Engine management (indicator lamp) . . . . . . 15
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Checking oil level . . . . . . . . . . . . . . . . . . . . 223
Consumption . . . . . . . . . . . . . . . . . . . . . . . 223
Indicator lamp . . . . . . . . . . . . . . . . . . . . 15, 16
Oil change service . . . . . . . . . . . . . . . . . . .
223
Service intervals . . . . . . . . . . . . . . . . . . . . .
223
Topping up . . . . . . . . . . . . . . . . . . . . . . . . .
224
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 12
Engine speed governing (indicator lamp)
15
Engine start/stop mode
see Star t/stop system . . . . . . . . . . . . . . . . .
65
Entering Using MMI touch . . . . . . . . . . . . . . . . . . . . 111
Using the speech dialogue system . . . . . .
116
Using the speller . . . . . . . . . . . . . . . . . . . . 113
Entertainment volume . . . . . . . . . . . . . . . . . 190
Environmental compatibility . . . . . . . . . . . . 262
Environmental tips Filling the tank .................. 218, 219
Leaks.. ............................ 221
Minimising pollution . . . . . . . . . . . . . . . . . .
58
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . .
52
EPC (engine management) . . . . . . . . . . . . . . .
15
EPG see Programme guide . . . . . . . . . . . . . . . . 163
ESC Multicollision brake assist system . . . . . . 103
Sport mode . . . . . . . . . . . . . . . . . . . . . . . .
104
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . 217
Event data recorder . . . . . . . . . . . . . . . . . . . 107
Event memory . . . . . . . . . . . . . . . . . . . . . . . .
107
Exclude route . . . . . . . . . . . . . . . . . . . . . . . .
155
Exporting/ importing contacts . . . . . . . . . . . 133
Exterior lights . . . . . . . . . . . . . . . . . . . . . . . . . 37
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
Anti-dazzle setting . . . . . . . . . . . . . . . . . . .
42
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
