WARNING
Never attempt to repair a fuse or replace a
blown fuse by fitting a fuse with a higher am
pere rating. This could damage the electrical
system -risk of fire!
CD CAUTION
If a newly replaced fuse blows again after a
short time, the electrical system must be
checked by a qualified workshop as soon as
possible.
@ Note
- Unassigned fuse locations are not shown in
the tables below.
- Some of the items of equipment listed in
the tables below are only fitted on certain
models or are optional extras.
Fuses in vehicle interior
Fig. 246 Interior: Fuse layout
No. Electrical
equipment
F3 ESC
control unit
F4 Central computer (MIB-2)
FS Gateway No.
F6
F7
F8 F9
FlO Fll
F12
F13
F14
FlS
F16
F17
F18
Fl9
F20
F23
F25
F26
F28
F29
F31
F32 F33
F34
F35
F36 F37
F38 F39 Fuses
and bulbs
Electrical equipment
Anti-theft alarm system
Air conditioner console, selector lever (au-
tomatic gearbox), auxiliary heating, relay
coil for rear window heating
Diagnostics, switch for electronic parking
brake, light switch, rain/light sensor, inte-
rior lighting
Steering column switch module
Display
Haldex coupling
MMI system
Control unit for suspension control
Air conditioner blower
Electric steering column lock
MMI system
Instrument cluster
Reversing camera
Control unit for convenience key system
Electric lumbar support adjuster
Exterior lighting (right side), on-board
computer (right side)
Door/s, driver's side (e.g. electric windows)
Seat heating
Media socket for AMI High
On-board computer
On-board computer (left side)
Driver assistance systems
Airbag Electrical socket relay, interior sound, re-
versing light switch, temperature sensor,
oil level sensor
Diagnostics, headlight range control, air
quality sensor, automatic anti-dazzle mir-
rors
Corn ering light (right side)/ LED headlight
(right side)
Cornering light (left side) / LED headlight
(left side)
Engine control unit, ESC control unit
Door(s), passenger's side (e.g. electric win-
dows)
255
Page 258 of 284
Downloaded from www.Manualslib.com manuals search engine Fuses
and bulbs
No. Electrical
equipment
F40 Cigarette lighter, electrical sockets
F41 SCR relay and delivery unit
F42 Central locking system
F43 On-board computer
F45 Electrically
adjustable seat (driver's side)
F49 Starter, clutch sensor
FSO ESC
valves
F53 Rear window heating
Th e seats with electric adjustment* are protected
by circuit breakers. These reset automatically af
ter a few seconds when the overload has been
corrected.
Fuses on left side of engine compartment
Fig. 247 Engine compartment: Fuse la
yout
No. Electrical
equipment
F3 Engine control unit (petrol/diesel)
Engine cooling, engine components, sup-M
,...,
0
>
F4 plementary heater relay coils (1+2), secon-
dary air pump relay
FS Engine components, tank system
F6 Brake light sensor
F7 Engine components
256 No.
Electrical
equipment
F8 Lambda probe
F9 Engine
components, exhaust flap, control
unit for automatic glow period
FlO Fuel injectors, fuel control unit
Fll Supplementary
heater, heating rod 2
F12 Supplementary heater, heating rod 3
F13 Automatic gearbox control unit
FlS Horn
F16 Ignition coil
F17 ESC control unit, engine control unit
F18 Terminal 30 (reference voltage)
F19 Wipers
F20 Horn
F22 Terminal 50, diagnostics
F23 Starter
F24 Supplementary heater, heating rod 1
F32 LED headlights
Bulbs Note
Your vehicle is fitted with maintenance-free
headlights and rear lights. If a bulb does need to
be changed, however, please contact an Audi
dealer or qualified workshop.

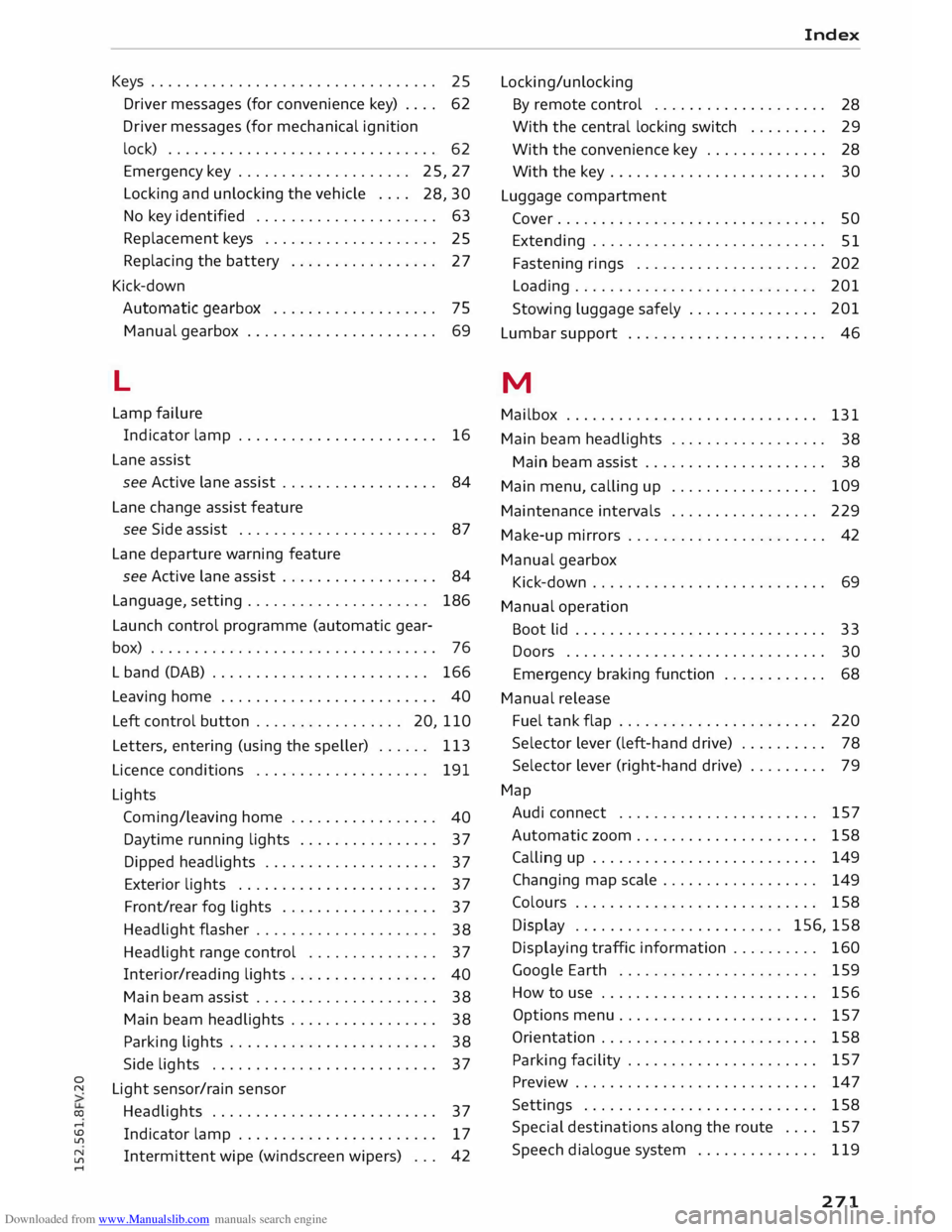

Page 273 of 284
Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... Keys
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
Driver messages (for convenience key) . . . . 62
Driver messages (for mechanical ignition
lock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
62
Emergency key . . . . . . . . . . . . . . . . . . . .
25, 27
Locking and unlocking the vehicle . . . .
28, 30
No key identified . . . . . . . . . . . . . . . . . . . . .
63
Replacement keys . . . . . . . . . . . . . . . . . . . .
25
Replacing the battery . . . . . . . . . . . . . . . . .
27
Kick-down Automatic gearbox . . . . . . . . . . . . . . . . . . . 75
Manual gearbox . . . . . . . . . . . . . . . . . . . . . .
69
L
Lamp failure
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 16
Lane assist
see Active lane assist . . . . . . . . . . . . . . . . . .
84
Lane change assist feature
see Side assist . . . . . . . . . . . . . . . . . . . . . . .
87
Lane departure warning feature
see Active lane assist . . . . . . . . . . . . . . . . . . 84
Language, setting . . . . . . . . . . . . . . . . . . . . .
186
Launch control programme (automatic gear-
box) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
L band (DAB) . . . . . . . . . . . . . . . . . . . . . . . . . 166
Leaving home . . . . . . . . . . . . . . . . . . . . . . . . . 40
Left control button . . . . . . . . . . . . . . . . . 20, llO
Letters, entering (using the speller) . . . . . .
113
Licence conditions . . . . . . . . . . . . . . . . . . . . 191
Lights Coming/lea ving home . . . . . . . . . . . . . . . . .
40
Daytime running lights . . . . . . . . . . . . . . . .
37
Dipped headlights . . . . . . . . . . . . . . . . . . . .
37
Exterior lights . . . . . . . . . . . . . . . . . . . . . . .
37
Front/rear fog lights . . . . . . . . . . . . . . . . . .
37
Headlight flasher . . . . . . . . . . . . . . . . . . . . .
38
Headlight range control . . . . . . . . . . . . . . .
37
Interior/reading lights . . . . . . . . . . . . . . . . .
40
Main beam assist . . . . . . . . . . . . . . . . . . . . .
38
Main beam headlights . . . . . . . . . . . . . . . . .
38
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . 38
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . .
37
Light sensor/rain sensor
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . .
37
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 17
Intermittent wipe (windscreen wipers) . . .
42 Index
Locki n g/u n locki ng
By remote control . . . . . . . . . . . . . . . . . . . .
28
With the central locking switch . . . . . . . . .
29
With the convenience key . . . . . . . . . . . . . . 28
With the key . . . . . . . . . . . . . . . . . . . . . . . . .
30
Luggage compartment
Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50
Extending . . . . . . . . . . . . . . . . . . . . . . . . . . .
51
Fastening rings . . . . . . . . . . . . . . . . . . . . . 202
Loading............................ 201
Stowing luggage safely . . . . . . . . . . . . . . . 201
Lumbar support . . . . . . . . . . . . . . . . . . . . . . . 46
M
Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
131
Main beam headlights . . . . . . . . . . . . . . . . . .
38
Main beam assist . . . . . . . . . . . . . . . . . . . . . 38
Main menu, calling up . . . . . . . . . . . . . . . . . 109
Maintenance intervals . . . . . . . . . . . . . . . . .
229
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . . . 42
Manual gearbox
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . .
69
Manual operation
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Emergency braking function . . . . . . . . . . . . 68
Manual release
Fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . 220
Selector lever (left-hand drive) . . . . . . . . . . 78
Selector lever (right-hand drive) . . . . . . . . .
79
Map Audi connect . . . . . . . . . . . . . . . . . . . . . . .
157
Automatic zoom... . . . . . . . . . . . . . . . . . .
158
Calling up . . . . . . . . . . . . . . . . . . . . . . . . . .
149
Changing map scale . . . . . . . . . . . . . . . . . .
149
Colours . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Display . . . . . . . . . . . . . . . . . . . . . . . . 156, 158
Displaying traffic information . . . . . . . . . . 160
Google Earth . . . . . . . . . . . . . . . . . . . . . . .
159
How to use . . . . . . . . . . . . . . . . . . . . . . . . . 156
Options menu. . . . . . . . . . . . . . . . . . . . . . .
157
Orientation . . . . . . . . . . . . . . . . . . . . . . . . . 158
Parking facility . . . . . . . . . . . . . . . . . . . . . . 157
Preview . . . . . . . . . . . . . . . . . . . . . . . . . . . .
147
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Special destinations along the route . . . .
157
Speech dialogue system . . . . . . . . . . . . . .
119
271

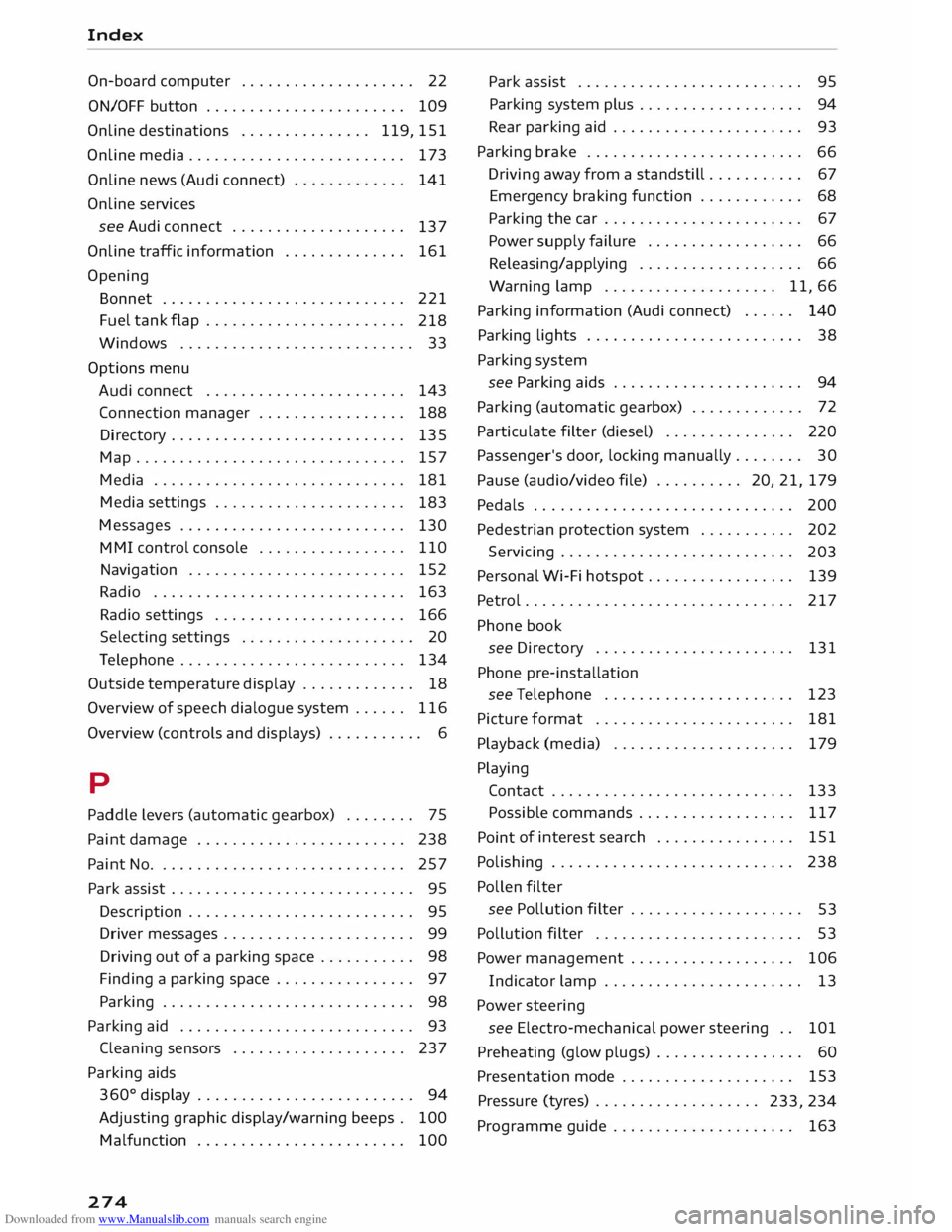

Page 276 of 284
Downloaded from www.Manualslib.com manuals search engine Index
On-board computer . . . . . . . . . . . . . . . . . . . . 22
ON/OFF button . . . . . . . . . . . . . . . . . . . . . . .
109
Online destinations . . . . . . . . . . . . . . . 119, 151
Online media . . . . . . . . . . . . . . . . . . . . . . . . .
173
Online news (Audi connect)
Online services 141
see Audi connect . . . . . . . . . . . . . . . . . . . .
137
Online traffic information . . . . . . . . . . . . . .
161
Opening Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . .
221
Fuel tank flap . . . . . . . . . . . . . . . . . . . . . . .
218
Wi ndows ........................... 33
Options menu
Audi connect . . . . . . . . . . . . . . . . . . . . . . .
143
Connection manager . . . . . . . . . . . . . . . . . 188
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . .
135
Map ............................... 157
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Media settings . . . . . . . . . . . . . . . . . . . . . .
183
Messages . . . . . . . . . . . . . . . . . . . . . . . . . .
130
M MI
control console . . . . . . . . . . . . . . . . .
110
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 152
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Radio settings . . . . . . . . . . . . . . . . . . . . . . 166
Selecting settings . . . . . . . . . . . . . . . . . . . . 20
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Outside temperature display . . . . . . . . . . . . . 18
Over view of speech dialogue system . . . . . . 116
Over view (controls and displays) . . . . . . . . . . . 6
p
Paddle levers (automatic gearbox) . . . . . . . . 75
Paint damage . . . . . . . . . . . . . . . . . . . . . . . .
238
Paint No. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
257
Park assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Driver messages . . . . . . . . . . . . . . . . . . . . . . 99
Driving out of a parking space . . . . . . . . . . . 98
Finding a parking space . . . . . . . . . . . . . . . . 97
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . .
93
Cleaning sensors . . . . . . . . . . . . . . . . . . . . 237
Parking aids
360 °
display . . . . . . . . . . . . . . . . . . . . . . . . . 94
Adjusting graphic display/warning beeps . 100
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 100
274 Park
assist . . . . . . . . . . . . . . . . . . . . . . . . . .
95
Parking system plus . . . . . . . . . . . . . . . . . . .
94
Rear parking aid . . . . . . . . . . . . . . . . . . . . . . 93
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . .
66
Driving away from a standstill . . . . . . . . . . . 67
Emergency braking function . . . . . . . . . . . .
68
Parking the car . . . . . . . . . . . . . . . . . . . . . . .
67
Power supply failure . . . . . . . . . . . . . . . . . . 66
Releasing/applying . . . . . . . . . . . . . . . . . . .
66
Warning lamp . . . . . . . . . . . . . . . . . . . . 11, 66
Parking information (Audi connect) . . . . . . 140
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . 38
Parking system
see Parking aids . . . . . . . . . . . . . . . . . . . . . . 94
Parking (automatic gearbox) . . . . . . . . . . . . . 72
Particulate filter (diesel) . . . . . . . . . . . . . . . 220
Passenger's door, locking manually . . . . . . . . 30
Pause (audio/video file) .......... 20, 21, 179
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Pedestrian protection system . . . . . . . . . . . 202
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . .
203
Personal Wi-Fi hotspot . . . . . . . . . . . . . . . . . 139
Petrol ............................... 217
Phone book
see Directory . . . . . . . . . . . . . . . . . . . . . . . 131
Phone pre-installation
see Telephone . . . . . . . . . . . . . . . . . . . . . .
123
Picture format . . . . . . . . . . . . . . . . . . . . . . .
181
Playback (media) . . . . . . . . . . . . . . . . . . . . .
179
Playing Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . .
133
Possible commands .................. 117
Point of
interest search . . . . . . . . . . . . . . . . 151
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Pollen filter
see Pollution filter . . . . . . . . . . . . . . . . . . . .
53
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . .
53
Power management . . . . . . . . . . . . . . . . . . . 106
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 13
Power steering
see Electro-mechanical power steering . . 101
Preheating (glow plugs) . . . . . . . . . . . . . . . . . 60
Presentation mode . . . . . . . . . . . . . . . . . . . .
153
Pressure (tyres) . . . . . . . . . . . . . . . . . . .
233, 234
Programme guide . . . . . . . . . . . . . . . . . . . . . 163
Page 277 of 284

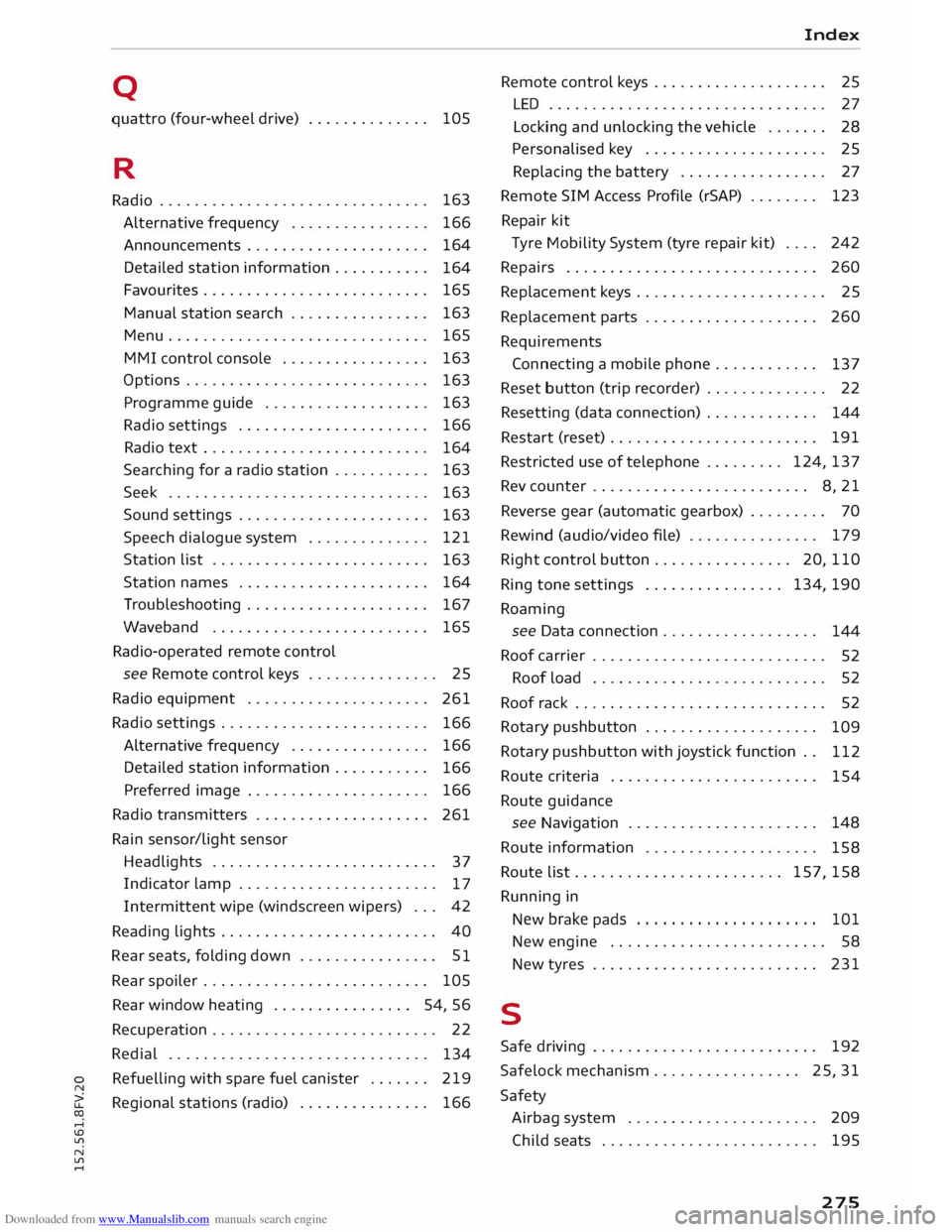

Downloaded from www.Manualslib.com manuals search engine Q
quattro (four-wheel drive) . . . . . . . . . . . . . . 105
R
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Alternative frequency . . . . . . . . . . . . . . . . 166
Announcements . . . . . . . . . . . . . . . . . . . . . 164
Detailed station information . . . . . . . . . . .
164
Favourites . . . . . . . . . . . . . . . . . . . . . . . . . .
165
Manual station search . . . . . . . . . . . . . . . .
163
Menu.............................. 165
MMI control console . . . . . . . . . . . . . . . . . 163
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .
163
Programme guide . . . . . . . . . . . . . . . . . . .
163
Radio settings . . . . . . . . . . . . . . . . . . . . . .
166
Radio text . . . . . . . . . . . . . . . . . . . . . . . . . .
164
Searching for a radio station . . . . . . . . . . .
163
Seek . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
163
Sound settings . . . . . . . . . . . . . . . . . . . . . .
163
Speech dialogue system . . . . . . . . . . . . . . 121
Station list . . . . . . . . . . . . . . . . . . . . . . . . .
163
Station names . . . . . . . . . . . . . . . . . . . . . .
164
Troubleshooting . . . . . . . . . . . . . . . . . . . . .
167
Waveband . . . . . . . . . . . . . . . . . . . . . . . . .
165
Radio-operated remote control
see Remote control keys . . . . . . . . . . . . . . . 25
Radio equipment . . . . . . . . . . . . . . . . . . . . .
261
Radio settings . . . . . . . . . . . . . . . . . . . . . . . .
166
Alternative frequency . . . . . . . . . . . . . . . .
166
Detailed station information . . . . . . . . . . .
166
Preferred image . . . . . . . . . . . . . . . . . . . . .
166
Radio transmitters . . . . . . . . . . . . . . . . . . . .
261
Rain sensor/light sensor
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . .
37
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . .
17
Intermittent wipe (windscreen wipers) . . .
42
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear seats, folding down . . . . . . . . . . . . . . . . 51
Rear spoiler . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Rear window heating . . . . . . . . . . . . . . . . 54, 56
Recuperation . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
134
o
Refuelling with spare fuel canister .
. . . . . . 219
a: Regional
stations (radio) . . . . . . . . . . . . . . . 166
co
....
\D Lfl
N
Lfl
.... Index
Remote control keys . . . . . . . . . . . . . . . . . . . . 25
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Locking and unlocking the vehicle . . . . . . . 28
Perso nalised key . . . . . . . . . . . . . . . . . . . . . 25
Replacing the battery . . . . . . . . . . . . . . . . .
27
Remote SIM Access Profile (rSAP) . . . . . . . . 123
Repair kit
Tyre Mobility System (tyre repair kit) . . . . 242
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
260
Replacement keys . . . . . . . . . . . . . . . . . . . . . . 25
Replacement parts . . . . . . . . . . . . . . . . . . . . 260
Requirements Connecting a mobile phone . . . . . . . . . . . .
137
Reset button (trip recorder) . . . . . . . . . . . . . . 22
Resetting (data connection) . . . . . . . . . . . . .
144
Restart (reset) . . . . . . . . . . . . . . . . . . . . . . . .
191
Restricted use of telephone . . . . . . . . . 124, 137
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . 8, 21
Reverse gear (automatic gearbox) . . . . . . . . . 70
Rewind (audio/video file) . . . . . . . . . . . . . . . 179
Right control button ................ 20, 110
Ring tone settings . . . . . . . . . . . . . . . . 134, 190
Roaming see Data connection . . . . . . . . . . . . . . . . . .
144
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Rotary pushbutton . . . . . . . . . . . . . . . . . . . .
109
Rotary pushbutton with joystick function . .
112
Route criteria . . . . . . . . . . . . . . . . . . . . . . . .
154
Route guidance
see Navigation . . . . . . . . . . . . . . . . . . . . . .
148
Route information . . . . . . . . . . . . . . . . . . . .
158
Route list ........................ 157, 158
Running in
New brake pads . . . . . . . . . . . . . . . . . . . . . 101
New engine . . . . . . . . . . . . . . . . . . . . . . . . . 58
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 231
s
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Safelock mechanism................. 25, 31
Safety Airbag system . . . . . . . . . . . . . . . . . . . . . .
209
Child seats . . . . . . . . . . . . . . . . . . . . . . . . .
195
275
Page 278 of 284

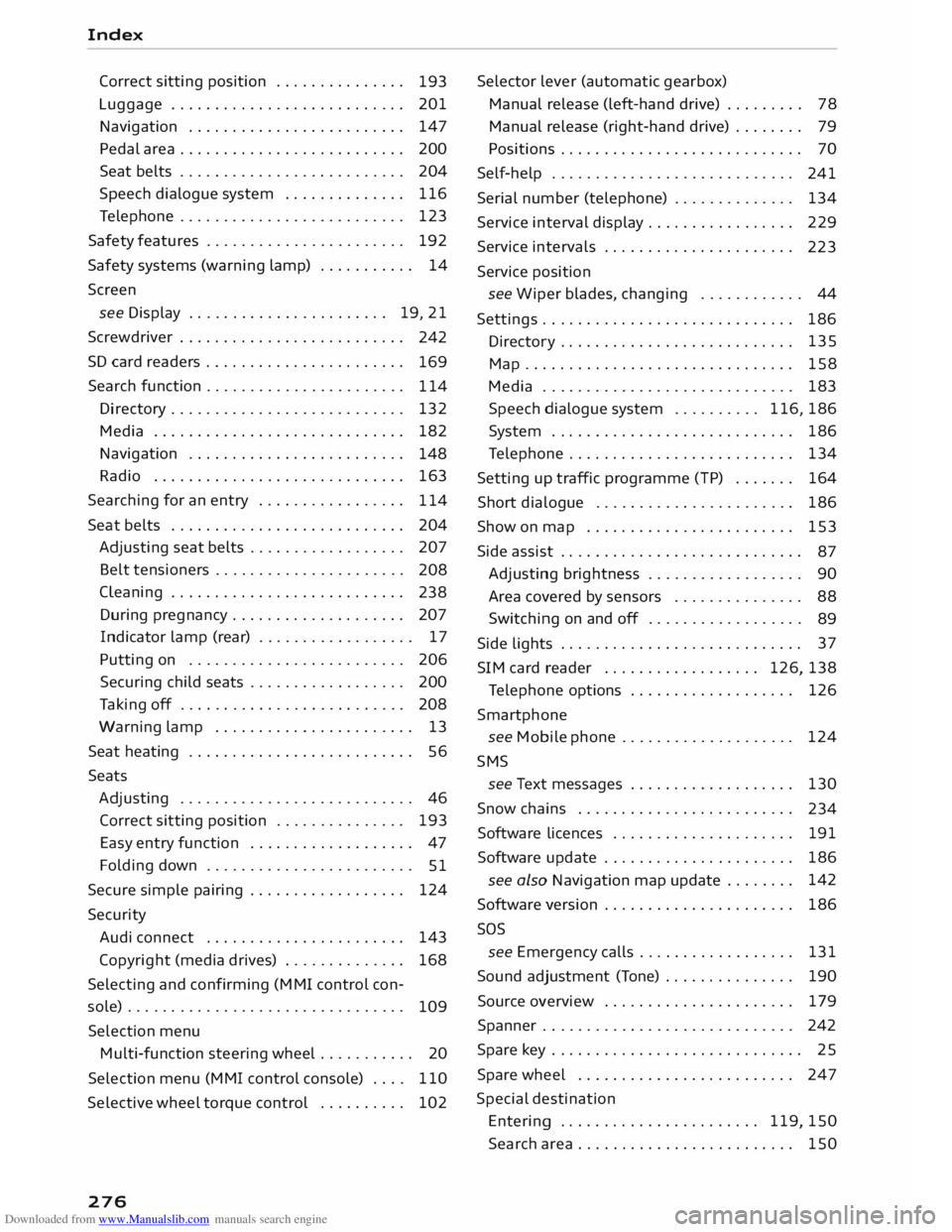

Downloaded from www.Manualslib.com manuals search engine Index
Correct sitting position . . . . . . . . . . . . . . .
193
Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Navigation . . . . . . . . . . . . . . . . . . . . . . . . .
147
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . .
204
Speech dialogue system . . . . . . . . . . . . . . 116
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Safety features . . . . . . . . . . . . . . . . . . . . . . .
192
Safety systems (warning lamp) . . . . . . . . . . . 14
Screen see Display . . . . . . . . . . . . . . . . . . . . . . .
19, 21
Screwdriver . . . . . . . . . . . . . . . . . . . . . . . . . .
242
SD card readers . . . . . . . . . . . . . . . . . . . . . . .
169
Search function . . . . . . . . . . . . . . . . . . . . . . .
114
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
182
Navigation . . . . . . . . . . . . . . . . . . . . . . . . .
148
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Searching for an entry . . . . . . . . . . . . . . . . .
114
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . .
204
Adjusting seat belts . . . . . . . . . . . . . . . . . .
207
Belt tensioners . . . . . . . . . . . . . . . . . . . . . .
208
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .
238
During pregnancy . . . . . . . . . . . . . . . . . . . . 207
Indicator lamp (rear) . . . . . . . . . . . . . . . . . . 17
Putting on . . . . . . . . . . . . . . . . . . . . . . . . .
206
Securing child seats . . . . . . . . . . . . . . . . . .
200
Taking off . . . . . . . . . . . . . . . . . . . . . . . . . .
208
Warning lamp . . . . . . . . . . . . . . . . . . . . . . .
13
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Seats Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Correct sitting position . . . . . . . . . . . . . . . 193
Easy entry function . . . . . . . . . . . . . . . . . . . 47
Folding down . . . . . . . . . . . . . . . . . . . . . . . .
51
Secure simple pairing . . . . . . . . . . . . . . . . . . 124
Security Audi connect . . . . . . . . . . . . . . . . . . . . . . .
143
Copyright (media drives) . . . . . . . . . . . . . .
168
Selecting and confirming (MMI control con-
sole) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
109
Selection menu
Multi-function steering wheel . . . . . . . . . . . 20
Selection menu (MMI control console) . . . . 110
Selective wheel torque control . . . . . . . . . . 102
276 Selector
lever (automatic gearbox)
Manual release (left-hand drive) . . . . . . . . . 78
Manual release (right-hand drive) . . . . . . . .
79
Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . .
70
Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . .
241
Serial number (telephone) . . . . . . . . . . . . . .
134
Service interval display . . . . . . . . . . . . . . . . . 229
Service intervals . . . . . . . . . . . . . . . . . . . . . .
223
Service position
see Wiper blades, changing . . . . . . . . . . . . 44
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
186
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Map......................... ...... 158
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
183
Speech dialogue system . . . . . . . . . . 116, 186
System . . . . . . . . . . . . . . . . . . . . . . . . . . . .
186
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Setting up traffic programme (TP) . . . . . . .
164
Short dialogue . . . . . . . . . . . . . . . . . . . . . . .
186
Show on map . . . . . . . . . . . . . . . . . . . . . . . .
153
Side assist . . . . . . . . . . . . . . . . . . . . . . . . . . . .
87
Adjusting brightness . . . . . . . . . . . . . . . . . .
90
Area covered by sensors . . . . . . . . . . . . . . .
88
Switching on and off . . . . . . . . . . . . . . . . . .
89
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
SIM card reader . . . . . . . . . . . . . . . . . . 126, 138
Telephone options . . . . . . . . . . . . . . . . . . . 126
Smartphone see Mobile phone . . . . . . . . . . . . . . . . . . . .
124
SMS see Text messages . . . . . . . . . . . . . . . . . . . 130
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . .
234
Software licences . . . . . . . . . . . . . . . . . . . . .
191
Software update . . . . . . . . . . . . . . . . . . . . . .
186
see also Navigation map update . . . . . . . . 142
Software version . . . . . . . . . . . . . . . . . . . . . . 186
sos see Emergency calls . . . . . . . . . . . . . . . . . .
131
Sound adjustment (Tone) . . . . . . . . . . . . . . .
190
Source overview . . . . . . . . . . . . . . . . . . . . . .
179
Spanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
242
Spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . 247
Special destination Entering . . . . . . . . . . . . . . . . . . . . . . . 119, 150
Search area . . . . . . . . . . . . . . . . . . . . . . . . . 150
