Downloaded from www.Manualslib.com manuals search engine Wheels

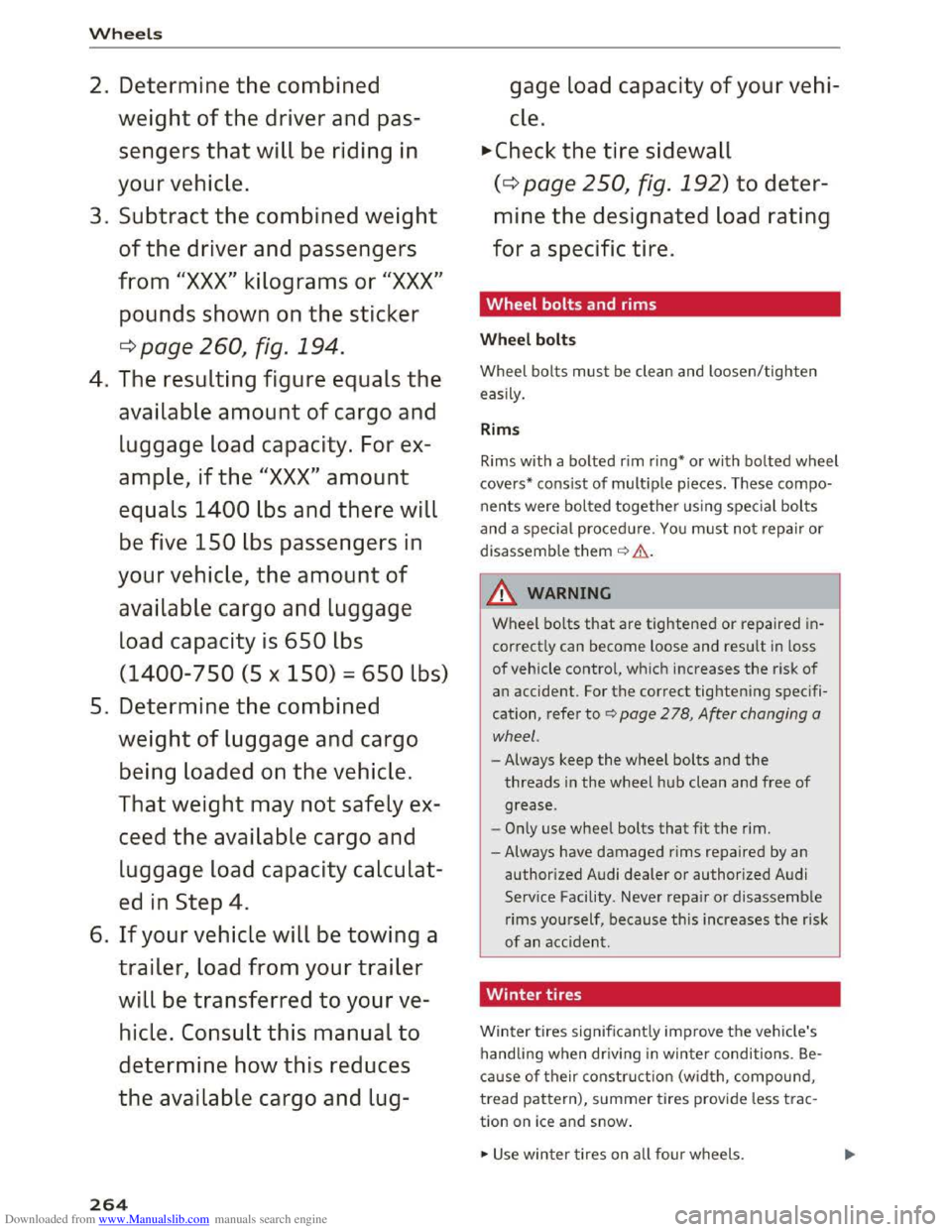

2. Determine the combined
weight
of the driver and pas­
sengers
that will be riding in
your vehicle.
3. Subtract
the combined weight
of the driver and passengers
from
"XXX" kilograms or "XXX"
pounds shown on the sticker
¢page 260, fig. 194.
4. The resulting figure equals the
available amount of cargo and
luggage load capacity.
For ex­
ample, if
the "XXX" amount
equals 1400 lbs and there will
be five 1
SO lbs passengers in
your vehicle, the amount of
available cargo and luggage
load capacity is 650 lbs
(1400-750 (5 x 150) = 650 lbs)
5. Determine
the combined
weight
of luggage and cargo
being loaded on
the vehicle.
That weight may
not safely ex­
ceed
the available cargo and
luggage load capacity calculat­
ed
in Step 4.
6.
If your vehicle will be towing a
trailer, load from your trailer
will be transferred
to your ve­
hicle.
Consult this manual to
determine how this reduces
the available cargo and lug-
264
gage load capacity of your vehi­
cle.
~check the tire sidewall
(c:>page 250, fig. 192) to deter­
mine
the designated load rating
for a specific tire.
Wheel bolts and rims
Wheel bolts
Wheel bolts must be clean and loosen/tighten
easily.
Rims
Rims with a bolted rim ring* or with bolted wheel
covers* consist of multiple pieces. These compo­
nents were bolted together using special bolts
and a special procedure. You must not repair or
disassemble them c::> .&..
&. WARNING
Wheel bolts that are tightened or repaired in­
correctly can become loose and result in loss
of vehicle control, which increases the risk of
an accident. For the correct tightening specifi­
cation, refer to c::> page 2 78, After changing a
wheel .
-Always keep the wheel bolts and the
threads in the wheel hub clean and free of
grease.
-
Only use wheel bolts that fit the rim.
- Always have
damaged rims repaired by an
authorized Audi dealer or authorized Audi
Service Facility. Never
repair or disassemble
rims yourself, because this increases the risk
of an accident.
· Winter tires
Winter tires significantly improve the vehicle's
handling
when driving in winter conditions. Be­
cause of their construction (width, compound,
tread pattern), summer tires provide less trac­
tion on ice and snow .
.,. Use winter tires on all four wheels.

Downloaded from www.Manualslib.com manuals search engine Emergency assistance

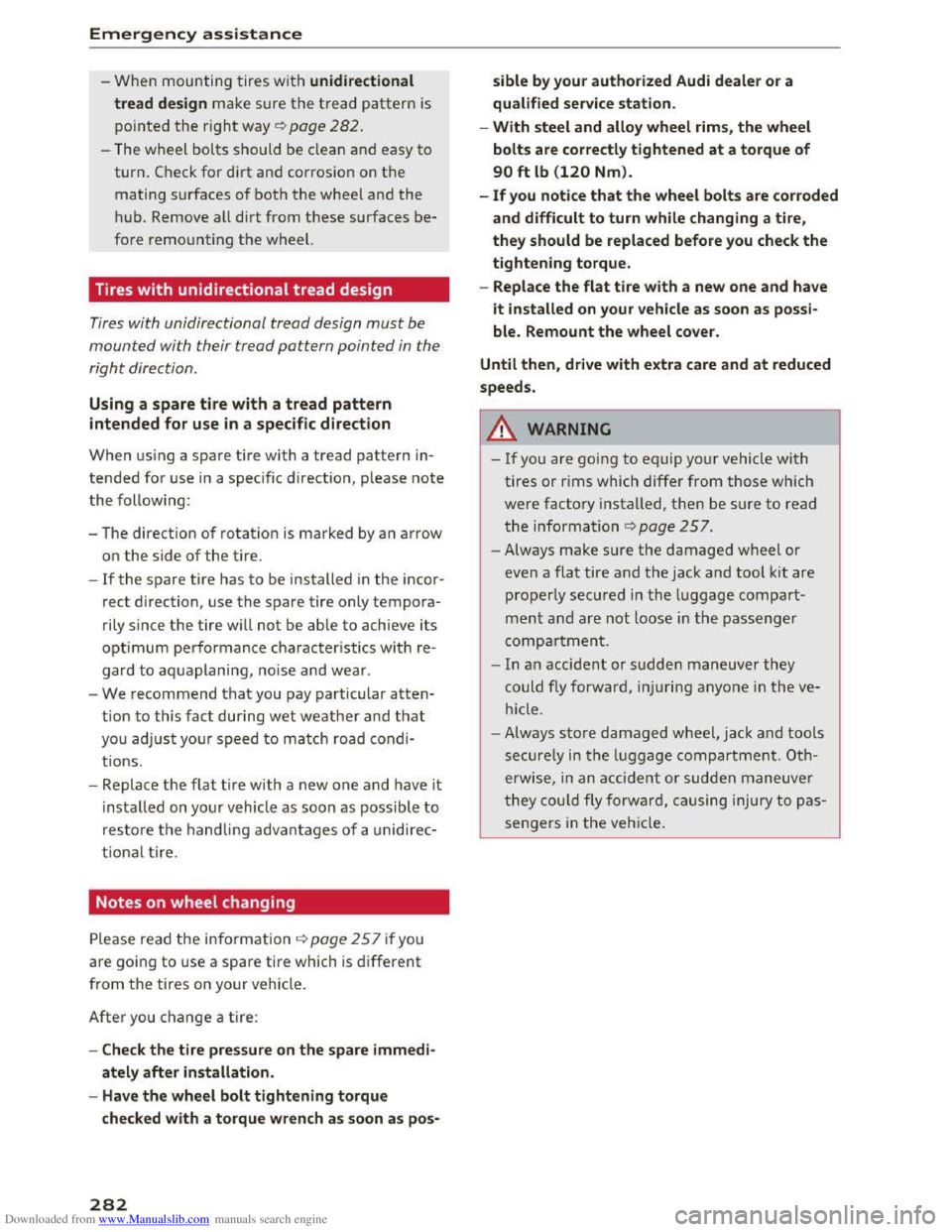

-When mounting tires with unidirectional
tread design
make su re the tread pattern is
pointed the r ight way¢ page 282.
- The wheel bolts should be clean and easy to
turn .
Check for dirt and corros ion on th e
mating surfaces of both
the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting t h e wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction.
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a spare tire with a tread pattern in­
tended for use in a spec ific direction, please note
the following:
- The direct ion of
rotation is marked by an arrow
o n
the side of the tire.
-If the spare tire has to be installed in the incor­
rect direction, use the spare tire only tempora­
rily since the tire will not be able to achieve its
optimum performance charact
eristics wit h re­
gard to aqu aplaning, noise and wear.
-
We r ecommend that you pay particular atten­
tion to this fact during wet weathe r and that
you ad just your speed to match road condi­
tions.
- Replace
the flat tire with a new one and have it
i ns talle d on
your ve hicl e as soon as possibl e to
resto re the han dling adv antages of a unidire c­
tio nal tire.
Notes on wheel changing
Please read the info rmation ¢ page 257 if you
are goi
ng to use a spare tire which is different
from
the tires on your vehicle.
Afte r you change a tire:
-Check the tire pressure on the spare immedi­
ately after installation.
-
Have the wheel bolt tightening torque
checked with a torque wrench as
soon as pos-
282
sible by your authorized Audi dealer or a
qualified service station.
- With
steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of
90 ft lb (120 Nm).
- If you notice
that the wheel bolts are corroded
and difficult
to turn while changing a tire,
they should be replaced before you check the
tightening torque.
- Replace
the flat tire with a new one and have
it installed on your vehicle as soon as
possi­
ble. Remount the wheel cover .
Until then, drive with extra care and at reduced
speeds.
8_ WARNING
- I f you are going to equip your vehicle with
tires or rims which differ from those which
were factory insta
lled, then be sure to read
t he informa tion
¢ page 257.
-Always make sure the damaged wheel or
eve n a flat tire and
the jack and tool kit are
pro per ly sec ure d
in the lu ggage compart­
men t and are not loose in the passeng er
com partme nt.
- In an accident or sudde n maneuver they
could fly forw ard, in juri ng anyo ne in the v e ­
hicle.
-
Always s to re damaged whe el, jack and tools
s ecure ly i n t he luggage co m part ment.
Oth­
erwi se, in an accid ent or sudde n m aneu ve r
t hey co
uld fly f orw ard , cau sing inju ry to pa s­
sengers in the vehicle.
-
