width AUDI TT COUPE 2017 Owners Manual

CD
CD
.... N
" N .... 0
0
Ill co
The display remains dim in the information stage
so that your view toward the front is not distur ­
bed .
Warning stage
If you ac tiva te the tur n signa l, side assist warns
you about veh icles that are detected and classi­
f ied as critical. The d isplay in the respec tive m ir ­
ror blinks brightly. If this happens, ch eck traffic
by glancing in the exterior m irro rs and over you r
shoulder
c:> .&. in General informa tion on
page 78.
(D Tips
You can ad just the brightness on of the dis­
play on the rearview mirror
c:> page 78 .
General information
App lies to: ve hicle s with Audi side assist
®
Fig . 79 D rivin g sit u ations
A ss ist
Fig. 80 Rear of the ve hicle : po sition o f the senso rs (exa m·
p le)
Side assist funct ions at speeds above approxi­
mately 19 mph (30 km/h) .
@ Approaching vehicles
In certain cases , a veh icle w ill be classified as
c ritical for a lane change even if i t is sti ll some­
what far away. The faster a vehicle a pproaches,
the soon er the display in th e exterior m irro r will
turn on.
@ Vehicles tra veling with you
Vehicles traveling with yo u are indica ted in the
exterio r mir ror if they are classified as cr itical for
a lane change. A ll vehicles detected by side assist
are ind icated by th e time they enter your "blind
spot", at the latest .
@ Vehicles y ou are pass ing
If you s low ly pass a vehi cle that s ide assist has
detected (the difference in speed between the
vehicle and your vehicle is less than 9 mph (15 km/h)), the d isplay in the exter ior m irror tu rns
on as soon as the vehicle enters your blind spot .
The display wi ll not turn on if you quickly pass a
vehicle that side assist has detected (the differ­ ence in speed is greater than 9 mph (15 km/h)).
Functiona l limitat ions
T he radar sensors are des igned to detect the le ft
and right adjacent lanes when the road lanes are
the norma l width . In some situations, the display
in the exte rior mirror may turn on even though
there is no veh icle located in the area that is criti·
ca l for a lane change . For example :
- If the lanes are narrow or if your are driving on the edge of yo ur lane. If t his is the case, the .,..
77

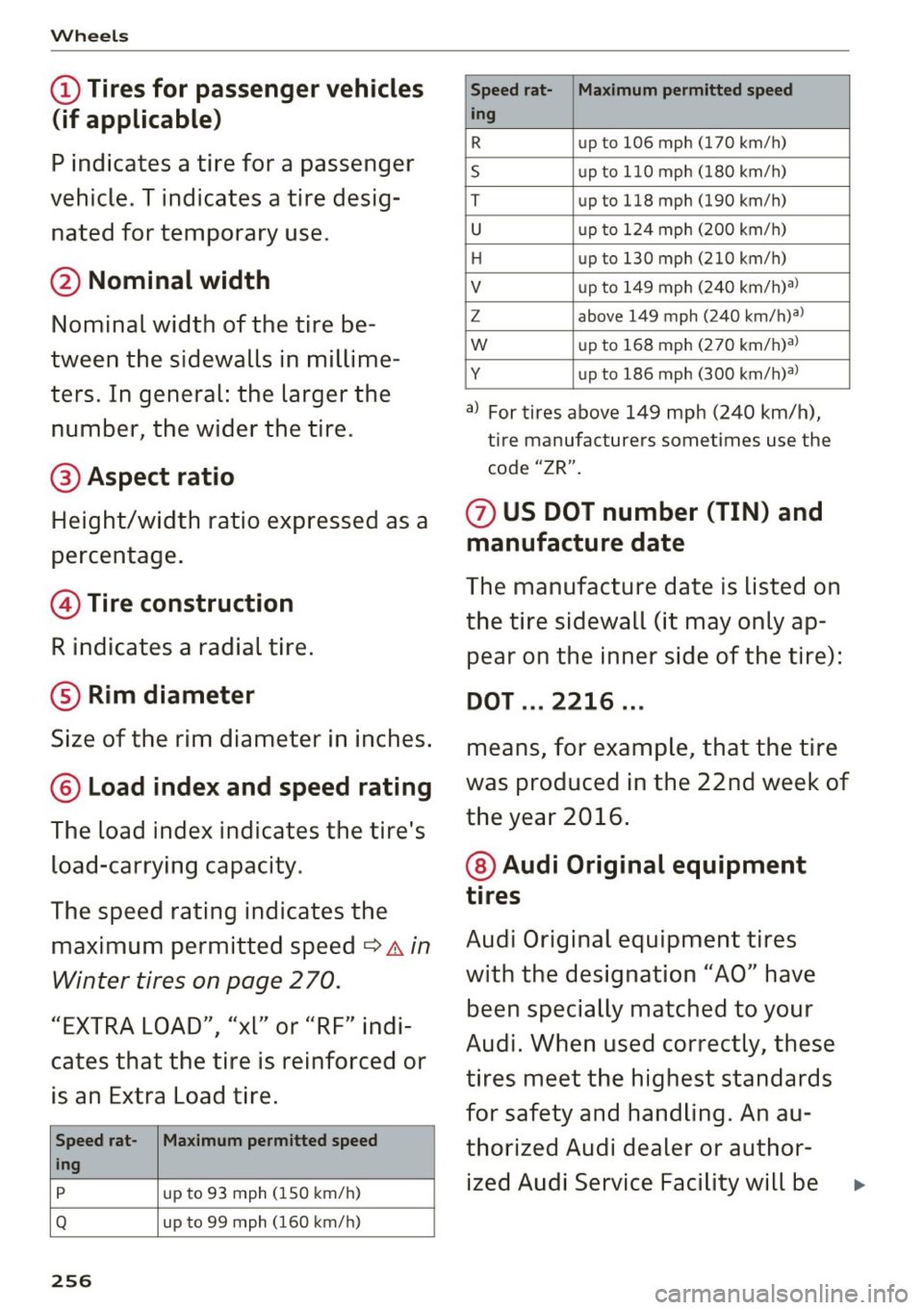

Wheels
(D Tires for passenger vehicles
(if applicable)
P indicates a tire for a passenger
vehicle. T indicates a tire desig­
nated for temporary use.
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters. In general: the larger the
number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage.
@ Tire construction
R indicates a radial tire.
® Rim diameter
Size of the rim diameter in inches.
@ Load index and speed rating
The load index indicates the tire's
load-carrying capacity.
The speed rating indicates the maximum permitted speed
¢ & in
Winter tires on page 2
70.
"EXTRA LOAD", "xl" or "RF" indi­
cates that the tire is reinforced or
is an Extra Load tire.
Speed rat- Maximum permitted speed
ing
p
up to 93 mph (150 km/h)
Q up to 99 mph (160 km/h)
256
Speed rat- Maximum permitted speed
Ing
R
up t o 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 1 18 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)al
z above 149 mph (240 km/h)al
w up to 168 mph (270 km/h)al
y up to 186 mph (300 km/h)al
a) For tires above 149 mph (240 km/h),
tire manufacturers sometimes use the
code "ZR".
(j) US DOT number (TIN) and
manufacture date
The manufacture date is listed on
the tire sidewall (it may only ap­
pear on the inner side of the tire):
DOT ... 2216 ...
means, for example, that the tire
was produced in the 22nd week of
the year 2016.
@ Audi Original equipment
tires
Audi Original equipment tires
with the designation "AO" have
been specially matched to your
Audi. When used correctly, these
tires meet the highest standards
for safety and handling. An au­
thorized Audi dealer or author­
ized Audi Service Facility will be

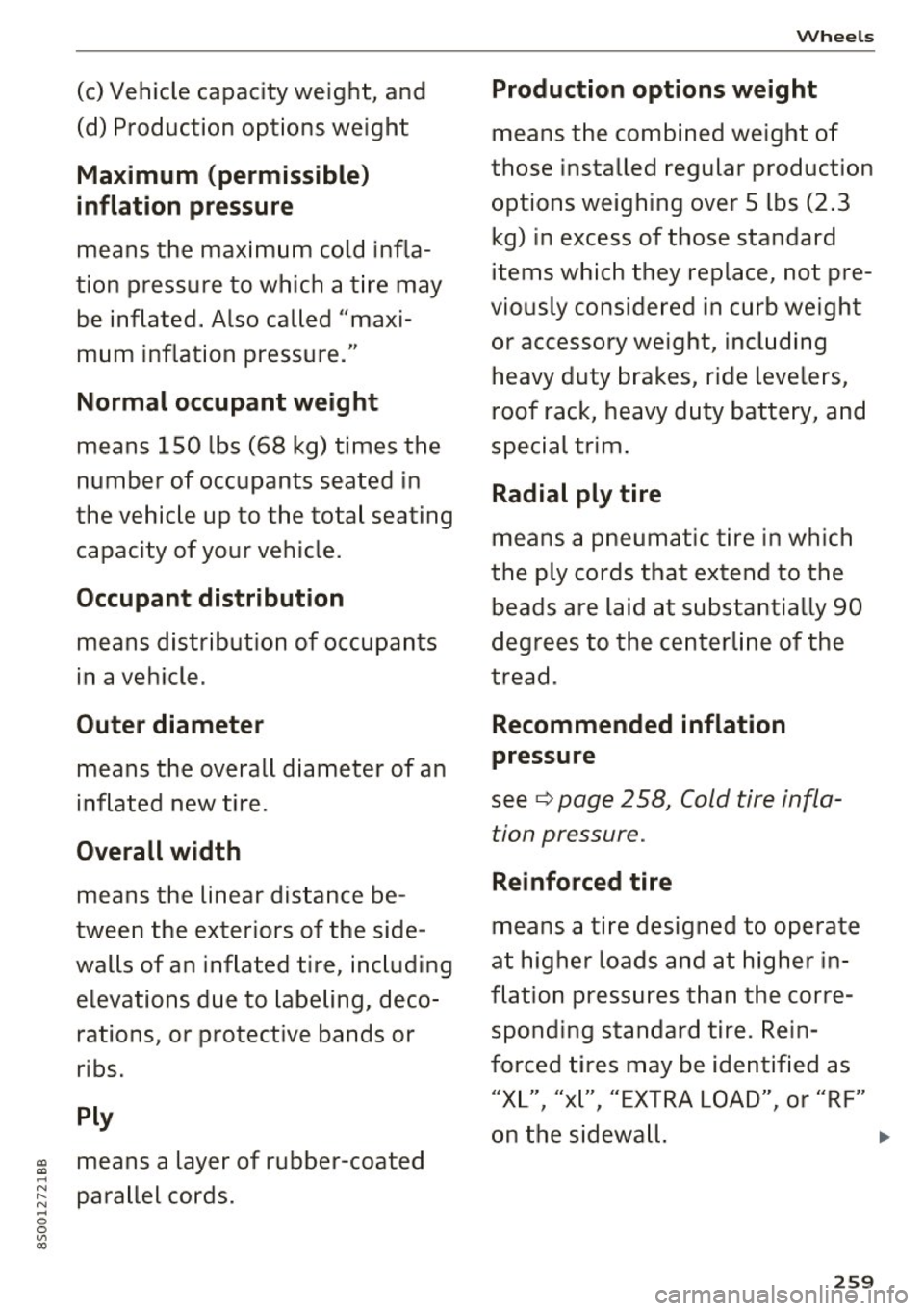

(c) Vehicle capacity weight, and
(d) Production options weight
Maximum (permissible)
inflation pressure
means the maximum cold infla­
tion pressure to which a t ire may
be inflated. Also called "maxi­
mum inflation pressure."
Normal occupant weight
means 150 lbs (68 kg) times the
number of occupants seated in
the vehicle up to the tota l seating
capacity of your vehicle.
Occupant distribution
means distribution of occupants
in a vehicle.
Outer diameter
means the overall diameter of an
inflated new tire .
Overall width
means the linear dis tance be­
tween the exteriors of the side­
walls of an inflated tire, including
elevations due to labeling, deco ­
rations, or protective bands or
ribs.
Ply
~ means a layer of rubber-coated ...
~ parallel cords . ... 0
0
V'> a:,
Wheels
Production options weight
means the combined weight of
those installed regular production
options weighing over 5 lbs (2.3 kg) in excess of those standard
items wh ich they replace, not pre­
viously considered in curb weight
or accessory weight, including
heavy duty brakes, ride levelers,
roof rack , heavy d uty ba tte ry , and
special trim .
Radial ply tire
means a pneumatic tire in which
the ply cords that extend to the
beads ar e laid at substantia lly
90
degrees to the centerline of the
tread.
Recommended inflation
pressure
see c:::> page 258, Cold tire infla­
tion pressure .
Reinforced tire
means a tire designed to operate
at higher loads and at higher in ­
fl at ion pressures than the corre­
sponding standard tire. Rein­
forced tires may be iden tified as
"X L" "x l" "EXTRA L OA D" or "RF" I 1 I
on the sidewall. ..,
259

Wheels

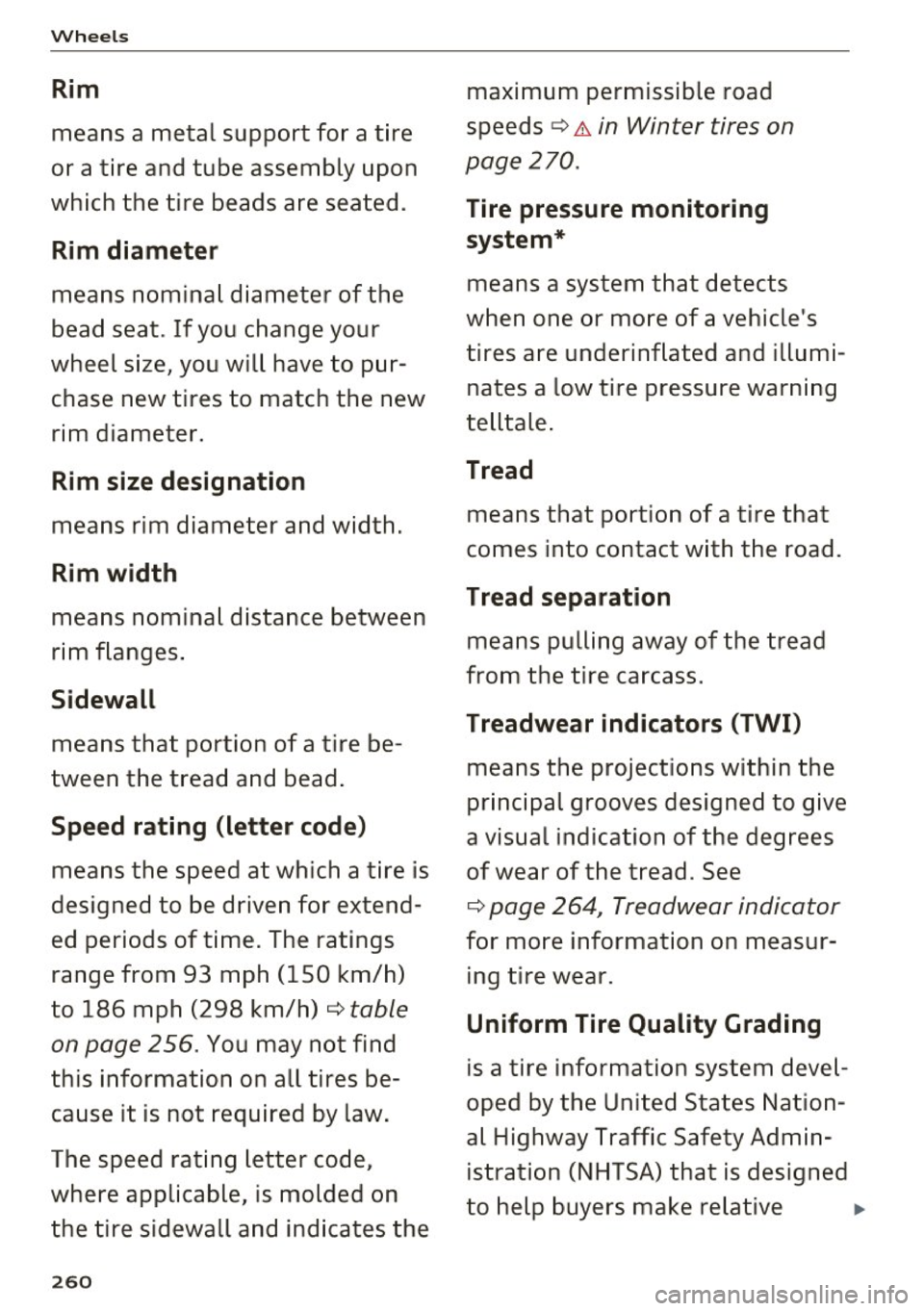

Rim
means a metal support for a tire
or a tire and tube assembly upon
which the t ire beads are seated .
Rim diameter
means nominal diameter of the
bead seat . If you change your
wh eel size, you will have to p ur­
chase new tires to match the new
rim d iameter .
Rim size designation
means rim diameter and w idth.
Rim width
means nomina l distance between
r im flanges .
Sidewall
means that portion of a t ire be­
twee n the tread and bead .
Speed rating (letter code)
means the speed at which a t ire is
designed to be driven for extend­
ed periods of ti me. The ratings
range from 93 mph (150 km/h)
to 186 mph (298 km/h)
¢ table
on page 256 .
You may not find
this information on all tires be­
cause it is not required by law.
The speed rating letter code,
wh ere applicable, is molded on
the tire sidewall and ind icates the
260
maximum permissible road
speeds
¢ A in Winter tires on
page 270 .
Tire pressure monitoring
system *
means a system that detects
when one or mo re of a vehicle's
tires a re underinflated and illumi ­
nates a low tire pressure war ning
telltale .
Tread
means that portion of a tire that
comes into contact wi th the road.
Tread separation
means pulling away of the tread
from the tire carcass .
Treadwear indicators (TWI)
means the project ions wi thin the
pr inc ipal grooves designed to g ive
a visua l indication of the degrees
of wear of the tread . See
¢ page 264, Treadwear indicator
for mo re information on meas ur­
ing tire wear.
Uniform Tire Quality Grading
i s a tire informa tion system devel ­
oped by the Unite d States Nation ­
a l Highway Traffic Safety Admin­
istration (NHTSA) that is designed
to help buyers make re lative
..

Wheels

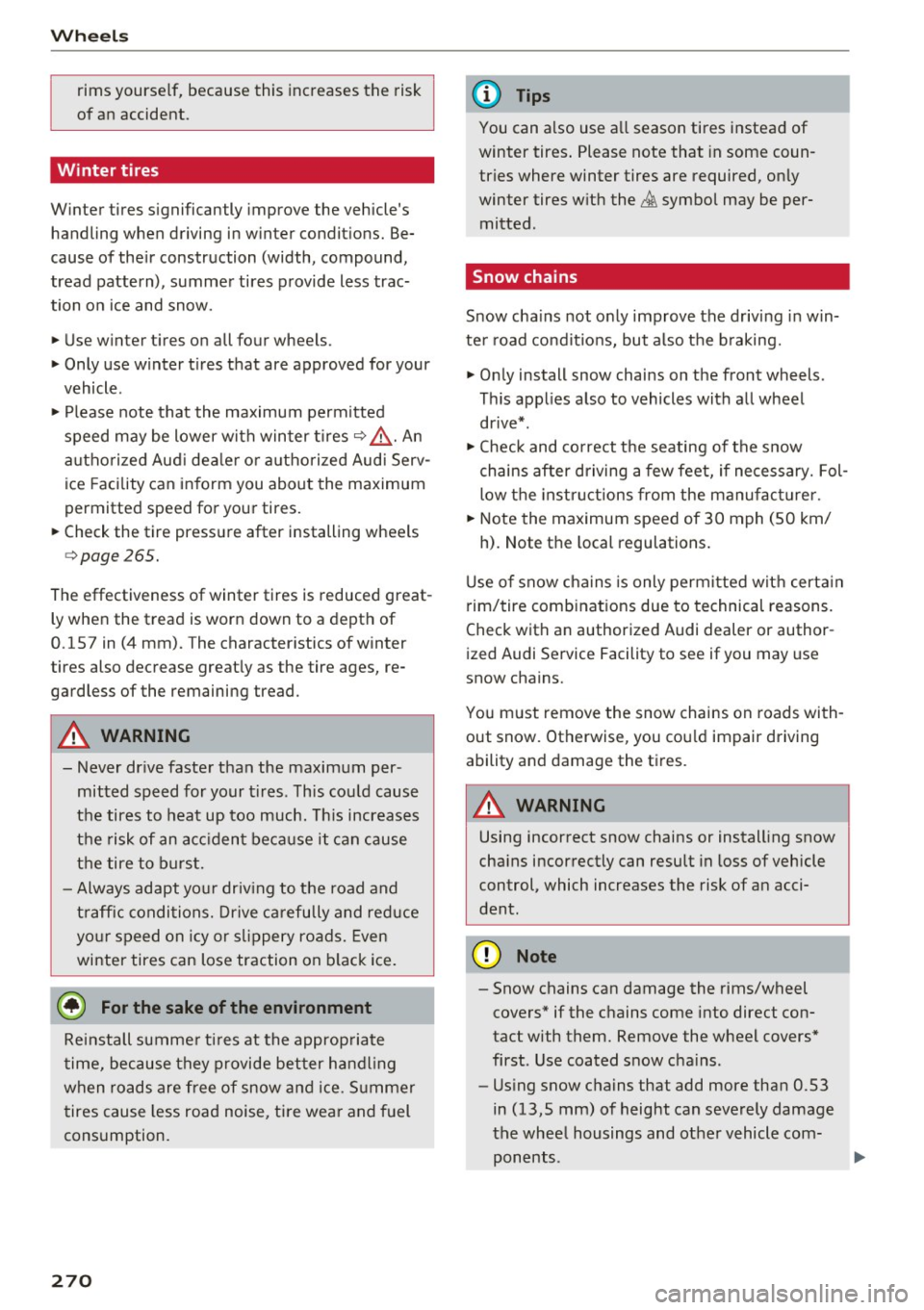

rims yourse lf, because this increases the risk
of an accident.
Winter tires
W inter tire s significan tly improve the vehicle 's
handling when driving in w inter condi tions. Be­
cause of the ir construction (width, compound,
tread pattern) , summe r tires p rovide less trac­
tion o n ice and snow.
.. Use w inter t ires o n all four wheels .
.. Only use w inter t ires that are approved for your
vehicle .
.. Please note that the maximum permitted
speed may be lower with winter tires
¢ & -An
a utho riz ed Aud i dea le r o r authorized Audi Serv­
ice Facility can inform you about the maximum
permitted speed fo r you r tires.
.. Check the tire pr essu re after installing whee ls
¢ page 265.
The effectiveness of winter tires is reduced great ­
ly whe n the tread is wor n down to a depth of
0 .157 in (4 mm). The character istics of winter
tires also decrease great ly as the tire ages, re­
gardless of the remaining tread.
A WARNING
- Never dr ive faste r than the maxim um per ­
mitted speed for your t ires . This cou ld cause
the tires to heat up too much. This increases
t h e risk of an a cciden t be ca use i t can c ause
t h e tire to burst.
- Always adapt yo ur driv ing to t he r oad and
t ra ffic conditions. Drive ca refully and red uce
yo ur sp eed on icy or slippery roads. Even
winte r tires can lose traction on black ice .
@ For the sake of the environment
Reinstall su mme r tir es at the approp ria te
t ime, because they provide bet ter ha ndling
when ro ads are free of snow a nd ice. S ummer
t ires cause less road noise, ti re wea r and fuel
consumption.
270
(D Tips
You can also use a ll season tires instea d of
winter tires . Please note that in some coun­
tries where winter tires are required, on ly
winter tires w it h the
& symbol may be per­
mitted.
' Snow chains
S now cha ins not on ly improve the driv ing in win­
te r road cond it io ns, but a lso the b raking .
.. On ly install snow chai ns on the front wheels .
T his applies also to vehicles with all wheel
dr ive*.
.. Check and co rrect t he seating of the snow
chains after driving a few feet, if nece ssary. Fol­
low t he inst ructions from the m anufac turer.
.. Note the max imum speed of 3 0 mph (50 km/
h). Note the local regulations.
U se of snow c hains is only permitte d wit h cert ain
rim/ tire comb inat ions due to technical reasons.
Check with a n authorized Audi dealer or author ­
i zed Audi Service Facility to see if you may use
snow chains.
You m ust remove the snow chains on roads wi th­
out snow . Otherwise, you co uld impair driving
ability and damage the t ires .
A WARNING
Using incor rect snow chains or installing snow
cha ins incor rectly can result in loss of vehicle
control, which increases the risk of an acci­
dent .
(D Note
-Snow chains can damage the rims/wheel
covers* if the c hains come into direct con­
tact with them. Remove the w heel covers *
first . Use coated snow cha ins .
- Us ing snow c hains that add more tha n 0.53
in (13,5 mm) of height can seve rely damage
the whee l housings and o ther vehicle com­
ponents .

co
co
.... N
" N .... 0
0
Vl c:o

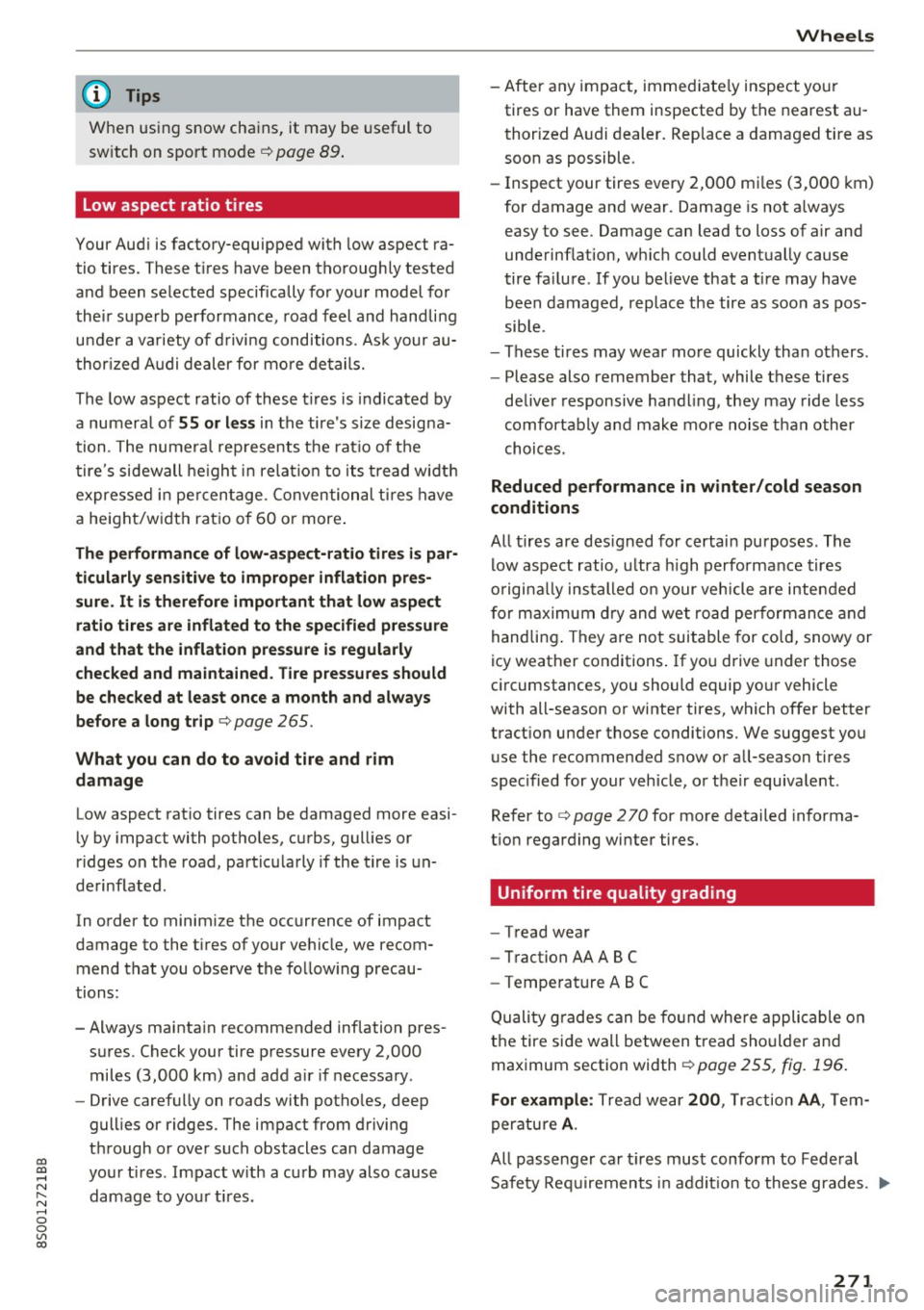

@ Tips
When using snow chains, it may be useful to
switch on sport mode¢
page 89.
Low aspect ratio tires
Your Aud i is factory-equipped with low aspect ra­
tio tires. These t ires have been thoroughly tested
and been selected specifically for your model for
their supe rb performance, road feel and handling
u nder a va riety of d riving conditions. As k your au­
thor ized Audi dealer for mo re details.
The low aspect ratio of these t ires is indicated by
a numeral of
55 or l ess in the tire's size designa­
tion. The numera l rep resents the rat io of the
tire's sidewall he igh t in relat io n to its tread w idth
expressed in pe rcen tage. Conventional t ires have
a height/w idth rat io of 60 or more .
The performan ce of low -a spe ct-ratio tire s is par­
ticular ly sen sit iv e to improper inflation pre s­
s ur e. It i s therefore import ant that low a spect
ratio tire s are infl ate d to the specified pre ssure
and that the inflation pre ssure i s regularl y
c hecked and mai nta ined . Tir e pre ssure s should
b e che cked at least once a month and alw ay s
before a long tri p ¢
page 265.
What you can do to avoid tire and rim
damage
Low aspect ratio tires can be damaged more easi­
ly by impact with potholes, curbs, gullies or
ridges on the road, particularly if the t ire is un­
derinflated .
In order to minimize the occurrence of impact
damage to the tires of your vehicle, we recom­
mend that you observe the follow ing precau­
tions:
- Always maintain recommended inflation pres­
sures. Check your tire pressure every 2,000
miles (3,000 km) and add a ir if necessary .
- Drive carefully on roads with potho les, deep
gul lies or ridges. The impact from driving
t h rough or ove r such obstacles can damage
you r tires. Impact w ith a curb may also cause
damage to your tires.
Wh eel s
- After any impac t, immed iate ly inspect your
tires or have them inspected by the nearest au­ thorized A udi dealer. Replace a damaged tire as
soon as possible.
- Inspect your tires every 2,000 mi les (3,000 km)
for damage and wear. Damage is not a lways
easy to see. Damage can lead to loss of air and
underinflation, wh ic h could eventually cause
tire fa ilure . If you believe that a t ire may have
been damaged, replace the tire as soon as pos­
sible.
- These tires may wear more quickly than others.
- Please also remember that, while these tires
delive r responsive handling, they may ride less
comfortably and make mo re noise than other
choices.
Reduced pe rfo rmance in winter /cold season
conditions
All t ires are des igned for certai n purposes. The
low aspect ratio, ultra h igh performance tires
o rigi na lly installed o n your vehicle are intended
fo r m aximum d ry and wet road per formance and
handling . They are not sui table for co ld, snowy or
icy weather conditions . If you drive under those
circumstances, you should equip yo ur vehicle
with all-season or winter tires, which offer better
tract ion under those conditions. We suggest you
use the recommended snow or all-season tires
specified for your veh icle, or their equivalent.
Refer to¢
page 2 70 for more detailed informa­
t ion regarding winter tires.
Uniform tire quality grading
-T read wear
- Traction AA A 8 C
- Temperature ABC
Quali ty g rades can be fo und whe re applicable o n
the tire side wall between tread sho ulder and
maximum section width
¢page 255, fig. 196 .
For exampl e: Tread wear 200, Traction AA, Tem­
peratu re
A .
All passenger car t ires must conform to Fede ral
Safety Req uirements i n addit io n to these grades . .,,_
271

co
co
.... N
" N .... 0
0
Vl c:o

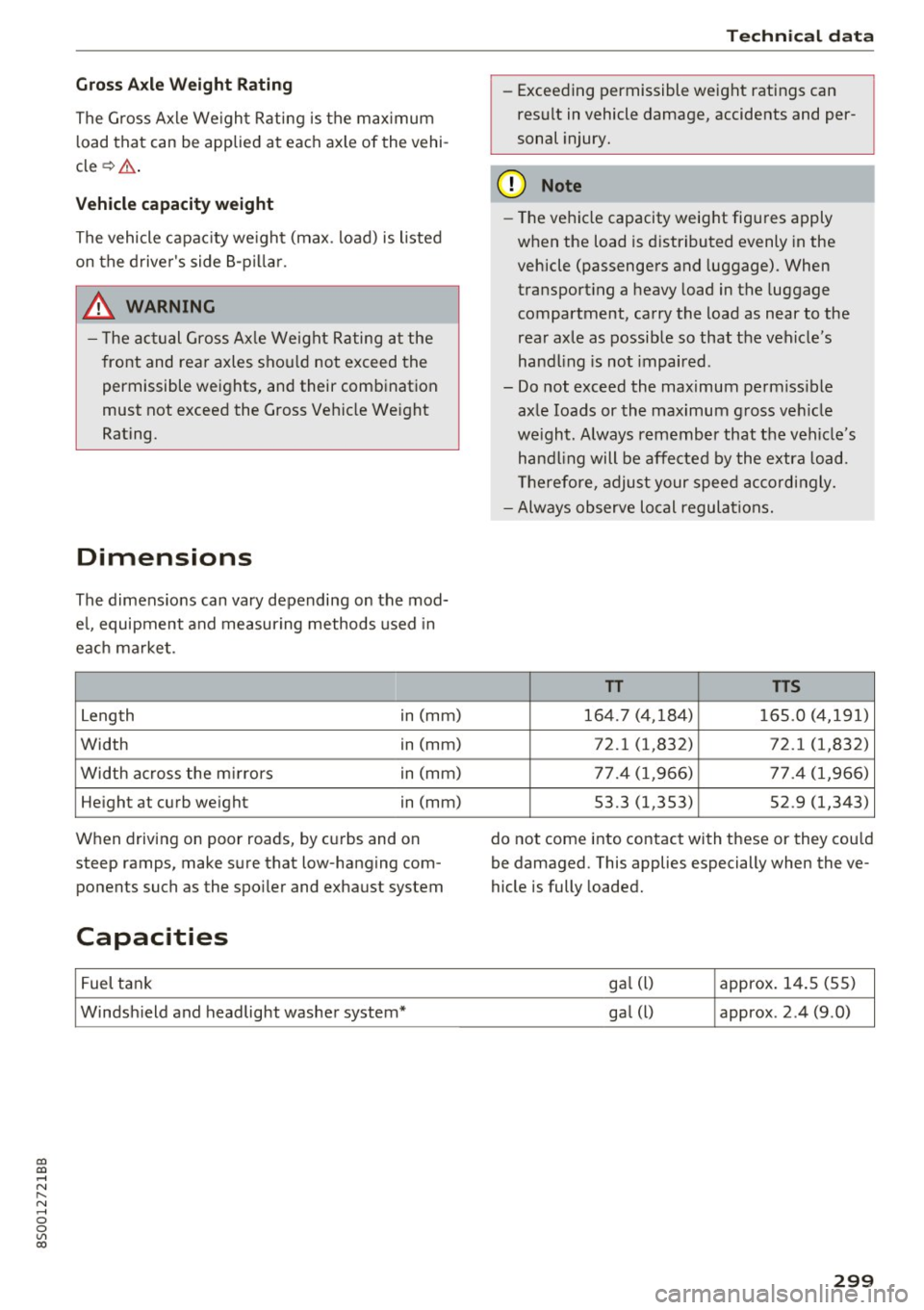

Gross Axle Weight Rating
The G ross Axle We igh t Rating is the max imum
l oad that can be applied at each axle of the vehi ­
cle ~.& .
Vehicle capacity weight
The vehicle capac ity we ight (max. load) is listed
on the drive r's side 8-p illar.
_& WARNING
- T he ac tual Gross Ax le Weight Ra ting a t the
front and rear axles sho uld not exceed the
permissible weights, and their combination
must not exceed the Gross Ve hicle We ight
Rating.
Dimensions
The dimens io ns can vary depending on the mod­
e l, equipment and measur ing methods used in
e a ch ma rket.
Leng th in (mm)
Width in (mm)
Width across the m irrors in (mm)
He ight at cu rb we ight in (mm)
When driving on poor roads, by cu rbs and on
steep ramps, make s ure that low-hang ing com­
ponents such as the spo iler and exhaust system
Capacities
F uel t ank
Windsh ield and headlight washer system*
Techn ical data
- Exceeding permissible weight ratings can
res ult in vehicle damage, accidents and per­
sonal injury.
(D Note
- The vehi cle capacity weig ht figures apply
when the load is d istributed evenly in the
vehicle (passengers and luggage) . When
transport ing a heavy load in the luggage
compartment, carry the load as near to the
rear axle as possib le so that the veh icle's
hand ling is not impaired .
- Do not exceed the maximum perm iss ible
ax le loads or the maximum g ross ve hicle
we igh t. Always remember that the veh icle's
han dling will be affe cted by the extra load.
Th erefore, adjust your spee d accordingly.
- Always observe local regulations.
TT TTS
164.7 ( 4,1 84) 165 .0 (4,191)
72.1 (1,832) 72.1 (1,832)
77.4 (1 ,966) 77.4 (1,966)
53.3 (1,353) 52.9 (1,343)
do not come i nto contact with these or they cou ld
be damaged. This applies especially when the ve­
hicle is fully loaded.
ga l (l) approx. 1 4.5 (5 5)
ga l
(l) approx . 2 .4 (9 .0)
299
