2001 model year changes
INSTRUMENT CLUSTER SIA RESET
Model: E38,E39,E46,E52,E53
Production Date: E46 from 9/99
E38,E39,E53 from 9/00
On 2001 vehicles without the diagnostic connector in the engine compartment, the use of
the SIA reset tool is not possible. The service indicator may be reset using the reset mode
in the instrument cluster.
Reset procedure for high and low clusters with SIA III using the Reset Mode:
• Ignition key must be “off”
 Press and hold the trip odometer reset button in the instrument cluster (left button), and
turn the ignition key to the first position.
 Keep the button pressed for approximately 5 seconds until one of the following words
appear in the display: “OIL SERVICE, or “INSPECTION”, with “RESET”.
The service due is shown with “reset” if the coded minimum consumption limit has been
reached and resetting is possible. If “reset” is not shown, the minimum limit has not been
reached and resetting is not possible.
 Press and hold the reset button again until the word “RESET” begins to flash.
½
P
1
20406080100
120
1400234
5
6
7
!ABS











miles
0
10
15 20 40
+



TURN THE KEY TO
POSITION 1 (KL R)PRESS AND HOLD
LEFT BUTTON.
KEEP PRESSED FOR
5 SECONDS AFTER
KEY IS SWITCHED
ON.
TAP BUTTON TO
RESET DISPLAY.
12
Service interval reset: high cluster

22
2001 model year changes

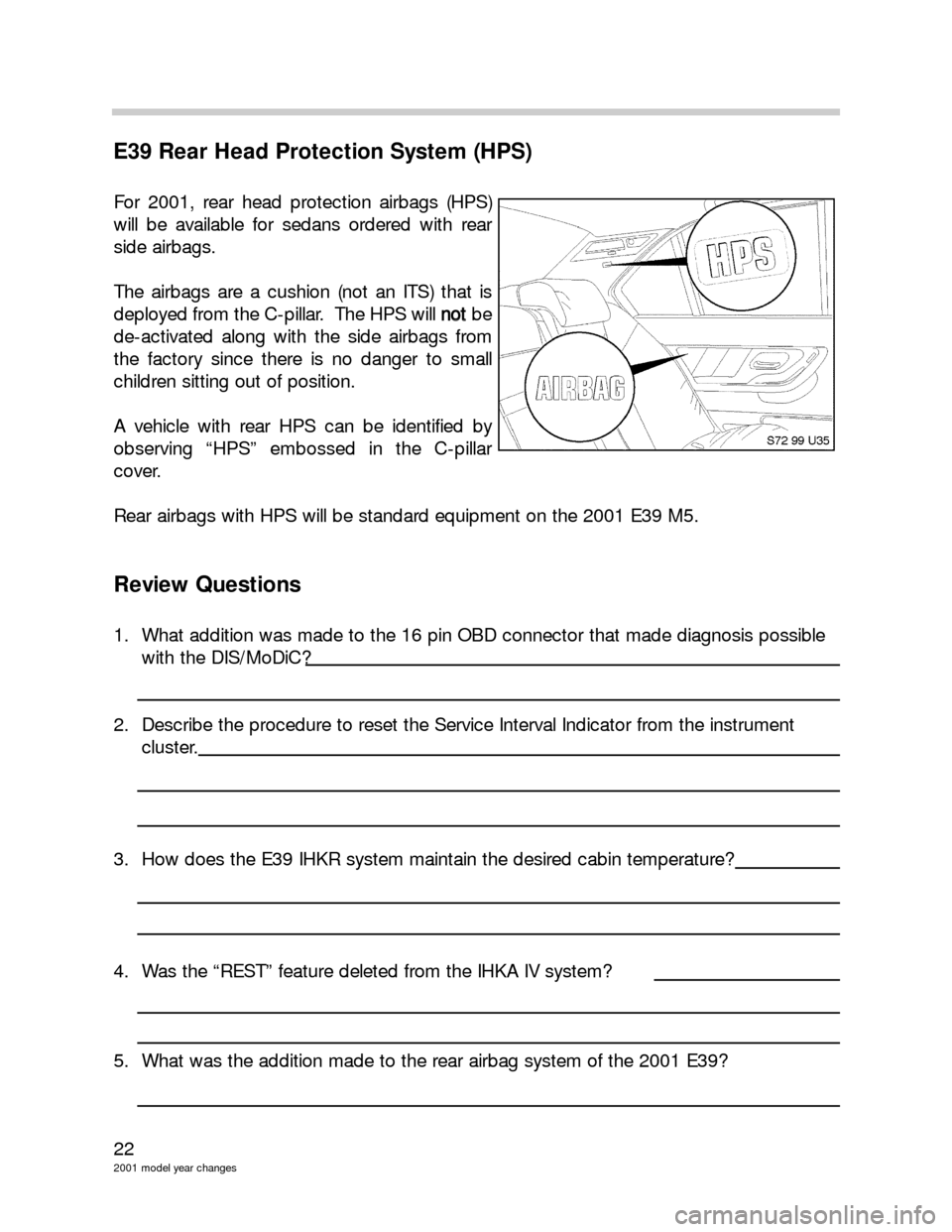

E39 Rear Head Protection System (HPS)
For 2001, rear head protection airbags (HPS)
will be available for sedans ordered with rear
side airbags.
The airbags are a cushion (not an ITS) that is
deployed from the C-pillar. The HPS will n no
ot
t
be
de-activated along with the side airbags from
the factory since there is no danger to small
children sitting out of position.
A vehicle with rear HPS can be identified by
observing “HPS” embossed in the C-pillar
cover.
Rear airbags with HPS will be standard equipment on the 2001 E39 M5.
Review Questions
1. What addition was made to the 16 pin OBD connector that made diagnosis possible
with the DIS/MoDiC?
2. Describe the procedure to reset the Service Interval Indicator from the instrument
cluster.
3. How does the E39 IHKR system maintain the desired cabin temperature?
4. Was the “REST” feature deleted from the IHKA IV system?
5. What was the addition made to the rear airbag system of the 2001 E39?
