BMW 318ti 1999 E36 Electrical Troubleshooting Manual
Manufacturer: BMW, Model Year: 1999, Model line: 318ti, Model: BMW 318ti 1999 E36Pages: 278, PDF Size: 2.85 MB
Page 211 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
G12 . .
DRIVER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . .
driver’s seat right
G13 . .
PASSENGER’S SIDE
PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . .
passenger’s seat left
G14 . .
LEFT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
G15 . .
RIGHT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in passenger’s door
G6509
GENERATOR . . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . in RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
H2 . . . LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
H4 . . .
RIGHT FRONT TURN LIGHT . . . . . . . . .
RH front of vehicle
H5 . . . RIGHT REAR TURN LIGHT . . . . . . . . . . RH side of body rear end
H6 . . . LEFT REAR TURN LIGHT . . . . . . . . . . . LH side of body rear end
H7 . . .
LEFT FRONT TURN LIGHT . . . . . . . . . .
LH front of vehicle
H8 . . .
RIGHT FRONT AUXILIARY TURN
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
RH front of vehicle
H9 . . . LEFT FRONT AUXILIARY TURN LIGHT LH front of vehicle
H10 . . CHIME MODULE . . . . . . . . . . . . . . . . . . . above LH footwell dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
H24 . . LEFT BRAKE LIGHT . . . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H25 . .
LEFT TAIL LIGHT . . . . . . . . . . . . . . . . . . .
LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY

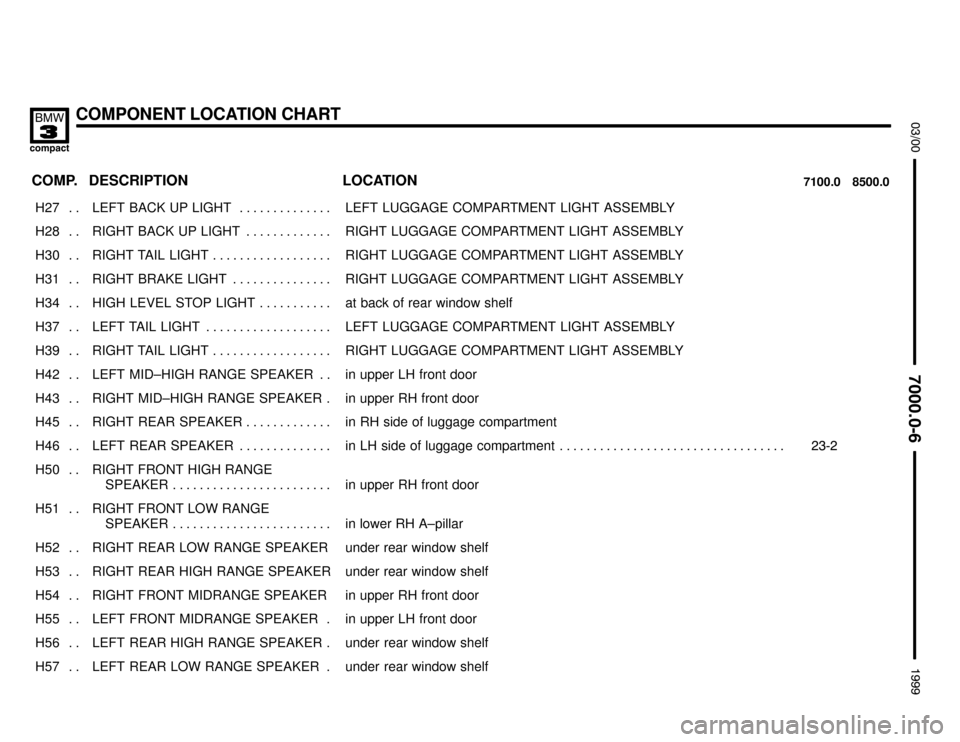

Page 212 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
H27 . . LEFT BACK UP LIGHT . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H28 . .
RIGHT BACK UP LIGHT . . . . . . . . . . . . .
RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H30 . . RIGHT TAIL LIGHT . . . . . . . . . . . . . . . . . . RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H31 . . RIGHT BRAKE LIGHT . . . . . . . . . . . . . . . RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H34 . .
HIGH LEVEL STOP LIGHT . . . . . . . . . . .
at back of rear window shelf
H37 . .
LEFT TAIL LIGHT . . . . . . . . . . . . . . . . . . .
LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H39 . . RIGHT TAIL LIGHT . . . . . . . . . . . . . . . . . . RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H42 . . LEFT MID–HIGH RANGE SPEAKER . . in upper LH front door
H43 . .
RIGHT MID–HIGH RANGE SPEAKER .
in upper RH front door
H45 . . RIGHT REAR SPEAKER . . . . . . . . . . . . . in RH side of luggage compartment
H46 . . LEFT REAR SPEAKER . . . . . . . . . . . . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
H50 . .
RIGHT FRONT HIGH RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . .
in upper RH front door
H51 . .
RIGHT FRONT LOW RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . .
in lower RH A–pillar
H52 . .
RIGHT REAR LOW RANGE SPEAKER
under rear window shelf
H53 . . RIGHT REAR HIGH RANGE SPEAKER under rear window shelf
H54 . . RIGHT FRONT MIDRANGE SPEAKER in upper RH front door
H55 . . LEFT FRONT MIDRANGE SPEAKER . in upper LH front door
H56 . .
LEFT REAR HIGH RANGE SPEAKER .
under rear window shelf
H57 . . LEFT REAR LOW RANGE SPEAKER . under rear window shelf
Page 213 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
H58 . . LEFT FRONT LOW RANGE SPEAKER in lower LH A–pillar
H59 . .
LEFT FRONT HIGH RANGE SPEAKER
in upper LH front door
H66 . . SUBWOOFER . . . . . . . . . . . . . . . . . . . . . . at back of rear window shelf
H91 . .
RIGHT LUGGAGE COMPARTMENT
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
right rear light assembly
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . passenger’s seat
K2 . . . .
HORN RELAY . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K9 . . . . UNLOADER RELAY, TERMINAL 15 . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
K13 . . REAR DEFOGGER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K16 . .
HAZARD FLASHER RELAY . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K19 . . COMPRESSOR CONTROL RELAY . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K22 . .
HIGH SPEED RELAY . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K45 . .
FOLDING SUNROOF COMFORT
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
K46z . DAY LIGHT RELAY MODULE . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K48 . .
LOW BEAM LIGHT RELAY . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K125 . ABS PUMP MOTOR RELAY, TIMED . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .
0
Page 214 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
K6300 ENGINE CONTROL MODULE RELAY . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K6301w
FUEL PUMP RELAY . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K6304 SECONDARY AIR PUMP RELAY . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
0
K6326 UNLOADER RELAY, TERMINAL 15 . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
L1 . . . .
EWS TOROIDAL COIL . . . . . . . . . . . . . .
at ignition switch
M2 . . .
FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . .
below RH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . rear of engine compartment below center of cowl . . . . . . . . . . . . . . . . . . . . . 0
M4 . . . WASHER PUMP . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment on washer fluid reservoir . . . . . . . . . . 0
M7 . . .
HEADLIGHT/FOG LIGHT WASHER
PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
0
M9 . . .
AUXILIARY FAN MOTOR . . . . . . . . . . . .
behind front grille behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
M12 . . DRIVER’S DOOR LOCK MOTOR . . . . . in lower LH front door behind trim panel
M13 . . PASSENGER’S DOOR LOCK MOTOR in lower RH side of front door behind trim panel
M16 . .
GAS FILLER LOCK MOTOR . . . . . . . . .
in RH rear side of luggage compartment behind trim panel . . . . . . . . . . . . .
0
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment behind trim panel . . . . . . . . . . . . . . . . . . .
0
M21 . . DRIVER’S WINDOW MOTOR . . . . . . . . LH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
M23 . . PASSENGER’S WINDOW MOTOR . . . . RH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
M24z . FOLDING SUNROOF MOTOR . . . . . . . . in roof panel
M25 . .
CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . rear of engine compartment behind RH fresh air cowl
Page 215 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
M50 . .
DRIVER’S SEAT CUSHION TILT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat
M51 . . DRIVER’S SEAT MOVEMENT MOTOR under driver’s seat
M52 . .
DRIVER’S SEAT HEIGHT MOTOR . . . .
under driver’s seat
M53 . .
DRIVER’S SEATBACK RECLINER
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat
M58 . .
PASSENGER’S SEATBACK RECLINER
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat
M59 . . PASSENGER’S SEAT HEIGHT MOTOR under passenger’s seat
M60 . .
PASSENGER’S SEAT MOVEMENT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat
M61 . .
PASSENGER’S SEAT CUSHION TILT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat
M93 . .
AUXILIARY THROTTLE POSITION
MOTOR (ADS) . . . . . . . . . . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
M111 .
FRESH AIR RECIRCULATION MOTOR
behind center of dashboard
M6510 STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment
N8 . . . ANTENNA AMPLIFIER AM/FM . . . . . . . on lift gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
N9 . . .
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console
N12w .
ANTI–THEFT CONTROL MODULE
(ALPINE) . . . . . . . . . . . . . . . . . . . . . . . . .
RH side of dash behind glove box
N17 . . CRASH CONTROL MODULE . . . . . . . . . behind instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
N22 . . CD CHANGER . . . . . . . . . . . . . . . . . . . . . . in LH forward side of luggage compartment
Page 216 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
P90 . . FRONT POWER DISTRIBUTION BOX rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
P95 . .
AUXILIARY FUSE BOX . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
P97 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
R11 . . BLOWER RESISTORS . . . . . . . . . . . . . . behind center of dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
R6252
THROTTLE POSITION SENSOR . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
R6255z
THROTTLE POSITION SENSOR (ASC)
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S2 . . . . IGNITION SWITCH . . . . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
S3 . . . .
AUTOMATIC TRANSMISSION RANGE
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S4 . . . . HORN SWITCH . . . . . . . . . . . . . . . . . . . . . on steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
S5 . . . .
WIPER/WASHER SWITCH . . . . . . . . . . .
LH side of dash RH side of steering column above
S6 . . . . ASC SWITCH . . . . . . . . . . . . . . . . . . . . . . center console
S7 . . . . COMBINATION SWITCH . . . . . . . . . . . . . LH side of dash LH side of steering column above . . . . . . . . . . . . . . . . . . . . 0
S8 . . . .
LIGHT SWITCH . . . . . . . . . . . . . . . . . . . . .
LH side of dash
S13 . . PASSENGER’S DOOR JAMB SWITCH RH front door jamb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S14 . . DRIVER’S DOOR JAMB SWITCH . . . . . front LH door pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S17 . . MIRROR CONTROL SWITCH . . . . . . . . in upper LH front door
S18 . .
HAZARD SWITCH . . . . . . . . . . . . . . . . . .
below front of console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S21w . ENGINE HOOD SWITCH . . . . . . . . . . . . front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
S28 . . CRUISE CONTROL SWITCH . . . . . . . . . LH side of dash RH side of steering column above . . . . . . . . . . . . . . . . . . . . 0
S29 . .
BRAKE LIGHT SWITCH . . . . . . . . . . . . .
LH footwell on brake pedal support bracket behind LH footwell trim . . . . . .
0
Page 217 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
S30 . . BRAKE LIGHT SWITCH . . . . . . . . . . . . . LH footwell on clutch pedal support bracket behind LH footwell trim . . . . . 0
S31 . .
PARK BRAKE SWITCH . . . . . . . . . . . . . .
center console on rear of park brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S32 . . CLUTCH SWITCH . . . . . . . . . . . . . . . . . . LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
S36y . DOUBLE TEMPERATURE SWITCH . . . front RH side of engine compartment near RH headlight assembly . . . . . . 0
S37 . .
GLOVE BOX LIGHT SWITCH . . . . . . . .
in glove box
S38 . .
TILT/SLIDE SUNROOF SWITCH (SHD)
in roof panel
S47 . . DRIVER’S DOOR LOCK SWITCH . . . . . LH front door in door at key lock assembly
S49 . . PASSENGER’S DOOR LOCK SWITCH RH front door in door at key lock assembly
S51 . .
DRIVER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat
S53 . .
DRIVER’S SEAT, SEAT HEATER
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console
S54 . .
PASSENGER’S SEAT, SEAT HEATER
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S56 . .
PASSENGER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S58 . . DRIVER’S SEAT BELT SWITCH . . . . . . in LH front seat belt buckle
S59 . . PASSENGER’S SEAT BELT SWITCH . in RH front seat belt buckle
S61y .
LUGGAGE COMPARTMENT LIGHT
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
underside of luggage compartment lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S75 . .
BLOWER SWITCH . . . . . . . . . . . . . . . . . .
center of dash
S77 . .
DRIVER’S MAKE–UP MIRROR
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
above LH sun visor in sun visor bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
Page 218 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
S78 . .
PASSENGER’S MAKE–UP MIRROR
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
above RH sun visor in sun visor bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S82y . FOG LIGHT SWITCH . . . . . . . . . . . . . . . . on instrument cluster
S126y
DRIVER’S POWER WINDOW SWITCH
center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S127y
PASSENGER’S POWER WINDOW
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S198 . JET HEATER THERMOSWITCH . . . . . . front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S218 . REAR DEFOGGER SWITCH . . . . . . . . . center console
S235 .
STARTER IMMOBILIZATION SWITCH .
LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
S238 . FOLDING SUNROOF SWITCH . . . . . . . in roof panel
S302 . CENTRAL LOCKING SWITCH . . . . . . . . center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
S530 .
IHKS CONTROL SWITCH . . . . . . . . . . . .
center of dash
S531 . TEMPERATURE WHEEL SWITCH . . . . center of dash
S8503 PROGRAM SWITCH . . . . . . . . . . . . . . . . center console
S8507 KICK–DOWN SWITCH . . . . . . . . . . . . . . LH footwell
S8511
REVERSING LIGHT SWITCH . . . . . . . .
under front of car LH side of transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
T6151 CYL. 1 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
T6152 CYL. 2 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
T6153 CYL. 3 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
T6154
CYL. 4 IGNITION COIL . . . . . . . . . . . . . .
RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
X0 . . . . B+ JUNCTION POINT . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Page 219 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
X2 . . . . BATTERY B+ START POINT . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
X9 . . . .
B+ JUNCTION POINT . . . . . . . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
X13 . . (30 PINS, BLACK) . . . . . . . . . . . . . . . . . . LH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
0
X14 . . (30 PINS, NATURAL) . . . . . . . . . . . . . . . . LH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
0
X16 . .
(26 PINS, NATURAL) . . . . . . . . . . . . . . . .
LH side of dash rear side of instrument cluster, A2w . . . . . . . . . . . . . . . . . . .
0
0
X17 . .
(26 PINS, BLUE) . . . . . . . . . . . . . . . . . . . .
LH side of dash rear side of instrument cluster, A2w . . . . . . . . . . . . . . . . . . .
0
0
X20 . . (25 PINS, BLACK) . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
0
X22 . . (26 PINS, GRAY) . . . . . . . . . . . . . . . . . . . behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
0
X32 . .
(12 PINS, NATURAL) . . . . . . . . . . . . . . . .
LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
0
X33 . . (12 PINS, BLACK) . . . . . . . . . . . . . . . . . . LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
0
X35 . . (12 PINS, NATURAL) . . . . . . . . . . . . . . . . below LH side of dash RH side of steering column . . . . . . . . . . . . . . . . . . . .
0
0
X44 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 0
X45 . .
(9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .
0
X51 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 0
X52 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 0
X53 . .
(9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .
0
X56 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 0
X58 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 0
X63 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
X64 . .
(9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .
0
X65 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Page 220 of 278
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
X69 . . (25 PINS, GRAY) . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
0
X70 . .
(7 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
0
X72 . . (6 PINS, NATURAL) . . . . . . . . . . . . . . . . . LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
0
X74 . . (50 PINS, YELLOW) . . . . . . . . . . . . . . . . . below rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 0
X78 . .
(4 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
LH footwell on clutch pedal support bracket behind LH footwell trim . . . . .
0
0
X85 . .
(3 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
0
X105 . (2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . on underside of engine hood
X106 . (2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . on underside of engine hood
X107 .
(2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
0
X111 . . (2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment top of brake fluid reservoir . . . . . . . . . 0
X113 . (3 PINS, GRAY) . . . . . . . . . . . . . . . . . . . . . above RH front wheel well behind RH front wheel . . . . . . . . . . . . . . . . . . . . . 0
0
X114 . (3 PINS, GRAY) . . . . . . . . . . . . . . . . . . . . . above LH front wheel well behind LH front wheel . . . . . . . . . . . . . . . . . . . . . . 0
0
X116 .
(2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
LH footwell on clutch pedal support bracket behind LH footwell trim . . . . .
0
X118 . (2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . above LH front wheel well behind LH front wheel . . . . . . . . . . . . . . . . . . . . . . 0
X121 . (2 PINS, WHITE) . . . . . . . . . . . . . . . . . . . . LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
X123 .
(2 PINS, GRAY) . . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
0
X128 . (3 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . LH front of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
X132 . (2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . front of engine compartment
X133 . (2 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . front of engine compartment
X137 .
(3 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
RH front of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0
X142 . (3 PINS, GRAY) . . . . . . . . . . . . . . . . . . . . . under rear of car LH side of on differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
