BMW 320i 2001 Owners Manual

131n
IndexDataTechnologyRepairsCar careControlsOverview
Approved wheel and tire specifications Tire specifications Steel rim Alu-wheel
(black)Light-alloy
wheel
Winter tires
195/65 R 15 91 Q M+S 6.5Jx15 6.5Jx15 6.5Jx15
205/60 R 15 91 Q M+S 6.5Jx15 6.5Jx15
Ð6.5Jx15
7Jx15
205/55 R 16 91 Q M+S
225/50 R 16 92 Q M+S7Jx16 7Jx16
205/50 R 17 93 Q M+S extra load Ð 7Jx17
225/45 R 17 91 Q M+S Ð Ð 8Jx17
Space-saver spare tire Ð
T 125/90 R 15 96 M 3.5Bx15 Ð Ð
T 115/90 R 16 92 M 3.0Bx16 Ð Ð
T 125/90 R 16 98 M 3.5Bx16 Ð Ð
T 125/80 R 17 99 M 3.5Bx17 Ð Ð
Comply with the specifications for tires and wheels in the vehicle's manuals.
If you install tire sizes not approved by the manufacturer, an entry in the
vehicle documents may be necessary.
Snow chains
*
You cannot mount snow chains with
the following tires:
225/50 R 16 92 W
225/50 ZR 16
225/45 R 17 91 W
245/40 ZR 17
225/50 R 16 92 Q M+S
225/45 R 17 91 Q M+SMixed tiresFor details concerning tire manufac-
turers for mixed tires, refer to the
vehicle documents.

132n
Approved wheel and tire specificationsTire specifications Steel rim Light-alloy wheel
BMW 325i/330xi
All season tires
205/55 R 16 91 H M+S 7Jx16 7Jx16
205/50 R 17 93 V M+S extra load 7Jx17 7Jx17
Summer tires
205/55 R 16 91 V
225/50 R 16 92 W (not on 325xi)
225/50 ZR 16 (not on 325xi)Ð 7Jx16
205/50 R 17 93 W extra load Ð 7Jx17
225/45 R 17 91 W Ð 8Jx17
Front: 225/45 ZR 17
Rear: 245/40 ZR 17Ð
Ð7.5Jx17
8.5Jx17
Winter tires205/55 R 16 91 Q M+S
225/50 R 16 92 Q M+S (not on 325xi)
7Jx16 7Jx16
205/50 R 17 93 Q M+S extra load Ð 7Jx17
225/45 R 17 91 Q M+S Ð 8Jx17
Space-saver spare tire
T 115/90 R 16 92 M 3.0Bx16 Ð
T 125/90 R 16 98 M 3.5Bx16 Ð
T 125/80 R 17 99 M 3.5Bx17 Ð
Comply with the specifications for tires and wheels in the vehicle's manuals.
If you install tire sizes not approved by the manufacturer, an entry in the vehicle
documents may be necessary.
BMW 325xiFor all tires, only light-alloy wheels must
be used.Snow chains
*
You cannot mount snow chains
with the following tires:
225/50 R 16 92 W
225/50 ZR 16 92 Q M+S
225/50 ZR 16
225/45 R 17 91 W
225/45 R 17 91 Q M+S
245/40 ZR 17Mixed tiresFor details concerning tire manufac-
turers for mixed tires, refer to the
vehicle documents.

133n
IndexDataTechnologyRepairsCar careControlsOverview
Tire specifications Steel rim Light-alloy wheel
BMW 330i/330xi
All season tires
205/50 R 17 93 V M+S extra load 7Jx17 7Jx17
Summer tires
205/50 R 17 93 W extra load Ð 7Jx17
225/45 R 17 91 W Ð 8Jx17
Front: 225/45 ZR 17
Rear: 245/40 ZR 17Ð
Ð7.5Jx17
8.5Jx17
Winter tires
205/50 R 17 93 Q M+S extra load Ð 7Jx17
225/45 R 17 91 Q M+S Ð 8Jx17
Space-saver spare tire
T 125/80 R 17 99 M 3.5Bx17 Ð
Comply with the specifications for tires and wheels in the vehicle's manuals.
If you install tire sizes not approved by the manufacturer, an entry in the vehicle
documents may be necessary.
Snow chains
*
You cannot mount snow chains with the
following tires:
225/45 R 17 91 W
245/40 ZR 17
225/45 R 17 91 Q M+SMixed tiresFor details concerning tire manufac-
turers for mixed tires, refer to the
vehicle documents.

134n
Hood
Do not work on your vehicle
without appropriate skills. Always
switch off the engine and allow it to
cool down before working in the engine
compartment. Always disconnect the
battery before working on any electrical
systems or equipment, especially when
these are located within the engine
compartment. Comply with all appli-
cable instructions and warnings. Failure
to work in an informed, professional
manner when servicing components
and materials constitutes a safety
hazard for vehicle occupants and other
road users. If you are not familiar with
the guidelines, please have the opera-
tions performed by your BMW center.<
To unlock Pull the lever located under the left-
hand side of the instrument panel. 460us012
To openPull the release handle and open the
hood.460de044

135n
IndexDataTechnologyRepairsCar careControlsOverview
HoodTo closeAllow the hood to drop from a height of
about 12 inches (30 cm) so that it audi-
bly engages.
To avoid injuries, be sure that the
travel path of the hood is clear
when it is closed, as with all closing
procedures.
If it is determined that the hood is not
completely closed while driving, stop
immediately and close it securely.<464de260

136n

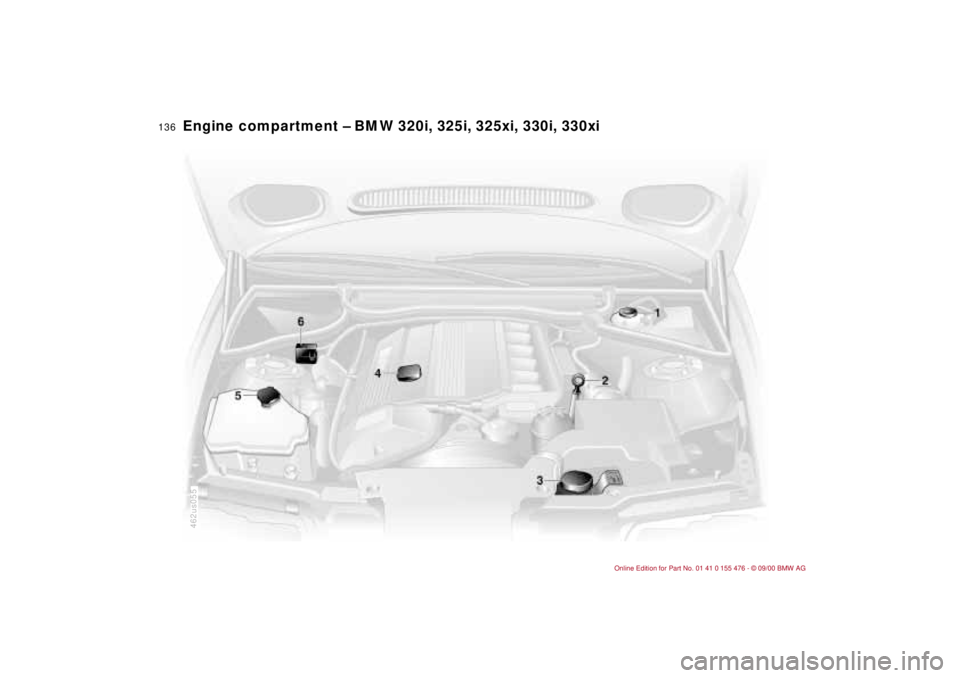

Engine compartment Ð BMW 320i, 325i, 325xi, 330i, 330xi
462us055

137n
IndexDataTechnologyRepairsCar careControlsOverview
Engine compartment Ð BMW 320i, 325i, 325xi, 330i, 330xi 1 Brake fluid reservoir143
2 Engine oil dipstick139
3 Coolant expansion tank142
4 Engine oil filler neck139
5 Reservoir for the headlamp
* and
windshield washer system138
6 Auxiliary terminal for jump
starting173

138n
Washer fluids Washer nozzlesHeadlamp
* and windshield
washer system
Filling capacity: approx. 5.6 US quarts
(5.3 liters).
Fill with water and Ð if required Ð with a
washer antifreeze (according to manu-
facturer's recommendations).
We recommend that you mix the
washer fluid before adding it to
the reservoir.< 463de243
Antifreeze agent for the washer
systems is inflammable. For this
reason, keep it away from sources of
flame and store it in its original
container. Store it so that it is inacces-
sible to children. Comply with the
instructions on the containers.<
Windshield washer The spray from the nozzles should be
directed so as to ensure effective
cleaning, even at high speeds. Use a
needle to adjust the nozzles as
required, or have them adjusted by your
BMW center.Headlamp washer system
*
Have this system adjusted by your
BMW center as required.

139n
IndexDataTechnologyRepairsCar careControlsOverview
Engine oilChecking the oil level 1 Park the vehicle on a level surface.
2 Shut the engine off after it has
reached normal operating tempera-
ture.
3 After approx. 5 minutes, pull the
dipstick out and wipe it off with a
clean lint-free cloth, paper towel, or
similar material.
4 Carefully push the dipstick all the way
into the guide tube and pull it out
again.
5 The oil level should be between the
two graduations on the dipstick.
As with fuel economy, oil consumption
is directly influenced by your driving
style and vehicle operating conditions.462de244
The space between the two marks on
the dipstick corresponds to approx.
1.1 US quarts (1 liter). Do not fill beyond
the upper mark on the dipstick. Excess
oil will damage the engine.460de189
To add oil Wait until the level has dropped to just
above the lower mark before adding oil.
However, never let the oil drop below
the lower mark.
BMW engines are designed to
operate without oil additives; the
use of additives could lead to damage
in some cases. This is also true for the
manual transmission, the automatic
transmission, the differential, and the
power steering system.<462de245

140n
Engine oil Specified engine oilsThe quality of the engine oil is
extremely important for the function
and life of an engine. Based on exten-
sive testing, BMW has approved only
certain types of engine oils.
Use only approved "BMW High Perfor-
mance Synthetic Oil."
If you are unable to obtain "BMW High
Performance Synthetic Oil," you may
use small volumes of other approved
synthetic oils for topping up between oil
changes. Use only oils with the specifi-
cation API SH or higher.
Ask your BMW center for details
concerning the specific "BMW
High Performance Synthetic Oil" or
other synthetic oils that have been
approved.<
You can also call BMW of North
America at 1-800-831-1117 or visit this
website: www.bmwusa.com to obtain
this information.
Viscosity ratings Viscosity is the oil flow rating as estab-
lished in SAE classes.
The selection of the correct SAE class
depends on the climatic conditions in
the area where you drive your BMW.
Approved oils are in SAE classes
5W-40 and 5W-30.<
These oils may be used for driving in all
ambient temperatures.
530us200
