battery replacement BMW 325CI COUPE 2005 E46 Owner's Manual
[x] Cancel search | Manufacturer: BMW, Model Year: 2005, Model line: 325CI COUPE, Model: BMW 325CI COUPE 2005 E46Pages: 190, PDF Size: 2.79 MB
Page 10 of 190
Contents
Operation, maintenance
Special operating instructions:
Break-in procedures124
General driving notes125
Antilock Brake System
(ABS)127
Hardtop*127
Wheels and tires:
Tire inflation pressure130
Tire code133
Tire condition134
Run Flat tires*135
New wheels and tires136
Snow chains*137
In the engine compartment:
Hood138
Engine compartment
essentials140
Washer fluid142
Engine oil142
Coolant144
Brake fluid145
Maintenance:
BMW Maintenance System146
Laws and regulations:
California laws148
OBD interface socket148
Owner service procedures
Replacement procedures:
Onboard tool kit152
Windshield wiper blades152
Lamps and bulbs153
Changing a wheel157
Battery161
Fuses161
Giving and receiving
assistance:
Receiving assistance162
Jump-starting163
Towing and tow-starting the
vehicle165
Technical data
Engine data170
Dimensions171
Weights172
Capacities173
Page 29 of 190
29
Opening and closing – via the remote controlThe conceptThe remote control also provides two
additional functions beyond the central
locking feature:
>To switch on interior lamps, refer to
page 30.
With this function you can also
search for the vehicle when parked in
an underground garage, for instance
>To open the luggage compartment
lid, refer to page 30.
The luggage compartment lid will
open slightly, regardless of whether it
was previously locked or unlocked.
Whenever you unlock or lock the vehi-
cle, you simultaneously deactivate/acti-
vate the anti-theft system, disarm/arm
the alarm system and switch the interior
lamps on/off.
You can have a signal set to con-
firm that the vehicle's locks have
engaged securely.<
Master keys with remote control
Persons or animals inside the
vehicle may be able to lock the
doors from the inside. For this reason,
you should always take the vehicle keys
with you so that the vehicle can be
opened again from the outside at any
time.<
If it is no longer possible to lock
the vehicle via the remote control,
the battery is discharged. Use this key
while driving for an extended period in
order to recharge the battery.
To prevent unauthorized use of the
remote control, surrender only the
spare key when leaving the vehicle for
valet parking, for example.
In the event of a system malfunction,
please contact your BMW center. You
can also obtain replacement keys
there.<
1Unlock, convenience opening mode,
and disarm alarm system
2Lock and secure, arm alarm system,
activate interior lamps, disarm tilt
alarm sensor and interior motion sen-
sor
3Open the luggage compartment lid,
Panic mode – trigger alarmTo releasePress the button once to unlock the
driver's door.
Press the button a second time to
disengage all vehicle locks.<
OverviewControlsMaintenanceRepairsDataIndex
Page 153 of 190
153

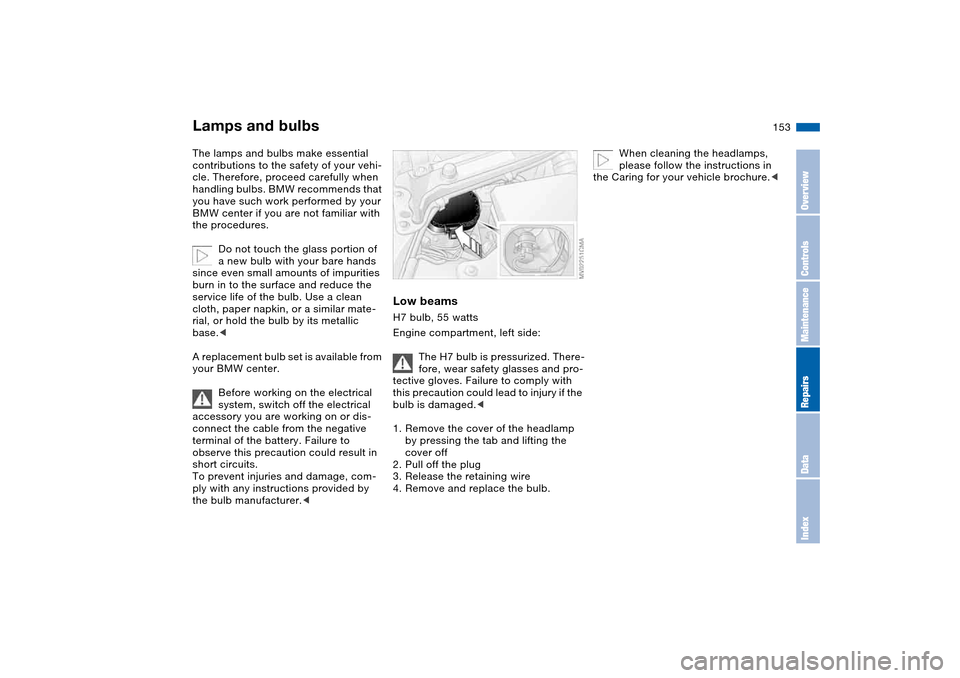

Lamps and bulbsThe lamps and bulbs make essential
contributions to the safety of your vehi-
cle. Therefore, proceed carefully when
handling bulbs. BMW recommends that
you have such work performed by your
BMW center if you are not familiar with
the procedures.
Do not touch the glass portion of
a new bulb with your bare hands
since even small amounts of impurities
burn in to the surface and reduce the
service life of the bulb. Use a clean
cloth, paper napkin, or a similar mate-
rial, or hold the bulb by its metallic
base.<
A replacement bulb set is available from
your BMW center.
Before working on the electrical
system, switch off the electrical
accessory you are working on or dis-
connect the cable from the negative
terminal of the battery. Failure to
observe this precaution could result in
short circuits.
To prevent injuries and damage, com-
ply with any instructions provided by
the bulb manufacturer.<
Low beamsH7 bulb, 55 watts
Engine compartment, left side:
The H7 bulb is pressurized. There-
fore, wear safety glasses and pro-
tective gloves. Failure to comply with
this precaution could lead to injury if the
bulb is damaged.<
1. Remove the cover of the headlamp
by pressing the tab and lifting the
cover off
2. Pull off the plug
3. Release the retaining wire
4. Remove and replace the bulb.
When cleaning the headlamps,
please follow the instructions in
the Caring for your vehicle brochure.<
OverviewControlsMaintenanceRepairsDataIndex

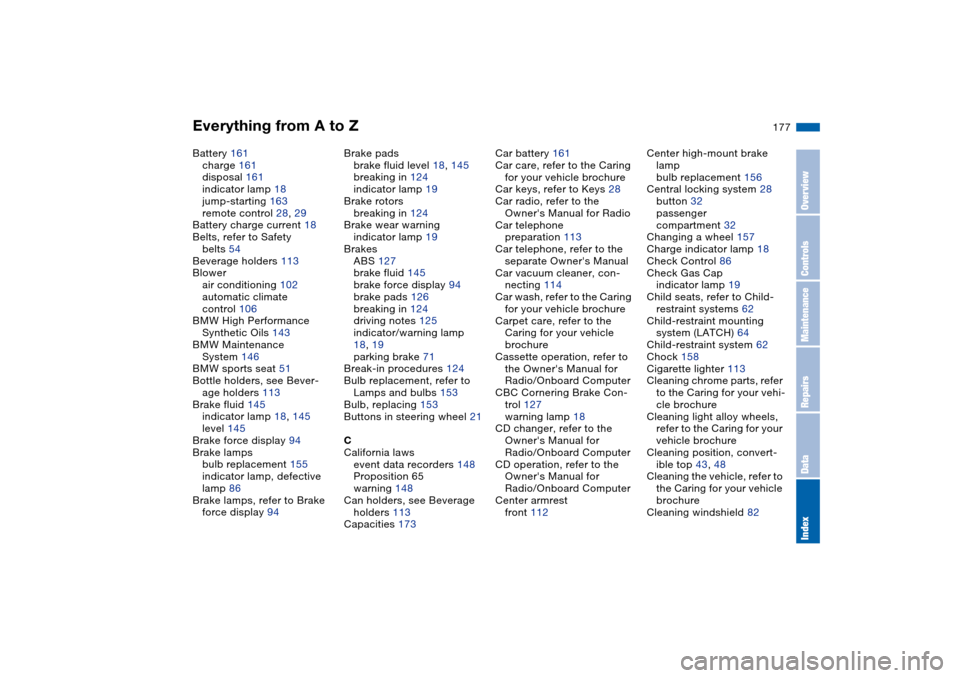

Page 177 of 190
Everything from A to Z
177
Battery 161
charge 161
disposal 161
indicator lamp 18
jump-starting 163
remote control 28, 29
Battery charge current 18
Belts, refer to Safety
belts 54
Beverage holders 113
Blower
air conditioning 102
automatic climate
control 106
BMW High Performance
Synthetic Oils 143
BMW Maintenance
System 146
BMW sports seat 51
Bottle holders, see Bever-
age holders 113
Brake fluid 145
indicator lamp 18, 145
level 145
Brake force display 94
Brake lamps
bulb replacement 155
indicator lamp, defective
lamp 86
Brake lamps, refer to Brake
force display 94Brake pads
brake fluid level 18, 145
breaking in 124
indicator lamp 19
Brake rotors
breaking in 124
Brake wear warning
indicator lamp 19
Brakes
ABS 127
brake fluid 145
brake force display 94
brake pads 126
breaking in 124
driving notes 125
indicator/warning lamp
18, 19
parking brake 71
Break-in procedures 124
Bulb replacement, refer to
Lamps and bulbs 153
Bulb, replacing 153
Buttons in steering wheel 21
C
California laws
event data recorders 148
Proposition 65
warning 148
Can holders, see Beverage
holders 113
Capacities 173Car battery 161
Car care, refer to the Caring
for your vehicle brochure
Car keys, refer to Keys 28
Car radio, refer to the
Owner's Manual for Radio
Car telephone
preparation 113
Car telephone, refer to the
separate Owner's Manual
Car vacuum cleaner, con-
necting 114
Car wash, refer to the Caring
for your vehicle brochure
Carpet care, refer to the
Caring for your vehicle
brochure
Cassette operation, refer to
the Owner's Manual for
Radio/Onboard Computer
CBC Cornering Brake Con-
trol 127
warning lamp 18
CD changer, refer to the
Owner's Manual for
Radio/Onboard Computer
CD operation, refer to the
Owner's Manual for
Radio/Onboard Computer
Center armrest
front 112Center high-mount brake
lamp
bulb replacement 156
Central locking system 28
button 32
passenger
compartment 32
Changing a wheel 157
Charge indicator lamp 18
Check Control 86
Check Gas Cap
indicator lamp 19
Child seats, refer to Child-
restraint systems 62
Child-restraint mounting
system (LATCH) 64
Child-restraint system 62
Chock 158
Cigarette lighter 113
Cleaning chrome parts, refer
to the Caring for your vehi-
cle brochure
Cleaning light alloy wheels,
refer to the Caring for your
vehicle brochure
Cleaning position, convert-
ible top 43, 48
Cleaning the vehicle, refer to
the Caring for your vehicle
brochure
Cleaning windshield 82
OverviewControlsMaintenanceRepairsDataIndex

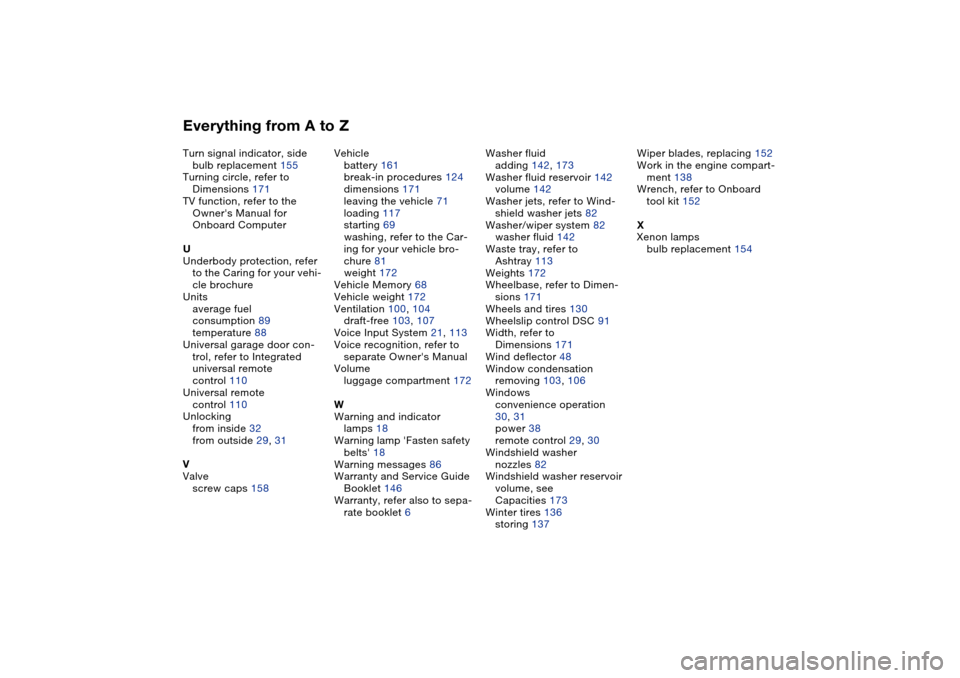

Page 186 of 190
Everything from A to ZTurn signal indicator, side
bulb replacement 155
Turning circle, refer to
Dimensions 171
TV function, refer to the
Owner's Manual for
Onboard Computer
U
Underbody protection, refer
to the Caring for your vehi-
cle brochure
Units
average fuel
consumption 89
temperature 88
Universal garage door con-
trol, refer to Integrated
universal remote
control 110
Universal remote
control 110
Unlocking
from inside 32
from outside 29, 31
V
Valve
screw caps 158Vehicle
battery 161
break-in procedures 124
dimensions 171
leaving the vehicle 71
loading 117
starting 69
washing, refer to the Car-
ing for your vehicle bro-
chure 81
weight 172
Vehicle Memory 68
Vehicle weight 172
Ventilation 100, 104
draft-free 103, 107
Voice Input System 21, 113
Voice recognition, refer to
separate Owner's Manual
Volume
luggage compartment 172
W
Warning and indicator
lamps 18
Warning lamp 'Fasten safety
belts' 18
Warning messages 86
Warranty and Service Guide
Booklet 146
Warranty, refer also to sepa-
rate booklet 6Washer fluid
adding 142, 173
Washer fluid reservoir 142
volume 142
Washer jets, refer to Wind-
shield washer jets 82
Washer/wiper system 82
washer fluid 142
Waste tray, refer to
Ashtray 113
Weights 172
Wheelbase, refer to Dimen-
sions 171
Wheels and tires 130
Wheelslip control DSC 91
Width, refer to
Dimensions 171
Wind deflector 48
Window condensation
removing 103, 106
Windows
convenience operation
30, 31
power 38
remote control 29, 30
Windshield washer
nozzles 82
Windshield washer reservoir
volume, see
Capacities 173
Winter tires 136
storing 137Wiper blades, replacing 152
Work in the engine compart-
ment 138
Wrench, refer to Onboard
tool kit 152
X
Xenon lamps
bulb replacement 154
