height adjustment BMW 325I SEDAN 2004 E46 Owner's Manual

48

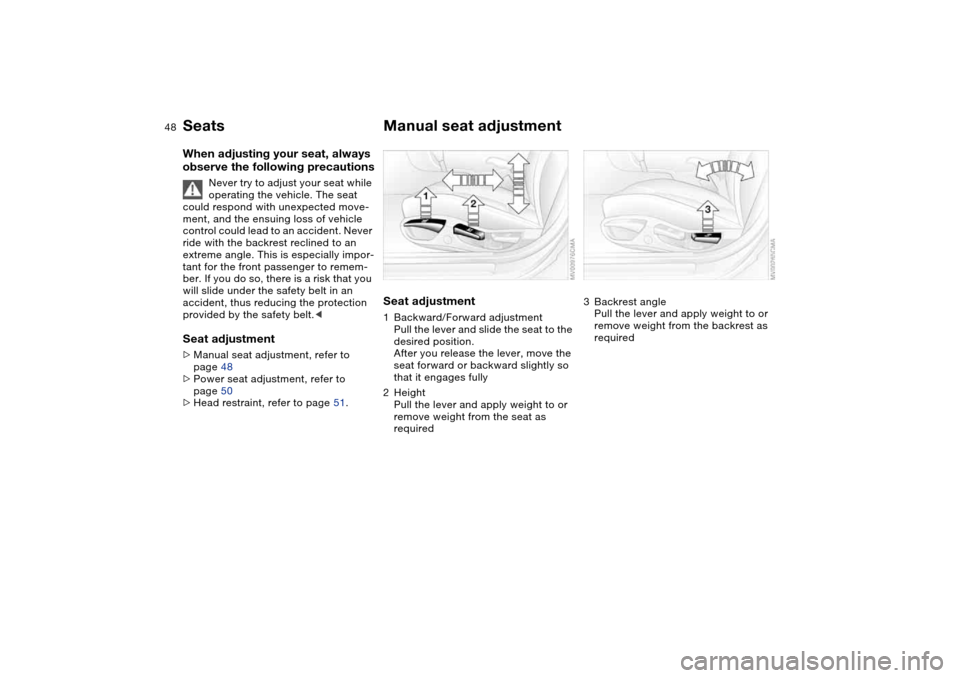

SeatsWhen adjusting your seat, always
observe the following precautions
Never try to adjust your seat while
operating the vehicle. The seat
could respond with unexpected move-
ment, and the ensuing loss of vehicle
control could lead to an accident. Never
ride with the backrest reclined to an
extreme angle. This is especially impor-
tant for the front passenger to remem-
ber. If you do so, there is a risk that you
will slide under the safety belt in an
accident, thus reducing the protection
provided by the safety belt.<
Seat adjustment>Manual seat adjustment, refer to
page 48
>Power seat adjustment, refer to
page 50
>Head restraint, refer to page 51.
Manual seat adjustmentSeat adjustment1Backward/Forward adjustment
Pull the lever and slide the seat to the
desired position.
After you release the lever, move the
seat forward or backward slightly so
that it engages fully
2Height
Pull the lever and apply weight to or
remove weight from the seat as
required
3Backrest angle
Pull the lever and apply weight to or
remove weight from the backrest as
required

50

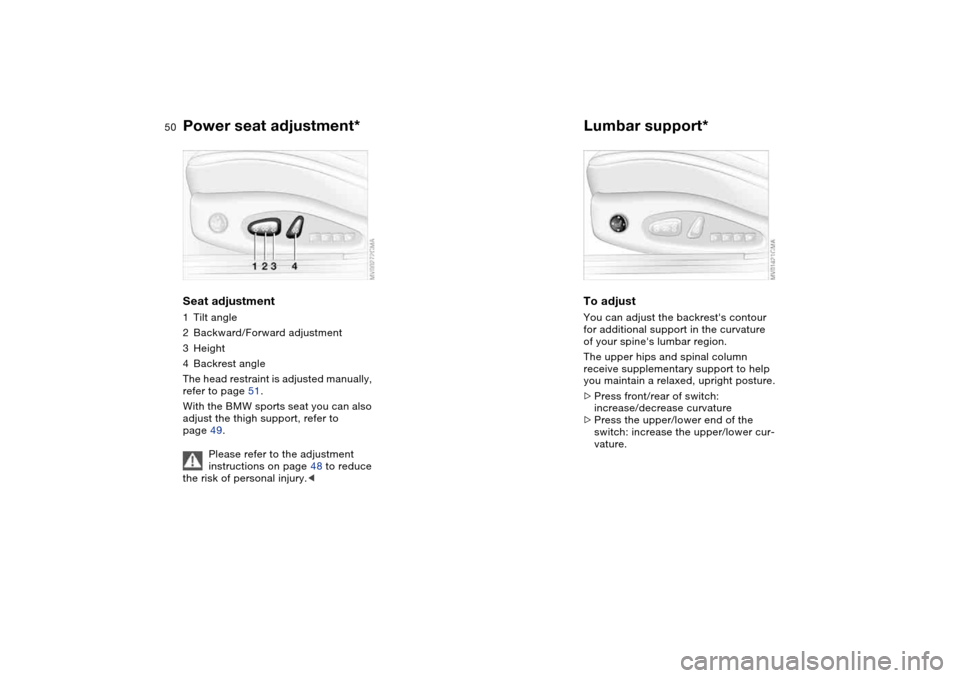

Power seat adjustment*Seat adjustment1Tilt angle
2Backward/Forward adjustment
3Height
4Backrest angle
The head restraint is adjusted manually,
refer to page 51.
With the BMW sports seat you can also
adjust the thigh support, refer to
page 49.
Please refer to the adjustment
instructions on page 48 to reduce
the risk of personal injury.<
Lumbar support*To adjustYou can adjust the backrest's contour
for additional support in the curvature
of your spine's lumbar region.
The upper hips and spinal column
receive supplementary support to help
you maintain a relaxed, upright posture.
>Press front/rear of switch:
increase/decrease curvature
>Press the upper/lower end of the
switch: increase the upper/lower cur-
vature.

52
The rear belt buckle with the word
CENTER is intended exclusively
for the passenger sitting in the mid-
dle.<
Adjusting safety belt heightUse the height adjustment mechanism
to adapt the shoulder strap to the ideal
level for your own body:
>Slide the button up or down.
Please refer to the seat adjustment
instructions on page 47.
If the safety belt system has been
subjected to the stresses involved
in an accident or otherwise damaged:
have the entire safety belt mechanism
replaced by your BMW center, includ-
ing the safety belt tensioner. In addi-
tion, have your BMW center inspect the
safety belt anchors. If a child-restraint
system was in the vehicle during an
accident, consult the manufacturer's
instructions regarding replacement.<
Safety belts

55

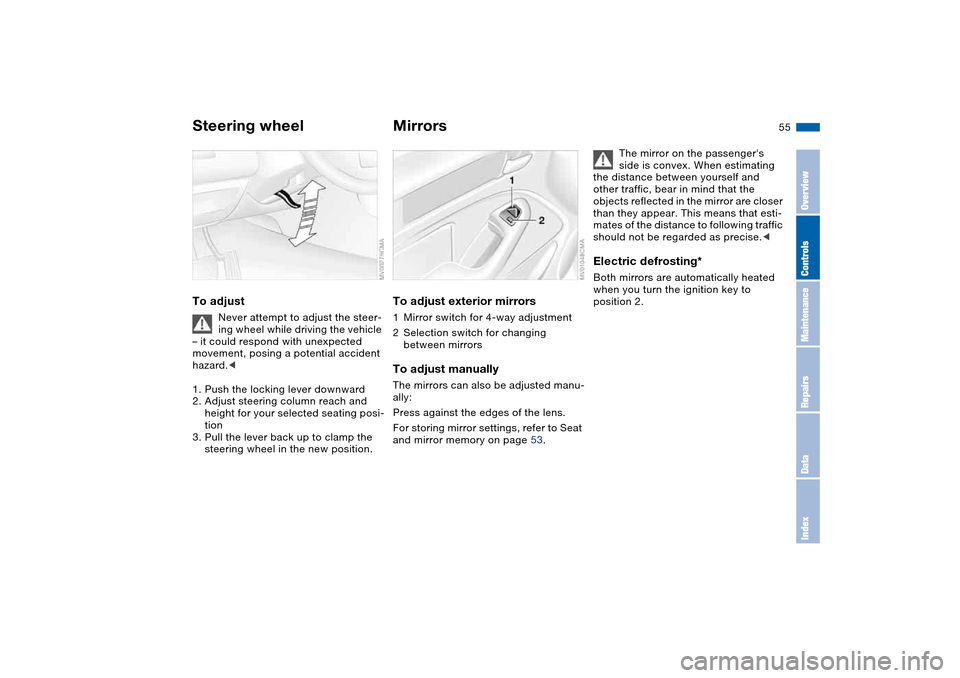

Steering wheelTo adjust
Never attempt to adjust the steer-
ing wheel while driving the vehicle
– it could respond with unexpected
movement, posing a potential accident
hazard.<
1. Push the locking lever downward
2. Adjust steering column reach and
height for your selected seating posi-
tion
3. Pull the lever back up to clamp the
steering wheel in the new position.
MirrorsTo adjust exterior mirrors1Mirror switch for 4-way adjustment
2Selection switch for changing
between mirrorsTo adjust manuallyThe mirrors can also be adjusted manu-
ally:
Press against the edges of the lens.
For storing mirror settings, refer to Seat
and mirror memory on page 53.
The mirror on the passenger's
side is convex. When estimating
the distance between yourself and
other traffic, bear in mind that the
objects reflected in the mirror are closer
than they appear. This means that esti-
mates of the distance to following traffic
should not be regarded as precise.<
Electric defrosting*Both mirrors are automatically heated
when you turn the ignition key to
position 2.
OverviewControlsMaintenanceRepairsDataIndex

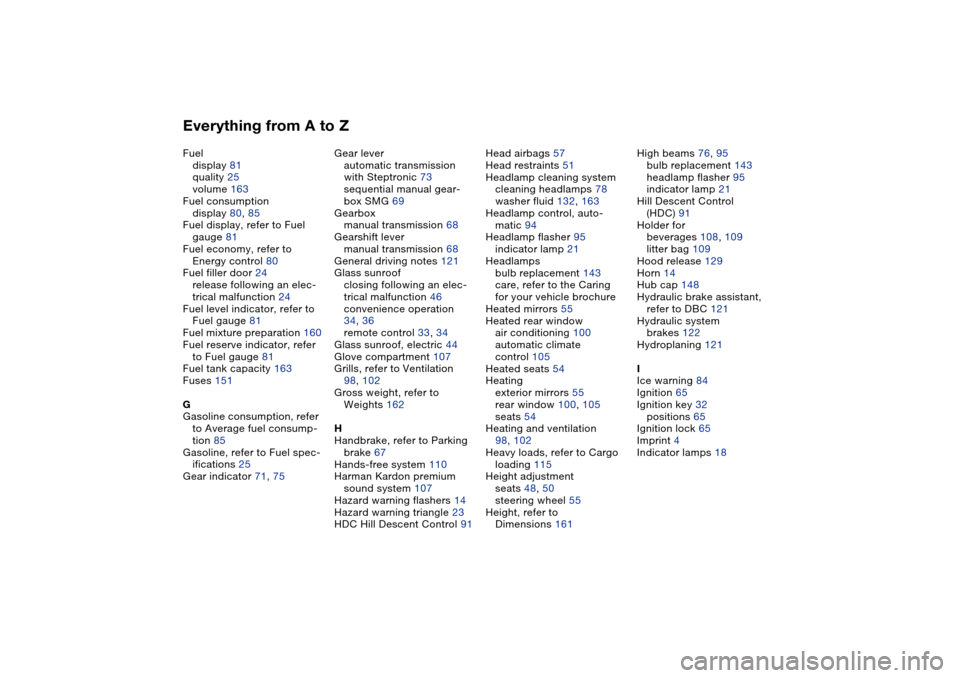

Everything from A to ZFuel
display 81
quality 25
volume 163
Fuel consumption
display 80, 85
Fuel display, refer to Fuel
gauge 81
Fuel economy, refer to
Energy control 80
Fuel filler door 24
release following an elec-
trical malfunction 24
Fuel level indicator, refer to
Fuel gauge 81
Fuel mixture preparation 160
Fuel reserve indicator, refer
to Fuel gauge 81
Fuel tank capacity 163
Fuses 151
G
Gasoline consumption, refer
to Average fuel consump-
tion 85
Gasoline, refer to Fuel spec-
ifications 25
Gear indicator 71, 75Gear lever
automatic transmission
with Steptronic 73
sequential manual gear-
box SMG 69
Gearbox
manual transmission 68
Gearshift lever
manual transmission 68
General driving notes 121
Glass sunroof
closing following an elec-
trical malfunction 46
convenience operation
34, 36
remote control 33, 34
Glass sunroof, electric 44
Glove compartment 107
Grills, refer to Ventilation
98, 102
Gross weight, refer to
Weights 162
H
Handbrake, refer to Parking
brake 67
Hands-free system 110
Harman Kardon premium
sound system 107
Hazard warning flashers 14
Hazard warning triangle 23
HDC Hill Descent Control 91Head airbags 57
Head restraints 51
Headlamp cleaning system
cleaning headlamps 78
washer fluid 132, 163
Headlamp control, auto-
matic 94
Headlamp flasher 95
indicator lamp 21
Headlamps
bulb replacement 143
care, refer to the Caring
for your vehicle brochure
Heated mirrors 55
Heated rear window
air conditioning 100
automatic climate
control 105
Heated seats 54
Heating
exterior mirrors 55
rear window 100, 105
seats 54
Heating and ventilation
98, 102
Heavy loads, refer to Cargo
loading 115
Height adjustment
seats 48, 50
steering wheel 55
Height, refer to
Dimensions 161High beams 76, 95
bulb replacement 143
headlamp flasher 95
indicator lamp 21
Hill Descent Control
(HDC) 91
Holder for
beverages 108, 109
litter bag 109
Hood release 129
Horn 14
Hub cap 148
Hydraulic brake assistant,
refer to DBC 121
Hydraulic system
brakes 122
Hydroplaning 121
I
Ice warning 84
Ignition 65
Ignition key 32
positions 65
Ignition lock 65
Imprint 4
Indicator lamps 18

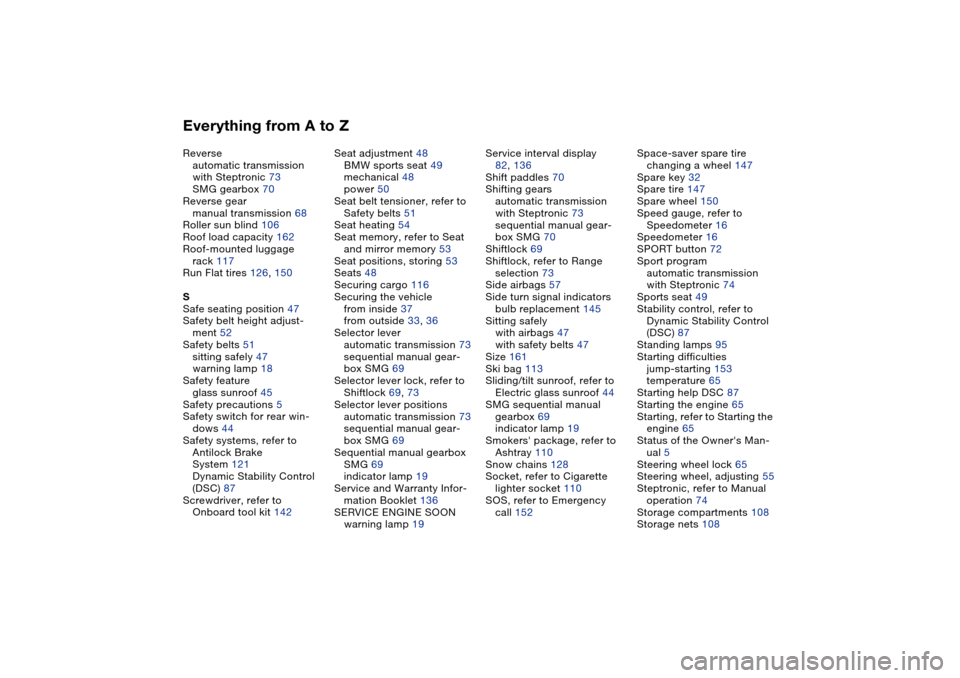

Everything from A to ZReverse
automatic transmission
with Steptronic 73
SMG gearbox 70
Reverse gear
manual transmission 68
Roller sun blind 106
Roof load capacity 162
Roof-mounted luggage
rack 117
Run Flat tires 126, 150
S
Safe seating position 47
Safety belt height adjust-
ment 52
Safety belts 51
sitting safely 47
warning lamp 18
Safety feature
glass sunroof 45
Safety precautions 5
Safety switch for rear win-
dows 44
Safety systems, refer to
Antilock Brake
System 121
Dynamic Stability Control
(DSC) 87
Screwdriver, refer to
Onboard tool kit 142Seat adjustment 48
BMW sports seat 49
mechanical 48
power 50
Seat belt tensioner, refer to
Safety belts 51
Seat heating 54
Seat memory, refer to Seat
and mirror memory 53
Seat positions, storing 53
Seats 48
Securing cargo 116
Securing the vehicle
from inside 37
from outside 33, 36
Selector lever
automatic transmission 73
sequential manual gear-
box SMG 69
Selector lever lock, refer to
Shiftlock 69, 73
Selector lever positions
automatic transmission 73
sequential manual gear-
box SMG 69
Sequential manual gearbox
SMG 69
indicator lamp 19
Service and Warranty Infor-
mation Booklet 136
SERVICE ENGINE SOON
warning lamp 19Service interval display
82, 136
Shift paddles 70
Shifting gears
automatic transmission
with Steptronic 73
sequential manual gear-
box SMG 70
Shiftlock 69
Shiftlock, refer to Range
selection 73
Side airbags 57
Side turn signal indicators
bulb replacement 145
Sitting safely
with airbags 47
with safety belts 47
Size 161
Ski bag 113
Sliding/tilt sunroof, refer to
Electric glass sunroof 44
SMG sequential manual
gearbox 69
indicator lamp 19
Smokers' package, refer to
Ashtray 110
Snow chains 128
Socket, refer to Cigarette
lighter socket 110
SOS, refer to Emergency
call 152Space-saver spare tire
changing a wheel 147
Spare key 32
Spare tire 147
Spare wheel 150
Speed gauge, refer to
Speedometer 16
Speedometer 16
SPORT button 72
Sport program
automatic transmission
with Steptronic 74
Sports seat 49
Stability control, refer to
Dynamic Stability Control
(DSC) 87
Standing lamps 95
Starting difficulties
jump-starting 153
temperature 65
Starting help DSC 87
Starting the engine 65
Starting, refer to Starting the
engine 65
Status of the Owner's Man-
ual 5
Steering wheel lock 65
Steering wheel, adjusting 55
Steptronic, refer to Manual
operation 74
Storage compartments 108
Storage nets 108
