BMW 325XI SPORTS WAGON 2006 Owners Manual

Technical data
210

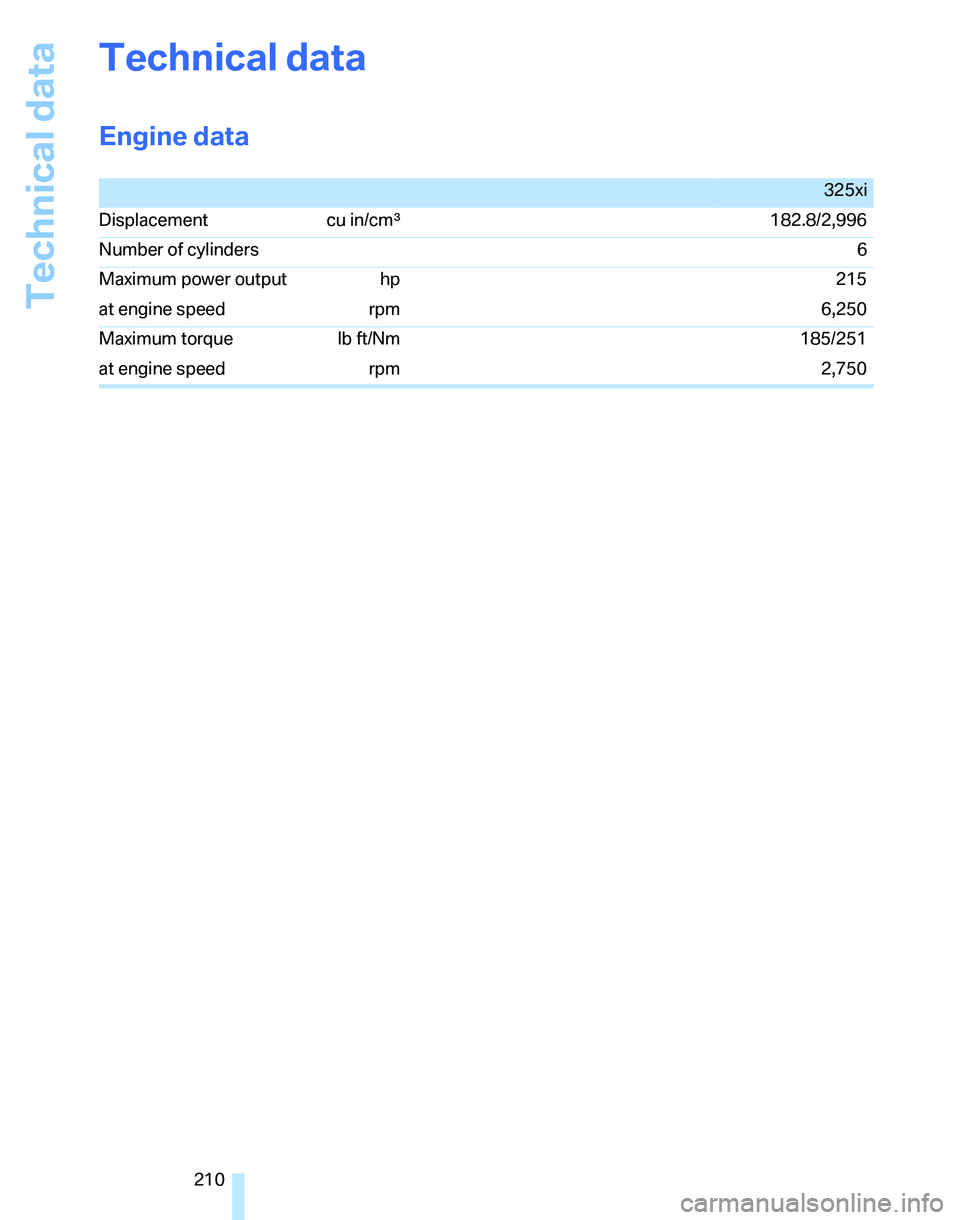

Technical data
Engine data
325xi
Displacement cu in/cmµ182.8/2,996
Number of cylinders6
Maximum power output hp 215
at engine speed rpm 6,250
Maximum torque lb ft/Nm 185/251
at engine speed rpm 2,750

Reference 211
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

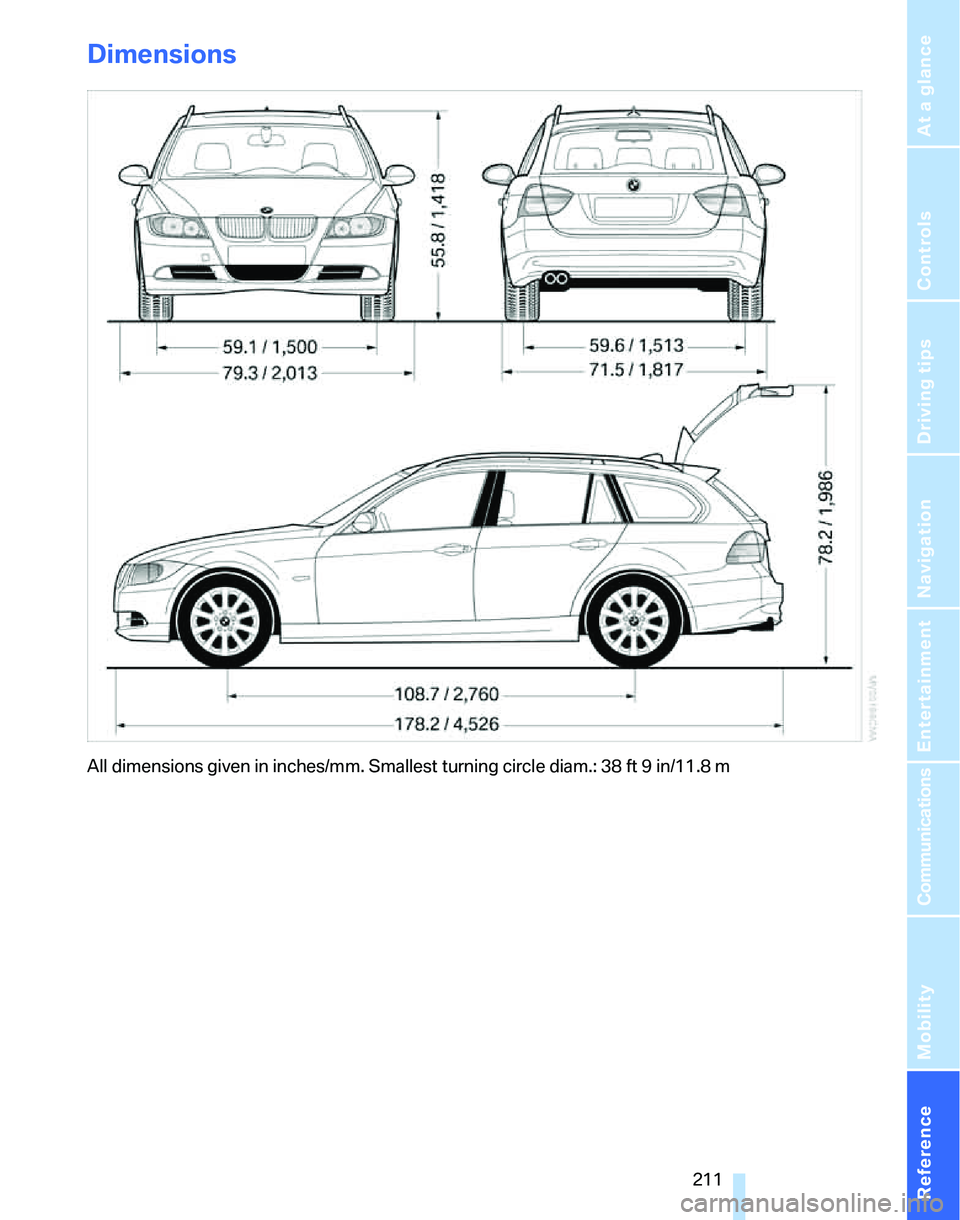

Dimensions
All dimensions given in inches/mm. Smallest turning circle diam.: 38 ft 9 in/11.8 m

Technical data
212

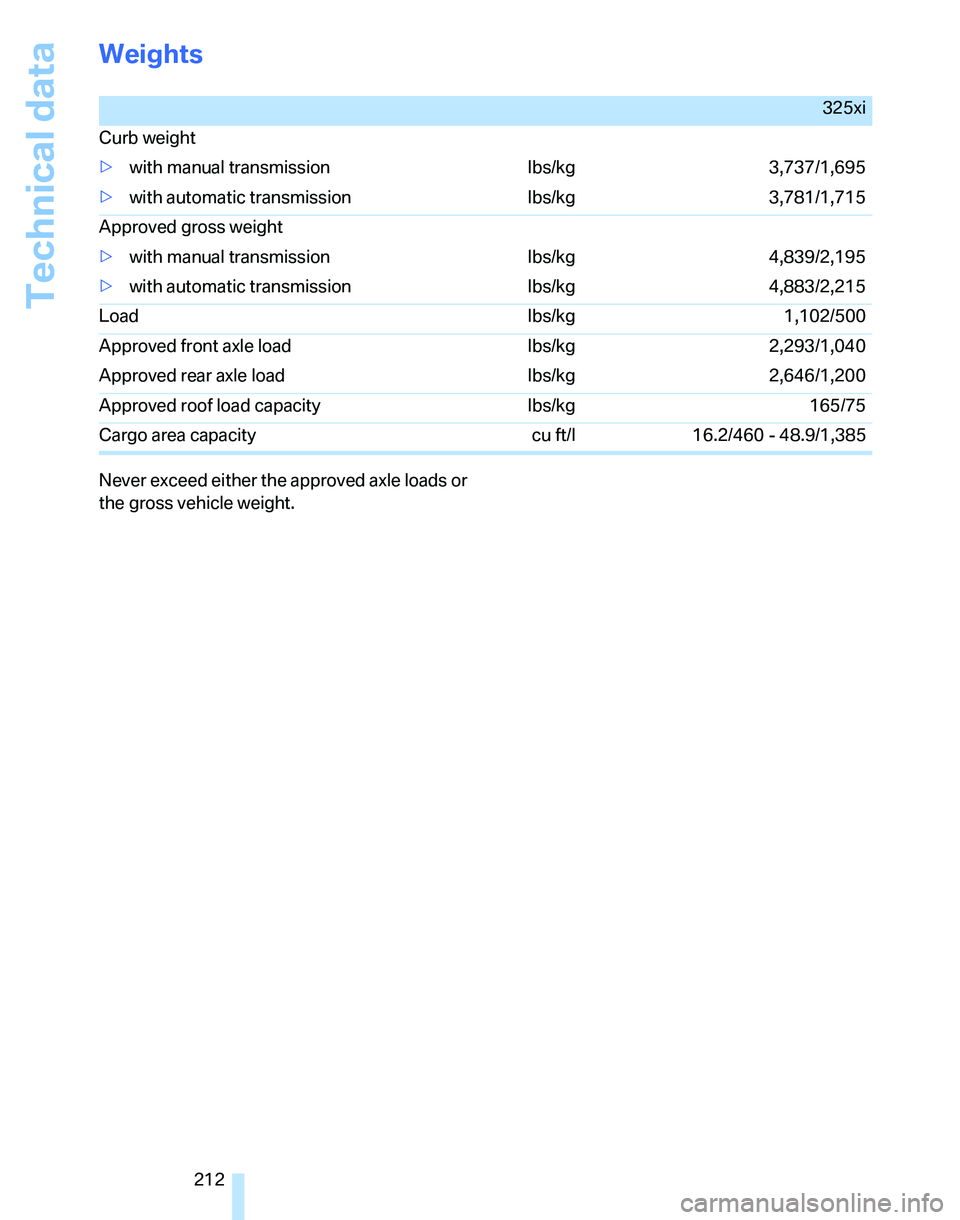

Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
325xi
Curb weight
>with manual transmission lbs/kg 3,737/1,695
>with automatic transmission lbs/kg 3,781/1,715
Approved gross weight
>with manual transmission lbs/kg 4,839/2,195
>with automatic transmission lbs/kg 4,883/2,215
Load lbs/kg 1,102/500
Approved front axle load lbs/kg 2,293/1,040
Approved rear axle load lbs/kg 2,646/1,200
Approved roof load capacity lbs/kg 165/75
Cargo area capacity cu ft/l 16.2/460 - 48.9/1,385

Reference 213
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

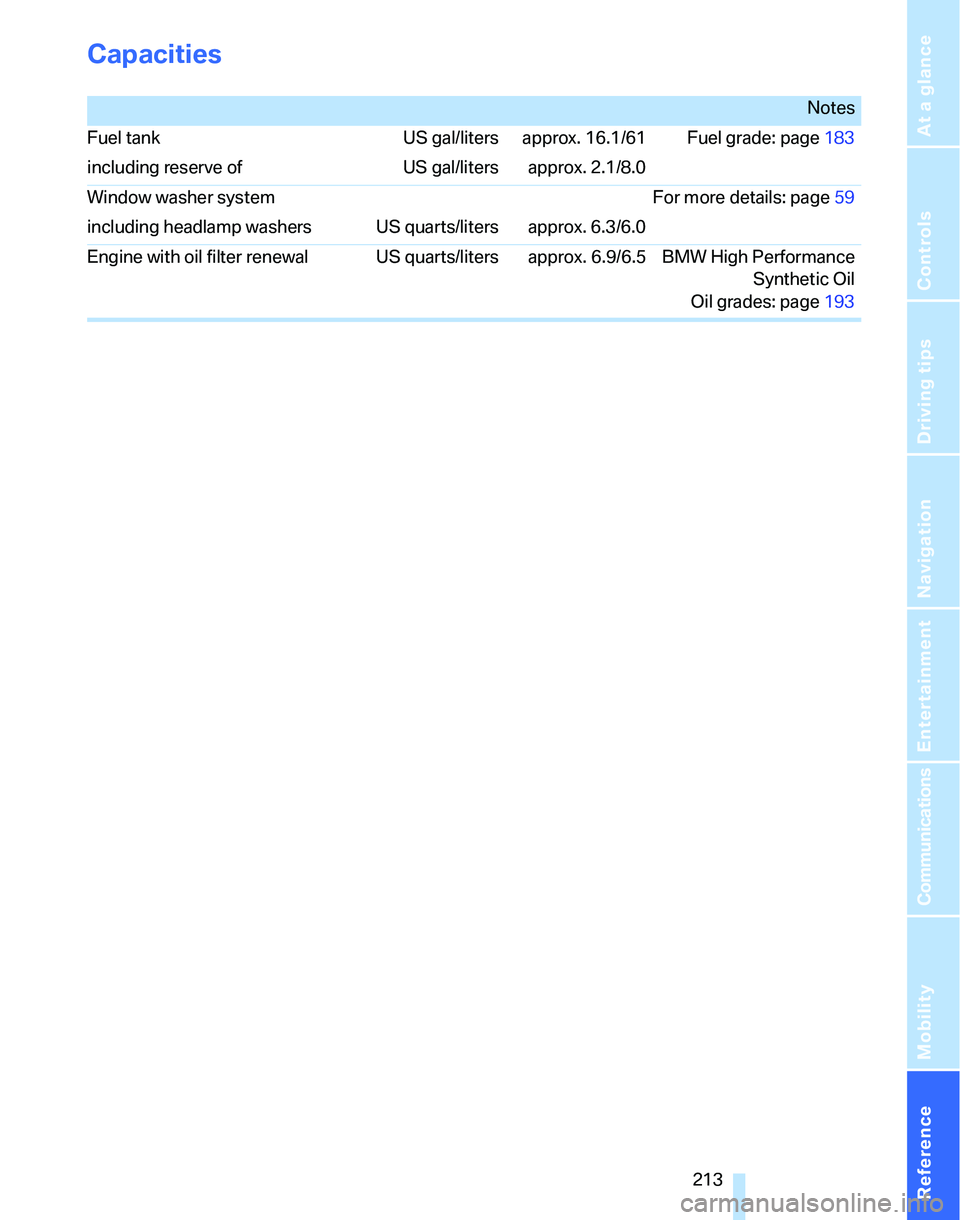

Capacities
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page183
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page59
including headlamp washers US quarts/liters approx. 6.3/6.0
Engine with oil filter renewal US quarts/liters approx. 6.9/6.5 BMW High Performance
Synthetic Oil
Oil grades: page193

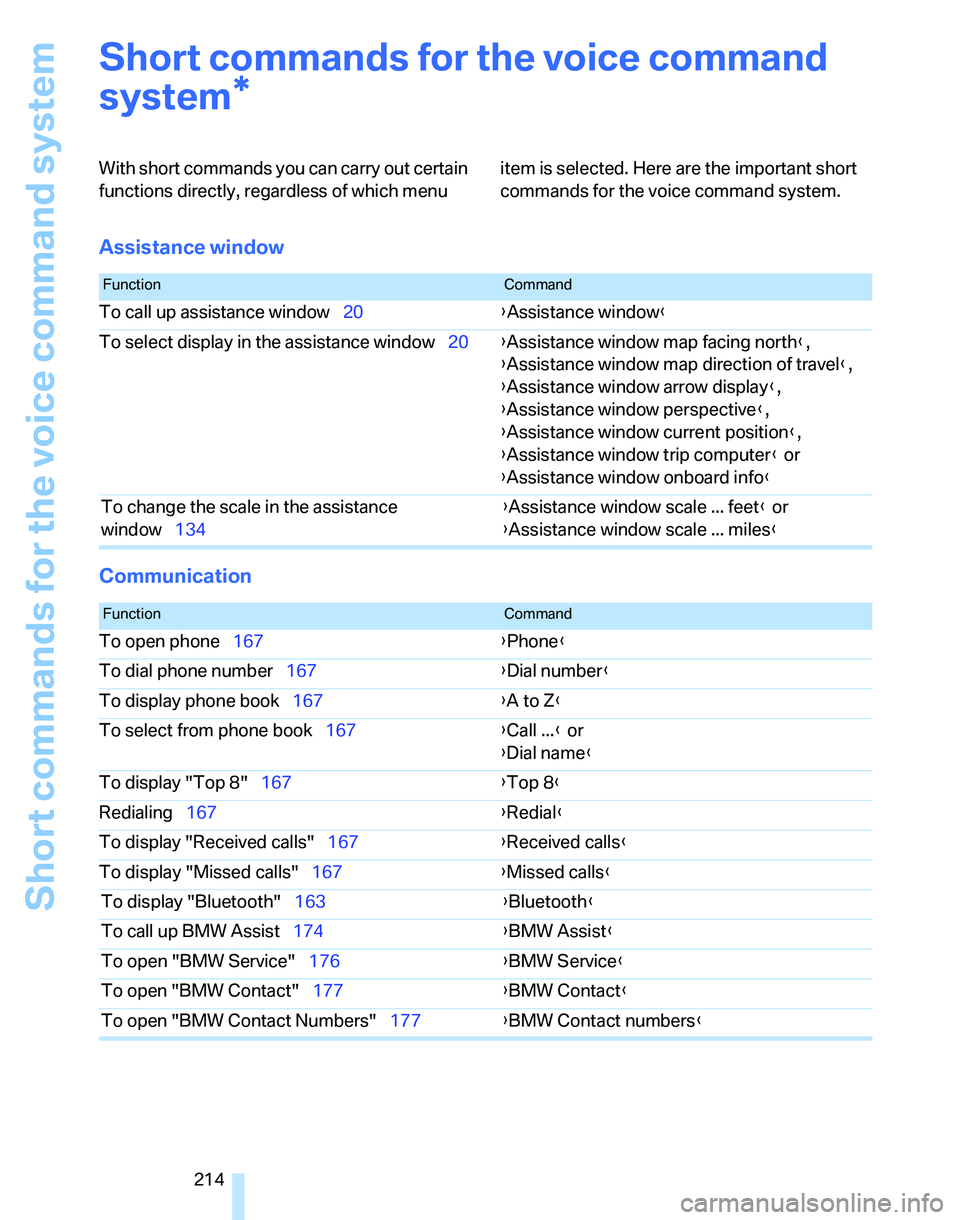

Short commands for the voice command system
214
Short commands for the voice command
system
With short commands you can carry out certain
functions directly, regardless of which menu item is selected. Here are the important short
commands for the voice command system.
Assistance window
Communication
*
FunctionCommand
To call up assistance window20{Assistance window}
To select display in the assistance window20{Assistance window map facing north},
{Assistance window map direction of travel},
{Assistance window arrow display},
{Assistance window perspective},
{Assistance window current position},
{Assistance window trip computer} or
{Assistance window onboard info}
To change the scale in the assistance
window134{Assistance window scale ... feet} or
{Assistance window scale ... miles}
FunctionCommand
To open phone167{Phone}
To dial phone number167{Dial number}
To display phone book167{A to Z}
To select from phone book167{Call ...} or
{Dial name}
To display "Top 8"167{Top 8}
Redialing167{Redial}
To display "Received calls"167{Received calls}
To display "Missed calls"167{Missed calls}
To display "Bluetooth"163{Bluetooth}
To call up BMW Assist174{BMW Assist}
To open "BMW Service"176{BMW Service}
To open "BMW Contact"177{BMW Contact}
To open "BMW Contact Numbers"177{BMW Contact numbers}

Reference 215
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

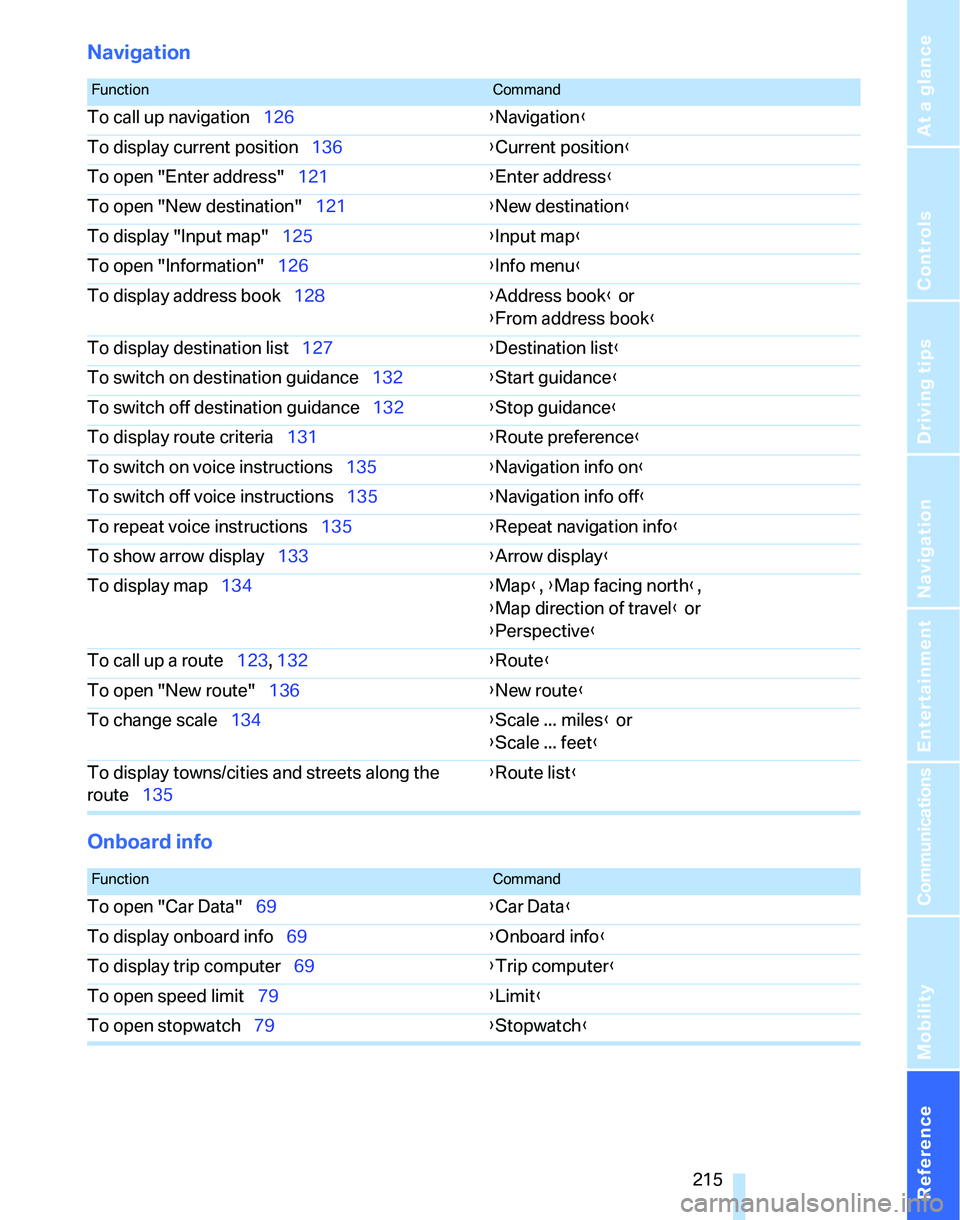

Navigation
Onboard info
FunctionCommand
To call up navigation126{Navigation}
To display current position136{Current position}
To open "Enter address"121{Enter address}
To open "New destination"121{New destination}
To display "Input map"125{Input map}
To open "Information"126{Info menu}
To display address book128{Address book} or
{From address book}
To display destination list127{Destination list}
To switch on destination guidance132{Start guidance}
To switch off destination guidance132{Stop guidance}
To display route criteria131{Route preference}
To switch on voice instructions135{Navigation info on}
To switch off voice instructions135{Navigation info off}
To repeat voice instructions135{Repeat navigation info}
To show arrow display133{Arrow display}
To display map134{Map}, {Map facing north},
{Map direction of travel} or
{Perspective}
To call up a route123, 132
{Route}
To open "New route"136{New route}
To change scale134{Scale ... miles} or
{Scale ... feet}
To display towns/cities and streets along the
route135{Route list}
FunctionCommand
To open "Car Data"69{Car Data}
To display onboard info69{Onboard info}
To display trip computer69{Trip computer}
To open speed limit79{Limit}
To open stopwatch79{Stopwatch}

Short commands for the voice command system
216

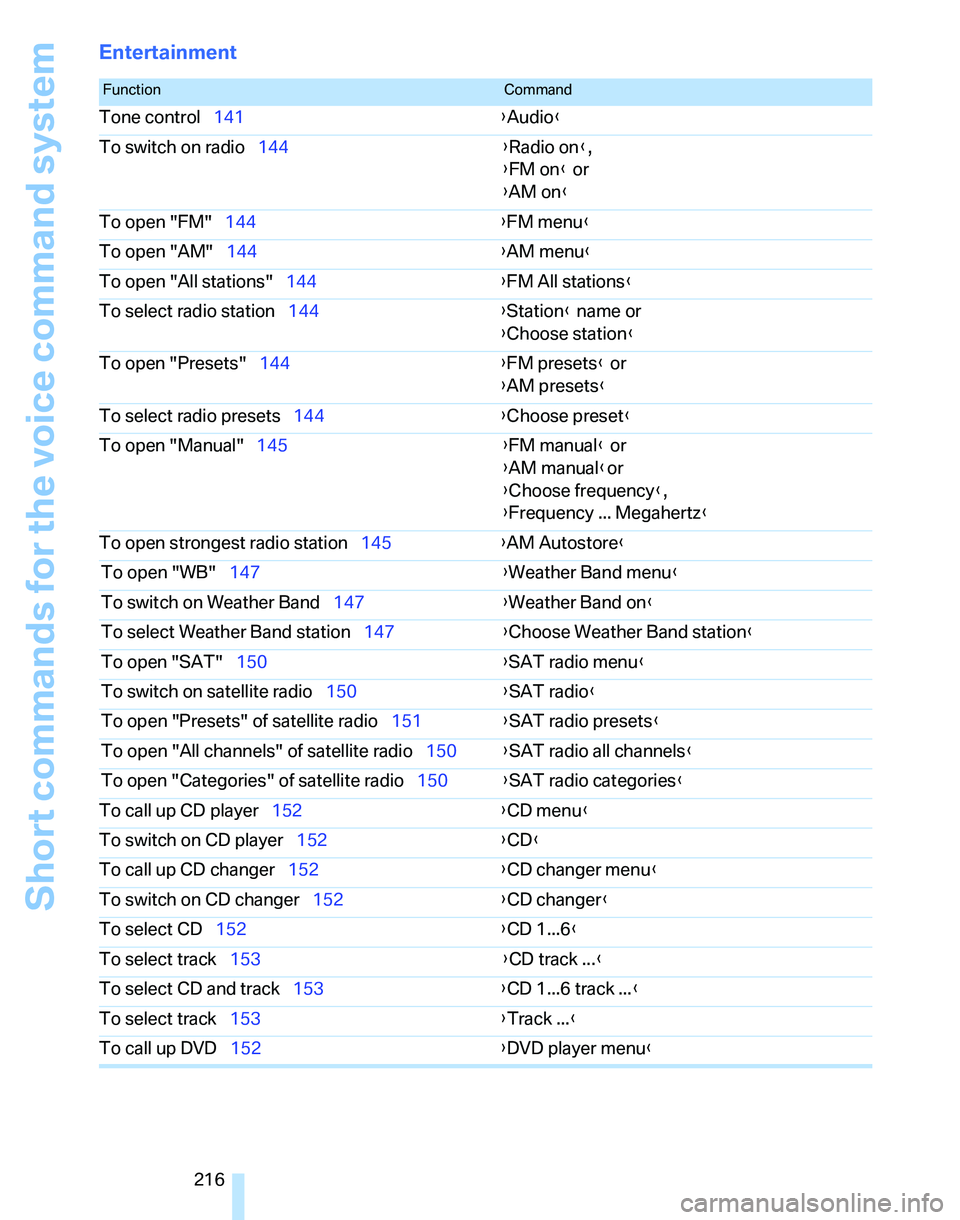

Entertainment
FunctionCommand
Tone control141{Audio}
To switch on radio144{Radio on},
{FM on} or
{AM on}
To open "FM"144{FM menu}
To open "AM"144{AM menu}
To open "All stations"144{FM All stations}
To select radio station144{Station} name or
{Choose station}
To open "Presets"144{FM presets} or
{AM presets}
To select radio presets144{Choose preset}
To open "Manual"145{FM manual} or
{AM manual}or
{Choose frequency},
{Frequency ... Megahertz}
To open strongest radio station145{AM Autostore}
To open "WB"147{Weather Band menu}
To switch on Weather Band147{Weather Band on}
To select Weather Band station147{Choose Weather Band station}
To open "SAT"150{SAT radio menu}
To switch on satellite radio150{
SAT radio}
To open "Presets" of satellite radio151{SAT radio presets}
To open "All channels" of satellite radio150{SAT radio all channels}
To open "Categories" of satellite radio150{SAT radio categories}
To call up CD player152{CD menu}
To switch on CD player152{CD}
To call up CD changer152{CD changer menu}
To switch on CD changer152{CD changer}
To select CD152{CD 1...6}
To select track153{CD track ...}
To select CD and track153{CD 1...6 track ...}
To select track153{Track ...}
To call up DVD152{DVD player menu}

Reference 217
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Climate
menu

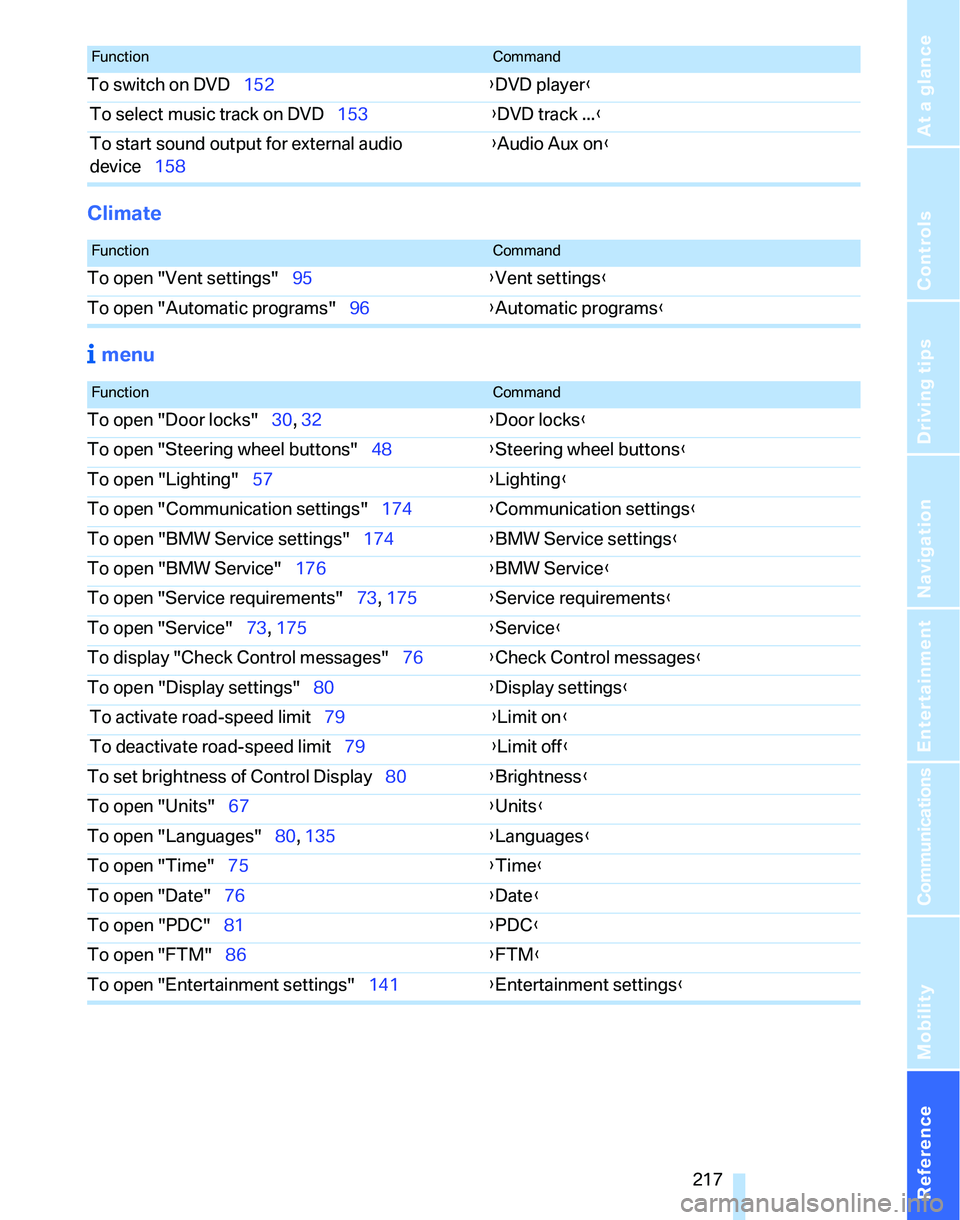

To switch on DVD152{DVD player}
To select music track on DVD153{DVD track ...}
To start sound output for external audio
device158{Audio Aux on}
FunctionCommand
FunctionCommand
To open "Vent settings"95{Vent settings}
To open "Automatic programs"96{Automatic programs}
FunctionCommand
To open "Door locks"30, 32{Door locks}
To open "Steering wheel buttons"48{Steering wheel buttons}
To open "Lighting"57{Lighting}
To open "Communication settings"174{Communication settings}
To open "BMW Service settings"174{BMW Service settings}
To open "BMW Service"176{BMW Service}
To open "Service requirements"73, 175{Service requirements}
To open "Service"73, 175{Service}
To display "Check Control messages"76{Check Control messages}
To open "Display settings"80{Display settings}
To activate road-speed limit79{Limit on}
To deactivate road-speed limit79{Limit off}
To set brightness of Control Display80{Brightness}
To open "Units"67{Units}
To open "Languages"80, 135{Languages}
To open "Time"75{Time}
To open "Date"76{Date}
To open "PDC"81{PDC}
To open "FTM"86{
FTM}
To open "Entertainment settings"141{Entertainment settings}

Everything from A - Z
218

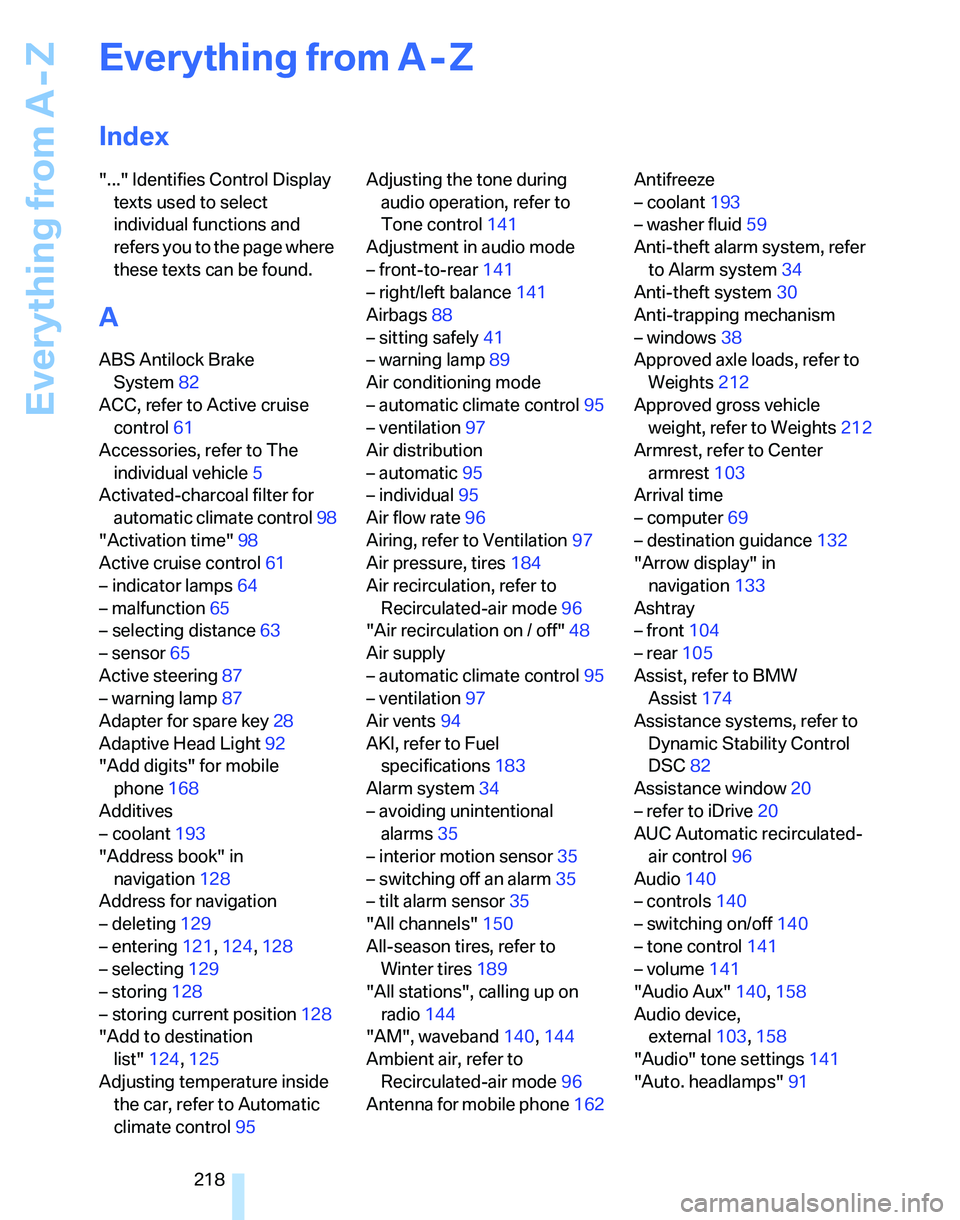

Everything from A - Z
Index
"..." Identifies Control Display
texts used to select
individual functions and
refers you to the page where
these texts can be found.
A
ABS Antilock Brake
System82
ACC, refer to Active cruise
control61
Accessories, refer to The
individual vehicle5
Activated-charcoal filter for
automatic climate control98
"Activation time"98
Active cruise control61
– indicator lamps64
– malfunction65
– selecting distance63
– sensor65
Active steering87
– warning lamp87
Adapter for spare key28
Adaptive Head Light92
"Add digits" for mobile
phone168
Additives
– coolant193
"Address book" in
navigation128
Address for navigation
– deleting129
– entering121,124,128
– selecting129
– storing128
– storing current position128
"Add to destination
list"124,125
Adjusting temperature inside
the car, refer to Automatic
climate control95Adjusting the tone during
audio operation, refer to
Tone control141
Adjustment in audio mode
– front-to-rear141
– right/left balance141
Airbags88
– sitting safely41
– warning lamp89
Air conditioning mode
– automatic climate control95
– ventilation97
Air distribution
– automatic95
– individual95
Air flow rate96
Airing, refer to Ventilation97
Air pressure, tires184
Air recirculation, refer to
Recirculated-air mode96
"Air recirculation on / off"48
Air supply
– automatic climate control95
– ventilation
97
Air vents94
AKI, refer to Fuel
specifications183
Alarm system34
– avoiding unintentional
alarms35
– interior motion sensor35
– switching off an alarm35
– tilt alarm sensor35
"All channels"150
All-season tires, refer to
Winter tires189
"All stations", calling up on
radio144
"AM", waveband140,144
Ambient air, refer to
Recirculated-air mode96
Antenna for mobile phone162Antifreeze
– coolant193
– washer fluid59
Anti-theft alarm system, refer
to Alarm system34
Anti-theft system30
Anti-trapping mechanism
– windows38
Approved axle loads, refer to
Weights212
Approved gross vehicle
weight, refer to Weights212
Armrest, refer to Center
armrest103
Arrival time
– computer69
– destination guidance132
"Arrow display" in
navigation133
Ashtray
– front104
– rear105
Assist, refer to BMW
Assist174
Assistance systems, refer to
Dynamic Stability Control
DSC82
Assistance window20
– refer to iDrive20
AUC Automatic recirculated-
air control96
Audio140
– controls140
– switching on/off140
– tone control141
– volume141
"Audio Aux"140,158
Audio device,
external103,158
"Audio" tone settings141
"Auto. headlamps"91

Reference 219
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

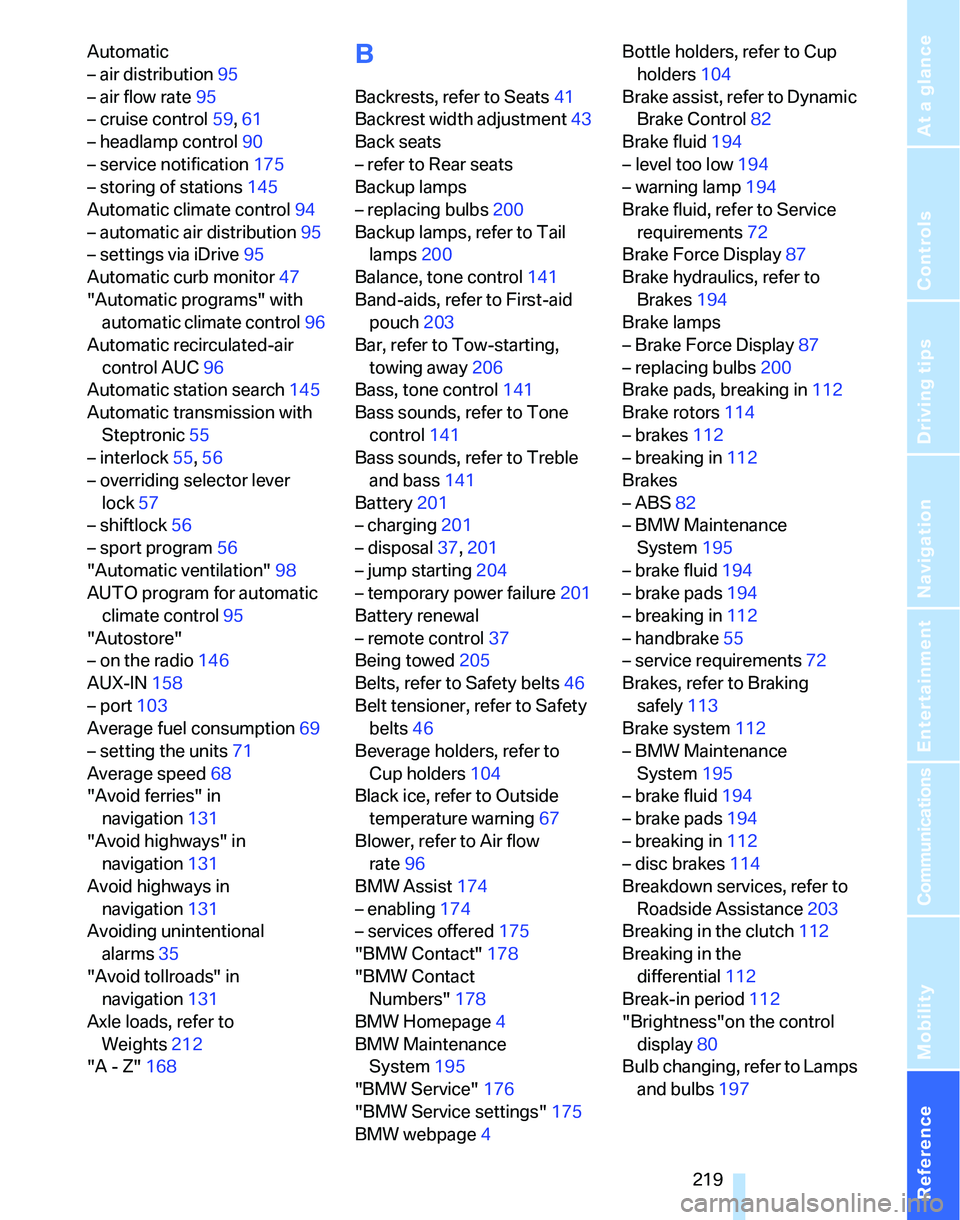

Automatic
– air distribution95
– air flow rate95
– cruise control59,61
– headlamp control90
– service notification175
– storing of stations145
Automatic climate control94
– automatic air distribution95
– settings via iDrive95
Automatic curb monitor47
"Automatic programs" with
automatic climate control96
Automatic recirculated-air
control AUC96
Automatic station search145
Automatic transmission with
Steptronic55
– interlock55,56
– overriding selector lever
lock57
– shiftlock56
– sport program56
"Automatic ventilation"98
AUTO program for automatic
climate control95
"Autostore"
– on the radio146
AUX-IN158
– port103
Average fuel consumption69
– setting the units71
Average speed68
"Avoid ferries" in
navigation131
"Avoid highways" in
navigation131
Avoid highways in
navigation131
Avoiding unintentional
alarms35
"Avoid tollroads" in
navigation131
Axle loads, refer to
Weights212
"A - Z"168B
Backrests, refer to Seats41
Backrest width adjustment43
Back seats
– refer to Rear seats
Backup lamps
– replacing bulbs200
Backup lamps, refer to Tail
lamps200
Balance, tone control141
Band-aids, refer to First-aid
pouch203
Bar, refer to Tow-starting,
towing away206
Bass, tone control141
Bass sounds, refer to Tone
control141
Bass sounds, refer to Treble
and bass141
Battery201
– charging201
– disposal37,201
– jump starting204
– temporary power failure201
Battery renewal
– remote control37
Being towed205
Belts, refer to Safety belts46
Belt tensioner, refer to Safety
belts46
Beverage holders, refer to
Cup holders104
Black ice, refer to Outside
temperature warning67
Blower, refer to Air flow
rate96
BMW Assist174
– enabling174
– services offered175
"BMW Contact"178
"BMW Contact
Numbers"178
BMW Homepage4
BMW Maintenance
System195
"BMW Service"176
"BMW Service settings"175
BMW webpage4Bottle holders, refer to Cup
holders104
Brake assist, refer to Dynamic
Brake Control82
Brake fluid194
– level too low194
– warning lamp194
Brake fluid, refer to Service
requirements72
Brake Force Display87
Brake hydraulics, refer to
Brakes194
Brake lamps
– Brake Force Display
87
– replacing bulbs200
Brake pads, breaking in112
Brake rotors114
– brakes112
– breaking in112
Brakes
– ABS82
– BMW Maintenance
System195
– brake fluid194
– brake pads194
– breaking in112
– handbrake55
– service requirements72
Brakes, refer to Braking
safely113
Brake system112
– BMW Maintenance
System195
– brake fluid194
– brake pads194
– breaking in112
– disc brakes114
Breakdown services, refer to
Roadside Assistance203
Breaking in the clutch112
Breaking in the
differential112
Break-in period112
"Brightness"on the control
display80
Bulb changing, refer to Lamps
and bulbs197
