load capacity BMW 328I XDRIVE SPORTS WAGON 2015 Owners Manual

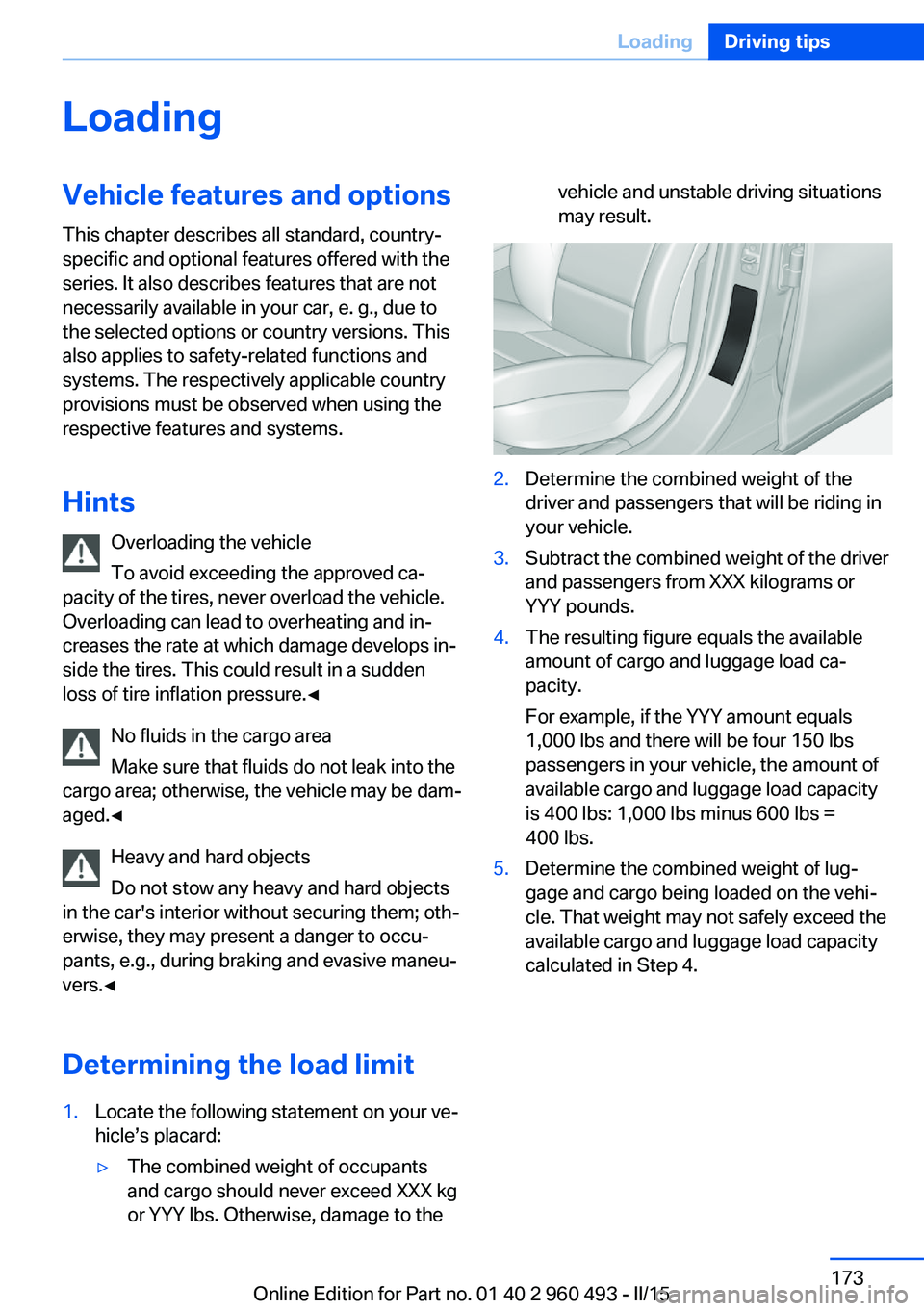

LoadingVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Hints Overloading the vehicle
To avoid exceeding the approved ca‐
pacity of the tires, never overload the vehicle.
Overloading can lead to overheating and in‐
creases the rate at which damage develops in‐
side the tires. This could result in a sudden
loss of tire inflation pressure.◀
No fluids in the cargo area
Make sure that fluids do not leak into the
cargo area; otherwise, the vehicle may be dam‐
aged.◀
Heavy and hard objects
Do not stow any heavy and hard objects
in the car's interior without securing them; oth‐
erwise, they may present a danger to occu‐
pants, e.g., during braking and evasive maneu‐
vers.◀
Determining the load limit1.Locate the following statement on your ve‐
hicle’s placard:▷The combined weight of occupants
and cargo should never exceed XXX kg
or YYY lbs. Otherwise, damage to thevehicle and unstable driving situations
may result.2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.3.Subtract the combined weight of the driver
and passengers from XXX kilograms or
YYY pounds.4.The resulting figure equals the available
amount of cargo and luggage load ca‐
pacity.
For example, if the YYY amount equals
1,000 lbs and there will be four 150 lbs
passengers in your vehicle, the amount of
available cargo and luggage load capacity
is 400 lbs: 1,000 lbs minus 600 lbs =
400 lbs.5.Determine the combined weight of lug‐
gage and cargo being loaded on the vehi‐
cle. That weight may not safely exceed the
available cargo and luggage load capacity
calculated in Step 4.Seite 173LoadingDriving tips173
Online Edition for Part no. 01 40 2 960 493 - II/15

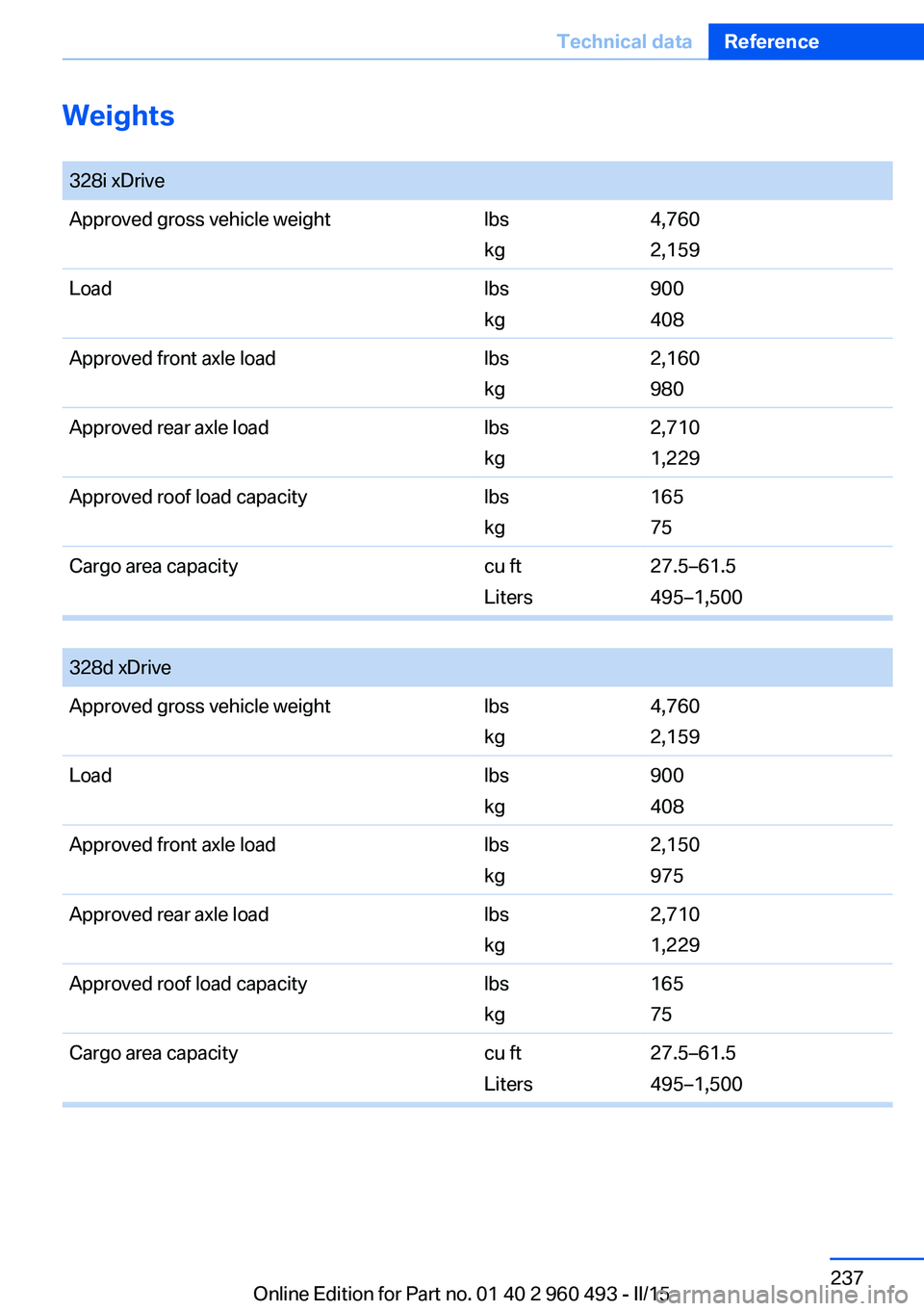

Weights
328i xDriveApproved gross vehicle weightlbs
kg
4,760
2,159
Loadlbs
kg
900
408
Approved front axle loadlbs
kg
2,160
980
Approved rear axle loadlbs
kg
2,710
1,229
Approved roof load capacitylbs
kg
165
75
Cargo area capacitycu ft
Liters
27.5–61.5
495–1,500

328d xDriveApproved gross vehicle weightlbs
kg
4,760
2,159
Loadlbs
kg
900
408
Approved front axle loadlbs
kg
2,150
975
Approved rear axle loadlbs
kg
2,710
1,229
Approved roof load capacitylbs
kg
165
75
Cargo area capacitycu ft
Liters
27.5–61.5
495–1,500
Seite 237Technical dataReference237
Online Edition for Part no. 01 40 2 960 493 - II/15
