BMW 330I 2004 Owner's Manual

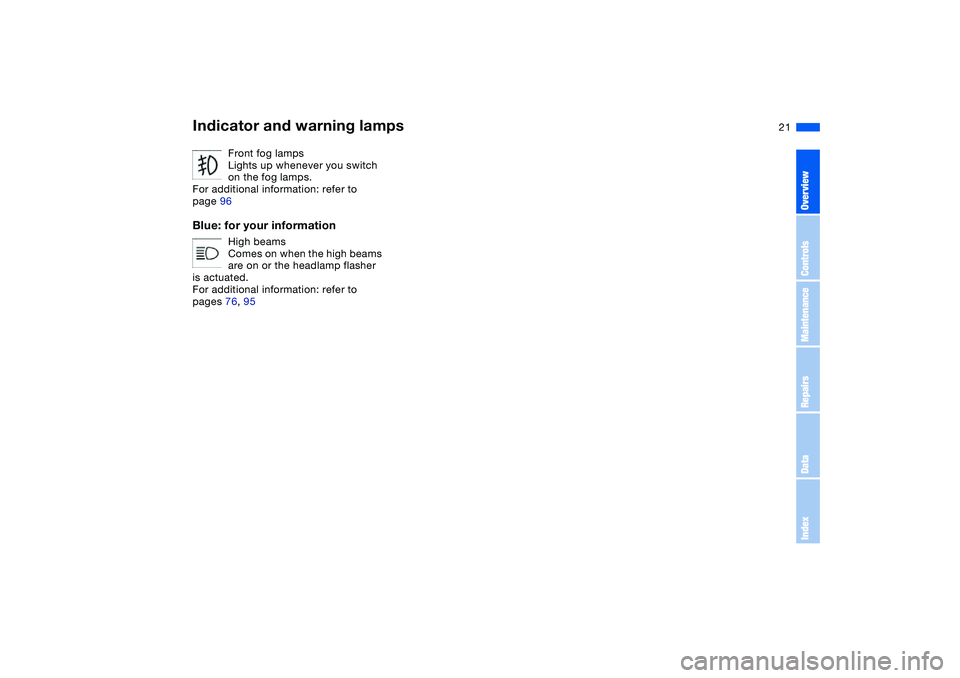

21
Front fog lamps
Lights up whenever you switch
on the fog lamps.
For additional information: refer to
page 96

Blue: for your information

High beams
Comes on when the high beams
are on or the headlamp flasher
is actuated.
For additional information: refer to
pages 76, 95

Indicator and warning lamps

OverviewControlsMaintenanceRepairsDataIndex

22

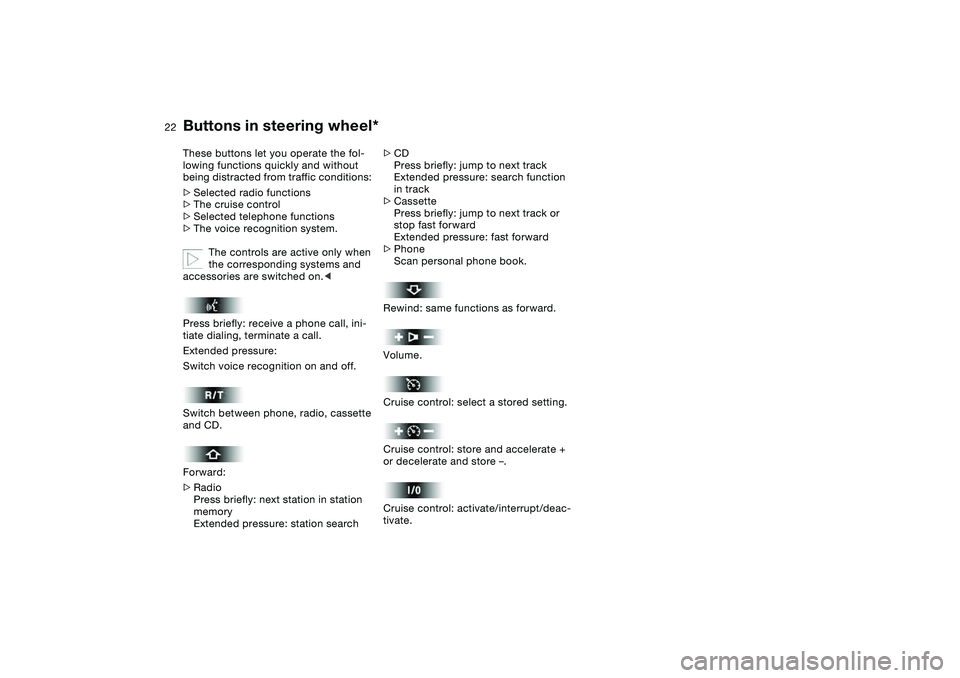

Buttons in steering wheel*

These buttons let you operate the fol-
lowing functions quickly and without
being distracted from traffic conditions:

>

Selected radio functions

>

The cruise control

>

Selected telephone functions

>

The voice recognition system.
The controls are active only when
the corresponding systems and
accessories are switched on.

<

Press briefly: receive a phone call, ini-
tiate dialing, terminate a call.
Extended pressure:
Switch voice recognition on and off.
Switch between phone, radio, cassette
and CD.
Forward:

>

Radio
Press briefly: next station in station
memory
Extended pressure: station search

>

CD
Press briefly: jump to next track
Extended pressure: search function
in track

>Cassette
Press briefly: jump to next track or
stop fast forward
Extended pressure: fast forward
>Phone
Scan personal phone book.
Rewind: same functions as forward.
Volume.
Cruise control: select a stored setting.
Cruise control: store and accelerate +
or decelerate and store –.
Cruise control: activate/interrupt/deac-
tivate.

23

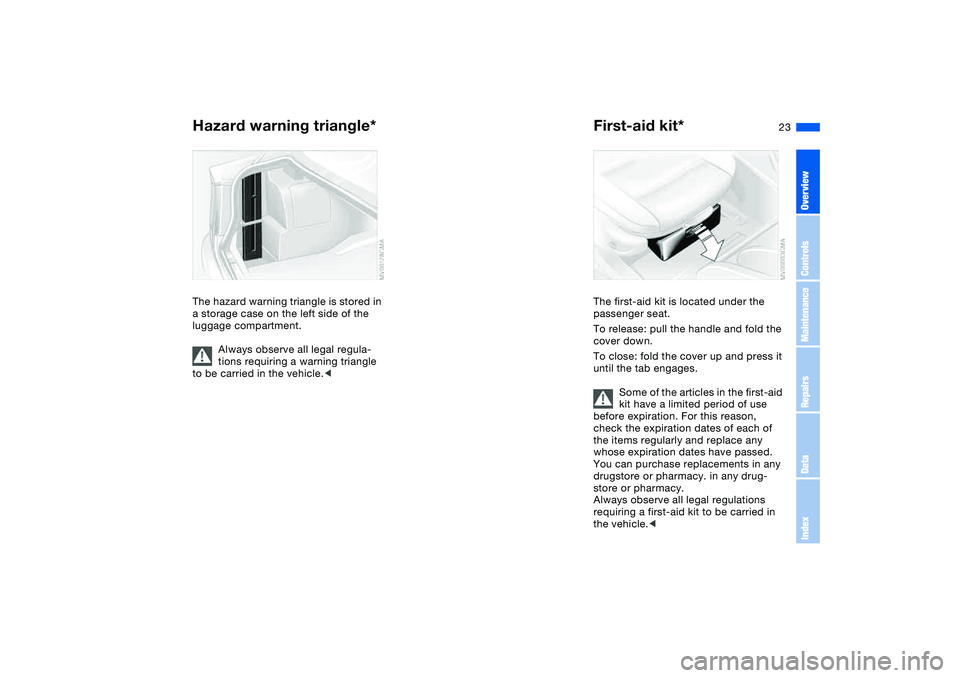

Hazard warning triangle*The hazard warning triangle is stored in
a storage case on the left side of the
luggage compartment.
Always observe all legal regula-
tions requiring a warning triangle
to be carried in the vehicle.<
First-aid kit*The first-aid kit is located under the
passenger seat.
To release: pull the handle and fold the
cover down.
To close: fold the cover up and press it
until the tab engages.
Some of the articles in the first-aid
kit have a limited period of use
before expiration. For this reason,
check the expiration dates of each of
the items regularly and replace any
whose expiration dates have passed.
You can purchase replacements in any
drugstore or pharmacy. in any drug-
store or pharmacy.
Always observe all legal regulations
requiring a first-aid kit to be carried in
the vehicle.<
OverviewControlsMaintenanceRepairsDataIndex

24

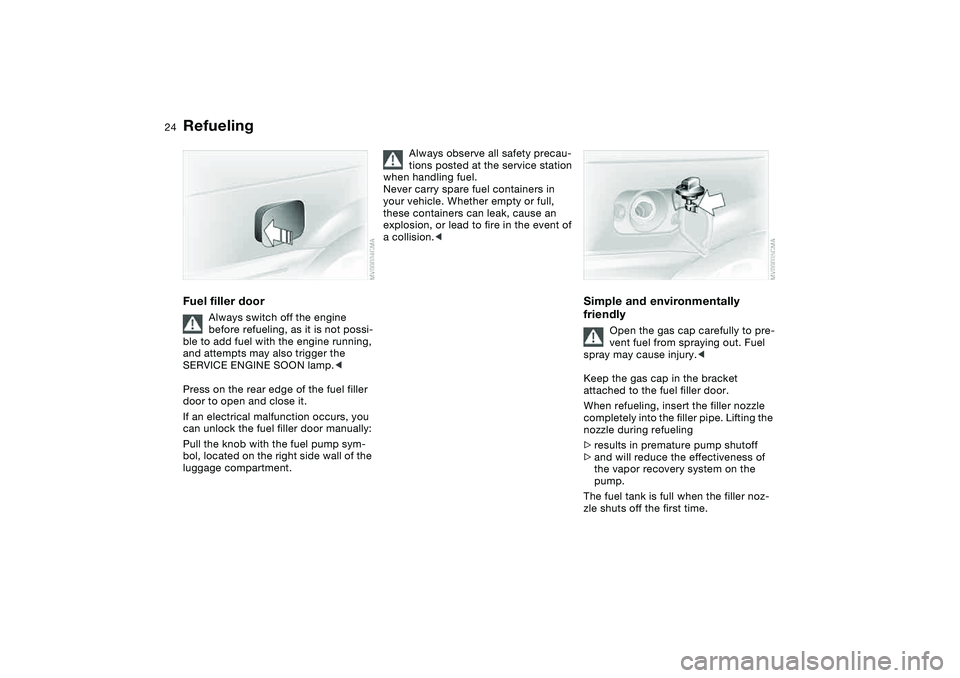

RefuelingFuel filler door
Always switch off the engine
before refueling, as it is not possi-
ble to add fuel with the engine running,
and attempts may also trigger the
SERVICE ENGINE SOON lamp.<
Press on the rear edge of the fuel filler
door to open and close it.
If an electrical malfunction occurs, you
can unlock the fuel filler door manually:
Pull the knob with the fuel pump sym-
bol, located on the right side wall of the
luggage compartment.
Always observe all safety precau-
tions posted at the service station
when handling fuel.
Never carry spare fuel containers in
your vehicle. Whether empty or full,
these containers can leak, cause an
explosion, or lead to fire in the event of
a collision.<
Simple and environmentally
friendly
Open the gas cap carefully to pre-
vent fuel from spraying out. Fuel
spray may cause injury.<
Keep the gas cap in the bracket
attached to the fuel filler door.
When refueling, insert the filler nozzle
completely into the filler pipe. Lifting the
nozzle during refueling
>results in premature pump shutoff
>and will reduce the effectiveness of
the vapor recovery system on the
pump.
The fuel tank is full when the filler noz-
zle shuts off the first time.

25

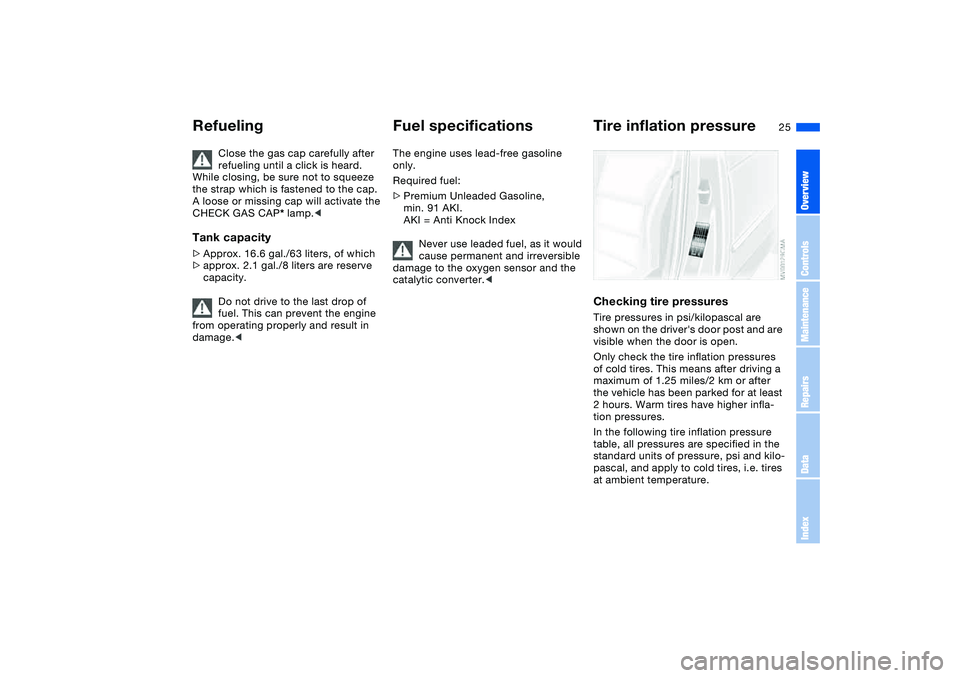

Close the gas cap carefully after
refueling until a click is heard.
While closing, be sure not to squeeze
the strap which is fastened to the cap.
A loose or missing cap will activate the
CHECK GAS CAP* lamp.<
Tank capacity>Approx. 16.6 gal./63 liters, of which
>approx. 2.1 gal./8 liters are reserve
capacity.
Do not drive to the last drop of
fuel. This can prevent the engine
from operating properly and result in
damage.<
Fuel specificationsThe engine uses lead-free gasoline
only.
Required fuel:
>Premium Unleaded Gasoline,
min. 91 AKI.
AKI = Anti Knock Index
Never use leaded fuel, as it would
cause permanent and irreversible
damage to the oxygen sensor and the
catalytic converter.<
Tire inflation pressureChecking tire pressuresTire pressures in psi/kilopascal are
shown on the driver's door post and are
visible when the door is open.
Only check the tire inflation pressures
of cold tires. This means after driving a
maximum of 1.25 miles/2 km or after
the vehicle has been parked for at least
2 hours. Warm tires have higher infla-
tion pressures.
In the following tire inflation pressure
table, all pressures are specified in the
standard units of pressure, psi and kilo-
pascal, and apply to cold tires, i.e. tires
at ambient temperature.
Refueling
OverviewControlsMaintenanceRepairsDataIndex

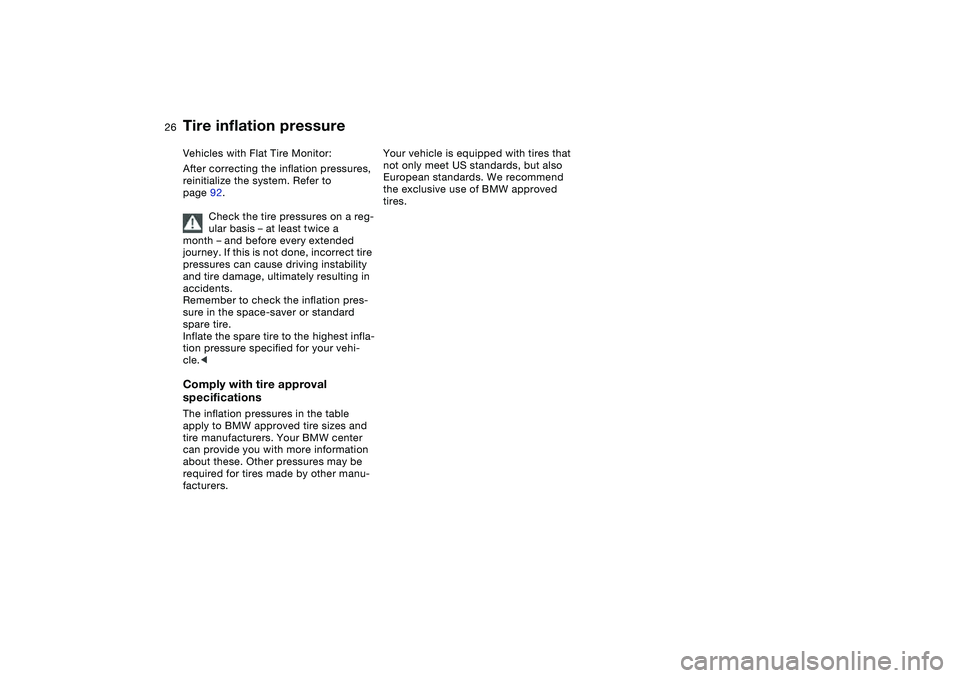

26
Vehicles with Flat Tire Monitor:
After correcting the inflation pressures,
reinitialize the system. Refer to
page 92.
Check the tire pressures on a reg-
ular basis – at least twice a
month – and before every extended
journey. If this is not done, incorrect tire
pressures can cause driving instability
and tire damage, ultimately resulting in
accidents.
Remember to check the inflation pres-
sure in the space-saver or standard
spare tire.
Inflate the spare tire to the highest infla-
tion pressure specified for your vehi-
cle. specificationsThe inflation pressures in the table
apply to BMW approved tire sizes and
tire manufacturers. Your BMW center
can provide you with more information
about these. Other pressures may be
required for tires made by other manu-
facturers.
Your vehicle is equipped with tires that
not only meet US standards, but also
European standards. We recommend
the exclusive use of BMW approved
tires.
Tire inflation pressure

27

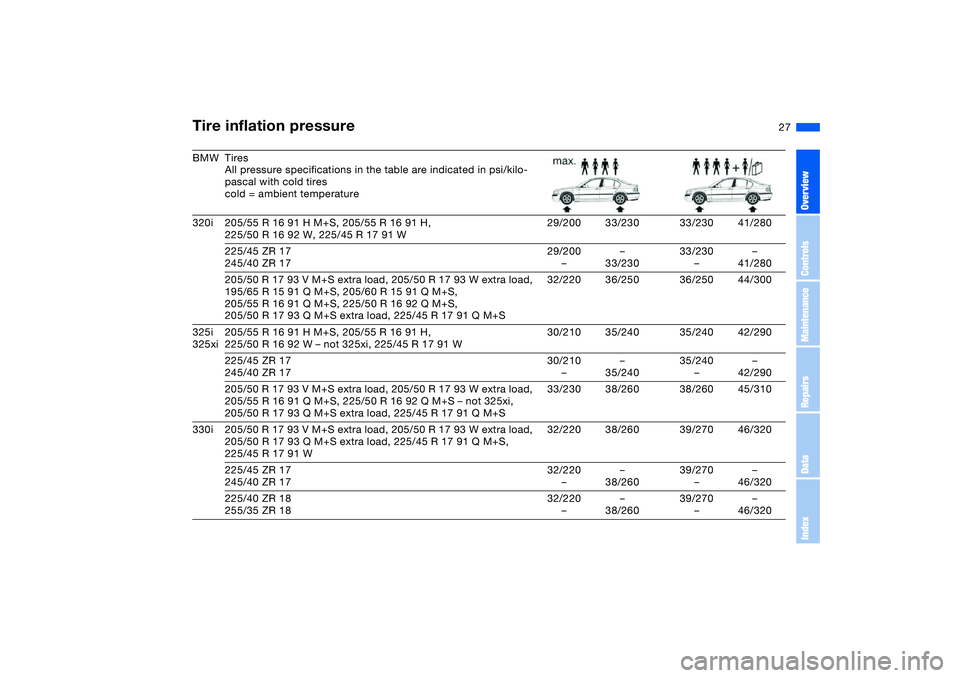

BMW Tires
All pressure specifications in the table are indicated in psi/kilo-
pascal with cold tires
cold = ambient temperature
320i 205/55 R 16 91 H M+S, 205/55 R 16 91 H,
225/50 R 16 92 W, 225/45 R 17 91 W29/200 33/230 33/230 41/280
225/45 ZR 17
245/40 ZR 1729/200
––
33/23033/230
––
41/280
205/50 R 17 93 V M+S extra load, 205/50 R 17 93 W extra load,
195/65 R 15 91 Q M+S, 205/60 R 15 91 Q M+S,
205/55 R 16 91 Q M+S, 225/50 R 16 92 Q M+S,
205/50 R 17 93 Q M+S extra load, 225/45 R 17 91 Q M+S32/220 36/250 36/250 44/300
325i
325xi205/55 R 16 91 H M+S, 205/55 R 16 91 H,
225/50 R 16 92 W – not 325xi, 225/45 R 17 91 W30/210 35/240 35/240 42/290
225/45 ZR 17
245/40 ZR 1730/210
––
35/24035/240
––
42/290
205/50 R 17 93 V M+S extra load, 205/50 R 17 93 W extra load,
205/55 R 16 91 Q M+S, 225/50 R 16 92 Q M+S – not 325xi,
205/50 R 17 93 Q M+S extra load, 225/45 R 17 91 Q M+S33/230 38/260 38/260 45/310
330i 205/50 R 17 93 V M+S extra load, 205/50 R 17 93 W extra load,
205/50 R 17 93 Q M+S extra load, 225/45 R 17 91 Q M+S,
225/45 R 17 91 W32/220 38/260 39/270 46/320
225/45 ZR 17
245/40 ZR 1732/220
––
38/26039/270
––
46/320
225/40 ZR 18
255/35 ZR 1832/220
––
38/26039/270
––
46/320Tire inflation pressure
OverviewControlsMaintenanceRepairsDataIndex

28

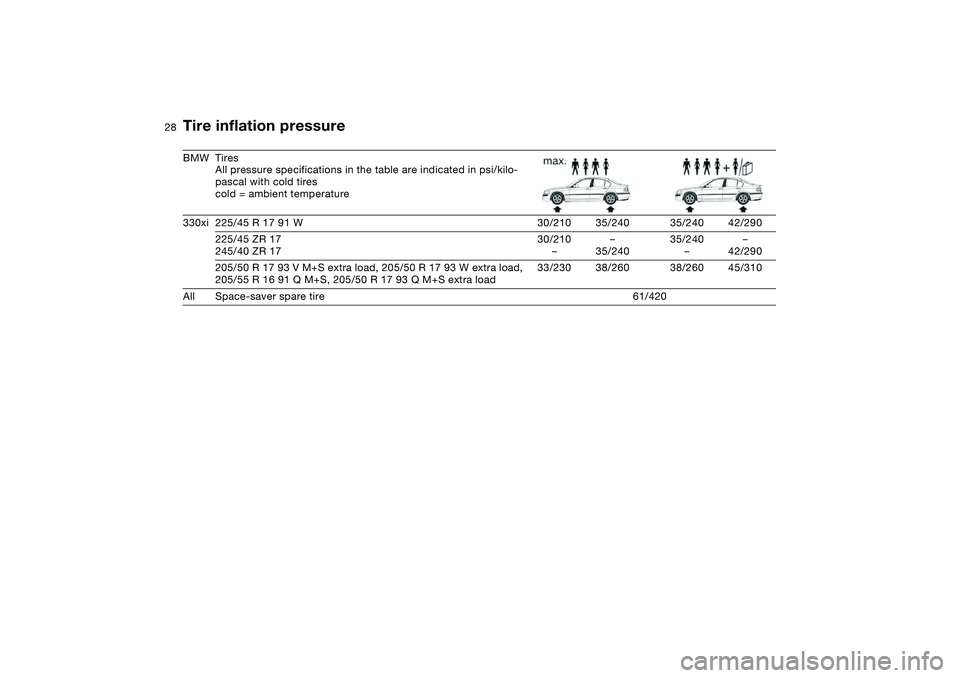

330xi 225/45 R 17 91 W 30/210 35/240 35/240 42/290
225/45 ZR 17
245/40 ZR 1730/210
––
35/24035/240
––
42/290
205/50 R 17 93 V M+S extra load, 205/50 R 17 93 W extra load,
205/55 R 16 91 Q M+S, 205/50 R 17 93 Q M+S extra load33/230 38/260 38/260 45/310
All Space-saver spare tire 61/420 BMW Tires
All pressure specifications in the table are indicated in psi/kilo-
pascal with cold tires
cold = ambient temperatureTire inflation pressure
