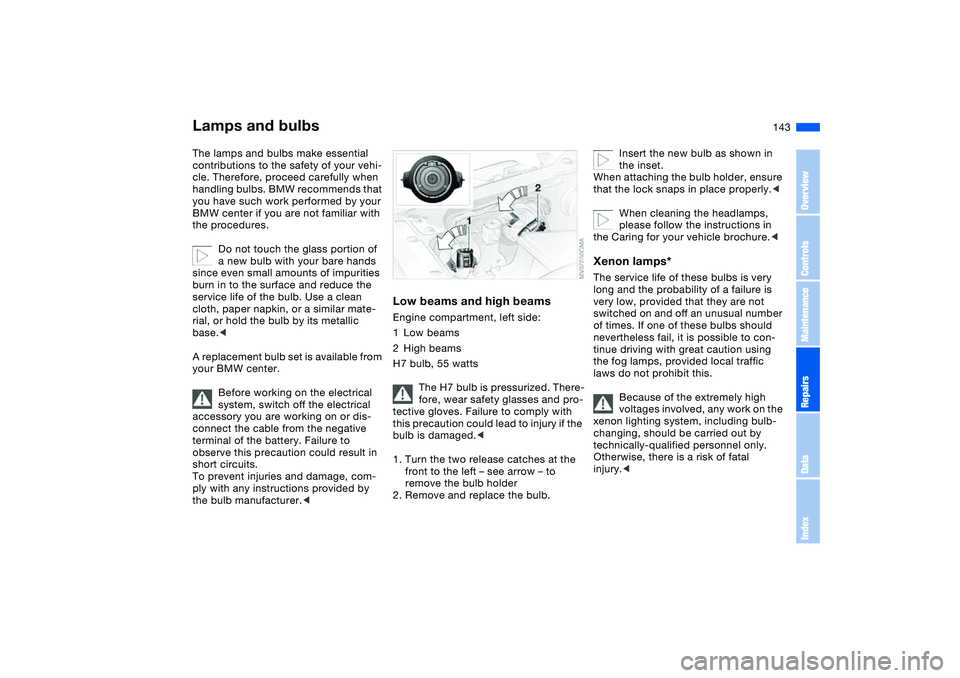

Lamps and bulbsThe lamps and bulbs make essential
contributions to the safety of your vehi-
cle. Therefore, proceed carefully when
handling bulbs. BMW recommends that
you have such work performed by your
BMW center if you are not familiar with
the procedures.
Do not touch the glass portion of
a new bulb with your bare hands
since even small amounts of impurities
burn in to the surface and reduce the
service life of the bulb. Use a clean
cloth, paper napkin, or a similar mate-
rial, or hold the bulb by its metallic
base.<
A replacement bulb set is available from
your BMW center.
Before working on the electrical
system, switch off the electrical
accessory you are working on or dis-
connect the cable from the negative
terminal of the battery. Failure to
observe this precaution could result in
short circuits.
To prevent injuries and damage, com-
ply with any instructions provided by
the bulb manufacturer.<
Low beams and high beamsEngine compartment, left side:
1Low beams
2High beams
H7 bulb, 55 watts
The H7 bulb is pressurized. There-
fore, wear safety glasses and pro-
tective gloves. Failure to comply with
this precaution could lead to injury if the
bulb is damaged.<
1. Turn the two release catches at the
front to the left – see arrow – to
remove the bulb holder
2. Remove and replace the bulb.
Insert the new bulb as shown in
the inset.
When attaching the bulb holder, ensure
that the lock snaps in place properly.<
When cleaning the headlamps,
please follow the instructions in
the Caring for your vehicle brochure.<
Xenon lamps*The service life of these bulbs is very
long and the probability of a failure is
very low, provided that they are not
switched on and off an unusual number
of times. If one of these bulbs should
nevertheless fail, it is possible to con-
tinue driving with great caution using
the fog lamps, provided local traffic
laws do not prohibit this.
Because of the extremely high
voltages involved, any work on the
xenon lighting system, including bulb-
changing, should be carried out by
technically-qualified personnel only.
Otherwise, there is a risk of fatal
injury.<
OverviewControlsMaintenanceRepairsDataIndex

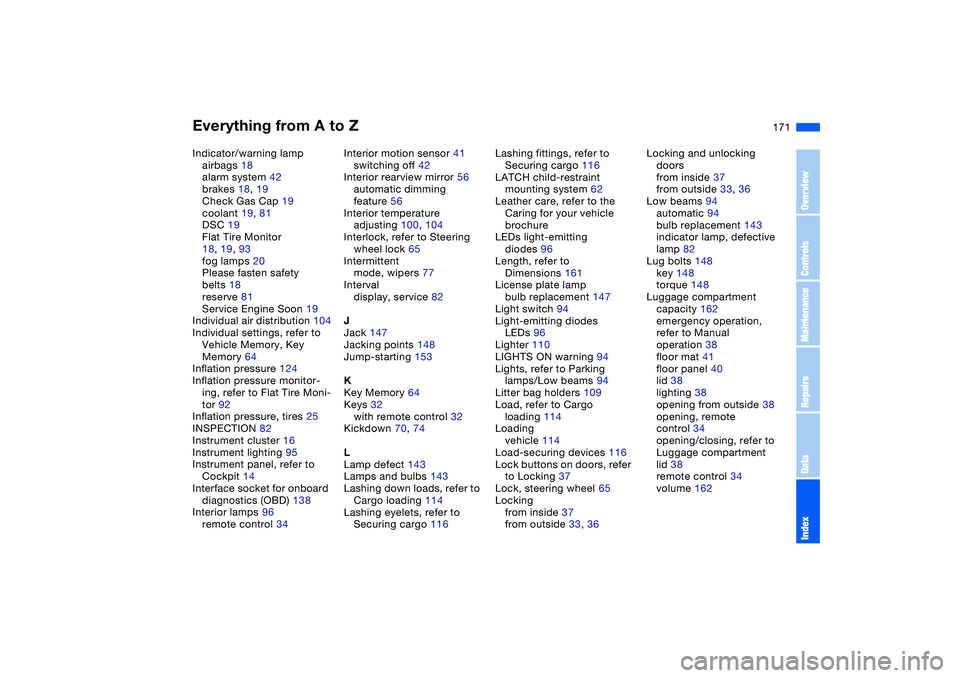

Everything from A to Z
171
Indicator/warning lamp
airbags 18
alarm system 42
brakes 18, 19
Check Gas Cap 19
coolant 19, 81
DSC 19
Flat Tire Monitor
18, 19, 93
fog lamps 20
Please fasten safety
belts 18
reserve 81
Service Engine Soon 19
Individual air distribution 104
Individual settings, refer to
Vehicle Memory, Key
Memory 64
Inflation pressure 124
Inflation pressure monitor-
ing, refer to Flat Tire Moni-
tor 92
Inflation pressure, tires 25
INSPECTION 82
Instrument cluster 16
Instrument lighting 95
Instrument panel, refer to
Cockpit 14
Interface socket for onboard
diagnostics (OBD) 138
Interior lamps 96
remote control 34Interior motion sensor 41
switching off 42
Interior rearview mirror 56
automatic dimming
feature 56
Interior temperature
adjusting 100, 104
Interlock, refer to Steering
wheel lock 65
Intermittent
mode, wipers 77
Interval
display, service 82
J
Jack 147
Jacking points 148
Jump-starting 153
K
Key Memory 64
Keys 32
with remote control 32
Kickdown 70, 74
L
Lamp defect 143
Lamps and bulbs 143
Lashing down loads, refer to
Cargo loading 114
Lashing eyelets, refer to
Securing cargo 116Lashing fittings, refer to
Securing cargo 116
LATCH child-restraint
mounting system 62
Leather care, refer to the
Caring for your vehicle
brochure
LEDs light-emitting
diodes 96
Length, refer to
Dimensions 161
License plate lamp
bulb replacement 147
Light switch 94
Light-emitting diodes
LEDs 96
Lighter 110
LIGHTS ON warning 94
Lights, refer to Parking
lamps/Low beams 94
Litter bag holders 109
Load, refer to Cargo
loading 114
Loading
vehicle 114
Load-securing devices 116
Lock buttons on doors, refer
to Locking 37
Lock, steering wheel 65
Locking
from inside 37
from outside 33, 36Locking and unlocking
doors
from inside 37
from outside 33, 36
Low beams 94
automatic 94
bulb replacement 143
indicator lamp, defective
lamp 82
Lug bolts 148
key 148
torque 148
Luggage compartment
capacity 162
emergency operation,
refer to Manual
operation 38
floor mat 41
floor panel 40
lid 38
lighting 38
opening from outside 38
opening, remote
control 34
opening/closing, refer to
Luggage compartment
lid 38
remote control 34
volume 162
