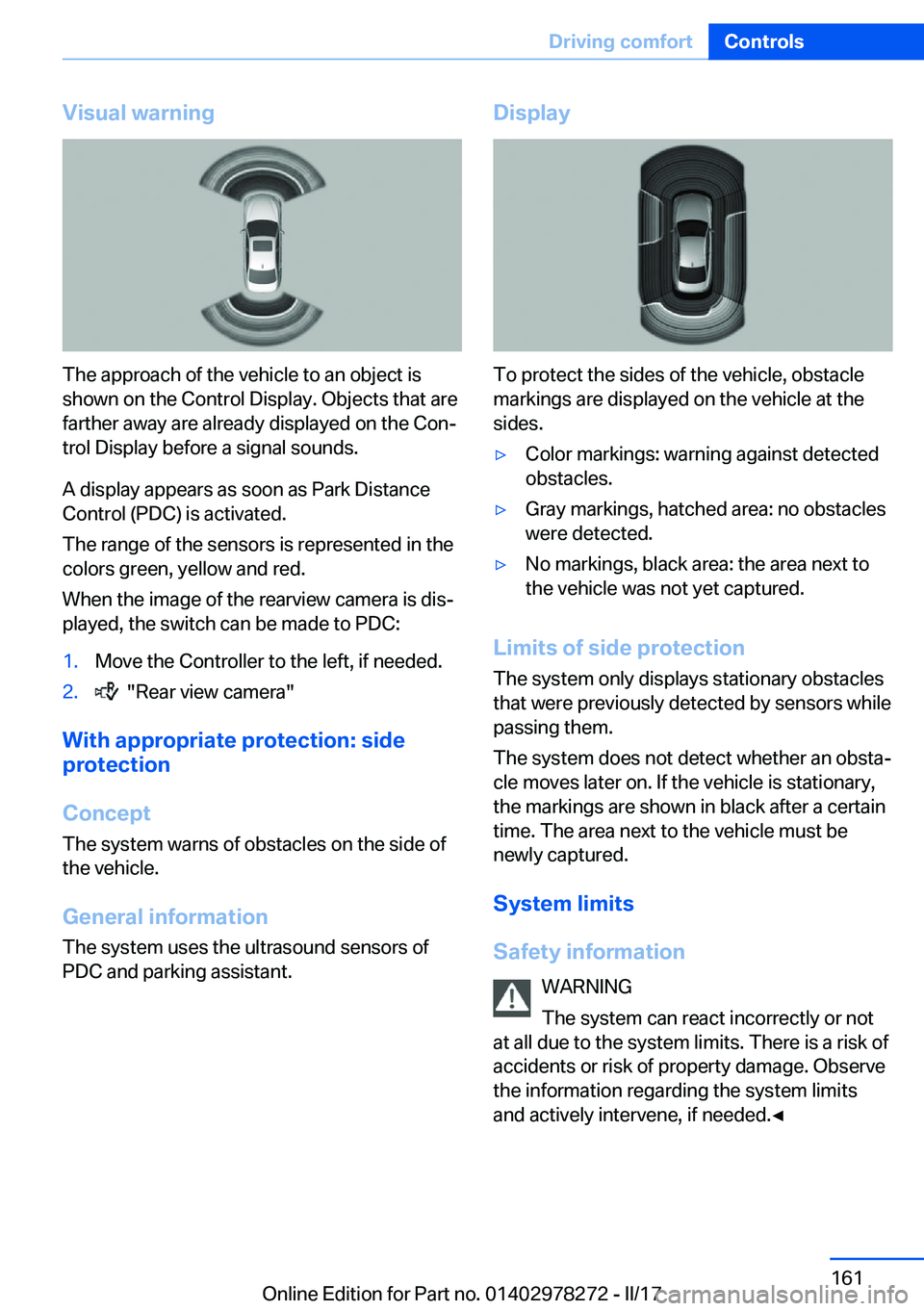

Visual
warning
The approach of the vehicle to an object is
shown on the Control Display. Objects that are farther away are already displayed on the Conjtrol Display before a signal sounds.
A display appears as soon as Park Distance
Control (PDC) is activated.
The range of the sensors is represented in the
colors green, yellow and red.
When the image of the rearview camera is disj played, the switch can be made to PDC:
1.Move the Controller to the left, if needed.2. "Rear view camera"
With
appropriate
protection:
side
protection
Concept
The system warns of obstacles on the side of
the vehicle.
General
information
The system uses the ultrasound sensors of
PDC and parking assistant.
Display
To protect the sides of the vehicle, obstacle markings are displayed on the vehicle at the
sides.
'yColor markings: warning against detected
obstacles.'yGray markings, hatched area: no obstacles were detected.'yNo markings, black area: the area next to
the vehicle was not yet captured.
Limits
of
side
protection
The system only displays stationary obstaclesthat were previously detected by sensors whilepassing them.
The system does not detect whether an obstaj cle moves later on. If the vehicle is stationary,
the markings are shown in black after a certain time. The area next to the vehicle must be
newly captured.
System
limits
Safety
information WARNING
The system can react incorrectly or not
at all due to the system limits. There is a risk of
accidents or risk of property damage. Observe
the information regarding the system limits
and actively intervene, if needed.'

Limits
of
ultrasonic
measurement

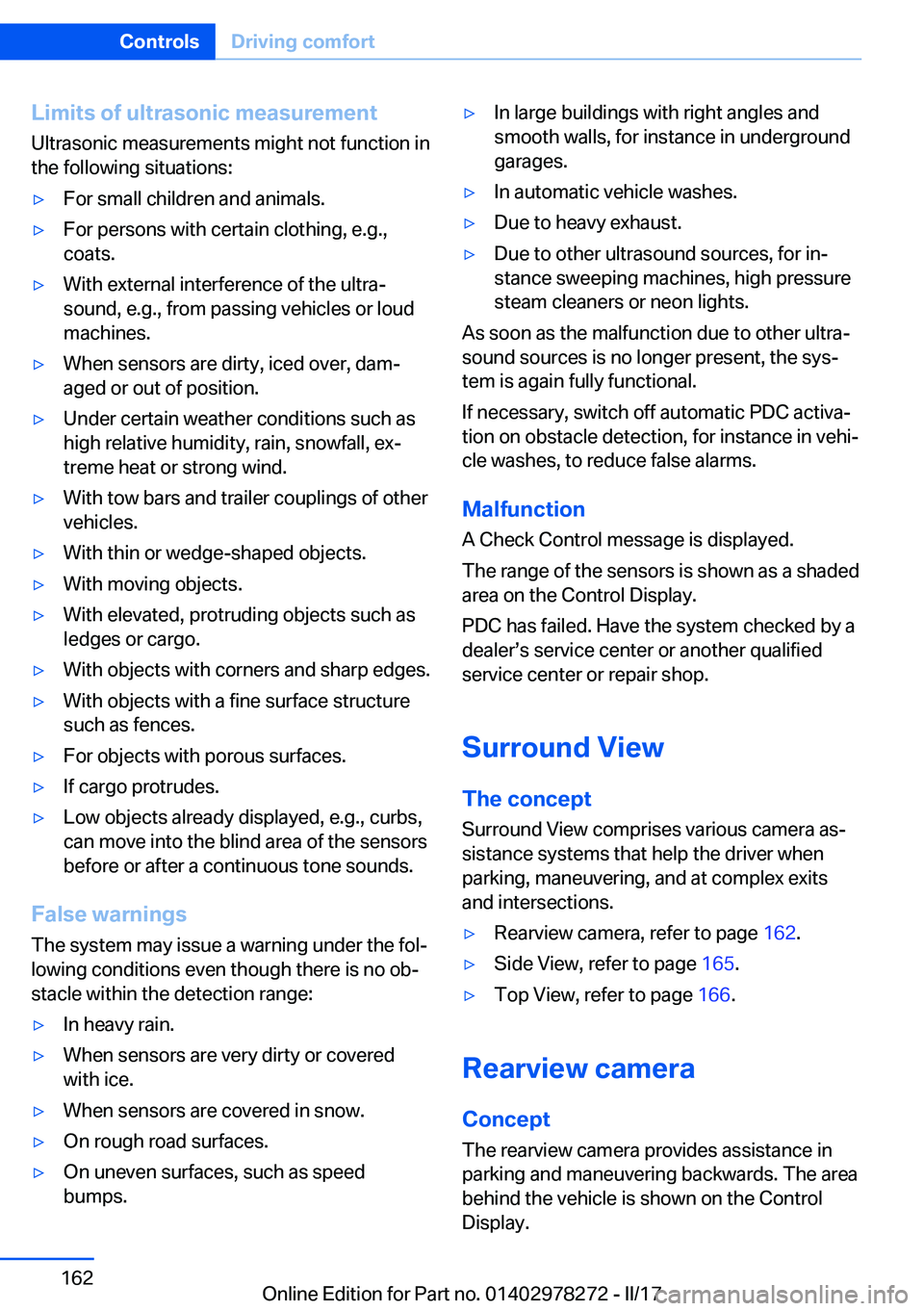

Ultrasonic measurements might not function in
the following situations:'yFor small children and animals.'yFor persons with certain clothing, e.g., coats.'yWith external interference of the ultraj
sound, e.g., from passing vehicles or loud machines.'yWhen sensors are dirty, iced over, damj
aged or out of position.'yUnder certain weather conditions such as
high relative humidity, rain, snowfall, exj
treme heat or strong wind.'yWith tow bars and trailer couplings of other vehicles.'yWith thin or wedge-shaped objects.'yWith moving objects.'yWith elevated, protruding objects such asledges or cargo.'yWith objects with corners and sharp edges.'yWith objects with a fine surface structuresuch as fences.'yFor objects with porous surfaces.'yIf cargo protrudes.'yLow objects already displayed, e.g., curbs,
can move into the blind area of the sensors
before or after a continuous tone sounds.
False
warnings
The system may issue a warning under the folj lowing conditions even though there is no objstacle within the detection range:
'yIn heavy rain.'yWhen sensors are very dirty or coveredwith ice.'yWhen sensors are covered in snow.'yOn rough road surfaces.'yOn uneven surfaces, such as speed
bumps.'yIn large buildings with right angles and
smooth walls, for instance in underground
garages.'yIn automatic vehicle washes.'yDue to heavy exhaust.'yDue to other ultrasound sources, for inj
stance sweeping machines, high pressure steam cleaners or neon lights.
As soon as the malfunction due to other ultraj
sound sources is no longer present, the sysj tem is again fully functional.
If necessary, switch off automatic PDC activaj tion on obstacle detection, for instance in vehij
cle washes, to reduce false alarms.
Malfunction
A Check Control message is displayed.
The range of the sensors is shown as a shaded area on the Control Display.
PDC has failed. Have the system checked by a
dealerss service center or another qualified service center or repair shop.
Surround
View
The
concept
Surround View comprises various camera asj
sistance systems that help the driver when parking, maneuvering, and at complex exitsand intersections.
'yRearview camera, refer to page 162.'ySide View, refer to page 165.'yTop View, refer to page 166.
Rearview
camera
Concept

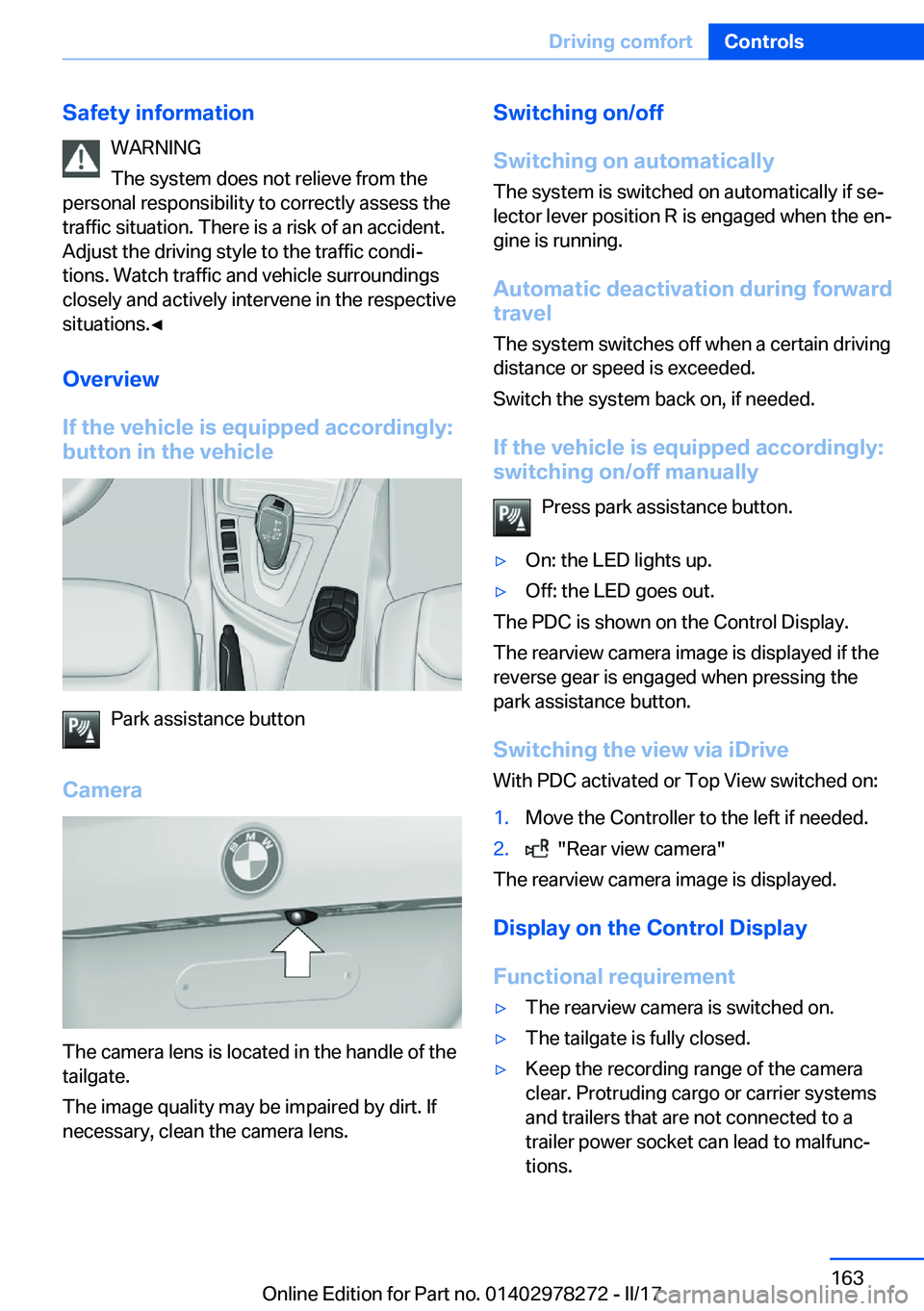

The rearview camera provides assistance in parking and maneuvering backwards. The area
behind the vehicle is shown on the Control
Display.
Seite 162ControlsDriving
comfort162
Online Edition for Part no. 01402978272 - II/17

Safety
informationWARNING
The system does not relieve from the
personal responsibility to correctly assess the
traffic situation. There is a risk of an accident. Adjust the driving style to the traffic condijtions. Watch traffic and vehicle surroundingsclosely and actively intervene in the respective
situations.'

Activating
assistance
functions
More than one assistance function can be acj
tive at the same time.

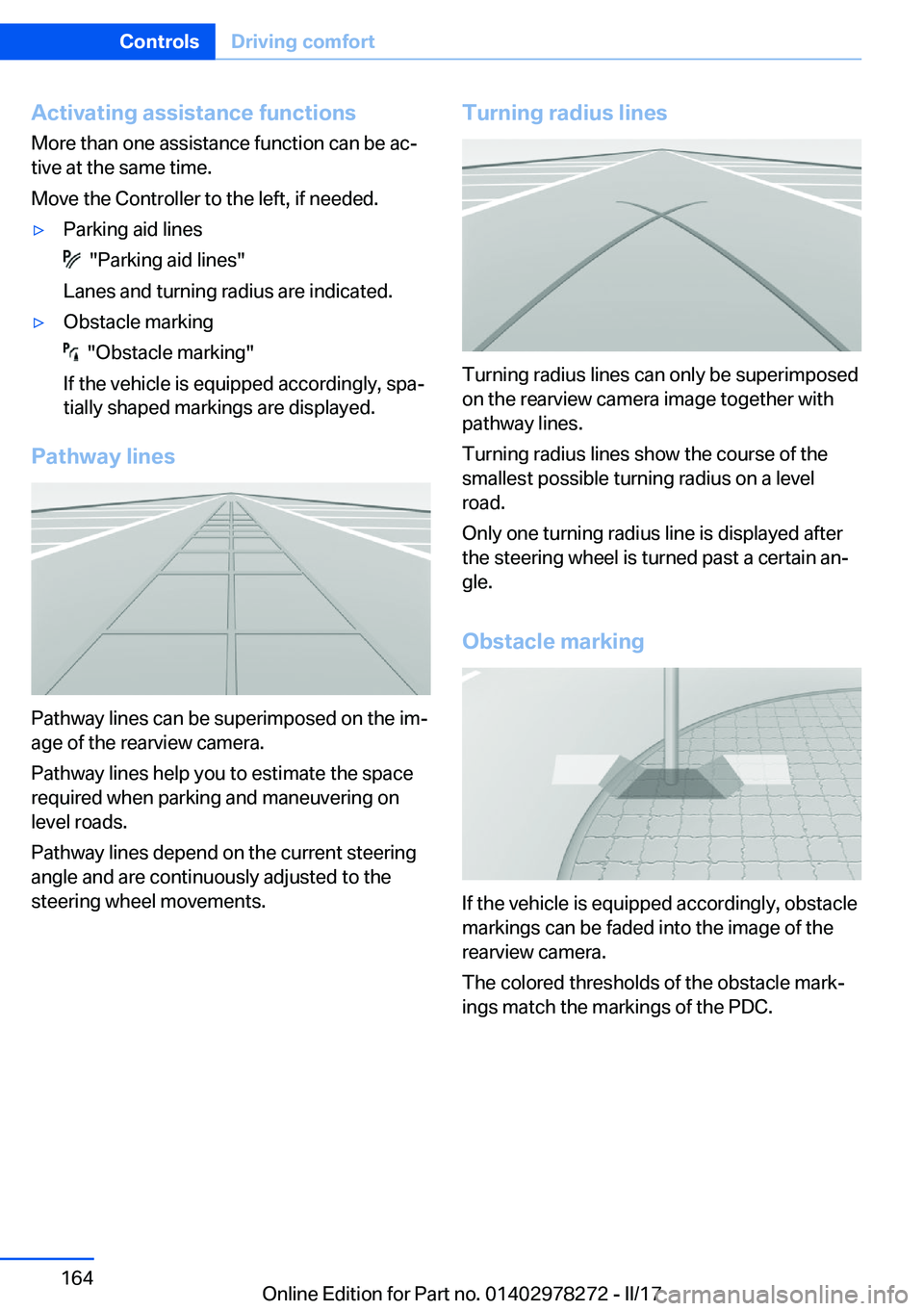

Move the Controller to the left, if needed.'yParking aid lines
"Parking aid lines"
Lanes and turning radius are indicated.
'yObstacle marking
"Obstacle marking"
If the vehicle is equipped accordingly, spaj
tially shaped markings are displayed.
Pathway
lines
Pathway lines can be superimposed on the imj
age of the rearview camera.
Pathway lines help you to estimate the space
required when parking and maneuvering on level roads.
Pathway lines depend on the current steering angle and are continuously adjusted to the
steering wheel movements.
Turning
radius
lines
Turning radius lines can only be superimposed
on the rearview camera image together with pathway lines.
Turning radius lines show the course of the
smallest possible turning radius on a level road.
Only one turning radius line is displayed after
the steering wheel is turned past a certain anj
gle.
Obstacle
marking
If the vehicle is equipped accordingly, obstacle
markings can be faded into the image of the rearview camera.
The colored thresholds of the obstacle markj
ings match the markings of the PDC.
Seite 164ControlsDriving
comfort164
Online Edition for Part no. 01402978272 - II/17

Parking
using
pathway
and
turning
radius

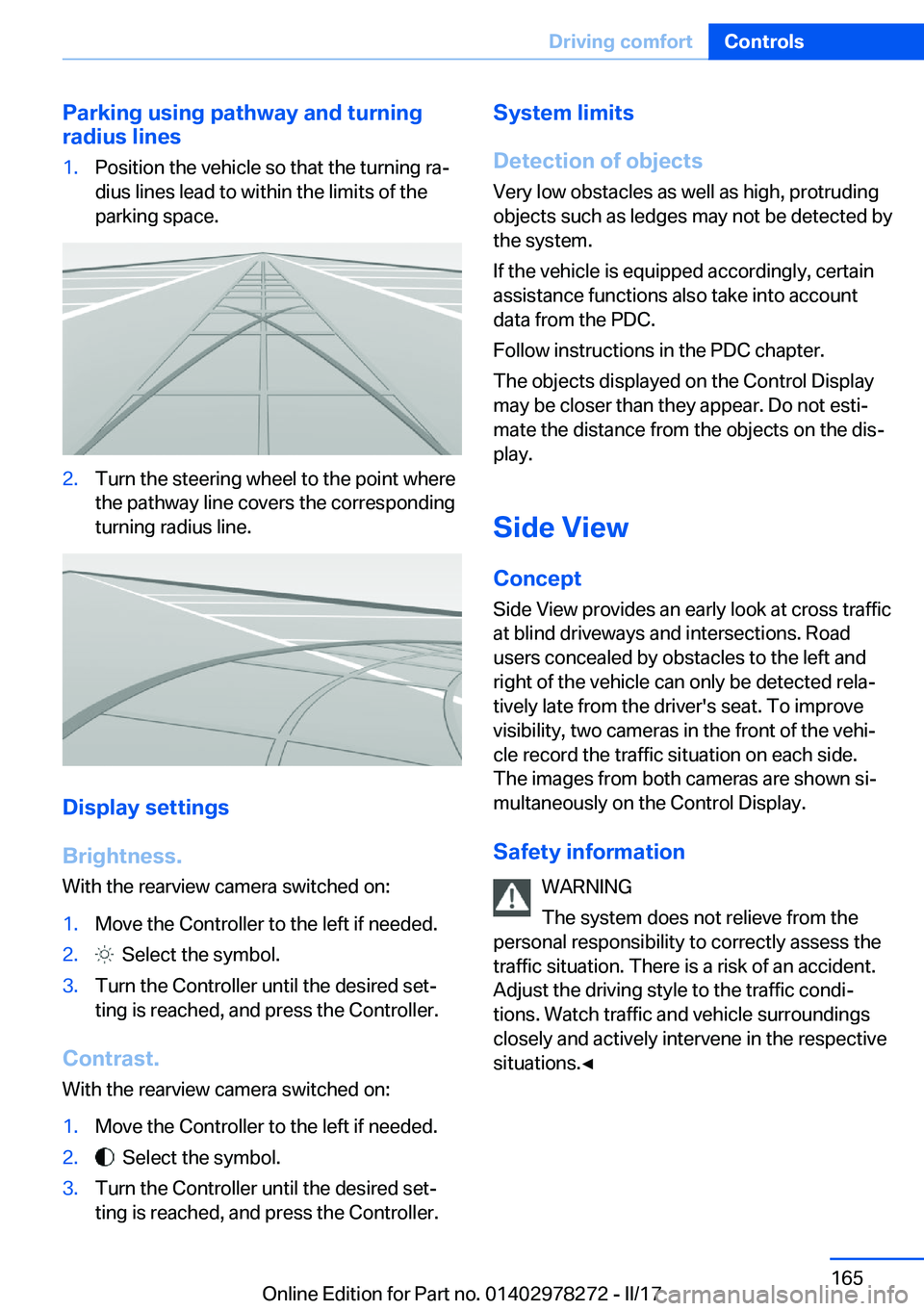

lines1.Position the vehicle so that the turning raj dius lines lead to within the limits of the
parking space.2.Turn the steering wheel to the point where
the pathway line covers the corresponding
turning radius line.
Display
settings
Brightness. With the rearview camera switched on:
1.Move the Controller to the left if needed.2. Select the symbol.3.Turn the Controller until the desired setjting is reached, and press the Controller.
Contrast.
With the rearview camera switched on:
1.Move the Controller to the left if needed.2. Select the symbol.3.Turn the Controller until the desired setj ting is reached, and press the Controller.System
limits
Detection
of
objects
Very low obstacles as well as high, protruding objects such as ledges may not be detected by
the system.
If the vehicle is equipped accordingly, certain assistance functions also take into account
data from the PDC.
Follow instructions in the PDC chapter.
The objects displayed on the Control Display
may be closer than they appear. Do not estij
mate the distance from the objects on the disj
play.
Side
View Concept
Side View provides an early look at cross traffic at blind driveways and intersections. Road
users concealed by obstacles to the left and right of the vehicle can only be detected relaj
tively late from the driver's seat. To improve
visibility, two cameras in the front of the vehij
cle record the traffic situation on each side.
The images from both cameras are shown sij
multaneously on the Control Display.
Safety
information WARNING
The system does not relieve from the
personal responsibility to correctly assess the traffic situation. There is a risk of an accident.Adjust the driving style to the traffic condijtions. Watch traffic and vehicle surroundingsclosely and actively intervene in the respective
situations.'

Overview
Button
in
the
vehicle

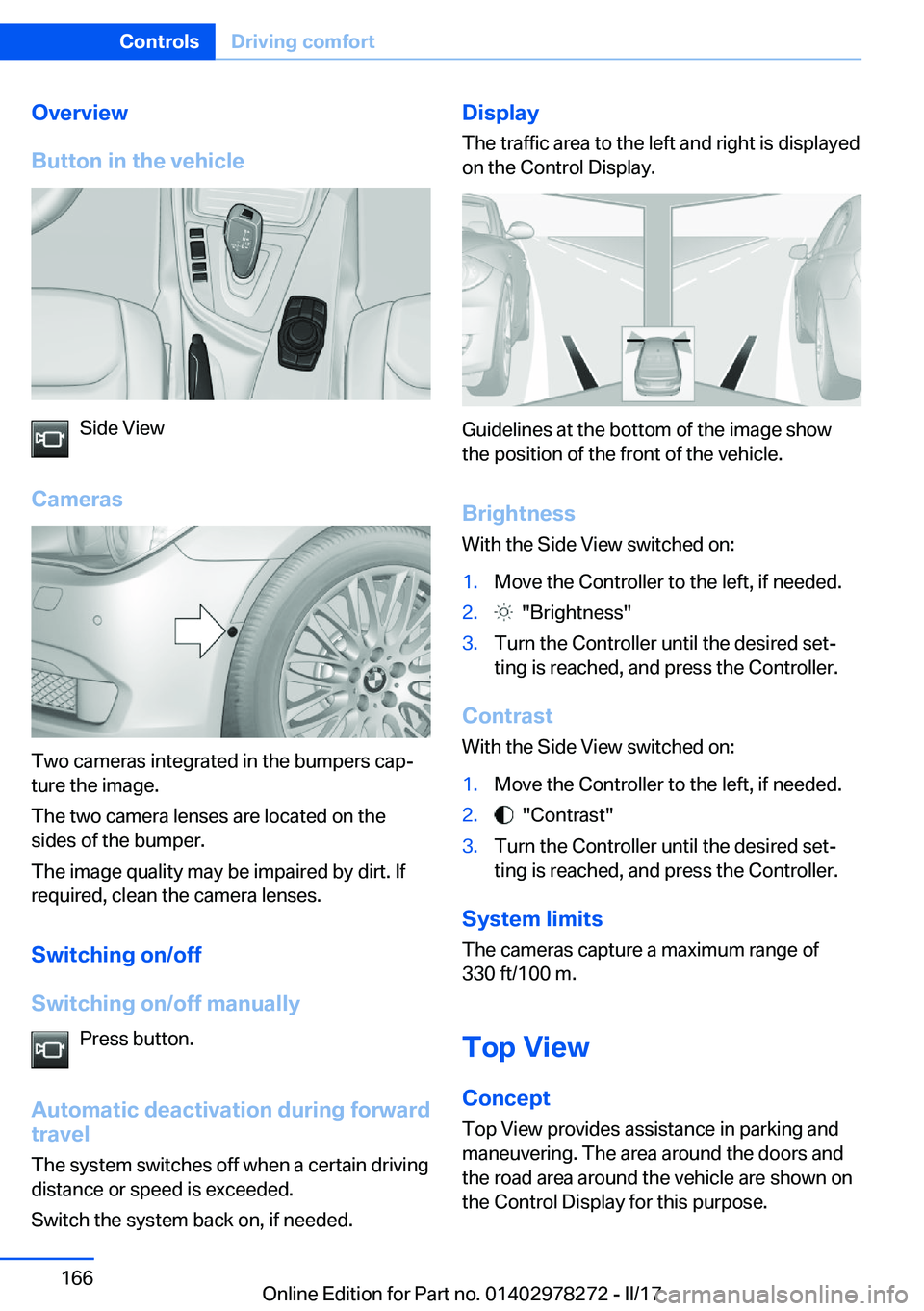

Side View
Cameras
Two cameras integrated in the bumpers capj
ture the image.
The two camera lenses are located on the
sides of the bumper.
The image quality may be impaired by dirt. If
required, clean the camera lenses.
Switching
on/off
Switching
on/off
manually Press button.
Automatic
deactivation
during
forward
travel
The system switches off when a certain driving
distance or speed is exceeded.
Switch the system back on, if needed.
Display
The traffic area to the left and right is displayed
on the Control Display.
Guidelines at the bottom of the image show
the position of the front of the vehicle.
Brightness With the Side View switched on:
1.Move the Controller to the left, if needed.2. "Brightness"3.Turn the Controller until the desired setjting is reached, and press the Controller.
Contrast
With the Side View switched on:
1.Move the Controller to the left, if needed.2. "Contrast"3.Turn the Controller until the desired setjting is reached, and press the Controller.
System
limits
The cameras capture a maximum range of
330 ft/100 m.
Top
View
Concept
Top View provides assistance in parking and
maneuvering. The area around the doors and
the road area around the vehicle are shown on
the Control Display for this purpose.
Seite 166ControlsDriving
comfort166
Online Edition for Part no. 01402978272 - II/17

General
information
The image is captured by two cameras integrated in the exterior mirrors and by the
rearview camera.
The range is at least 7 ft/2 m to the side and
rear.
In this way, obstacles up to the height of the
exterior mirrors are detected early.
Safety
information WARNING
The system does not relieve from the
personal responsibility to correctly assess the traffic situation. There is a risk of an accident.Adjust the driving style to the traffic condijtions. Watch traffic and vehicle surroundingsclosely and actively intervene in the respective
situations.'

Switching
on/off
manuallyPress park assistance button.'yOn: the LED lights up.'yOff: the LED goes out.
Top View is displayed.
The rearview camera image is displayed when
the reverse gear is engaged when pressing the
park assistance button.
Display
Visual
warning
The approach of the vehicle to an object can
be shown on the Control Display.
When the distance to an object is small, a red
bar is shown in front of the vehicle, as it is in the PDC display.
The display appears as soon as Top View is
activated.
When the image of the rearview camera is disj played, it is possible to switch to top view:
1.Move the Controller to the left, if needed.2. "Rear view camera"
Brightness.
With Top View switched on:
1.Move the Controller to the left if needed.2. Select the symbol.3.Turn the Controller until the desired setjting is reached, and press the Controller.Contrast.
With Top View switched on:1.Move the Controller to the left if needed.2. Select the symbol.3.Turn the Controller until the desired setj ting is reached, and press the Controller.
Displaying
the
turning
radius
and
pathway
lines
'yThe static, red turning radius line shows the space needed to the side of the vehicle
when the steering wheel is turned all the
way.'yThe variable, green pathway line assists you in assessing the amount of space acjtually needed to the side of the vehicle.
The lane line depends on the engaged
gear and the current steering angle. The
track line is continuously adjusted for the
steering wheel movement.1.Move the Controller to the left if needed.2. "Parking aid lines"
Turning circle and pathway lines are displayed.
System
limits
Top View cannot be used in the following sitj
uations:
'yWith a door open.'yWith the tailgate open.'yWith an exterior mirror folded in.'yIn poor light.
A Check Control message is displayed in some
of these situations.
Seite 168ControlsDriving
comfort168
Online Edition for Part no. 01402978272 - II/17

Parking

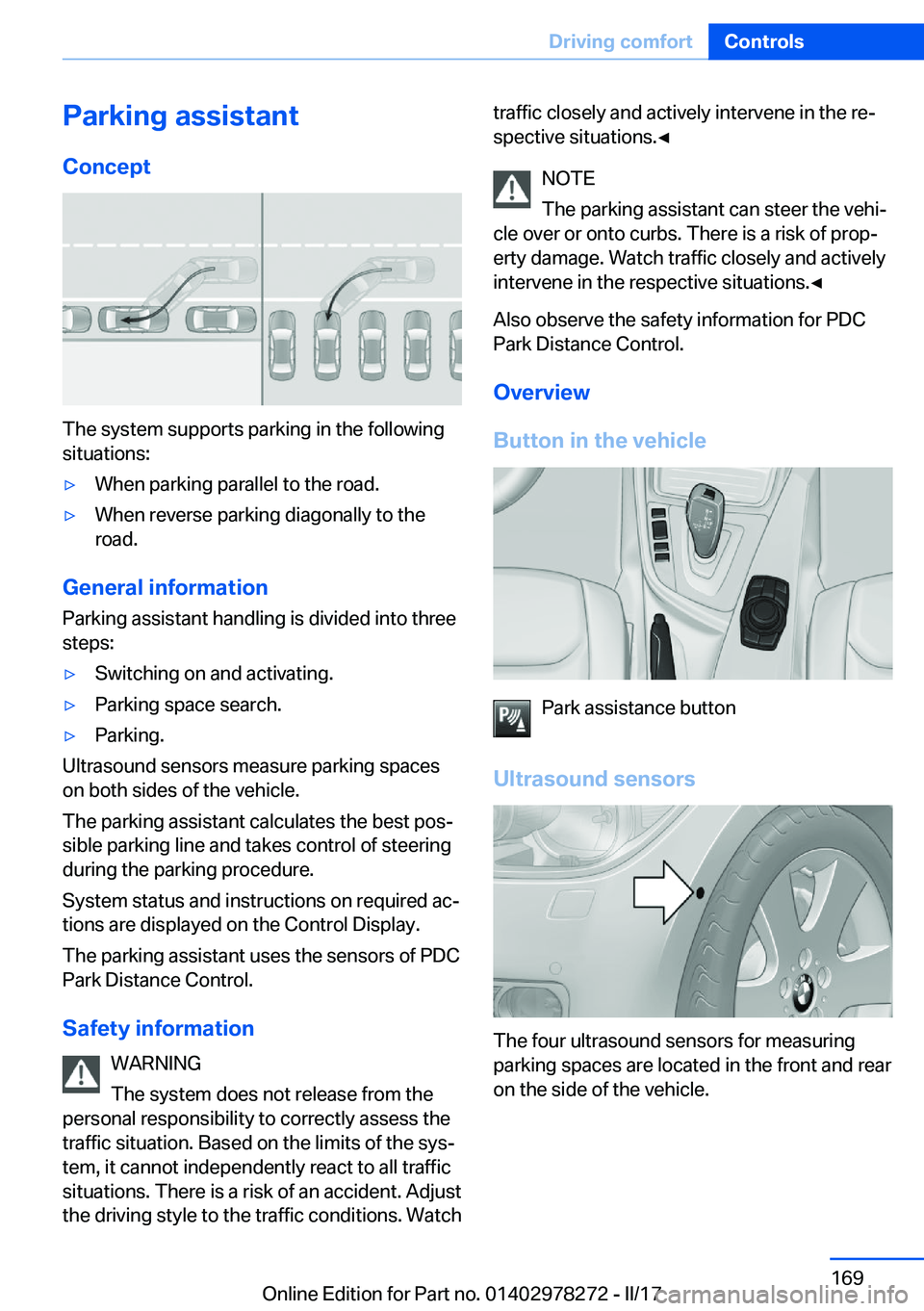

assistantConcept
The system supports parking in the following
situations:
'yWhen parking parallel to the road.'yWhen reverse parking diagonally to the
road.
General
information
Parking assistant handling is divided into three
steps:
'ySwitching on and activating.'yParking space search.'yParking.
Ultrasound sensors measure parking spaces on both sides of the vehicle.
The parking assistant calculates the best posj
sible parking line and takes control of steering
during the parking procedure.
System status and instructions on required acj tions are displayed on the Control Display.
The parking assistant uses the sensors of PDC
Park Distance Control.
Safety
information WARNING
The system does not release from the
personal responsibility to correctly assess the traffic situation. Based on the limits of the sysjtem, it cannot independently react to all trafficsituations. There is a risk of an accident. Adjust
the driving style to the traffic conditions. Watch
traffic closely and actively intervene in the rej
spective situations.'

Functional
requirements
Ultrasound

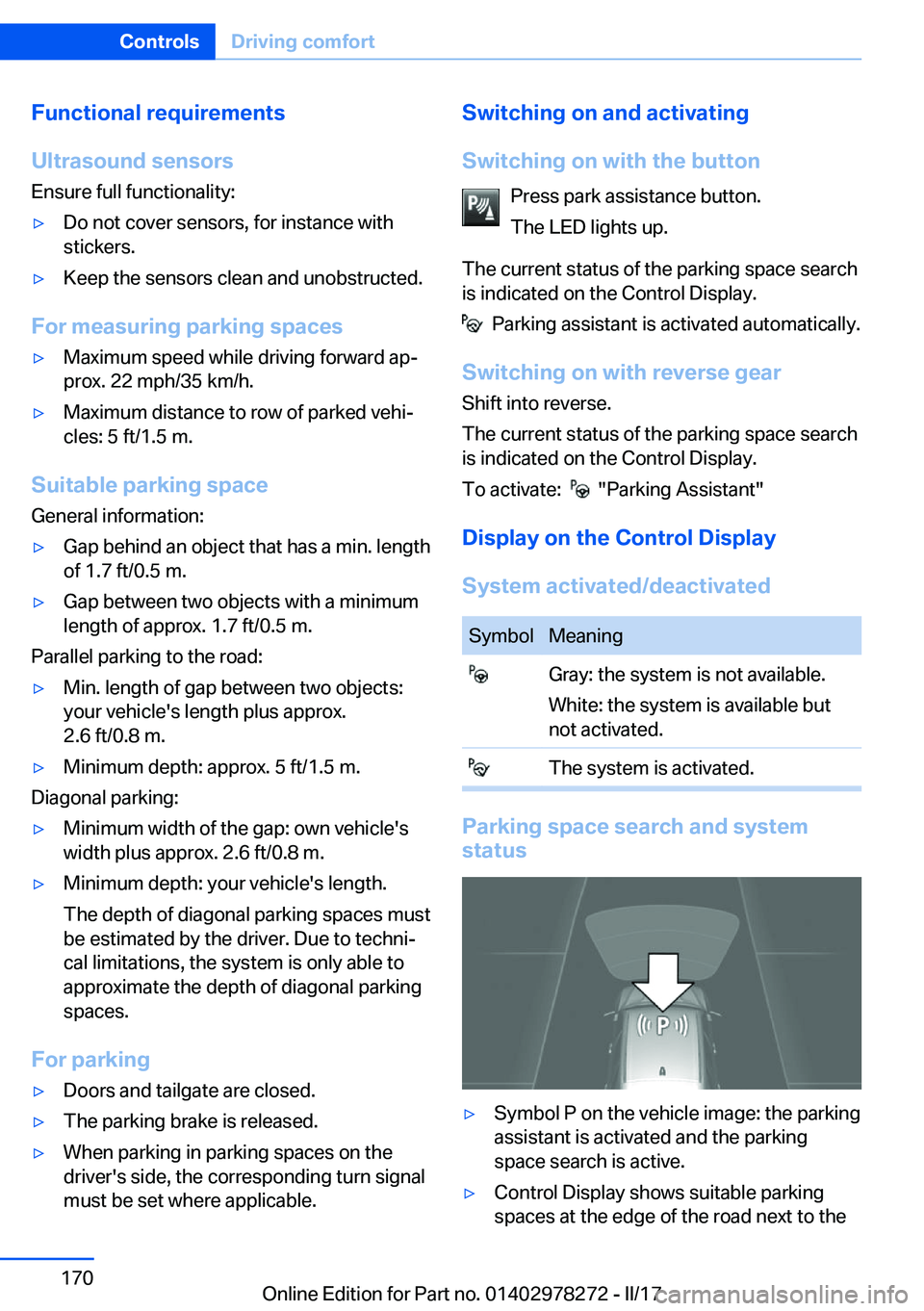

sensors Ensure full functionality:'yDo not cover sensors, for instance withstickers.'yKeep the sensors clean and unobstructed.
For
measuring
parking
spaces
'yMaximum speed while driving forward apjprox. 22 mph/35 km/h.'yMaximum distance to row of parked vehijcles: 5 ft/1.5 m.
Suitable
parking
space
General information:
'yGap behind an object that has a min. length
of 1.7 ft/0.5 m.'yGap between two objects with a minimum length of approx. 1.7 ft/0.5 m.
Parallel parking to the road:
'yMin. length of gap between two objects:your vehicle's length plus approx.
2.6 ft/0.8 m.'yMinimum depth: approx. 5 ft/1.5 m.
Diagonal parking:
'yMinimum width of the gap: own vehicle's width plus approx. 2.6 ft/0.8 m.'yMinimum depth: your vehicle's length.
The depth of diagonal parking spaces must be estimated by the driver. Due to technij
cal limitations, the system is only able to approximate the depth of diagonal parking
spaces.
For
parking
'yDoors and tailgate are closed.'yThe parking brake is released.'yWhen parking in parking spaces on the driver's side, the corresponding turn signalmust be set where applicable.Switching
on
and
activating
Switching
on
with
the
button Press park assistance button.
The LED lights up.
The current status of the parking space search is indicated on the Control Display.
Parking assistant is activated automatically.
Switching
on
with
reverse
gear
Shift into reverse.
The current status of the parking space search is indicated on the Control Display.
To activate:
"Parking Assistant"
Display
on
the
Control
Display
System
activated/deactivated
SymbolMeaning Gray: the system is not available.
White: the system is available but
not activated. The system is activated.
Parking
space
search
and
system
status
'ySymbol P on the vehicle image: the parking
assistant is activated and the parking space search is active.'yControl Display shows suitable parking
spaces at the edge of the road next to theSeite 170ControlsDriving
comfort170
Online Edition for Part no. 01402978272 - II/17
