11
EWS
EWS II Control Module
The EWS II Control Module is linked to the BC, GM, DME, Trans Range switch and the
starter for drive away protection operation. The module incorporates an integral starter relay
and stores data and codes for communication with the transponder chip.
The function of the EWS II module is to provide improved drive away protection for the vehi-
cle and it incorporates many features of previous systems:
• Lock out of the starter when the code function of the BC is set.
• Disable injection and ignition through the DME.
• Prevent starter engagement with engine running.
• Recognition of Park/Neutral position with automatic transmission.
New features that have been added:
• Disable injection, ignition and starter operation until a correct key is recognized.
• EWS and DME synchronization through the use of the ISN.
• Release of double lock when a correctly coded key is switched on.
The EWS II control module stores the following data
for the key transponder inter-link:
• Key identification code- up to 10 keys.
• Key password.
• Changing code- up to 10 keys.
Workshop Hint:
On E31, E36, E38 and E39 models the
EWS II control module is located behind
the glove box in the electrical carrier.
On E34 models the module is located on
the drivers side of the vehicle behind the
knee bolster.
8510106
Typical component locations
E36 shown

28
EWS

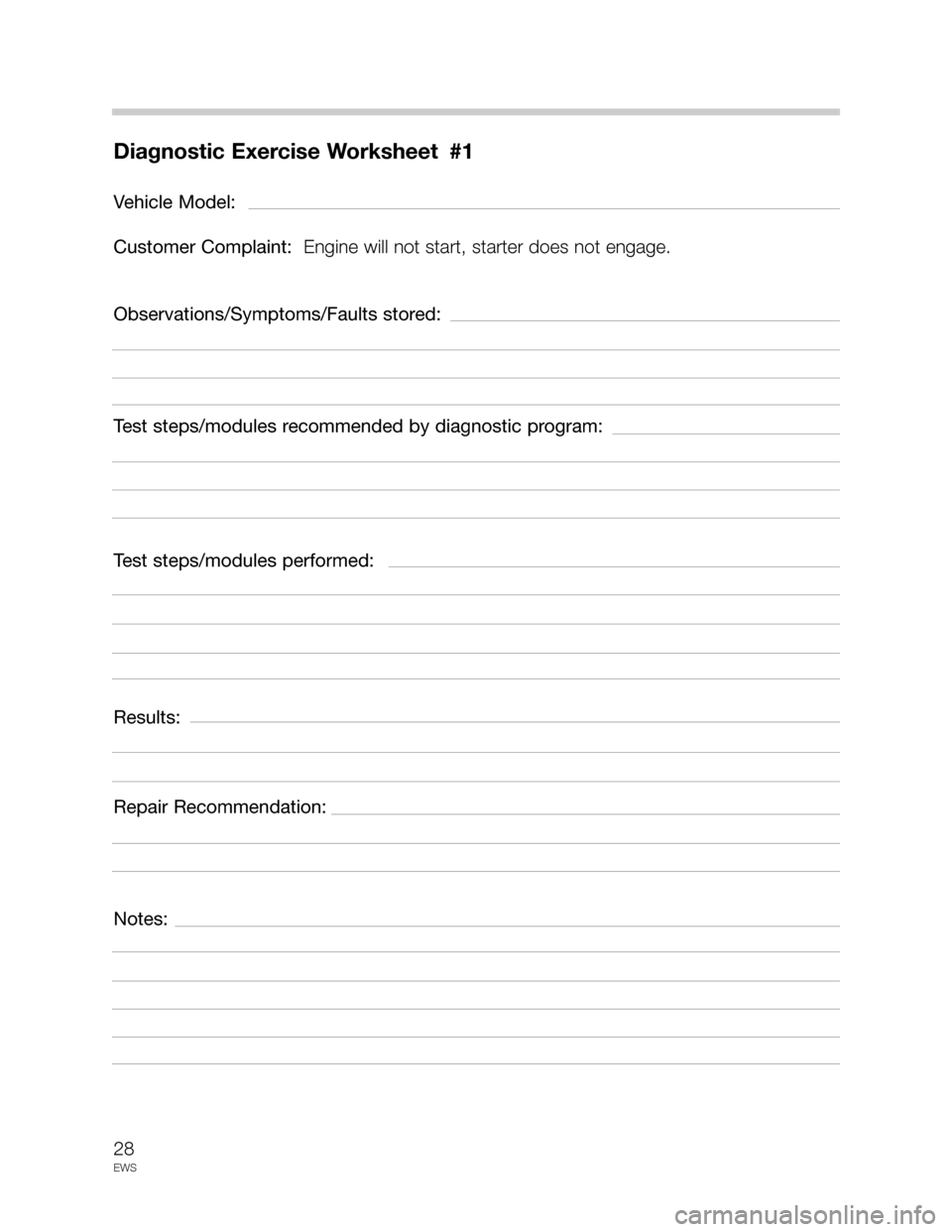

Diagnostic Exercise Worksheet #1
Vehicle Model:
Customer Complaint: Engine will not start, starter does not engage.
Observations/Symptoms/Faults stored:
Test steps/modules recommended by diagnostic program:
Test steps/modules performed:
Results:
Repair Recommendation:
Notes:

29
EWS

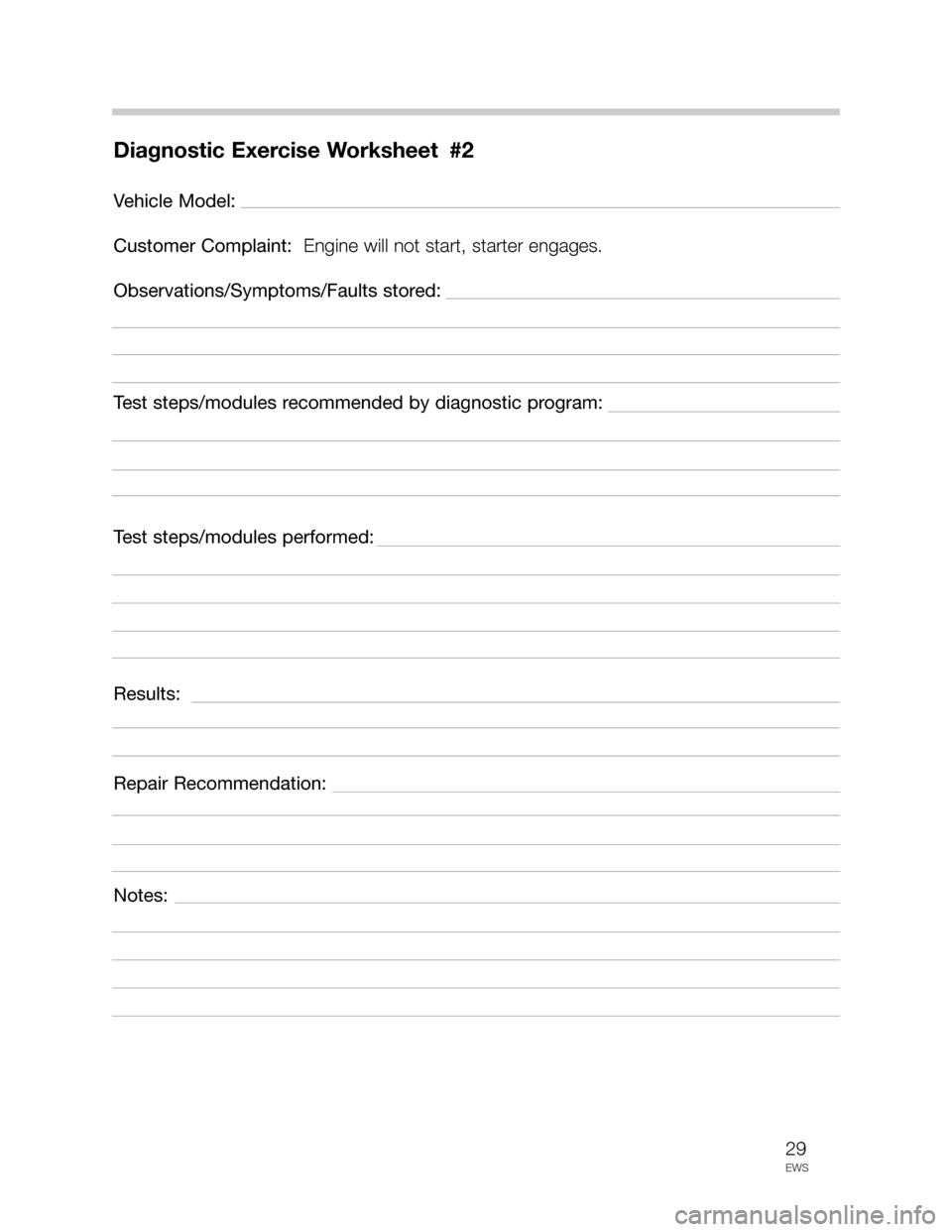

Diagnostic Exercise Worksheet #2
Vehicle Model:
Customer Complaint: Engine will not start, starter engages.
Observations/Symptoms/Faults stored:
Test steps/modules recommended by diagnostic program:
Test steps/modules performed:
Results:
Repair Recommendation:
Notes:
