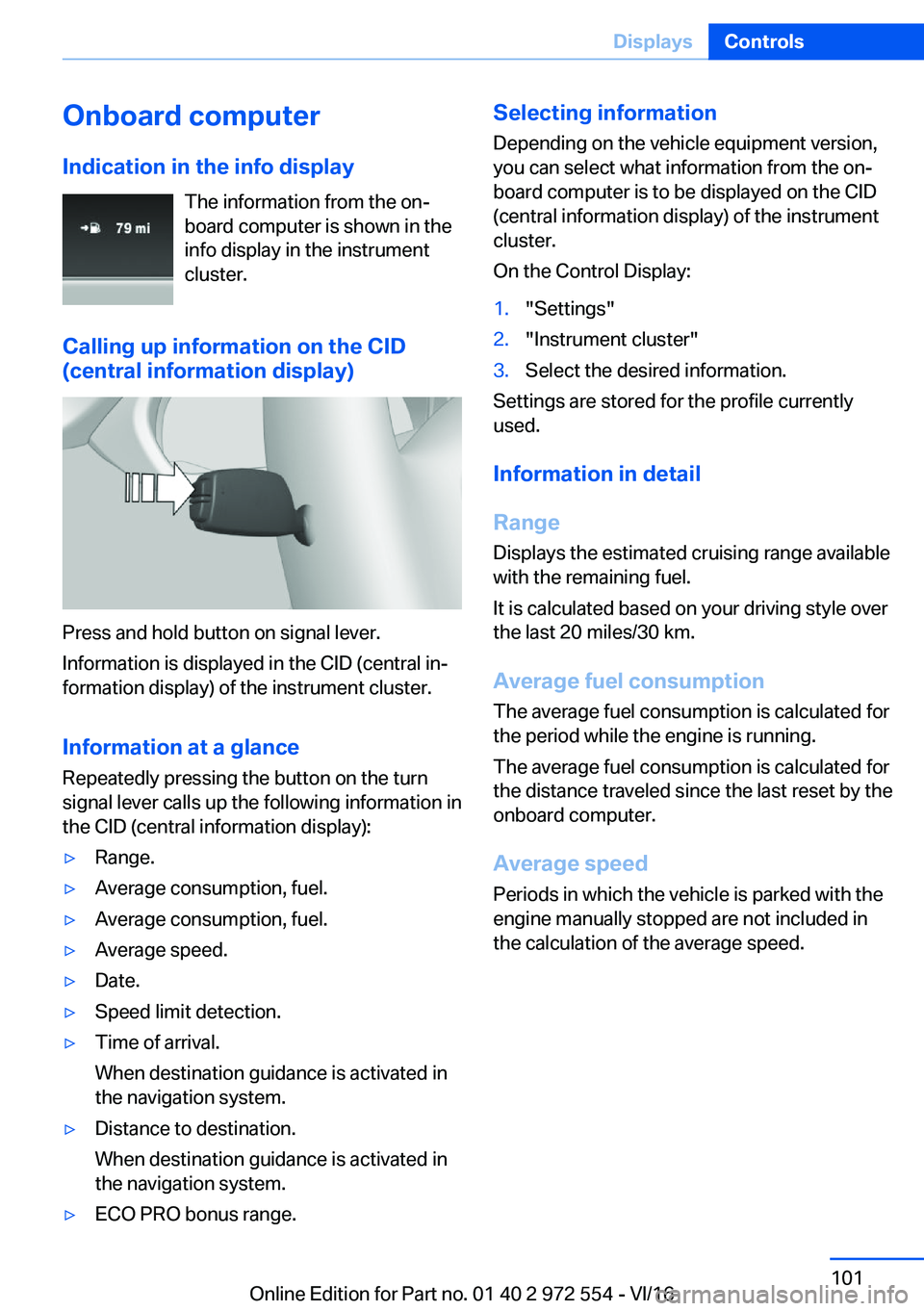

BMW 5 SERIES GRAN TURISMO 2017 Owners Manual

Onboard
computer
Indication
in
the
info
display The information from the onj
board computer is shown in the
info display in the instrument
cluster.
Calling
up
information
on
the
CID
(central
information
display)
Press and hold button on signal lever.
Information is displayed in the CID (central inj
formation display) of the instrument cluster.
Information
at
a
glance Repeatedly pressing the button on the turnsignal lever calls up the following information inthe CID (central information display):
'yRange.'yAverage consumption, fuel.'yAverage consumption, fuel.'yAverage speed.'yDate.'ySpeed limit detection.'yTime of arrival.
When destination guidance is activated in
the navigation system.'yDistance to destination.
When destination guidance is activated in
the navigation system.'yECO PRO bonus range.Selecting
information
Depending on the vehicle equipment version,
you can select what information from the onj
board computer is to be displayed on the CID
(central information display) of the instrument cluster.
On the Control Display:1."Settings"2."Instrument cluster"3.Select the desired information.
Settings are stored for the profile currently used.
Information
in
detail
Range
Displays the estimated cruising range available with the remaining fuel.
It is calculated based on your driving style over
the last 20 miles/30 km.
Average
fuel
consumption
The average fuel consumption is calculated for
the period while the engine is running.
The average fuel consumption is calculated for
the distance traveled since the last reset by the
onboard computer.
Average
speed
Periods in which the vehicle is parked with the engine manually stopped are not included inthe calculation of the average speed.
Seite 101DisplaysControls101
Online Edition for Part no. 01 40 2 972 554 - VI/16

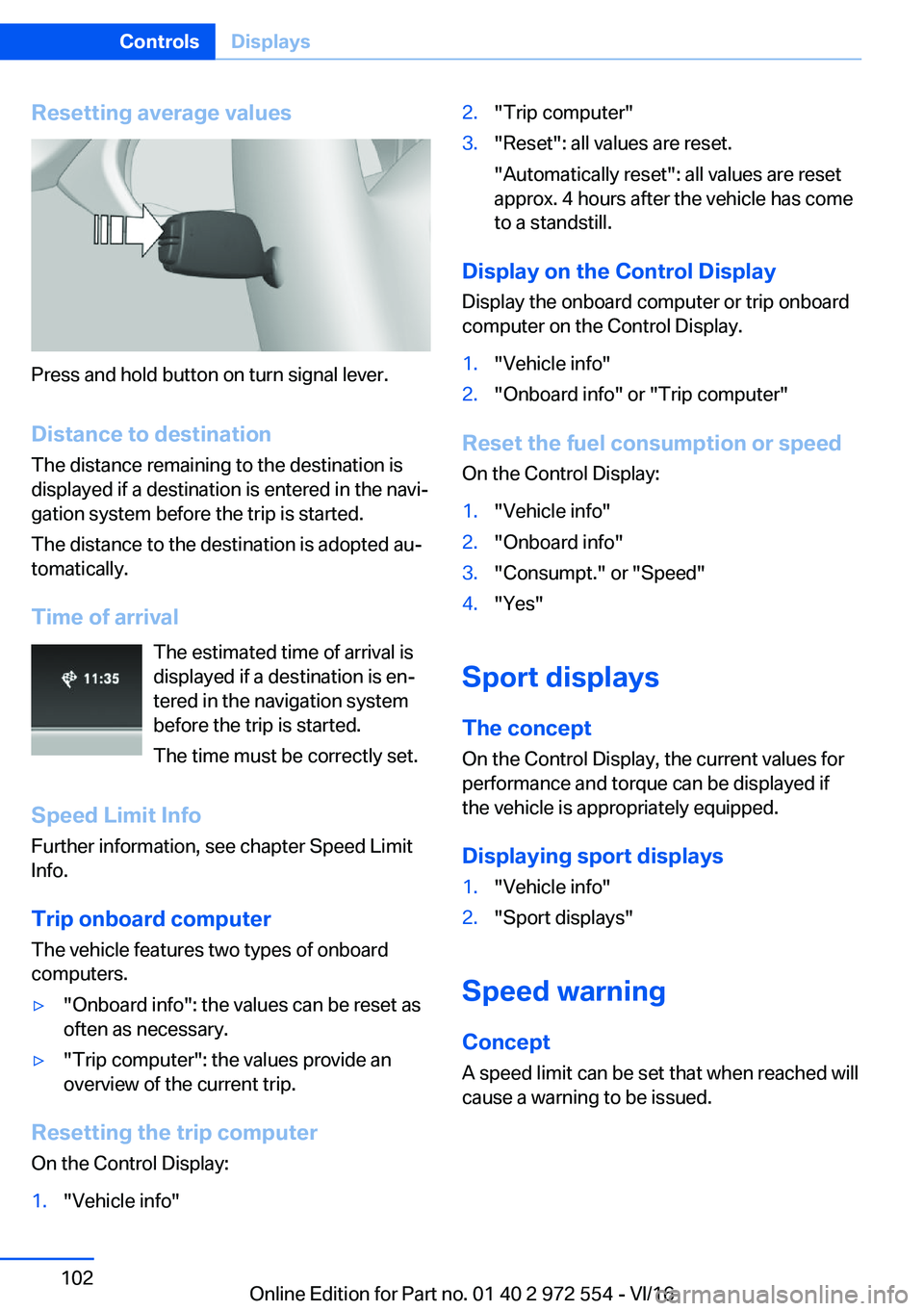

Resetting
average
values
Press and hold button on turn signal lever.
Distance
to
destination
The distance remaining to the destination is
displayed if a destination is entered in the navij
gation system before the trip is started.
The distance to the destination is adopted auj
tomatically.
Time
of
arrival The estimated time of arrival isdisplayed if a destination is enj
tered in the navigation system
before the trip is started.
The time must be correctly set.
Speed
Limit
Info
Further information, see chapter Speed Limit
Info.
Trip
onboard
computer
The vehicle features two types of onboard
computers.
'y"Onboard info": the values can be reset as
often as necessary.'y"Trip computer": the values provide an overview of the current trip.
Resetting
the
trip
computer
On the Control Display:
1."Vehicle info"2."Trip computer"3."Reset": all values are reset.
"Automatically reset": all values are reset
approx. 4 hours after the vehicle has come to a standstill.
Display
on
the
Control
Display
Display the onboard computer or trip onboard
computer on the Control Display.
1."Vehicle info"2."Onboard info" or "Trip computer"
Reset
the
fuel
consumption
or
speed
On the Control Display:
1."Vehicle info"2."Onboard info"3."Consumpt." or "Speed"4."Yes"
Sport
displays
The
concept
On the Control Display, the current values for performance and torque can be displayed if the vehicle is appropriately equipped.
Displaying
sport
displays
1."Vehicle info"2."Sport displays"
Speed
warning
Concept
A speed limit can be set that when reached will cause a warning to be issued.
Seite 102ControlsDisplays102
Online Edition for Part no. 01 40 2 972 554 - VI/16

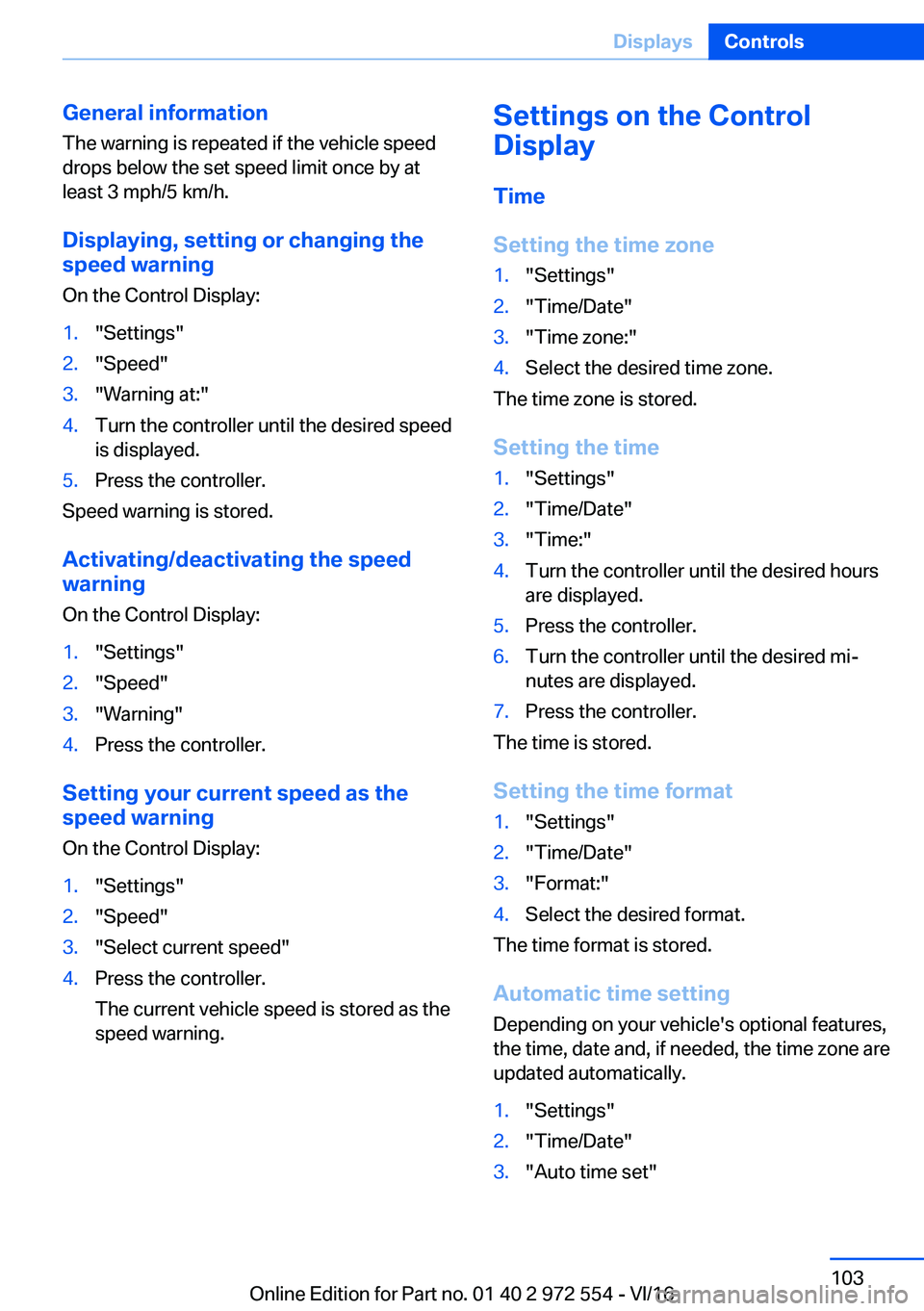

General
information
The warning is repeated if the vehicle speed
drops below the set speed limit once by at least 3 mph/5 km/h.
Displaying,
setting
or
changing
the
speed
warning
On the Control Display:1."Settings"2."Speed"3."Warning at:"4.Turn the controller until the desired speedis displayed.5.Press the controller.
Speed warning is stored.
Activating/deactivating
the
speed
warning
On the Control Display:
1."Settings"2."Speed"3."Warning"4.Press the controller.
Setting
your
current
speed
as
the
speed
warning
On the Control Display:
1."Settings"2."Speed"3."Select current speed"4.Press the controller.
The current vehicle speed is stored as the speed warning.Settings
on
the
Control
Display
Time
Setting
the
time
zone1."Settings"2."Time/Date"3."Time zone:"4.Select the desired time zone.
The time zone is stored.
Setting
the
time
1."Settings"2."Time/Date"3."Time:"4.Turn the controller until the desired hours are displayed.5.Press the controller.6.Turn the controller until the desired mijnutes are displayed.7.Press the controller.
The time is stored.
Setting
the
time
format
1."Settings"2."Time/Date"3."Format:"4.Select the desired format.
The time format is stored.
Automatic
time
setting Depending on your vehicle's optional features,
the time, date and, if needed, the time zone are
updated automatically.
1."Settings"2."Time/Date"3."Auto time set"Seite 103DisplaysControls103
Online Edition for Part no. 01 40 2 972 554 - VI/16

Date
Setting
the
date1."Settings"2."Time/Date"3."Date:"4.Turn the controller until the desired day is
displayed.5.Press the controller.6.Make the necessary settings for the month
and year.
The date is stored.
Setting
the
date
format
1."Settings"2."Time/Date"3."Format:"4.Select the desired format.
The date format is stored.
Language
Setting
the
language
To set the language on the Control Display:
1."Settings"2."Language/Units"3."Language:"4.Select the desired language.
Settings are stored for the profile currently used.
Setting
the
voice
dialog
Voice dialog for the voice activation system,
refer to page 28.
Units
of
measurement
Setting
the
units
of
measurement
To set the units for fuel consumption, route/
distance and temperature:1."Settings"2."Language/Units"3.Select the desired menu item.4.Select the desired unit.
Settings are stored for the profile currently used.
Brightness
Setting
the
brightness To set the brightness of the Control Display:
1."Settings"2."Control display"3."Brightness"4.Turn the controller until the desired brightjness is set.5.Press the controller.
Settings are stored for the profile currentlyused.
Depending on the light conditions, the brightj
ness settings may not be clearly visible.
Activating/deactivating
the
display
of
the
current
vehicle
position
If GPS geolocation has been activated, the curj
rent vehicle position can be displayed in the BMW ConnectedDrive app or in the ConnecjtedDrive customer portal.
1."Settings"2."GPS tracking"3."GPS tracking"Seite 104ControlsDisplays104
Online Edition for Part no. 01 40 2 972 554 - VI/16

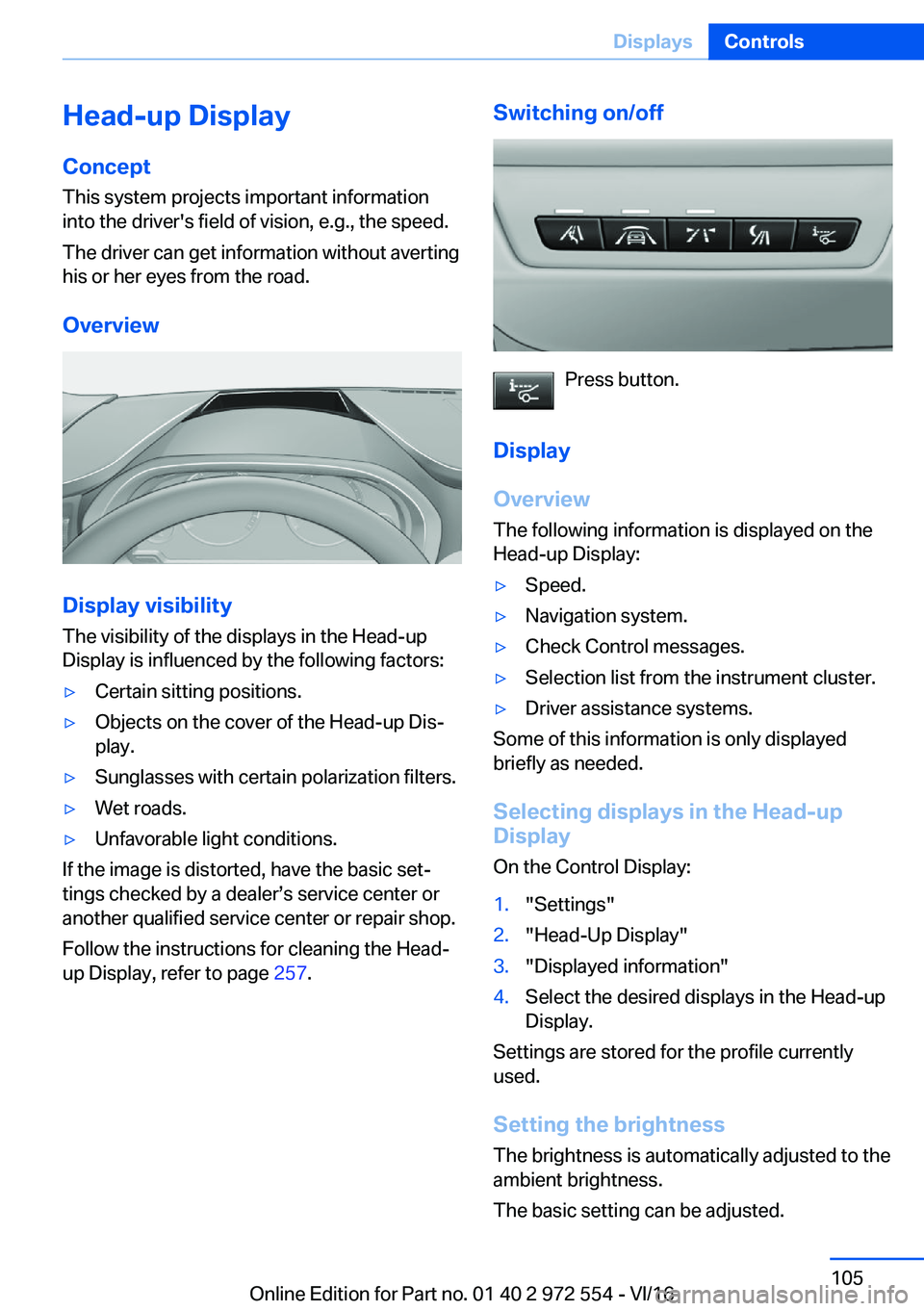

Head-up
Display
Concept
This system projects important information
into the driver's field of vision, e.g., the speed.
The driver can get information without averting
his or her eyes from the road.
Overview
Display
visibility
The visibility of the displays in the Head-up
Display is influenced by the following factors:
'yCertain sitting positions.'yObjects on the cover of the Head-up Disj
play.'ySunglasses with certain polarization filters.'yWet roads.'yUnfavorable light conditions.
If the image is distorted, have the basic setj tings checked by a dealerss service center or
another qualified service center or repair shop.
Follow the instructions for cleaning the Head- up Display, refer to page 257.
Switching
on/off
Press button.
Display
Overview
The following information is displayed on the Head-up Display:
'ySpeed.'yNavigation system.'yCheck Control messages.'ySelection list from the instrument cluster.'yDriver assistance systems.
Some of this information is only displayed briefly as needed.
Selecting
displays
in
the
Head-up
Display
On the Control Display:
1."Settings"2."Head-Up Display"3."Displayed information"4.Select the desired displays in the Head-up Display.
Settings are stored for the profile currentlyused.
Setting
the
brightness The brightness is automatically adjusted to the
ambient brightness.
The basic setting can be adjusted.
Seite 105DisplaysControls105
Online Edition for Part no. 01 40 2 972 554 - VI/16

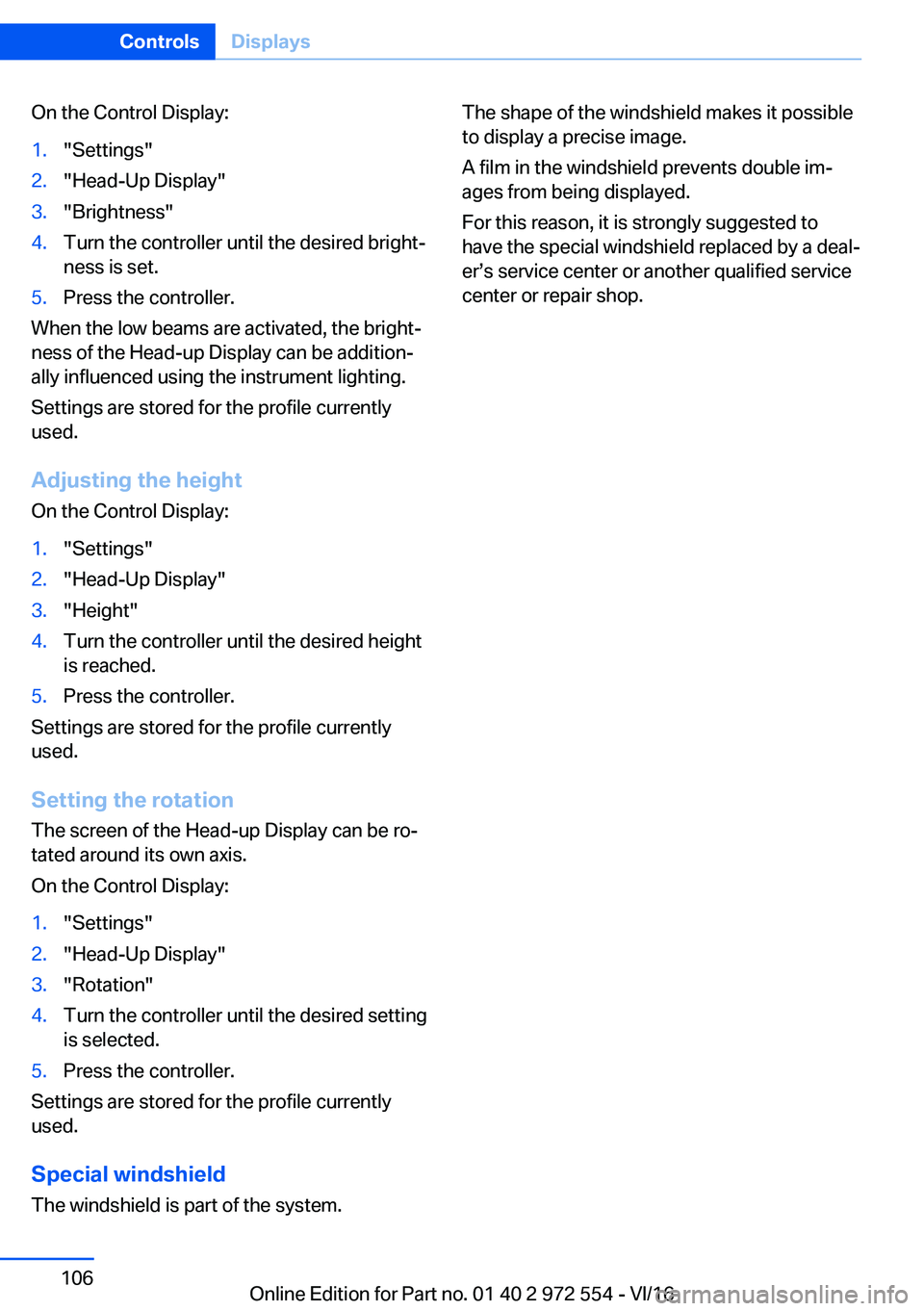

On the Control Display:1."Settings"2."Head-Up Display"3."Brightness"4.Turn the controller until the desired brightjness is set.5.Press the controller.
When the low beams are activated, the brightjness of the Head-up Display can be additionj
ally influenced using the instrument lighting.
Settings are stored for the profile currently used.
Adjusting
the
height
On the Control Display:
1."Settings"2."Head-Up Display"3."Height"4.Turn the controller until the desired height is reached.5.Press the controller.
Settings are stored for the profile currentlyused.
Setting
the
rotation
The screen of the Head-up Display can be roj
tated around its own axis.
On the Control Display:
1."Settings"2."Head-Up Display"3."Rotation"4.Turn the controller until the desired setting
is selected.5.Press the controller.
Settings are stored for the profile currently used.
Special
windshield
The windshield is part of the system.
The shape of the windshield makes it possible
to display a precise image.
A film in the windshield prevents double imj
ages from being displayed.
For this reason, it is strongly suggested to have the special windshield replaced by a dealjerss service center or another qualified servicecenter or repair shop.Seite 106ControlsDisplays106
Online Edition for Part no. 01 40 2 972 554 - VI/16

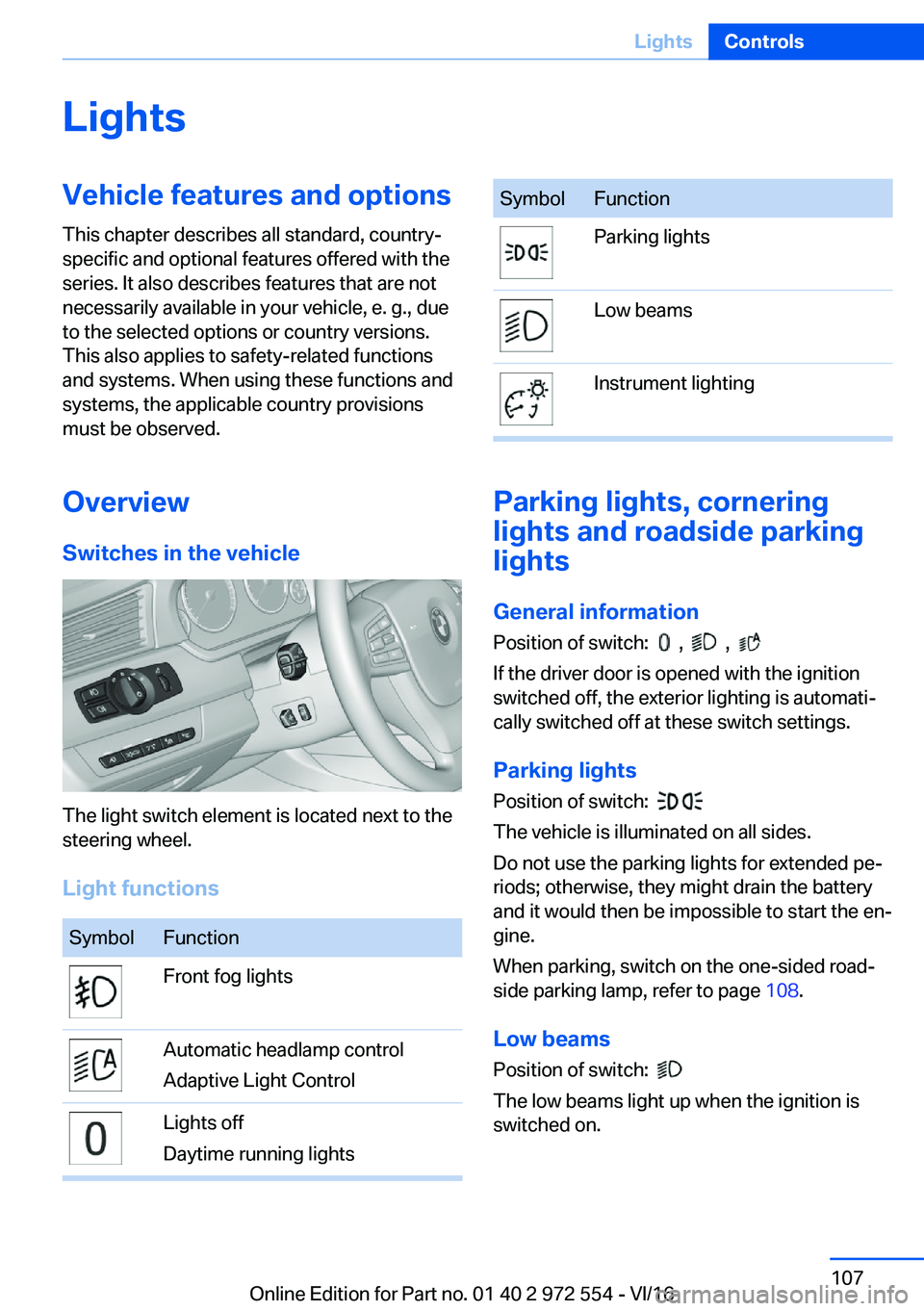

LightsVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Overview Switches
in
the
vehicle
The light switch element is located next to the
steering wheel.
Light
functions
SymbolFunctionFront fog lightsAutomatic headlamp control
Adaptive Light ControlLights off
Daytime running lightsSymbolFunctionParking lightsLow beamsInstrument lighting
Parking
lights,
cornering
lights
and
roadside
parking
lights
General
information Position of switch:
, ,
If the driver door is opened with the ignition switched off, the exterior lighting is automatij
cally switched off at these switch settings.
Parking
lights
Position of switch:

The vehicle is illuminated on all sides.
Do not use the parking lights for extended pej
riods; otherwise, they might drain the battery
and it would then be impossible to start the enj
gine.
When parking, switch on the one-sided roadj
side parking lamp, refer to page 108.
Low
beams Position of switch:

The low beams light up when the ignition is
switched on.
Seite 107LightsControls107
Online Edition for Part no. 01 40 2 972 554 - VI/16

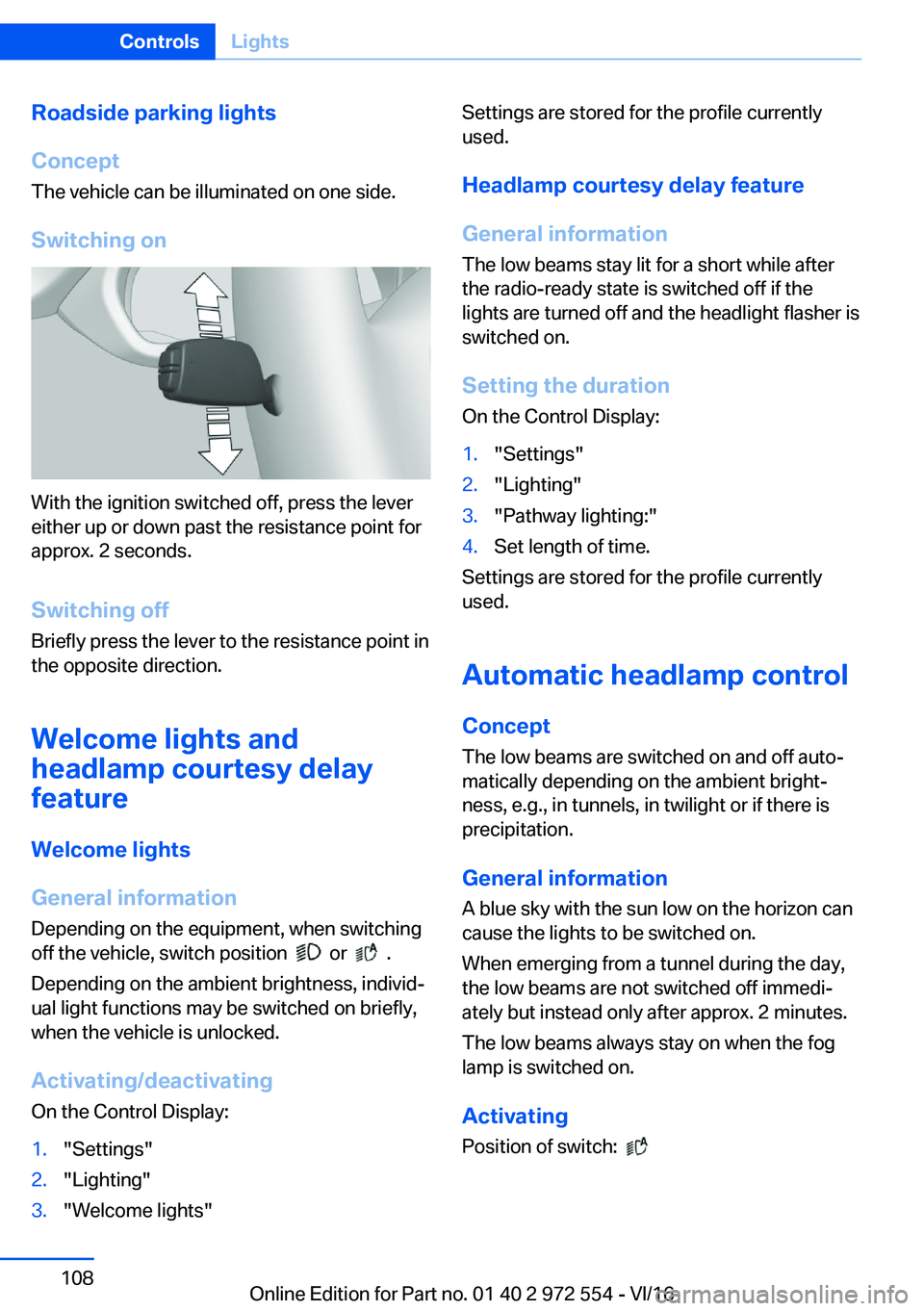

Roadside
parking
lights
Concept
The vehicle can be illuminated on one side.
Switching
on
With the ignition switched off, press the lever
either up or down past the resistance point for approx. 2 seconds.
Switching
off Briefly press the lever to the resistance point in
the opposite direction.
Welcome
lights
and
headlamp
courtesy
delay
feature
Welcome
lights
General
information Depending on the equipment, when switching
off the vehicle, switch position
or .
Depending on the ambient brightness, individj
ual light functions may be switched on briefly, when the vehicle is unlocked.
Activating/deactivating
On the Control Display:
1."Settings"2."Lighting"3."Welcome lights"Settings are stored for the profile currently used.
Headlamp
courtesy
delay
feature
General
information
The low beams stay lit for a short while after
the radio-ready state is switched off if the
lights are turned off and the headlight flasher is switched on.
Setting
the
durationOn the Control Display:1."Settings"2."Lighting"3."Pathway lighting:"4.Set length of time.
Settings are stored for the profile currentlyused.
Automatic
headlamp
control
Concept
The low beams are switched on and off autoj matically depending on the ambient brightj
ness, e.g., in tunnels, in twilight or if there is
precipitation.
General
information
A blue sky with the sun low on the horizon can cause the lights to be switched on.
When emerging from a tunnel during the day,
the low beams are not switched off immedij ately but instead only after approx. 2 minutes.
The low beams always stay on when the foglamp is switched on.
ActivatingPosition of switch:

Seite 108ControlsLights108
Online Edition for Part no. 01 40 2 972 554 - VI/16

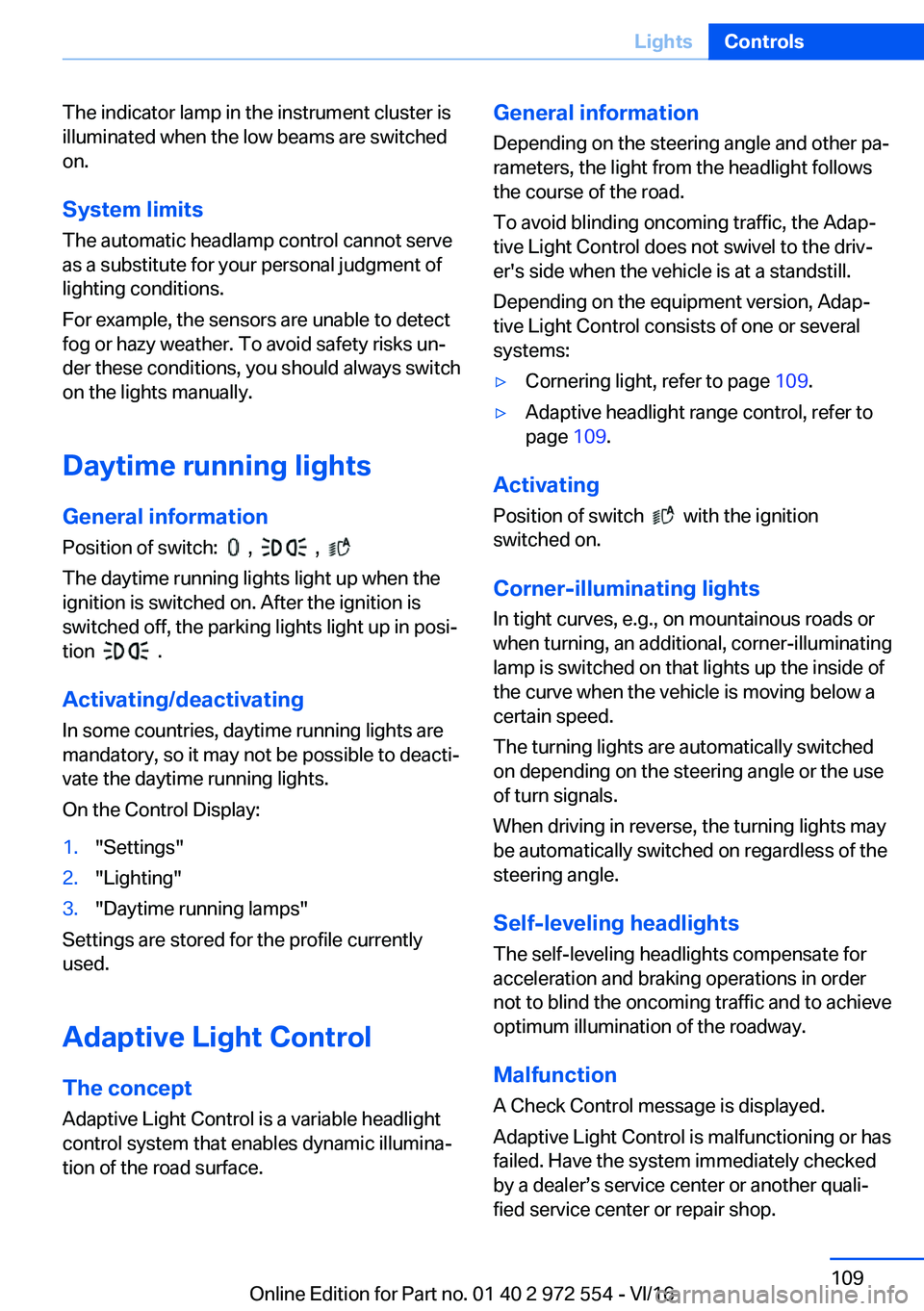

The indicator lamp in the instrument cluster is
illuminated when the low beams are switched
on.
System
limits
The automatic headlamp control cannot serve
as a substitute for your personal judgment of
lighting conditions.
For example, the sensors are unable to detect
fog or hazy weather. To avoid safety risks unj
der these conditions, you should always switch
on the lights manually.
Daytime
running
lights General
information
Position of switch:
, ,
The daytime running lights light up when the
ignition is switched on. After the ignition is
switched off, the parking lights light up in posij
tion
.
Activating/deactivating In some countries, daytime running lights are
mandatory, so it may not be possible to deactij
vate the daytime running lights.
On the Control Display:
1."Settings"2."Lighting"3."Daytime running lamps"
Settings are stored for the profile currently used.
Adaptive
Light
Control
The
concept Adaptive Light Control is a variable headlight
control system that enables dynamic illuminaj
tion of the road surface.
General
information
Depending on the steering angle and other paj rameters, the light from the headlight follows
the course of the road.
To avoid blinding oncoming traffic, the Adapj
tive Light Control does not swivel to the drivj
er's side when the vehicle is at a standstill.
Depending on the equipment version, Adapj
tive Light Control consists of one or several systems:'yCornering light, refer to page 109.'yAdaptive headlight range control, refer to
page 109.
Activating
Position of switch
with the ignition
switched on.
Corner-illuminating
lights
In tight curves, e.g., on mountainous roads or
when turning, an additional, corner-illuminating
lamp is switched on that lights up the inside of the curve when the vehicle is moving below acertain speed.
The turning lights are automatically switched
on depending on the steering angle or the use
of turn signals.
When driving in reverse, the turning lights may
be automatically switched on regardless of the
steering angle.
Self-leveling
headlights
The self-leveling headlights compensate for
acceleration and braking operations in order not to blind the oncoming traffic and to achieveoptimum illumination of the roadway.
Malfunction
A Check Control message is displayed.
Adaptive Light Control is malfunctioning or has failed. Have the system immediately checked
by a dealerss service center or another qualij fied service center or repair shop.
Seite 109LightsControls109
Online Edition for Part no. 01 40 2 972 554 - VI/16

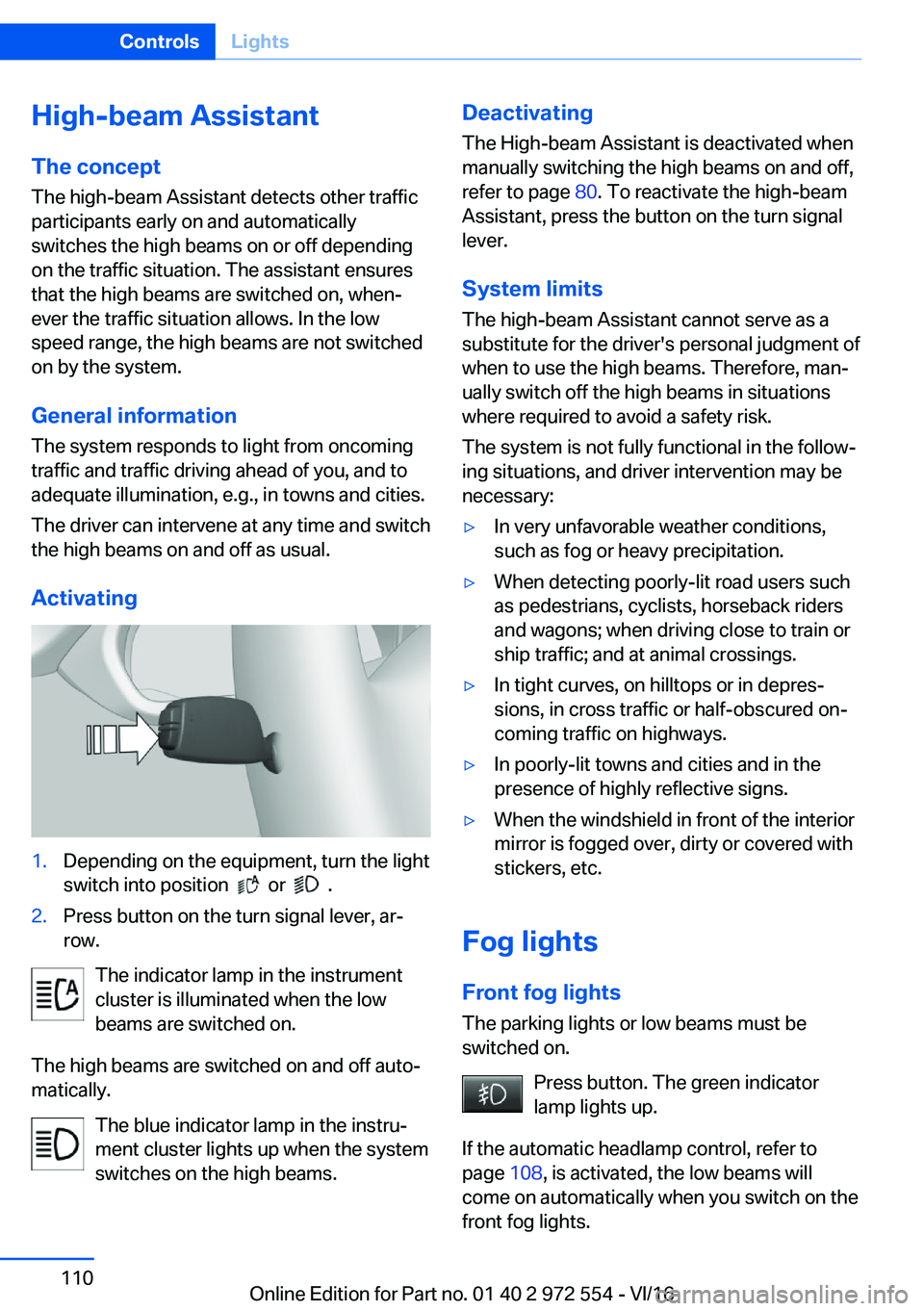

High-beam
AssistantThe
concept
The high-beam Assistant detects other traffic participants early on and automaticallyswitches the high beams on or off depending
on the traffic situation. The assistant ensures that the high beams are switched on, whenjever the traffic situation allows. In the low
speed range, the high beams are not switched
on by the system.
General
information
The system responds to light from oncoming
traffic and traffic driving ahead of you, and to adequate illumination, e.g., in towns and cities.
The driver can intervene at any time and switch the high beams on and off as usual.
Activating1.Depending on the equipment, turn the light switch into position
or .
2.Press button on the turn signal lever, arjrow.
The indicator lamp in the instrument
cluster is illuminated when the low
beams are switched on.
The high beams are switched on and off autoj
matically.
The blue indicator lamp in the instruj
ment cluster lights up when the system
switches on the high beams.
Deactivating
The High-beam Assistant is deactivated when
manually switching the high beams on and off,
refer to page 80. To reactivate the high-beam
Assistant, press the button on the turn signal lever.
System
limits
The high-beam Assistant cannot serve as a
substitute for the driver's personal judgment of when to use the high beams. Therefore, manj
ually switch off the high beams in situations
where required to avoid a safety risk.
The system is not fully functional in the followj ing situations, and driver intervention may be
necessary:'yIn very unfavorable weather conditions,
such as fog or heavy precipitation.'yWhen detecting poorly-lit road users such
as pedestrians, cyclists, horseback riders
and wagons; when driving close to train or ship traffic; and at animal crossings.'yIn tight curves, on hilltops or in depresj
sions, in cross traffic or half-obscured onj coming traffic on highways.'yIn poorly-lit towns and cities and in thepresence of highly reflective signs.'yWhen the windshield in front of the interior
mirror is fogged over, dirty or covered with stickers, etc.
Fog
lights
Front
fog
lights
The parking lights or low beams must be
switched on.
Press button. The green indicator
lamp lights up.
If the automatic headlamp control, refer to
page 108, is activated, the low beams will
come on automatically when you switch on the front fog lights.
Seite 110ControlsLights110
Online Edition for Part no. 01 40 2 972 554 - VI/16
