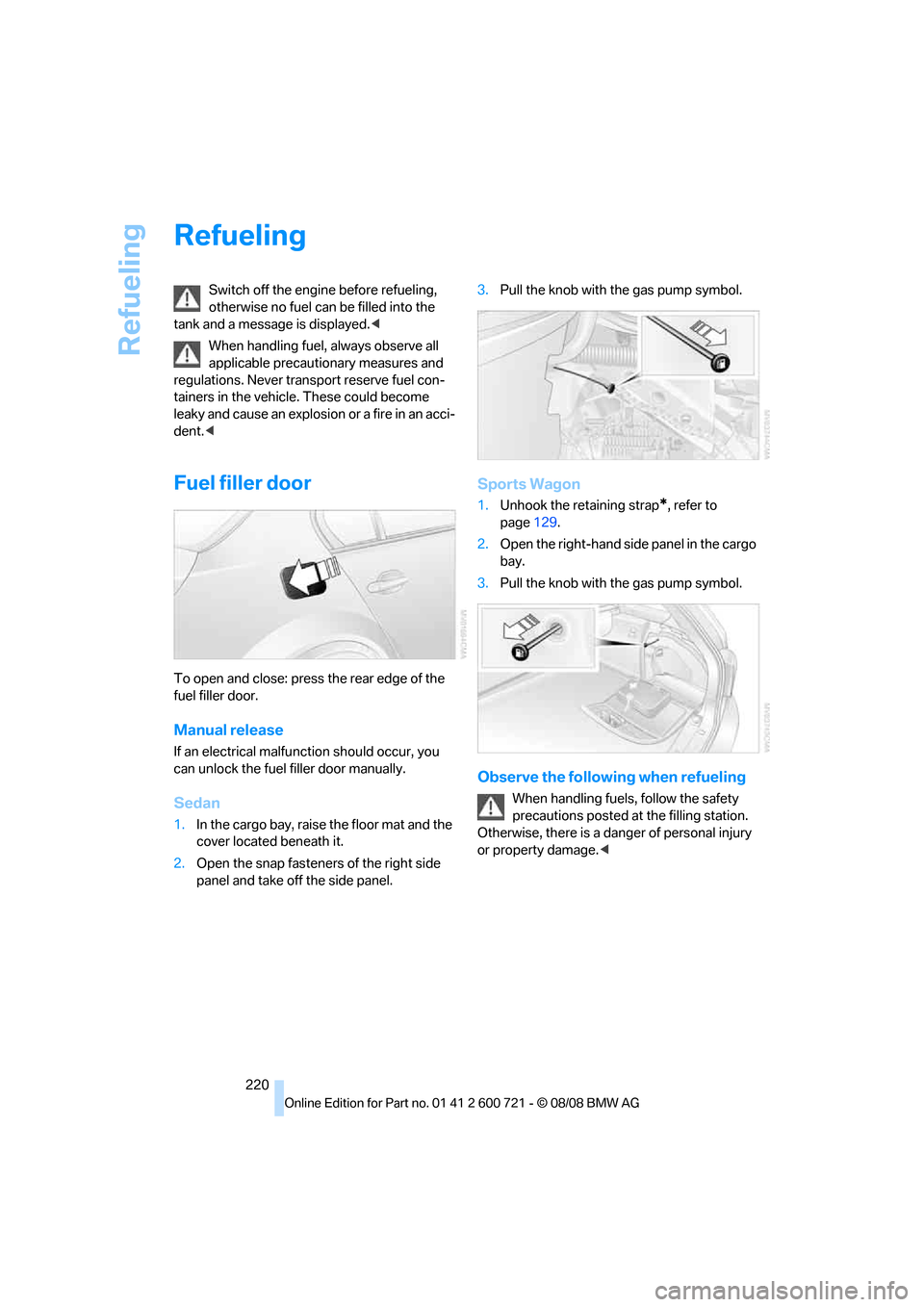

Refueling
220
Refueling
Switch off the engine before refueling,
otherwise no fuel can be filled into the
tank and a message is displayed.<
When handling fuel, always observe all
applicable precautionary measures and
regulations. Never transport reserve fuel con-
tainers in the vehicle. These could become
leaky and cause an explosion or a fire in an acci-
dent.<
Fuel filler door
To open and close: press the rear edge of the
fuel filler door.
Manual release
If an electrical malfunction should occur, you
can unlock the fuel filler door manually.
Sedan
1.In the cargo bay, raise the floor mat and the
cover located beneath it.
2.Open the snap fasteners of the right side
panel and take off the side panel.3.Pull the knob with the gas pump symbol.
Sports Wagon
1.Unhook the retaining strap*, refer to
page129.
2.Open the right-hand side panel in the cargo
bay.
3.Pull the knob with the gas pump symbol.
Observe the following when refueling
When handling fuels, follow the safety
precautions posted at the filling station.
Otherwise, there is a danger of personal injury
or property damage.<

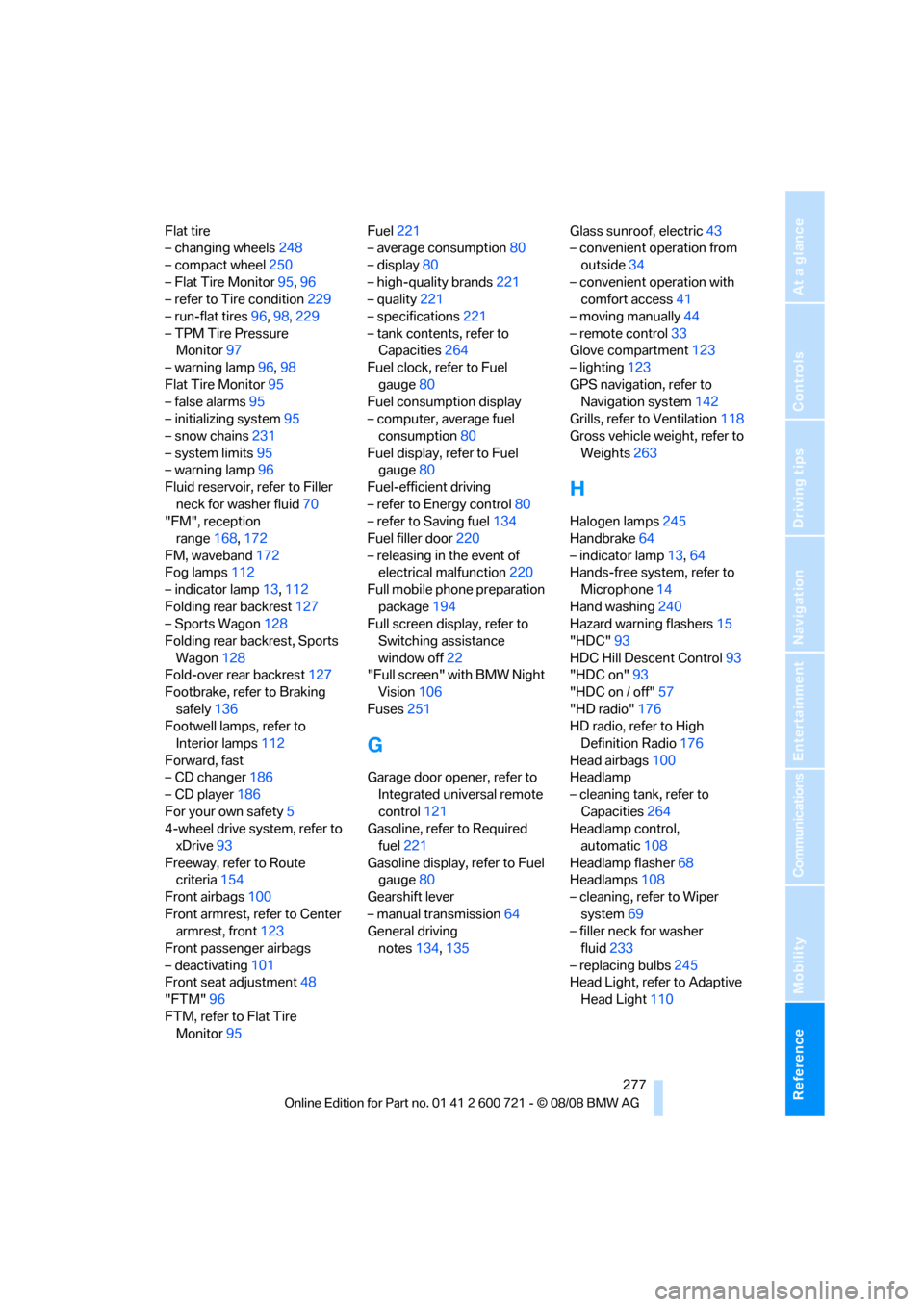

Reference 277
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Flat tire
– changing wheels248
– compact wheel250
– Flat Tire Monitor95,96
– refer to Tire condition229
– run-flat tires96,98,229
– TPM Tire Pressure
Monitor97
– warning lamp96,98
Flat Tire Monitor95
– false alarms95
– initializing system95
– snow chains231
– system limits95
– warning lamp96
Fluid reservoir, refer to Filler
neck for washer fluid70
"FM", reception
range168,172
FM, waveband172
Fog lamps112
– indicator lamp13,112
Folding rear backrest127
– Sports Wagon128
Folding rear backrest, Sports
Wagon128
Fold-over rear backrest127
Footbrake, refer to Braking
safely136
Footwell lamps, refer to
Interior lamps112
Forward, fast
– CD changer186
– CD player186
For your own safety5
4-wheel drive system, refer to
xDrive93
Freeway, refer to Route
criteria154
Front airbags100
Front armrest, refer to Center
armrest, front123
Front passenger airbags
– deactivating101
Front seat adjustment48
"FTM"96
FTM, refer to Flat Tire
Monitor95Fuel221
– average consumption80
– display80
– high-quality brands221
– quality221
– specifications221
– tank contents, refer to
Capacities264
Fuel clock, refer to Fuel
gauge80
Fuel consumption display
– computer, average fuel
consumption80
Fuel display, refer to Fuel
gauge80
Fuel-efficient driving
– refer to Energy control80
– refer to Saving fuel134
Fuel filler door220
– releasing in the event of
electrical malfunction220
Full mobile phone preparation
package194
Full screen display, refer to
Switching assistance
window off22
"Full screen" with BMW Night
Vision106
Fuses251
G
Garage door opener, refer to
Integrated universal remote
control121
Gasoline, refer to Required
fuel221
Gasoline display, refer to Fuel
gauge80
Gearshift lever
– manual transmission64
General driving
notes134,135Glass sunroof, electric43
– convenient operation from
outside34
– convenient operation with
comfort access41
– moving manually44
– remote control33
Glove compartment123
– lighting123
GPS navigation, refer to
Navigation system142
Grills, refer to Ventilation118
Gross vehicle weight, refer to
Weights263
H
Halogen lamps245
Handbrake64
– indicator lamp13,64
Hands-free system, refer to
Microphone14
Hand washing240
Hazard warning flashers15
"HDC"93
HDC Hill Descent Control93
"HDC on"93
"HDC on / off"57
"HD radio"176
HD radio, refer to High
Definition Radio176
Head airbags100
Headlamp
– cleaning tank, refer to
Capacities264
Headlamp control,
automatic108
Headlamp flasher68
Headlamps108
– cleaning, refer to Wiper
system69
– filler neck for washer
fluid233
– replacing bulbs245
Head Light, refer to Adaptive
Head Light110
