Cvlinder Head Removal and Installation /
Right cylinder head, installing, M62 engine
- Clean cylinder head and block sealing surfaces of gasket de-
bris, making sure no debris drops into coolant or oil passag-
es.
CA UTIOW-
To prevent valve to piston contact when tightening camshaft
sprocket fasteners, counterhold camshaft with
27 mm open-
end wrench. If
necessarq: grind outer side of wrench jaws to
prevent damaging cylinder head.
- Check cylinder head bolt holes and condition of threads. Re-
move debris and liquids from holes.
4 Check cylinder head locator sleeves (arrows) for damage
CAUTION-
lithe cylinder head has been machined, a special 0.3 rnm
(0.01 1 in.) thickergasket should be installed. The thickergas-
ket is available through an authorized BMW dealer and
should be marked
accordinglw
- Place new cylinder head gasket over locating sleeve on
block.
< The word "OBEN" or "TOP (arrow) printed on the gasket.
must face up.
CAUTION-
Male sure the crankshaft, which had been rotated approxi-
mately
45" opposite the direction of engine rotation from
TDC, is
stillin thatposition before installing the cylinder head.
All pistons must be out of
TDCposition to prevent valve/pis-
ton contact
- Install new cylinder head bolts and washers finger tight. Be
sure not to remove coating from bolts.
4 Tighten cylinder head bolts in correct sequence (1 -10) to
stage
1 torque values.

Downloaded from www.Manualslib.com manuals search engine
11 3-78
Cylinder Head Removal and Installation
4 Using a torque angle gauge, tighten cylinder head bolts to
specified torque angle in stages
2 and 3.
Tiahtenina toraues - -.
Stage I 30 Nm (22 ft-lb)
Stage I1
Stage Ill
4 Using BMW special tool 11 3 430, or a 27 mm open-ended
wrench, rotate camshafts until marker bores (drilled holes)
point upwards
(arrows).
Do not damage cylinder head with wrench. If necessary.
grind outer side of wrench jaws to prevent damaging cylinder
head.
4 Install camshaft locking tool set (BMW special tool set 11 2
440) on right cylinder head. Fit tools on cyllnder heads with-
out gaps.
4 Install camshaft locking tool set (BMW special tool set 11 2
440) on left cylinder head. Fit tools on cylinder head without

Downloaded from www.Manualslib.com manuals search engine
-8" ."
Cylinder Head Removal and Installation --
Using crankshaft center bolt, rotate engine clockwise from
the
45" before TDC up to TDC position (OIT aligns with cast-
ing mark on cylinder block).
< Lock crankshaft in TDC position with BMW special tool 11 3
200 (arrow).
NOTE-
Special tool boss located at the rear of upper engine oil pan.
- Working at right cylinder head (cylinder 5-8) fit primary
sprocltet and chain to camshaft flange.
!
I
4 Press timing chain tensioner rail against timing chain (white
arrow) to check that fastener holes are centered in sprocket
slots (black arrows).
NOTE-
If necessary, remove sprocl Fit sensor gear with mark pointing up (arrow).
Insert bolts and hand tighten.

Downloaded from www.Manualslib.com manuals search engine
11 3-80
Cylinder Head Removal and lnstallation
I I 4 Install BMW special tool 11 7 380
4 Install special tool 11 3 390 into special tool 11 7 380 and
tighten tensioner
(1 1 3 390) to 0.7 Nm (6.3 in-lb) using spe-
cial tool 00
9 250.
NOTE-
BMW special tool 00 9 250 is a flexible shaft torque wrench.
- Tighten sprocket retaining bolts in the following order:
3 accessible bolts on left exhaust camshaft
- All bolts on right exhaust camshaft
3 accessible bolts on left intake camshaft
All bolts on right intake camshaft
Tightening torque
Sprocitet bolts to camshaft flange 15 Nm (11 ft-lb)
- Remove camshaft and crankshaft locking tools from engine.
- Using crankshaft center bolt, turn engine clockwise to access
remaining sprocket retaining bolts of left cylinder head cam-
shafts. Tighten remaining bolts.
Tightening torque
Sprocket bolts
to camshaft flange 15 Nm (11 ft-ib)
- Remove BMW special tool 11 3 390 and 11 7 380 from right
cylinder head.
- Remove used gasket from right timing chain cover, clean
gasket surface.
4 Install new gasket and apply three Bond 1209 @sealant to
joint between cylinder head and timing cover
(arrows).

Downloaded from www.Manualslib.com manuals search engine
Cylinder Head Removal and Installation 1
Replace sealing O-ring (arrow) in right cylinder head before
installing upper timing chain cover.
4 Install oil supply lines and mounting nuts on both heads (ar-
rows).
- Using a new gasket, install upper timing chain cover on right
head and tighten cover fasteners finger tight.
4 Remove right cylinder head cover gasket and install spacing
tool
(BMW 11 1 41 1) in place of gasket.
- Install right cylinder head cover fasteners and tighten uni-
formly in
'1, turn steps.
Tightening torque Cylinder head cover fasteners
10 Nm (7.5 ft-lb)
- Tighten right upper timing cover retaining fasteners in two
passes.
I Tightening torque
Upper timing chain cover
10 Nm (7.5 ft-lb)
- Reinstall primary timing chain tensioner with new sealing
washer.
Tightening torque
Chain tensioner to timing cover
65 Nm (48 ft-lb)
- Remove right cylinder head cover and remove special spac-
ingtooi 11 4411.

Downloaded from www.Manualslib.com manuals search engine
1 13-82
1 Cylinder Head Removal and Installation
4 Reinstall cylinder head covers to right and left cylinder heads
using new gaskets.
Check for correct seating of half-moon seals
(A) in back of
cylinder head cover.
Use a small amount of Three Bond
1209 8 or equivalent
sealer at corners
(B) of half-moon cutouts.
- Install cylinder head cover fasteners and tighten uniformly in
'I2 turn steps.
Tightening torque Cvlinder head cover fasteners
10 Nm (7.5 It-lb)
- Install exhaust manifolds using new gaskets and fasteners.
See
180 Exhaust System.
- Refill and bleed cooling system as described in 170 Radiator
and Cooling System.
- Change engine oil and filter as described in 020 Mainte.
nance.
CA UTIOW-
To prevent damaging engine electricalsystems, be sure to in-
stall all ground wires previously removed.
Tightening
tOrqUeS
Camshaft sprocket to camshaft 15 Nm (1 1 ft-lb)
Coolant manifold to cylinder head lo Nm (7.5 It-lb)
Cylinder head cover nuts 10 Nm (7.5 ft-lb)
Exhaust manifold to head 22 Nm (17 ft-lb)
Engine mount to subframe 42 Nm (30 ft-lb)
Spark plugs to cylinder head 22 Nm (17 ft-lb)

Downloaded from www.Manualslib.com manuals search engine
11 6 Cylinder Head and Valvetrain
........................... General ............................ 1 16-2 Valves 116-56
.................... Special Tools ........................ 11 6-2 Valves. leak test 11 6-56
......... Valves. removing and installing 11 6-56 Cylinder Head ..................... .I1 6.5 ....................... Valve guides 11 6-57
Valves. leak test ...................... 11 6-6
Valve stem oil seals .................. 11 6-58 ...... ..""""."""ll 6.6 Valveseats ........................ 116-59 Hydraulic lifters, checking and replacing .. .I1 6-7 Valve ....................... 6-60 . .
Camshaft andLifter Removal
and Installation
.................... 11 6-1 1
Camshaft and lifter removal and
installation
(M52 engine) ............. .I1 6.12
Camshaft and lifter. removal and
installation (M52
TU and M54 engine) .... 11 6-1 9
Double VANOS timing chain components
. 11 6-28
Camshaft removal and installation
(M62 engine)
....................... 11 6-39

Downloaded from www.Manualslib.com manuals search engine
This group covers cylinder head and valvetrain service and
repair. Some of the repair procedures described here require
that the cylinder head first be removed as described in
113
Cylinder Head Removal and Installation.
NOTE- For timing chain and
VANOS repair information, see 117
Camshaft Timing Chain.
If it is
determined that the cylinder head will require signif-
icant reconditioning work, a remanufactured cylinder head
may be a good alternative. Remanufactured cylinder
heads are available from an authorized
BMW dealer.
The information given in this repair group is organized ac-
cording to engine code. For engine application information,
see
I00 Engine-General.
For specific repair procedures, refer to the appropriate repair
group:
* 020 Maintenance
100 Engine-General
113 Cylinder Head Removal and Installation
117 Camshafi Timing Chain
= 170 Radiator and Coo!ing System
Special Tools
Special BMW tools are required for most cylinder head ser-
vice described in this repair group. Many of these tools are ex-
pensive and only available through an authorized
BMW
dealer. If the special tools are not available, have the cylinder
head removed and disassembled by an authorized BMW
dealer. Be sure to read each procedure thoroughly before
starting a job to determine which special tools and equipment
will be necessary.
Most of the repairs to a cylinder head require precision
rna-
chine work to specific tolerances. This type of work should be
performed by an authorized BMW repairfacility or an ASE
certified machinist.
71 Torque wrench with flex shaft

Downloaded from www.Manualslib.com manuals search engine

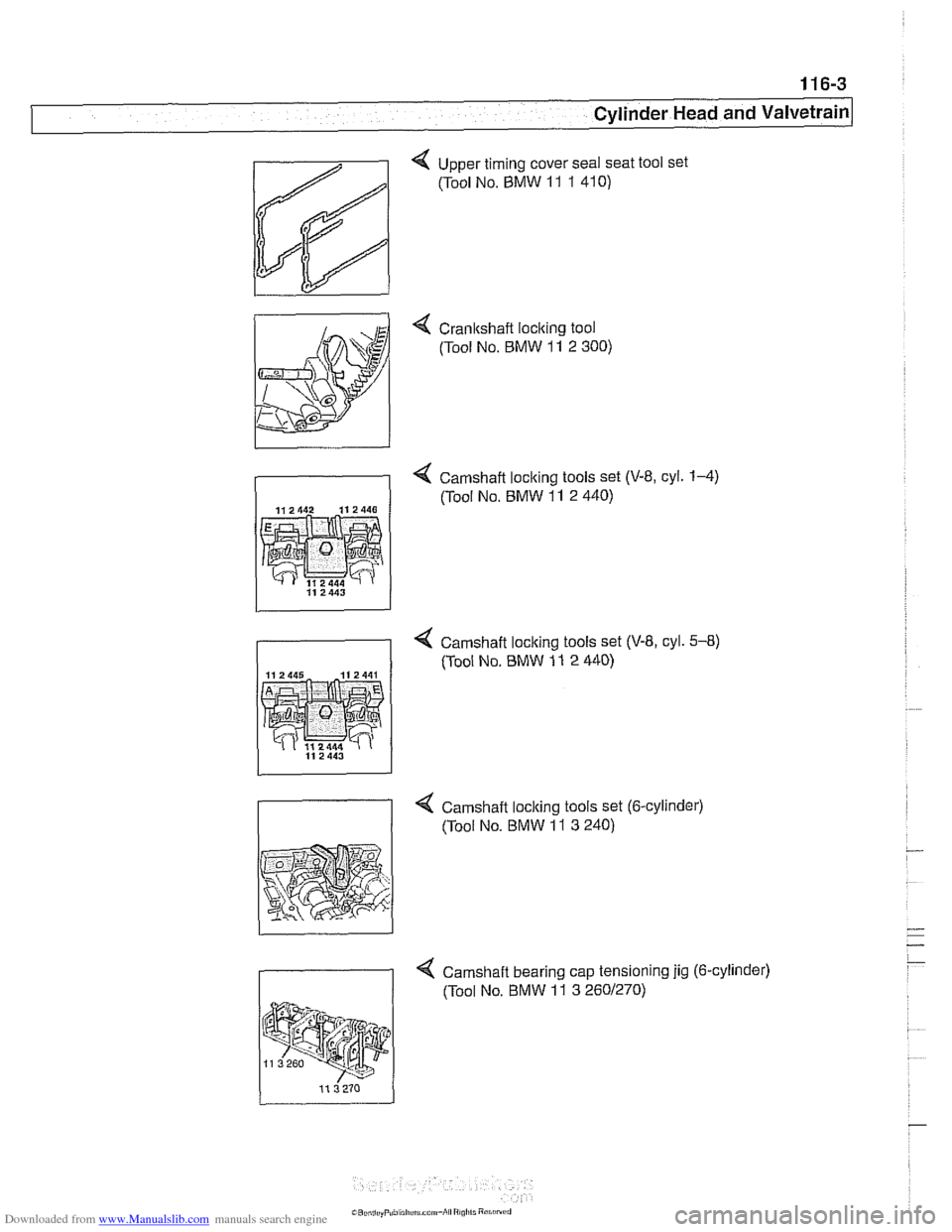

1 16-3
Cylinder Head and Valvetrain
4 Cranltshaft loclting tool (Tool No. BMW 11 2 300)
4 Camshaft loclting tools set (V-8, cyl. 1-4)
(Tool No.
BMW 11 2 440)
4 Camshaft locking tools set (V-8, cyl. 5-8)
(Tool No. BMW 11 2 440)
4 Camshaft loclting tools set (6-cylinder)
1 (Tool No. BMW 11 3 240)
4 Camshaft bearing cap tensioning jig (6-cylinder)
ITool NO. BMW 11 3 260/27n

Downloaded from www.Manualslib.com manuals search engine

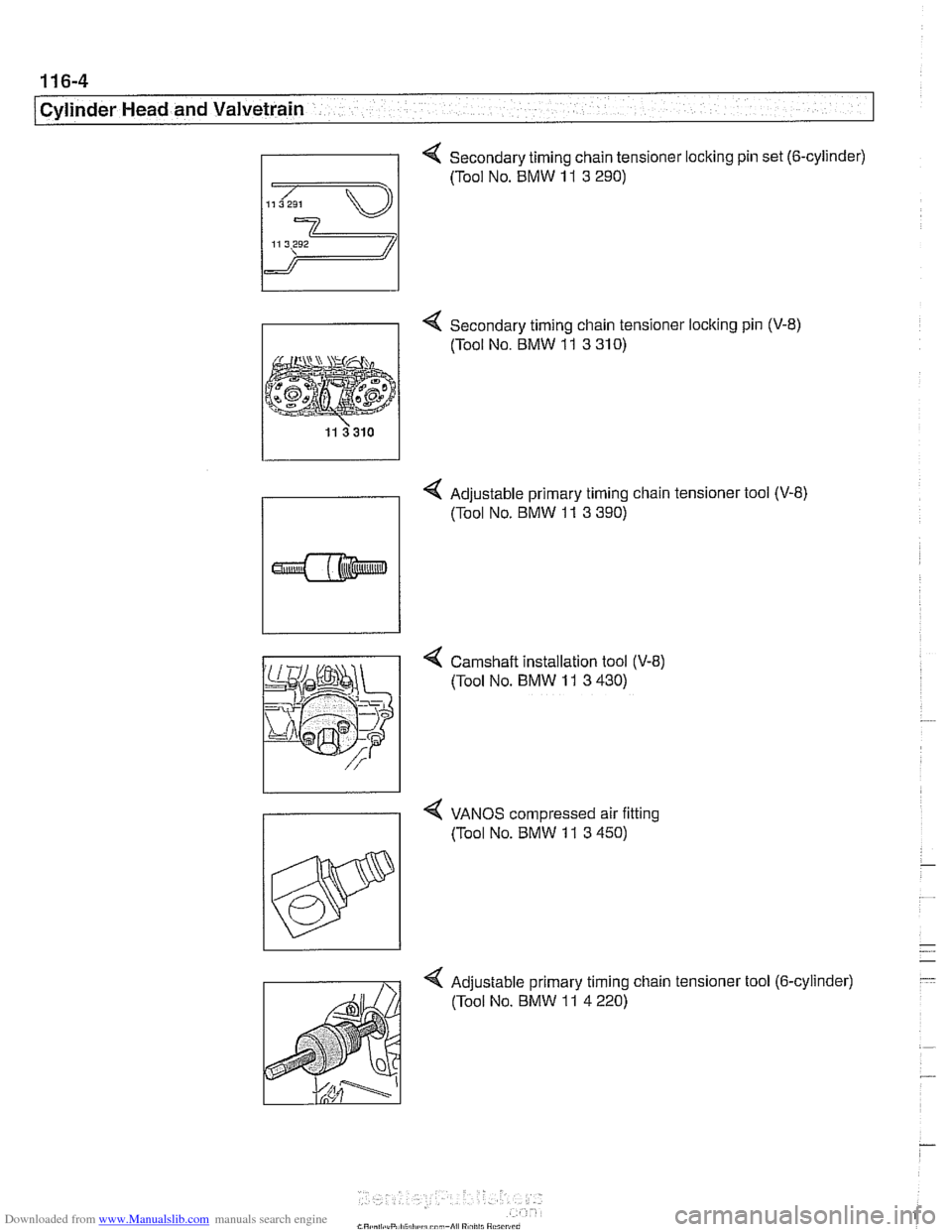

/cylinder Head and Valvetrain
Secondary timing chain tensioner locking pin set (6-cylinder)
- 4 Secondary timing chain tensioner locking pin (V-8)
(Tool No. BMW
11 3 310)
4 Adjustable primary timing chain tensioner tool (V-8)
(Tool No. BMW
11 3 390)
4 Camshaft installation tool (V-8)
(Tool No.
BMW 11 3 430)
4 VANOS compressed air fitting
7 (Tool No. BMW 11 3 450)
Adjustable primary timing chain tensioner tool (6-cylinder) (Tool No. BMW
11 4 220)
