Cylinder Head and Valvetrain
4 Remove primary timing chain tensioner plug (arrow) and pri-
mary tensioner.
CAUTION-
Primary timinq chain tensioner is under sarina aressure.
4 Remove primary timing chain sprocket and timing chain from
exhaust camshaft.
- Remove crankshaft locking tool (BMW 11 2 300) from
flywheel (installed during
VANOS removal).
Lift timing chain (holding under tension) and rotate engine
counterclockwise 30" from
TDC.
- Suspend timing chain with mechanic's wire

Downloaded from www.Manualslib.com manuals search engine
.
Cylinder Head and Valvetrain
< Remove cylinder head cover retaining studs (arrows) from
center and rear of cylinder head.
< Remove spark plugs and install BMW special tool 11 3 260
(A) and 11 3 270 (6) to cylinder head. Tighten tool retaining
bolts in spark plug bores. Do not overtighten bolts.
Tightening
torque
BMW special tool 11 3 260 I1 1 3 270 to 23 Nm (17 It-lb)
cylinder head
- Remove intake camshaft bearing cap for cylinder number 1.
CA UTIOG
Intake camshaft bearing cap 1 is centered with adapter
sleeves. To avoid
can~sllaft daniage, it must be removed bs-
fore any other caps.
Turn eccentric shaft on special tool until pressure is applied
to camshaft bearing caps.
- Remove remaining bearing cap mounting nuts
- Slowly release pressure on camshaft bearing caps by turning
eccentric shaft. Remove bearing caps and camshaft. Repeat
procedure on remaining camshaft.
CAUTION-
Camshaft bearing caps must be reinstalled in their original lo-
cations.
NOTE-
The camshaft bearing caps are coded with a letter anda
number. For example,
'XI" is the first exhaust camshaft
bearing cap at the front of the engine, and
"El "is the intalce
camshaft bearing cap at the front of the engine.
0 The camshafts are stamped with a code letter - "E" for the
intake side and 'MA" for the exhaust side.
0 "E is for Einlap, (German for intake) and 'XA"is for Auspuff,
(German for exhaust).

Downloaded from www.Manualslib.com manuals search engine
Cylinder Head and Valvetrain
4 Secure hydraulic lifters in lifter bores using BMW special tool
11 3 250, or remove lifters using a magnetic pick-up tool.
4 Remove camshaft bearing carrier from cylinder head.
CA UTION-
Camshaftbearing carriers must be reinstalledin their original
/ locations (E for ir;fal NOTE-
Do not let hydraulic lifters fall out as the camshaft carrier is
removed.
Hydraulic lifters should be stored in an upright position.
Used hydraulic lifters
must be replaced into original lifter
bores.
Camshafts and lifters, installing
(M52 Engine)
Lubricate camshafts, camshaft carriers, bearing caps, hy-
draulic liflers, friction washers, splined shafts and spline hubs
with assembly lubricant before installation.
Make sure
the cranltshaft, which had been rotated approxi-
mately
30" opposite the direction of engine rotation from
TDC, is still in thatposition before lowering the
camshaffs into
position. All pistons must be out of TDC position to prevent
valve/piston interference when the camshalts are installed.
Before installing camshaft carriers, examine bearing bores
(arrows) on hydraulic lifter bores for signs of wear.

Downloaded from www.Manualslib.com manuals search engine
116-18
Cylinder Head and Valvetrain

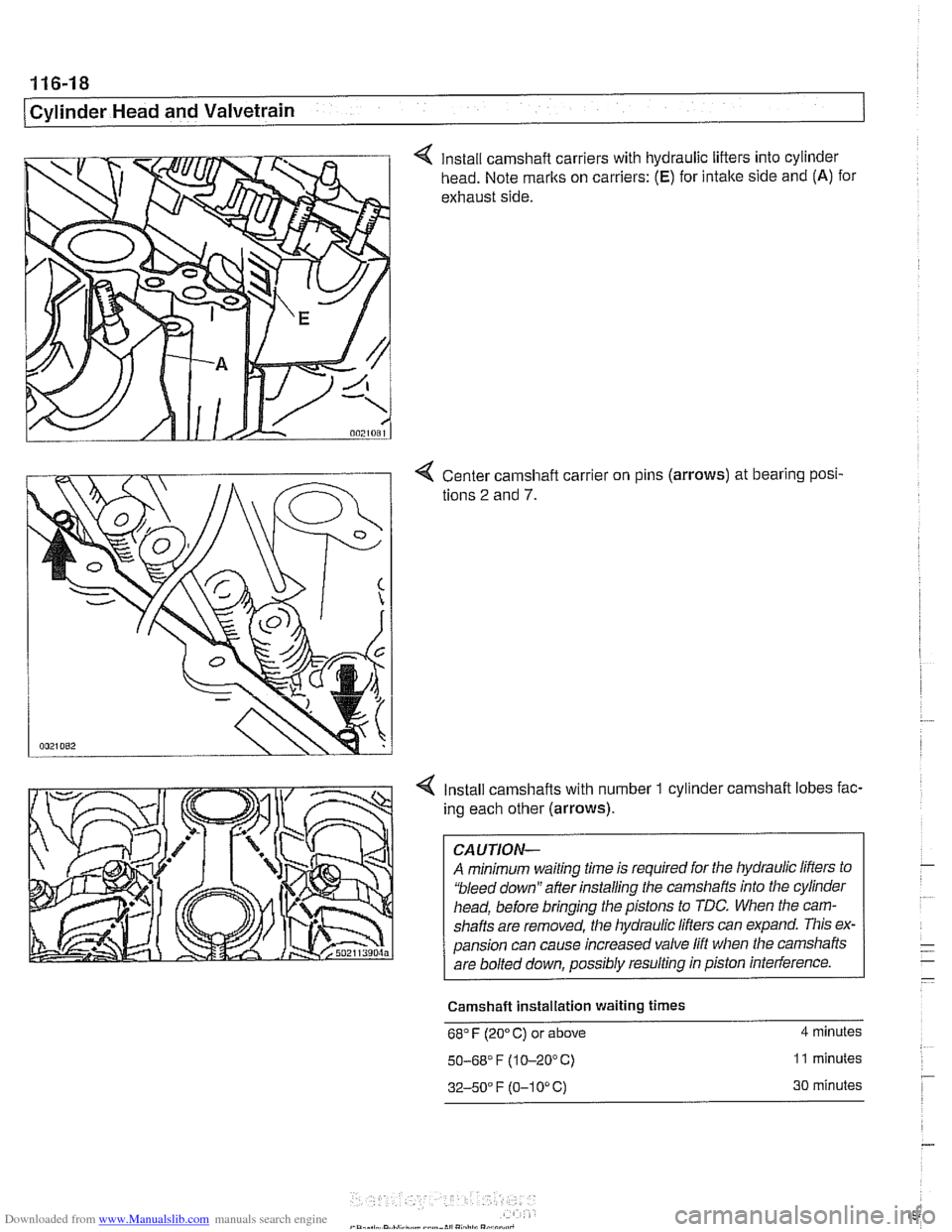

4 Install camshaft carriers with hydraulic lifters into cylinder
head. Note marks on carriers:
(E) for intake side and (A) for
exhaust side.
4 Center camshaft carrier on pins (arrows) at bearing posi-
tions
2 and 7.
4 Install camshafts with number 1 cylinder camshaft lobes fac-
ing each other (arrows).
CAUTION-
A minimum waiting time is required for the hydraulic lifters to
'bleed down" after installing the camshafts into the cylinder
head, before bringing the pistons to TDC. When the cam-
shafts are removed, the hydraulic
lifers can expand. This ex-
pansion can cause increased valve lift when the camshafts
are bolted down, possibly resulting in piston interference.
Camshaft Installation waiting
times
68" F (20" C) or above 4 minutes
50-68' F (1 0-20°C) 11 minutes
32-50" F (0-1 0" C) 30 minutes

Downloaded from www.Manualslib.com manuals search engine
Cylinder Head and valvetrain1
- Remainder of installation is reverse of removal, noting the
following:
See
117 Camshaft Timing Chain for VANOS control unit
installation.
Tightening torques
Camshaft bearing caps
to cylinder head (M7) 15 Nm (1 1 ft-lb)
Cylinder head cover to cylinder head (M6) 10 Nm (89 in-lb)
Sparic plugs (M12) 23 Nm (17 ft-lb)
Camshaft and lifter, removal and
installation
(M52 TU and M54 engine)
Camshafts and lifters, removing
(M52 TU and M54 engine)
WARNING-
Allow engine fo cool before beginning this procedure.
- Disconnect negative (-) cable from battery.
CAUTION--
Prior to disconnecting the battea read the battery discon-
nection cautions in
001 General Cautions and Warnings.
Remove VANOS control unit. See 117 Camshaii Timing
Chain.
Remove primary timing chain tensioner (arrow).
CAUTION-
Primary timing chain tensioner is under spring pressure. 1

Downloaded from www.Manualslib.com manuals search engine
/Cylinder Head and Valvetrain
Press down on secondary chain tensionerand loclc into place
using
BMW special tool 11 3 292, or a thin drift or pin.
4 Remove exhaust camshaft impulse wheel mounting nuts
(arrows). Remove impulse wheel (A).
< Remove spring plate (A).
4 Remove intake camshaft sprocket mounting nuts (arrows)
and remove spring plate (labelled
FRONT).

Downloaded from www.Manualslib.com manuals search engine
I_
-.

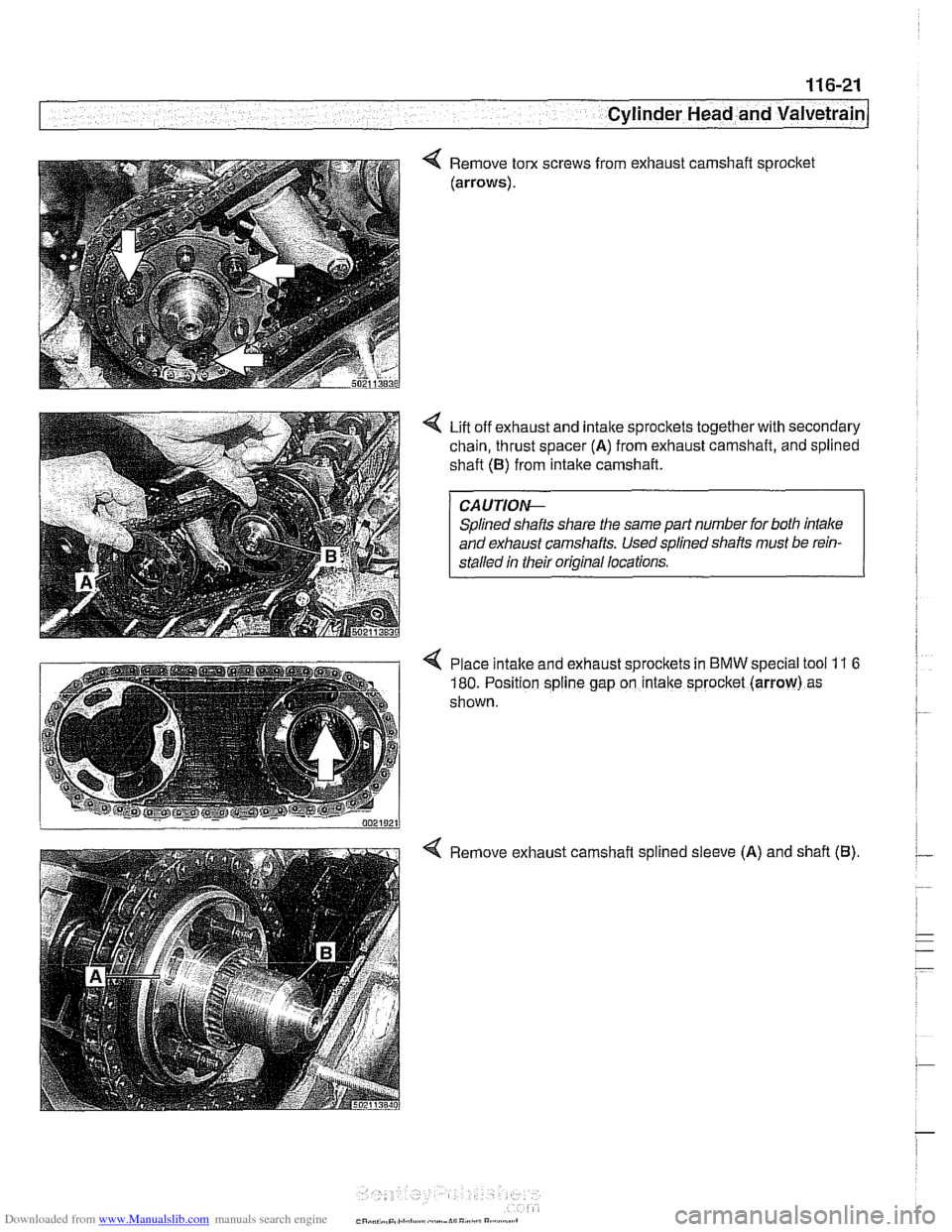

Cylinder Head and Valvetrain
Remove torx
(arrows). screws
from
exhausl
: camshaft : sprocket
Lift off exhaust and intalte sprockets together with secondary
chain, thrust spacer
(A) from exhaust camshaft, and splined
shaft (B) from intake camshaft.
CAUTIOf+
Splined shafts share the same part number for both intake
and exhaust camshafts. Used splined shafts must be rein-
stalled in their
oriqinal locations.
Place intalte and exhaust sprockets in
BMW special tool 11 6
/ 180. Position spline gap on intake sprocket (arrow) as
shown.
4 Remove exhaust camshaft splined sleeve (A) and shaft (B).

Downloaded from www.Manualslib.com manuals search engine
11 6-22
Cylinder Head and Valvetrain

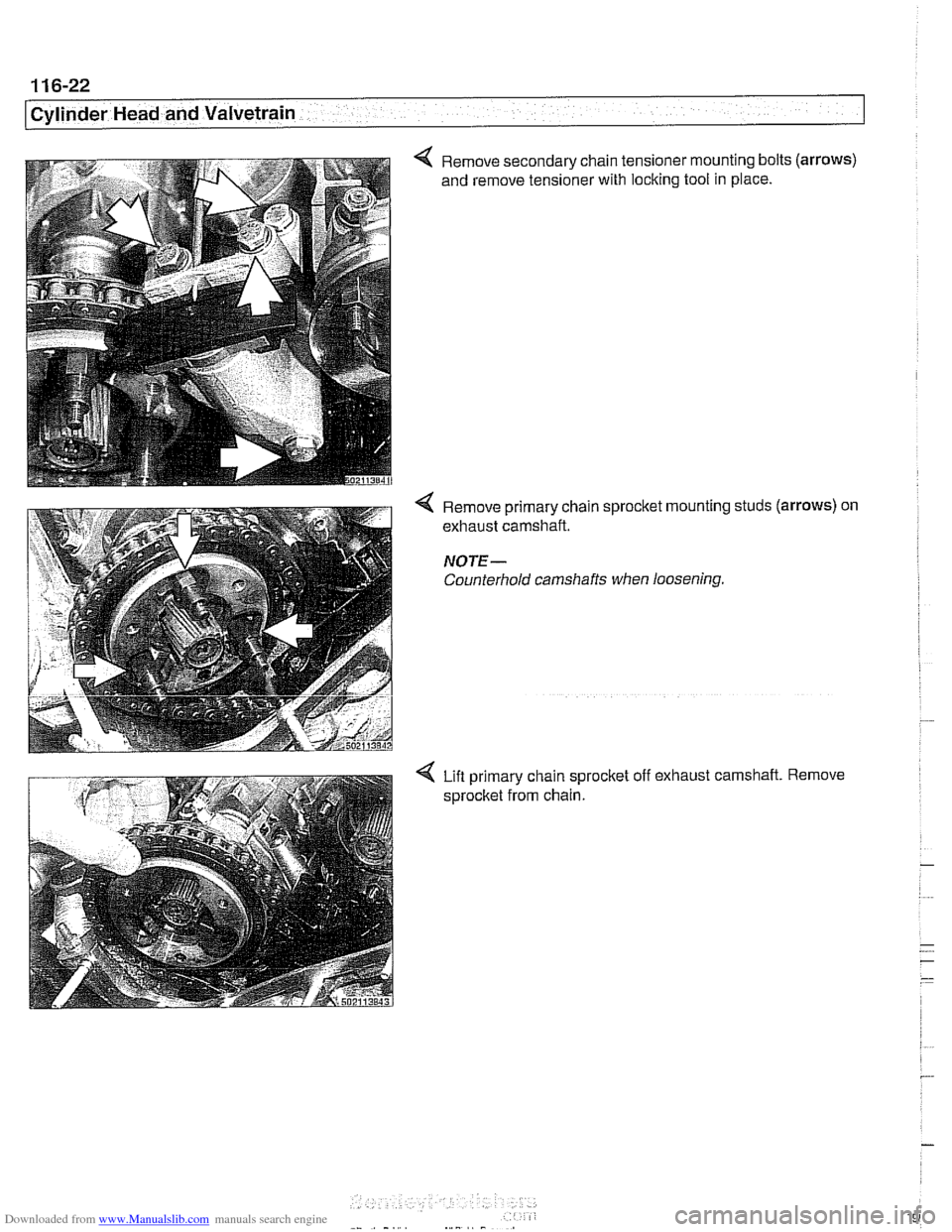

Remove secondary chain tensioner mounting bolts (arrows)
and remove tensioner with locking tool in place.
Remove primary chain sprocket mounting studs
(arrows) on
exhaust camshaft.
NOTE-
Counterhold camshafts when loosening.
Lifl primary chain sprocket off exhaust camshaft. Remove
sprocket from chain.

Downloaded from www.Manualslib.com manuals search engine
11 6-23
Cylinder Head and Valvetrain

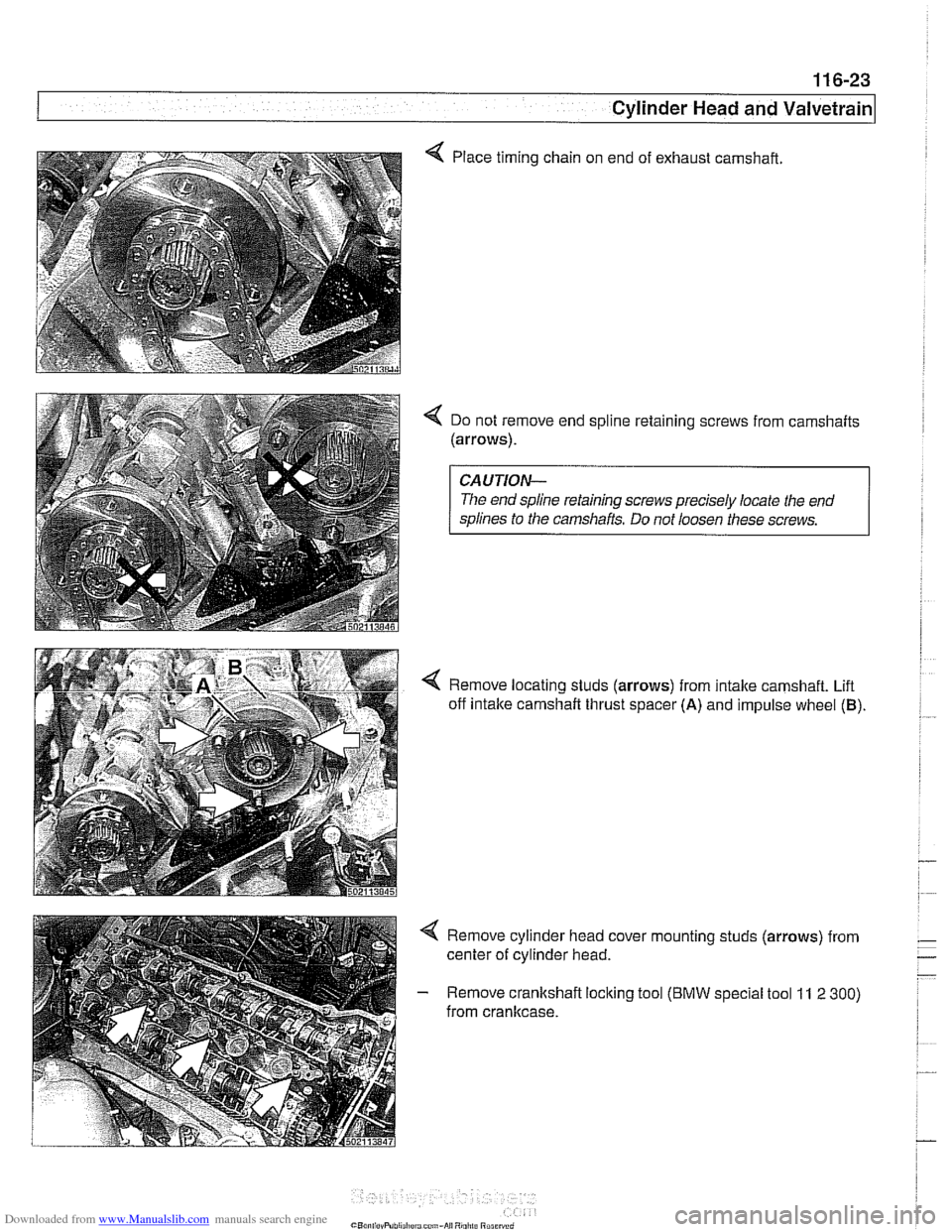

Place timing
chain on end of exhaust camshaft
4 Do not remove end spline retaining screws from camshafts
(arrows).
CAUTION-
The end spline retaining screws precisely locate the end
splines to the camshafts. Do not loosen these screws.
Remove locating studs (arrows) from
intake camshaft. Lift
off intake
camshaft thrust spacer (A) and impulse wheel (B)
4 Remove cylinder head cover mounting studs (arrows) from
center of cylinder head.
- Remove crankshaft locking tool (BMW special tool 11 2 300)
from cranltcase.

Downloaded from www.Manualslib.com manuals search engine
..--.
I Cylinder Head and Valvetrain - I
4 Lift primary chain and hold under tension, rotate engine
against direction of rotation (counterclockwise) approximate-
ly 30".
To prevent damaging valves while
worlcing on camshafts, no
aistons should be in the TDC position.
- Remove BMW special tool set 1 I 3 240 from rear of cylinder
head.
Remove retaining nuts (arrows) and bearing cap
1 of intake
camshaft.
Intake camshaft bearing cap
1 is centered with adapter
sleeves. To avoid camshaft damage, it must be removed be-
fore anv other caos.
4 Fit BMW special tools 11 3 260 (A) and 11 3 270 (B) to cylin-
der head and screw long bolts (aiiows) into spark plug
threads. Tensioners will align with the bearing caps on the in-
take camshaft.
CA UTION--
Do not over torque bolts into spark plug holes. 1
4 Turn eccentric shaft of special tool to pretension intake carn-
shaft bearing caps. Remove nuts on remaining bearing caps.
- Slowly release tension on eccentric shaft and remove BMW
special tools. Remove bearing caps and set aside in order.
Remove camshaft and store safely.
CA U TIOW-
Camshaft bearing caps must be installed in their original lo-
cations.
