BMW 540I 2000 E39 Central Body Electronics ZKE Manual Luggage Comparment Remote Unlock: The luggage com-
parment  can  be  opened  from  inside  the  vehicle  with  the
remote release button. This feature is also functions when the
doors are locked from

Page 22 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual 22
Central Body Electronics ZKE III
System Components:   Inputs - Processing - Outputs

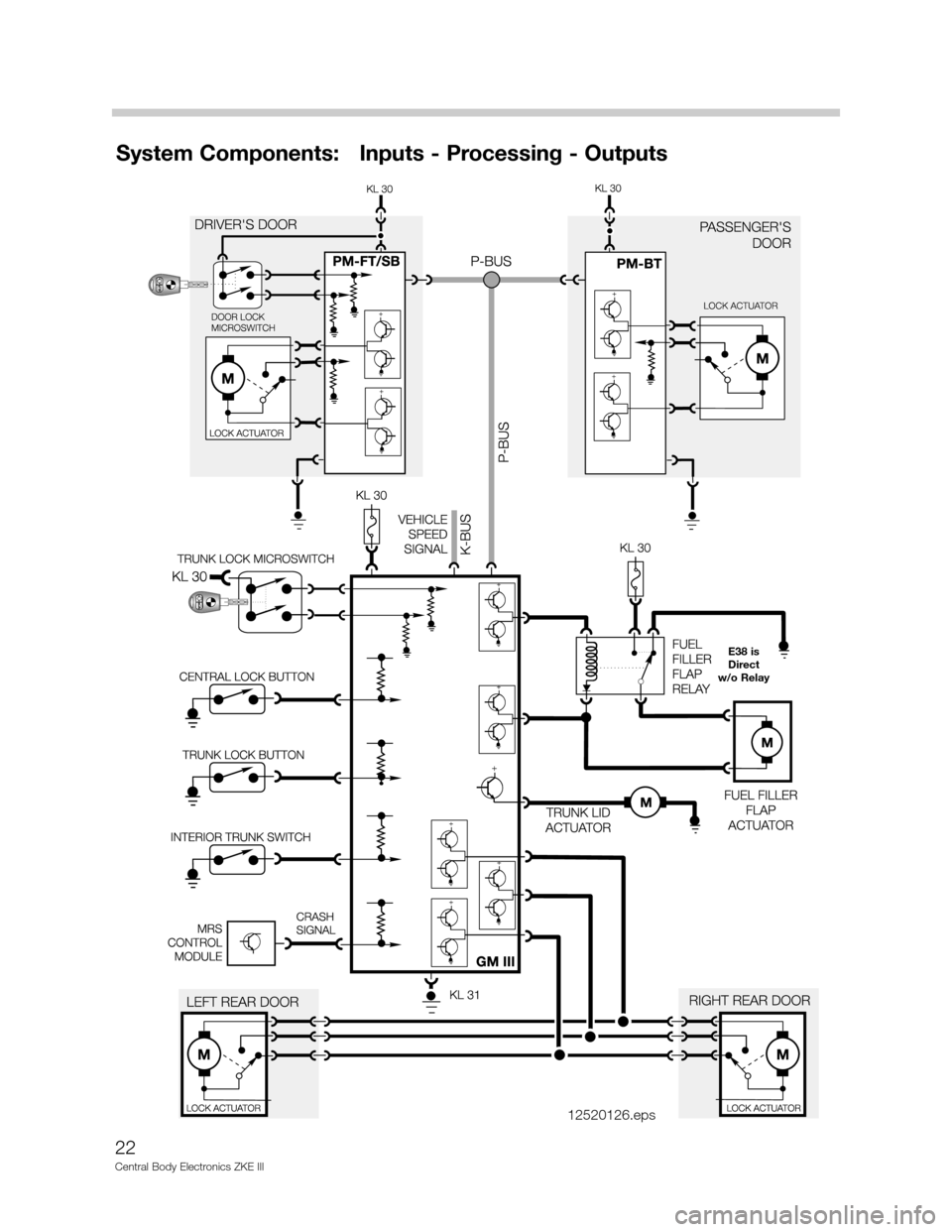

12520126.eps
E38 is
Direct
w/o Relay

Page 23 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual Door Lock Actuators: A door lock actuator contains an electric motor and an integrated
microswitch (position switch). The rotary motor movement through the gear drive mechan-
ically moves the locking

Page 24 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual • Key  in  the  neutral  position,  both  sensors  are
simultaneously  influenced  by  the  magnet  -
0/0.
• Key  turned  to  the  unlock  position  from  neu-
tral,  hall  sensor  #1  magnet  seg

Page 25 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual Door Contact Hall Sensor: Also included in the drivers door actuator is a third hall effect
sensor. This sensor signals the door open/closed status to the GM. This sensor replaces
the door jamb mec

Page 26 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual Remote (Keyless) Entry FZV
Purpose of the System
The Remote Entry System offers the following:
• Locking/unlocking of doors, luggage compartment (tailgate), fuel filler lid.
• Selective unlocking

Page 27 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual The  Remote  Entry  System  incorporated  minor  changes  since  the  original  introduction
which includes:
• The control electronics are incorporated into the GM III.
• The antenna is incorporat

Page 28 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual Vehicle Memory: The owner is provided with a list of available system functions that can
be customized to their liking. Prior to delivery, the DISplus or MoDiC is used to encode the
owner’s chosen s

Page 29 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual System Components
Remote Key:                              Features:
• 3 volt lithium battery (commercially available CR 2016)
is used as the power supply for the key transmitters.
• An EEPROM is

Page 30 of 80

BMW 540I 2000 E39 Central Body Electronics ZKE Manual Workshop Hints
Remote  Key  Initialization: The  initialization  of  the  FZV  keys  is  required  to  establish  the
Lock/Unlock  signal  synchronization  with  the  GM.  The  initialization  procedu
