8. To install the monitor
Slide the seat backrest cover (1) upwards.
Enlarge the existing holes (2) using a 9.1 mm
twist drill bit.
Insert rivet nuts AG.
Secure spacer bolts X to the seat backrest (1) with
one washer each AN and spacer bolts V to the
seat backrest (1) with
four washers each AN.
Move the seat cover (2) to its initial position.
Cut the seat cover (2) around the spacer bolts
using a knife.
Secure the monitor AA to the seat backrest (1)
using Torx screws Z.
The distance form the top of the monitor support
plate (2) to the headrest (3) must be approx. 10 mm.
The distance can be adjusted by removing
the washers AN or replacing the spacer
bolts V with spacer bolts W. At least one washer
AN must be fitted for each spacer bolt V or W.
Unscrew the monitor AA again
Cars without SA 456 only
Mark the hole at marking (1) on the inside of the
front seat rear panel (2) using the dimensions
shown.
Drill the hole using a 30 mm step drill.
2
1
AGAG
X
VV
1
2
AN
2
1
3AA
Z
Z
13 mm
30 mm2
1
060 0607 Z
Page 22 of 30

Downloaded from www.Manualslib.com manuals search engine 22 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
8. To install the monitor
Cars with SA 456 only
Mark the hole at marking (1) on the inside of the
front seat rear panel (2) using the dimensions
shown.
Drill the hole using a 30 mm step drill.
All cars
Place the rear monitor trim AC on the top edge
(1) of the outside of the front seat rear panel (2).
The hole (3) in the rear of the monitor trim AC
must line up with the hole (4) in the front seat rear
panel.
Mark the holes (5) and drill them using as 15 mm
step drill.
Measure the dimensions of branch F2.
Push fabric hose AF over seat wiring harness F
and secure it with adhesive tape using the
dimensions shown.
Affix the marking (1) with adhesive tape using the
dimensions.
2 mm
30 mm2
1
060 0770 Z
2
55
43
1
AC
1FAFF2
Page 23 of 30

Downloaded from www.Manualslib.com manuals search engine 23 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
8. To install the monitor

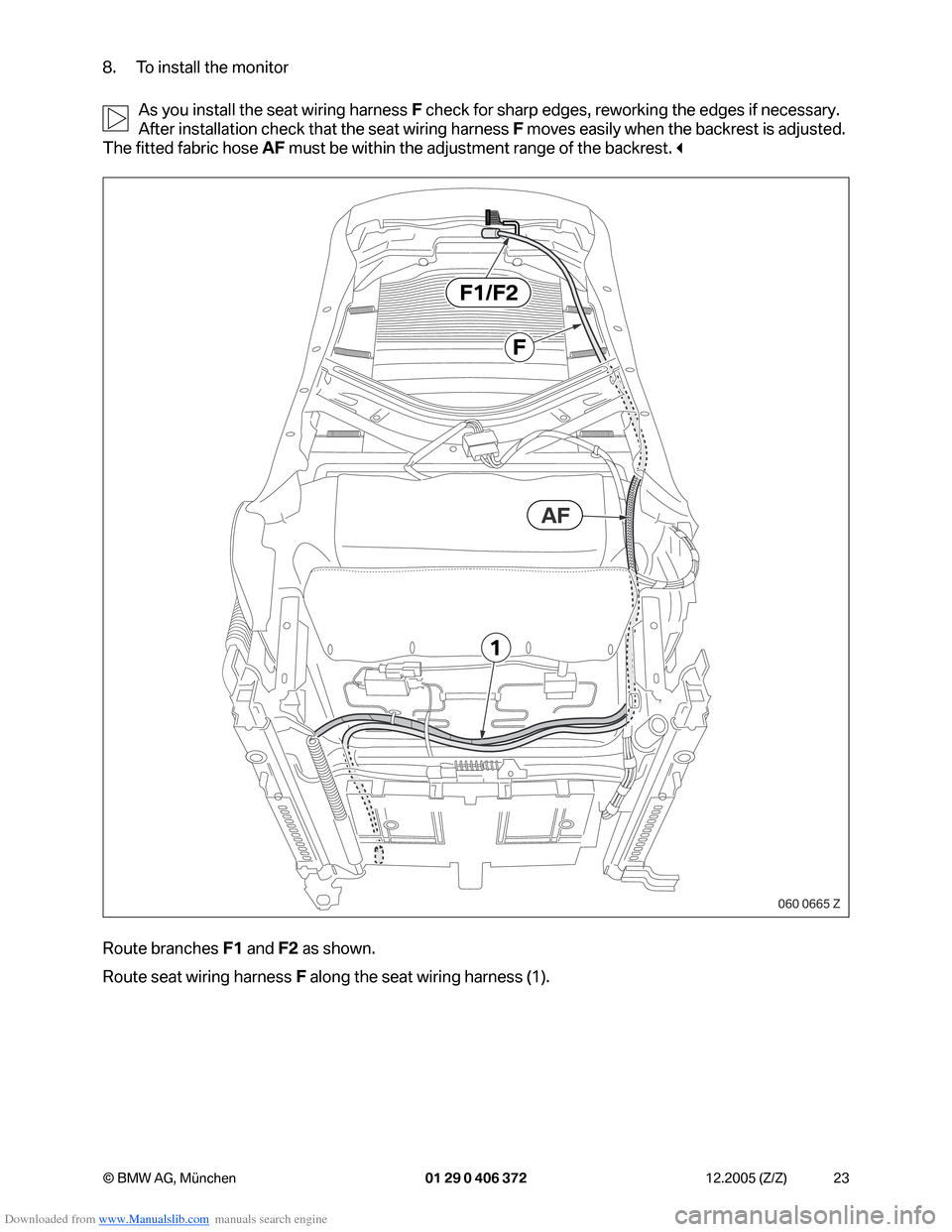

As you install the seat wiring harness F check for sharp edges, reworking the edges if necessary.
After installation check that the seat wiring harness F moves easily when the backrest is adjusted.
The fitted fabric hose AF must be within the adjustment range of the backrest.
Route branches F1 and F2 as shown.
Route seat wiring harness F along the seat wiring harness (1).
1
F
F1/F2
AF
Page 24 of 30

Downloaded from www.Manualslib.com manuals search engine 24 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

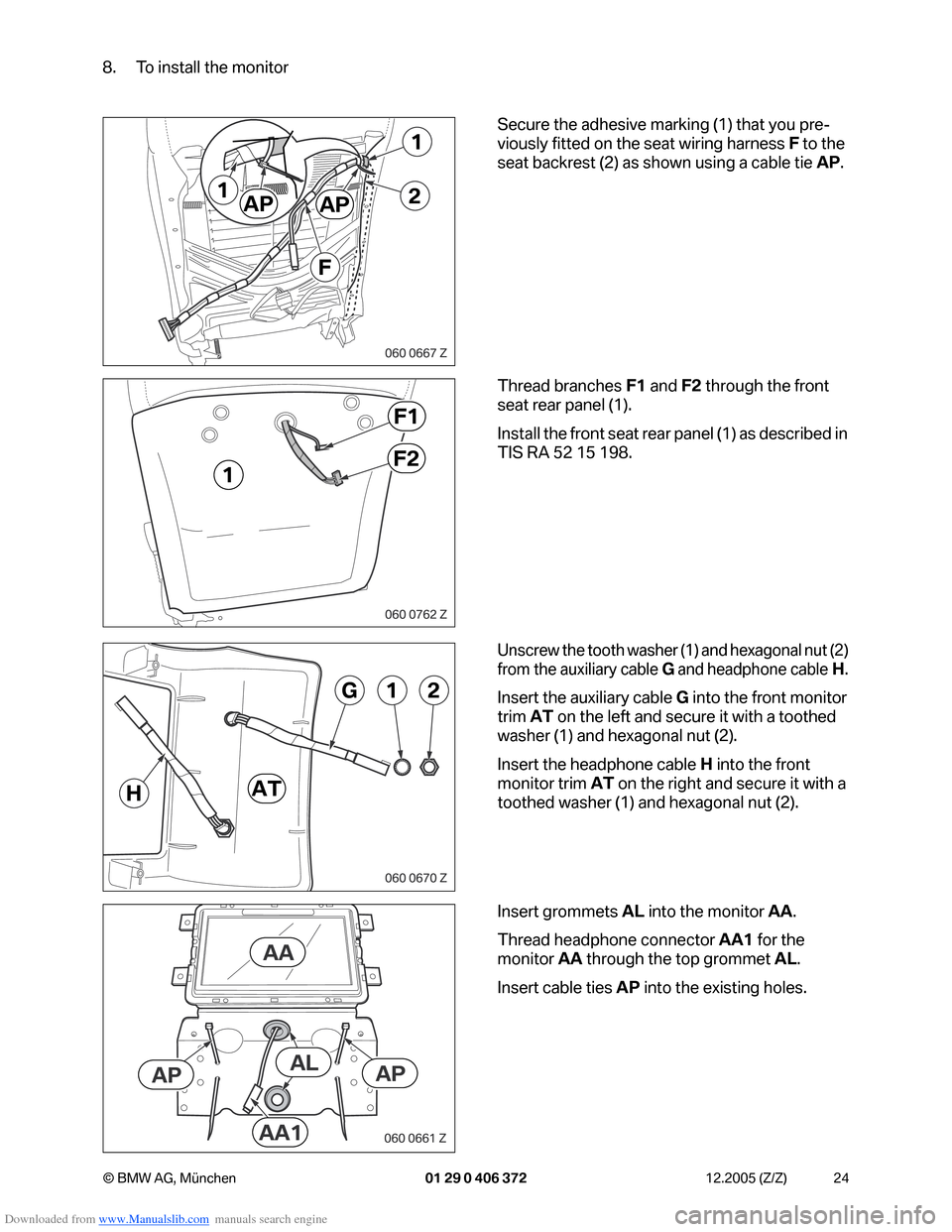

8. To install the monitor
Secure the adhesive marking (1) that you pre-
viously fitted on the seat wiring harness F to the
seat backrest (2) as shown using a cable tie AP.
Thread branches F1 and F2 through the front
seat rear panel (1).
Install the front seat rear panel (1) as described in
TISRA5215198.
Unscrew the tooth washer (1) and hexagonal nut (2)
from the auxiliary cable
G and headphone cable H.
Insert the auxiliary cable G into the front monitor
trim AT on the left and secure it with a toothed
washer (1) and hexagonal nut (2).
Insert the headphone cable H into the front
monitor trim AT on the right and secure it with a
toothed washer (1) and hexagonal nut (2).
Insert grommets AL into the monitor AA.
Thread headphone connector AA1 for the
monitor AA through the top grommet AL.
Insert cable ties AP into the existing holes.
1
21
F
APAP
1
F2
F1
21G
HAT
ALAP
AA1
AP
AA
Page 25 of 30

Downloaded from www.Manualslib.com manuals search engine 25 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

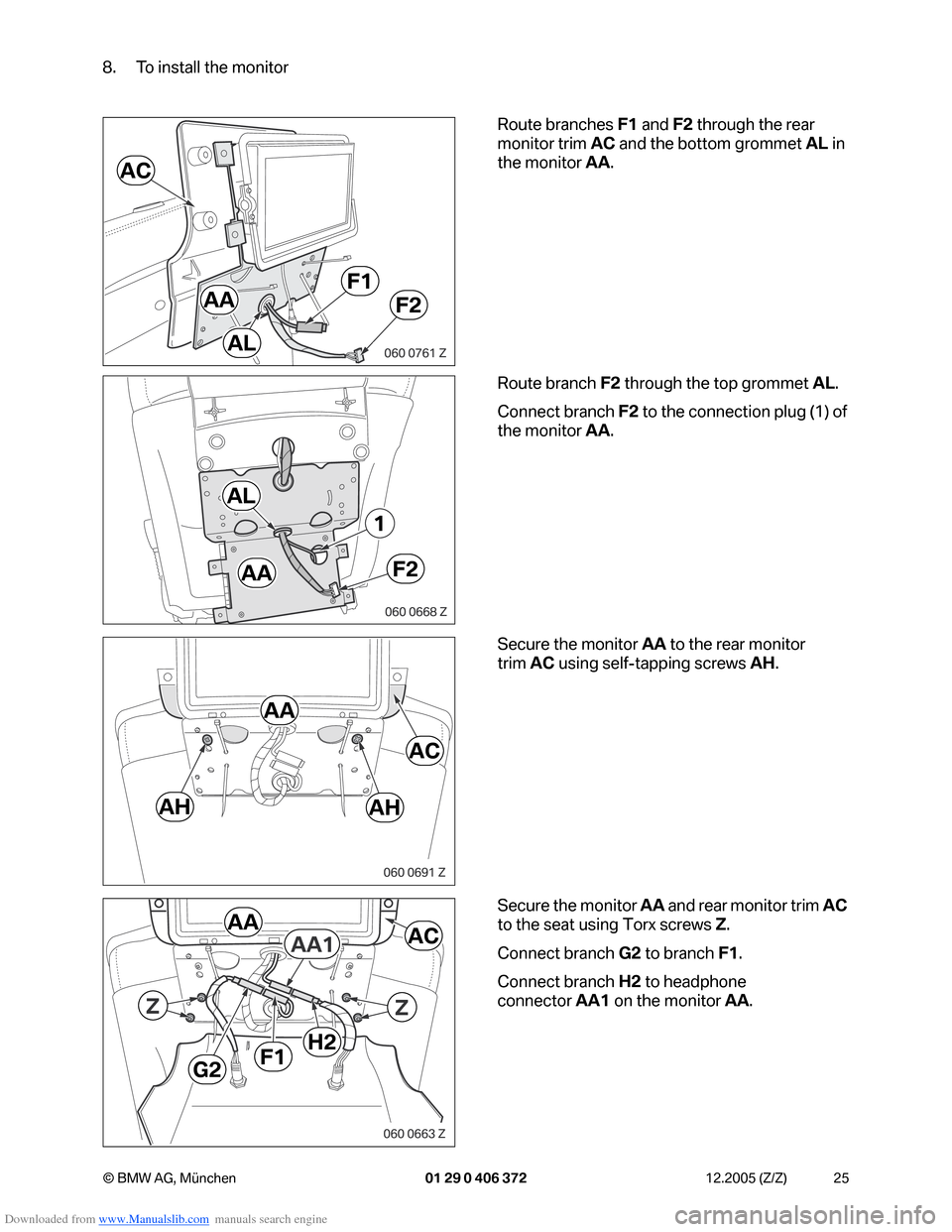

8. To install the monitor
Route branches F1 and F2 through the rear
monitor trim AC and the bottom grommet AL in
the monitorAA.
Route branch F2 through the top grommet AL.
Connect branch F2 to the connection plug (1) of
the monitor AA.
Secure the monitor AA to the rear monitor
trim AC using self-tapping screws AH.
Secure the monitor AA and rear monitor trim AC
to the seat using Torx screws Z.
Connect branch G2 to branch F1.
Connect branch H2 to headphone
connector AA1 on the monitor AA.
F1
F2
AL
AA
AC
F2
AL
AA
1
AH
AC
AH
AA
ZZ
H2
ACAA
F1G2
AA1
Page 26 of 30

Downloaded from www.Manualslib.com manuals search engine 26 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

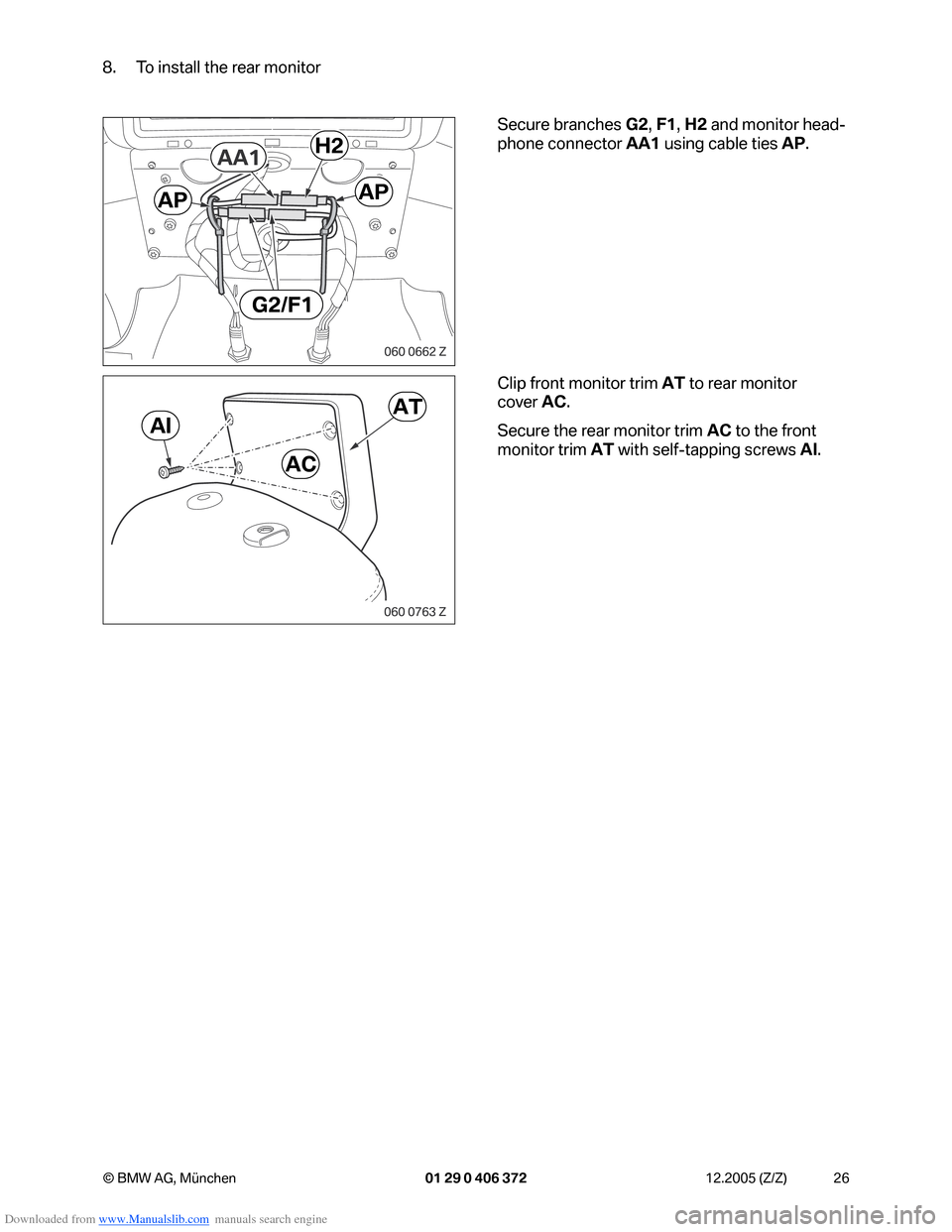

8. To install the rear monitor
Secure branches G2, F1, H2 and monitor head-
phone connector AA1 using cable ties AP.
Clip front monitor trim AT to rear monitor
cover AC.
Secure the rear monitor trim AC to the front
monitor trim AT with self-tapping screws AI.
G2/F1
APAP
H2AA1
AI
AT
AC
Page 27 of 30

Downloaded from www.Manualslib.com manuals search engine 27 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

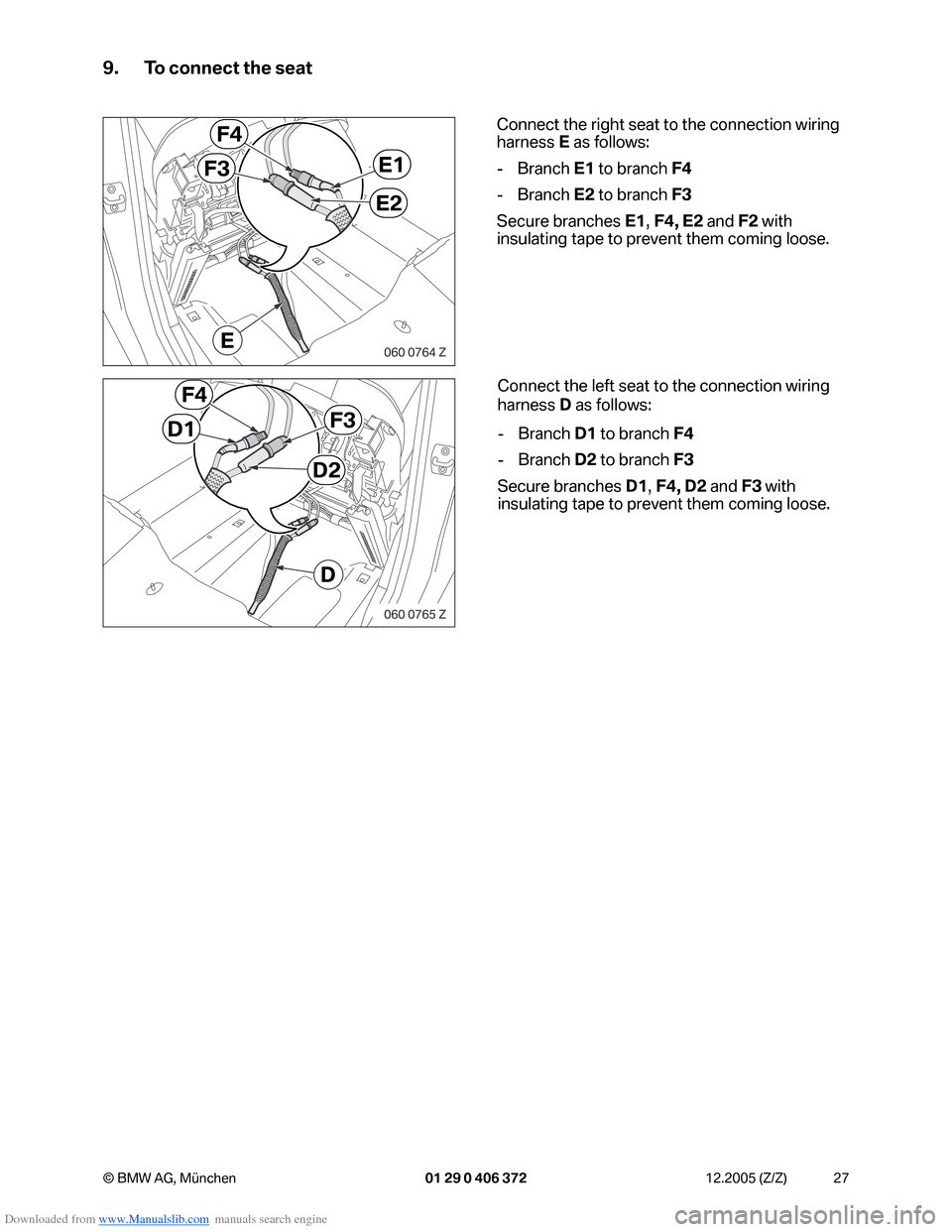

9. To connect the seat
Connect the right seat to the connection wiring
harness E as follows:
-Branch E1 to branch F4
-Branch E2 to branch F3
Secure branches E1, F4, E2 and F2 with
insulating tape to prevent them coming loose.
Connect the left seat to the connection wiring
harness D as follows:
-Branch D1 to branch F4
-Branch D2 to branch F3
Secure branches D1, F4, D2 and F3 with
insulating tape to prevent them coming loose.
F3
F4
E2
E1
E
D1
F4
D2
F3
D
Page 28 of 30

Downloaded from www.Manualslib.com manuals search engine 28 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
10. Concluding work and coding
Push back the lock (1) and pull out the holder (2).
Insert button cell AR into the holder (1) and push
it into the remote control AS.
Open the battery compartment cover (1).
Insert the batteries AV into the battery compart-
ment (2) as set out in the owner’s manual.
Close the battery compartment cover (1).
Switch on the headphones AQ at the switch (1).
Set the channel on the switch (2) as set out in the
owner’s manual.
1
2
1
AS
AR
2
1
AV
2
1
AQ
Page 29 of 30

Downloaded from www.Manualslib.com manuals search engine 29 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
10. Concluding work and coding

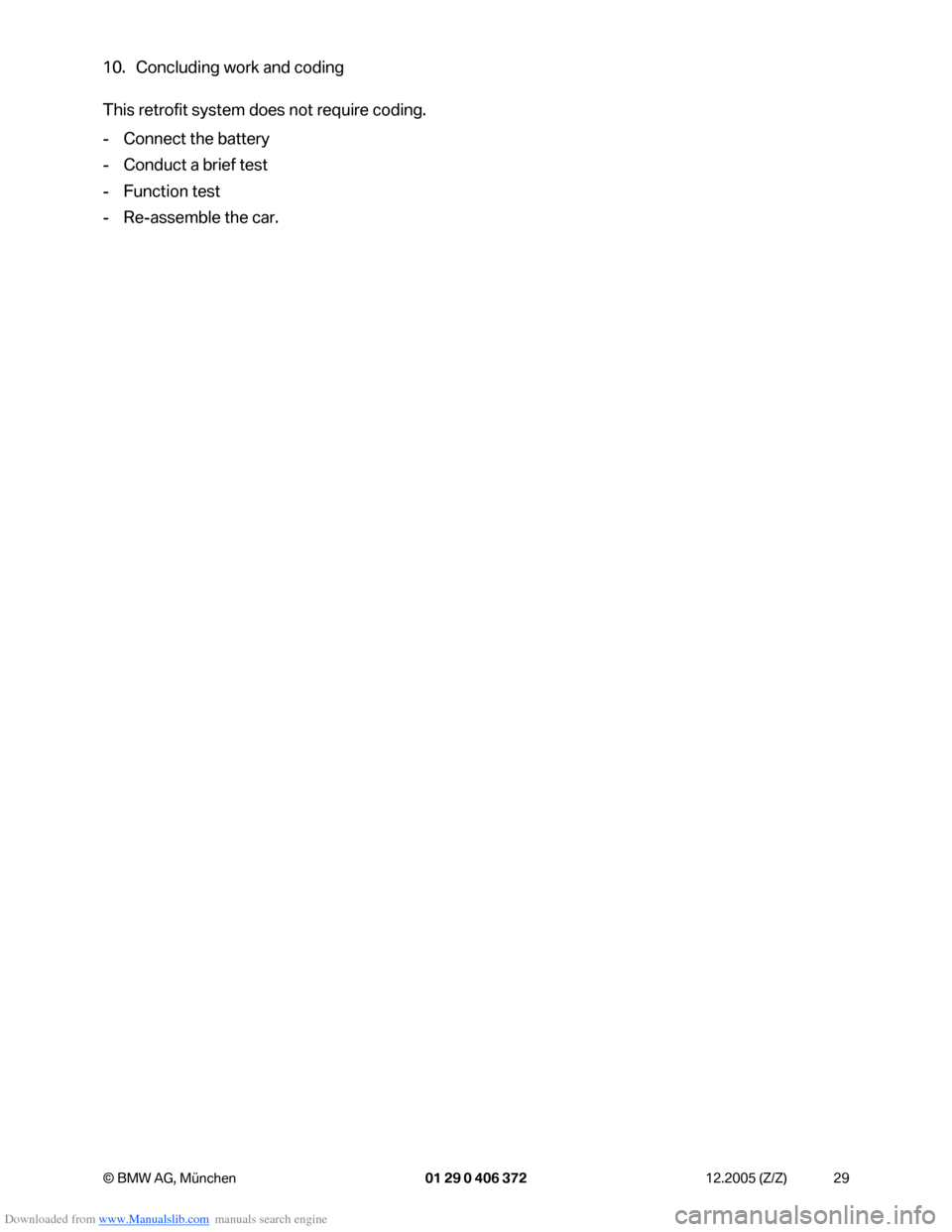

This retrofit system does not require coding.
- Connect the battery
-Conduct a brief test
-Function test
- Re-assemble the car.
Page 30 of 30

Downloaded from www.Manualslib.com manuals search engine 30 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
11. Fan wiring harness circuit diagram
Legend
Cable colours
All the designations marked with an asterisk (*) apply only to these installation instructions or this circuit diagram.
A50Power distributor, rear rightX1856SW 32-pin plug (I6*)
A71Power moduleX2915Socket casing, 3-pin SW (I2*)
AD*Radial fanX3074Terminal R connector
X4844SW 5-pin plug (I5*)
BD*Axial fanX10597
Relay socket (I4*)
BF*RelayX13094Earth post I1*
X14322SW 4-pin plug (I3*)
I1*Cable eyelet A6
I2*Socket casing, 3-pin SW
I3*Socket casing, 4-pin SW
I4*Relay socket
I5*Socket contact
I6*Socket contact
BR Brown RT Red
BL Blue SW Black
GE Yellow VI Violet
A50
X4844
I5*
I6*
I4*
I4*
BD*AD* X14322 X2915X3074
A71
X1856
X10597
X10597BF*
X13094I1*I3*
I2* I2*
