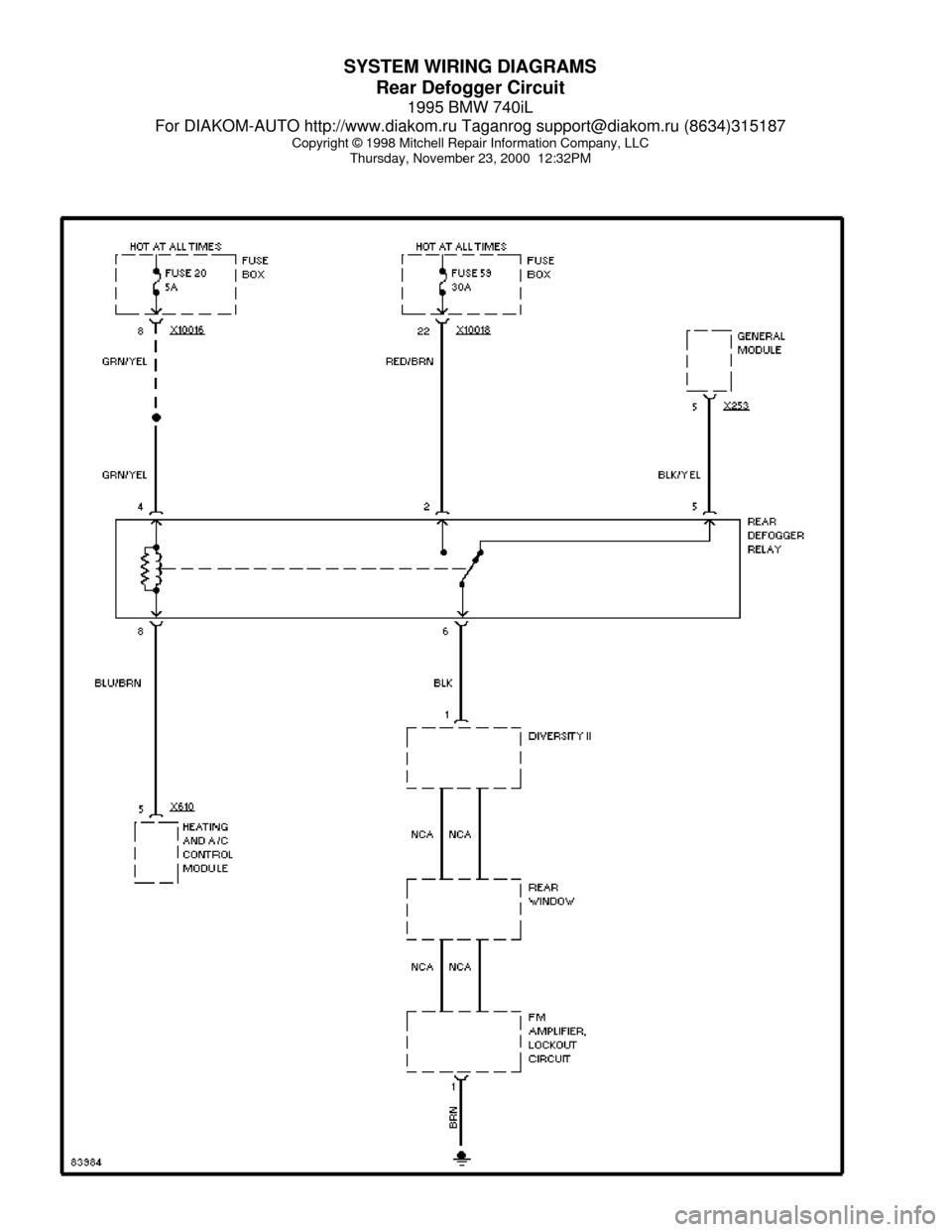

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Rear Defogger Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thur

Page 52 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Rear Seat Heater Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC T

Page 53 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Right Rear Lumbar Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC

Page 54 of 60

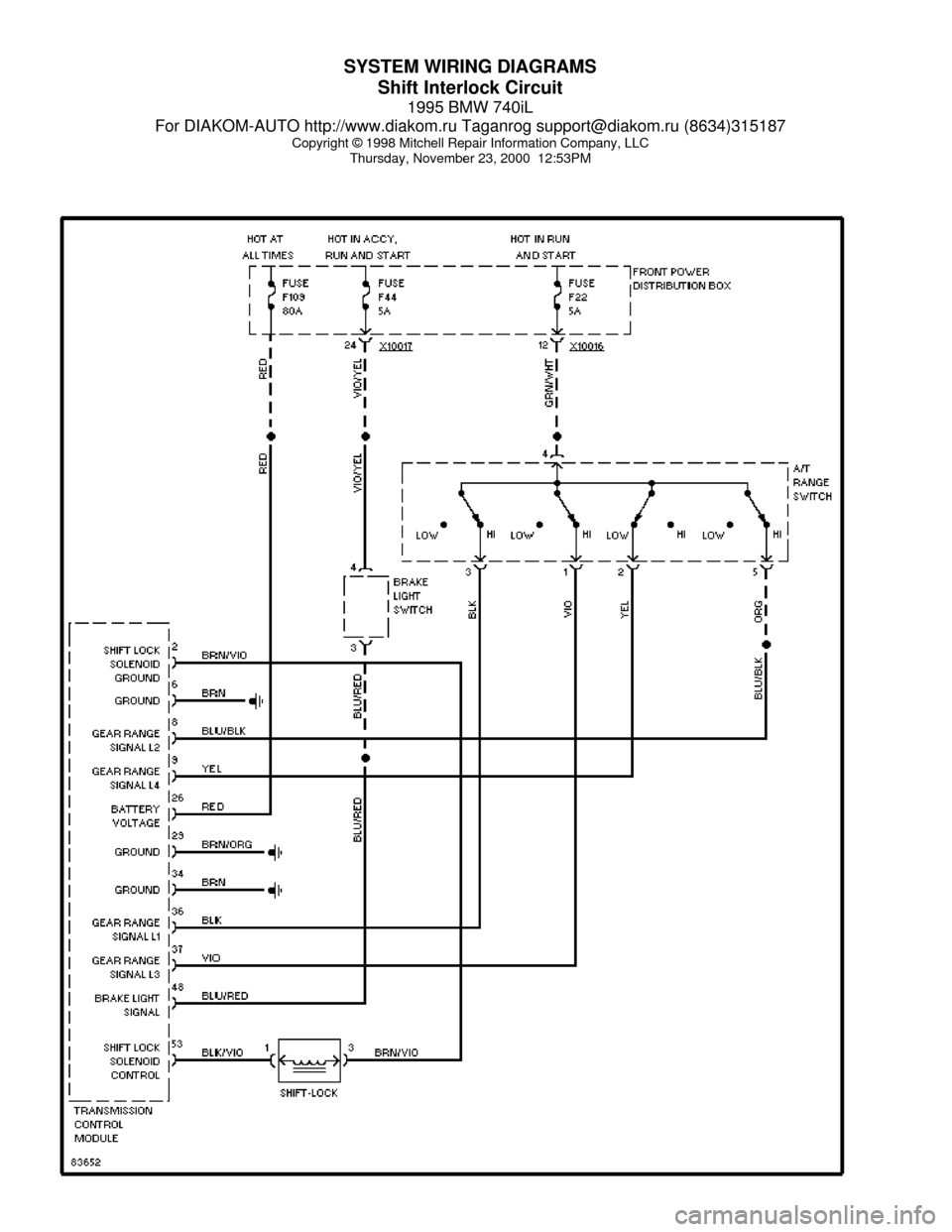

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Shift Interlock Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Th

Page 55 of 60

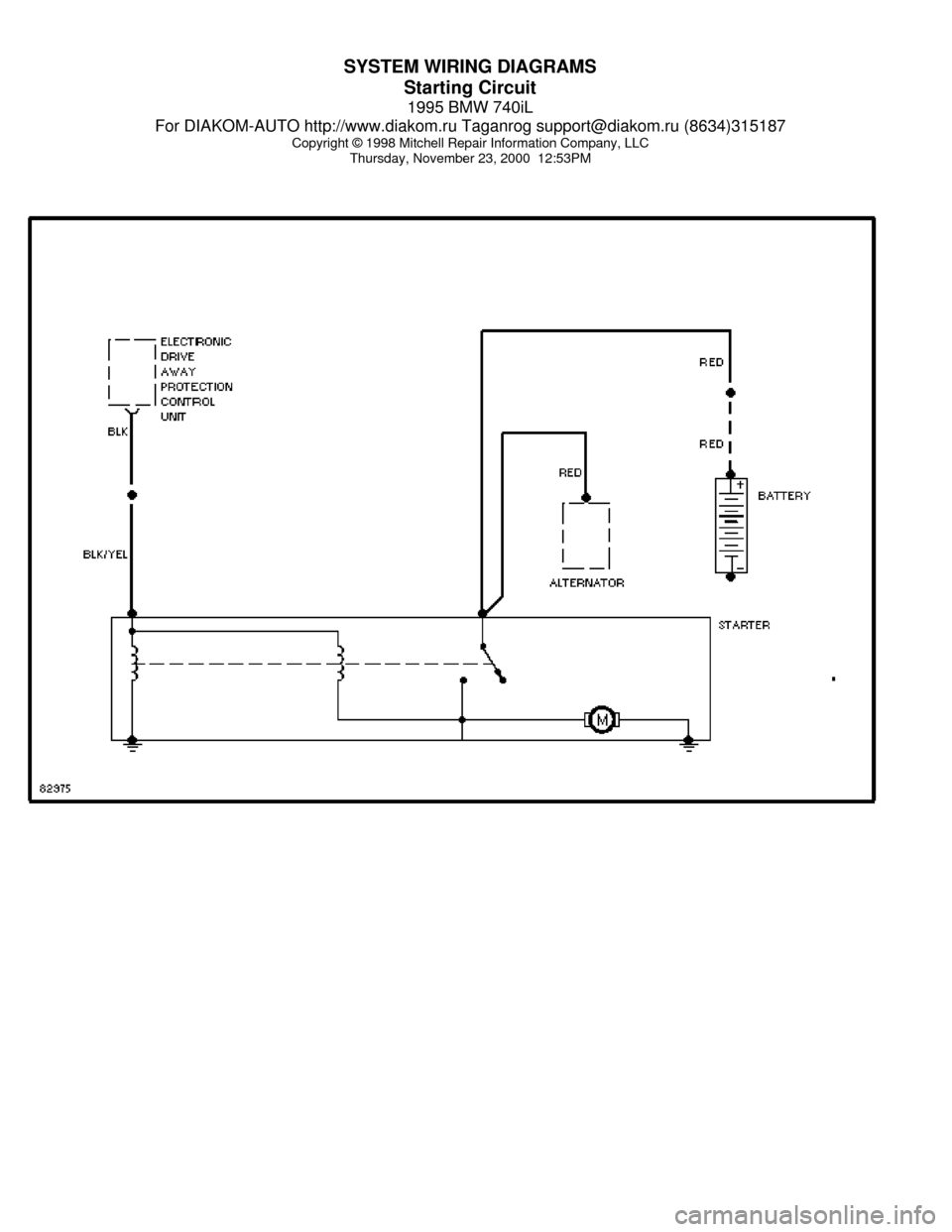

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Starting Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thursday,

Page 56 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Sunroof Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thursday,

Page 57 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Supplemental Restraint Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company,

Page 58 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Transmission Circuit (1 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company,

Page 59 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Transmission Circuit (2 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company,

Page 60 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Wiper/Washer Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thurs
