BMW 740il 1995 E38 System Wiring Diagrams

Manufacturer: BMW, Model Year: 1995, Model line: 740il, Model: BMW 740il 1995 E38
Pages: 60, PDF Size: 1.41 MB
BMW 740il 1995 E38 System Wiring Diagrams 740il 1995 E38 BMW BMW https://www.carmanualsonline.info/img/1/2820/w960_2820-0.png BMW 740il 1995 E38 System Wiring Diagrams
Search: (fog light bulb, tailgate, hood open, charging, infotainment, brakes)
Trending: air conditioning, headlight, Cluster, heater, seat, Instr, Sunroof
Jump to page (1-60):

Page 31 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Headrest Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thursday,

Page 32 of 60

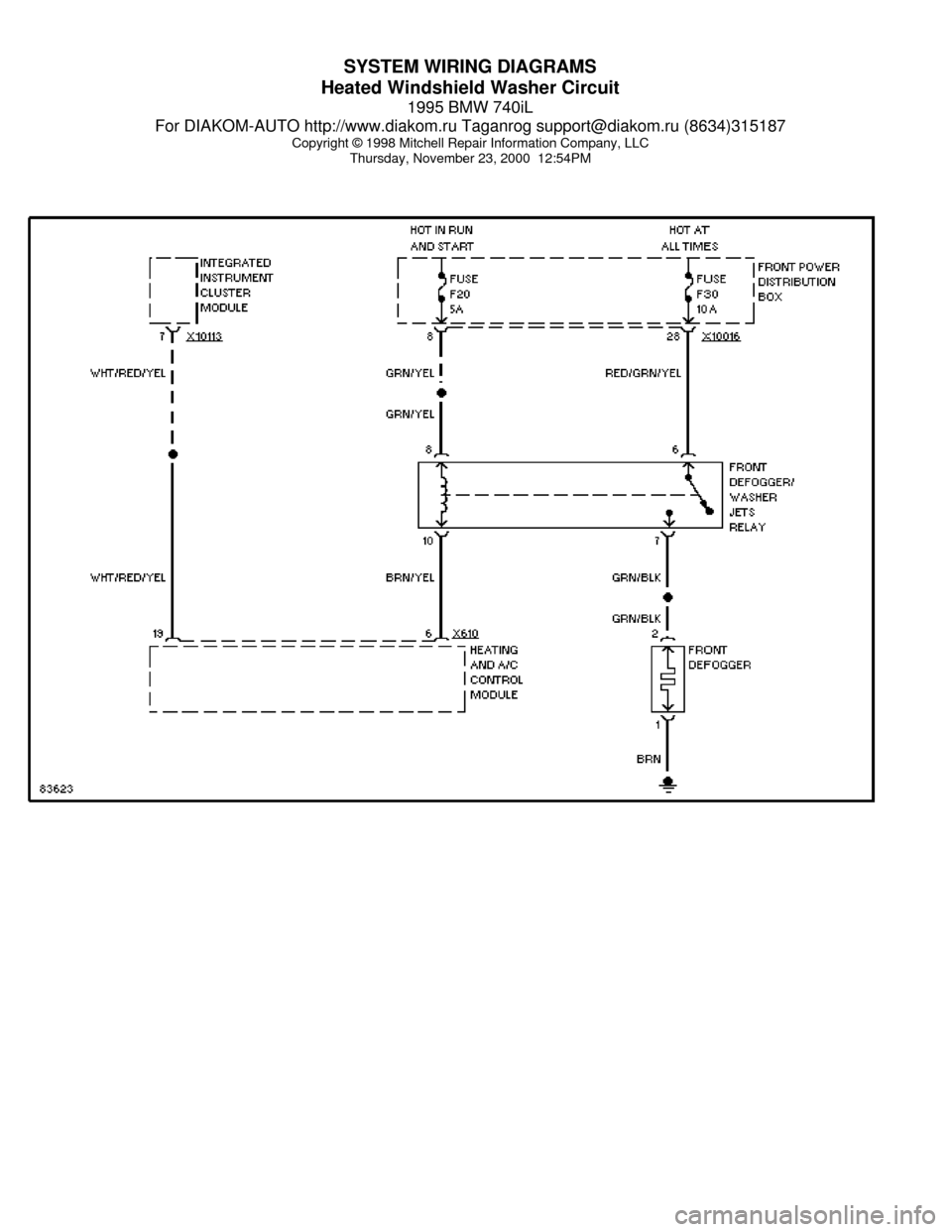

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Heated Windshield Washer Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Compan

Page 33 of 60

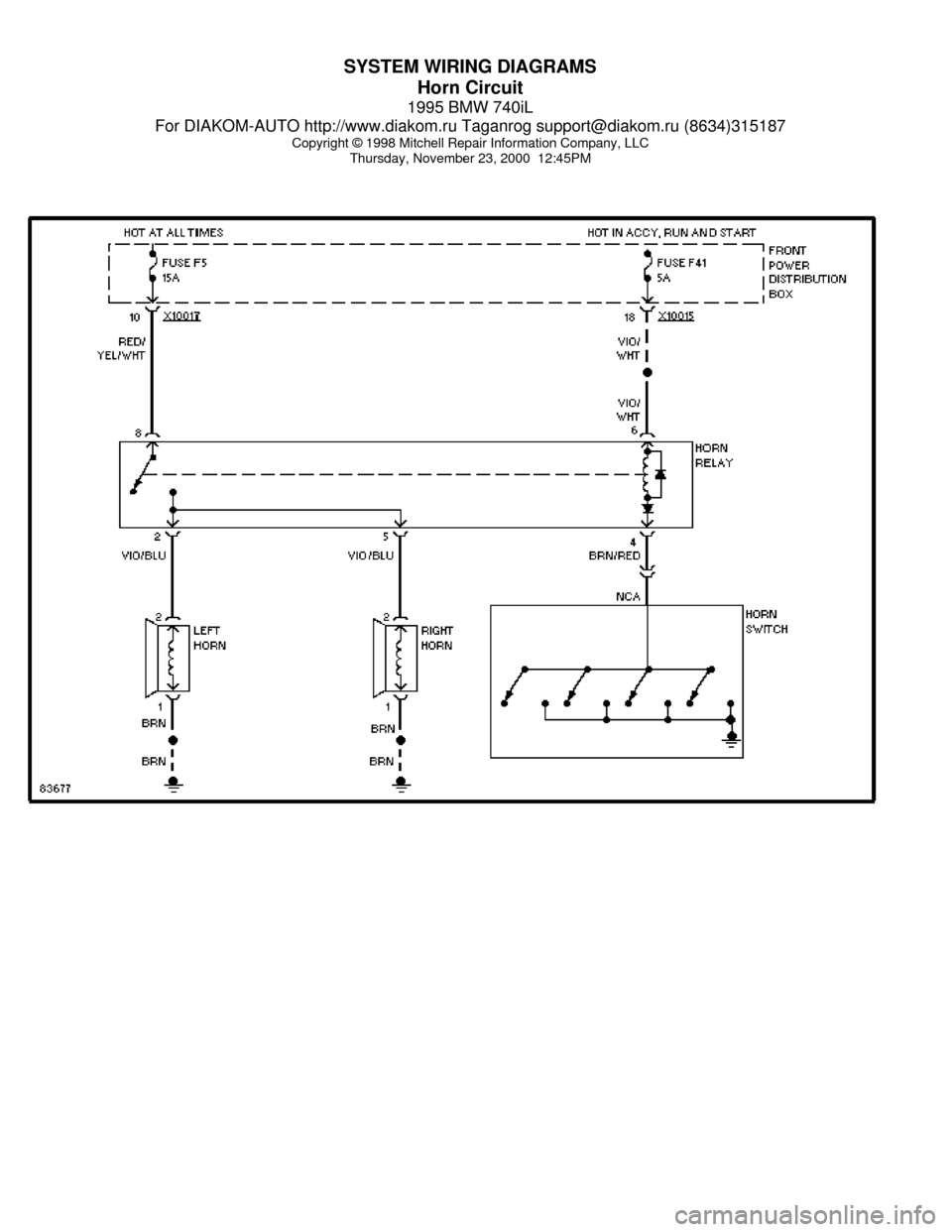

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Horn Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thursday, Nov

Page 34 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Instrument Cluster Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC

Page 35 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Interior Light Circuit (1 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company

Page 36 of 60

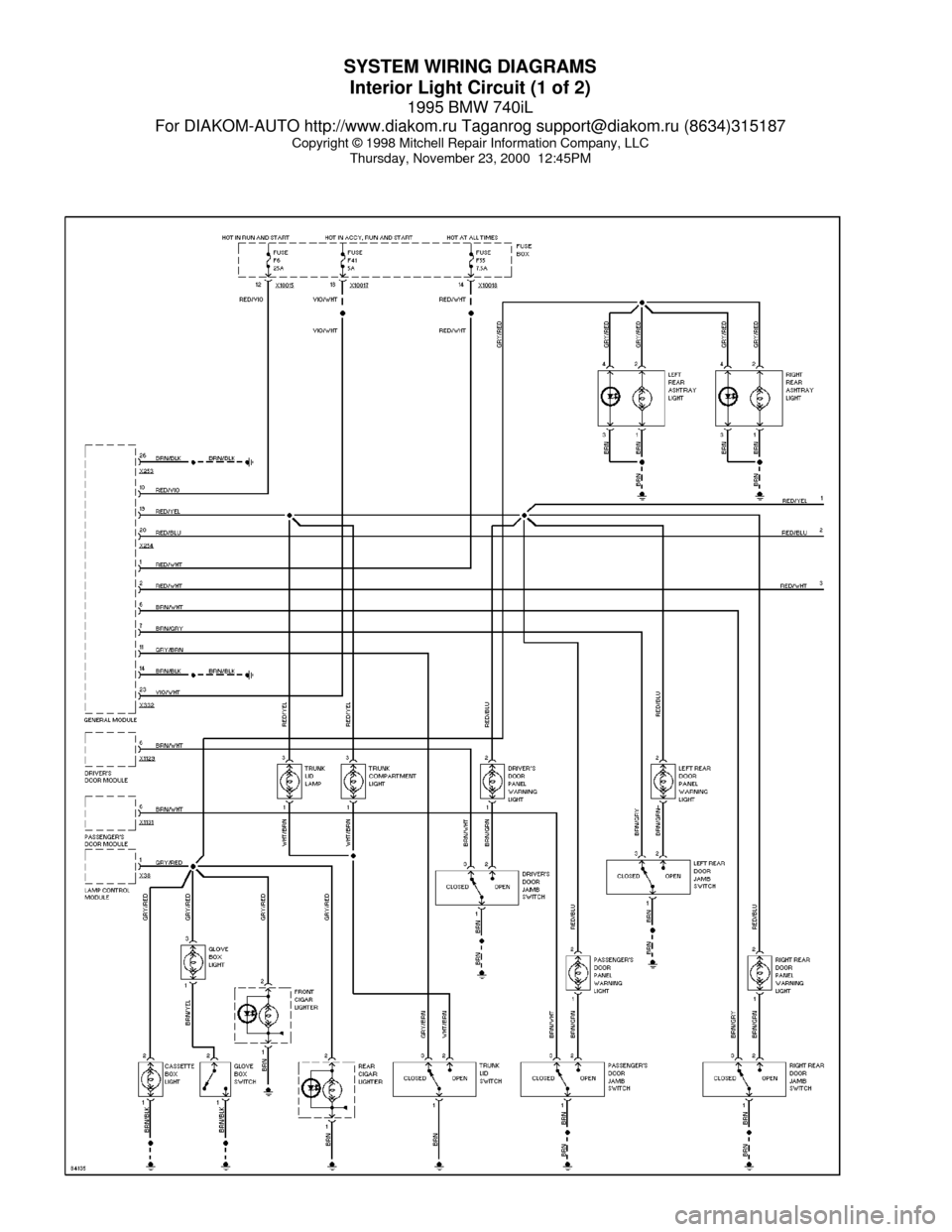

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Interior Light Circuit (2 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company

Page 37 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Jet Heater Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thursda

Page 38 of 60

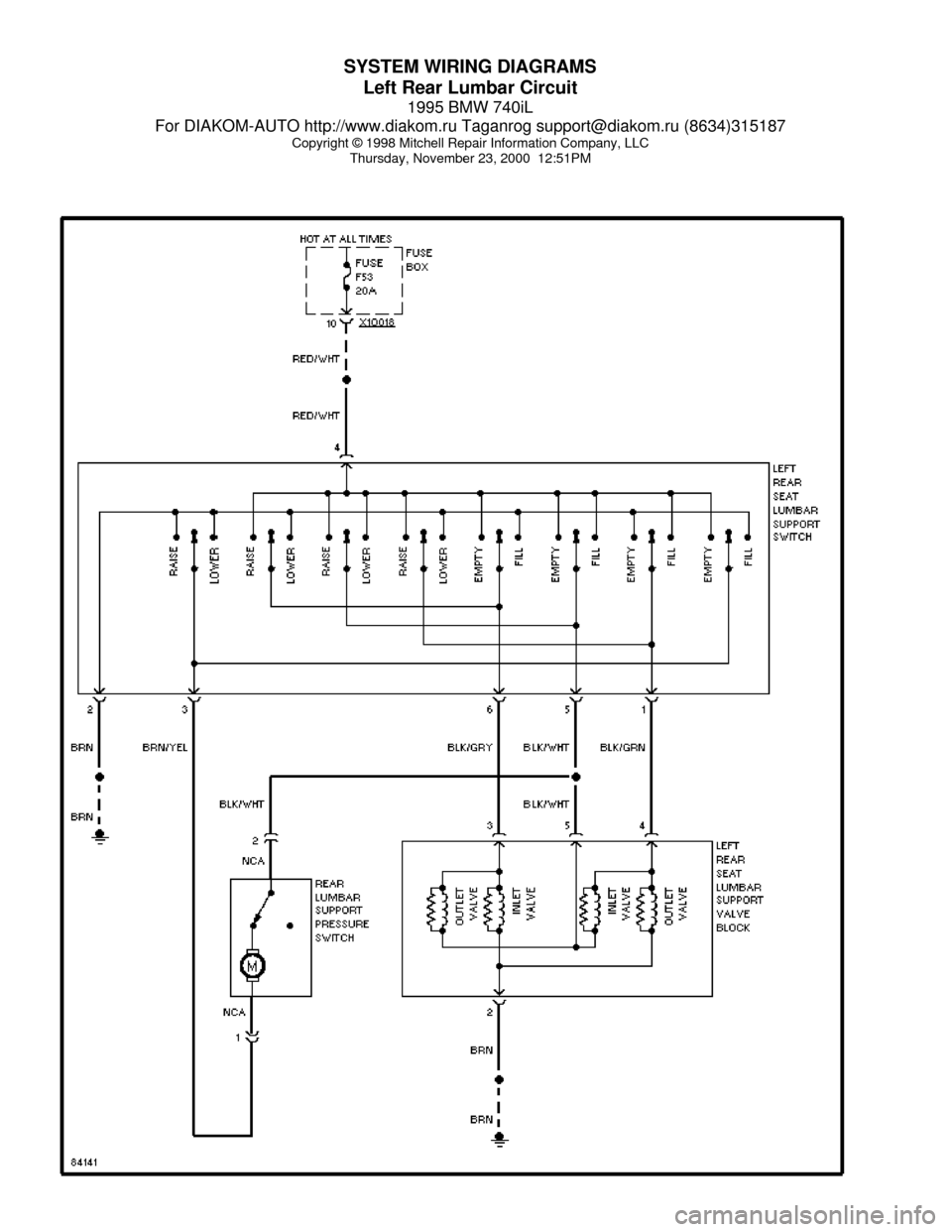

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Left Rear Lumbar Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC T

Page 39 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Memory Seats Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thurs

Page 40 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Passenger Seat Circuit (1 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company
