Page 191 of 211

190n
Xenon lamps
*
The xenon lamps light up the side and
front areas of the vehicle with signifi-
cantly more brightness and uniformity
than the traditional halogen lamp.
In a xenon lamp,
an electric arc re-
places the filament in order to generate
intense illumination. A gas mixture in a
quartz piston with metal vapor is ignited
by a high electric voltage. The arc that
is generated is then sustained by a
lower voltage. When the lamp is turned
on there is a brief period of high inten-
sity. Maximum brightness is attained in
approx. 15 seconds.
390de134
Xenon lamps
provide significantly-im-
proved visibility, especially during ad-
verse weather conditions and driving
situations (driving at night in heavy rain
or through road repair areas where
there are no lanemarkers, for instance).
Vehicles with xenon lamps are
equipped with automatic-dynamic
headlamp range control. As a result, the
highway is always optimally lighted, re-
gardless of load conditions, and drivers
in oncoming traffic are not blinded.
Xenon lamps make a significant contri-
bution to highway safety since other
highway users, bicyclists and motorcy-
clists in the right lane, and pedestrians
are more easily detected.
Page 192 of 211
191n
RepairsIndexOverview Controls Car care Technology Data
Water and dirt repellent windshield
*
With this windshield (not released at
this time), a specially-smoothed surface
causes water drops to bead up and run
off, thus carrying particles of dirt with
them.
Traditional windshields, even when they
are in new condition, have a microscop-
ically "rough" surface (1). The surface of
the water and dirt repelling windshield
is smoothed with a clear transparent
fluid.
Depending on the cleanliness of the
windshield, the water beads up and
runs off at approx. 40 mph (60 km/h) as
a result of the air flow (2). The coating
has no negative effect on vision through
the windshield because it is completely
transparent.390de337
Additional benefits:
>Clear vision in adverse weather con-
ditions, resulting in enhanced driving
safety
>Less glare when driving in the rain at
night.
Page 193 of 211
Page 194 of 211
Overview
Controls and features
Operation, care
and maintenance
Technical data
Index Advanced technology
193n
RepairsIndexOverview Controls Car care Technology Data
Owner service procedures
Engine specifications194
Dimensions195
Weights196
Capacities197
Electrical system198
Drive belts198
Page 195 of 211
194n
BMW 740i/L BMW 750iL
Displacement
Number of cylinderscu in (cm
3) 268.4 (4398)
8328.2 (5379)
12
Max. output
at engine speedhp
rpm282
5700326
5000
Maximum torque
at engine speedft
lb (Nm)
rpm310 (420)
3900361 (490)
3900
Compression ratioe10.0 10.0
Stroke/Bore in (mm) 3.26/3.62 (82.7/92.0) 3.11/3.35 (79/85)
Fuel-injection system Digital-electronic engine-management system
Engine specifications
Page 196 of 211
195n
RepairsIndexOverview Controls Car care Technology Data
380us663

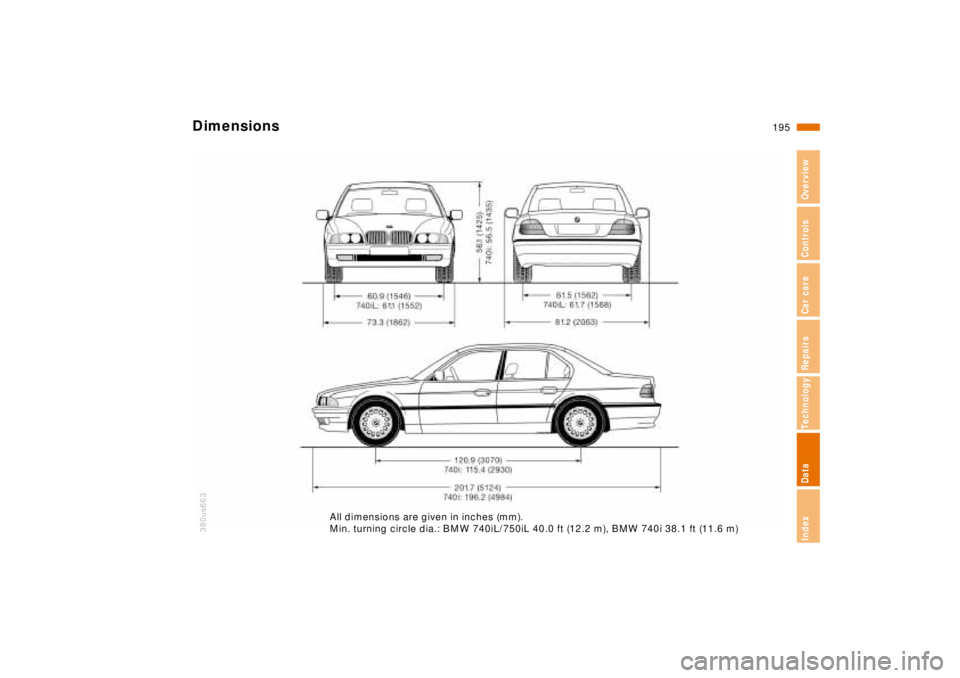

All dimensions are given in inches (mm).
Min. turning circle dia.: BMW 740iL/750iL 40.0 ft (12.2 m), BMW 740i 38.1 ft (11.6 m)
Dimensions
Page 197 of 211
196n
Weights
BMW 740i BMW 740iL BMW 750iL
Curb weight (with driver, ready for operation, full tank of fuel, options not included)
lbs. (kg) 4255 (1930) 4289 (1945) 4549 (2065)
Approved gross vehicle weight lbs. (kg) 5313 (2410) 5347 (2425) 5606 (2545)
Approved front axle weight lbs. (kg) 2590 (1175) 2602 (1180) 2690 (1220)
Approved rear axle weight lbs. (kg) 2910 (1320) 2933 (1330) 3040 (1380)
Maximum load capacity lbs. (kg) 1058 (480) 1058 (480) 1058 (480)
Approved maximum roof load lbs. (kg) 220 (100) 220 (100) 220 (100)
Permitted axle loads and permitted total vehicle weight may not be exceeded.
Luggage compartment capacity cu ft (liters) 17.7 (500) 17.7 (500) 17.7 (500)
Page 198 of 211
197n
RepairsIndexOverview Controls Car care Technology Data
Capacities
Notes
Fuel tank
Reserve gal. (liters)
gal. (liters)approx. 22.5 (approx. 85) – BMW 740i/L
approx. 25.1 (approx. 95) – BMW 750iL
approx. 2.6 (approx. 10.0) – BMW 740i/L
approx. 3.2 (approx. 12.0) – BMW 750iLFuel specification: Refer to
page 25
Windshield washer
incl. headlamp-washing systemquarts (liters)
quarts (liters)approx. 4.7 (approx. 4.5)
approx. 6.5 (approx. 6.0)For details: Refer to page 128
Cooling system including
heater circuitquarts (liters) 13.2 (12.5) – BMW 740i/L
13.7 (13.0) – BMW 750iLFor details: Refer to page 130
Engine oil and filter change quarts (liters) 7.9 (7.5) – BMW 740i/L
8.5 (8.0) – BMW 750iLApproved HD oil for gasoline
engines. Specifications: Refer
to page 144
Automatic transmission – – Lifetime fluid, no fluid change
required
Differential quarts (liters) 1.7 (1.6) Approved hypoid gear oil
(specifications are available
from any BMW center)
Page 199 of 211
198n
Electrical system Drive beltsBatteryBMW 740i/L: 12 V, 110 Ah
BMW 750iL: 12 V, 55 Ah
12 V, 110 AhSpark plugsNGK BKR 6 EQUP or
Bosch FGR 7 DQP
This spark ignition system meets all re-
quirements of the Canadian Interfer-
ence-Causing Equipment Regulations.BMW 740i/L
Water pump – AC generator -
power steering
V-belt 7 K x 1635
A/C compressor
V-belt 5 K x 1004
BMW 750iL
AC generator – power steering
V-belt 7 K x 1045
Coolant pump – air conditioner
compressor
V-belt 6 K x 1190
You can obtain Original BMW
Parts and Accessories, as well as
professional advice from your autho-
rized BMW center.<
