Page 26 of 251
▷For the input of upper/lower case letters
and numbers, it may be necessary to reel
via the controller to the corresponding In‐
put mode, refer to page 25, e.g. when the
spelling of upper and lower case letters is
identical.▷Enter characters as they are displayed on
the Control Display.▷Always enter associated characters, such
as accents or periods so that the letter can
be clearly recognized. Possible input de‐
pends on the set language. Where neces‐
sary, enter special characters via the con‐
troller.▷To delete a character, slide to the left on
the touchpad.▷To enter a blank space, slide to the right in
the center of the touchpad.▷To enter a hyphen, slide to the right in the
upper area of the touchpad.▷To enter an underscore, swipe to the right
in the lower area of the touchpad.
Using interactive map and Internet
Via touch-pad move the interactive map in the
navigation system and Internet sites.
FunctionControlsMove interactive map or
Internet sites.Swipe into re‐
spective direc‐
tion.Enlarge/shrink interactive
map or Internet sites.Drag in or out on
the touchpad with
fingers.Display the menu or open
a link in the Internet.Tap once.
Changing settings
You may change control display settings via
touchpad. Swipe left or right accordingly.
Example: setting the clock
Setting the clock
On the Control Display:1. Press button. The main menu is dis‐
played.2.Turn the controller until "Settings" is high‐
lighted, and then press the controller.3.If necessary, move the controller to the left
to display "Time/Date".4.Turn the controller until "Time/Date" is
highlighted, and then press the controller.5.Turn the controller until "Time:" is high‐
lighted, and then press the controller.Seite 22At a glanceiDrive22
Online Edition for Part no. 01 40 2 960 466 - II/15
Page 128 of 251

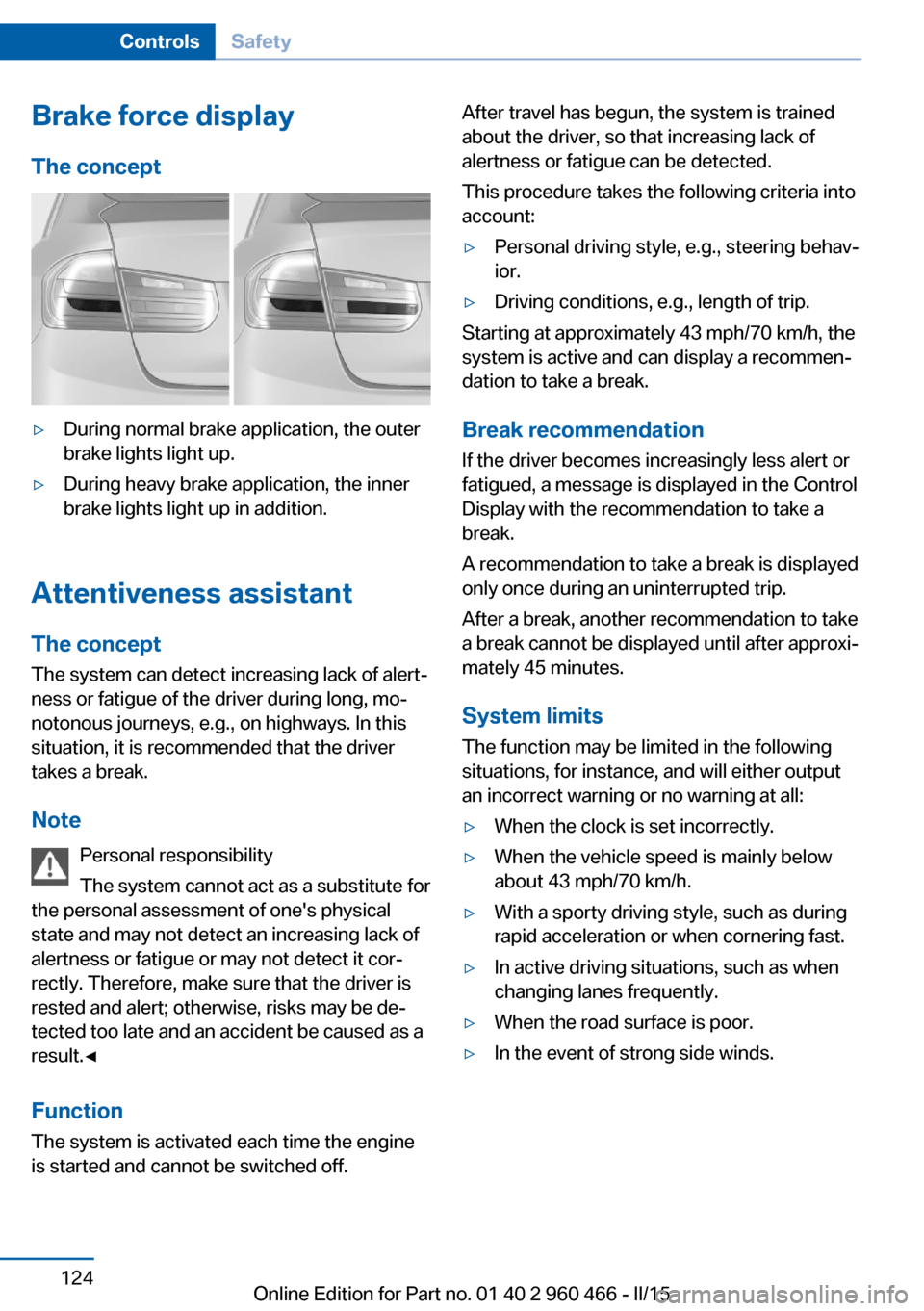

Brake force display
The concept▷During normal brake application, the outer
brake lights light up.▷During heavy brake application, the inner
brake lights light up in addition.
Attentiveness assistant
The concept The system can detect increasing lack of alert‐
ness or fatigue of the driver during long, mo‐
notonous journeys, e.g., on highways. In this
situation, it is recommended that the driver
takes a break.
Note Personal responsibility
The system cannot act as a substitute for
the personal assessment of one's physical
state and may not detect an increasing lack of
alertness or fatigue or may not detect it cor‐
rectly. Therefore, make sure that the driver is
rested and alert; otherwise, risks may be de‐
tected too late and an accident be caused as a
result.◀
Function
The system is activated each time the engine
is started and cannot be switched off.
After travel has begun, the system is trained
about the driver, so that increasing lack of
alertness or fatigue can be detected.
This procedure takes the following criteria into
account:▷Personal driving style, e.g., steering behav‐
ior.▷Driving conditions, e.g., length of trip.
Starting at approximately 43 mph/70 km/h, the
system is active and can display a recommen‐
dation to take a break.
Break recommendation
If the driver becomes increasingly less alert or
fatigued, a message is displayed in the Control
Display with the recommendation to take a
break.
A recommendation to take a break is displayed
only once during an uninterrupted trip.
After a break, another recommendation to take
a break cannot be displayed until after approxi‐
mately 45 minutes.
System limits
The function may be limited in the following
situations, for instance, and will either output
an incorrect warning or no warning at all:
▷When the clock is set incorrectly.▷When the vehicle speed is mainly below
about 43 mph/70 km/h.▷With a sporty driving style, such as during
rapid acceleration or when cornering fast.▷In active driving situations, such as when
changing lanes frequently.▷When the road surface is poor.▷In the event of strong side winds.Seite 124ControlsSafety124
Online Edition for Part no. 01 40 2 960 466 - II/15
Page 242 of 251
ConnectedDrive, see user'smanual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Connecting electrical devi‐ ces 161
Contact with water, hybrid system 34
Continued driving with a flat tire 108 , 111
Control Display 18
Control Display, settings 95
Controller 18, 19
Control systems, driving sta‐ bility 125
Convenient opening with the remote control 41
Coolant 208
Coolant level 208
Coolant temperature 88
Cooling function 152
Cooling, maximum 152
Cooling system 208
Cornering light 99
Corrosion on brake discs 175
Cosmetic mirror 161
Courtesy lamps during un‐ locking 41
Courtesy lamps with the vehi‐ cle locked 42
Cruise control 136
Cruise control, active with Stop & Go 130
Cruising range 89
Cupholders 167
Current fuel consumption 89
D
Damage, tires 196
Damping control, dy‐ namic 126
Data, technical 234
Date 89
Daytime running lights 99 Deactivating drive readi‐
ness 70
Defrosting, refer to Windows, defrosting 153
Dehumidifying, air 152
Deleting personal data 25
Deletion of personal data 25
Destination distance 93
Digital clock 88
Digital compass 159
Dimensions 234
Dimmable exterior mirrors 62
Dimmable interior rearview mirror 63
Direction indicator, refer to Turn signals 73
Display, electronic, instru‐ ment cluster 81
Display in windshield 96
Display lighting, refer to In‐ strument lighting 101
Displays, cleaning 231
Displays, hybrid system 82
Disposal, coolant 208
Disposal, vehicle battery 220
Distance control, refer to PDC 138
Distance to destination 93
Divided screen view, split screen 23
Door lock 43
Door lock, refer to Remote control 38
DRIVE, driving with combus‐ tion engine 72
Drive-off assistant 129
Drive-off assistant, refer to DSC 125
Driver assistance, refer to In‐ telligent Safety 112
Drive readiness in detail 69
Drive readiness states 68
Drive readuness, deacti‐ vate 70
Driving Assistant, refer to In‐ telligent Safety 112 Driving Dynamics Con‐
trol 127
Driving instructions, break- in 172
Driving instructions, hybrid system 172
Driving mode 127
Driving notes, general 174
Driving stability control sys‐ tems 125
Driving style analysis 183
Driving tips 174
Driving with combustion en‐ gine, DRIVE 72
DSC Dynamic Stability Con‐ trol 125
DTC Dynamic Traction Con‐ trol 126
Dynamic Damping Con‐ trol 126
Dynamic Stability Control DSC 125
Dynamic Traction Control DTC 126
E eBOOST, assistance for the combustion engine 72
ECO PRO 181
ECO PRO, bonus range 182
ECO PRO display 181
ECO PRO driving mode 181
ECO PRO driving style analy‐ sis 183
ECO PRO mode 181
ECO PRO Tip - driving in‐ struction 183
eDRIVE, electric driving 71
Electric drive readiness, Si‐ lent Start 69
Electric driving, eDRIVE 71
Electronic displays, instru‐ ment cluster 81
Electronic oil measure‐ ment 205 Seite 238ReferenceEverything from A to Z238
Online Edition for Part no. 01 40 2 960 466 - II/15
