MaintenanceVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
BMW maintenance system
The maintenance system indicates required
maintenance measures, and thereby provides
support in maintaining road safety and the op‐
erational reliability of the vehicle.
Condition Based Service
CBS
Sensors and special algorithms take into ac‐
count the driving conditions of your vehicle.
Based on this, Condition Based Service recog‐
nizes the maintenance requirements.
The system makes it possible to adapt the
amount of maintenance corresponding to your
user profile.
Details on the service requirements, refer to
page 98, can be displayed on the Control Dis‐
play.
Service data in the remote control Information on the required maintenance is
continuously stored in the remote control.
Your service center will read out this data and
suggest the right array of service procedures
for your vehicle.
Therefore, hand your service specialist the re‐
mote control with which the vehicle was driven
most recently.Storage periods
Storage periods during which the vehicle bat‐
tery was disconnected are not taken into ac‐
count.
If this occurs, have a service center update the
time-dependent maintenance procedures,
such as checking brake fluid and, if needed,
changing the engine oil and the microfilter/
activated-charcoal filter.
Service and Warranty
Information Booklet for US
models and Warranty and
Service Guide Booklet for
Canadian models
Please consult your Service and Warranty In‐
formation Booklet for US models and Warranty
and Service Guide Booklet for Canadian mod‐ els for additional information on service re‐
quirements.
Maintenance and repair should be performed
by your service center. Make sure to have reg‐
ular maintenance procedures recorded in the
vehicle's Service and Warranty Information
Booklet for US models, and in the Warranty
and Service Guide Booklet for Canadian mod‐
els. These entries are proof of regular mainte‐
nance.
Socket for OBD Onboard
Diagnosis
Note Socket for Onboard Diagnosis
The socket for onboard diagnostics may
only be used by the service center or a work‐
shop that operates in accordance with the
specifications of the vehicle manufacturer withSeite 219MaintenanceMobility219
Online Edition for Part no. 01 40 2 956 056 - X/14

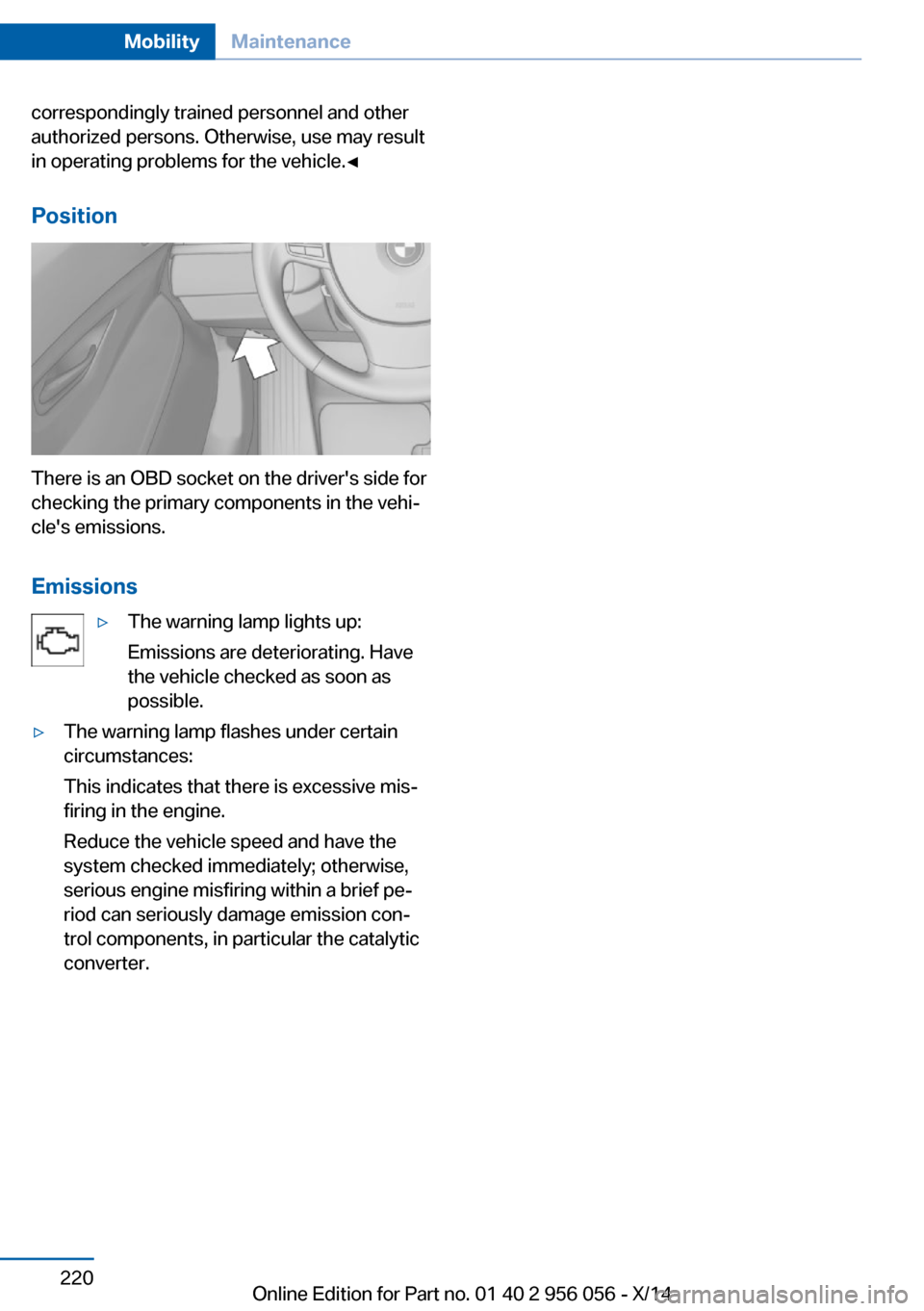

correspondingly trained personnel and other
authorized persons. Otherwise, use may result
in operating problems for the vehicle.◀
Position
There is an OBD socket on the driver's side for
checking the primary components in the vehi‐
cle's emissions.
Emissions
▷The warning lamp lights up:
Emissions are deteriorating. Have
the vehicle checked as soon as
possible.▷The warning lamp flashes under certain
circumstances:
This indicates that there is excessive mis‐
firing in the engine.
Reduce the vehicle speed and have the
system checked immediately; otherwise,
serious engine misfiring within a brief pe‐
riod can seriously damage emission con‐
trol components, in particular the catalytic
converter.Seite 220MobilityMaintenance220
Online Edition for Part no. 01 40 2 956 056 - X/14

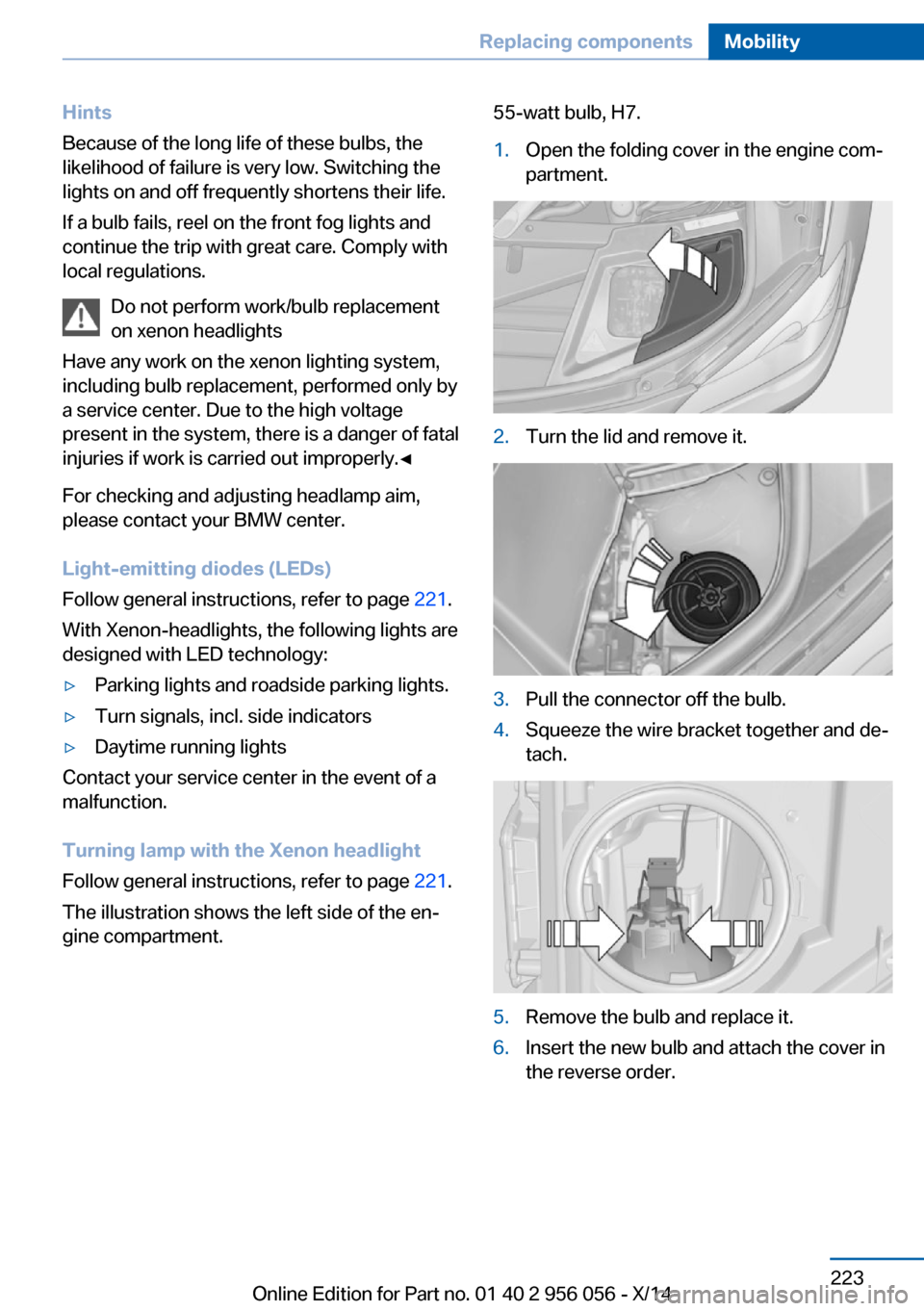

Hints
Because of the long life of these bulbs, the
likelihood of failure is very low. Switching the
lights on and off frequently shortens their life.
If a bulb fails, reel on the front fog lights and
continue the trip with great care. Comply with
local regulations.
Do not perform work/bulb replacement
on xenon headlights
Have any work on the xenon lighting system,
including bulb replacement, performed only by
a service center. Due to the high voltage
present in the system, there is a danger of fatal
injuries if work is carried out improperly.◀
For checking and adjusting headlamp aim,
please contact your BMW center.
Light-emitting diodes (LEDs)
Follow general instructions, refer to page 221.
With Xenon-headlights, the following lights are
designed with LED technology:▷Parking lights and roadside parking lights.▷Turn signals, incl. side indicators▷Daytime running lights
Contact your service center in the event of a
malfunction.
Turning lamp with the Xenon headlight
Follow general instructions, refer to page 221.
The illustration shows the left side of the en‐
gine compartment.
55-watt bulb, H7.1.Open the folding cover in the engine com‐
partment.2.Turn the lid and remove it.3.Pull the connector off the bulb.4.Squeeze the wire bracket together and de‐
tach.5.Remove the bulb and replace it.6.Insert the new bulb and attach the cover in
the reverse order.Seite 223Replacing componentsMobility223
Online Edition for Part no. 01 40 2 956 056 - X/14

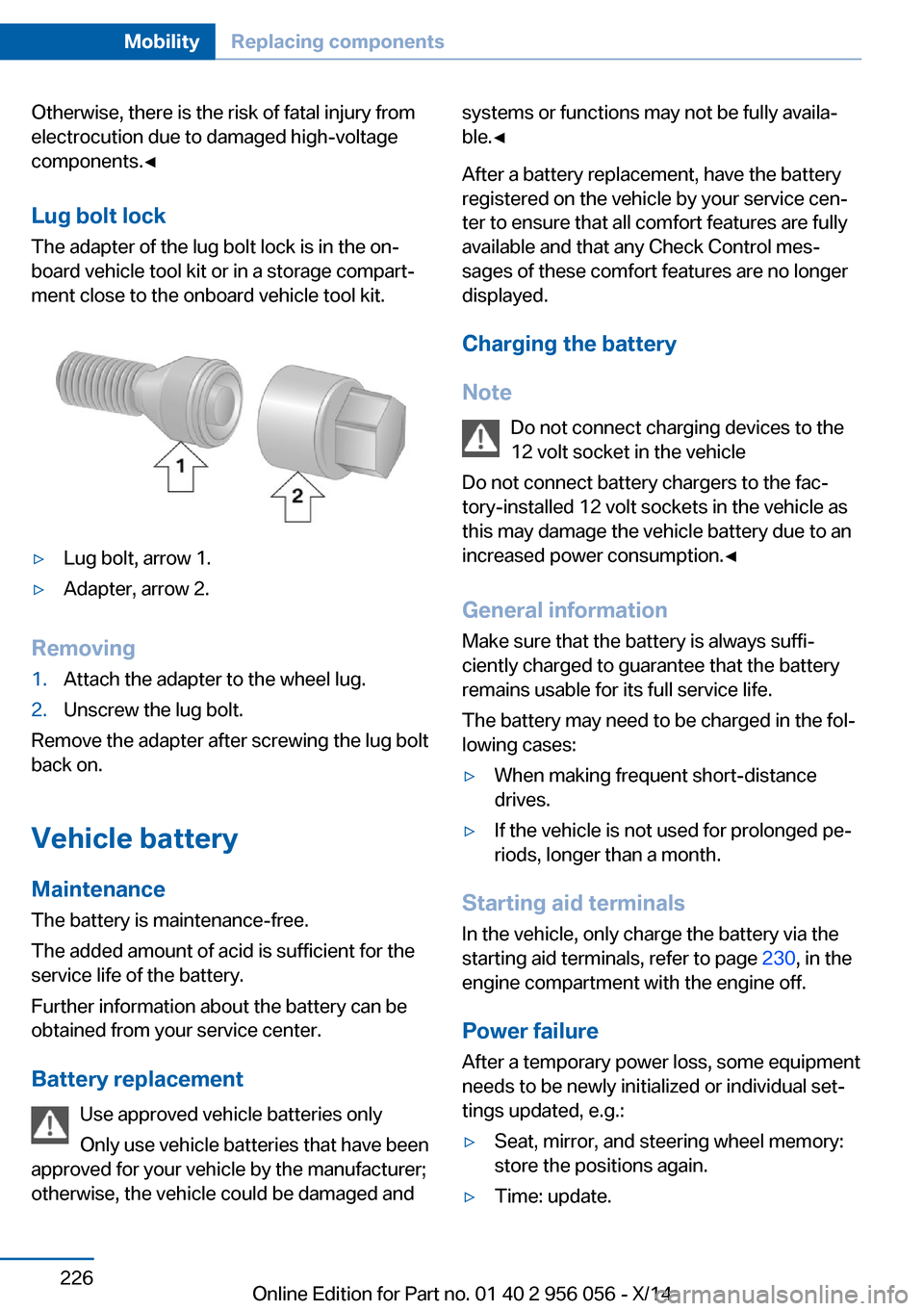

Otherwise, there is the risk of fatal injury from
electrocution due to damaged high-voltage
components.◀
Lug bolt lock
The adapter of the lug bolt lock is in the on‐
board vehicle tool kit or in a storage compart‐
ment close to the onboard vehicle tool kit.▷Lug bolt, arrow 1.▷Adapter, arrow 2.
Removing
1.Attach the adapter to the wheel lug.2.Unscrew the lug bolt.
Remove the adapter after screwing the lug bolt
back on.
Vehicle battery
Maintenance
The battery is maintenance-free.
The added amount of acid is sufficient for the
service life of the battery.
Further information about the battery can be
obtained from your service center.
Battery replacement Use approved vehicle batteries only
Only use vehicle batteries that have been
approved for your vehicle by the manufacturer;
otherwise, the vehicle could be damaged and
systems or functions may not be fully availa‐
ble.◀
After a battery replacement, have the battery
registered on the vehicle by your service cen‐
ter to ensure that all comfort features are fully
available and that any Check Control mes‐
sages of these comfort features are no longer
displayed.
Charging the battery
Note Do not connect charging devices to the
12 volt socket in the vehicle
Do not connect battery chargers to the fac‐
tory-installed 12 volt sockets in the vehicle as
this may damage the vehicle battery due to an
increased power consumption.◀
General information Make sure that the battery is always suffi‐
ciently charged to guarantee that the battery
remains usable for its full service life.
The battery may need to be charged in the fol‐
lowing cases:▷When making frequent short-distance
drives.▷If the vehicle is not used for prolonged pe‐
riods, longer than a month.
Starting aid terminals
In the vehicle, only charge the battery via the
starting aid terminals, refer to page 230, in the
engine compartment with the engine off.
Power failure After a temporary power loss, some equipment
needs to be newly initialized or individual set‐
tings updated, e.g.:
▷Seat, mirror, and steering wheel memory:
store the positions again.▷Time: update.Seite 226MobilityReplacing components226
Online Edition for Part no. 01 40 2 956 056 - X/14

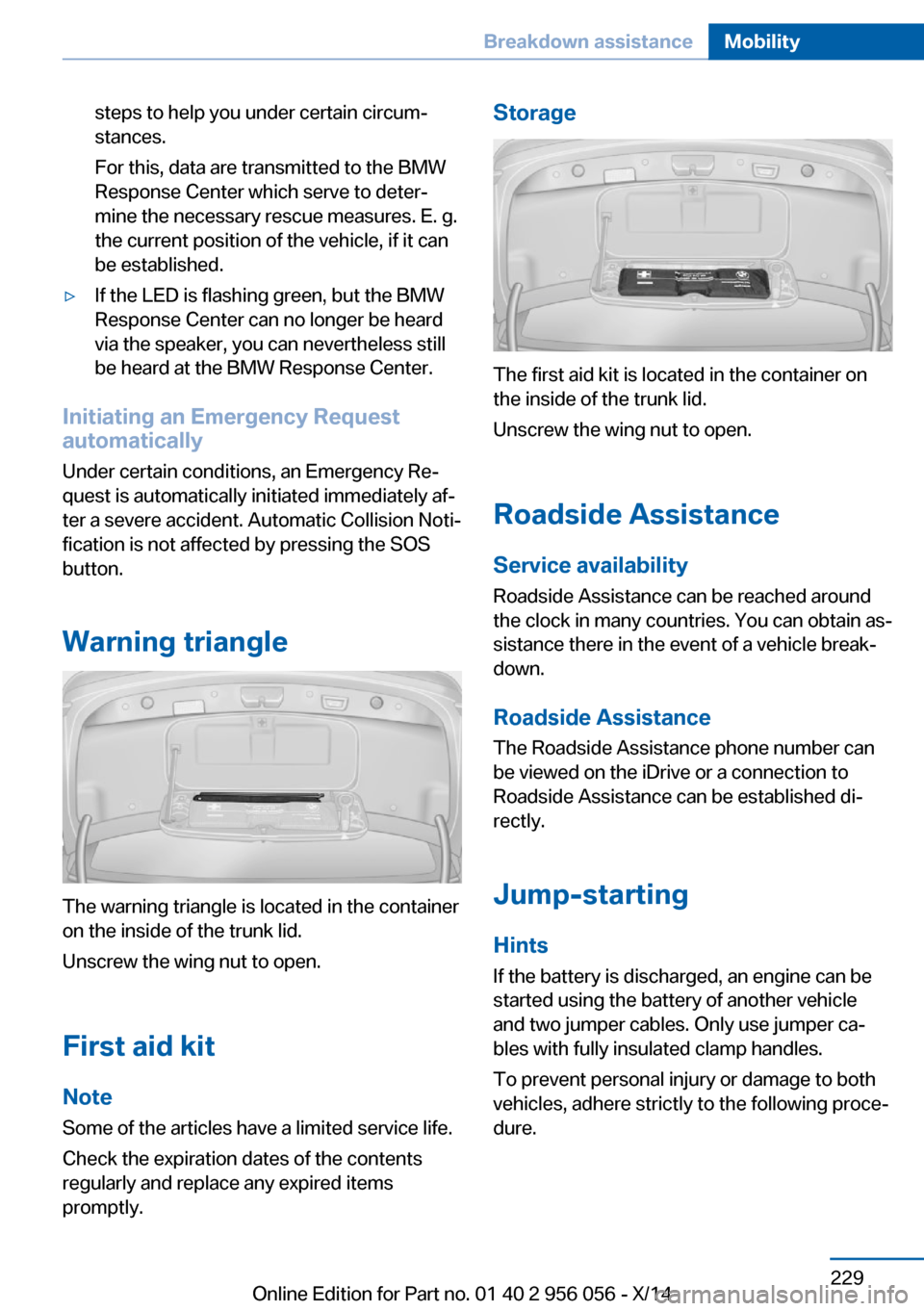

steps to help you under certain circum‐
stances.
For this, data are transmitted to the BMW
Response Center which serve to deter‐
mine the necessary rescue measures. E. g.
the current position of the vehicle, if it can
be established.▷If the LED is flashing green, but the BMW
Response Center can no longer be heard
via the speaker, you can nevertheless still
be heard at the BMW Response Center.
Initiating an Emergency Request
automatically
Under certain conditions, an Emergency Re‐
quest is automatically initiated immediately af‐
ter a severe accident. Automatic Collision Noti‐
fication is not affected by pressing the SOS
button.
Warning triangle
The warning triangle is located in the container
on the inside of the trunk lid.
Unscrew the wing nut to open.
First aid kit
Note Some of the articles have a limited service life.
Check the expiration dates of the contents
regularly and replace any expired items
promptly.
Storage
The first aid kit is located in the container on
the inside of the trunk lid.
Unscrew the wing nut to open.
Roadside Assistance
Service availability
Roadside Assistance can be reached around
the clock in many countries. You can obtain as‐
sistance there in the event of a vehicle break‐
down.
Roadside Assistance The Roadside Assistance phone number can
be viewed on the iDrive or a connection to
Roadside Assistance can be established di‐
rectly.
Jump-starting
Hints If the battery is discharged, an engine can be
started using the battery of another vehicle
and two jumper cables. Only use jumper ca‐
bles with fully insulated clamp handles.
To prevent personal injury or damage to both
vehicles, adhere strictly to the following proce‐
dure.
Seite 229Breakdown assistanceMobility229
Online Edition for Part no. 01 40 2 956 056 - X/14

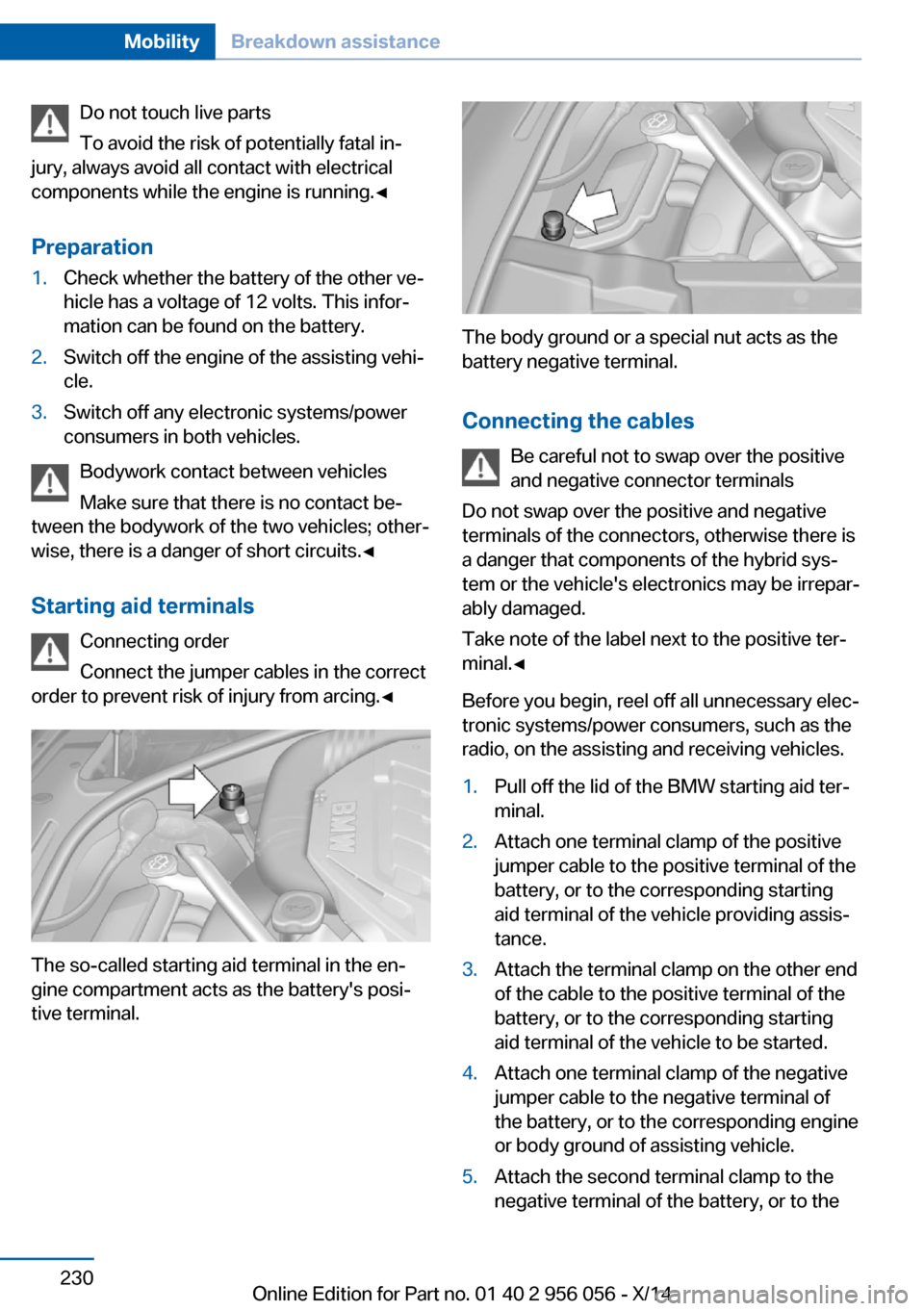

Do not touch live parts
To avoid the risk of potentially fatal in‐
jury, always avoid all contact with electrical
components while the engine is running.◀
Preparation1.Check whether the battery of the other ve‐
hicle has a voltage of 12 volts. This infor‐
mation can be found on the battery.2.Switch off the engine of the assisting vehi‐
cle.3.Switch off any electronic systems/power
consumers in both vehicles.
Bodywork contact between vehicles
Make sure that there is no contact be‐
tween the bodywork of the two vehicles; other‐
wise, there is a danger of short circuits.◀
Starting aid terminals Connecting order
Connect the jumper cables in the correct
order to prevent risk of injury from arcing.◀
The so-called starting aid terminal in the en‐
gine compartment acts as the battery's posi‐
tive terminal.
The body ground or a special nut acts as the
battery negative terminal.
Connecting the cables Be careful not to swap over the positive
and negative connector terminals
Do not swap over the positive and negative
terminals of the connectors, otherwise there is
a danger that components of the hybrid sys‐
tem or the vehicle's electronics may be irrepar‐
ably damaged.
Take note of the label next to the positive ter‐
minal.◀
Before you begin, reel off all unnecessary elec‐
tronic systems/power consumers, such as the
radio, on the assisting and receiving vehicles.
1.Pull off the lid of the BMW starting aid ter‐
minal.2.Attach one terminal clamp of the positive
jumper cable to the positive terminal of the
battery, or to the corresponding starting
aid terminal of the vehicle providing assis‐
tance.3.Attach the terminal clamp on the other end
of the cable to the positive terminal of the
battery, or to the corresponding starting
aid terminal of the vehicle to be started.4.Attach one terminal clamp of the negative
jumper cable to the negative terminal of
the battery, or to the corresponding engine
or body ground of assisting vehicle.5.Attach the second terminal clamp to the
negative terminal of the battery, or to theSeite 230MobilityBreakdown assistance230
Online Edition for Part no. 01 40 2 956 056 - X/14

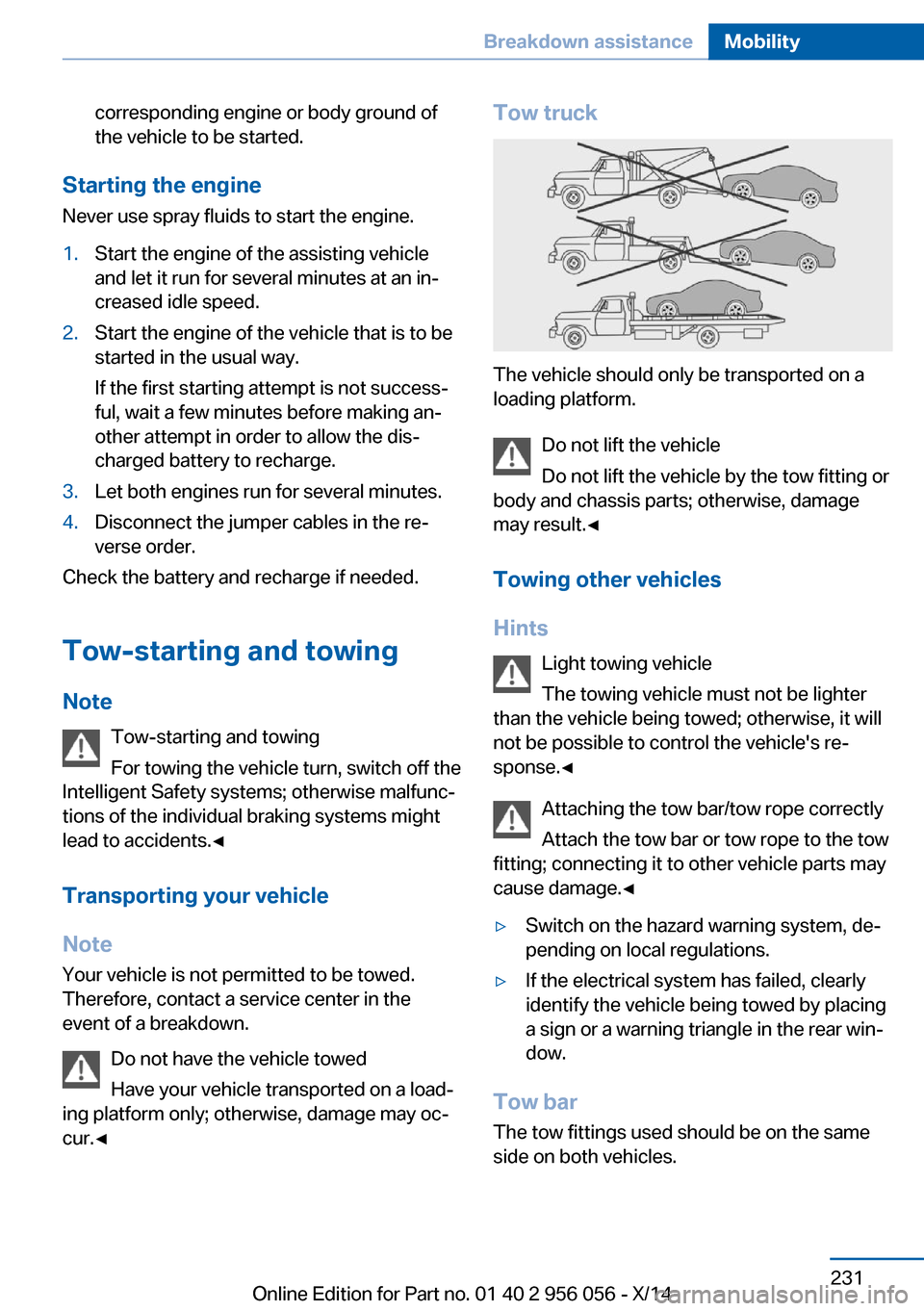

corresponding engine or body ground of
the vehicle to be started.
Starting the engine
Never use spray fluids to start the engine.
1.Start the engine of the assisting vehicle
and let it run for several minutes at an in‐
creased idle speed.2.Start the engine of the vehicle that is to be
started in the usual way.
If the first starting attempt is not success‐
ful, wait a few minutes before making an‐
other attempt in order to allow the dis‐
charged battery to recharge.3.Let both engines run for several minutes.4.Disconnect the jumper cables in the re‐
verse order.
Check the battery and recharge if needed.
Tow-starting and towing Note Tow-starting and towing
For towing the vehicle turn, switch off the
Intelligent Safety systems; otherwise malfunc‐
tions of the individual braking systems might
lead to accidents.◀
Transporting your vehicle
Note Your vehicle is not permitted to be towed.
Therefore, contact a service center in the
event of a breakdown.
Do not have the vehicle towed
Have your vehicle transported on a load‐
ing platform only; otherwise, damage may oc‐ cur.◀
Tow truck
The vehicle should only be transported on a
loading platform.
Do not lift the vehicle
Do not lift the vehicle by the tow fitting or
body and chassis parts; otherwise, damage
may result.◀
Towing other vehicles
Hints Light towing vehicle
The towing vehicle must not be lighter
than the vehicle being towed; otherwise, it will
not be possible to control the vehicle's re‐
sponse.◀
Attaching the tow bar/tow rope correctly
Attach the tow bar or tow rope to the tow
fitting; connecting it to other vehicle parts may
cause damage.◀
▷Switch on the hazard warning system, de‐
pending on local regulations.▷If the electrical system has failed, clearly
identify the vehicle being towed by placing
a sign or a warning triangle in the rear win‐
dow.
Tow bar
The tow fittings used should be on the same
side on both vehicles.
Seite 231Breakdown assistanceMobility231
Online Edition for Part no. 01 40 2 956 056 - X/14

Backrest, seats 56
Backrest, width 58
Band-aids, refer to First aid kit 229
Bar for tow-starting/ towing 231
Basic position, rear seats 61
Battery replacement, vehicle battery 226
Battery replacement, vehicle remote control 37
Battery, vehicle 226
Belts, safety belts 62
Beverage holder, cu‐ pholder 181
Blinds, sun protection 52
BMW ActiveHybrid 31
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 219
Bonus range, ECO PRO 196
Bottle holder, refer to Cu‐ pholder 181
Brake assistant 138
Brake discs, break-in 186
Brake force display 135
Brake lights, adaptive 135
Brake lights, brake force dis‐ play 135
Brake lights, bulb replace‐ ment 224
Brake pads, break-in 186
Braking, hints 189
Breakdown assis‐ tance 228, 229
Break-in 186
Brightness of Control Dis‐ play 105
Bulb replacement, rear 224
Bulb replacement, see Lamp and bulb replacement 221
Button, RES 147
Button, Start/Stop 75 Bypassing, refer to Jump-
starting 229
C
California Proposition 65 Warning 8
Calling up mirror adjust‐ ment 49
Calling up seat adjust‐ ment 49
Calling up steering wheel ad‐ justment 49
Camera, care 237
Camera, rearview cam‐ era 156
Camera, Side View 158
Camera, Top View 160
Can holder, refer to Cu‐ pholder 181
Car battery 226
Car care products 235
Care, displays 237
Care, vehicle 235
Cargo 191
Cargo area, storage compart‐ ments 181
Cargo, securing 192
Cargo straps, securing cargo 192
Car key, refer to Remote con‐ trol 36
Carpet, care 237
Car wash 234
Catalytic converter, refer to Hot exhaust system 188
CBS Condition Based Serv‐ ice 219
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center armrest 180
Center console 16
Central locking system 41 Central screen, refer to Con‐
trol Display 18
Changes, technical, refer to Safety 7
Changing parts 221
Changing wheels 225
Changing wheels/tires 209
CHARGE, energy recov‐ ery 79
Charge indicator, high-volt‐ age battery 91
Chassis number, see vehicle identification number 10
Check Control 93
Checking the engine oil level electronically 214
Checking the oil level elec‐ tronically 214
Children, seating position 71
Children, transporting safely 71
Child restraint fixing sys‐ tem 71
Child restraint fixing system LATCH 72
Child restraint fixing systems, mounting 71
Child safety locks 74
Child seat, mounting 71
Child seats 71
Chrome parts, care 236
Cigarette lighter 175
Cleaning displays 237
Climate control 165
Climate control laminated tinted safety glass 188
Climate control wind‐ shield 188
Clock 98
Closing/opening via door lock 41
Closing/opening with remote control 39
Closing the trunk lid with no- touch activation 47
Clothes hooks 181 Seite 243Everything from A to ZReference243
Online Edition for Part no. 01 40 2 956 056 - X/14

ECO PRO 195
ECO PRO, bonus range 196
ECO PRO display 195
ECO PRO driving mode 195
ECO PRO mode 195
ECO PRO Tip - driving in‐ struction 197
eDRIVE, electric driving 78
Electric drive readiness, Si‐ lent Start 76
Electric driving, eDRIVE 78
Electronic displays, instru‐ ment cluster 90
Electronic oil measure‐ ment 214
Electronic Stability Program ESP, refer to DSC 138
Emergency detection, remote control 37
Emergency release, fuel filler flap 200
Emergency release, parking brake 82
Emergency Request 228
Emergency service, refer to Roadside Assistance 229
Emergency start function, en‐ gine start 37
Emergency unlocking, trans‐ mission lock 89
Emergency unlocking, trunk lid 45
Energy recovery, CHARGE 79
Engine, automatic off 77
Engine compartment 212
Engine compartment, work‐ ing in 212
Engine coolant 217
Engine oil 214
Engine oil, adding 215
Engine oil additives 215
Engine oil change 216
Engine oil filler neck 215
Engine oil temperature 97 Engine oil types, alterna‐
tive 216
Engine oil types, ap‐ proved 216
Engine start during malfunc‐ tion 37
Engine start, jump-start‐ ing 229
Engine temperature 97
Entering/exiting vehicle, as‐ sistance, steering wheel 70
Entering a car wash 234
Equipment, interior 173
Error displays, see Check Control 93
ESP Electronic Stability Pro‐ gram, refer to DSC 138
Exchanging wheels/tires 209
Exhaust system 188
Exterior mirror, automatic dimming feature 68
Exterior mirrors 67
External start 229
External temperature dis‐ play 97
External temperature warn‐ ing 97
Eyes for securing cargo 192
F
Failure message, see Check Control 93
False alarm, refer to Uninten‐ tional alarm 51
Fan, refer to Air flow 166
Filler neck for engine oil 215
Fine wood, care 236
First aid kit 229
Fitting for towing, see tow fit‐ ting 232
Flat tire, changing wheels 225
Flat Tire Monitor FTM 115
Flat tire, Tire Pressure Moni‐ tor TPM 117 Flat tire, warning
lamp 116, 118
Flooding 189
Floor carpet, care 237
Floor mats, care 237
Fold-out position, wiper 86
Foot brake 189
Front airbags 112
Front-end collision warning with braking function 124
Front-end collision warning with City Braking func‐
tion 121
Front fog lights 110
Front fog lights, bulb replace‐ ment 224
Front passenger seat, adjust‐ ing 58
front-seat passenger airbags, automatic deactivation 114
Front-seat passenger airbags, indicator lamp 114
Front seats 56
Front turn signals, refer to Light-emitting diodes,
LEDs 223
FTM Flat Tire Monitor 115
Fuel 202
Fuel consumption, refer to Average fuel consump‐
tion 102
Fuel filler flap 200
Fuel gauge 97
Fuel lid 200
Fuel quality 202
Fuel recommendation 202
Fuel, tank capacity 241
Functions, hybrid system 31
Fuse 227
G
Garage door opener, refer to Universal Integrated Remote
Control 173
Gasoline 202 Seite 245Everything from A to ZReference245
Online Edition for Part no. 01 40 2 956 056 - X/14
