Controls
65Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Resetting the Trip computer
1."Vehicle Info"
2."Trip computer"3.Select
>"Reset" all values are reset
>"Automatically reset" all values are reset
approx. 4 hours after the engine is
switched off
Settings and information
Operating principle
1Button for:
>Selecting display
>Setting values
2Button for:
>Confirming selected display or set val-
ues
>Calling up computer information633When the lights are on: instrument lighting
brightness87
4Calling up Check Control70
5Setting the time68
6Setting the date69
7Viewing service requirement display66
8Switching Shift Lights
* on/off56
Exiting displays
The outside-temperature reading and the time
reappear when you press button2 or if you
make no entries within approx. 15 seconds. If
required, complete the current setting first.
Units of measure
Setting the units of measure
You can change the units for fuel consumption,
route/distance, temperature and pressure.
iDrive, for operating principle refer to page16.
ba8_E90M3_cic.book Seite 65 Dienstag, 19. August 2008 11:51 11

Controls
81Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
1.Reduce your speed and carefully stop the
car. Avoid sudden braking and steering
maneuvers.
2.If all four wheels are shown in yellow, iden-
tify the damaged wheel on the vehicle.
3.Repair the flat tire with the M Mobility Sys-
tem, refer to page206.
Have the tire replaced by a BMW center or a
workshop that is informed in the handling of
TPM and that works according to BMW repair
procedures with correspondingly trained per-
sonnel.
Malfunction
The small warning lamp flashes in
yellow and then lights up continu-
ously; the larger warning lamp comes
on in yellow. On the Control Display,
the wheels are shown in gray and a message
appears. No punctures can be detected.
This type of message is shown in the following
situations:
>If there is a malfunction
Have the system checked.
>If a wheel without TPM electronics has
been mounted
>If TPM is temporarily malfunctioning due to
other systems or devices using the same
radio frequency.
Message for unsuccessful system
reset
The warning lamp lights up yellow. A
message appears on the Control Dis-
play. The system is not reset after a
tire has been changed, for example.
Check the tire inflation pressure and reset the
system, refer to page80.
Declaration according to NHTSA/
FMVSS 138
Tire Pressure Monitoring Systems
Each tire should be checked monthly when cold
and inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. If your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire infla-
tion pressure label, you should determine the
proper tire inflation pressure for those tires. As
an added safety feature, your vehicle has been
equipped with a tire pressure monitoring sys-
tem, TPMS, that illuminates a low tire pressure
telltale when one or more of your tires are signif-
icantly under-inflated. Accordingly, when the
low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible,
and inflate them to the proper pressure. Driving
on a significantly underinflated tire causes the
tire to overheat and can lead to tire failure.
Underinflation also reduces fuel efficiency and
tire tread life, and may affect the vehicle’s han-
dling and stopping ability. Please note that the
TPMS is not a substitute for proper tire mainte-
nance, and it is the driver’s responsibility to
maintain correct tire pressure, even if underin-
flation has not reached the level at which the
TPMS low tire pressure telltale illuminates.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the sys-
tem detects a malfunction, the telltale will flash
for approximately one minute and then remain
continuously lit. This sequence will continue
upon subsequent vehicle startups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Servotronic
The concept
"Servotronic" varies the steering force required
to turn the wheels as a function of the speed at
which you are driving.
ba8_E90M3_cic.book Seite 81 Dienstag, 19. August 2008 11:51 11

Wheels and tires
190 work is not carried out properly, there is a dan-
ger of subsequent damage and related safety
hazards. Make sure that the new wheels are bal-
anced.<
Retreaded tires
BMW recommends that you do not use
retreaded tires, since driving safety may
be impaired. The causes for this include poten-
tially different tire casing structures and often
wide variations in tire age, which can result in a
limited service life.<
Correct wheels and tires
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions, which could
lead to body contact and thus to severe acci-
dents. When selecting tires, also take their load
capacity into account. If non-approved wheels
and tires are used, BMW cannot evaluate their
suitability, and therefore cannot guarantee their
driving safety.<
You can inquire about the right wheel/tire com-
bination at your BMW center.
The correct combination of wheels and tires is
also necessary to ensure reliable operation of
various vehicle systems such as ABS or DSC.
To maintain good handling and vehicle
response, use only tires of a single brand and
tread configuration. After a tire has been dam-
aged, mount the previous wheel and tire combi-
nation again as soon as possible.
Wheels with Tire Pressure Monitor
TPM electronics
When mounting new tires or changing over
from summer to winter tires, or vice versa, only
use wheels with TPM electronics; otherwise the
Tire Pressure Monitor may not be able to detect
a puncture, refer to page79. Your BMW center
will be glad to advise you.
Recommended tire brands
Certain makes of tire are recommended by
BMW for each tire size. They are marked with a
clearly visible BMW designation on the sidewall
of the tire.
When properly used, these tires meet the high-
est standards in terms of safety and handling
characteristics.
Special characteristics of winter tires
BMW recommends winter tires for winter roads
or at temperatures below +457/+76.
Although all-season M+S tires provide better
winter traction than summer tires, they gener-
ally fail to provide the same levels of cold-
weather performance as winter tires.
Pay attention to speed
Always comply with the speed limit for the
winter tires mounted on your car; failure
to do so could result in tire damage and acci-
dents.<
Storage
Store wheels and tires in a cool, dry place with
as little exposure to light as possible. Always
protect tires against all contact with oil, grease
and fuels. Do not exceed the maximum tire
inflation pressure indicated on the sidewall of
the tire.
Swapping wheels between axles
BMW advises against swapping wheels
between the front and rear axles, even if all tires
have the same size, as this could impair driving
characteristics. With standard-equipment tires
ba8_E90M3_cic.book Seite 190 Dienstag, 19. August 2008 11:51 11

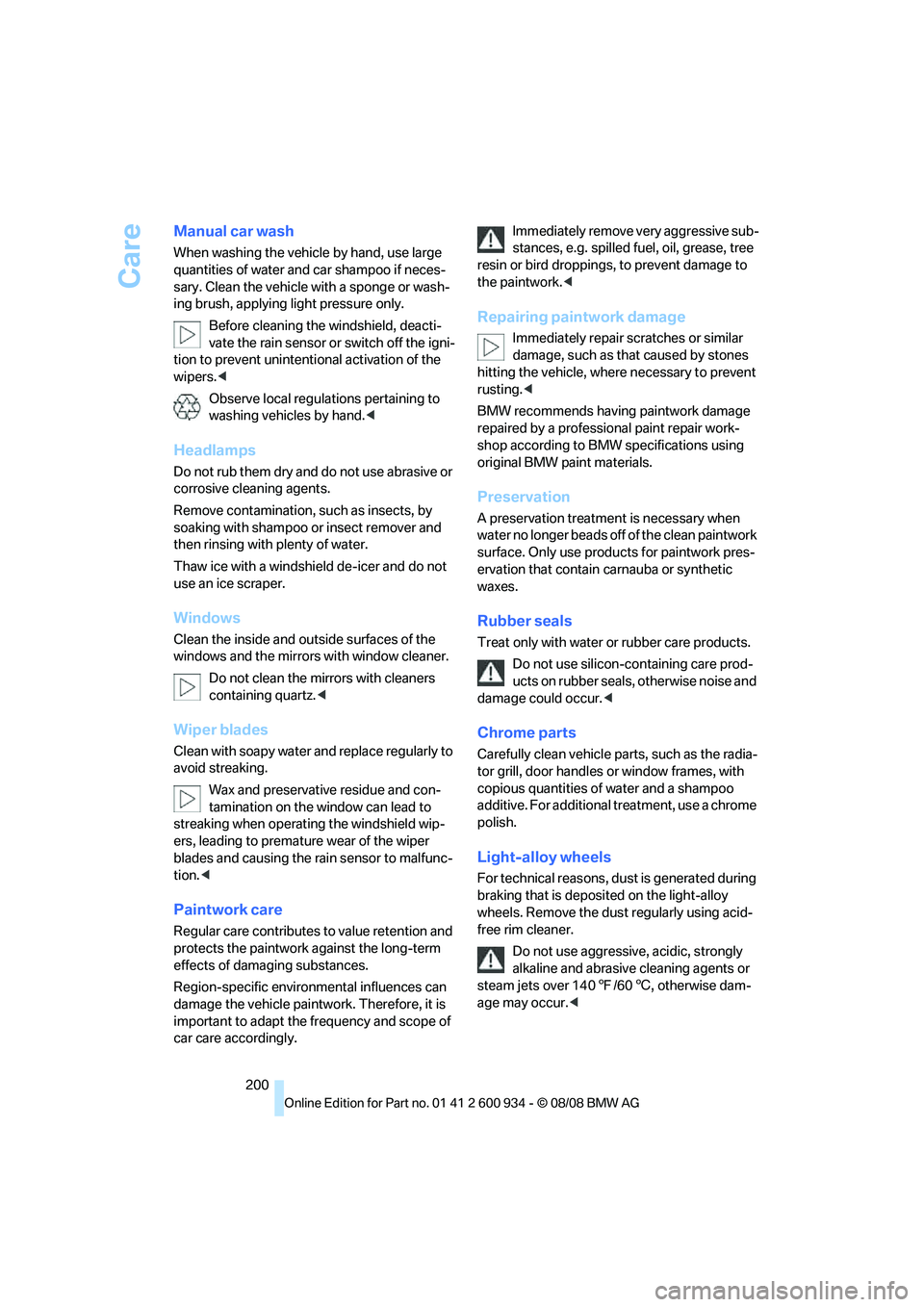

Care
200
Manual car wash
When washing the vehicle by hand, use large
quantities of water and car shampoo if neces-
sary. Clean the vehicle with a sponge or wash-
ing brush, applying light pressure only.
Before cleaning the windshield, deacti-
vate the rain sensor or switch off the igni-
tion to prevent unintentional activation of the
wipers.<
Observe local regulations pertaining to
washing vehicles by hand.<
Headlamps
Do not rub them dry and do not use abrasive or
corrosive cleaning agents.
Remove contamination, such as insects, by
soaking with shampoo or insect remover and
then rinsing with plenty of water.
Thaw ice with a windshield de-icer and do not
use an ice scraper.
Windows
Clean the inside and outside surfaces of the
windows and the mirrors with window cleaner.
Do not clean the mirrors with cleaners
containing quartz.<
Wiper blades
Clean with soapy water and replace regularly to
avoid streaking.
Wax and preservative residue and con-
tamination on the window can lead to
streaking when operating the windshield wip-
ers, leading to premature wear of the wiper
blades and causing the rain sensor to malfunc-
tion.<
Paintwork care
Regular care contributes to value retention and
protects the paintwork against the long-term
effects of damaging substances.
Region-specific environmental influences can
damage the vehicle paintwork. Therefore, it is
important to adapt the frequency and scope of
car care accordingly.Immediately remove very aggressive sub-
stances, e.g. spilled fuel, oil, grease, tree
resin or bird droppings, to prevent damage to
the paintwork.<
Repairing paintwork damage
Immediately repair scratches or similar
damage, such as that caused by stones
hitting the vehicle, where necessary to prevent
rusting.<
BMW recommends having paintwork damage
repaired by a professional paint repair work-
shop according to BMW specifications using
original BMW paint materials.
Preservation
A preservation treatment is necessary when
water no longer beads off of the clean paintwork
surface. Only use products for paintwork pres-
ervation that contain carnauba or synthetic
waxes.
Rubber seals
Treat only with water or rubber care products.
Do not use silicon-containing care prod-
ucts on rubber seals, otherwise noise and
damage could occur.<
Chrome parts
Carefully clean vehicle parts, such as the radia-
tor grill, door handles or window frames, with
copious quantities of water and a shampoo
additive. For additional treatment, use a chrome
polish.
Light-alloy wheels
For technical reasons, dust is generated during
braking that is deposited on the light-alloy
wheels. Remove the dust regularly using acid-
free rim cleaner.
Do not use aggressive, acidic, strongly
alkaline and abrasive cleaning agents or
steam jets over 1407/606, otherwise dam-
age may occur.<
ba8_E90M3_cic.book Seite 200 Dienstag, 19. August 2008 11:51 11

Everything from A - Z
228
Everything from A - Z
Index
"..." Identifies Control Display
texts used to select
individual functions and
refers you to the page where
these texts can be found.
A
ABS Antilock Brake
System76
Acceleration assistant, refer to
Launch Control57
Accident, refer to Sending an
Emergency Request210
Activated-charcoal filter for
automatic climate control92
Adaptive brake light
– brake force display82
Adaptive Head Light86
Additives
– coolant196
Address, entering117,123
Address for navigation
– entering117,123
Adjusting temperature inside
the car, refer to Automatic
climate control90
Adjusting the thigh support38
Adjusting the tone during
audio operation, refer to
Tone control136
Airbags82
– indicator/warning lamp84
– sitting safely37
Air conditioning mode
– automatic climate control90
– ventilation92
Air distribution
– automatic90
Air flow rate91
Airing, refer to Ventilation92
Air pressure, refer to Tire
inflation pressure186Air recirculation, refer to
Recirculated-air mode91
Air supply
– automatic climate control90
– ventilation92
Air vents89
AKI, refer to Fuel
specifications184
Alarm system31
– avoiding unintentional
alarms32
– interior motion sensor32
– switching off an alarm32
– tilt alarm sensor32
Album information for
music153
Albums of music
collection153
All-season tires, refer to
Winter tires190
AM, waveband139
Ambient air, refer to
Recirculated-air mode91
Antenna for mobile phone162
Antifreeze
– coolant196
– washer fluid60
Antilock Brake System
ABS
76
Anti-theft alarm system, refer
to Alarm system31
Anti-theft system27
Approved axle loads, refer to
Weights220
Approved gross vehicle
weight, refer to Weights220
Armrest, refer to Center
armrest98
Arrival time, refer to
Computer64
Ashtray
– front99
– rear100Assistance systems, refer to
Driving stability control
systems76
AUC Automatic recirculated-
air control91
Audio136
– controls136
– switching on/off136
– tone control136
– volume136
Audio device, external98
Automatic
– air distribution90
– air flow rate90
– cruise control60
– headlamp control85
Automatic car washes199
Automatic climate control89
– automatic air distribution90
Automatic curb monitor43
Automatic recirculated-air
control AUC91
Automatic Service
Request179
Automatic transmission with
Steptronic
– towing212
– tow-starting212
AUTO program for automatic
climate control90
AUX-IN port155
Average fuel consumption64
– setting the units65
Avoid highways in
navigation127
Avoiding unintentional
alarms32
Axle loads, refer to
Weights220
ba8_E90M3_cic.book Seite 228 Dienstag, 19. August 2008 11:51 11

Everything from A - Z
232 Driving lamps, refer to Parking
lamps/low beams85
Driving notes106
Driving off on hills, refer to
Drive-off assistant78
Driving stability control
systems76
Driving through water107
Driving tips, refer to Driving
notes106
Dry air, refer to Cooling
function91
DSC Dynamic Stability
Control76
DVD
– country codes146
– settings147
– video playback146
DVD menu147
DVD video146
Dynamic Stability Control
DSC
– indicator/warning lamp77
– M Dynamic Mode MDM76
E
EDC, refer to Electronic
Damper Control77
Eject button, refer to Buttons
on the CD player136
Electric
– seat adjustment38
Electrical malfunction
– door lock29
– driver's door29
– fuel filler door184
– glass roof36
– M dual clutch transmission
with Drivelogic54
Electric seat38
Electric seat adjustment38
Electric steering wheel lock
– with convenient access33
Electronic brake-force
distribution76
Electronic Damper Control
EDC77
Electronic oil level check193Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC76
Emergency operation
– fuel filler door, manual
release184
Emergency operation, refer to
Closing manually
– glass roof36
Emergency operation, refer to
Manual operation
– door lock29
Emergency release
– luggage compartment lid
from inside31
Emergency Request210
Emergency services, refer to
Roadside Assistance210
Engine
– breaking in106
– data218
– overheated, refer to Coolant
temperature63
– speed218
– starting50
– starting, convenient
access32
– switching off50
Engine compartment193
Engine coolant, refer to
Coolant196
Engine oil
– adding195
– BMW Maintenance
System197
– checking level193
– intervals between changes,
refer to Service
requirements66
– possible displays194
Engine output, refer to Engine
data218
Engine speed, refer to Engine
data
218
Engine starting, refer to
Starting the engine50
Entry lamps, refer to Interior
lamps87
Entry map for destination122Equalizer, tone setting137
Error messages, refer to
Check Control70
Event data recorders198
Exhaust system, refer to Hot
exhaust system106
Exterior mirrors42
– adjusting42
– automatic dimming
feature43
– automatic heating43
– folding in and out42
External audio device98
Eyes
– for tow-starting and towing
away212
– for tying down loads109
F
Failure messages, refer to
Check Control70
Failure of an electrical
consumer209
False alarm
– avoiding unintentional
alarm32
– switching off an alarm32
Fastening safety belts, refer to
Safety belts41
Fastest route for
navigation127
Fast forward
– CD changer146
– CD player146
Filter
– refer to Microfilter/activated-
charcoal filter for automatic
climate control92
First aid pouch211
Fixture for remote control,
refer to Ignition lock49
Flash when locking/
unlocking28
Flat tire
– Tire Pressure Monitor
TPM79
Flat tire, repairing206
ba8_E90M3_cic.book Seite 232 Dienstag, 19. August 2008 11:51 11

Reference 233
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Flat Tire Monitor FTM78
– indicating a flat tire79
– indicator/warning lamp79
– initializing the system78
– malfunction79
– snow chains78,191
– system limits78
Flat tires, refer to Tire
condition189
Fluid reservoir, refer to
Washer fluid reservoir60
FM, waveband139
Folding up the floor panel101
Footbrake, refer to Braking
safely107
Footwell lamps, refer to
Interior lamps87
Forward position, engaging,
refer to Selector lever
positions52
For your own safety5
Free memory capacity, music
collection154
Front airbags82
FTM, refer to Flat Tire
Monitor78
Fuel184
– average consumption64
– gauge63
– high-quality brands184
– quality184
– specifications184
– tank contents, refer to
Capacities220
Fuel clock, refer to Fuel
gauge63
Fuel display, refer to Fuel
gauge63
Fuel filler door184
– releasing in the event of
electrical malfunction184
Fuses209
G
Garage door opener, refer to
Integrated universal remote
control94Gasoline
– refer to Average
consumption64
Gasoline, refer to Required
fuel184
Gasoline display, refer to Fuel
gauge63
Gasoline engine, checking
engine oil level193
Gear
– neutral53
Gear display, refer to Displays
in the instrument cluster54
Gearshift lever
– manual transmission51
Gearshifts
– manual transmission51
General driving notes106
Glass roof, electric35
– closing after electrical
malfunction36
– convenient operation28,29
– initializing36
– opening, closing35
– operation with convenient
access33
– pinch protection system36
– power failure36
– raising35
– remote control28
Glove compartment97
GPS navigation, refer to
Navigation system116
Grills89
Gross vehicle weight, refer to
Weights220
H
Handbrake, refer to Parking
brake51
Hands-free system14
Hazard warning flashers14
HD radio, refer to High
Definition Radio140
Head airbags82
Headlamp control,
automatic85Headlamp flasher58
– indicator lamp11,13
Head restraints39
– rear, removing39
– sitting safely37
Heated
– mirrors43
– rear window92
– seats40
Heating
– mirrors43
– rear window92
– residual heat91
– seats40
Heating and ventilation, refer
to Climate89
Heating while at a standstill,
refer to Using residual
heat91
Heavy loads, refer to Stowing
cargo109
Height, refer to
Dimensions219
Height adjustment
– seats38
– steering wheel43
High beams87
– headlamp flasher87
– indicator lamp13
High Definition Radio140
High-pressure
washer199,200
High water, refer to Driving
through water107
Highways, refer to Route
criteria127
Hills107
Holders for cups99
Homepage BMW4
Hood192
Hooks for shopping bags101
Horn10,11
Hotel function31
Hot exhaust system106
Hydraulic brake assist, refer to
Brake assist76
Hydroplaning107
ba8_E90M3_cic.book Seite 233 Dienstag, 19. August 2008 11:51 11

Reference 235
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Lock buttons, doors, refer to
Locking30
Locking
– adjusting confirmation
signal28
– from inside30
– from outside28
– without remote control, refer
to Convenient access32
Locking and unlocking doors
– confirmation signals28
– from inside29
– from outside27
Low-beam headlamps85
– automatic85
Lower back support, refer to
Lumbar support38
Luggage compartment lid30
– convenient access33
– emergency release31
– locking or unlocking
separately31
– opening from inside30
– opening from outside30
– remote control28
Luggage rack, refer to Roof-
mounted luggage rack109
Lumbar support38
LW, waveband139
M
M+S tires, refer to Winter
tires190
Maintenance, refer to Service
Booklet
Maintenance system197
Malfunction
– tires79
Malfunction warnings, refer to
Check Control70
Managing music153
Manual car wash200
Manual operation
– door lock29
– driver's door29
– fuel filler door184
– glass roof36
– transmission lock54Manual transmission51
– tow-starting214
Map display129
Map for navigation
– changing scale129
– entering destination122
Master key, refer to Remote
control26
Maximum cooling90
Maximum speed
– with winter tires190
MDM, refer to M Dynamic
Mode76
"MDrive"44
MDrive44
M dual clutch transmission
with Drivelogic52
– kick-down53
– Launch Control57
– neutral53
– reverse gear53
– sequential mode53
– Shift Lights56
– shiftlock53
– tow-starting214
– unlocking transmission lock
manually54
M Dynamic Mode MDM76
– indicator lamp77
Measurements, refer to
Dimensions219
Memory, refer to Seat and
mirror memory40
M Engine Dynamics
Control58
MENU button16
Menus, refer to iDrive16
Microfilter
– BMW Maintenance
System197
– for automatic climate
control92
Microfilter/activated-charcoal
filter
– BMW Maintenance
System197
Microphone
– telephone14
– voice commands14Mirror dimming feature43
Mirrors42
– automatic curb monitor43
– exterior mirrors42
– heating43
– interior rearview mirror43
– memory, refer to Seat and
mirror memory40
Mirrors, folding in before
entering a car wash42
M Mobility System206
Mobile phone
– adjusting volume165
– connecting, refer to Mobile
phone, pairing162
– installation location, refer to
Center armrest98
– operation via iDrive165
– pairing162
– refer to separate Owner's
Manual
Mobile phone, installation
location, refer to Center
armrest98
Mobile phone, refer to
Telephone162
Mobile phone, refer to the
separate Owner's Manual
Modifications, technical, refer
to For your own safety5
Monitor, refer to iDrive
controls16
Monitoring system for tire
pressures, refer to Flat Tire
Monitor78
MP3 player, connecting, refer
to AUX-IN port155
MP3 player, connecting, refer
to USB-audio interface156
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher58
– refer to Wiper system59
Multimedia screen, refer to
iDrive16
Music, playing152
ba8_E90M3_cic.book Seite 235 Dienstag, 19. August 2008 11:51 11

Everything from A - Z
236 Music collection151
– backup154
– importing154
Music player, connecting,
refer to AUX-IN port155
Music player, connecting,
refer to USB-audio
interface156
Music search152
N
Navigation announcements,
refer to Switching voice
instructions on/off128
Navigation data116
Navigation drive, location116
Navigation DVD116
Navigation system116
– address book119
– bypassing a route
section128
– continuing destination
guidance127
– destination entry117
– displaying current
position133
– entering a destination by
voice123
– entering a destination
manually117
– route list128
– selecting destination via
map122
– selecting route criteria127
– special destinations120
– starting destination
guidance127
– terminating destination
guidance127
– voice instructions128
– volume adjustment129
Neck support, refer to Head
restraints39
Nets, refer to Storage
compartments98
Neutral53
New tires189
North-facing map129Nozzles89
Number of cylinders, refer to
Engine data218
Nylon rope, refer to Tow
rope213
O
OBD socket, refer to Socket
for On-Board Diagnosis198
Octane ratings, refer to Fuel
specifications184
Odometer62
Oil, refer to Engine oil193
Oil consumption193
Oil level193
Old batteries, refer to
Disposal208
Onboard tool kit203
Opening and closing
– convenient access32
– from inside29
– from outside27
– using the door lock29
– via the remote control27
Options, selecting for
navigation127
Orientation menu, refer to
Start menu17
Outlets
– refer to Ventilation92
Output, refer to Engine
data218
Outside-air mode
– automatic climate control91
Outside temperature
display62
– changing units of
measure65
– in computer65
Outside temperature
warning62
Overheated engine, refer to
Coolant temperature63
Overview
– radio control136
P
Paintwork care200
Park assistant, refer to Park
Distance Control75
Park Distance Control PDC75
Parked car ventilation92
– preselecting switch-on
times93
– switching on and off
directly93
Parking
– vehicle50
Parking aid, refer to Park
Distance Control PDC75
Parking brake51
– indicator lamp51
Parking lamps85
Parking lamps/low beams85
Passenger-side mirror tilt
function43
Pathway lighting86
Personal Profile26
Phone book165
Phone numbers
– dialing166
Pinch protection system
– glass roof, electric36
– windows35
Placing a call, refer to
telephone owner's manual
Polish201
Pollen
– refer to Microfilter/activated-
charcoal filter for automatic
climate control92
Position, refer to Current
position, displaying133
Postal code, entering for
navigation118
Power failure209
Power windows34
– safety switch35
Power windows, refer to
Windows34
Pressure, tires186
Pressure monitoring, tires78
– Flat Tire Monitor78
ba8_E90M3_cic.book Seite 236 Dienstag, 19. August 2008 11:51 11

Reference 237
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Pressure monitoring of tires,
refer to Tire Pressure
Monitor TPM79
Programmable buttons on the
steering wheel11
Protection function, refer to
Pinch protection system
– glass roof, electric36
– windows35
Providing medical assistance,
refer to First aid pouch211
Puncture
– Flat Tire Monitor78
R
Radio
– controls136
– High Definition Radio140
– satellite radio142
– selecting a waveband139
– storing stations139
– switching on/off136
– tone control136
– volume136
Radio-operated key, refer to
Remote control26
Radio position, refer to Radio
readiness49
Radio readiness49
– switched off50
– switched on49
Rain sensor59
Reading lamps88
Rear lamps, refer to Tail
lamps205
Rear seats
– adjusting head restraints39
– folding down backrests100
– folding head restraint down
and up40
Rear ventilation92
Rearview mirror, refer to
Mirrors42
Rear window blind, refer to
Roller sun blinds97
Rear window defroster92
Rear window safety switch35Receiving level of mobile
phone, refer to Status
information19
Reception
– quality140
– radio station140
Recirculated-air mode91
Recirculation of air, refer to
Recirculated-air mode91
Reclining seat, refer to
Backrest38
Refueling184
Releasing
– hood192
Remaining distance, refer to
Cruising range64
Remote control26
– battery renewal34
– convenient access32
– garage door opener94
– luggage compartment lid28
– malfunction28,33
– removing from the ignition
lock49
– service data197
Replacement remote
control
26
Replacing bulbs, refer to
Lamps and bulbs203
Replacing tires189
Replacing tires, refer to New
wheels and tires189
Reporting safety defects6
Reserve warning, refer to Fuel
gauge63
Reset, refer to Resetting tone
settings138
Residual heat91
Restraint systems
– for children46
– refer to Safety belts41
Reverse
– CD changer146
– CD player146
Reverse gear53
– manual transmission52
Road map129
Roadside
Assistance175,210Roadside parking lamps87
Roadworthiness test, refer to
Service requirements66
Roller blind
– sun blinds97
Roof load capacity220
Roof-mounted luggage
rack109
Rope, refer to Tow-starting,
towing away213
Rotary/pushbutton, refer to
iDrive16
Route127,128
– bypassing sections128
– changing127,128
– changing criteria127
– displaying streets or towns/
cities128
– map display129
– selecting127
Route instructions, refer to
Destination guidance
through voice
instructions128
Route map, refer to Map
display129
Route section, changing128
Route selection127
S
Safety-belt height
adjustment41
Safety belts41
– damage42
– indicator/warning lamp42
– reminder42
– sitting safely37
Safety systems
– airbags82
– Antilock Brake System
ABS76
– brake system76
– driving stability control
systems76
– Dynamic Stability Control
DSC76
– safety belts41
ba8_E90M3_cic.book Seite 237 Dienstag, 19. August 2008 11:51 11
