154

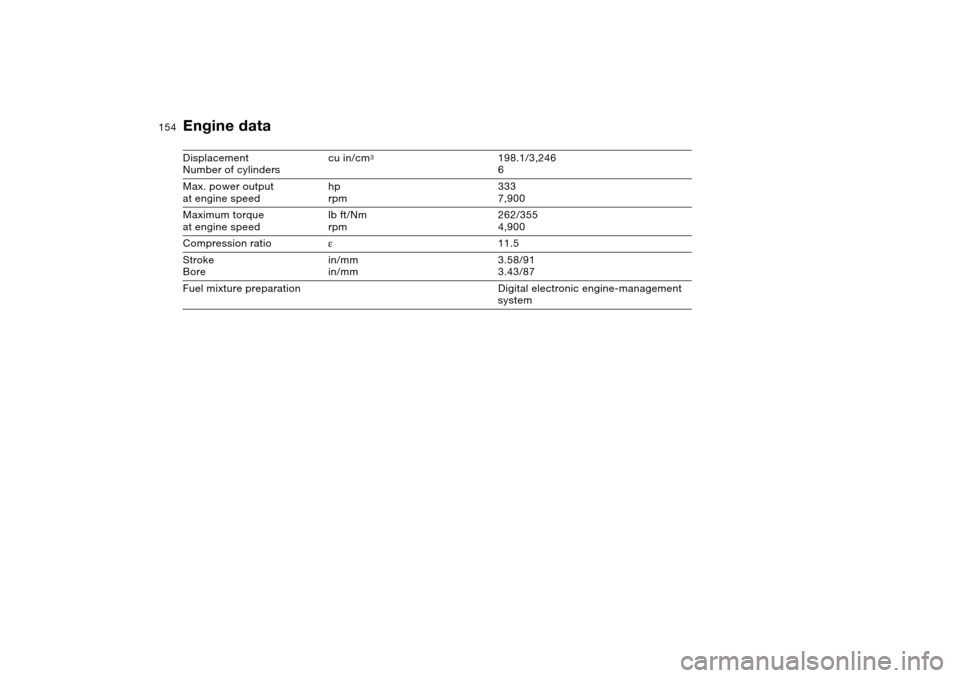

Engine dataDisplacement
Number of cylinderscu in/cm
3
198.1/3,246
6
Max. power output
at engine speedhp
rpm333
7,900
Maximum torque
at engine speedlb ft/Nm
rpm262/355
4,900
Compression ratioε11.5
Stroke
Borein/mm
in/mm3.58/91
3.43/87
Fuel mixture preparation Digital electronic engine-management
system

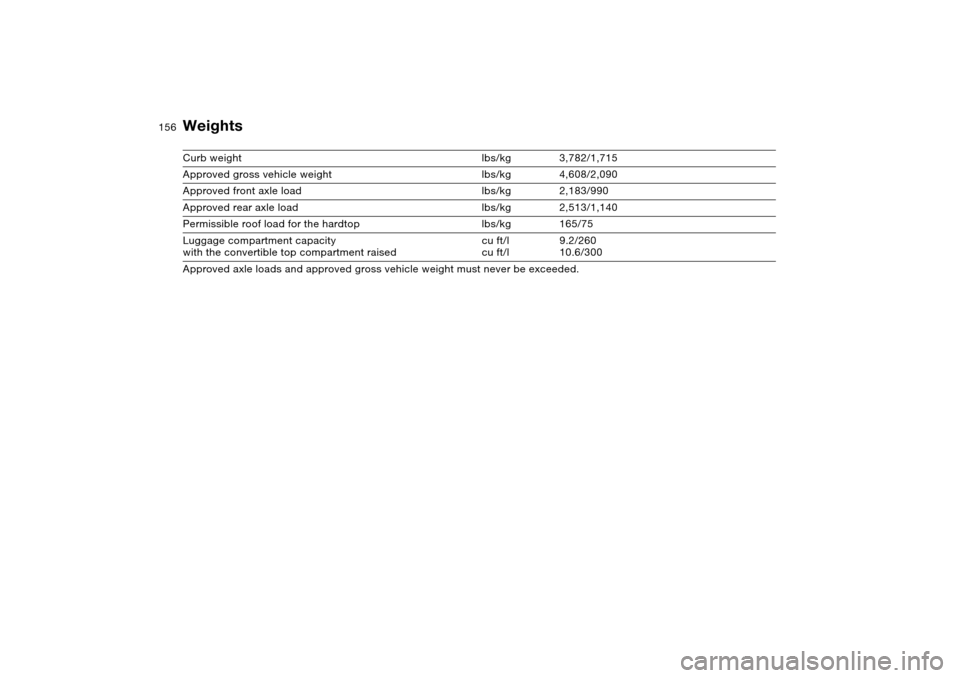

156
WeightsCurb weight lbs/kg 3,782/1,715
Approved gross vehicle weight lbs/kg 4,608/2,090
Approved front axle load lbs/kg 2,183/990
Approved rear axle load lbs/kg 2,513/1,140
Permissible roof load for the hardtop lbs/kg 165/75
Luggage compartment capacity
with the convertible top compartment raisedcu ft/l
cu ft/l9.2/260
10.6/300
Approved axle loads and approved gross vehicle weight must never be exceeded.
157

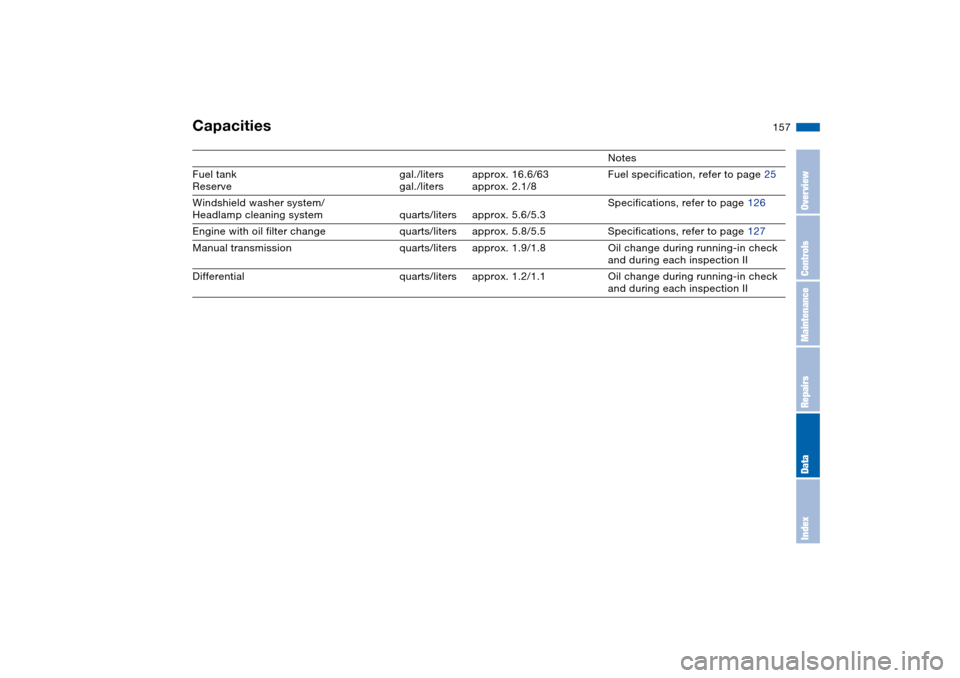

Capacities
Notes
Fuel tank
Reservegal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel specification, refer to page 25
Windshield washer system/
Headlamp cleaning system quarts/liters approx. 5.6/5.3Specifications, refer to page 126
Engine with oil filter change quarts/liters approx. 5.8/5.5 Specifications, refer to page 127
Manual transmission quarts/liters approx. 1.9/1.8 Oil change during running-in check
and during each inspection II
Differential quarts/liters approx. 1.2/1.1 Oil change during running-in check
and during each inspection II
OverviewControlsMaintenanceRepairsDataIndex

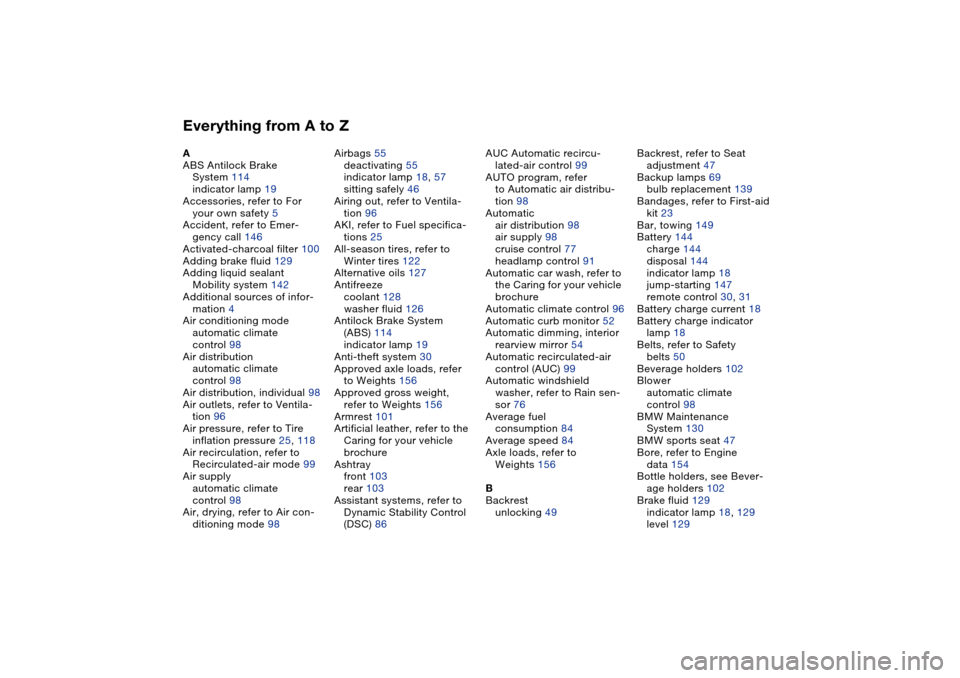

Everything from A to ZA
ABS Antilock Brake
System 114
indicator lamp 19
Accessories, refer to For
your own safety 5
Accident, refer to Emer-
gency call 146
Activated-charcoal filter 100
Adding brake fluid 129
Adding liquid sealant
Mobility system 142
Additional sources of infor-
mation 4
Air conditioning mode
automatic climate
control 98
Air distribution
automatic climate
control 98
Air distribution, individual 98
Air outlets, refer to Ventila-
tion 96
Air pressure, refer to Tire
inflation pressure 25, 118
Air recirculation, refer to
Recirculated-air mode 99
Air supply
automatic climate
control 98
Air, drying, refer to Air con-
ditioning mode 98Airbags 55
deactivating 55
indicator lamp 18, 57
sitting safely 46
Airing out, refer to Ventila-
tion 96
AKI, refer to Fuel specifica-
tions 25
All-season tires, refer to
Winter tires 122
Alternative oils 127
Antifreeze
coolant 128
washer fluid 126
Antilock Brake System
(ABS) 114
indicator lamp 19
Anti-theft system 30
Approved axle loads, refer
to Weights 156
Approved gross weight,
refer to Weights 156
Armrest 101
Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray
front 103
rear 103
Assistant systems, refer to
Dynamic Stability Control
(DSC) 86AUC Automatic recircu-
lated-air control 99
AUTO program, refer
to Automatic air distribu-
tion 98
Automatic
air distribution 98
air supply 98
cruise control 77
headlamp control 91
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate control 96
Automatic curb monitor 52
Automatic dimming, interior
rearview mirror 54
Automatic recirculated-air
control (AUC) 99
Automatic windshield
washer, refer to Rain sen-
sor 76
Average fuel
consumption 84
Average speed 84
Axle loads, refer to
Weights 156
B
Backrest
unlocking 49Backrest, refer to Seat
adjustment 47
Backup lamps 69
bulb replacement 139
Bandages, refer to First-aid
kit 23
Bar, towing 149
Battery 144
charge 144
disposal 144
indicator lamp 18
jump-starting 147
remote control 30, 31
Battery charge current 18
Battery charge indicator
lamp 18
Belts, refer to Safety
belts 50
Beverage holders 102
Blower
automatic climate
control 98
BMW Maintenance
System 130
BMW sports seat 47
Bore, refer to Engine
data 154
Bottle holders, see Bever-
age holders 102
Brake fluid 129
indicator lamp 18, 129
level 129
