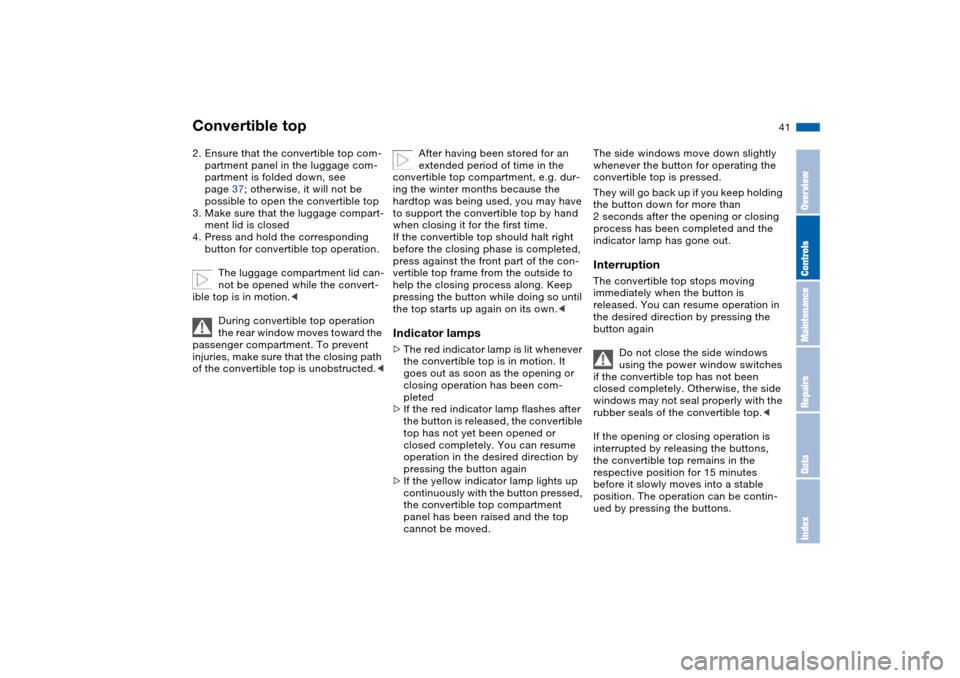

Page 41 of 174
41
2. Ensure that the convertible top com-
partment panel in the luggage com-
partment is folded down, see
page 37; otherwise, it will not be
possible to open the convertible top
3. Make sure that the luggage compart-
ment lid is closed
4. Press and hold the corresponding
button for convertible top operation.
The luggage compartment lid can-
not be opened while the convert-
ible top is in motion.<
During convertible top operation
the rear window moves toward the
passenger compartment. To prevent
injuries, make sure that the closing path
of the convertible top is unobstructed.<
After having been stored for an
extended period of time in the
convertible top compartment, e.g. dur-
ing the winter months because the
hardtop was being used, you may have
to support the convertible top by hand
when closing it for the first time.
If the convertible top should halt right
before the closing phase is completed,
press against the front part of the con-
vertible top frame from the outside to
help the closing process along. Keep
pressing the button while doing so until
the top starts up again on its own.<
Indicator lamps>The red indicator lamp is lit whenever
the convertible top is in motion. It
goes out as soon as the opening or
closing operation has been com-
pleted
>If the red indicator lamp flashes after
the button is released, the convertible
top has not yet been opened or
closed completely. You can resume
operation in the desired direction by
pressing the button again
>If the yellow indicator lamp lights up
continuously with the button pressed,
the convertible top compartment
panel has been raised and the top
cannot be moved.
The side windows move down slightly
whenever the button for operating the
convertible top is pressed.
They will go back up if you keep holding
the button down for more than
2 seconds after the opening or closing
process has been completed and the
indicator lamp has gone out.InterruptionThe convertible top stops moving
immediately when the button is
released. You can resume operation in
the desired direction by pressing the
button again
Do not close the side windows
using the power window switches
if the convertible top has not been
closed completely. Otherwise, the side
windows may not seal properly with the
rubber seals of the convertible top.<
If the opening or closing operation is
interrupted by releasing the buttons,
the convertible top remains in the
respective position for 15 minutes
before it slowly moves into a stable
position. The operation can be contin-
ued by pressing the buttons.
Convertible top
OverviewControlsMaintenanceRepairsDataIndex

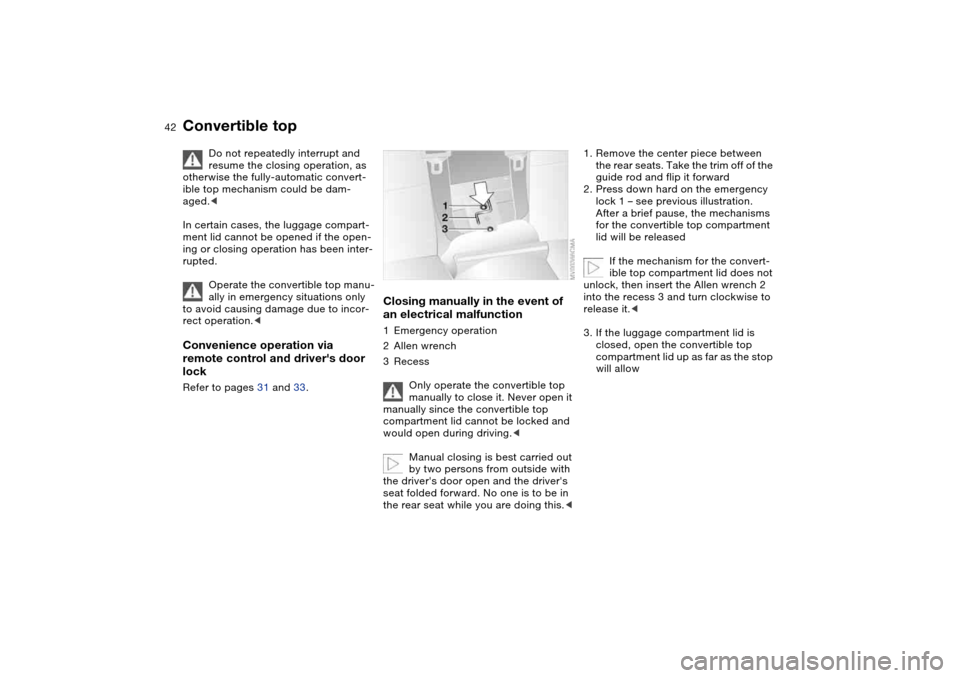

Page 42 of 174
42
Do not repeatedly interrupt and
resume the closing operation, as
otherwise the fully-automatic convert-
ible top mechanism could be dam-
aged.<
In certain cases, the luggage compart-
ment lid cannot be opened if the open-
ing or closing operation has been inter-
rupted.
Operate the convertible top manu-
ally in emergency situations only
to avoid causing damage due to incor-
rect operation.<
Convenience operation via
remote control and driver's door
lockRefer to pages 31 and 33.
Closing manually in the event of
an electrical malfunction1Emergency operation
2Allen wrench
3Recess
Only operate the convertible top
manually to close it. Never open it
manually since the convertible top
compartment lid cannot be locked and
would open during driving.<
Manual closing is best carried out
by two persons from outside with
the driver's door open and the driver's
seat folded forward. No one is to be in
the rear seat while you are doing this.<
1. Remove the center piece between
the rear seats. Take the trim off of the
guide rod and flip it forward
2. Press down hard on the emergency
lock 1 – see previous illustration.
After a brief pause, the mechanisms
for the convertible top compartment
lid will be released
If the mechanism for the convert-
ible top compartment lid does not
unlock, then insert the Allen wrench 2
into the recess 3 and turn clockwise to
release it.<
3. If the luggage compartment lid is
closed, open the convertible top
compartment lid up as far as the stop
will allow
Convertible top

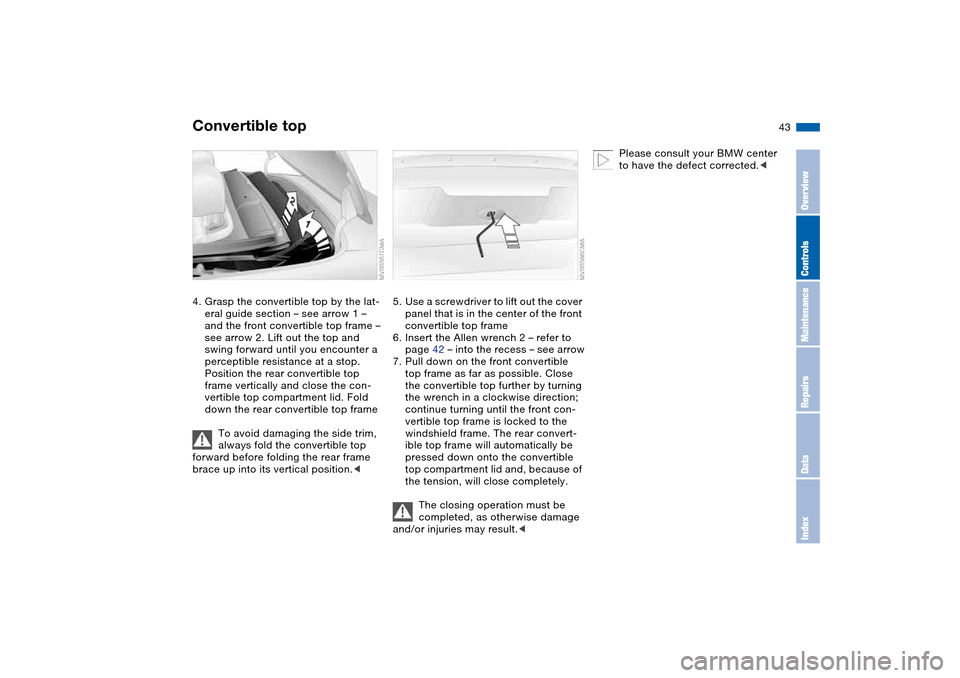

Page 43 of 174
43
4. Grasp the convertible top by the lat-
eral guide section – see arrow 1 –
and the front convertible top frame –
see arrow 2. Lift out the top and
swing forward until you encounter a
perceptible resistance at a stop.
Position the rear convertible top
frame vertically and close the con-
vertible top compartment lid. Fold
down the rear convertible top frame
To avoid damaging the side trim,
always fold the convertible top
forward before folding the rear frame
brace up into its vertical position.<
5. Use a screwdriver to lift out the cover
panel that is in the center of the front
convertible top frame
6. Insert the Allen wrench 2 – refer to
page 42 – into the recess – see arrow
7. Pull down on the front convertible
top frame as far as possible. Close
the convertible top further by turning
the wrench in a clockwise direction;
continue turning until the front con-
vertible top frame is locked to the
windshield frame. The rear convert-
ible top frame will automatically be
pressed down onto the convertible
top compartment lid and, because of
the tension, will close completely.
The closing operation must be
completed, as otherwise damage
and/or injuries may result.<
Please consult your BMW center
to have the defect corrected.<
Convertible top
OverviewControlsMaintenanceRepairsDataIndex

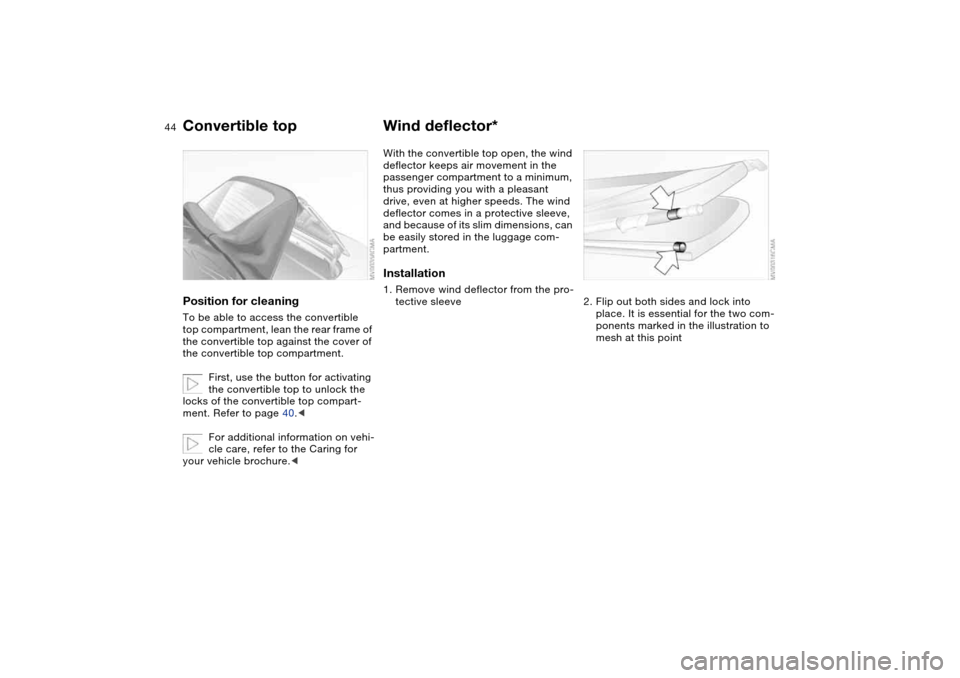

Page 44 of 174
44
Position for cleaningTo be able to access the convertible
top compartment, lean the rear frame of
the convertible top against the cover of
the convertible top compartment.
First, use the button for activating
the convertible top to unlock the
locks of the convertible top compart-
ment. Refer to page 40.<
For additional information on vehi-
cle care, refer to the Caring for
your vehicle brochure.<
Wind deflector*With the convertible top open, the wind
deflector keeps air movement in the
passenger compartment to a minimum,
thus providing you with a pleasant
drive, even at higher speeds. The wind
deflector comes in a protective sleeve,
and because of its slim dimensions, can
be easily stored in the luggage com-
partment.Installation1. Remove wind deflector from the pro-
tective sleeve
2. Flip out both sides and lock into
place. It is essential for the two com-
ponents marked in the illustration to
mesh at this point
Convertible top

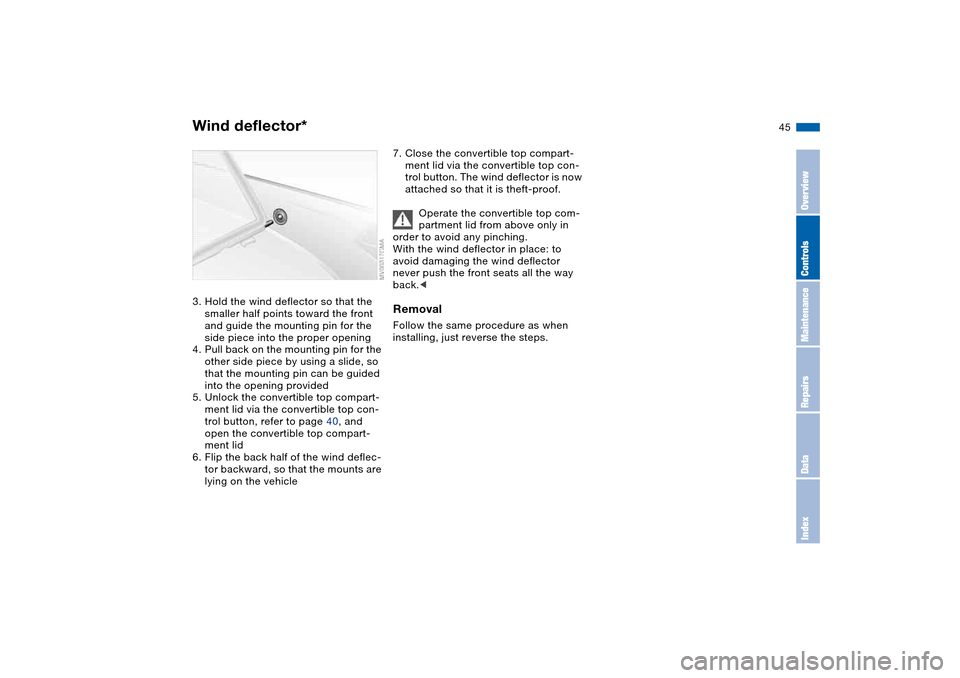

Page 45 of 174
45
3. Hold the wind deflector so that the
smaller half points toward the front
and guide the mounting pin for the
side piece into the proper opening
4. Pull back on the mounting pin for the
other side piece by using a slide, so
that the mounting pin can be guided
into the opening provided
5. Unlock the convertible top compart-
ment lid via the convertible top con-
trol button, refer to page 40, and
open the convertible top compart-
ment lid
6. Flip the back half of the wind deflec-
tor backward, so that the mounts are
lying on the vehicle
7. Close the convertible top compart-
ment lid via the convertible top con-
trol button. The wind deflector is now
attached so that it is theft-proof.
Operate the convertible top com-
partment lid from above only in
order to avoid any pinching.
With the wind deflector in place: to
avoid damaging the wind deflector
never push the front seats all the way
back.
Wind deflector*
OverviewControlsMaintenanceRepairsDataIndex

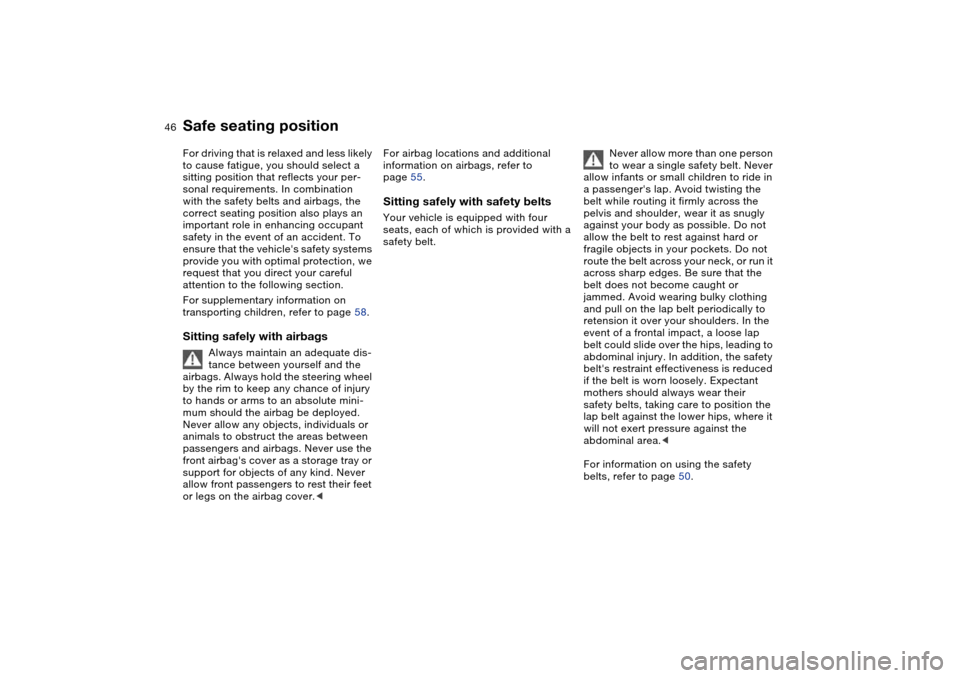

Page 46 of 174
46To adjust
Safe seating positionFor driving that is relaxed and less likely
to cause fatigue, you should select a
sitting position that reflects your per-
sonal requirements. In combination
with the safety belts and airbags, the
correct seating position also plays an
important role in enhancing occupant
safety in the event of an accident. To
ensure that the vehicle's safety systems
provide you with optimal protection, we
request that you direct your careful
attention to the following section.
For supplementary information on
transporting children, refer to page 58.Sitting safely with airbags
Always maintain an adequate dis-
tance between yourself and the
airbags. Always hold the steering wheel
by the rim to keep any chance of injury
to hands or arms to an absolute mini-
mum should the airbag be deployed.
Never allow any objects, individuals or
animals to obstruct the areas between
passengers and airbags. Never use the
front airbag's cover as a storage tray or
support for objects of any kind. Never
allow front passengers to rest their feet
or legs on the airbag cover.<
For airbag locations and additional
information on airbags, refer to
page 55.Sitting safely with safety beltsYour vehicle is equipped with four
seats, each of which is provided with a
safety belt.Never allow more than one person
to wear a single safety belt. Never
allow infants or small children to ride in
a passenger's lap. Avoid twisting the
belt while routing it firmly across the
pelvis and shoulder, wear it as snugly
against your body as possible. Do not
allow the belt to rest against hard or
fragile objects in your pockets. Do not
route the belt across your neck, or run it
across sharp edges. Be sure that the
belt does not become caught or
jammed. Avoid wearing bulky clothing
and pull on the lap belt periodically to
retension it over your shoulders. In the
event of a frontal impact, a loose lap
belt could slide over the hips, leading to
abdominal injury. In addition, the safety
belt's restraint effectiveness is reduced
if the belt is worn loosely. Expectant
mothers should always wear their
safety belts, taking care to position the
lap belt against the lower hips, where it
will not exert pressure against the
abdominal area.<
For information on using the safety
belts, refer to page 50.

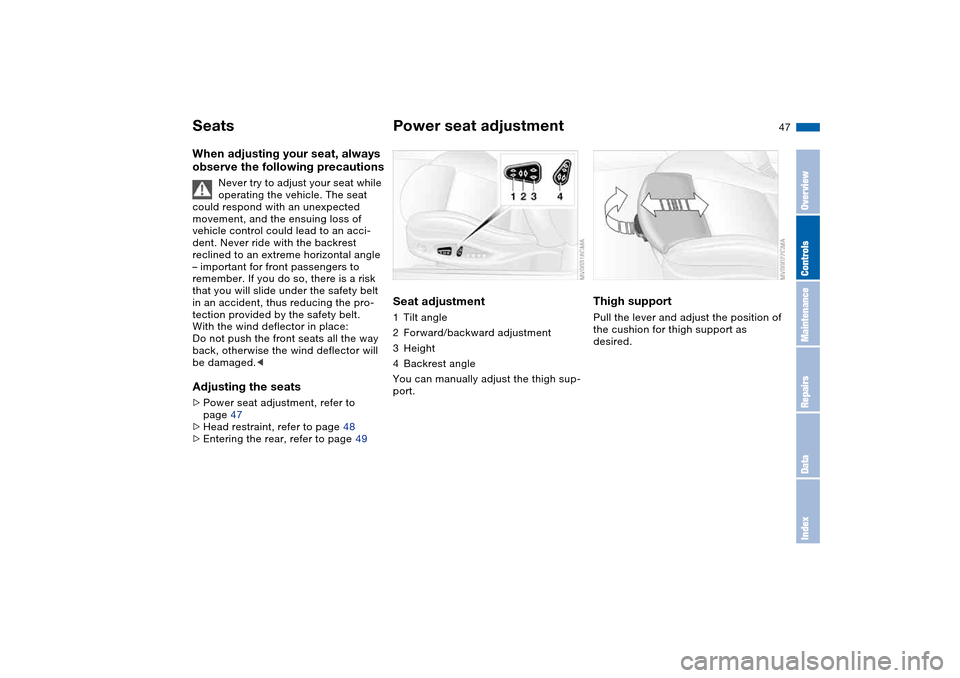

Page 47 of 174
47
SeatsWhen adjusting your seat, always
observe the following precautions
Never try to adjust your seat while
operating the vehicle. The seat
could respond with an unexpected
movement, and the ensuing loss of
vehicle control could lead to an acci-
dent. Never ride with the backrest
reclined to an extreme horizontal angle
– important for front passengers to
remember. If you do so, there is a risk
that you will slide under the safety belt
in an accident, thus reducing the pro-
tection provided by the safety belt.
With the wind deflector in place:
Do not push the front seats all the way
back, otherwise the wind deflector will
be damaged.<
Adjusting the seats>Power seat adjustment, refer to
page 47
>Head restraint, refer to page 48
>Entering the rear, refer to page 49
Power seat adjustmentSeat adjustment1Tilt angle
2Forward/backward adjustment
3Height
4Backrest angle
You can manually adjust the thigh sup-
port.
Thigh support Pull the lever and adjust the position of
the cushion for thigh support as
desired.
OverviewControlsMaintenanceRepairsDataIndex

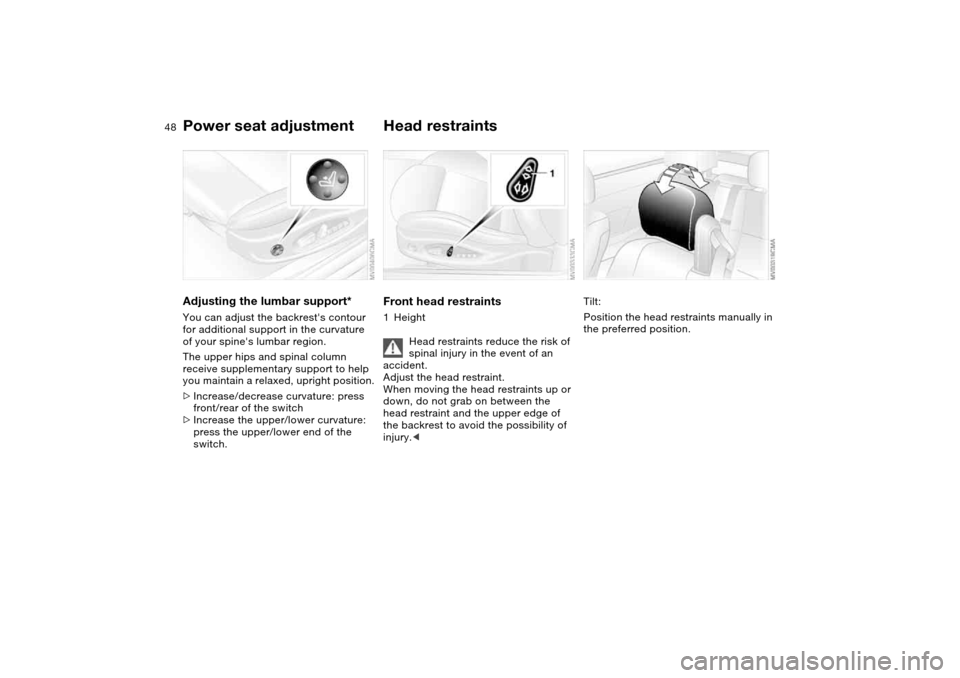

Page 48 of 174
48
Adjusting the lumbar support*You can adjust the backrest's contour
for additional support in the curvature
of your spine's lumbar region.
The upper hips and spinal column
receive supplementary support to help
you maintain a relaxed, upright position.
>Increase/decrease curvature: press
front/rear of the switch
>Increase the upper/lower curvature:
press the upper/lower end of the
switch.
Head restraintsFront head restraints1Height
Head restraints reduce the risk of
spinal injury in the event of an
accident.
Adjust the head restraint.
When moving the head restraints up or
down, do not grab on between the
head restraint and the upper edge of
the backrest to avoid the possibility of
injury.<
Tilt:
Position the head restraints manually in
the preferred position.
Power seat adjustment

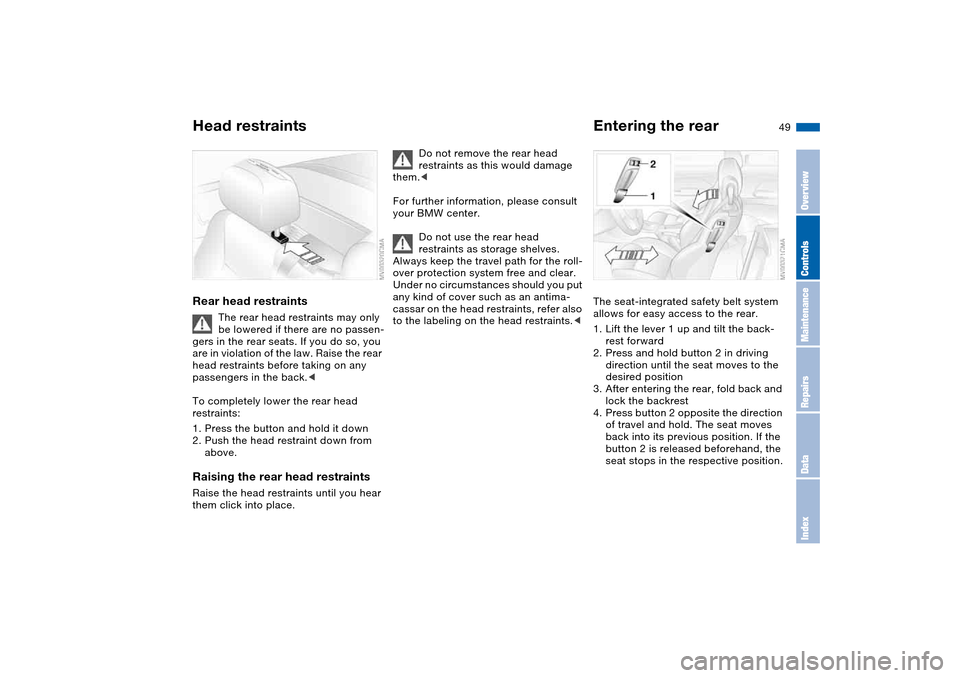

Page 49 of 174
49
Rear head restraints
The rear head restraints may only
be lowered if there are no passen-
gers in the rear seats. If you do so, you
are in violation of the law. Raise the rear
head restraints before taking on any
passengers in the back.<
To completely lower the rear head
restraints:
1. Press the button and hold it down
2. Push the head restraint down from
above.
Raising the rear head restraintsRaise the head restraints until you hear
them click into place.
Do not remove the rear head
restraints as this would damage
them.<
For further information, please consult
your BMW center.
Do not use the rear head
restraints as storage shelves.
Always keep the travel path for the roll-
over protection system free and clear.
Under no circumstances should you put
any kind of cover such as an antima-
cassar on the head restraints, refer also
to the labeling on the head restraints.<
Entering the rearThe seat-integrated safety belt system
allows for easy access to the rear.
1. Lift the lever 1 up and tilt the back-
rest forward
2. Press and hold button 2 in driving
direction until the seat moves to the
desired position
3. After entering the rear, fold back and
lock the backrest
4. Press button 2 opposite the direction
of travel and hold. The seat moves
back into its previous position. If the
button 2 is released beforehand, the
seat stops in the respective position.
Head restraints
OverviewControlsMaintenanceRepairsDataIndex

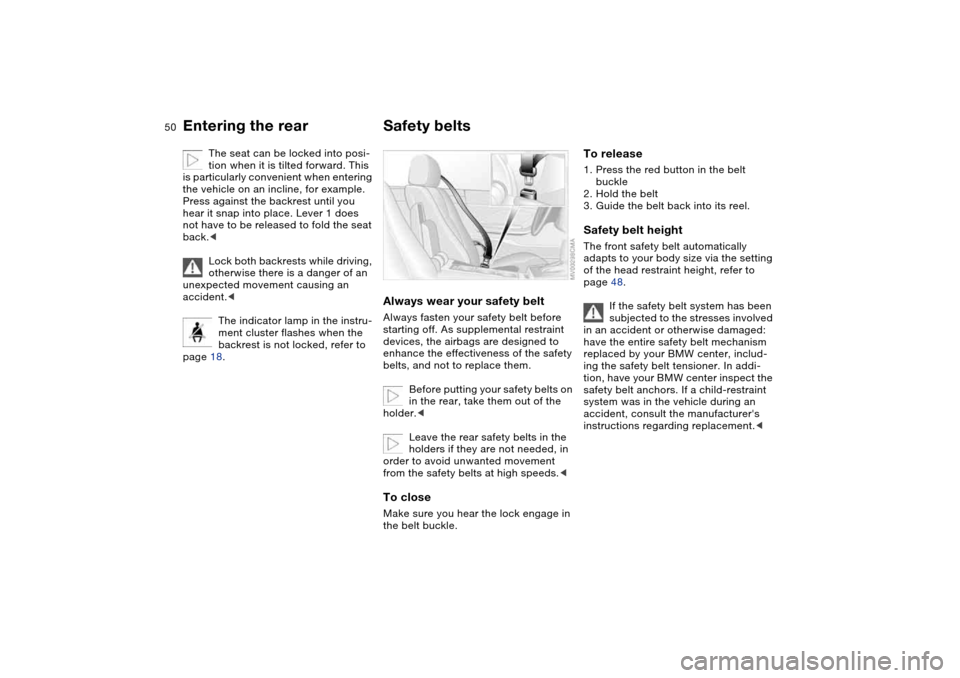

Page 50 of 174
50
The seat can be locked into posi-
tion when it is tilted forward. This
is particularly convenient when entering
the vehicle on an incline, for example.
Press against the backrest until you
hear it snap into place. Lever 1 does
not have to be released to fold the seat
back.<
Lock both backrests while driving,
otherwise there is a danger of an
unexpected movement causing an
accident.<
The indicator lamp in the instru-
ment cluster flashes when the
backrest is not locked, refer to
page 18.
Safety beltsAlways wear your safety beltAlways fasten your safety belt before
starting off. As supplemental restraint
devices, the airbags are designed to
enhance the effectiveness of the safety
belts, and not to replace them.
Before putting your safety belts on
in the rear, take them out of the
holder.<
Leave the rear safety belts in the
holders if they are not needed, in
order to avoid unwanted movement
from the safety belts at high speeds.
To release1. Press the red button in the belt
buckle
2. Hold the belt
3. Guide the belt back into its reel.Safety belt heightThe front safety belt automatically
adapts to your body size via the setting
of the head restraint height, refer to
page 48.
If the safety belt system has been
subjected to the stresses involved
in an accident or otherwise damaged:
have the entire safety belt mechanism
replaced by your BMW center, includ-
ing the safety belt tensioner. In addi-
tion, have your BMW center inspect the
safety belt anchors. If a child-restraint
system was in the vehicle during an
accident, consult the manufacturer's
instructions regarding replacement.<
Entering the rear
