BMW M3 CONVERTIBLE 2004 E46 Owner's Guide

31

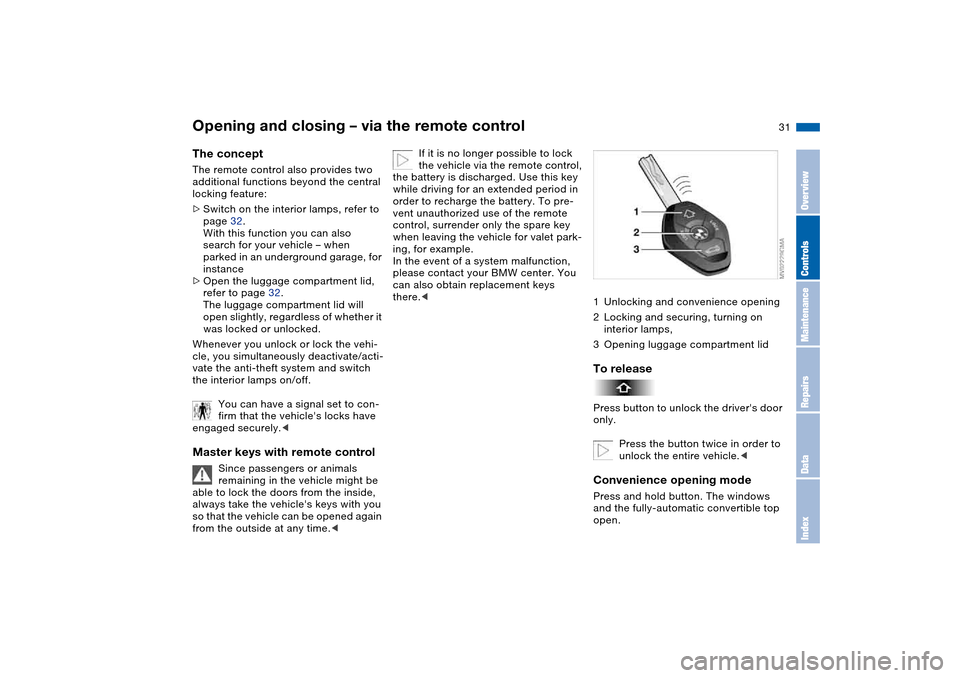

Opening and closing – via the remote controlThe conceptThe remote control also provides two
additional functions beyond the central
locking feature:
>Switch on the interior lamps, refer to
page 32.
With this function you can also
search for your vehicle – when
parked in an underground garage, for
instance
>Open the luggage compartment lid,
refer to page 32.
The luggage compartment lid will
open slightly, regardless of whether it
was locked or unlocked.
Whenever you unlock or lock the vehi-
cle, you simultaneously deactivate/acti-
vate the anti-theft system and switch
the interior lamps on/off.
You can have a signal set to con-
firm that the vehicle's locks have
engaged securely. Since passengers or animals
remaining in the vehicle might be
able to lock the doors from the inside,
always take the vehicle's keys with you
so that the vehicle can be opened again
from the outside at any time.<
If it is no longer possible to lock
the vehicle via the remote control,
the battery is discharged. Use this key
while driving for an extended period in
order to recharge the battery. To pre-
vent unauthorized use of the remote
control, surrender only the spare key
when leaving the vehicle for valet park-
ing, for example.
In the event of a system malfunction,
please contact your BMW center. You
can also obtain replacement keys
there.<
1Unlocking and convenience opening
2Locking and securing, turning on
interior lamps,
3Opening luggage compartment lidTo releasePress button to unlock the driver's door
only.
Press the button twice in order to
unlock the entire vehicle. and the fully-automatic convertible top
open.
OverviewControlsMaintenanceRepairsDataIndex

32

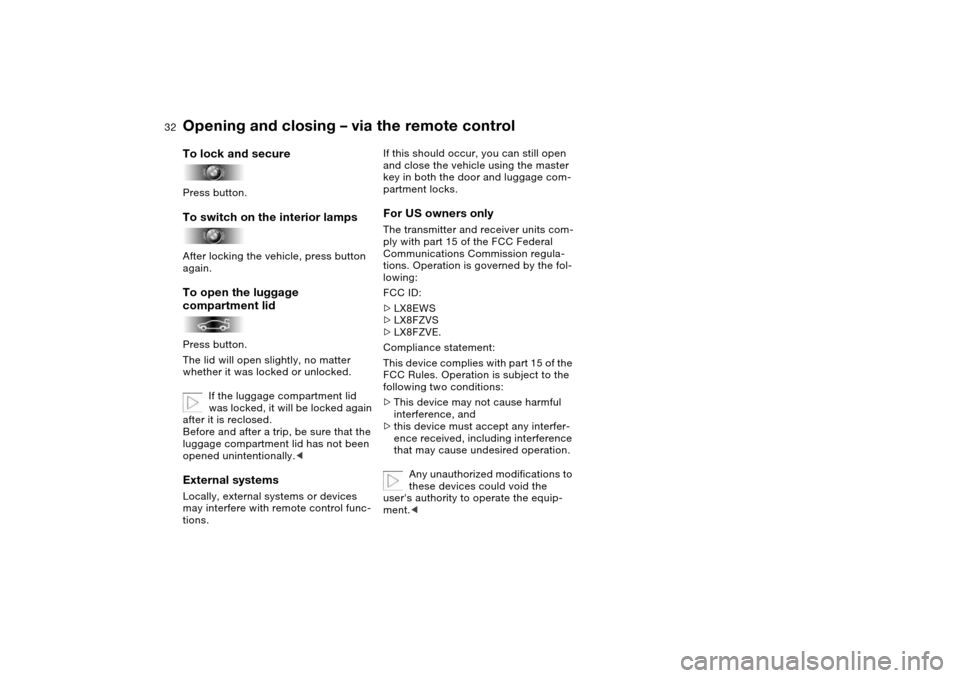

To lock and securePress button.To switch on the interior lampsAfter locking the vehicle, press button
again.To open the luggage
compartment lidPress button.
The lid will open slightly, no matter
whether it was locked or unlocked.
If the luggage compartment lid
was locked, it will be locked again
after it is reclosed.
Before and after a trip, be sure that the
luggage compartment lid has not been
opened unintentionally. may interfere with remote control func-
tions.
If this should occur, you can still open
and close the vehicle using the master
key in both the door and luggage com-
partment locks.For US owners onlyThe transmitter and receiver units com-
ply with part 15 of the FCC Federal
Communications Commission regula-
tions. Operation is governed by the fol-
lowing:
FCC ID:
>LX8EWS
>LX8FZVS
>LX8FZVE.
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
>This device may not cause harmful
interference, and
>this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications to
these devices could void the
user's authority to operate the equip-
ment.<
Opening and closing – via the remote control

33

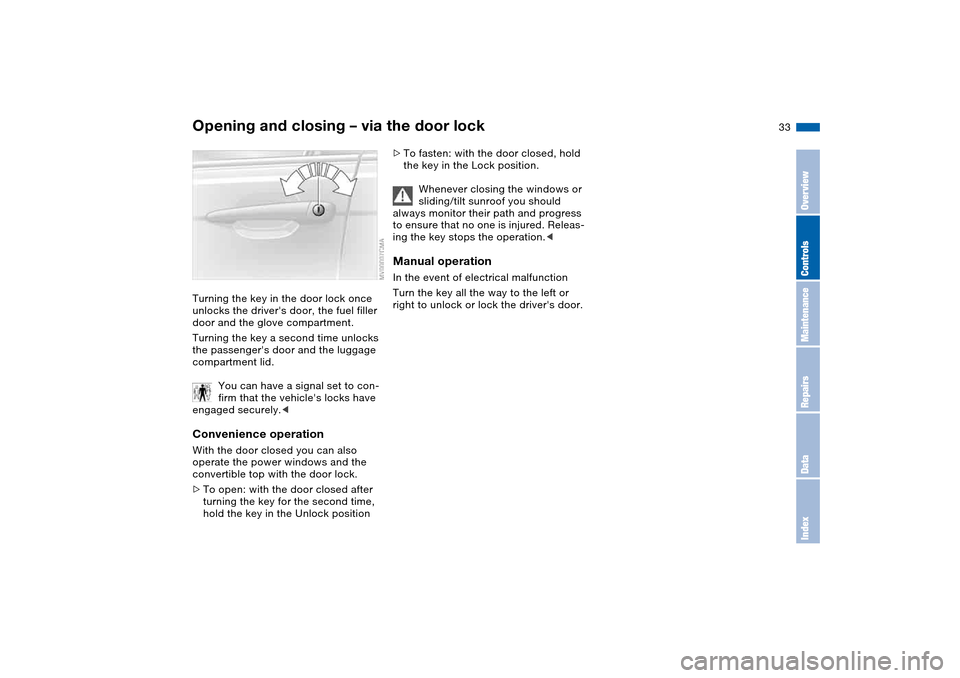

Opening and closing – via the door lockTurning the key in the door lock once
unlocks the driver's door, the fuel filler
door and the glove compartment.
Turning the key a second time unlocks
the passenger's door and the luggage
compartment lid.
You can have a signal set to con-
firm that the vehicle's locks have
engaged securely. operate the power windows and the
convertible top with the door lock.
>To open: with the door closed after
turning the key for the second time,
hold the key in the Unlock position
>To fasten: with the door closed, hold
the key in the Lock position.
Whenever closing the windows or
sliding/tilt sunroof you should
always monitor their path and progress
to ensure that no one is injured. Releas-
ing the key stops the operation. Turn the key all the way to the left or
right to unlock or lock the driver's door.
OverviewControlsMaintenanceRepairsDataIndex

34
Opening and closing – from the insideYou can use this button to control the
central locking system whenever the
doors are closed. The doors and lug-
gage compartment lid are unlocked or
locked only. The anti-theft system is not
activated.
If only the driver's door was
unlocked from the outside and
you press the button, then, with the
driver's door still open, the passenger's
door, the luggage compartment lid, the
fuel filler door and the glove compart-
ment will unlock, too.
If the driver's door is closed, it will be
locked.<
If you desire, the central locking
system can be activated automati-
cally as soon as you begin to drive. You
may also have this adjusted so that it is
specific to keys.<
To unlock and open the doors1. Press the button for the central lock-
ing system
2. Pull the release handle above the
armrest on the door you wish to open
or
pull the release handle for any door
twice: to unlock and open the door.To lock>Either use the central locking button
to lock all doors at once
or
>press the individual door lock buttons
down. As an added design feature to
prevent the driver from being inad-
vertently locked out of the vehicle,
the driver's door lock button will not
engage as long as the door is open.
Since passengers or animals
remaining in the vehicle might be
able to lock the doors from the inside,
always take the vehicle's keys with you
so that the vehicle can be opened again
from the outside at any time.<

35

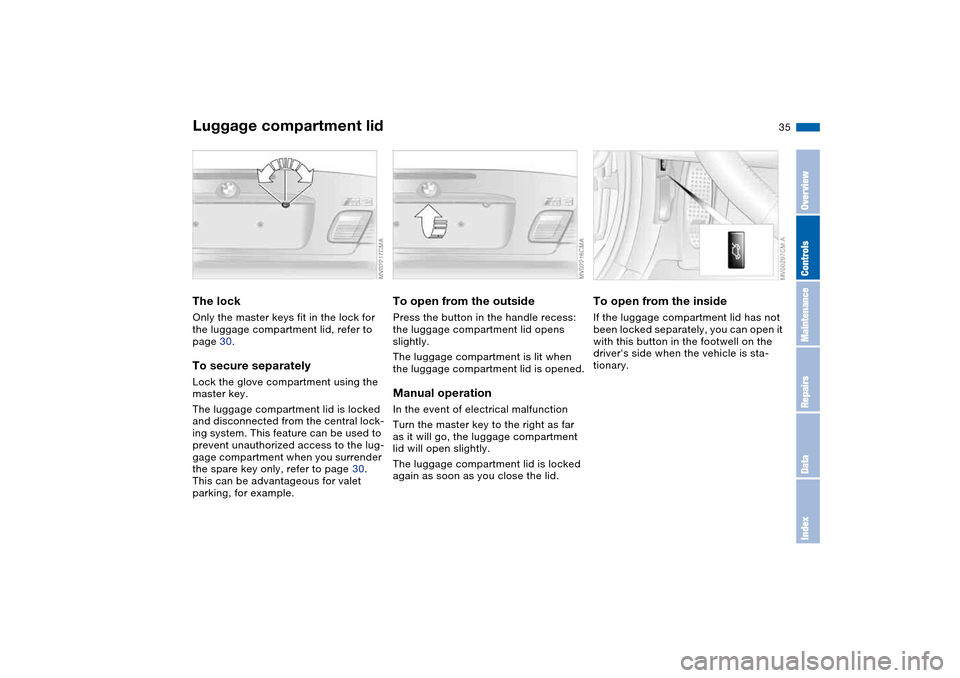

Luggage compartment lidThe lockOnly the master keys fit in the lock for
the luggage compartment lid, refer to
page 30.To secure separatelyLock the glove compartment using the
master key.
The luggage compartment lid is locked
and disconnected from the central lock-
ing system. This feature can be used to
prevent unauthorized access to the lug-
gage compartment when you surrender
the spare key only, refer to page 30.
This can be advantageous for valet
parking, for example.
To open from the outsidePress the button in the handle recess:
the luggage compartment lid opens
slightly.
The luggage compartment is lit when
the luggage compartment lid is opened.Manual operationIn the event of electrical malfunction
Turn the master key to the right as far
as it will go, the luggage compartment
lid will open slightly.
The luggage compartment lid is locked
again as soon as you close the lid.
To open from the insideIf the luggage compartment lid has not
been locked separately, you can open it
with this button in the footwell on the
driver's side when the vehicle is sta-
tionary.
OverviewControlsMaintenanceRepairsDataIndex

36

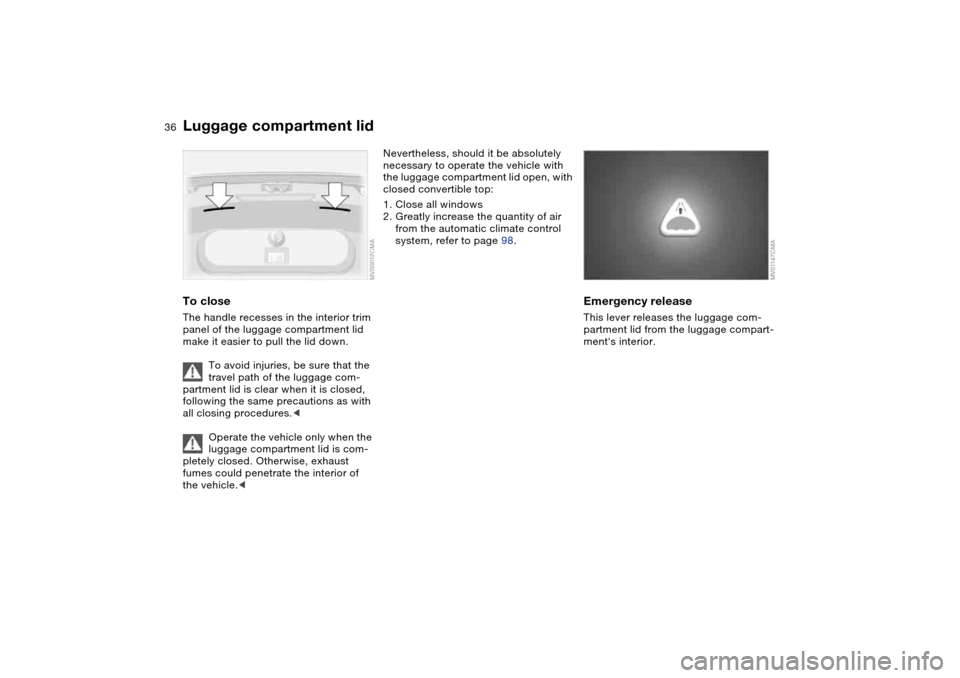

To closeThe handle recesses in the interior trim
panel of the luggage compartment lid
make it easier to pull the lid down.
To avoid injuries, be sure that the
travel path of the luggage com-
partment lid is clear when it is closed,
following the same precautions as with
all closing procedures.<
Operate the vehicle only when the
luggage compartment lid is com-
pletely closed. Otherwise, exhaust
fumes could penetrate the interior of
the vehicle.<
Nevertheless, should it be absolutely
necessary to operate the vehicle with
the luggage compartment lid open, with
closed convertible top:
1. Close all windows
2. Greatly increase the quantity of air
from the automatic climate control
system, refer to page 98.
Emergency releaseThis lever releases the luggage com-
partment lid from the luggage compart-
ment's interior.
Luggage compartment lid

37

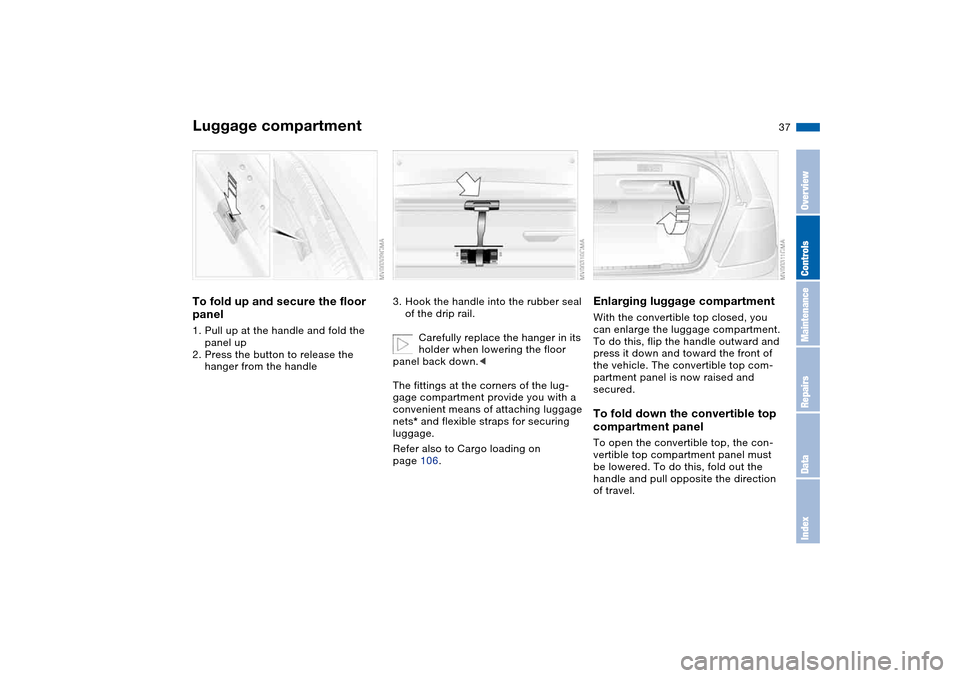

Luggage compartmentTo fold up and secure the floor
panel1. Pull up at the handle and fold the
panel up
2. Press the button to release the
hanger from the handle
3. Hook the handle into the rubber seal
of the drip rail.
Carefully replace the hanger in its
holder when lowering the floor
panel back down.<
The fittings at the corners of the lug-
gage compartment provide you with a
convenient means of attaching luggage
nets* and flexible straps for securing
luggage.
Refer also to Cargo loading on
page 106.
Enlarging luggage compartmentWith the convertible top closed, you
can enlarge the luggage compartment.
To do this, flip the handle outward and
press it down and toward the front of
the vehicle. The convertible top com-
partment panel is now raised and
secured.To fold down the convertible top
compartment panelTo open the convertible top, the con-
vertible top compartment panel must
be lowered. To do this, fold out the
handle and pull opposite the direction
of travel.
OverviewControlsMaintenanceRepairsDataIndex

38

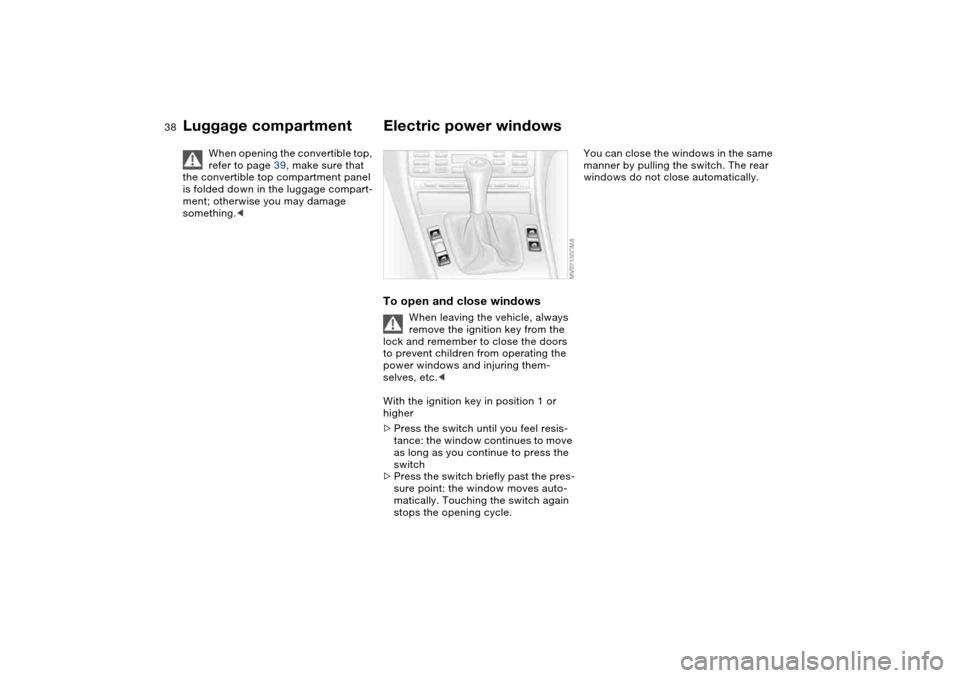

When opening the convertible top,
refer to page 39, make sure that
the convertible top compartment panel
is folded down in the luggage compart-
ment; otherwise you may damage
something.<
Electric power windowsTo open and close windows
When leaving the vehicle, always
remove the ignition key from the
lock and remember to close the doors
to prevent children from operating the
power windows and injuring them-
selves, etc.<
With the ignition key in position 1 or
higher
>Press the switch until you feel resis-
tance: the window continues to move
as long as you continue to press the
switch
>Press the switch briefly past the pres-
sure point: the window moves auto-
matically. Touching the switch again
stops the opening cycle.
You can close the windows in the same
manner by pulling the switch. The rear
windows do not close automatically.
Luggage compartment

39

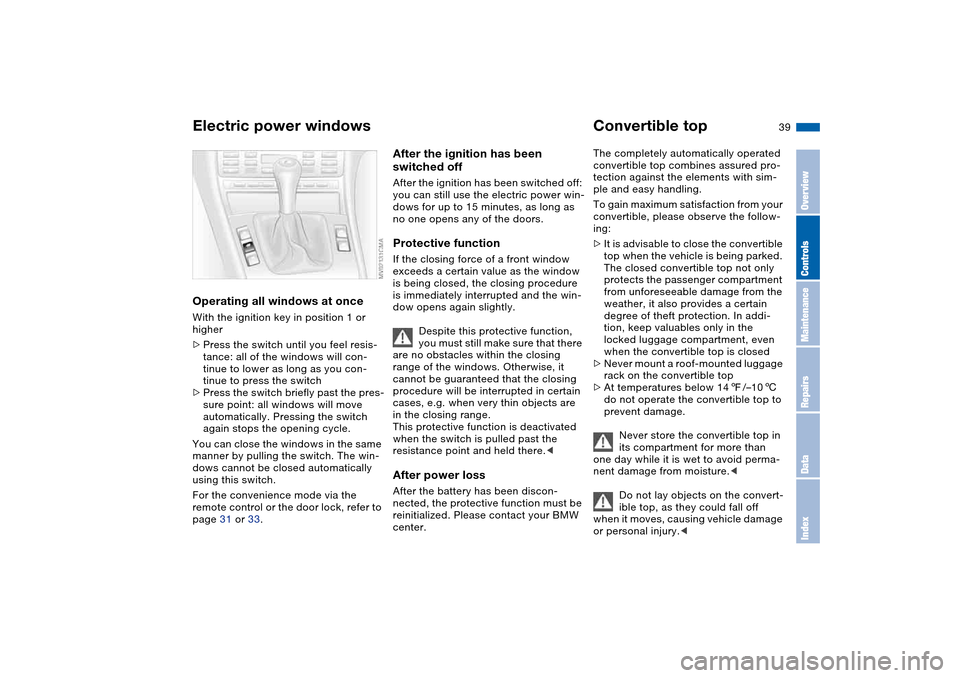

Operating all windows at onceWith the ignition key in position 1 or
higher
>Press the switch until you feel resis-
tance: all of the windows will con-
tinue to lower as long as you con-
tinue to press the switch
>Press the switch briefly past the pres-
sure point: all windows will move
automatically. Pressing the switch
again stops the opening cycle.
You can close the windows in the same
manner by pulling the switch. The win-
dows cannot be closed automatically
using this switch.
For the convenience mode via the
remote control or the door lock, refer to
page 31 or 33.
After the ignition has been
switched offAfter the ignition has been switched off:
you can still use the electric power win-
dows for up to 15 minutes, as long as
no one opens any of the doors.Protective functionIf the closing force of a front window
exceeds a certain value as the window
is being closed, the closing procedure
is immediately interrupted and the win-
dow opens again slightly.
Despite this protective function,
you must still make sure that there
are no obstacles within the closing
range of the windows. Otherwise, it
cannot be guaranteed that the closing
procedure will be interrupted in certain
cases, e.g. when very thin objects are
in the closing range.
This protective function is deactivated
when the switch is pulled past the
resistance point and held there. nected, the protective function must be
reinitialized. Please contact your BMW
center.
Convertible topThe completely automatically operated
convertible top combines assured pro-
tection against the elements with sim-
ple and easy handling.
To gain maximum satisfaction from your
convertible, please observe the follow-
ing:
>It is advisable to close the convertible
top when the vehicle is being parked.
The closed convertible top not only
protects the passenger compartment
from unforeseeable damage from the
weather, it also provides a certain
degree of theft protection. In addi-
tion, keep valuables only in the
locked luggage compartment, even
when the convertible top is closed
>Never mount a roof-mounted luggage
rack on the convertible top
>At temperatures below 147/–106
do not operate the convertible top to
prevent damage.
Never store the convertible top in
its compartment for more than
one day while it is wet to avoid perma-
nent damage from moisture.<
Do not lay objects on the convert-
ible top, as they could fall off
when it moves, causing vehicle damage
or personal injury.<
Electric power windows
OverviewControlsMaintenanceRepairsDataIndex

40
Driving when the opening or clos-
ing process has not been com-
pleted can cause vehicle damage or
personal injuries.
Do not reach into the convertible top
mechanism during opening and closing.
Keep children away from the moving
parts of the convertible top during
operation.<
If possible, only operate the con-
vertible top with the vehicle
stopped, as otherwise the process may
be interrupted.
If you set the convertible top in motion
with the vehicle stationary and then
have to start suddenly – for instance, at
a traffic light – you can still complete
the operation by driving as slowly as
possible and again pressing and main-
taining pressure on the button.<
To close the electric power win-
dows while driving, always be
sure to first close either the rear win-
dows, or all 4 windows at the same
time, otherwise, at high speed, the win-
dows may not close tightly.<
At higher speeds, the ensuing
vacuum in the passenger com-
partment can cause the convertible top
to begin fluttering. Increase the air sup-
ply via the ventilation controls so that a
vacuum does not occur in the vehicle.<
Opening and closing1To close
2To open
To avoid placing unnecessary
loads on the battery, you should
avoid operating the top when the
engine is switched off.
Before closing the convertible top,
remove any objects from the windshield
frame that could keep the convertible
top from closing properly.<
With the ignition key in position 1 or
higher, and with the vehicle stationary
1. Read and comply with the preceding
safety precautions
Convertible top
