Giving and receiving assistance
214

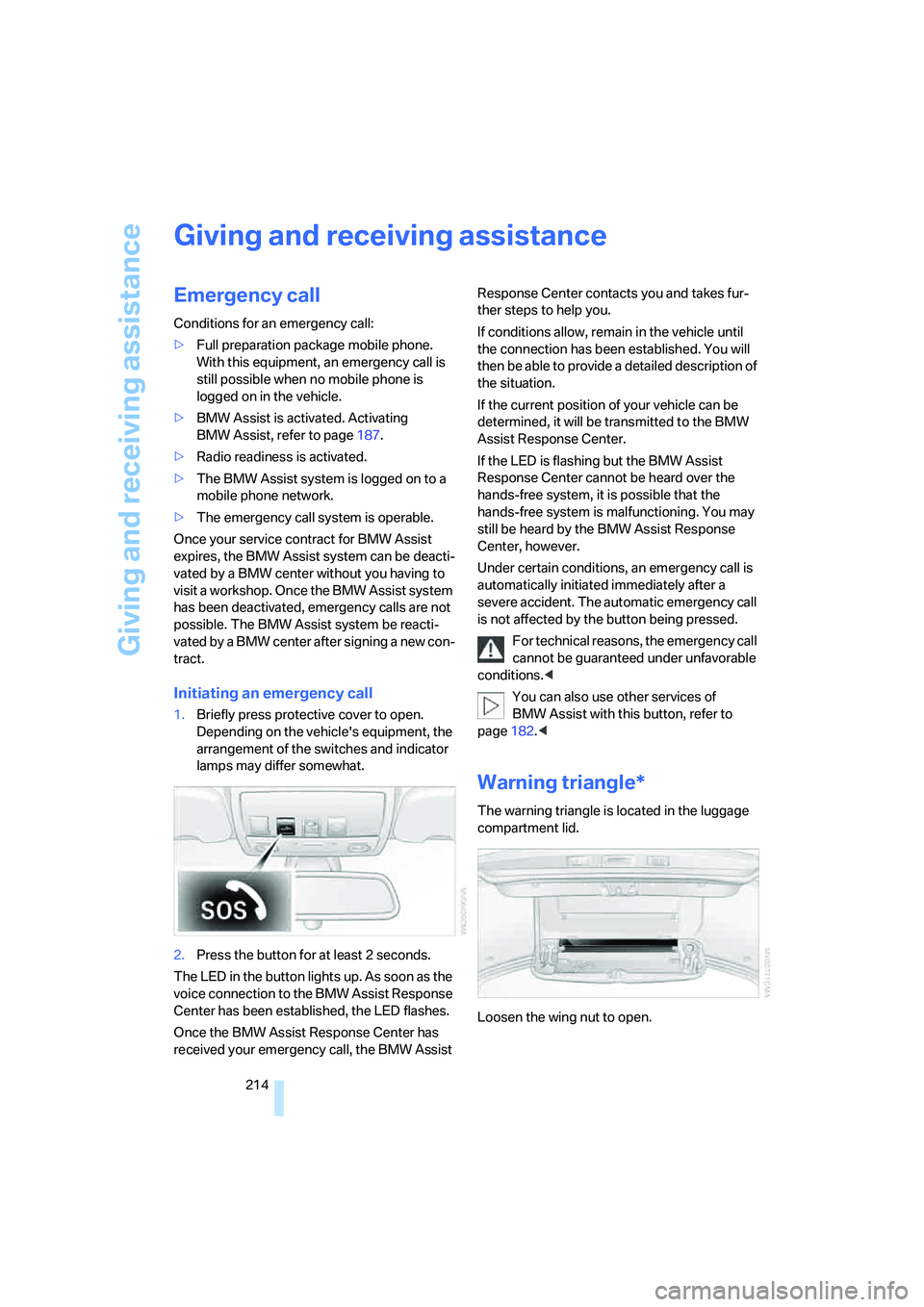

Giving and receiving assistance
Emergency call
Conditions for an emergency call:
>Full preparation package mobile phone.
With this equipment, an emergency call is
still possible when no mobile phone is
logged on in the vehicle.
>BMW Assist is activated. Activating
BMW Assist, refer to page187.
>Radio readiness is activated.
>The BMW Assist system is logged on to a
mobile phone network.
>The emergency call system is operable.
Once your service contract for BMW Assist
expires, the BMW Assist system can be deacti-
vated by a BMW center without you having to
visit a workshop. Once the BMW Assist system
has been deactivated, emergency calls are not
possible. The BMW Assist system be reacti-
vated by a BMW center after signing a new con-
tract.
Initiating an emergency call
1.Briefly press protective cover to open.
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
2.Press the button for at least 2 seconds.
The LED in the button lights up. As soon as the
voice connection to the BMW Assist Response
Center has been established, the LED flashes.
Once the BMW Assist Response Center has
received your emergency call, the BMW Assist Response Center contacts you and takes fur-
ther steps to help you.
If conditions allow, remain in the vehicle until
the connection has been established. You will
then be able to provide a detailed description of
the situation.
If the current position of your vehicle can be
determined, it will be transmitted to the BMW
Assist Response Center.
If the LED is flashing but the BMW Assist
Response Center cannot be heard over the
hands-free system, it is possible that the
hands-free system is malfunctioning. You may
still be heard by the BMW Assist Response
Center, however.
Under certain conditions, an emergency call is
automatically initiated immediately after a
severe accident. The automatic emergency call
is not affected by the button being pressed.
For technical reasons, the emergency call
cannot be guaranteed under unfavorable
conditions.<
You can also use other services of
BMW Assist with this button, refer to
page182.<
Warning triangle*
The warning triangle is located in the luggage
compartment lid.
Loosen the wing nut to open.

Mobility
217Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

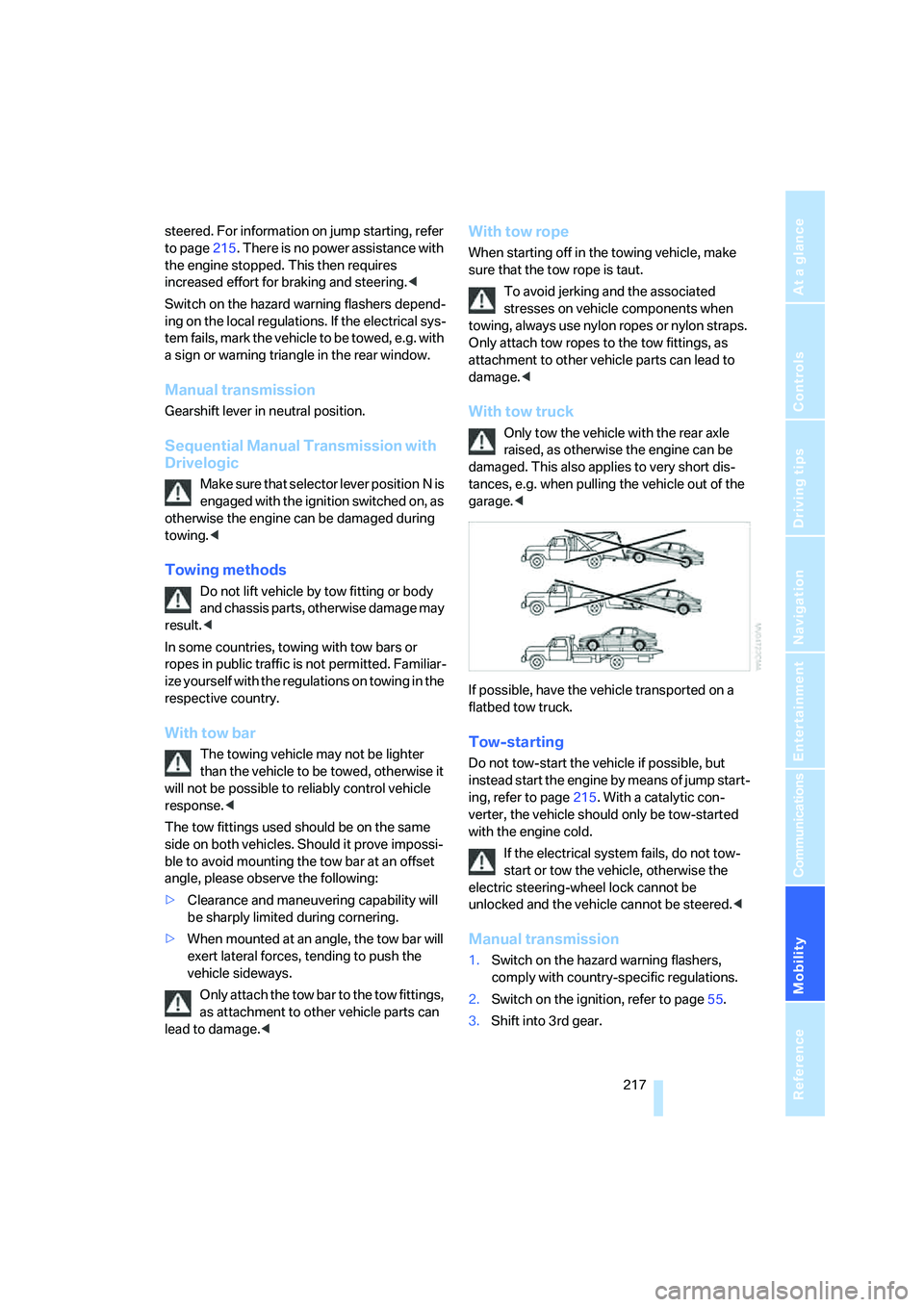

steered. For information on jump starting, refer
to page215. There is no power assistance with
the engine stopped. This then requires
increased effort for braking and steering.<
Switch on the hazard warning flashers depend-
ing on the local regulations. If the electrical sys-
tem fails, mark the vehicle to be towed, e.g. with
a sign or warning triangle in the rear window.
Manual transmission
Gearshift lever in neutral position.
Sequential Manual Transmission with
Drivelogic
Make sure that selector lever position N is
engaged with the ignition switched on, as
otherwise the engine can be damaged during
towing.<
Towing methods
Do not lift vehicle by tow fitting or body
and chassis parts, otherwise damage may
result.<
In some countries, towing with tow bars or
ropes in public traffic is not permitted. Familiar-
ize yourself with the regulations on towing in the
respective country.
With tow bar
The towing vehicle may not be lighter
than the vehicle to be towed, otherwise it
will not be possible to reliably control vehicle
response.<
The tow fittings used should be on the same
side on both vehicles. Should it prove impossi-
ble to avoid mounting the tow bar at an offset
angle, please observe the following:
>Clearance and maneuvering capability will
be sharply limited during cornering.
>When mounted at an angle, the tow bar will
exert lateral forces, tending to push the
vehicle sideways.
Only attach the tow bar to the tow fittings,
as attachment to other vehicle parts can
lead to damage.<
With tow rope
When starting off in the towing vehicle, make
sure that the tow rope is taut.
To avoid jerking and the associated
stresses on vehicle components when
towing, always use nylon ropes or nylon straps.
Only attach tow ropes to the tow fittings, as
attachment to other vehicle parts can lead to
damage.<
With tow truck
Only tow the vehicle with the rear axle
raised, as otherwise the engine can be
damaged. This also applies to very short dis-
tances, e.g. when pulling the vehicle out of the
garage.<
If possible, have the vehicle transported on a
flatbed tow truck.
Tow-starting
Do not tow-start the vehicle if possible, but
instead start the engine by means of jump start-
ing, refer to page215. With a catalytic con-
verter, the vehicle should only be tow-started
with the engine cold.
If the electrical system fails, do not tow-
start or tow the vehicle, otherwise the
electric steering-wheel lock cannot be
unlocked and the vehicle cannot be steered.<
Manual transmission
1.Switch on the hazard warning flashers,
comply with country-specific regulations.
2.Switch on the ignition, refer to page55.
3.Shift into 3rd gear.

Giving and receiving assistance

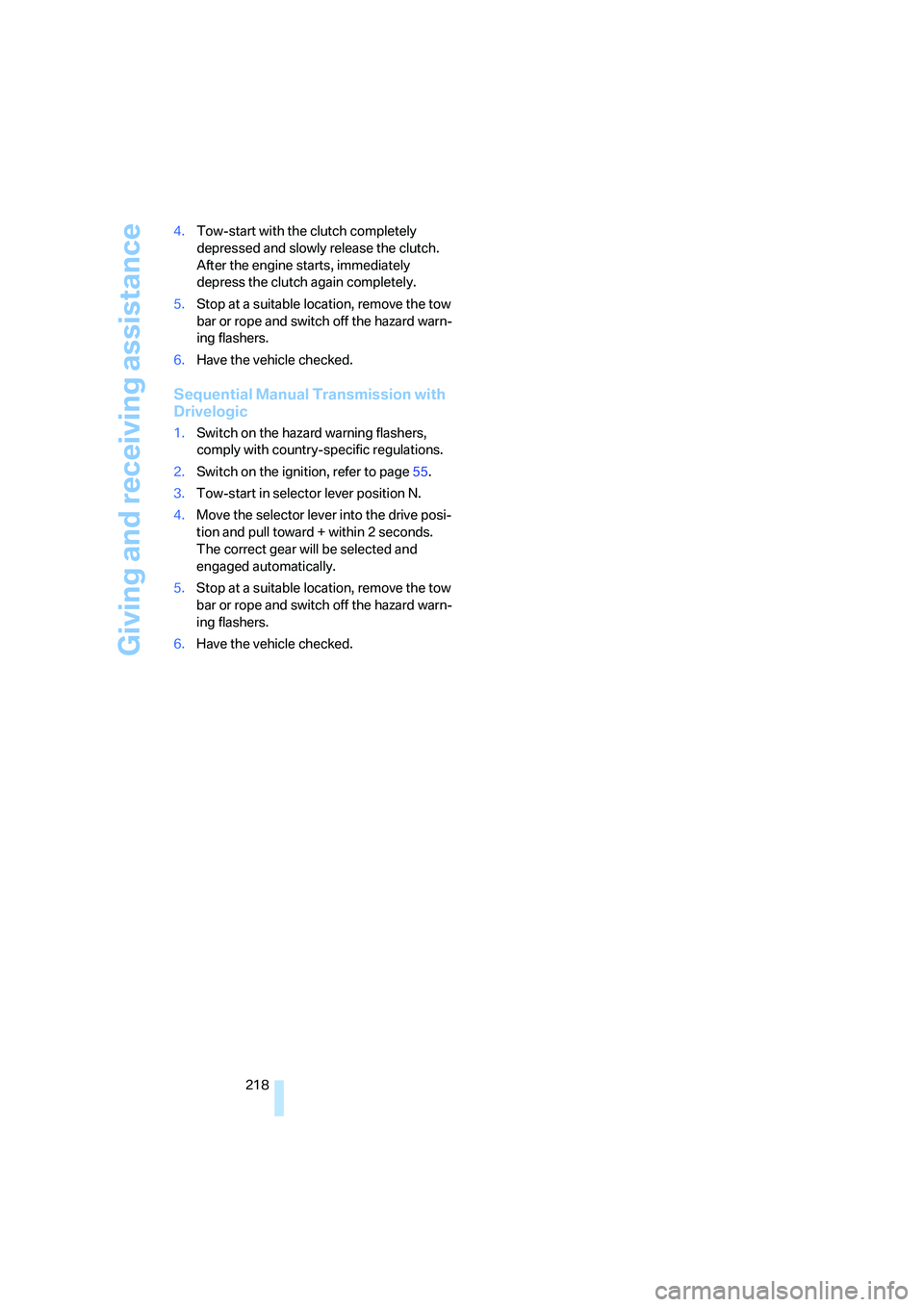

218 4.Tow-start with the clutch completely
depressed and slowly release the clutch.
After the engine starts, immediately
depress the clutch again completely.
5.Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6.Have the vehicle checked.
Sequential Manual Transmission with
Drivelogic
1.Switch on the hazard warning flashers,
comply with country-specific regulations.
2.Switch on the ignition, refer to page55.
3.Tow-start in selector lever position N.
4.Move the selector lever into the drive posi-
tion and pull toward + within 2 seconds.
The correct gear will be selected and
engaged automatically.
5.Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6.Have the vehicle checked.

Everything from A to Z
230
Everything from A to Z
Index
"..." Identifies Control Display
texts used to select
individual functions, and
indicates where to find them
in the text.
A
ABS Antilock Brake
System79
– indicator/warning lamp81
Accepted calls174
Accessories6
Accident, refer to Emergency
call214
Acoustic signal, refer to Check
Control71
Activated-charcoal filter for
automatic climate
control100
"Activation time" for parked
car ventilation100
Active head restraints,
front45
"Active seat back"50
Active seat ventilation47
Adapter for spare key28
Adaptive brake lamps, refer to
Brake force display86
Adaptive Head Light93
"Add digits" for mobile
phone175
Additives
– coolant202
– engine oil, refer to Approved
engine oils202
"Address book" for
navigation128Address for navigation
– deleting130
– entering121,124
– selecting129
– storing129
– storing current position129
"Add to address book"128
"Add to destination
list"124,126
Adjusting active backrest
width43
Adjusting interior
temperature97
Adjusting the tone during
audio operation, refer to
Tone control147
Adjusting thigh support42
Adjustment in audio mode
– front/rear balance148
– right/left balance148
"After door opened"44
"After unlocking"44
Airbags87
– indicator/warning lamp88
– indicator lamp for front
passenger airbags88
– sitting safely41
Air distribution
– automatic97
– manual98
Airing, refer to Ventilation99
Air recirculation
– AUC Automatic
recirculated-air control99
– recirculated-air mode99
"Air recirculation on / off"49
Air supply, automatic climate
control96
Air volume98
AKI, refer to Fuel quality193Alarm system35
– avoiding unintentional
alarms36
– interior motion sensor35
– switching off alarm35
– switching off tilt alarm
sensor and interior motion
sensor36
– tilt alarm sensor35
"All channels"156
"All doors"31
All-season tires, refer to
Winter tires198
"All stations" calling up with
radio150,153
Alterations, technical, refer to
For your own safety5
Altering stretch of road137
Alternate route, refer to
Bypassing traffic
congestion140
"AM", reception
range147,150
Antenna, refer to Caring for
your vehicle brochure
Antenna for mobile phone168
Antifreeze
– coolant202
– washer fluid63
Antilock Brake System
ABS79
– indicator/warning lamp81
Anti-theft alarm system, refer
to Alarm system35
Anti-theft system, refer to
Central locking system30
Approved axle loads, refer to
Weights224
Approved engine oils202
Approved gross vehicle
weight, refer to Weights224
Armrest, refer to Center
armrest, rear107

Everything from A to Z

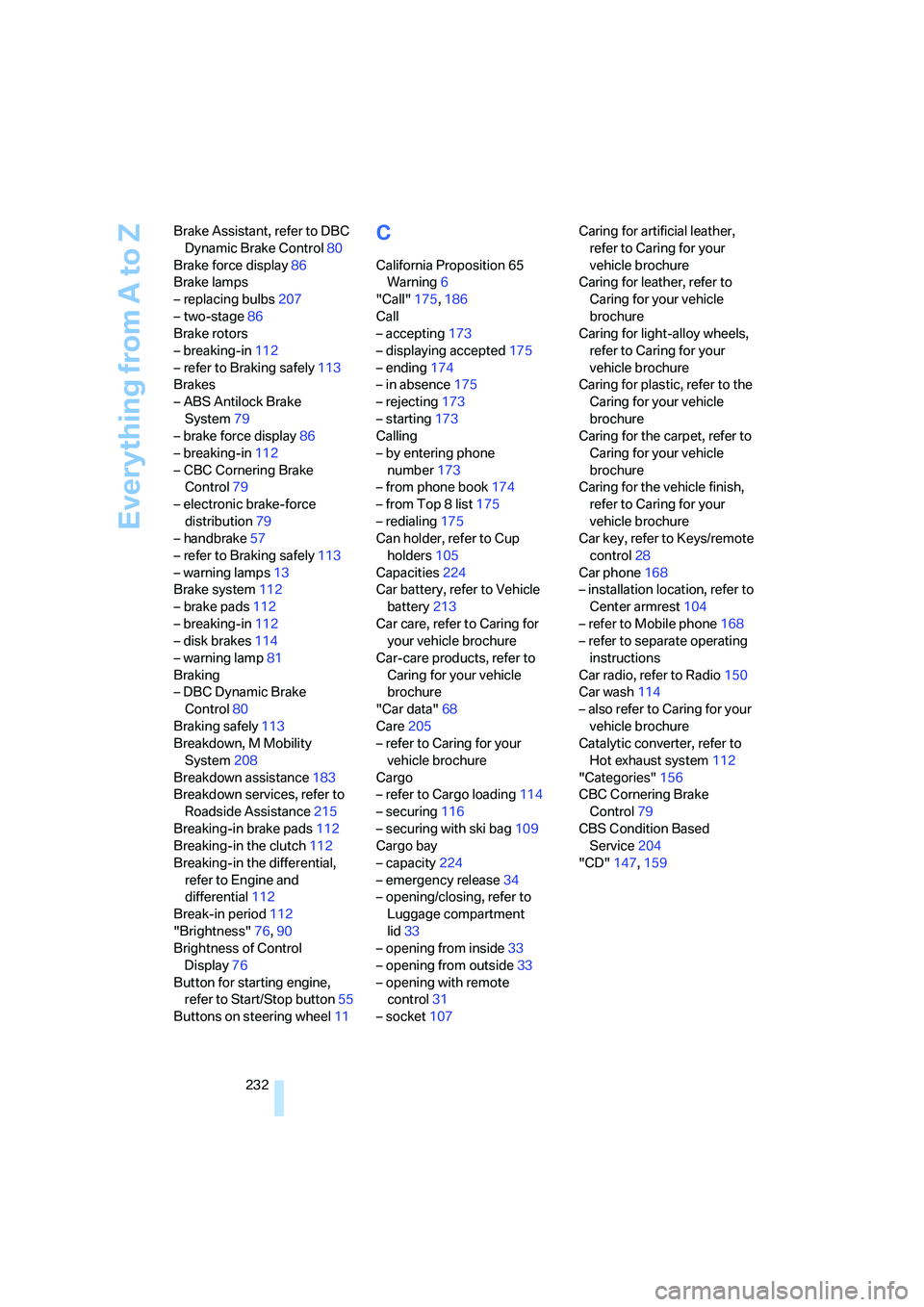

232 Brake Assistant, refer to DBC
Dynamic Brake Control80
Brake force display86
Brake lamps
– replacing bulbs207
– two-stage86
Brake rotors
– breaking-in112
– refer to Braking safely113
Brakes
– ABS Antilock Brake
System79
– brake force display86
– breaking-in112
– CBC Cornering Brake
Control79
– electronic brake-force
distribution79
– handbrake57
– refer to Braking safely113
– warning lamps13
Brake system112
– brake pads112
– breaking-in112
– disk brakes114
– warning lamp81
Braking
– DBC Dynamic Brake
Control80
Braking safely113
Breakdown, M Mobility
System208
Breakdown assistance183
Breakdown services, refer to
Roadside Assistance215
Breaking-in brake pads112
Breaking-in the clutch112
Breaking-in the differential,
refer to Engine and
differential112
Break-in period112
"Brightness"76,90
Brightness of Control
Display76
Button for starting engine,
refer to Start/Stop button55
Buttons on steering wheel11
C
California Proposition 65
Warning6
"Call"175,186
Call
– accepting173
– displaying accepted175
– ending174
– in absence175
– rejecting173
– starting173
Calling
– by entering phone
number173
– from phone book174
– from Top 8 list175
– redialing175
Can holder, refer to Cup
holders105
Capacities224
Car battery, refer to Vehicle
battery213
Car care, refer to Caring for
your vehicle brochure
Car-care products, refer to
Caring for your vehicle
brochure
"Car data"68
Care205
– refer to Caring for your
vehicle brochure
Cargo
– refer to Cargo loading114
– securing116
– securing with ski bag109
Cargo bay
– capacity224
– emergency release34
– opening/closing, refer to
Luggage compartment
lid33
– opening from inside33
– opening from outside33
– opening with remote
control31
– socket107Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for light-alloy wheels,
refer to Caring for your
vehicle brochure
Caring for plastic, refer to the
Caring for your vehicle
brochure
Caring for the carpet, refer to
Caring for your vehicle
brochure
Caring for the vehicle finish,
refer to Caring for your
vehicle brochure
Car key, refer to Keys/remote
control28
Car phone168
– installation location, refer to
Center armrest104
– refer to Mobile phone168
– refer to separate operating
instructions
Car radio, refer to Radio150
Car wash114
– also refer to Caring for your
vehicle brochure
Catalytic converter, refer to
Hot exhaust system112
"Categories"156
CBC Cornering Brake
Control79
CBS Condition Based
Service204
"CD"147,159

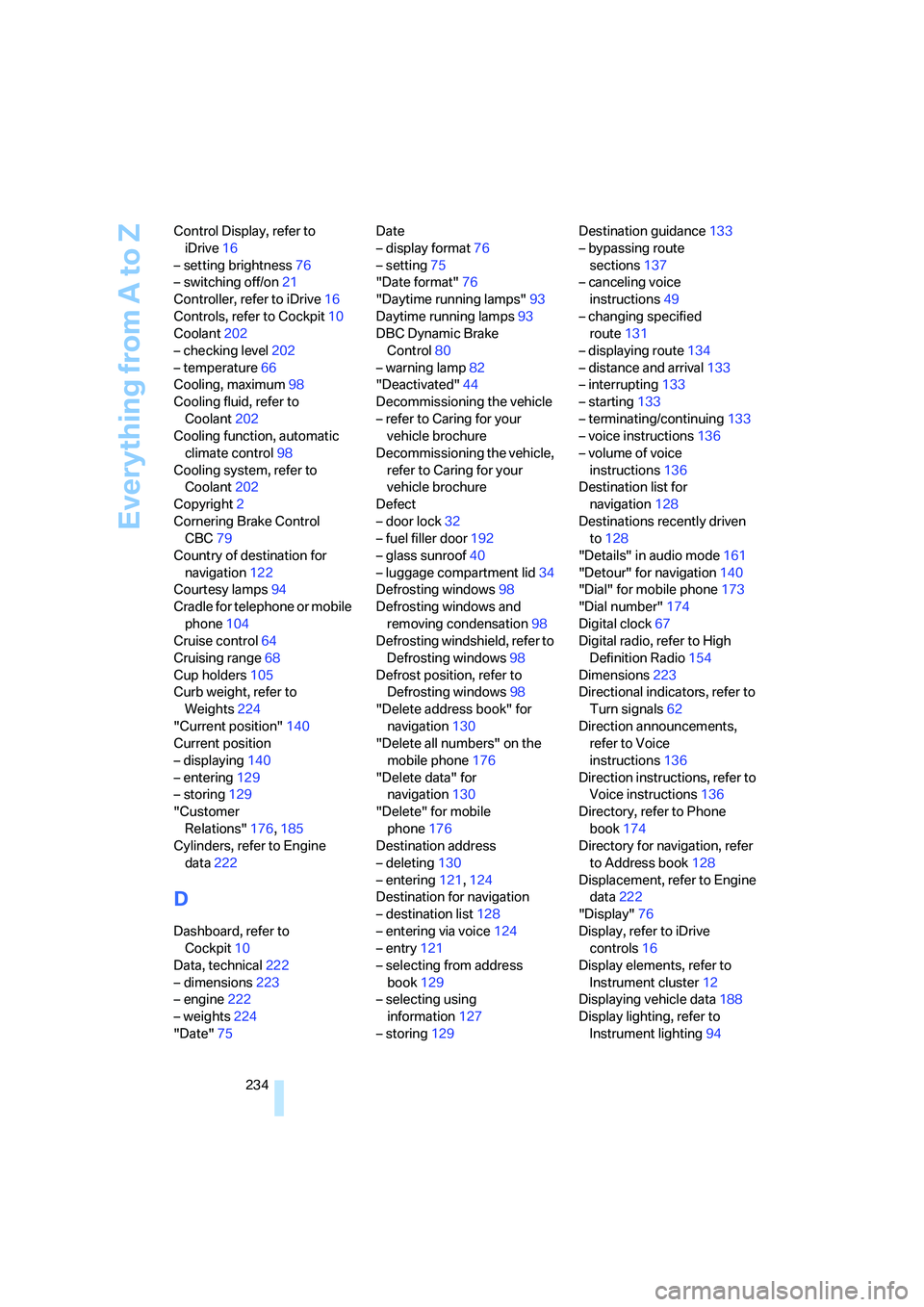

Everything from A to Z
234 Control Display, refer to
iDrive16
– setting brightness76
– switching off/on21
Controller, refer to iDrive16
Controls, refer to Cockpit10
Coolant202
– checking level202
– temperature66
Cooling, maximum98
Cooling fluid, refer to
Coolant202
Cooling function, automatic
climate control98
Cooling system, refer to
Coolant202
Copyright2
Cornering Brake Control
CBC79
Country of destination for
navigation122
Courtesy lamps94
Cradle for telephone or mobile
phone104
Cruise control64
Cruising range68
Cup holders105
Curb weight, refer to
Weights224
"Current position"140
Current position
– displaying140
– entering129
– storing129
"Customer
Relations"176,185
Cylinders, refer to Engine
data222
D
Dashboard, refer to
Cockpit10
Data, technical222
– dimensions223
– engine222
– weights224
"Date"75Date
– display format76
– setting75
"Date format"76
"Daytime running lamps"93
Daytime running lamps93
DBC Dynamic Brake
Control80
– warning lamp82
"Deactivated"44
Decommissioning the vehicle
– refer to Caring for your
vehicle brochure
Decommissioning the vehicle,
refer to Caring for your
vehicle brochure
Defect
– door lock32
– fuel filler door192
– glass sunroof40
– luggage compartment lid34
Defrosting windows98
Defrosting windows and
removing condensation98
Defrosting windshield, refer to
Defrosting windows98
Defrost position, refer to
Defrosting windows98
"Delete address book" for
navigation130
"Delete all numbers" on the
mobile phone176
"Delete data" for
navigation130
"Delete" for mobile
phone176
Destination address
– deleting130
– entering121,124
Destination for navigation
– destination list128
– entering via voice124
– entry121
– selecting from address
book129
– selecting using
information127
– storing129Destination guidance133
– bypassing route
sections137
– canceling voice
instructions49
– changing specified
route131
– displaying route
134
– distance and arrival133
– interrupting133
– starting133
– terminating/continuing133
– voice instructions136
– volume of voice
instructions136
Destination list for
navigation128
Destinations recently driven
to128
"Details" in audio mode161
"Detour" for navigation140
"Dial" for mobile phone173
"Dial number"174
Digital clock67
Digital radio, refer to High
Definition Radio154
Dimensions223
Directional indicators, refer to
Turn signals62
Direction announcements,
refer to Voice
instructions136
Direction instructions, refer to
Voice instructions136
Directory, refer to Phone
book174
Directory for navigation, refer
to Address book128
Displacement, refer to Engine
data222
"Display"76
Display, refer to iDrive
controls16
Display elements, refer to
Instrument cluster12
Displaying vehicle data188
Display lighting, refer to
Instrument lighting94

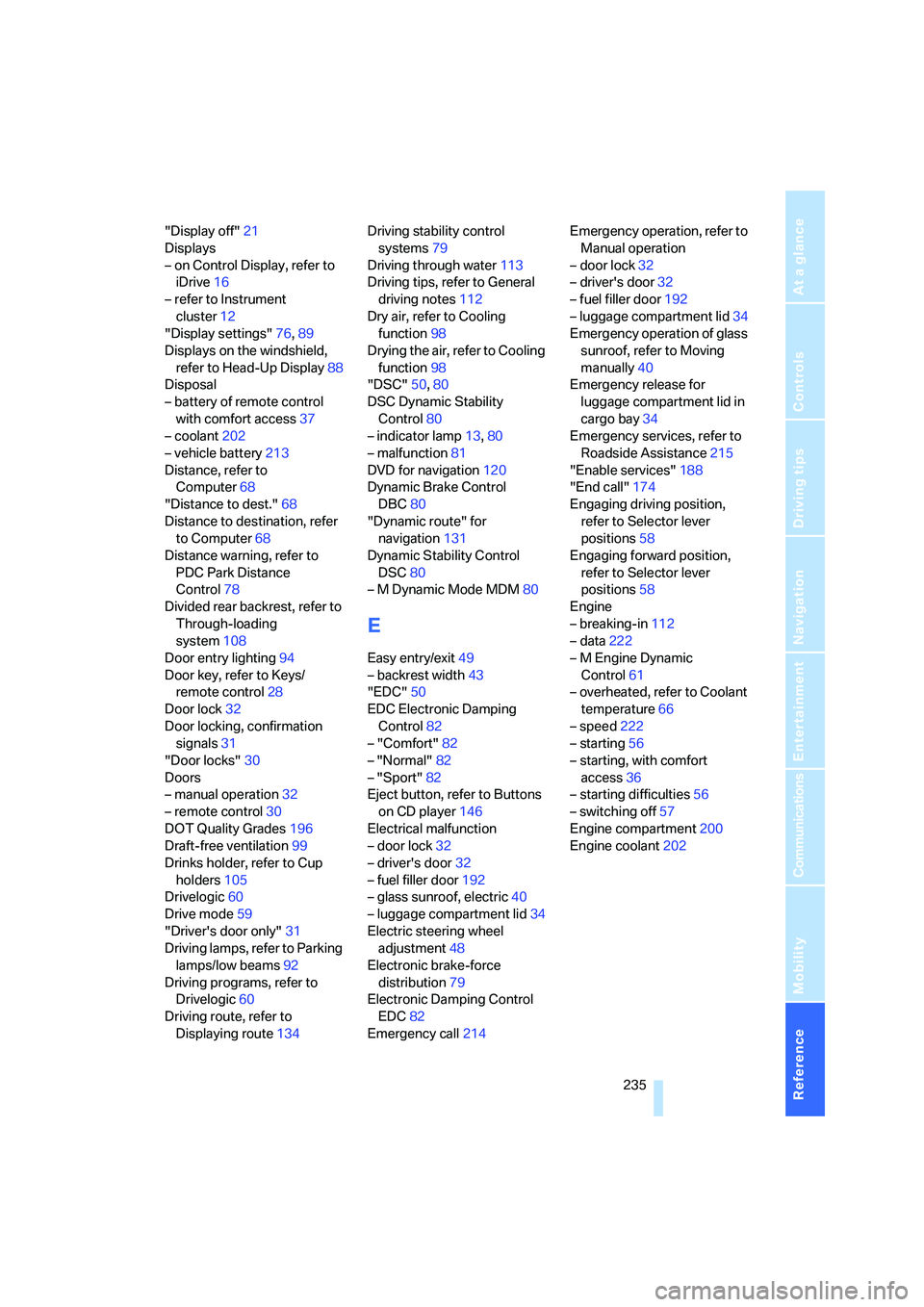

Reference 235
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Display off"21
Displays
– on Control Display, refer to
iDrive16
– refer to Instrument
cluster12
"Display settings"76,89
Displays on the windshield,
refer to Head-Up Display88
Disposal
– battery of remote control
with comfort access37
– coolant202
– vehicle battery213
Distance, refer to
Computer68
"Distance to dest."68
Distance to destination, refer
to Computer68
Distance warning, refer to
PDC Park Distance
Control78
Divided rear backrest, refer to
Through-loading
system108
Door entry lighting94
Door key, refer to Keys/
remote control28
Door lock32
Door locking, confirmation
signals31
"Door locks"30
Doors
– manual operation32
– remote control30
DOT Quality Grades196
Draft-free ventilation99
Drinks holder, refer to Cup
holders105
Drivelogic60
Drive mode59
"Driver's door only"31
Driving lamps, refer to Parking
lamps/low beams92
Driving programs, refer to
Drivelogic60
Driving route, refer to
Displaying route134Driving stability control
systems79
Driving through water113
Driving tips, refer to General
driving notes112
Dry air, refer to Cooling
function98
Drying the air, refer to Cooling
function98
"DSC"50,80
DSC Dynamic Stability
Control80
– indicator lamp13
,80
– malfunction81
DVD for navigation120
Dynamic Brake Control
DBC80
"Dynamic route" for
navigation131
Dynamic Stability Control
DSC80
– M Dynamic Mode MDM80
E
Easy entry/exit49
– backrest width43
"EDC"50
EDC Electronic Damping
Control82
– "Comfort"82
– "Normal"82
– "Sport"82
Eject button, refer to Buttons
on CD player146
Electrical malfunction
– door lock32
– driver's door32
– fuel filler door192
– glass sunroof, electric40
– luggage compartment lid34
Electric steering wheel
adjustment48
Electronic brake-force
distribution79
Electronic Damping Control
EDC82
Emergency call214Emergency operation, refer to
Manual operation
– door lock32
– driver's door32
– fuel filler door192
– luggage compartment lid34
Emergency operation of glass
sunroof, refer to Moving
manually40
Emergency release for
luggage compartment lid in
cargo bay34
Emergency services, refer to
Roadside Assistance215
"Enable services"188
"End call"174
Engaging driving position,
refer to Selector lever
positions58
Engaging forward position,
refer to Selector lever
positions58
Engine
– breaking-in112
– data222
– M Engine Dynamic
Control61
– overheated, refer to Coolant
temperature66
– speed222
– starting56
– starting, with comfort
access36
– starting difficulties56
– switching off57
Engine compartment200
Engine coolant202

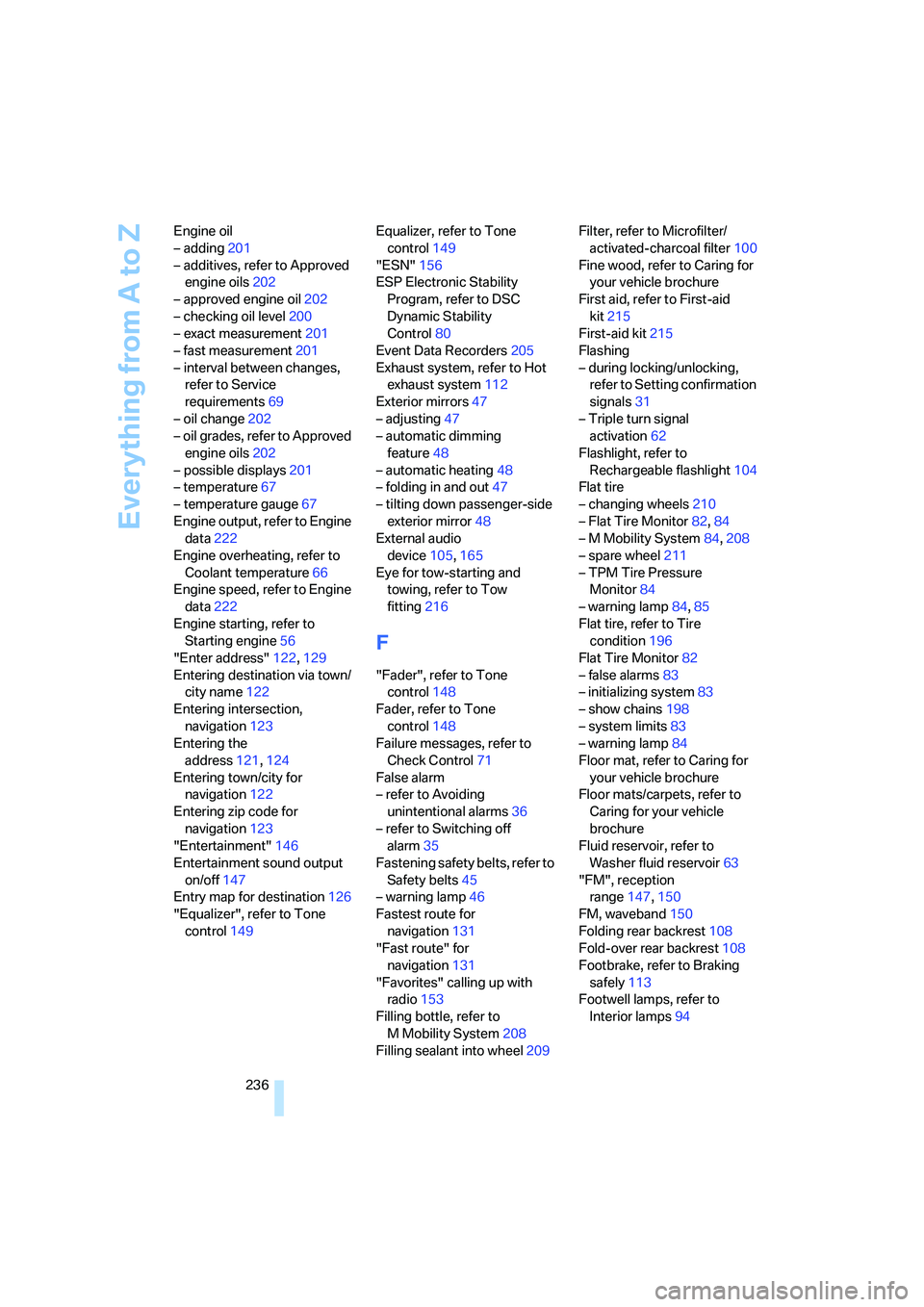

Everything from A to Z
236 Engine oil
– adding201
– additives, refer to Approved
engine oils202
– approved engine oil202
– checking oil level200
– exact measurement201
– fast measurement201
– interval between changes,
refer to Service
requirements69
– oil change202
– oil grades, refer to Approved
engine oils202
– possible displays201
– temperature67
– temperature gauge67
Engine output, refer to Engine
data222
Engine overheating, refer to
Coolant temperature66
Engine speed, refer to Engine
data222
Engine starting, refer to
Starting engine56
"Enter address"122,129
Entering destination via town/
city name122
Entering intersection,
navigation123
Entering the
address121,124
Entering town/city for
navigation122
Entering zip code for
navigation123
"Entertainment"146
Entertainment sound output
on/off147
Entry map for destination126
"Equalizer", refer to Tone
control149Equalizer, refer to Tone
control149
"ESN"156
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control80
Event Data Recorders205
Exhaust system, refer to Hot
exhaust system112
Exterior mirrors47
– adjusting47
– automatic dimming
feature48
– automatic heating48
– folding in and out47
– tilting down passenger-side
exterior mirror48
External audio
device105,165
Eye for tow-starting and
towing, refer to Tow
fitting216
F
"Fader", refer to Tone
control148
Fader, refer to Tone
control148
Failure messages, refer to
Check Control71
False alarm
– refer to Avoiding
unintentional alarms36
– refer to Switching off
alarm35
Fastening safety belts, refer to
Safety belts45
– warning lamp46
Fastest route for
navigation131
"Fast route" for
navigation131
"Favorites" calling up with
radio153
Filling bottle, refer to
M Mobility System208
Filling sealant into wheel209Filter, refer to Microfilter/
activated-charcoal filter100
Fine wood, refer to Caring for
your vehicle brochure
First aid, refer to First-aid
kit215
First-aid kit215
Flashing
– during locking/unlocking,
refer to Setting confirmation
signals31
– Triple turn signal
activation62
Flashlight, refer to
Rechargeable flashlight104
Flat tire
– changing wheels210
– Flat Tire Monitor82,84
– M Mobility System84,208
– spare wheel211
– TPM Tire Pressure
Monitor84
– warning lamp84,85
Flat tire, refer to Tire
condition196
Flat Tire Monitor82
– false alarms83
– initializing system83
– show chains198
– system limits83
– warning lamp84
Floor mat, refer to Caring for
your vehicle brochure
Floor mats/carpets, refer to
Caring for your vehicle
brochure
Fluid reservoir, refer to
Washer fluid reservoir63
"FM", reception
range147,
150
FM, waveband150
Folding rear backrest108
Fold-over rear backrest108
Footbrake, refer to Braking
safely113
Footwell lamps, refer to
Interior lamps94

Reference 237
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Forward, fast
– CD changer163
– CD player163
For your own safety5
Freeway, refer to Route
criteria131
Front airbags87
Front armrest, refer to Center
armrest, front104
Front passenger airbags,
deactivating87
Front seat adjustment42
FTM, refer to Flat Tire
Monitor82
Fuel193
– average consumption68
– display67
– high-quality brands193
– quality193
– specifications193
– tank contents, refer to
Capacities224
Fuel clock, refer to Fuel
gauge67
Fuel consumption display,
refer to Computer, average
fuel consumption68
Fuel display, refer to Fuel
gauge67
Fuel filler door192
– releasing in the event of
electrical malfunction192
Full mobile phone preparation
package168
Full screen display, refer to
Switching assistance
window off21
Fuses213
G
Garage door opener, refer to
Integrated universal remote
control102
Gasoline, refer to Required
fuel193
Gasoline display, refer to Fuel
gauge67Gear changes59
Gear display, refer to Displays
in instrument cluster59
Gearshift lever58
– manual transmission57
Gearshift lever, manual
transmission57
Gearshift lever positions,
manual transmission57
General driving notes112
Glass sunroof, electric38
– comfort operation from
outside32
– comfort operation with
comfort access37
– moving manually40
– remote control31
Glove compartment103
– lighting103
– rechargeable flashlight104
GPS navigation, refer to
Navigation system120
Grills, refer to Ventilation99
Gross vehicle weight, refer to
Weights224
Ground clearance114
H
Handbrake57
– indicator lamp13,57
Hand lamp, refer to
Rechargeable flashlight104
Hands-free system, refer to
Microphone14
Hazard warning flashers15
"HD radio"154
HD radio, refer to High
Definition Radio154
Head airbags87
Headlamp control,
automatic92
Headlamp flasher62Headlamps92
– care, refer to Caring for your
vehicle brochure
– cleaning, refer to Wiper
system62
– cleaning tank, refer to
Capacities224
– reservoir for washer
fluid200
Head Light, refer to Adaptive
Head Light93
Head restraints44
– front head restraints,
active45
– installing45
– removing45
– sitting safely41
"Head-Up Display"50,89
Head-Up Display88
– default view89
– M view88
– shift lights60
Heated
– mirrors48
– rear window98
– seats46
Heating96
– exterior mirrors48
– interior96
– rear window98
– residual heat99
– seats46
Heating with engine switched
off, refer to Residual heat99
Heavy cargo, refer to Securing
cargo116
Height, refer to
Dimensions223

Everything from A to Z
238 Height adjustment
– seats42
– steering wheel48
High beams94
– headlamp flasher94
– indicator lamp13
High Definition Radio154
High water, refer to Driving
through water113
Hills114
Holder for cups105
"Home address" for
navigation130
Homepage of BMW4
Hood199
Horn10
Hot exhaust system112
"Hour memo"75
"House number" for
destination entry124
Hydraulic brake assistant,
refer to DBC Dynamic Brake
Control80
Hydroplaning113
I
IBOC, refer to High Definition
Radio154
Ice, refer to Outside
temperature warning67
ID3 tag, refer to Information on
track161
Identification marks
– recommended tire
brands198
– tire coding195
Idle58iDrive16
– assistance window20
– automatic climate control
with expanded scope97
– changing date and time74
– changing language76
– changing menu page19
– changing settings74
– changing units of measure
and display type76
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– operating principle17
– selecting menu item19
– setting brightness76
– start menu17
– status information20
– symbols18
Ignition55
– switched off56
– switched on55
Ignition key, refer to Keys/
remote control28
Ignition key position 1, refer to
Radio readiness55
Ignition key position 2, refer to
Ignition on55
Ignition lock55
– starting engine with comfort
access37
i menu17
Imprint2
Indicator/warning lamps
– ABS Antilock Brake
System81
– airbags88
– brake system81
– DSC13,80
– Flat Tire Monitor84
– high beams13
– MDrive13,51
– M Dynamic Mode
13,80
– parking lamps/low beams13
– safety belt warning46
– TPM Tire Pressure
Monitor85Indicator and warning
lamps13
Inflation pressure, refer to Tire
inflation pressure194
Inflation pressure monitoring,
refer to Flat Tire Monitor82
Inflation pressure monitoring,
refer to TPM Tire Pressure
Monitor84
Info menu17
Information
– on another location127
– on current position127
– on destination location127
"Information" for
navigation127
Information menu, refer to
imenu17
"Information on
destination"128
Information service185
"Info sources"70
Initializing
– Flat Tire Monitor83
– radio, refer to Storing
stations152
– refer to Power failure213
– refer to Setting time and
date74
– seat, mirror and steering
wheel memory43
"Input map"126
Installation location
– CD changer163
– drive for navigation DVD120
– mobile phone104
Instructions for navigation
system, refer to Voice
instructions136
Instrument cluster12
Instrument illumination, refer
to Instrument lighting94
Instrument lighting94
