Engine oil thermometer
The general operating temperature lies
between 1757/806 and 2507/1206. Do
not exceed a value of approx. 2657/1306.
If the engine oil temperature is too high, the per-
missible engine speed, and with it the available
engine output is reduced.
Fuel gauge
Fuel tank capacity: approx. 18.5 gallons/
70 liters. You will find information on refueling
on page192.
If the tilt of the vehicle varies for a longer period,
when you are driving in mountainous areas, for
example, the indicator may fluctuate slightly.
Reserve
After the reserve quantity has been reached, a
message briefly appears on the Control Display;
the remaining range is shown in the computer.
Below a range of approx. 30 miles/50 km, the
message remains on the Control Display.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur.<
Computer
Displays in instrument cluster
To display the information, press the BC button
on the turn signal lever.
The following information is displayed in the
specified order:
>Time and outside temperature
>Cruising range
>Average fuel consumption
>Oil level, refer to Checking engine oil level
on page200
Manual transmission:
The cruising range, average fuel con-
sumption and oil level are shown in the lower
display in place of the gear indicator.
It is possible to change between the time and
data display by pressing the CHECK button.<
Time
Setting the time, refer to page74.
Outside temperature warning
If the display drops to +377/+36, a signal
sounds and a warning lamp lights up. A mes-
sage appears on the Control Display. There is
an increased danger of ice.
Even at temperatures above +377/
+36 ice can form. Therefore, drive care-
fully, e.g. on bridges and sections of road in the
shade, otherwise there is an increased accident
risk.<
You can set the unit of measure 7 or 6 on the
Control Display, refer to Units of measure on
page76.

Mobility
201Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

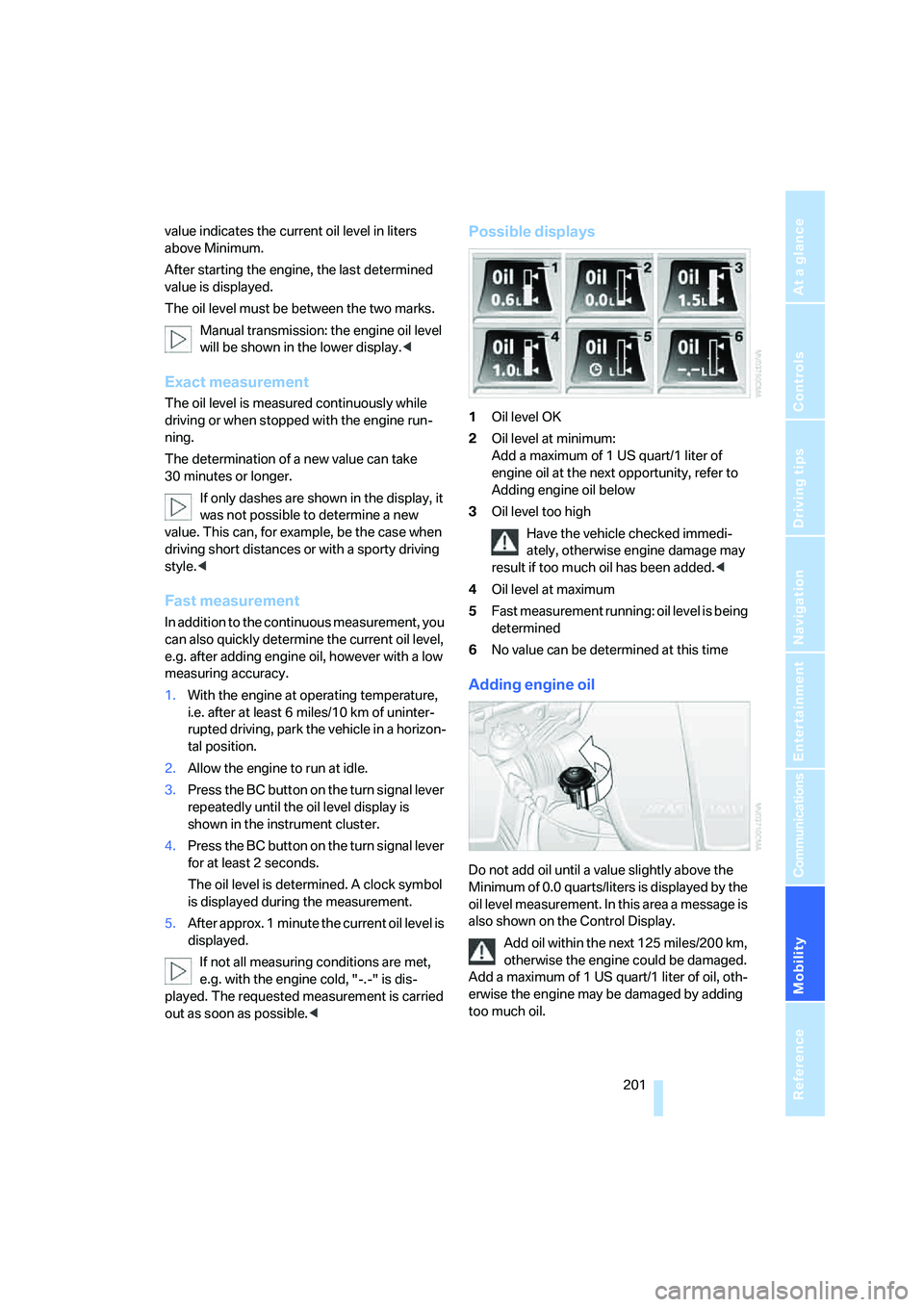

value indicates the current oil level in liters
above Minimum.
After starting the engine, the last determined
value is displayed.
The oil level must be between the two marks.
Manual transmission: the engine oil level
will be shown in the lower display.<
Exact measurement
The oil level is measured continuously while
driving or when stopped with the engine run-
ning.
The determination of a new value can take
30 minutes or longer.
If only dashes are shown in the display, it
was not possible to determine a new
value. This can, for example, be the case when
driving short distances or with a sporty driving
style.<
Fast measurement
In addition to the continuous measurement, you
can also quickly determine the current oil level,
e.g. after adding engine oil, however with a low
measuring accuracy.
1.With the engine at operating temperature,
i.e. after at least 6 miles/10 km of uninter-
rupted driving, park the vehicle in a horizon-
tal position.
2.Allow the engine to run at idle.
3.Press the BC button on the turn signal lever
repeatedly until the oil level display is
shown in the instrument cluster.
4.Press the BC button on the turn signal lever
for at least 2 seconds.
The oil level is determined. A clock symbol
is displayed during the measurement.
5.After approx. 1 minute the current oil level is
displayed.
If not all measuring conditions are met,
e.g. with the engine cold, "-.-" is dis-
played. The requested measurement is carried
out as soon as possible.<
Possible displays
1Oil level OK
2Oil level at minimum:
Add a maximum of 1 US quart/1 liter of
engine oil at the next opportunity, refer to
Adding engine oil below
3Oil level too high
Have the vehicle checked immedi-
ately, otherwise engine damage may
result if too much oil has been added.<
4Oil level at maximum
5Fast measurement running: oil level is being
determined
6No value can be determined at this time
Adding engine oil
Do not add oil until a value slightly above the
Minimum of 0.0 quarts/liters is displayed by the
oil level measurement. In this area a message is
also shown on the Control Display.
Add oil within the next 125 miles/200 km,
otherwise the engine could be damaged.
Add a maximum of 1 US quart/1 liter of oil, oth-
erwise the engine may be damaged by adding
too much oil.

Under the hood

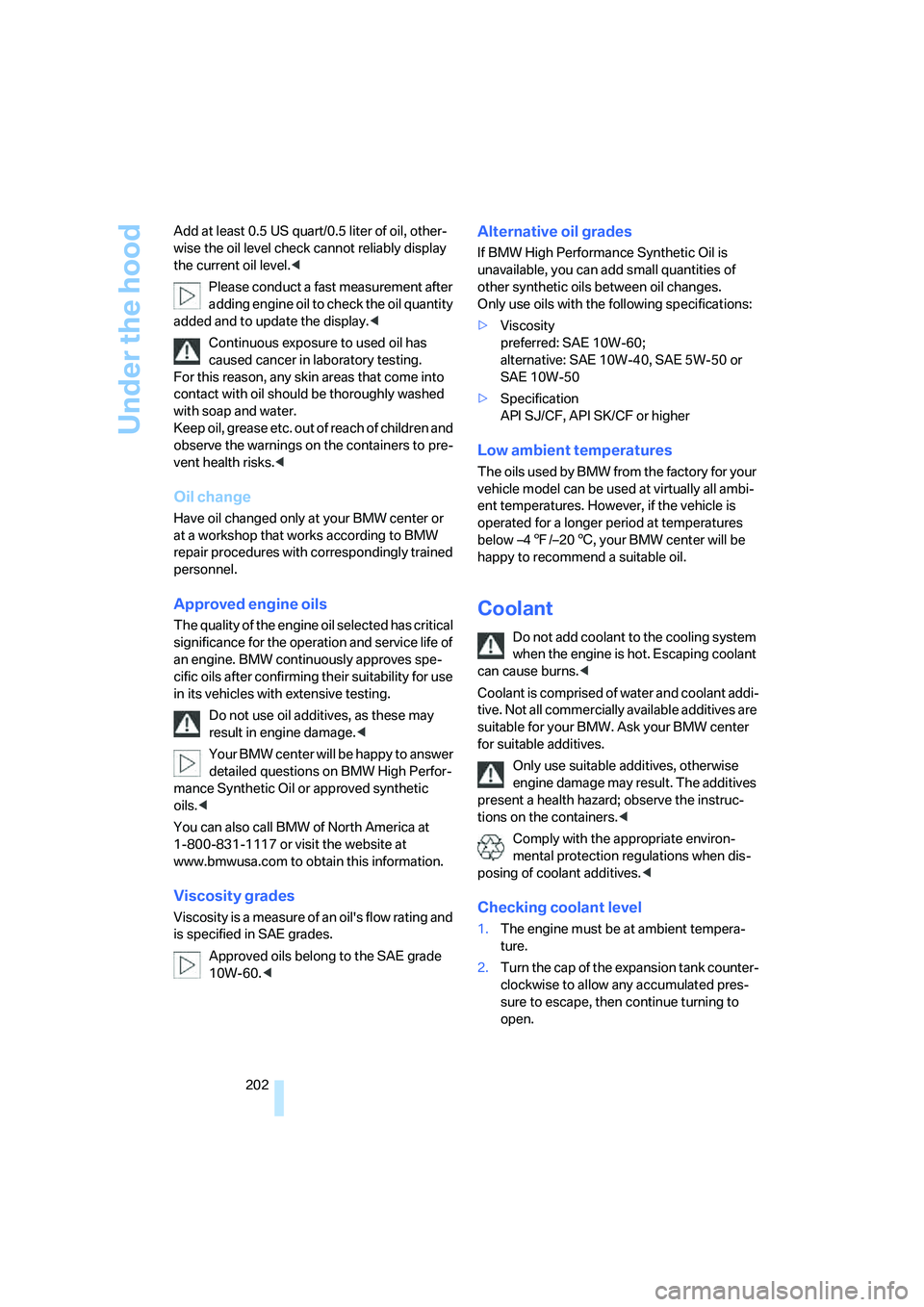

202 Add at least 0.5 US quart/0.5 liter of oil, other-
wise the oil level check cannot reliably display
the current oil level.<
Please conduct a fast measurement after
adding engine oil to check the oil quantity
added and to update the display.<
Continuous exposure to used oil has
caused cancer in laboratory testing.
For this reason, any skin areas that come into
contact with oil should be thoroughly washed
with soap and water.
Keep oil, grease etc. out of reach of children and
observe the warnings on the containers to pre-
vent health risks.<
Oil change
Have oil changed only at your BMW center or
at a workshop that works according to BMW
repair procedures with correspondingly trained
personnel.
Approved engine oils
The quality of the engine oil selected has critical
significance for the operation and service life of
an engine. BMW continuously approves spe-
cific oils after confirming their suitability for use
in its vehicles with extensive testing.
Do not use oil additives, as these may
result in engine damage.<
Your BMW center will be happy to answer
detailed questions on BMW High Perfor-
mance Synthetic Oil or approved synthetic
oils.<
You can also call BMW of North America at
1-800-831-1117 or visit the website at
www.bmwusa.com to obtain this information.
Viscosity grades
Viscosity is a measure of an oil's flow rating and
is specified in SAE grades.
Approved oils belong to the SAE grade
10W-60.<
Alternative oil grades
If BMW High Performance Synthetic Oil is
unavailable, you can add small quantities of
other synthetic oils between oil changes.
Only use oils with the following specifications:
>Viscosity
preferred: SAE 10W-60;
alternative: SAE 10W-40, SAE 5W-50 or
SAE 10W-50
>Specification
API SJ/CF, API SK/CF or higher
Low ambient temperatures
The oils used by BMW from the factory for your
vehicle model can be used at virtually all ambi-
ent temperatures. However, if the vehicle is
operated for a longer period at temperatures
below –47/–206, your BMW center will be
happy to recommend a suitable oil.
Coolant
Do not add coolant to the cooling system
when the engine is hot. Escaping coolant
can cause burns.<
Coolant is comprised of water and coolant addi-
tive. Not all commercially available additives are
suitable for your BMW. Ask your BMW center
for suitable additives.
Only use suitable additives, otherwise
engine damage may result. The additives
present a health hazard; observe the instruc-
tions on the containers.<
Comply with the appropriate environ-
mental protection regulations when dis-
posing of coolant additives.<
Checking coolant level
1.The engine must be at ambient tempera-
ture.
2.Turn the cap of the expansion tank counter-
clockwise to allow any accumulated pres-
sure to escape, then continue turning to
open.

Everything from A to Z
230
Everything from A to Z
Index
"..." Identifies Control Display
texts used to select
individual functions, and
indicates where to find them
in the text.
A
ABS Antilock Brake
System79
– indicator/warning lamp81
Accepted calls174
Accessories6
Accident, refer to Emergency
call214
Acoustic signal, refer to Check
Control71
Activated-charcoal filter for
automatic climate
control100
"Activation time" for parked
car ventilation100
Active head restraints,
front45
"Active seat back"50
Active seat ventilation47
Adapter for spare key28
Adaptive brake lamps, refer to
Brake force display86
Adaptive Head Light93
"Add digits" for mobile
phone175
Additives
– coolant202
– engine oil, refer to Approved
engine oils202
"Address book" for
navigation128Address for navigation
– deleting130
– entering121,124
– selecting129
– storing129
– storing current position129
"Add to address book"128
"Add to destination
list"124,126
Adjusting active backrest
width43
Adjusting interior
temperature97
Adjusting the tone during
audio operation, refer to
Tone control147
Adjusting thigh support42
Adjustment in audio mode
– front/rear balance148
– right/left balance148
"After door opened"44
"After unlocking"44
Airbags87
– indicator/warning lamp88
– indicator lamp for front
passenger airbags88
– sitting safely41
Air distribution
– automatic97
– manual98
Airing, refer to Ventilation99
Air recirculation
– AUC Automatic
recirculated-air control99
– recirculated-air mode99
"Air recirculation on / off"49
Air supply, automatic climate
control96
Air volume98
AKI, refer to Fuel quality193Alarm system35
– avoiding unintentional
alarms36
– interior motion sensor35
– switching off alarm35
– switching off tilt alarm
sensor and interior motion
sensor36
– tilt alarm sensor35
"All channels"156
"All doors"31
All-season tires, refer to
Winter tires198
"All stations" calling up with
radio150,153
Alterations, technical, refer to
For your own safety5
Altering stretch of road137
Alternate route, refer to
Bypassing traffic
congestion140
"AM", reception
range147,150
Antenna, refer to Caring for
your vehicle brochure
Antenna for mobile phone168
Antifreeze
– coolant202
– washer fluid63
Antilock Brake System
ABS79
– indicator/warning lamp81
Anti-theft alarm system, refer
to Alarm system35
Anti-theft system, refer to
Central locking system30
Approved axle loads, refer to
Weights224
Approved engine oils202
Approved gross vehicle
weight, refer to Weights224
Armrest, refer to Center
armrest, rear107

Everything from A to Z
236 Engine oil
– adding201
– additives, refer to Approved
engine oils202
– approved engine oil202
– checking oil level200
– exact measurement201
– fast measurement201
– interval between changes,
refer to Service
requirements69
– oil change202
– oil grades, refer to Approved
engine oils202
– possible displays201
– temperature67
– temperature gauge67
Engine output, refer to Engine
data222
Engine overheating, refer to
Coolant temperature66
Engine speed, refer to Engine
data222
Engine starting, refer to
Starting engine56
"Enter address"122,129
Entering destination via town/
city name122
Entering intersection,
navigation123
Entering the
address121,124
Entering town/city for
navigation122
Entering zip code for
navigation123
"Entertainment"146
Entertainment sound output
on/off147
Entry map for destination126
"Equalizer", refer to Tone
control149Equalizer, refer to Tone
control149
"ESN"156
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control80
Event Data Recorders205
Exhaust system, refer to Hot
exhaust system112
Exterior mirrors47
– adjusting47
– automatic dimming
feature48
– automatic heating48
– folding in and out47
– tilting down passenger-side
exterior mirror48
External audio
device105,165
Eye for tow-starting and
towing, refer to Tow
fitting216
F
"Fader", refer to Tone
control148
Fader, refer to Tone
control148
Failure messages, refer to
Check Control71
False alarm
– refer to Avoiding
unintentional alarms36
– refer to Switching off
alarm35
Fastening safety belts, refer to
Safety belts45
– warning lamp46
Fastest route for
navigation131
"Fast route" for
navigation131
"Favorites" calling up with
radio153
Filling bottle, refer to
M Mobility System208
Filling sealant into wheel209Filter, refer to Microfilter/
activated-charcoal filter100
Fine wood, refer to Caring for
your vehicle brochure
First aid, refer to First-aid
kit215
First-aid kit215
Flashing
– during locking/unlocking,
refer to Setting confirmation
signals31
– Triple turn signal
activation62
Flashlight, refer to
Rechargeable flashlight104
Flat tire
– changing wheels210
– Flat Tire Monitor82,84
– M Mobility System84,208
– spare wheel211
– TPM Tire Pressure
Monitor84
– warning lamp84,85
Flat tire, refer to Tire
condition196
Flat Tire Monitor82
– false alarms83
– initializing system83
– show chains198
– system limits83
– warning lamp84
Floor mat, refer to Caring for
your vehicle brochure
Floor mats/carpets, refer to
Caring for your vehicle
brochure
Fluid reservoir, refer to
Washer fluid reservoir63
"FM", reception
range147,
150
FM, waveband150
Folding rear backrest108
Fold-over rear backrest108
Footbrake, refer to Braking
safely113
Footwell lamps, refer to
Interior lamps94

Reference 241
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

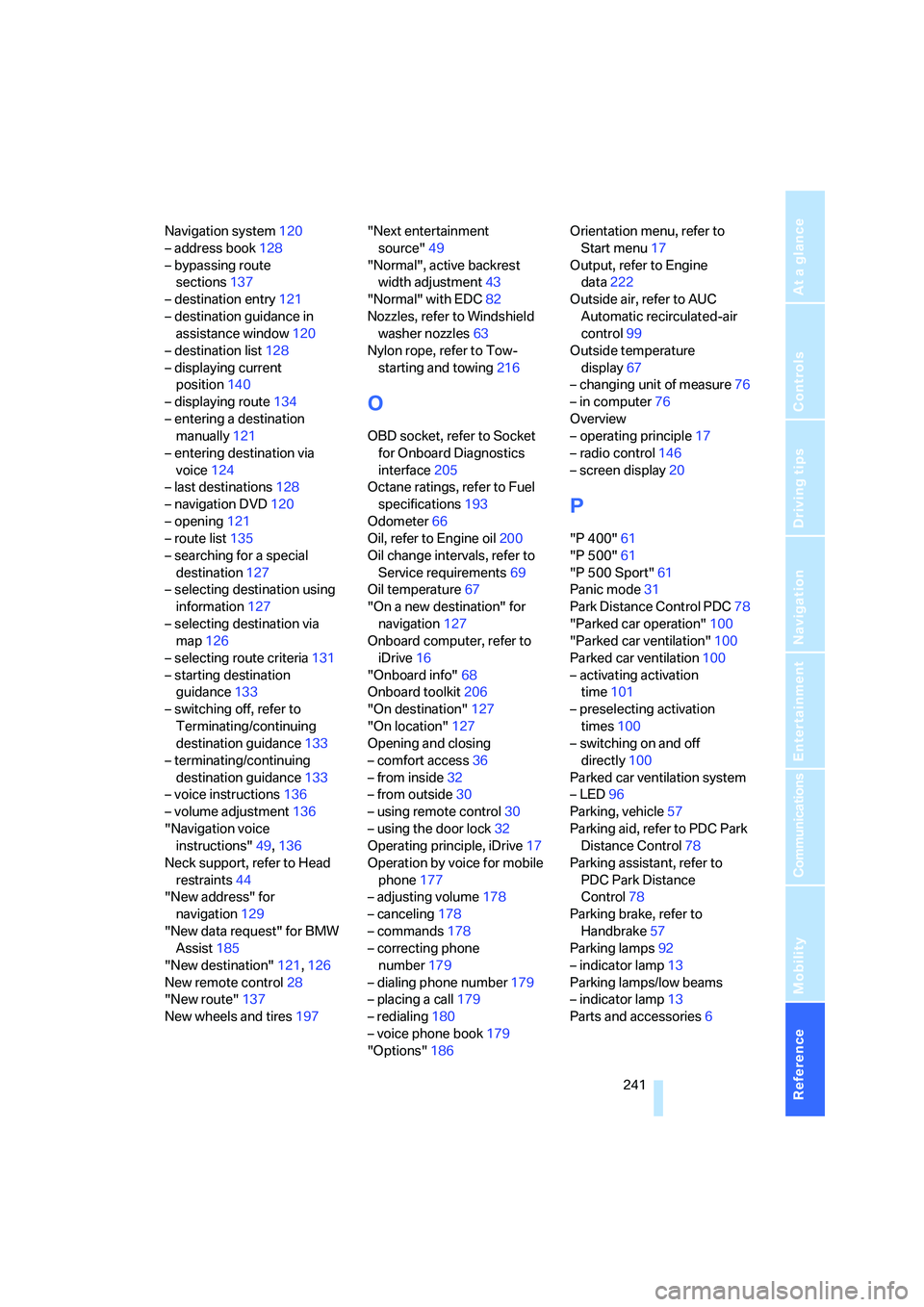

Navigation system120
– address book128
– bypassing route
sections137
– destination entry121
– destination guidance in
assistance window120
– destination list128
– displaying current
position140
– displaying route134
– entering a destination
manually121
– entering destination via
voice124
– last destinations128
– navigation DVD120
– opening121
– route list135
– searching for a special
destination127
– selecting destination using
information127
– selecting destination via
map126
– selecting route criteria131
– starting destination
guidance133
– switching off, refer to
Terminating/continuing
destination guidance133
– terminating/continuing
destination guidance133
– voice instructions136
– volume adjustment136
"Navigation voice
instructions"49,136
Neck support, refer to Head
restraints44
"New address" for
navigation129
"New data request" for BMW
Assist185
"New destination"121,126
New remote control28
"New route"137
New wheels and tires197"Next entertainment
source"49
"Normal", active backrest
width adjustment43
"Normal" with EDC82
Nozzles, refer to Windshield
washer nozzles63
Nylon rope, refer to Tow-
starting and towing216
O
OBD socket, refer to Socket
for Onboard Diagnostics
interface205
Octane ratings, refer to Fuel
specifications193
Odometer66
Oil, refer to Engine oil200
Oil change intervals, refer to
Service requirements69
Oil temperature67
"On a new destination" for
navigation127
Onboard computer, refer to
iDrive16
"Onboard info"68
Onboard toolkit206
"On destination"127
"On location"127
Opening and closing
– comfort access36
– from inside32
– from outside30
– using remote control30
– using the door lock32
Operating principle, iDrive17
Operation by voice for mobile
phone177
– adjusting volume178
– canceling178
– commands178
– correcting phone
number179
– dialing phone number179
– placing a call179
– redialing180
– voice phone book179
"Options"186Orientation menu, refer to
Start menu17
Output, refer to Engine
data222
Outside air, refer to AUC
Automatic recirculated-air
control99
Outside temperature
display67
– changing unit of measure76
– in computer76
Overview
– operating principle17
– radio control146
– screen display20
P
"P 400"61
"P 500"61
"P 500 Sport"61
Panic mode31
Park Distance Control PDC78
"Parked car operation"100
"Parked car ventilation"100
Parked car ventilation100
– activating activation
time101
– preselecting activation
times100
– switching on and off
directly100
Parked car ventilation system
– LED96
Parking, vehicle57
Parking aid, refer to PDC Park
Distance Control78
Parking assistant, refer to
PDC Park Distance
Control78
Parking brake, refer to
Handbrake57
Parking lamps92
– indicator lamp13
Parking lamps/low beams
– indicator lamp13
Parts and accessories6

Everything from A to Z
246 Swiveling headlamps, refer to
Adaptive Head Light93
Symbols4
– indicator/warning lamps13
– navigation system139
– status information20
– traffic information with
navigation system137
T
Tachometer66
Tail lamps207
– replacing bulbs207
Tank contents, refer to
Capacities224
Target cursor for
navigation126
Technical alterations, refer to
For your own safety5
Technical data222
– capacities224
– dimensions223
Telematics, refer to
BMW Assist182
Telephone
– installation location, refer to
Center armrest104
– refer to Mobile phone168
"Telephone list"49
TeleService184
Temperature
– adjusting in upper body
region97
– adjusting with automatic
climate control97
– changing units of
measure76
– refer to Coolant
temperature66
Temperature display
– changing units of
measure76
– outside temperature66
– outside temperature
warning67
Temperature gauge, engine
oil67Tempomat, refer to Cruise
control64
"Terminate services"187
"Text language"77
"Theater", refer to Tone
control148
The individual vehicle5
Third brake lamp, refer to
Center brake lamp207
Through-loading system108
Tightening torque of the lug
bolts, refer to After
mounting212
Tilt alarm sensor35
– switching off36
Tilting down passenger-side
exterior mirror48
"Time"75
"Time / Date"74
"Time format"75
Timer, refer to Preselecting
activation times100
"Timer 1" for parked car
ventilation101
"Timer 2" for parked car
ventilation101
Tire inflation pressures194
Tire pressure loss84
Tire Pressure Monitor
TPM84
Tire Quality Grading196
Tire replacement, new wheels
and tires197Tires
– age195
– air loss84,85
– breaking-in112
– changing197
– condition196
– damage197
– flat tire, refer to Changing
wheels210
– inflation pressure194
– M Mobility System208
– new wheels and tires197
– pressure monitoring, refer to
Flat Tire Monitor82
– pressure monitoring, refer to
TPM Tire Pressure
Monitor84
– replacing210
– retreaded tires197
– size195
– tread196
– wear indicators196
– wheel/tire combination197
– winter tires198
"Tires, FTM"83
Tire trouble
– changing wheels210
"Tone"147
Tone dialing method176
Tone in audio mode
– adjusting147
– middle setting149
Tone on locking/unlocking31
Tools, refer to Onboard
toolkit206
"Top 8" for mobile phone174
Torque
– lug bolts, refer to After
mounting212
– refer to Engine data222
Touch tone dialing, refer to
Tone dialing method176
Tow bar217
Tow fitting216
