BMW M6 CONVERTIBLE 2014 F12M Owner's Manual

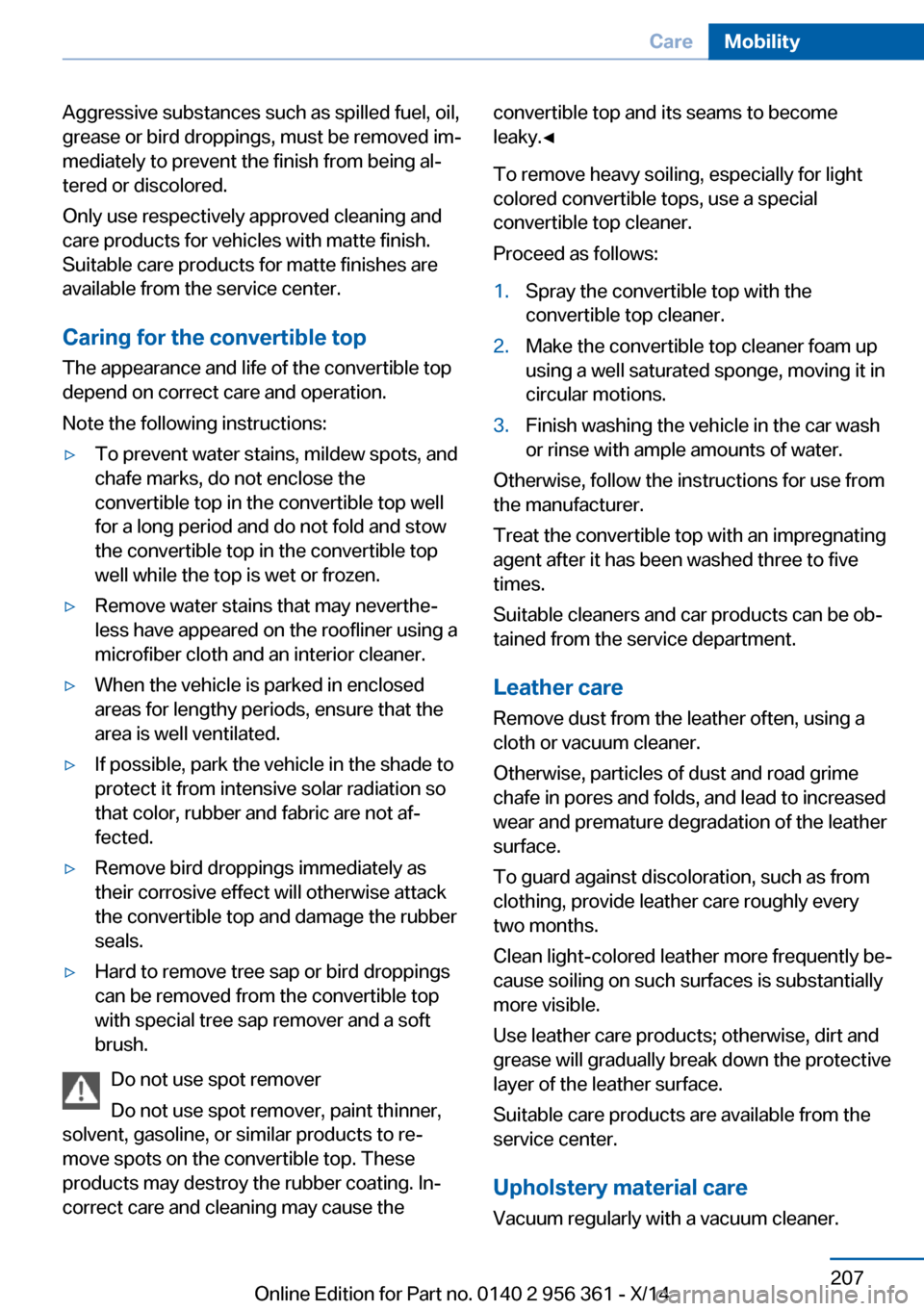

Aggressive substances such as spilled fuel, oil,
grease or bird droppings, must be removed im‐
mediately to prevent the finish from being al‐
tered or discolored.
Only use respectively approved cleaning and
care products for vehicles with matte finish.
Suitable care products for matte finishes are
available from the service center.
Caring for the convertible top
The appearance and life of the convertible top
depend on correct care and operation.
Note the following instructions:▷To prevent water stains, mildew spots, and
chafe marks, do not enclose the
convertible top in the convertible top well
for a long period and do not fold and stow
the convertible top in the convertible top
well while the top is wet or frozen.▷Remove water stains that may neverthe‐
less have appeared on the roofliner using a
microfiber cloth and an interior cleaner.▷When the vehicle is parked in enclosed
areas for lengthy periods, ensure that the
area is well ventilated.▷If possible, park the vehicle in the shade to
protect it from intensive solar radiation so
that color, rubber and fabric are not af‐
fected.▷Remove bird droppings immediately as
their corrosive effect will otherwise attack
the convertible top and damage the rubber
seals.▷Hard to remove tree sap or bird droppings
can be removed from the convertible top
with special tree sap remover and a soft
brush.
Do not use spot remover
Do not use spot remover, paint thinner,
solvent, gasoline, or similar products to re‐
move spots on the convertible top. These
products may destroy the rubber coating. In‐
correct care and cleaning may cause the
convertible top and its seams to become
leaky.◀
To remove heavy soiling, especially for light
colored convertible tops, use a special
convertible top cleaner.
Proceed as follows:1.Spray the convertible top with the
convertible top cleaner.2.Make the convertible top cleaner foam up
using a well saturated sponge, moving it in
circular motions.3.Finish washing the vehicle in the car wash
or rinse with ample amounts of water.
Otherwise, follow the instructions for use from
the manufacturer.
Treat the convertible top with an impregnating
agent after it has been washed three to five
times.
Suitable cleaners and car products can be ob‐
tained from the service department.
Leather care
Remove dust from the leather often, using a
cloth or vacuum cleaner.
Otherwise, particles of dust and road grime
chafe in pores and folds, and lead to increased wear and premature degradation of the leather
surface.
To guard against discoloration, such as from
clothing, provide leather care roughly every
two months.
Clean light-colored leather more frequently be‐
cause soiling on such surfaces is substantially
more visible.
Use leather care products; otherwise, dirt and
grease will gradually break down the protective
layer of the leather surface.
Suitable care products are available from the
service center.
Upholstery material care Vacuum regularly with a vacuum cleaner.
Seite 207CareMobility207
Online Edition for Part no. 0140 2 956 361 - X/14

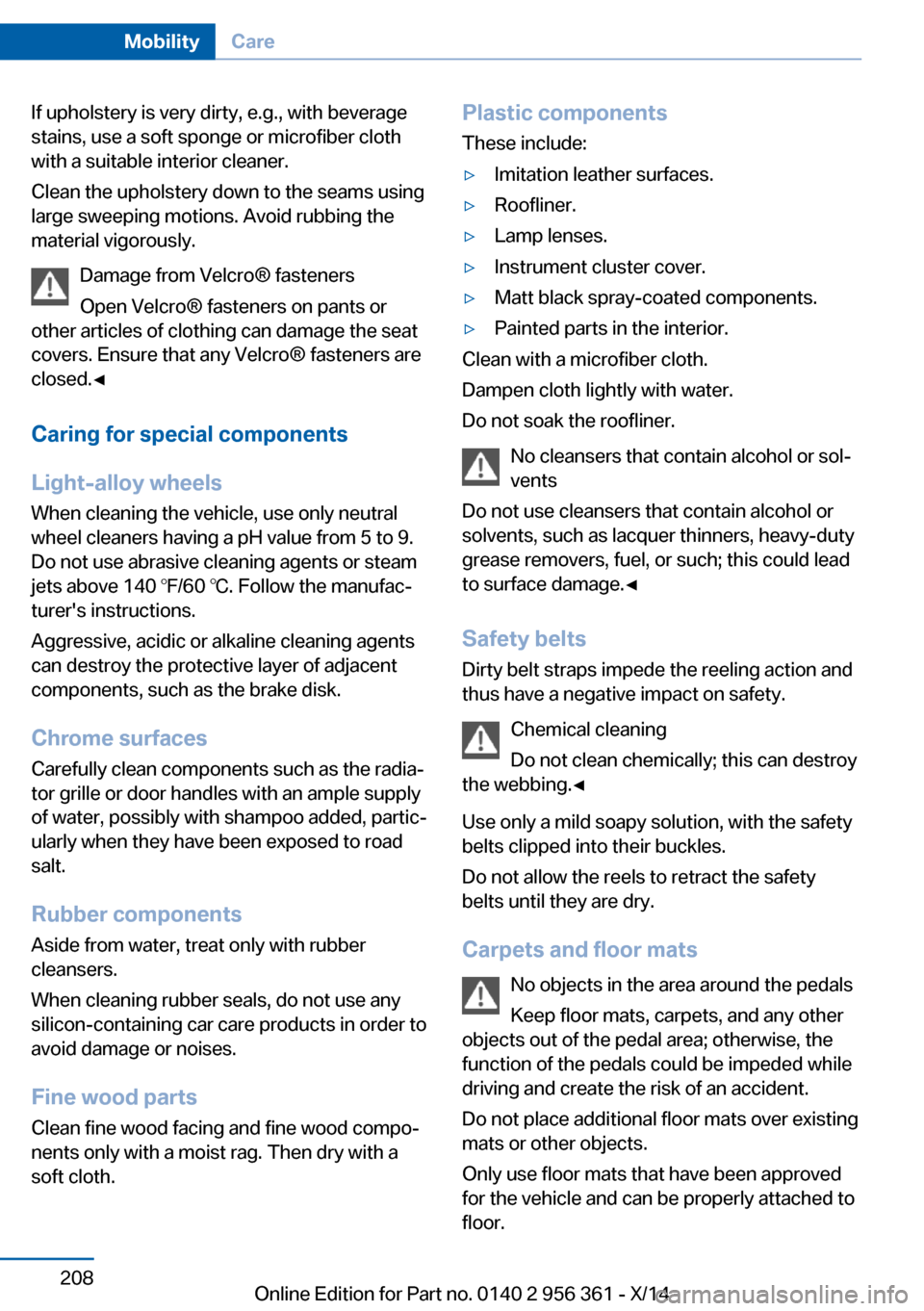

If upholstery is very dirty, e.g., with beverage
stains, use a soft sponge or microfiber cloth
with a suitable interior cleaner.
Clean the upholstery down to the seams using
large sweeping motions. Avoid rubbing the
material vigorously.
Damage from Velcro® fasteners
Open Velcro® fasteners on pants or
other articles of clothing can damage the seat
covers. Ensure that any Velcro® fasteners are
closed.◀
Caring for special components
Light-alloy wheels When cleaning the vehicle, use only neutral
wheel cleaners having a pH value from 5 to 9.
Do not use abrasive cleaning agents or steam
jets above 140 ℉/60 ℃. Follow the manufac‐
turer's instructions.
Aggressive, acidic or alkaline cleaning agents
can destroy the protective layer of adjacent
components, such as the brake disk.
Chrome surfaces Carefully clean components such as the radia‐
tor grille or door handles with an ample supply of water, possibly with shampoo added, partic‐
ularly when they have been exposed to road
salt.
Rubber components Aside from water, treat only with rubber
cleansers.
When cleaning rubber seals, do not use any
silicon-containing car care products in order to
avoid damage or noises.
Fine wood parts
Clean fine wood facing and fine wood compo‐
nents only with a moist rag. Then dry with a
soft cloth.Plastic components
These include:▷Imitation leather surfaces.▷Roofliner.▷Lamp lenses.▷Instrument cluster cover.▷Matt black spray-coated components.▷Painted parts in the interior.
Clean with a microfiber cloth.
Dampen cloth lightly with water.
Do not soak the roofliner.
No cleansers that contain alcohol or sol‐
vents
Do not use cleansers that contain alcohol or
solvents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead
to surface damage.◀
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety
belts until they are dry.
Carpets and floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the pedal area; otherwise, the
function of the pedals could be impeded while
driving and create the risk of an accident.
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly attached to
floor.
Seite 208MobilityCare208
Online Edition for Part no. 0140 2 956 361 - X/14

Ensure that the floor mats are securely fas‐
tened again after they were removed for clean‐
ing, e.g.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensors/cameras
To clean sensors and cameras, use a cloth
moistened with a small amount of glass
cleaner.
Displays/monitors Cleaning displays and screens
Do not use any chemical or household
cleaning agents; otherwise, surfaces can be af‐
fected.◀
Keeping out moisture
Keep all fluids and moisture away from
the unit; otherwise, electrical components can
be damaged.◀
Avoid pressure
Avoid pressing too hard when cleaning
and do not use abrasive materials; otherwise,
damage can result.◀
Clean with a clean, antistatic microfiber cloth.
Long-term When the vehicle is shut down for longer than
three months, special measures must be
taken. Additional information is available from
the service center.Seite 209CareMobility209
Online Edition for Part no. 0140 2 956 361 - X/14

Online Edition for Part no. 0140 2 956 361 - X/14

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 0140 2 956 361 - X/14

Technical dataVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are notnecessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
Note
The technical data and specifications in this
Owner's Manual are used as guidance values.
The vehicle-specific data can deviate from this,
for example, due to the selected special equip‐
ment, country version or country-specific
measurement method. Detailed values can befound in the approval documents, on informa‐
tion signs on the vehicle or can be obtained
from the service center.
The information in the vehicle documents al‐
ways has priority.
Dimensions
Note
The dimensions can vary depending on the
model version, equipment or country-specific
measurement method.
The specified heights do not take into account
attached parts, for example, a roof antenna,roof racks or spoiler. The heights can deviate,
for example, due to the selected special equip‐
ment, tires, load and chassis version. BMW M6 ConvertibleWidth with mirrorsinches/mm82.9/2,106Width without mirrorsinches/mm74.8/1,899Heightinches/mm53.9/1,368Lengthinches/mm193.0/4,903Wheelbaseinches/mm112.2/2,851Smallest turning radius diam.ft/m39.7/12.1
Weights
The values preceding the slash apply to vehi‐
cles with manual transmission; the values fol‐lowing the slash apply to vehicles with M dou‐
ble-clutch transmission.Seite 212ReferenceTechnical data212
Online Edition for Part no. 0140 2 956 361 - X/14

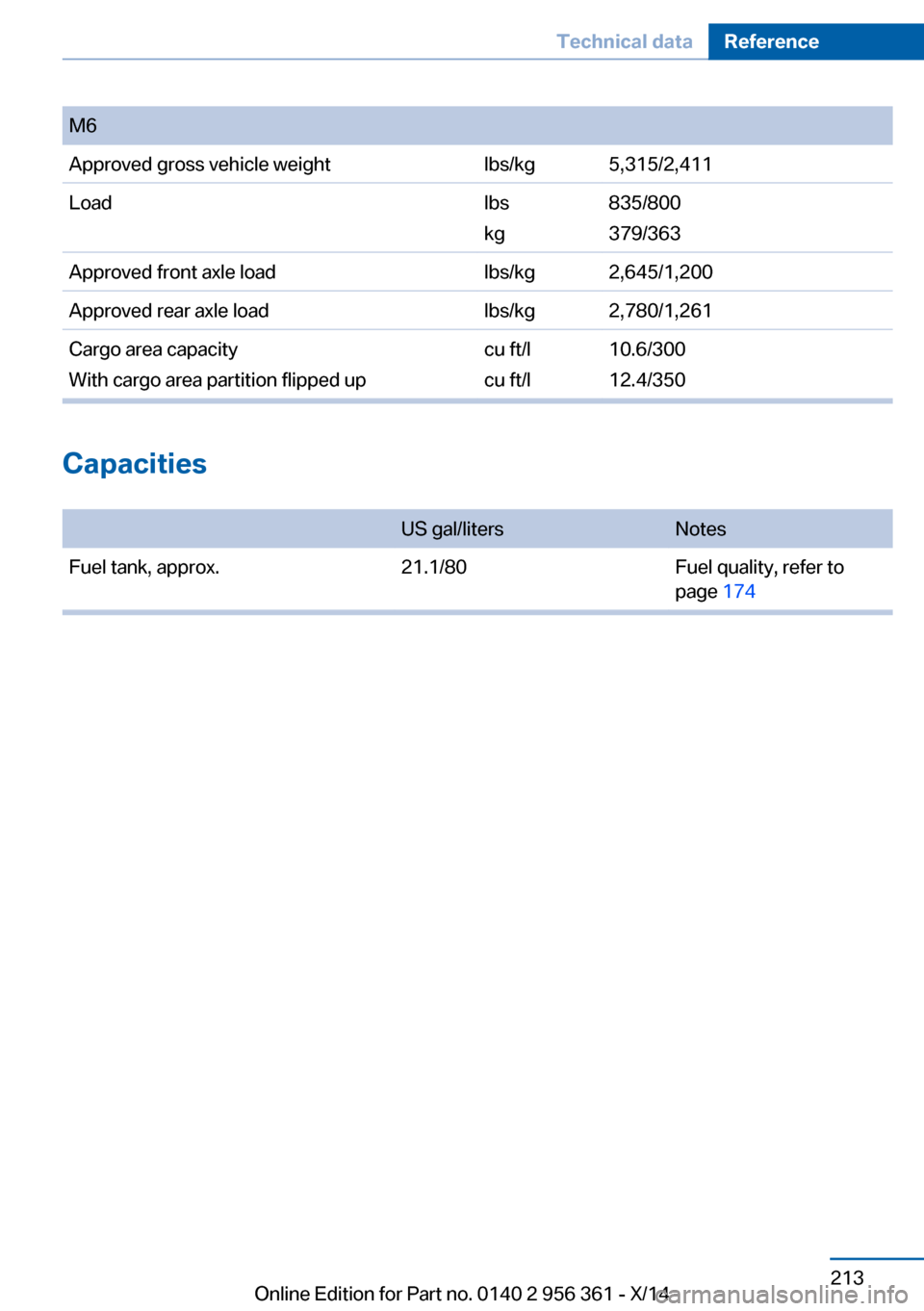

M6Approved gross vehicle weightlbs/kg5,315/2,411Loadlbs
kg835/800
379/363Approved front axle loadlbs/kg2,645/1,200Approved rear axle loadlbs/kg2,780/1,261Cargo area capacity
With cargo area partition flipped upcu ft/l
cu ft/l10.6/300
12.4/350
Capacities

US gal/litersNotesFuel tank, approx.21.1/80Fuel quality, refer to
page 174Seite 213Technical dataReference213
Online Edition for Part no. 0140 2 956 361 - X/14

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 129
Acceleration Assistant, refer to Launch Control 81
Activated-charcoal filter 147
Active Blind Spot Detec‐ tion 124
Active M differential 131
Active Protection 126
Active seat, front 57
Active seat ventilation, front 57
Adaptive brake lights, refer to Brake force display 126
Adaptive Light Control 102
Additives, oil 188
Adjusting, steering wheel 64
Adjustments, seats/head re‐ straints 55
After washing vehicle 206
Airbags 106
Airbags, indicator/warning light 107
Air circulation, refer to Recir‐ culated-air mode 146
Air, dehumidifying, refer to Cooling function 146
Air distribution, manual 145
Air flow, automatic climate control 146
Air outlets, see ventila‐ tion 148
Air pressure, tires 176
Alarm system 44
Alarm, unintentional 45
All around the center con‐ sole 16
All around the interior rear‐ view mirror 17 All around the steering
wheel 14
All-season tires, refer to Win‐ ter tires 181
Alternating-code hand-held transmitter 150
Alternative oil types 189
Ambient light 104
Animal detection, see Night Vision 119
Antifreeze, washer fluid 77
Antilock Brake System, ABS 129
Anti-slip control, refer to DSC 129
Approved axle load 212
Approved engine oils 189
Armrest, refer to Front center armrest 156
Arrival time 96
Ashtray 151
Assistance, Roadside Assis‐ tance 200
Assistance when driving off 129
Attentiveness assistant 126
AUTO intensity 145
Automatic car wash 205
Automatic Curb Monitor 62
Automatic deactivation, front- seat passenger airbags 108
Automatic headlight con‐ trol 102
Automatic locking 43
Automatic recirculated-air control 146
Automatic Soft Closing, doors 40
AUTO program, automatic cli‐ mate control 145
AUTO program, intensity 145 Auto Start/Stop function 71
Average fuel consumption 95
Average speed 95
Axle loads, weights 212
B Backrest curvature, refer to Lumbar support 56
Backrest, seats 55
Backrest, width 56
Band-aids, refer to First aid kit 200
Bar for tow-starting/ towing 203
Battery replacement, vehicle battery 197
Battery replacement, vehicle remote control 34
Battery, vehicle 197
Belts, safety belts 58
Beverage holder, cu‐ pholder 157
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 191
BMW M technology 160
Bottle holder, refer to Cu‐ pholder 157
Brake assistant 129
Brake discs, break-in 162
Brake force display 126
Brake lights, adaptive 126
Brake lights, brake force dis‐ play 126
Brake lights, bulb replace‐ ment 195
Brake pads, break-in 162 Seite 214ReferenceEverything from A to Z214
Online Edition for Part no. 0140 2 956 361 - X/14

Braking, hints 164
Breakdown assis‐ tance 199, 200
Break-in 162
Brightness of Control Dis‐ play 98
Bulb replacement, front 193
Bulb replacement, rear 195
Button, Start/Stop 69
Bypassing, refer to Jump- starting 201
C
California Proposition 65 Warning 7
Calling up mirror adjust‐ ment 43
Calling up seat adjust‐ ment 43
Calling up steering wheel ad‐ justment 43
Camera, care 209
Camera, rearview cam‐ era 139
Camera, Side View 141
Camera, Top View 143
Can holder, refer to Cu‐ pholder 157
Car battery 197
Carbon ceramic brake M 160
Car care products 206
Care, displays 209
Care, vehicle 206
Cargo 166
Cargo area partition 50
Cargo area, storage compart‐ ments 157
Cargo, securing 167
Cargo straps, securing cargo 167
Car key, refer to Remote con‐ trol 34
Carpet, care 208
Car wash 205 Catalytic converter, refer to
Hot exhaust system 163
CBS Condition Based Serv‐ ice 191
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center console 16
Central locking system 40
Central screen, refer to Con‐ trol Display 18
Ceramic brake 160
Changes, technical, refer to Safety 7
Changing parts 193
Changing wheels 196
Changing wheels/tires 180
Chassis number, see vehicle identification number 9
Check Control 85
Checking the engine oil level electronically 187
Checking the oil level elec‐ tronically 187
Children, seating position 66
Children, transporting safely 66
Child restraint fixing sys‐ tem 66
Child restraint fixing system LATCH 67
Child restraint fixing systems, mounting 66
Child seat, mounting 66
Child seats 66
Chrome parts, care 208
Cigarette lighter 151
Cleaning displays 209
Climate control 145
Climate control wind‐ shield 163
Clock 89
Closing/opening via door lock 39 Closing/opening with remote
control 37
Clothes hooks 156
Combination reel, refer to Turn signals 75
Combination reel, refer to Wiper system 75
Comfort Access 41
Compound brake 160
Compressor 181
Computer 95
Condensation on win‐ dows 146
Condensation under the vehi‐ cle 165
Condition Based Service CBS 191
Confirmation signal 43
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Control Display 18
Control Display, settings 97
Controller 18
Control systems, driving sta‐ bility 129
Convenient closing with the remote control 38
Convenient opening with the remote control 37
Convertible, convertible top 47
Convertible mode, automatic climate control 146
Convertible program, auto‐ matic climate control 146
Convertible top 47
Convertible top, care 207
Convertible top, cargo area partition 50
Convertible top, emergency operation 50
Convertible top, rollover pro‐ tection system 109 Seite 215Everything from A to ZReference215
Online Edition for Part no. 0140 2 956 361 - X/14

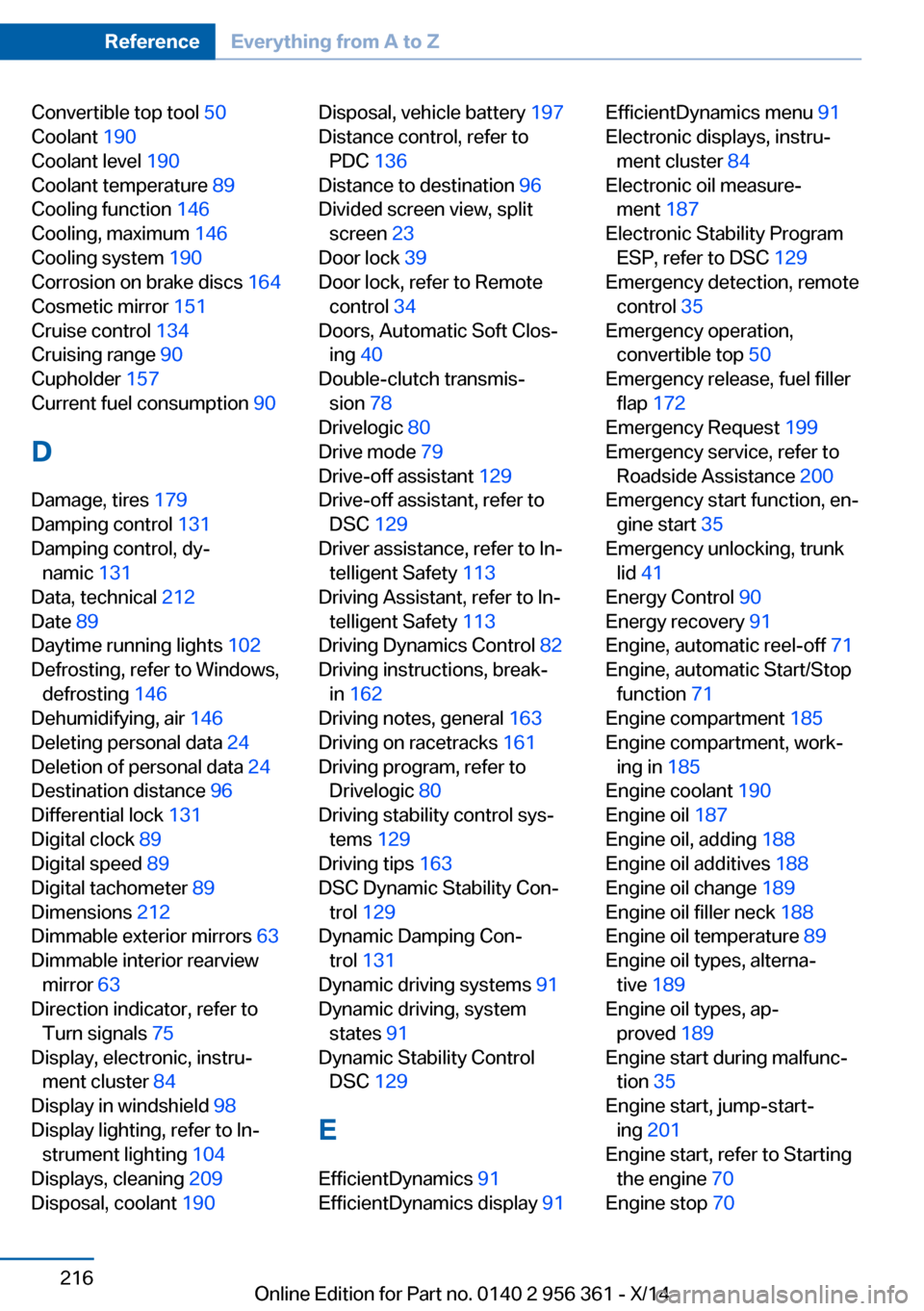

Convertible top tool 50
Coolant 190
Coolant level 190
Coolant temperature 89
Cooling function 146
Cooling, maximum 146
Cooling system 190
Corrosion on brake discs 164
Cosmetic mirror 151
Cruise control 134
Cruising range 90
Cupholder 157
Current fuel consumption 90
D
Damage, tires 179
Damping control 131
Damping control, dy‐ namic 131
Data, technical 212
Date 89
Daytime running lights 102
Defrosting, refer to Windows, defrosting 146
Dehumidifying, air 146
Deleting personal data 24
Deletion of personal data 24
Destination distance 96
Differential lock 131
Digital clock 89
Digital speed 89
Digital tachometer 89
Dimensions 212
Dimmable exterior mirrors 63
Dimmable interior rearview mirror 63
Direction indicator, refer to Turn signals 75
Display, electronic, instru‐ ment cluster 84
Display in windshield 98
Display lighting, refer to In‐ strument lighting 104
Displays, cleaning 209
Disposal, coolant 190 Disposal, vehicle battery 197
Distance control, refer to PDC 136
Distance to destination 96
Divided screen view, split screen 23
Door lock 39
Door lock, refer to Remote control 34
Doors, Automatic Soft Clos‐ ing 40
Double-clutch transmis‐ sion 78
Drivelogic 80
Drive mode 79
Drive-off assistant 129
Drive-off assistant, refer to DSC 129
Driver assistance, refer to In‐ telligent Safety 113
Driving Assistant, refer to In‐ telligent Safety 113
Driving Dynamics Control 82
Driving instructions, break- in 162
Driving notes, general 163
Driving on racetracks 161
Driving program, refer to Drivelogic 80
Driving stability control sys‐ tems 129
Driving tips 163
DSC Dynamic Stability Con‐ trol 129
Dynamic Damping Con‐ trol 131
Dynamic driving systems 91
Dynamic driving, system states 91
Dynamic Stability Control DSC 129
E
EfficientDynamics 91
EfficientDynamics display 91 EfficientDynamics menu 91
Electronic displays, instru‐ ment cluster 84
Electronic oil measure‐ ment 187
Electronic Stability Program ESP, refer to DSC 129
Emergency detection, remote control 35
Emergency operation, convertible top 50
Emergency release, fuel filler flap 172
Emergency Request 199
Emergency service, refer to Roadside Assistance 200
Emergency start function, en‐ gine start 35
Emergency unlocking, trunk lid 41
Energy Control 90
Energy recovery 91
Engine, automatic reel-off 71
Engine, automatic Start/Stop function 71
Engine compartment 185
Engine compartment, work‐ ing in 185
Engine coolant 190
Engine oil 187
Engine oil, adding 188
Engine oil additives 188
Engine oil change 189
Engine oil filler neck 188
Engine oil temperature 89
Engine oil types, alterna‐ tive 189
Engine oil types, ap‐ proved 189
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 201
Engine start, refer to Starting the engine 70
Engine stop 70 Seite 216ReferenceEverything from A to Z216
Online Edition for Part no. 0140 2 956 361 - X/14
