BMW M6 GRAN COUPE 2015 F06M Owner's Manual

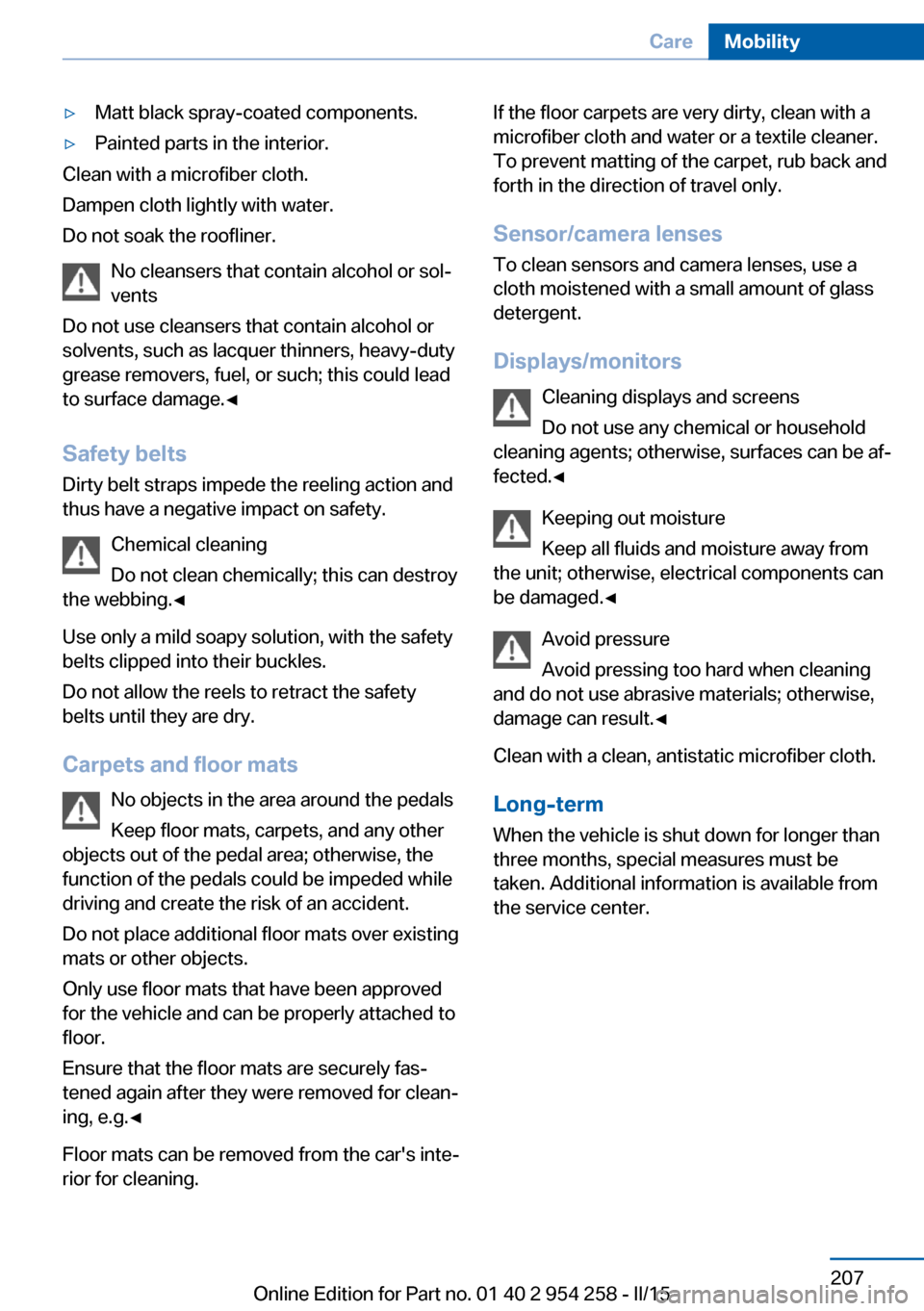

▷Matt black spray-coated components.▷Painted parts in the interior.
Clean with a microfiber cloth.
Dampen cloth lightly with water.
Do not soak the roofliner.
No cleansers that contain alcohol or sol‐
vents
Do not use cleansers that contain alcohol or
solvents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead
to surface damage.◀
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety
belts until they are dry.
Carpets and floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the pedal area; otherwise, the
function of the pedals could be impeded while
driving and create the risk of an accident.
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly attached to
floor.
Ensure that the floor mats are securely fas‐
tened again after they were removed for clean‐
ing, e.g.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensor/camera lenses To clean sensors and camera lenses, use a
cloth moistened with a small amount of glass
detergent.
Displays/monitors Cleaning displays and screens
Do not use any chemical or household
cleaning agents; otherwise, surfaces can be af‐
fected.◀
Keeping out moisture
Keep all fluids and moisture away from
the unit; otherwise, electrical components can
be damaged.◀
Avoid pressure
Avoid pressing too hard when cleaning
and do not use abrasive materials; otherwise,
damage can result.◀
Clean with a clean, antistatic microfiber cloth.
Long-termWhen the vehicle is shut down for longer than
three months, special measures must be
taken. Additional information is available from
the service center.Seite 207CareMobility207
Online Edition for Part no. 01 40 2 954 258 - II/15

Online Edition for Part no. 01 40 2 954 258 - II/15

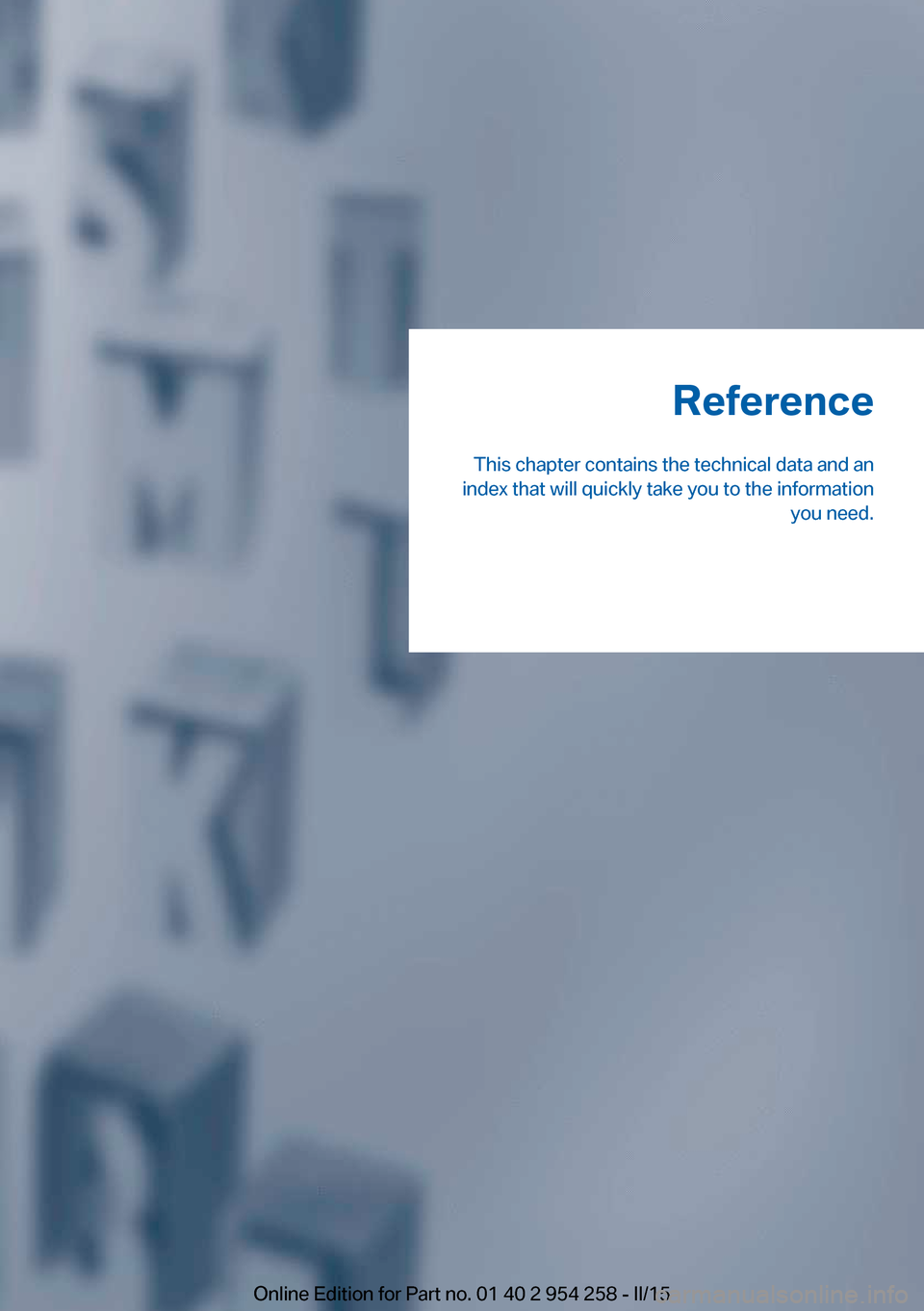

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 01 40 2 954 258 - II/15

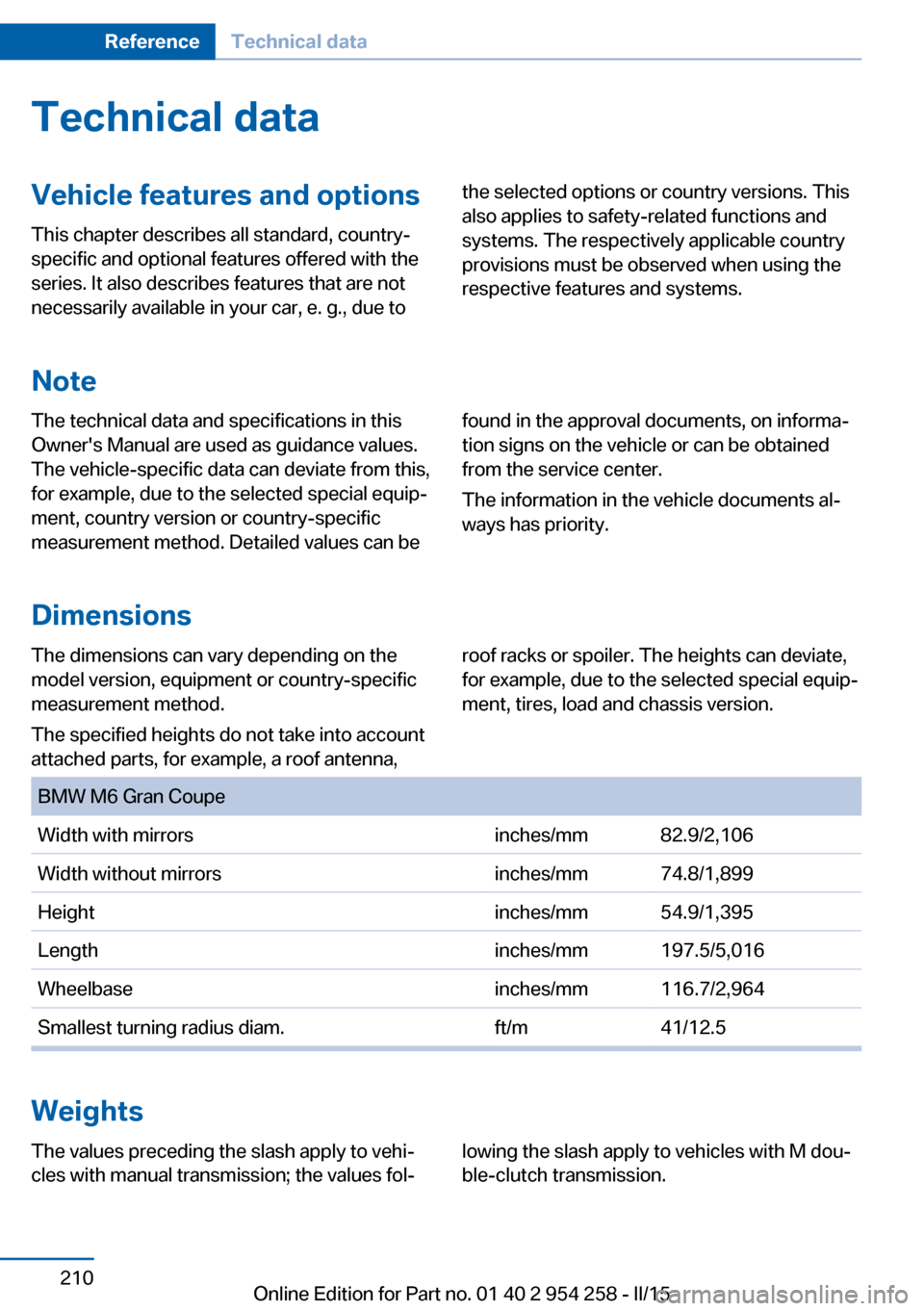

Technical dataVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due tothe selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Note
The technical data and specifications in this
Owner's Manual are used as guidance values.
The vehicle-specific data can deviate from this,
for example, due to the selected special equip‐
ment, country version or country-specific
measurement method. Detailed values can befound in the approval documents, on informa‐
tion signs on the vehicle or can be obtained
from the service center.
The information in the vehicle documents al‐
ways has priority.
Dimensions
The dimensions can vary depending on the
model version, equipment or country-specific
measurement method.
The specified heights do not take into account
attached parts, for example, a roof antenna,roof racks or spoiler. The heights can deviate,
for example, due to the selected special equip‐
ment, tires, load and chassis version. BMW M6 Gran CoupeWidth with mirrorsinches/mm82.9/2,106Width without mirrorsinches/mm74.8/1,899Heightinches/mm54.9/1,395Lengthinches/mm197.5/5,016Wheelbaseinches/mm116.7/2,964Smallest turning radius diam.ft/m41/12.5
Weights
The values preceding the slash apply to vehi‐
cles with manual transmission; the values fol‐lowing the slash apply to vehicles with M dou‐
ble-clutch transmission.Seite 210ReferenceTechnical data210
Online Edition for Part no. 01 40 2 954 258 - II/15

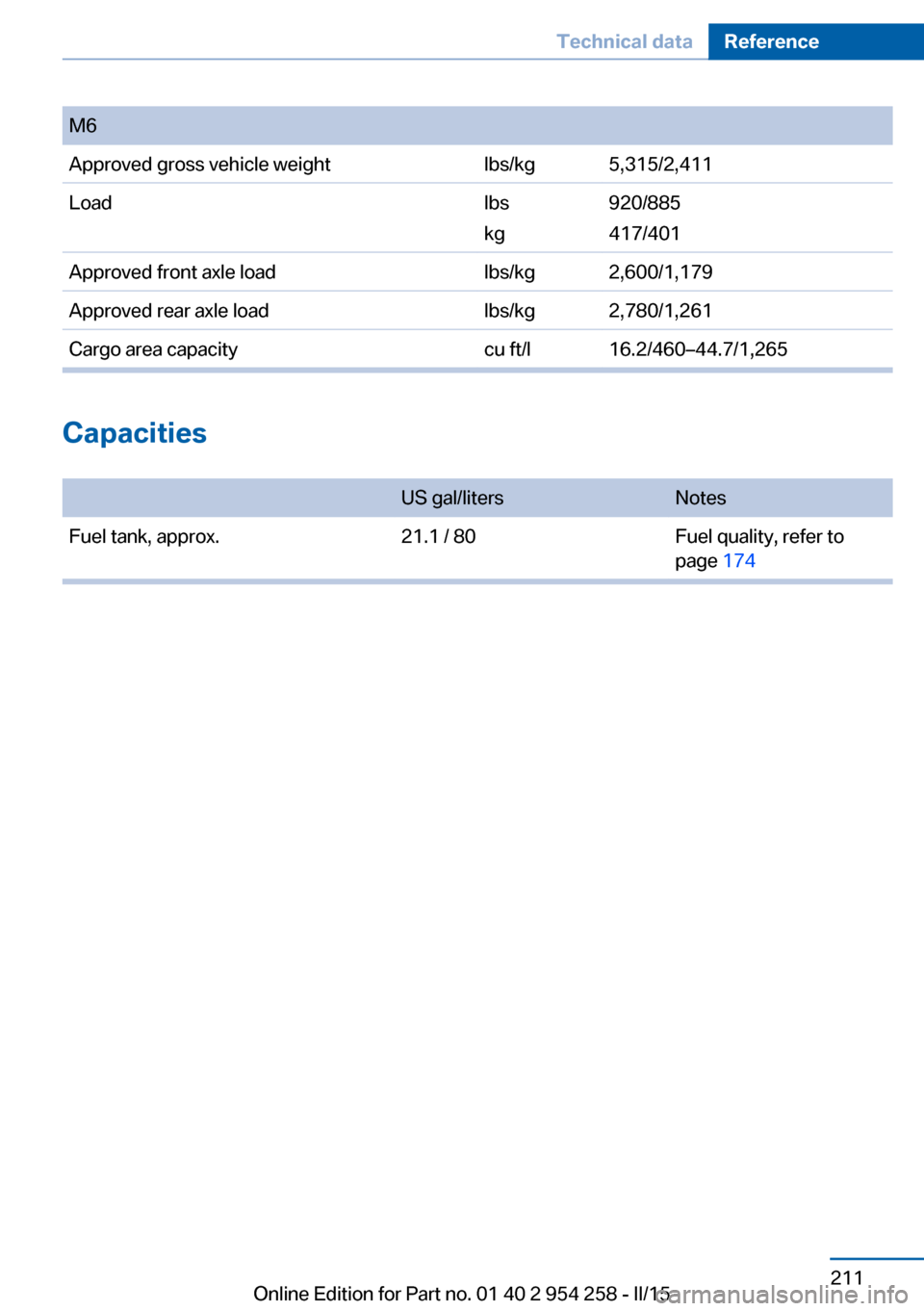

M6Approved gross vehicle weightlbs/kg5,315/2,411Loadlbs
kg920/885
417/401Approved front axle loadlbs/kg2,600/1,179Approved rear axle loadlbs/kg2,780/1,261Cargo area capacitycu ft/l16.2/460–44.7/1,265
Capacities

US gal/litersNotesFuel tank, approx.21.1 / 80Fuel quality, refer to
page 174Seite 211Technical dataReference211
Online Edition for Part no. 01 40 2 954 258 - II/15

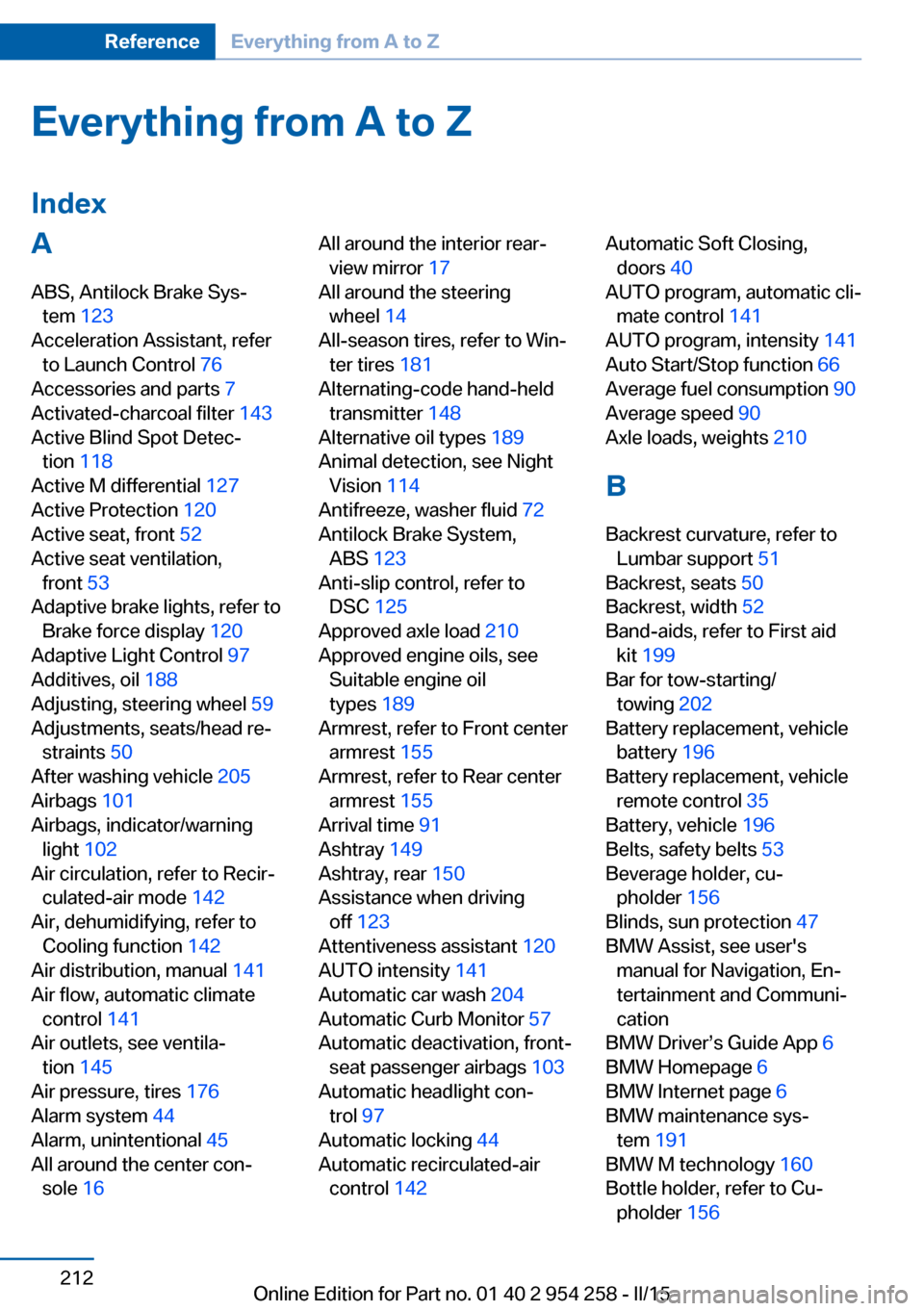

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 123
Acceleration Assistant, refer to Launch Control 76
Accessories and parts 7
Activated-charcoal filter 143
Active Blind Spot Detec‐ tion 118
Active M differential 127
Active Protection 120
Active seat, front 52
Active seat ventilation, front 53
Adaptive brake lights, refer to Brake force display 120
Adaptive Light Control 97
Additives, oil 188
Adjusting, steering wheel 59
Adjustments, seats/head re‐ straints 50
After washing vehicle 205
Airbags 101
Airbags, indicator/warning light 102
Air circulation, refer to Recir‐ culated-air mode 142
Air, dehumidifying, refer to Cooling function 142
Air distribution, manual 141
Air flow, automatic climate control 141
Air outlets, see ventila‐ tion 145
Air pressure, tires 176
Alarm system 44
Alarm, unintentional 45
All around the center con‐ sole 16 All around the interior rear‐
view mirror 17
All around the steering wheel 14
All-season tires, refer to Win‐ ter tires 181
Alternating-code hand-held transmitter 148
Alternative oil types 189
Animal detection, see Night Vision 114
Antifreeze, washer fluid 72
Antilock Brake System, ABS 123
Anti-slip control, refer to DSC 125
Approved axle load 210
Approved engine oils, see Suitable engine oil
types 189
Armrest, refer to Front center armrest 155
Armrest, refer to Rear center armrest 155
Arrival time 91
Ashtray 149
Ashtray, rear 150
Assistance when driving off 123
Attentiveness assistant 120
AUTO intensity 141
Automatic car wash 204
Automatic Curb Monitor 57
Automatic deactivation, front- seat passenger airbags 103
Automatic headlight con‐ trol 97
Automatic locking 44
Automatic recirculated-air control 142 Automatic Soft Closing,
doors 40
AUTO program, automatic cli‐ mate control 141
AUTO program, intensity 141
Auto Start/Stop function 66
Average fuel consumption 90
Average speed 90
Axle loads, weights 210
B Backrest curvature, refer to Lumbar support 51
Backrest, seats 50
Backrest, width 52
Band-aids, refer to First aid kit 199
Bar for tow-starting/ towing 202
Battery replacement, vehicle battery 196
Battery replacement, vehicle remote control 35
Battery, vehicle 196
Belts, safety belts 53
Beverage holder, cu‐ pholder 156
Blinds, sun protection 47
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW Driver’s Guide App 6
BMW Homepage 6
BMW Internet page 6
BMW maintenance sys‐ tem 191
BMW M technology 160
Bottle holder, refer to Cu‐ pholder 156 Seite 212ReferenceEverything from A to Z212
Online Edition for Part no. 01 40 2 954 258 - II/15

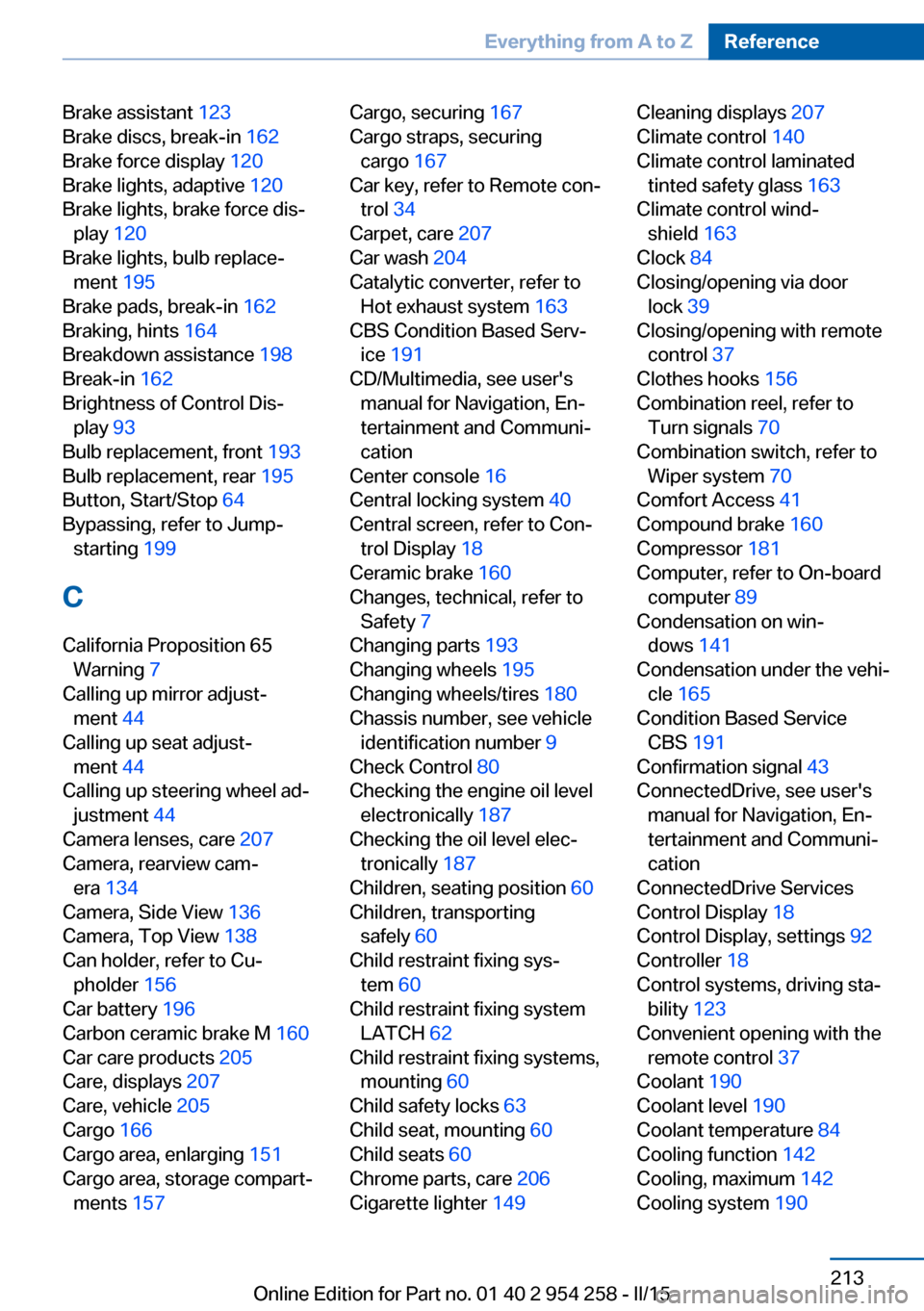

Brake assistant 123
Brake discs, break-in 162
Brake force display 120
Brake lights, adaptive 120
Brake lights, brake force dis‐ play 120
Brake lights, bulb replace‐ ment 195
Brake pads, break-in 162
Braking, hints 164
Breakdown assistance 198
Break-in 162
Brightness of Control Dis‐ play 93
Bulb replacement, front 193
Bulb replacement, rear 195
Button, Start/Stop 64
Bypassing, refer to Jump- starting 199
C
California Proposition 65 Warning 7
Calling up mirror adjust‐ ment 44
Calling up seat adjust‐ ment 44
Calling up steering wheel ad‐ justment 44
Camera lenses, care 207
Camera, rearview cam‐ era 134
Camera, Side View 136
Camera, Top View 138
Can holder, refer to Cu‐ pholder 156
Car battery 196
Carbon ceramic brake M 160
Car care products 205
Care, displays 207
Care, vehicle 205
Cargo 166
Cargo area, enlarging 151
Cargo area, storage compart‐ ments 157 Cargo, securing 167
Cargo straps, securing cargo 167
Car key, refer to Remote con‐ trol 34
Carpet, care 207
Car wash 204
Catalytic converter, refer to Hot exhaust system 163
CBS Condition Based Serv‐ ice 191
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center console 16
Central locking system 40
Central screen, refer to Con‐ trol Display 18
Ceramic brake 160
Changes, technical, refer to Safety 7
Changing parts 193
Changing wheels 195
Changing wheels/tires 180
Chassis number, see vehicle identification number 9
Check Control 80
Checking the engine oil level electronically 187
Checking the oil level elec‐ tronically 187
Children, seating position 60
Children, transporting safely 60
Child restraint fixing sys‐ tem 60
Child restraint fixing system LATCH 62
Child restraint fixing systems, mounting 60
Child safety locks 63
Child seat, mounting 60
Child seats 60
Chrome parts, care 206
Cigarette lighter 149 Cleaning displays 207
Climate control 140
Climate control laminated tinted safety glass 163
Climate control wind‐ shield 163
Clock 84
Closing/opening via door lock 39
Closing/opening with remote control 37
Clothes hooks 156
Combination reel, refer to Turn signals 70
Combination switch, refer to Wiper system 70
Comfort Access 41
Compound brake 160
Compressor 181
Computer, refer to On-board computer 89
Condensation on win‐ dows 141
Condensation under the vehi‐ cle 165
Condition Based Service CBS 191
Confirmation signal 43
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Control Display 18
Control Display, settings 92
Controller 18
Control systems, driving sta‐ bility 123
Convenient opening with the remote control 37
Coolant 190
Coolant level 190
Coolant temperature 84
Cooling function 142
Cooling, maximum 142
Cooling system 190 Seite 213Everything from A to ZReference213
Online Edition for Part no. 01 40 2 954 258 - II/15

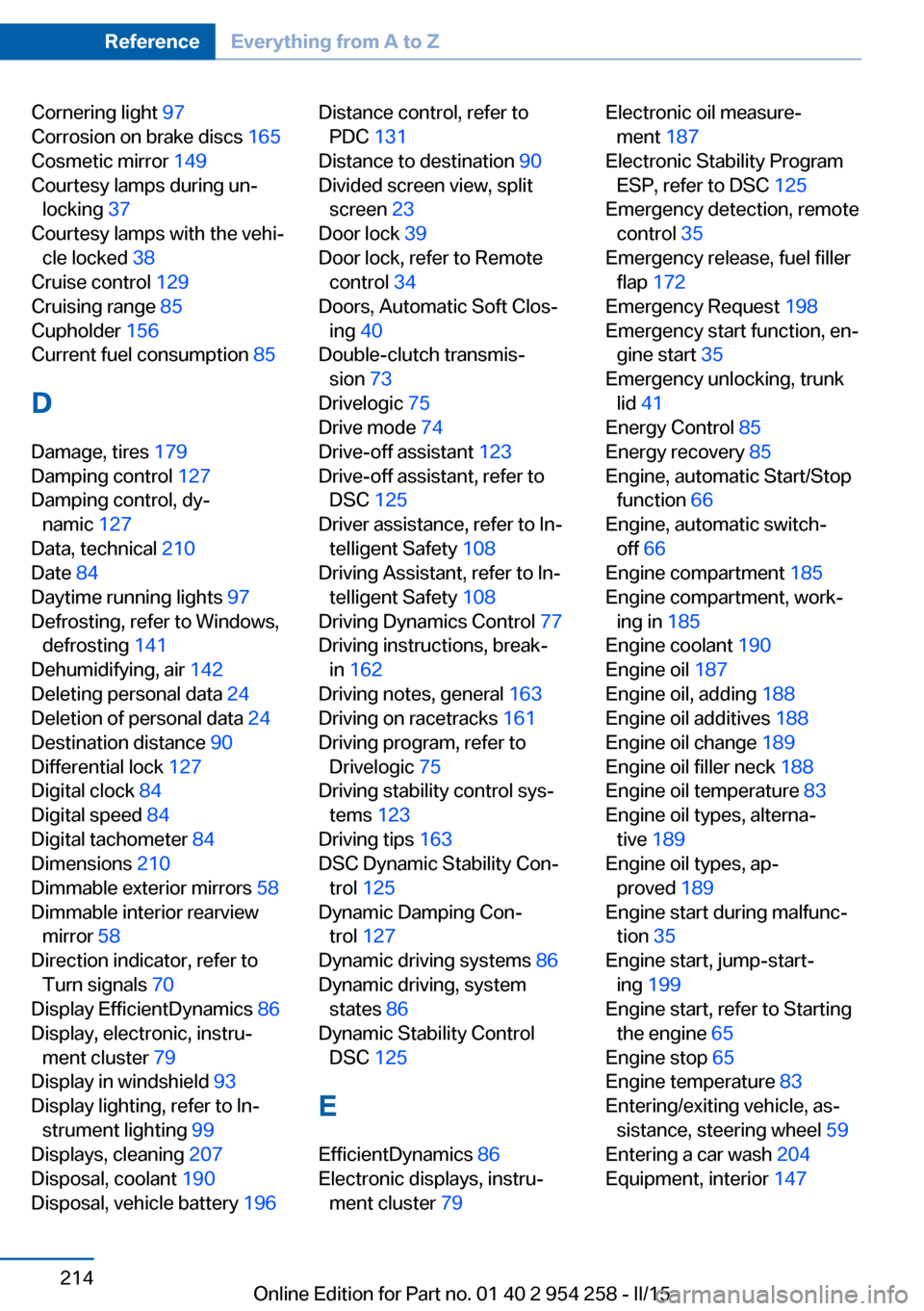

Cornering light 97
Corrosion on brake discs 165
Cosmetic mirror 149
Courtesy lamps during un‐ locking 37
Courtesy lamps with the vehi‐ cle locked 38
Cruise control 129
Cruising range 85
Cupholder 156
Current fuel consumption 85
D
Damage, tires 179
Damping control 127
Damping control, dy‐ namic 127
Data, technical 210
Date 84
Daytime running lights 97
Defrosting, refer to Windows, defrosting 141
Dehumidifying, air 142
Deleting personal data 24
Deletion of personal data 24
Destination distance 90
Differential lock 127
Digital clock 84
Digital speed 84
Digital tachometer 84
Dimensions 210
Dimmable exterior mirrors 58
Dimmable interior rearview mirror 58
Direction indicator, refer to Turn signals 70
Display EfficientDynamics 86
Display, electronic, instru‐ ment cluster 79
Display in windshield 93
Display lighting, refer to In‐ strument lighting 99
Displays, cleaning 207
Disposal, coolant 190
Disposal, vehicle battery 196 Distance control, refer to
PDC 131
Distance to destination 90
Divided screen view, split screen 23
Door lock 39
Door lock, refer to Remote control 34
Doors, Automatic Soft Clos‐ ing 40
Double-clutch transmis‐ sion 73
Drivelogic 75
Drive mode 74
Drive-off assistant 123
Drive-off assistant, refer to DSC 125
Driver assistance, refer to In‐ telligent Safety 108
Driving Assistant, refer to In‐ telligent Safety 108
Driving Dynamics Control 77
Driving instructions, break- in 162
Driving notes, general 163
Driving on racetracks 161
Driving program, refer to Drivelogic 75
Driving stability control sys‐ tems 123
Driving tips 163
DSC Dynamic Stability Con‐ trol 125
Dynamic Damping Con‐ trol 127
Dynamic driving systems 86
Dynamic driving, system states 86
Dynamic Stability Control DSC 125
E EfficientDynamics 86
Electronic displays, instru‐ ment cluster 79 Electronic oil measure‐
ment 187
Electronic Stability Program ESP, refer to DSC 125
Emergency detection, remote control 35
Emergency release, fuel filler flap 172
Emergency Request 198
Emergency start function, en‐ gine start 35
Emergency unlocking, trunk lid 41
Energy Control 85
Energy recovery 85
Engine, automatic Start/Stop function 66
Engine, automatic switch- off 66
Engine compartment 185
Engine compartment, work‐ ing in 185
Engine coolant 190
Engine oil 187
Engine oil, adding 188
Engine oil additives 188
Engine oil change 189
Engine oil filler neck 188
Engine oil temperature 83
Engine oil types, alterna‐ tive 189
Engine oil types, ap‐ proved 189
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 199
Engine start, refer to Starting the engine 65
Engine stop 65
Engine temperature 83
Entering/exiting vehicle, as‐ sistance, steering wheel 59
Entering a car wash 204
Equipment, interior 147 Seite 214ReferenceEverything from A to Z214
Online Edition for Part no. 01 40 2 954 258 - II/15

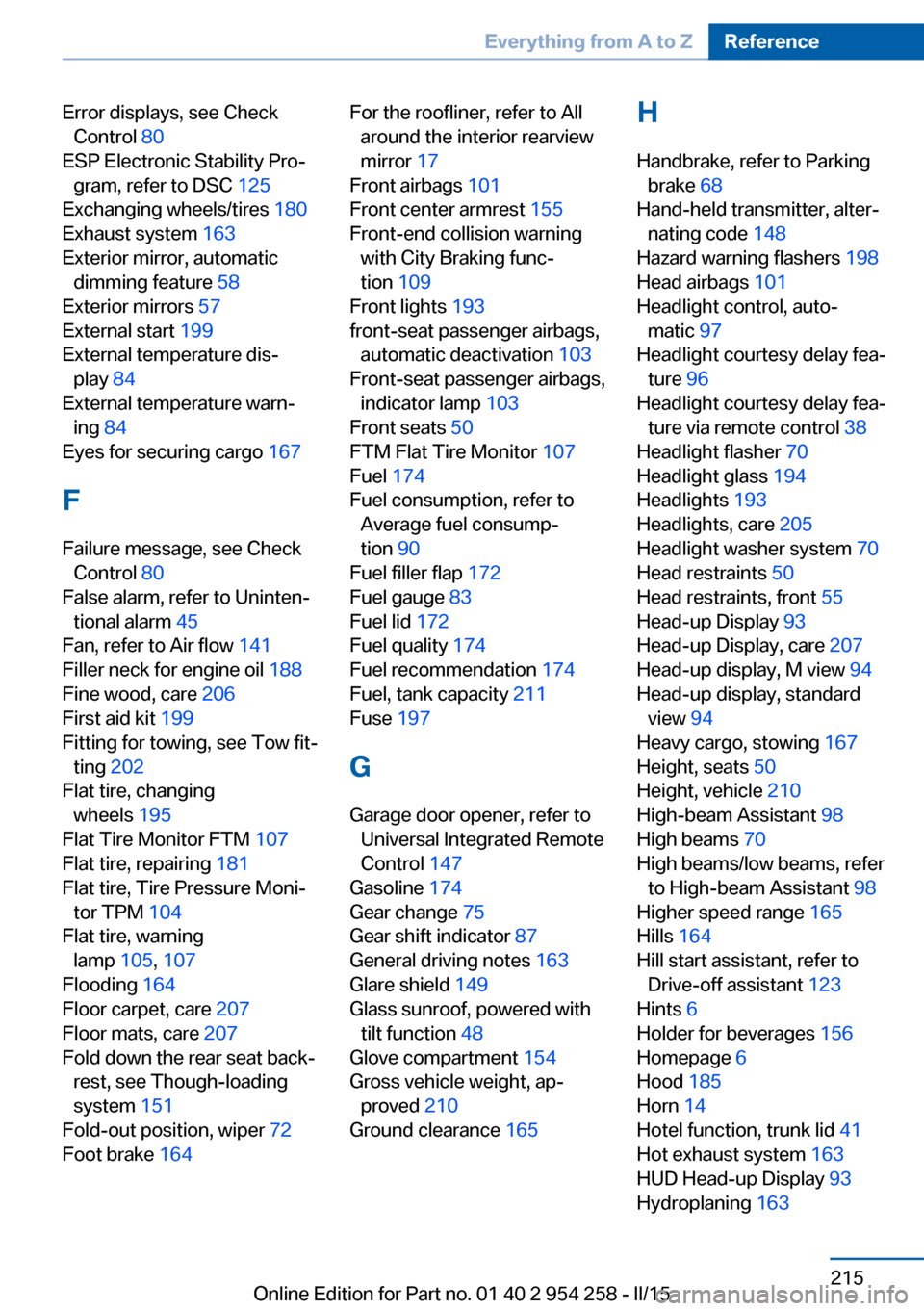

Error displays, see CheckControl 80
ESP Electronic Stability Pro‐ gram, refer to DSC 125
Exchanging wheels/tires 180
Exhaust system 163
Exterior mirror, automatic dimming feature 58
Exterior mirrors 57
External start 199
External temperature dis‐ play 84
External temperature warn‐ ing 84
Eyes for securing cargo 167
F
Failure message, see Check Control 80
False alarm, refer to Uninten‐ tional alarm 45
Fan, refer to Air flow 141
Filler neck for engine oil 188
Fine wood, care 206
First aid kit 199
Fitting for towing, see Tow fit‐ ting 202
Flat tire, changing wheels 195
Flat Tire Monitor FTM 107
Flat tire, repairing 181
Flat tire, Tire Pressure Moni‐ tor TPM 104
Flat tire, warning lamp 105, 107
Flooding 164
Floor carpet, care 207
Floor mats, care 207
Fold down the rear seat back‐ rest, see Though-loading
system 151
Fold-out position, wiper 72
Foot brake 164 For the roofliner, refer to All
around the interior rearview
mirror 17
Front airbags 101
Front center armrest 155
Front-end collision warning with City Braking func‐
tion 109
Front lights 193
front-seat passenger airbags, automatic deactivation 103
Front-seat passenger airbags, indicator lamp 103
Front seats 50
FTM Flat Tire Monitor 107
Fuel 174
Fuel consumption, refer to Average fuel consump‐
tion 90
Fuel filler flap 172
Fuel gauge 83
Fuel lid 172
Fuel quality 174
Fuel recommendation 174
Fuel, tank capacity 211
Fuse 197
G
Garage door opener, refer to Universal Integrated Remote
Control 147
Gasoline 174
Gear change 75
Gear shift indicator 87
General driving notes 163
Glare shield 149
Glass sunroof, powered with tilt function 48
Glove compartment 154
Gross vehicle weight, ap‐ proved 210
Ground clearance 165 H
Handbrake, refer to Parking brake 68
Hand-held transmitter, alter‐ nating code 148
Hazard warning flashers 198
Head airbags 101
Headlight control, auto‐ matic 97
Headlight courtesy delay fea‐ ture 96
Headlight courtesy delay fea‐ ture via remote control 38
Headlight flasher 70
Headlight glass 194
Headlights 193
Headlights, care 205
Headlight washer system 70
Head restraints 50
Head restraints, front 55
Head-up Display 93
Head-up Display, care 207
Head-up display, M view 94
Head-up display, standard view 94
Heavy cargo, stowing 167
Height, seats 50
Height, vehicle 210
High-beam Assistant 98
High beams 70
High beams/low beams, refer to High-beam Assistant 98
Higher speed range 165
Hills 164
Hill start assistant, refer to Drive-off assistant 123
Hints 6
Holder for beverages 156
Homepage 6
Hood 185
Horn 14
Hotel function, trunk lid 41
Hot exhaust system 163
HUD Head-up Display 93
Hydroplaning 163 Seite 215Everything from A to ZReference215
Online Edition for Part no. 01 40 2 954 258 - II/15

IIce warning, see External temperature warning 84
Icy roads, see External tem‐ perature warning 84
Identification marks, tires 177
Identification number, see ve‐ hicle identification num‐
ber 9
iDrive 18
Ignition key, refer to Remote control 34
Ignition off 64
Ignition on 64
Indication of a flat tire 105 , 107
Indicator and alarm lamps, see Check Control 80
Indicator lamp, see Check Control 80
Individual air distribution 141
Individual settings, refer to M Drive 123
Individual settings, refer to Personal Profile 35
Inflation pressure, tires 176
Inflation pressure warning FTM, tires 107
Info display, refer to On- Board computer 89
Initialize, Tire Pressure Moni‐ tor TPM 105
Initializing, Flat Tire Monitor FTM 107
Instrument cluster 79
Instrument cluster, electronic displays 79
Instrument lighting 99
Integrated key 34
Integrated Owner's Manual in the vehicle 29
Intelligent Emergency Re‐ quest 198
Intelligent Safety 108 Intensity, AUTO pro‐
gram 141
Interior equipment 147
Interior lights 99
Interior lights during unlock‐ ing 37
Interior lights with the vehicle locked 38
Interior motion sensor 45
Interior rearview mirror, auto‐ matic dimming feature 58
Internet page 6
Interval display, service re‐ quirements 86
Interval mode 71
J
Jacking points for the vehicle jack 196
Jump-starting 199
K
Key/remote control 34
Keyless Go, refer to Comfort Access 41
Key Memory, refer to Per‐ sonal Profile 35
Knee airbag 102
L Lamp replacement, front 193
Lamp replacement, rear 195
Lane departure warning 117
Lane margin, warning 117
Language on Control Dis‐ play 93
Lashing eyes, securing cargo 167
LATCH child restraint sys‐ tem 62
Launch Control 76
Leather, care 206 LED headlights, bulb replace‐
ment 194
LED light 194
LEDs, light-emitting di‐ odes 194
Length, vehicle 210
Letters and numbers, enter‐ ing 24
License plate lamp, bulb re‐ placement 195
Light alloy wheels, care 206
Light control 97
Light-emitting diodes, LEDs 194
Lighting 96
Lighting, speaker 100
Lights 96
Lights and bulbs 193
Light switch 96
Load 167
Loading 166
Lock, door 39
Locking/unlocking via door lock 39
Locking/unlocking with re‐ mote control 37
Locking, automatic 44
Locking, settings 43
Locking via trunk lid 41
Lock, power window 46
Locks, doors, and win‐ dows 63
Low beams 96
Low beams, automatic, refer to High-beam Assistant 98
Lower back support 51
Low Speed Assistant 74
Lumbar support 51
M
Maintenance 191
Maintenance require‐ ments 191
Maintenance, service require‐ ments 86 Seite 216ReferenceEverything from A to Z216
Online Edition for Part no. 01 40 2 954 258 - II/15
