BMW MOTORRAD K 1200 S 2005 Rider's Manual (in English)

General views
General view, left side......... 11
General view, right side ........ 13
Underneath the seat . . ......... 14
Handlebar fitting, left . ......... 15
Handlebar fitting, right ......... 16
Instrument cluster ............. 17
Headlight . .................... 18
29zGeneral views

210zGeneral views

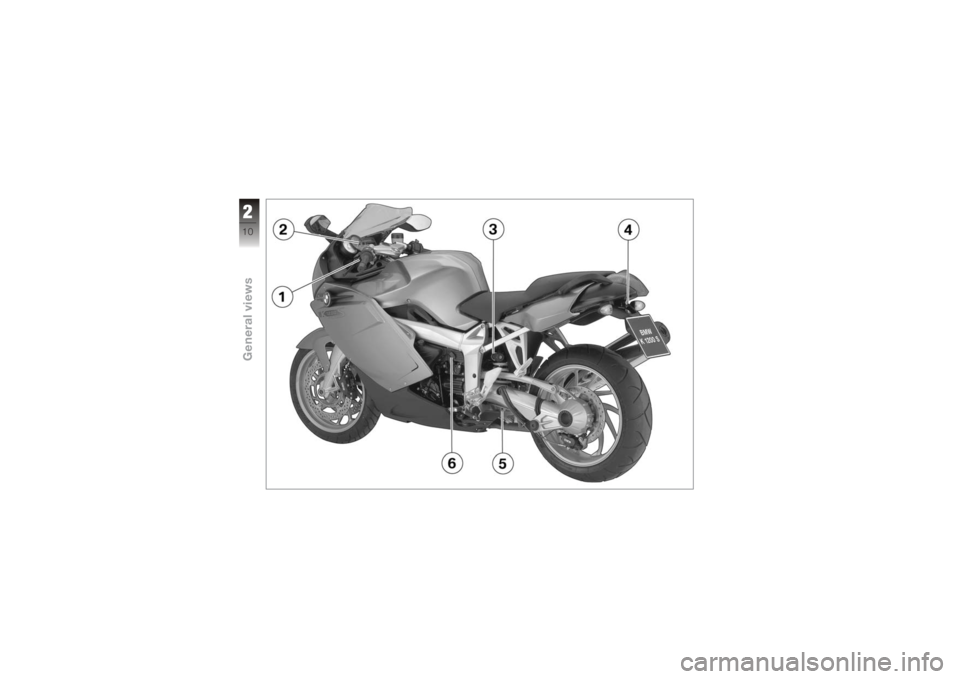

General view, left side1Adjuster for headlight
beam throw ( 49)
2 Clutch-fluid reservoir
( 100)
3 Adjuster, spring preload,
rear ( 54)
4 Seat lock beneath rear
light ( 50)
5 Rear shock absorber ad-
juster ( 54)
6 Power socket ( 82)
211zGeneral views

212zGeneral views

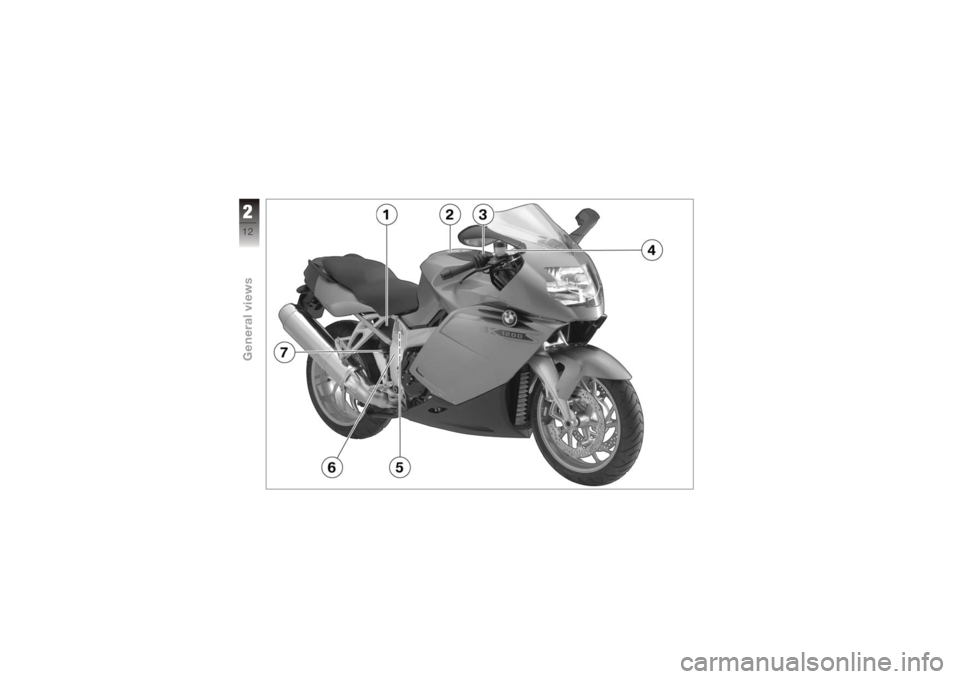

General view, right
side1Indicator for engine oil
level ( 93)
2 Filler neck, fuel tank
( 76)
3 Battery compartment
( 121)
4 Brake-fluid reservoir,
front ( 97)
5 Type plate on rear cross
pipe
6 Vehicle identification
number on front right
side panel
7 Brake-fluid reservoir, rear
( 98)
213zGeneral views

Underneath the seat1Helmet holder under-
neath seat ( 52)
2 Toolkit ( 92)
3 Filler neck, engine oil
214zGeneral views
( 94)

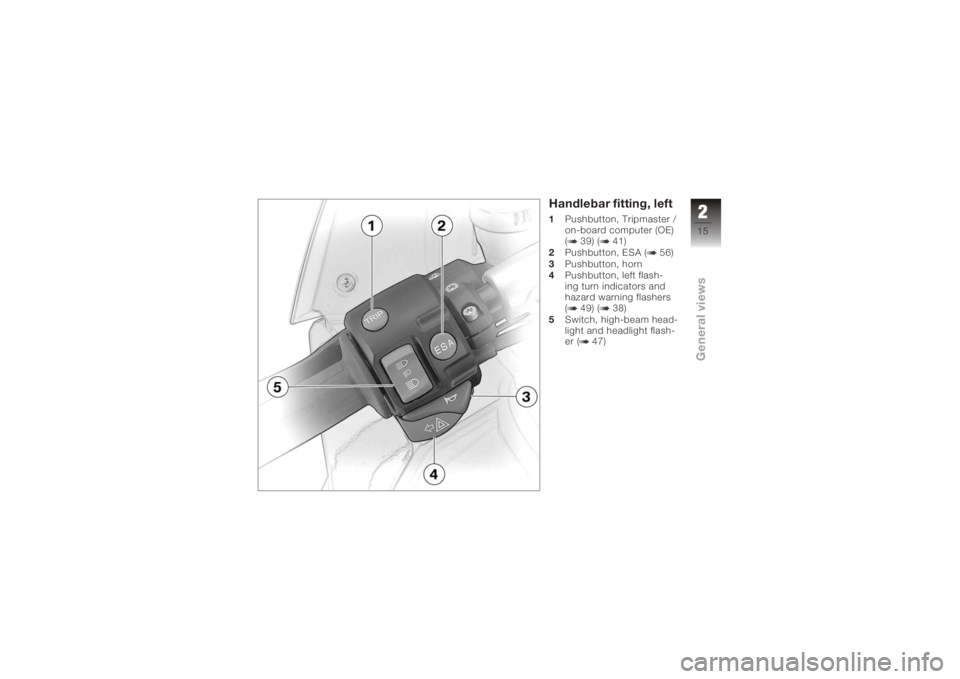

Handlebar fitting, left1Pushbutton, Tripmaster /
on-board computer (OE)
( 39) ( 41)
2 Pushbutton, ESA ( 56)
3 Pushbutton, horn
4 Pushbutton, left flash-
ing turn indicators and
hazard warning flashers
( 49) ( 38)
5 Switch, high-beam head-
light and headlight flash-
er ( 47)
215zGeneral views

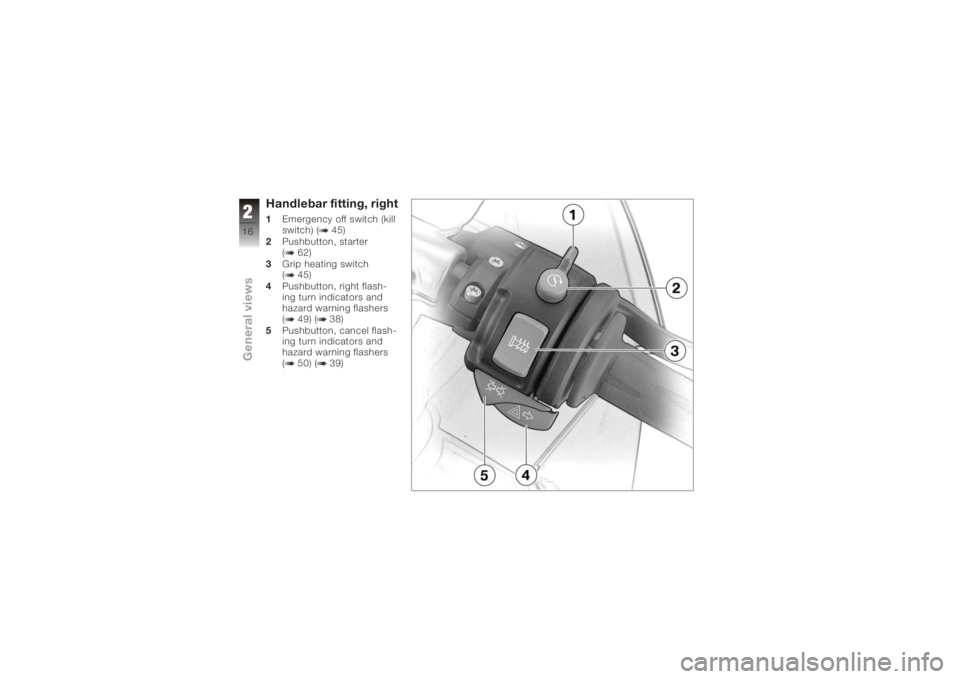

Handlebar fitting, right1Emergency off switch (kill
switch) ( 45)
2 Pushbutton, starter
( 62)
3 Grip heating switch
( 45)
4 Pushbutton, right flash-
ing turn indicators and
hazard warning flashers
( 49) ( 38)
5 Pushbutton, cancel flash-
ing turn indicators and
hazard warning flashers
( 50) ( 39)
216zGeneral views

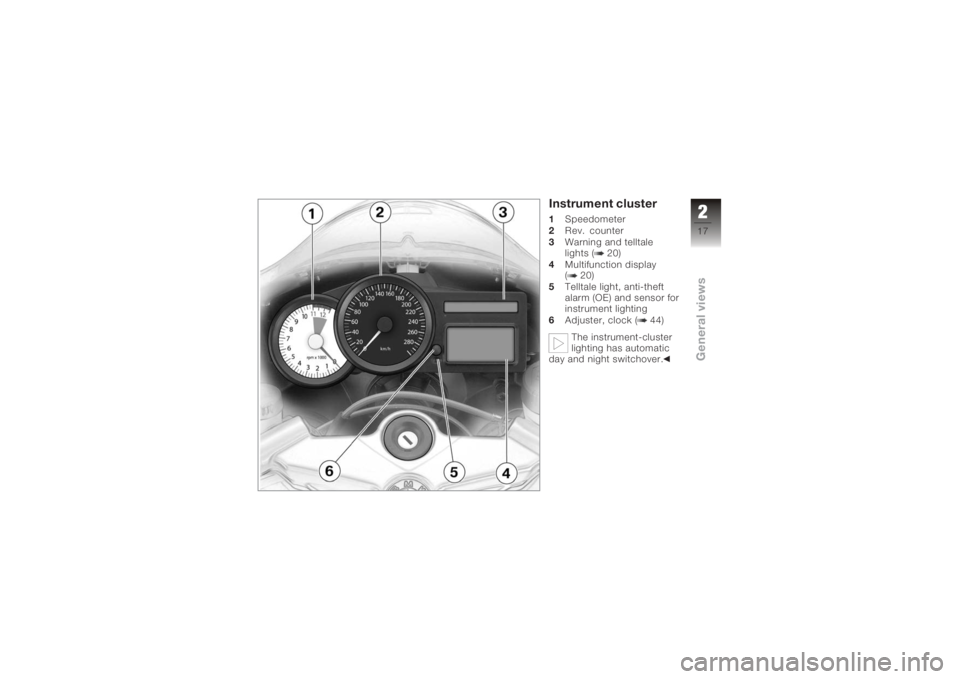

Instrument cluster1Speedometer
2 Rev. counter
3 Warning and telltale
lights ( 20)
4 Multifunction display
( 20)
5 Telltale light, anti-theft
alarm (OE) and sensor for
instrument lighting
6 Adjuster, clock ( 44)
The instrument-cluster
lighting has automatic
day and night switchover.
217zGeneral views

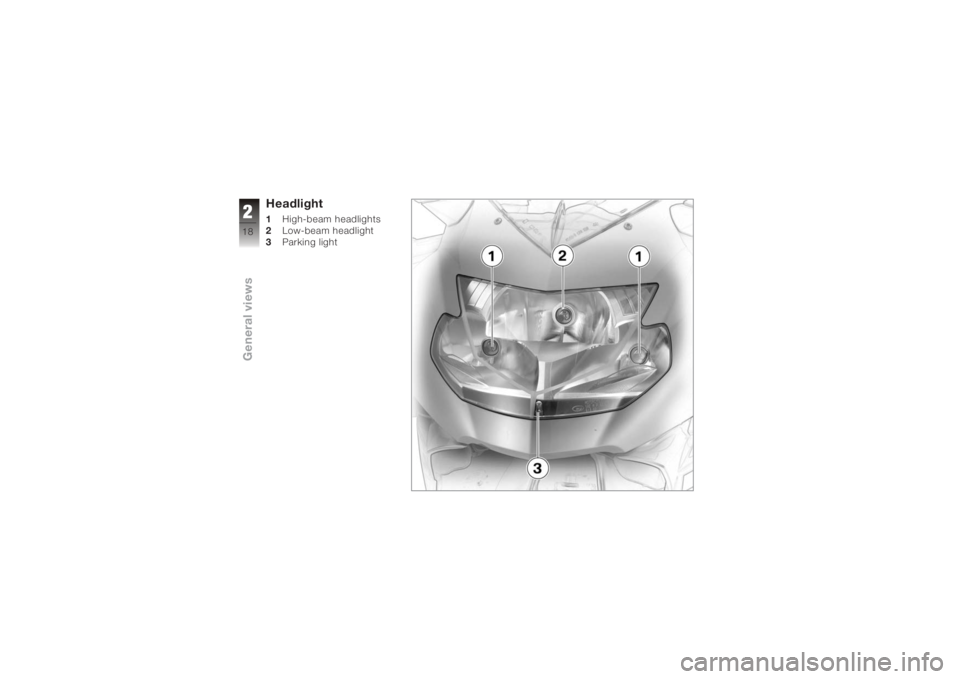

Headlight1High-beam headlights
2 Low-beam headlight
3 Parking light
218zGeneral views
