General views
General view, left side . . . . . . . . . 11
General view, right side . . . . . . . . 13
Underneath the seat . . . . . . . . . . . 14
Handlebar fitting, left . . . . . . . . . . 15
Handlebar fitting, right . . . . . . . . . 16
Instrument cluster . . . . . . . . . . . . . 17
Headlight . . . . . . . . . . . . . . . . . . . . . 18
29zGeneral views

210zGeneral views

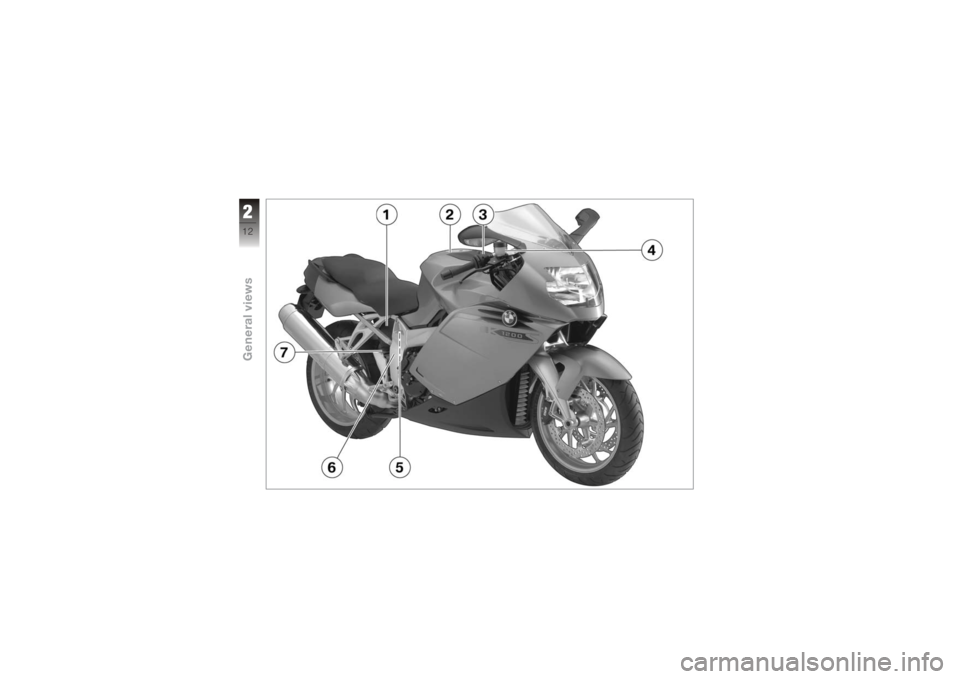

General view, left side1Adjuster for headlight
beam throw ( 52)
2 Clutch-fluid reservoir
( 96)
3 Adjuster, spring preload,
rear ( 57)
4 Seat lock beneath rear
light ( 53)
5 Adjuster, rear shock ab-
sorber ( 58)
6 Power socket ( 80)
211zGeneral views

212zGeneral views

General view, right
side1Indicator for engine oil
level ( 89)
2 Filler neck, fuel tank
( 71)
3 Battery compartment
( 122)
4 Brake-fluid reservoir,
front ( 94)
5 Type plate on rear cross
pipe
6 Vehicle identification
number on front right
side panel
7 Brake-fluid reservoir, rear
( 95)
213zGeneral views

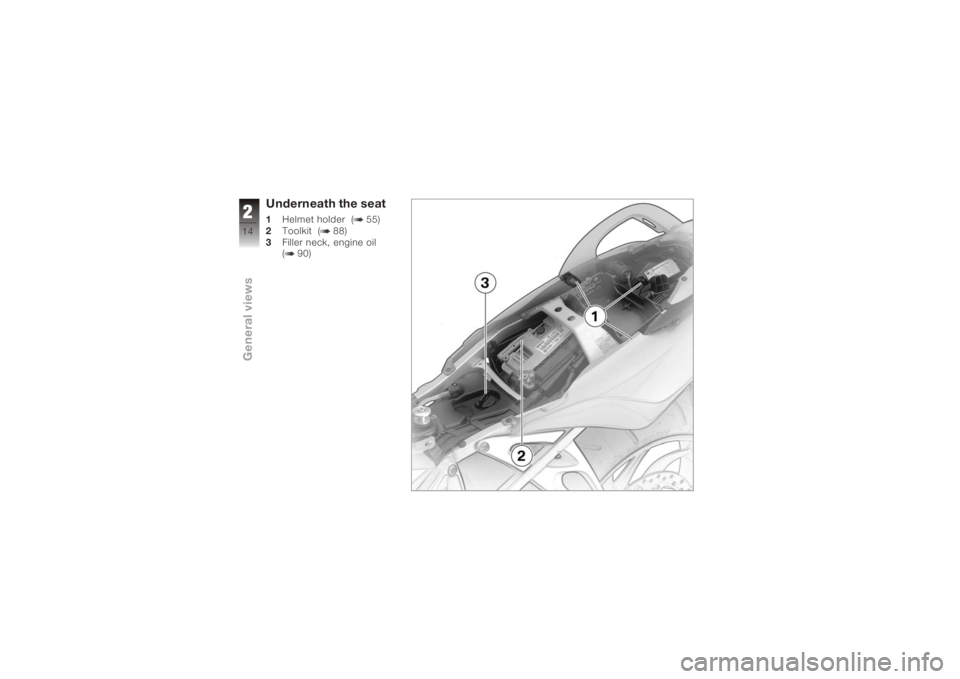

Underneath the seat1Helmet holder ( 55)
2 Toolkit ( 88)
3 Filler neck, engine oil
( 90)
214zGeneral views

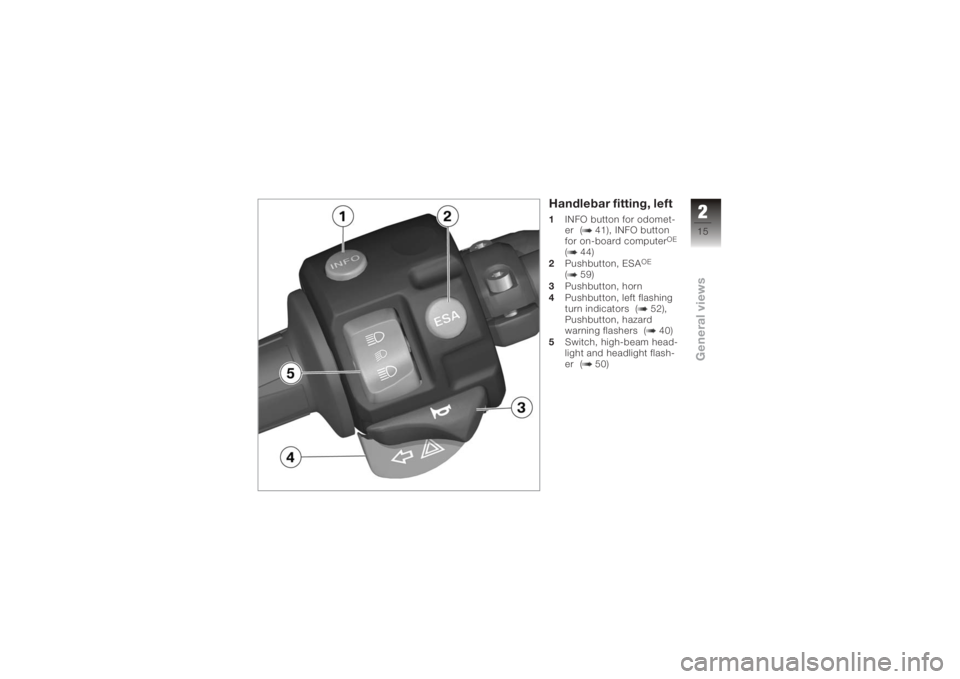

Handlebar fitting, left1INFO button for odomet-
er ( 41), INFO button
for on-board computer
OE
( 44)
2 Pushbutton, ESA
OE
( 59)
3 Pushbutton, horn
4 Pushbutton, left flashing
turn indicators ( 52),
Pushbutton, hazard
warning flashers ( 40)
5 Switch, high-beam head-
light and headlight flash-
er ( 50)
215zGeneral views

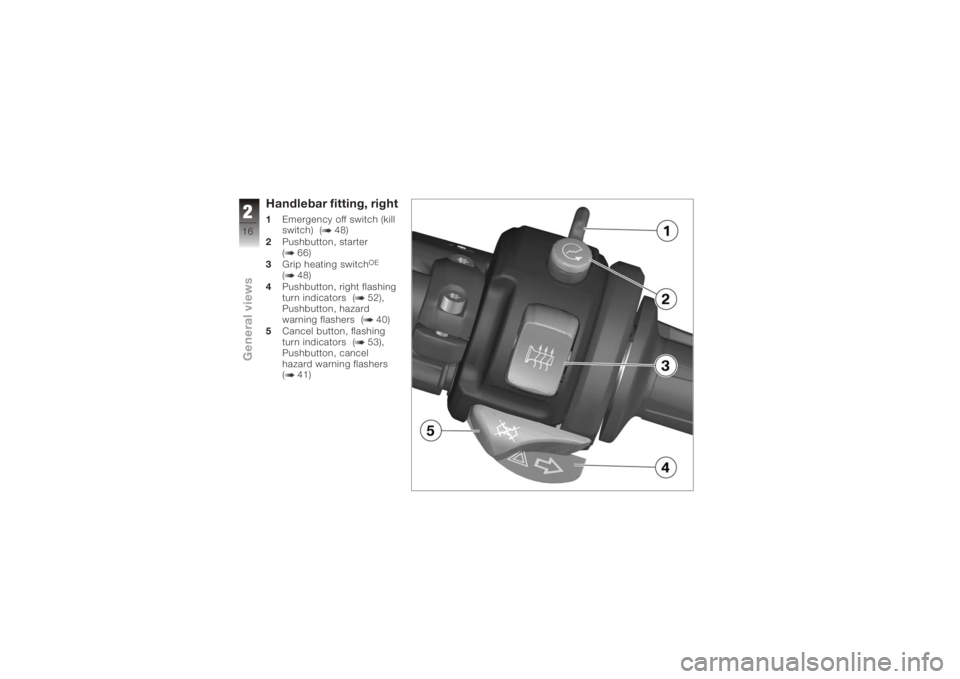

Handlebar fitting, right1Emergency off switch (kill
switch) ( 48)
2 Pushbutton, starter
( 66)
3 Grip heating switch
OE
( 48)
4 Pushbutton, right flashing
turn indicators ( 52),
Pushbutton, hazard
warning flashers ( 40)
5 Cancel button, flashing
turn indicators ( 53),
Pushbutton, cancel
hazard warning flashers
( 41)
216zGeneral views

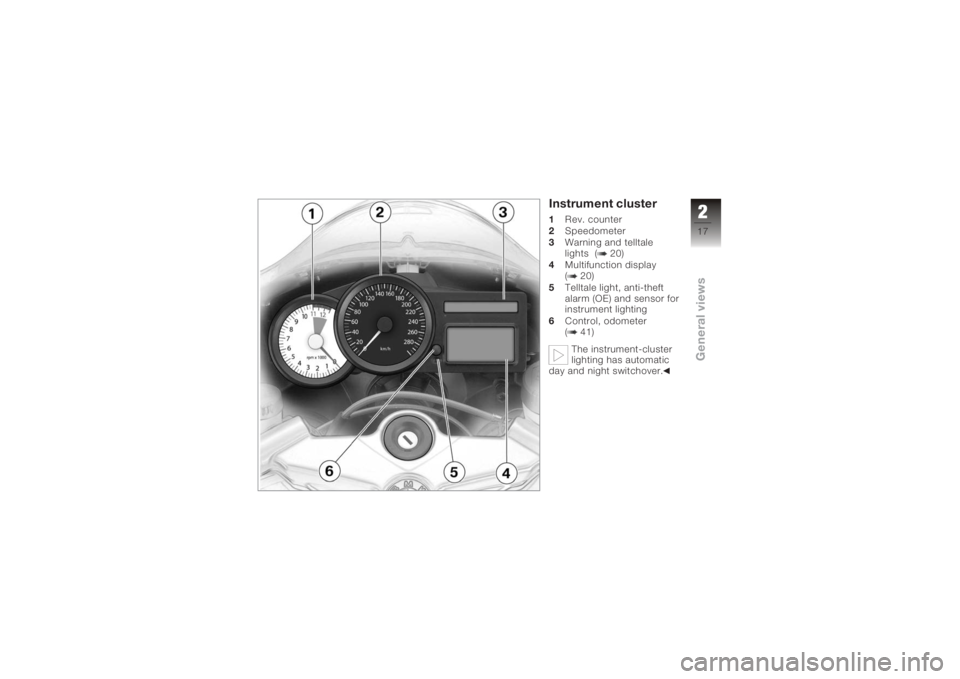

Instrument cluster1 Rev. counter
2 Speedometer
3 Warning and telltale
lights ( 20)
4 Multifunction display
( 20)
5 Telltale light, anti-theft
alarm (OE) and sensor for
instrument lighting
6 Control, odometer
( 41)
The instrument-cluster
lighting has automatic
day and night switchover.
217zGeneral views

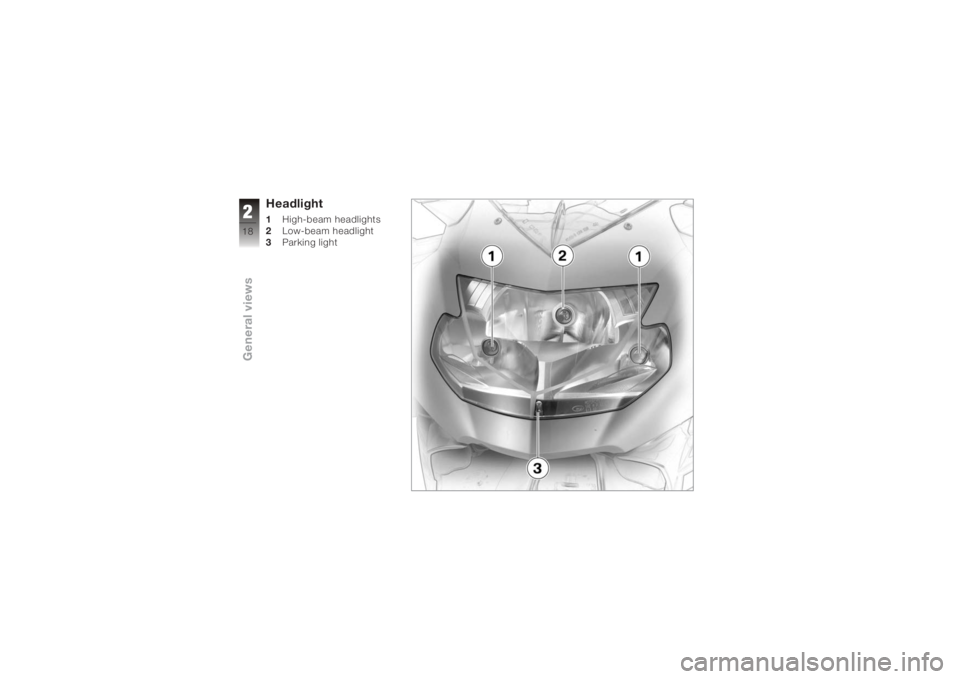

Headlight1High-beam headlights
2 Low-beam headlight
3 Parking light
218zGeneral views
